2A3FOGR-SDL05XX-13Smart Down Light

Color Frequency Power 2700-6500K+RGBAC110-130V 13W60Hz1100lm Input Voltage Luminous Flux 1: Search “Tuya Smart” from App store or Google play. Turn on the Smart Down Light and enter the home of APP while ensure Bluetooth on. Smart Down Light will flashing when turn on the power supply. Stay at the home page and found the push notification, then click ”Go to add”. Open the Tuya Smart APP, sign up for a new account or log in with an existing account. 2: Scan the QR code from the label or user manual. The APP is compatible with Android 4.4 and IOS9.0 and higher version. Android 4.4iOS 9.0 FeaturesDownload AppDevice Pairing The Smart Down Light is added once they are communicating on the same Wi-Fi Network. You can rename the smart device by clicking on the pencil icon. Press the “Done” button at the bottom of screen to continue to next step. Confirmation After the device is connected successfully. The device name of the smart lamp shows in the list. Tap it to enter the control panel of the Smart Down Light. Control Device Select the Wi-Fi connected to the smart device, input the Wi-Fi password, and then click “Next” to wait for the matching to succeed. (Make sure smart devices share the same Wi-Fi) Note: Only 2.4GHz b/g/n network supported Push NotificationStay on the Home Page Enter the Password of Newtwork The interface of connecting will appear, when the device is found, the lamp will stop blinking and then initializing device will be complete. Connecting Log In / Register Account Number Parameters Technical Drawing Wi-F i & Bluetooth Connection Voice Control No Hub Required Grouping Sync with Music Timer & Schedule Dimmable Circadian Rhythm Remote Control White ModeColor Mode The White Mode screen will allow basic controls over the standard lighting mode. • Bright controls the brightness • Color Temp allows the light to take different moods White Mode Color Mode allows additional controls over the lighting. • Saturation will give more brilliance to the lighting • Bright will allow control over light intensity Color Mode Scene ModeSync with Music Choose from a variety of scenes or create your own. You can create a scene for movie night, a party scene with colorful light, or even a candlelit scene with warm, low lighting. Scene Mode Choose Music Sync to match color changes to the beat of the music playing on your speakers. Sync with Music Connecting Added Successfully Enter/Confirm Wi-Fi Password 186mm 60mm Male Connector E26 Socket Adapter TimerPlanAdd to Select plan typeRandom timingCycle timing 1.Make sure the power is turned off at the source to the recessed can. 2.Screw the E26 socket adapter into recessed can socket by turning clockwise. (This retrofit downlight was set for 5-6 inch fixture housing) 3.Plug E26 adapter’s male connector to the downlight’s female connector. 4.Push two ends of the Flip Clip toward each other till it can fit into the recessed can. 5.Install the downlight up into recessed can firmly until the rim ring is flush with the ceiling. 6.Turn on the power supply and connect with our App to control the light. Installation Click the interface to control it according to the specific mode of the specific Smart Down Light. The following is public function introduction. Remote Control: The Smart Down Light can be controlled anywhere after the smart device is successfully connected. Timer Function: Set the timer to turn ON and turn OFF the Smart Down Light. Intelligent Scene: The system sets a variety of intelligent scenes, and different scenes correspond to different lighting atmospheres. Grouping: Group control is available (only for the same type of product). Family room management. Device Sharing: The device is shared with other user control devices in the home. App Function Introduction In the Tuya Smart APP: Find more service in “Me” menu, click to enter “voice service” (Alexa/ Google Assistant) and other services, click on the service you need. Connect to the third-party service device according to the operation guide. Third Party Control For any product and APP updating,please contact with customer service. Smart Down Light UMNAK Multicolor & Tunable White Set schedules based on your preferences and daily needs. Choose individual actions for each Flood Light, set the same schedule for more than one day, and create a schedule for a group of Down Lights. Schedules are a great way to have your lights work around your life. Schedule Mode 1.Change the color temperature of the lights adjusts naturally to keep your body in its natural rhythm. 2.Light has a big effect on our circadian rhythm and our regular lighting interferes with your circadian rhythm causing health problems. 3.Our Smart Down Light can be programmed to give you the correct amount of light at the correct color temperature to work in harmony with our circadian rhythm instead of against it. Circadian Rhythm If you got two or more light, please tap " " at the upper right corner of the control panel and create group. The smart lamp group will realize synchronous switch, color changes, the scene mode selection, timer, etc. Group Control ScheduleAdd ScheduleRhythms RhythmsCreate GroupSelect Device 1. Click "More" 2. Click "Plan" 3. You can select plan type "Sleep plan" 4. First configure the hours (left) 5. Next configure minutes (right) 6. You can customize the repetition time 7. Click "Save" to save the settings Sleep Mode 1. Click "More" 2. Click "Plan" 3. You can select plan type "Wake up plan" 4. First configure the hours (left) 5. Next configure minutes (right) 6. You can customize the repetition time 7. Click "Save" to save the settings Wake Mode Select plan typeSleep ModeWake Mode OFF 123 ON 165 4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can r…

Text truncated - open the document above for the full version.

GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Agent Authorization Company: GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address: FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Product Name: Smart Down Light Trade Mark: N/A Model Number: GR-SDL05XX-13 FCC ID: 2A3FOGR-SDL05XX-13 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-03-02 Name: zhiwen Zhao Title: Quality manager Company: GRACE (NINGBO) SMART TECHNOLOGY CO., LTD

GRACE (NINGBO) SMART TECHNOLOGY CO., LTD FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Date: March 02, 2022 FCC ID: 2A3FOGR-SDL05XX-13 Model Number: GR-SDL05XX-13 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, GRACE (NINGBO) SMART TECHNOLOGY CO., LTD hereby declare that our product (Smart Down Light) Model Number: GR-SDL05XX-13 will disable Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) by software and only open Bluetooth Lower Energy function (Bluetooth V5.1 LE&2LE) although Bluetooth modular BK7231N support both Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) and Bluetooth Lower Energy function (Bluetooth V5.1 LE&2LE) due to marketing purposes. End-user will only use Bluetooth Lower Energy function (Bluetooth V5.1 LE&2LE) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: zhiwen Zhao / Quality manager Company: GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address: FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Phone: 0574-89259209 Fax: 0574-89259209 E-Mail: [email protected]

GRACE (NINGBO) SMART TECHNOLOGY CO., LTD FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Date: March 02, 2022 FCC ID: 2A3FOGR-SDL05XX-13 Model Number: GR-SDL05XX-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, GRACE (NINGBO) SMART TECHNOLOGY CO., LTD declare that this EUT (FCC ID: 2A3FOGR-SDL05XX-13) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: zhiwen Zhao / Quality manager Company: GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address: FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Phone: 0574-89259209 Fax: 0574-89259209 E-Mail: [email protected]

GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-03-02 Subject; Request for Confidentiality FCC ID: 2A3FOGR-SDL05XX-13 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: zhiwen Zhao Title: Quality manager

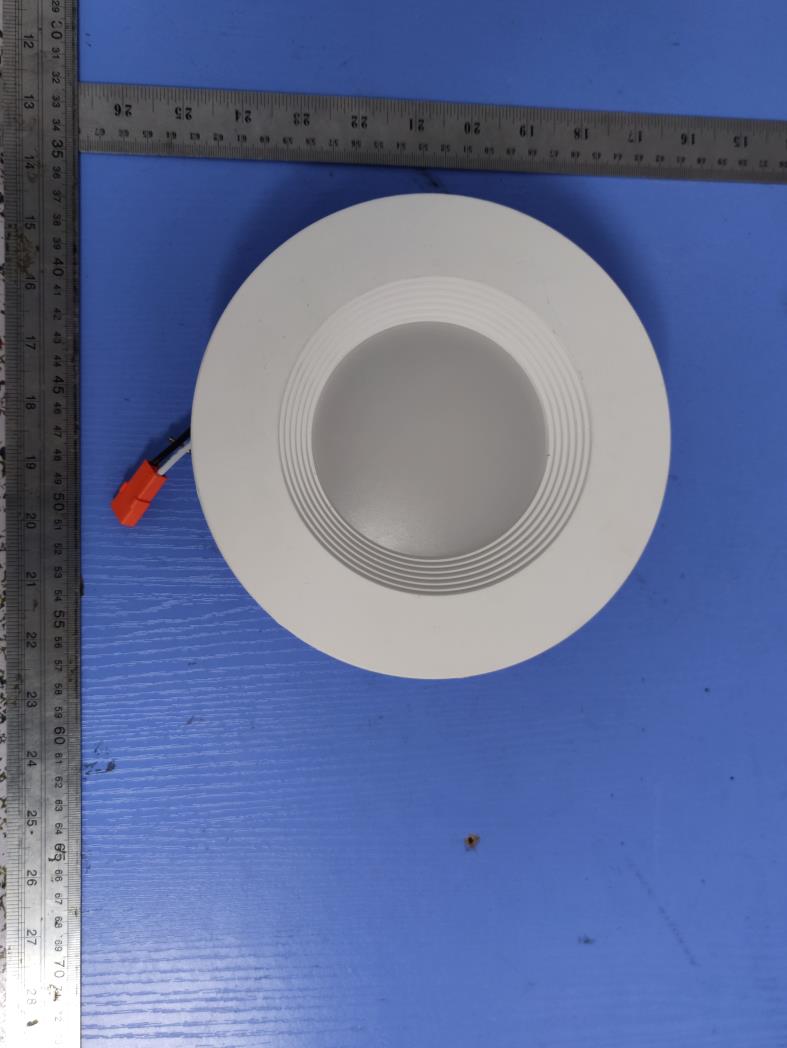

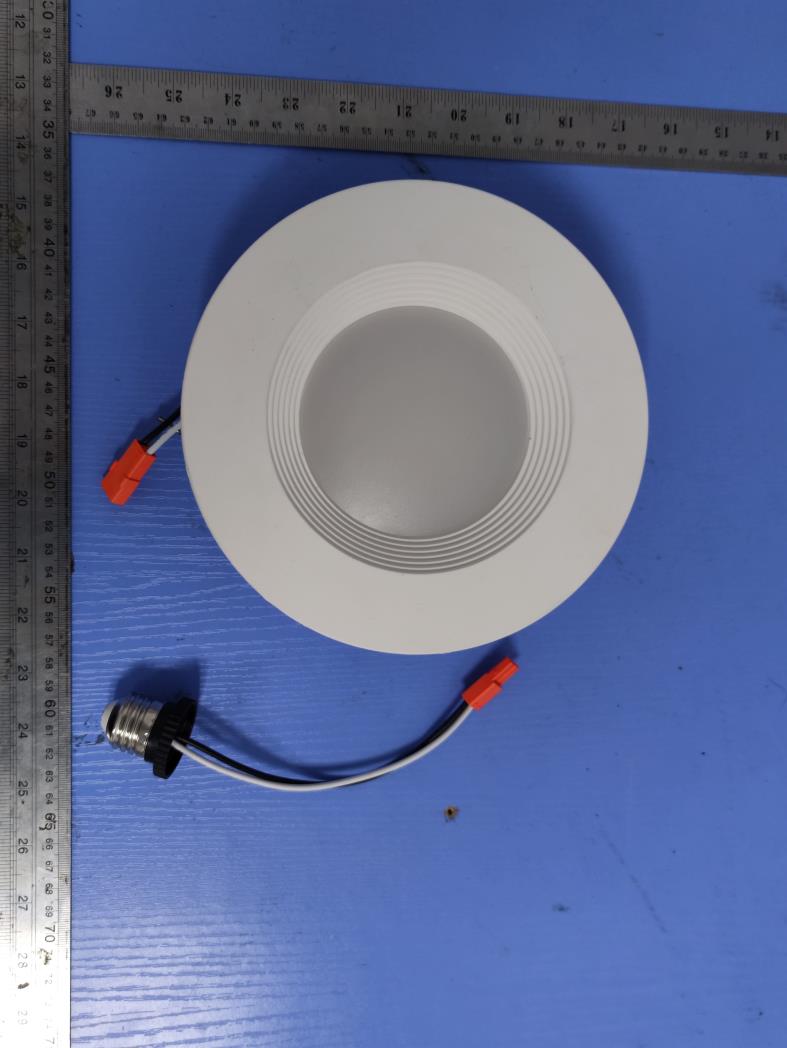

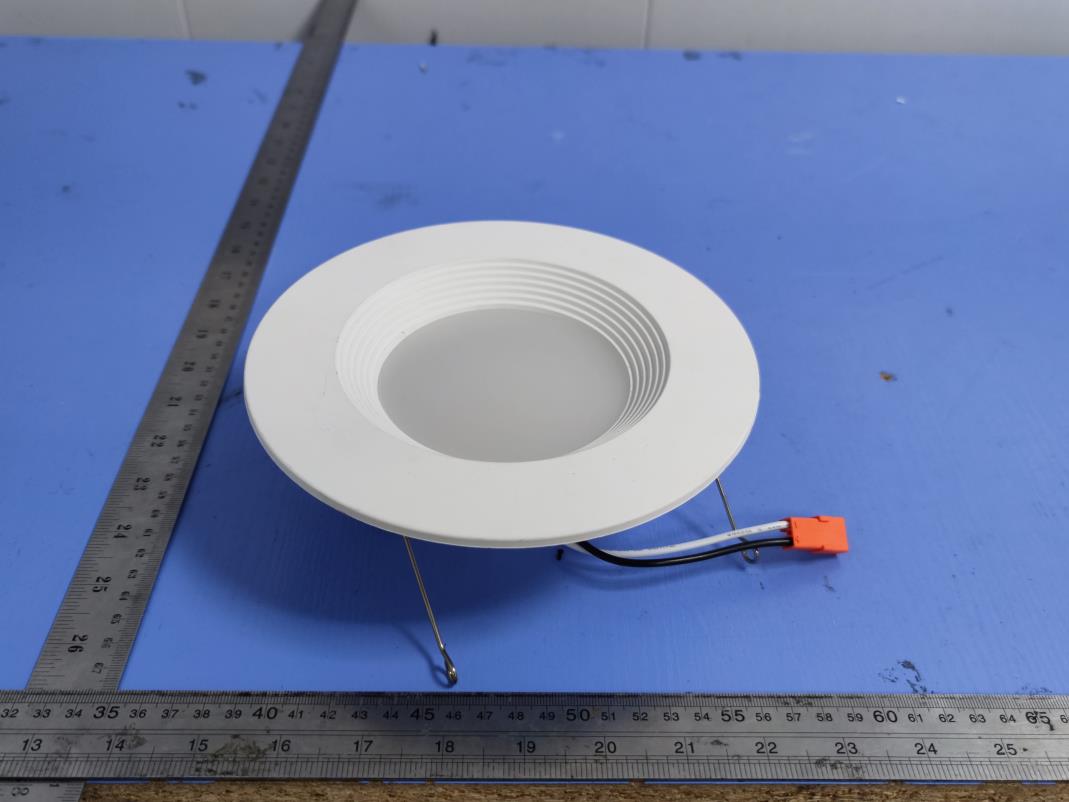

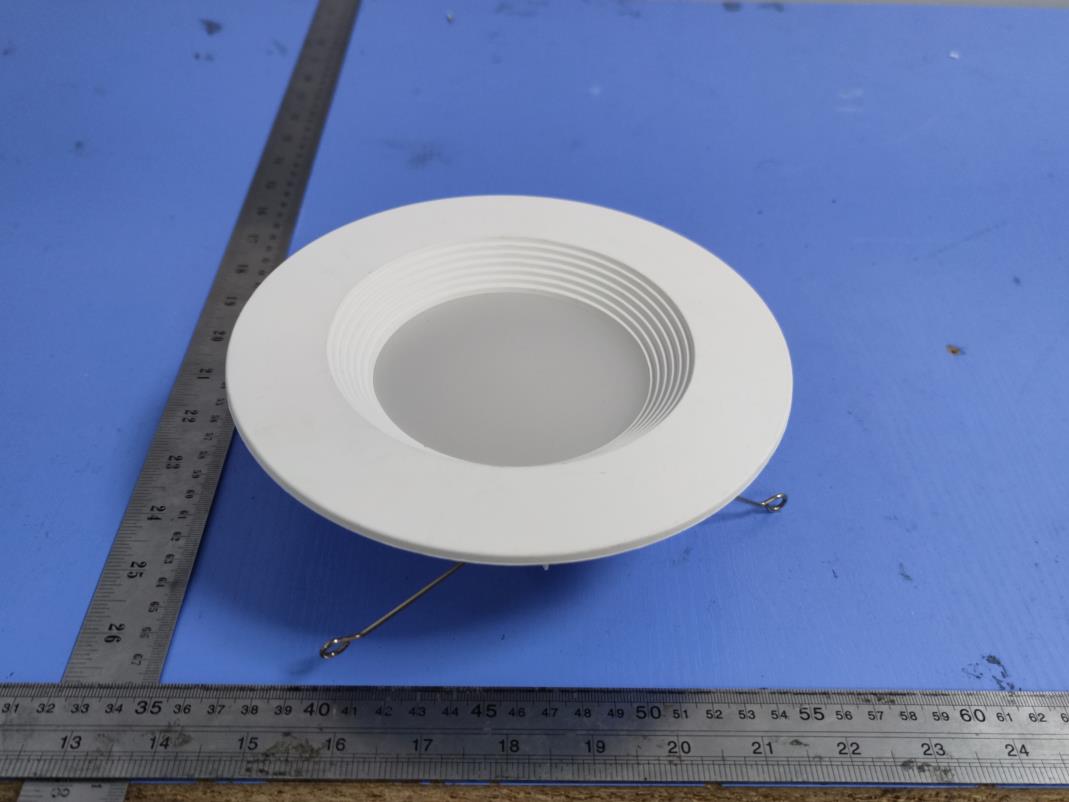

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Smart Down Light Model No.: GR-SDL05XX-13 FCC ID: 2A3FOGR-SDL05XX-13

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Internal Photos of the EUT Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Bluetooth and 2.4G WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2A3FOGR-SDL05XX-13 Product name Smart Down Light Model number GR-SDL05XX-13 Power supply Input: AC 110-130V, 60Hz, 13W Modulation Type GFSK for Bluetooth V5.1(DTS) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Internal Antenna Antenna Gain 1.9dBi(Max.) Hardware version CB2L Software version 20210928 FCC Operation frequency 2402MHz-2480MHz for Bluetooth 2412MHz-2462MHz 2.4G WLAN Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information GR-SDL05XX-13’S Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna 2402-2480MHz for Bluetooth and 2412-2462MHz for 2.4G WIFI 1.9dBi Bluetooth and 2.4G WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 6.37 19 2440 6.47 39 2480 4.78 <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 18.26 6 2437 18.56 11 2462 19.23 IEEE 802.11g 1 2412 20.93 6 2437 21.53 11 2462 22.04 IEEE 802.11n HT20 1 2412 20.04 6 2437 20.70 11 2462 21.14 IEEE 802.11n HT40 3 2422 19.08 6 2437 19.00 9 2452 19.13 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 6.0 6.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 18.0 18.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 20.0 21.0 22.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 20.0 20.0 21.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 19.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 This report shall not be reprodu…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Smart Down Light Test Model: GR-SDL05XX-13 Prepared for : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 23, 2022 Number of tested samples : 2 Sample No. : 220223006A-1, 220223006A-2 Serial number : Prototype Date of Test : February 23, 2022 ~ March 01, 2022 Date of Report : March 02, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ....................... : LCS220223006AEA Date of Issue ........................................ : March 02, 2022 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address ................................................ : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description................................. : Smart Down Light Trade Mark .......................................... : N/A Test Model ........................................... : GR-SDL05XX-13 Ratings ................................................. : Input: AC 110-130V, 60Hz, 13W Result ................................................. : Positive Compiled by: Supervised by: Approved by: Lh Li/Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : GR-SDL05XX-13 EUT......................................... : Smart Down Light Applicant............................... : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address.................................. : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address................................... : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax.......................................... : / Factory................................... : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address................................... : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS220223006AEA March 02, 2022 Date of issue Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revision Content Revised By 000 March 02, 2022 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1. DESCRIPTION OF DEVICE (EUT) .........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Smart Down Light Test Model: GR-SDL05XX-13 Prepared for : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 23, 2022 Number of tested samples : 2 Sample number : 220223006A-1, 220223006A-2 Serial number : Prototype Date of Test : February 23, 2022 ~ March 01, 2022 Date of Report : March 02, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS220223006AEB Date of Issue ................................. : March 02, 2022 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address ......................................... : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF.................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ......................... : Smart Down Light Trade Mark .................................... : N/A Test Model ..................................... : GR-SDL05XX-13 Ratings .......................................... : Input: AC 110-130V, 60Hz, 13W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3FOGR-SDL05XX-13 Report No.: LCS220223006AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : Smart Down Light Test Model............................... : GR-SDL05XX-13 Applicant............................... : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address.................................. : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address................................... : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax.......................................... : / Factory................................... : GRACE (NINGBO) SMART TECHNOLOGY CO., LTD Address................................... : FLOOR 3, BUILDING 1, NO. 655-77, QIMING ROAD, YINZHOU DISTRICT, Ningbo Zhejiang Province 315104 China Telephone............................... : / Fax…

Text truncated - open the document above for the full version.
