V16 USER MANUAL 70*90mm 反面 外框线不印刷，只做参考 Thank you very much for buying this product.You are advised to read this user manual carefully before using this product. Attention: Pull out this product from the cigarette lighter if it is not in use for a long time.Put this product into cigarette light after the car engine is started to avoid any possible damage of high voltage on this product. Product functions: 1) Support USB port devices that charging in car such as mobile phones, ordinary MP3, MP4, tablet etc. 2) This product is an international standard USB interface, supporting car with 12V-24V,universal for large and small cars. 3)12 modes ambient lighting 4)Single bluetooth earphone(Usage method) Bluetooth earphone connection name:BT-EJ When a call comes in:Short press once the phone key to answer the call,long press for two seconds the phone key to hang up. Long press for five seconds the phone key to switch on/switch off. Short press once the phone key to pause the song,long press for two seconds the phone key to switch to the next song. Voice control answer/reject incoming calls,say "yes" to automatically answer the call;Say "no" to automatically reject the call. Technical Parameters: Working voltage: DC:12V-24V USB output:Huawei super fast charging 22.5W/QC3.0 Adaptive charging(5.5V/4A,9V/2A,12V/1.5A) Type C charging port:PD36W Adaptive charging(5V/3A,9V/3A,12V/3A) Single power supply:The USB charging port and the Type C charging port simultaneously charge a maximum of 15W shunt current. Bluetooth earphone battery capacity:45mAH Bluetooth version 5.0 USB charging port:super fast charging 22.5W/QC3.0 Type-C charging port：PD36W Control key Dimming key Negative electrode Positive electrode FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

Dongguan KWD Electronic Co.,Ltd Section 2.911(dXsXi) Certification - Equipment Type Company name:Dongguan KWD Electronic Co.,Ltd Address:3rd Floor,Building 1,No.15,3rd street of Tanglian Lian Hu community, Tangxia Town, Dongguan ci$, Guangdong Province, China Product Name:Car bluetooth FCC lD:2A3lA-\116 Model(s):V16, Vt5, V17, V18, V1g, C26, C34, CS1, CSz, CS3, CS4, CSs, CS6, CS7, CS8 2.9{ {{dx5}(i} Equipment Type We, Dongguan KWD Electronic Co.,Ltd certify that the equipment forwhich authorization is sought through certification is not: . Prohibited from receiving an equipment authorization pursuant to $ 2.903; of the FCC rules. r lder*ified as an equipment type in the "Covered Lisf' NorE 1 KWD Electronic Co.,Ltd NOTE 1 "Covered List"; is ihe Lisi of Equipment and Services Covered By Section 2 of The $ecure Networks Act, available at https :llwww.fcc. sov/supplvchain/coveredlist References; 1) 9862{45 D01 Covered Equipment v01 https://apps.fcc.qov/oetcf/kdb/forms/FTSSearchResultPaoe.cfm?switch=P&id=325672 2) Federal Register document 2A22-28263 published on 0?06/23 httos://www.federalreqister.oov/documentsl2023102/06/2022-28263/Drotecting-against-national-security-threats-to-the-com munications-supplv-chain-throuqh-the 2.911 {dX5Xi) Equipment Type Attestation vl".2

Dongguan KWD Electronic Co.,Ltd S ection 2.911 (d)(5)(ii) Certification -Applicant (Covered List) Company name: D ongguan KWD Electronic Co. , Ltd Address:3rd Floor,Building 1,No.15,3rd street of Tanglian Lian Hu community, Tangxia Town, D ongguan city, Guangdong Province, China Product Name:Car bluetooth FCC ID:2A31A-V16 M odel(s):V16, V15, V17, V18, V19, C26, C34, CS1, CS2, CS3, CS4, CS5, CS6, CS7, CS8 2.911(d)(5)(ii) Appl icant f i l i n g We, Dongguan KWD Electronic Co.,Ltd certify that, as of the date of the f由ngof the application, the applicant is not identified NOTE 1 on the "Covered List" NOTE 2, established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment Yours sincerely , d t L 。 c c n。r t ce EDwk nauggn。 D 扒§ y } 七 。 ， ` c 臼 NT Date:2023. 02. 09 NOTE 1 Delete option not applicable to this application NOTE2 "Covered List"; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https:I/www.fcc.qov/supplychain/c凶ered|ist References, 1)986446 D01 Covered Equipment v01 httos://aoos.fcc.aov/oetcf/kdb/forms/FTSSearchResultPaae.cfm?switch=P&id=325672 2)Federal Register document 2022-28263 published on 02/06/23 httos://www.federalreaister.aov/documents/2023/02/06/2022-28263/orotectina-aaainst-national-securitv-threats-to-the-com m un ica tion s-s upply-chain-throuqh-the 2.911 (d)(S)(ii) Applicant Attestation vl.2

Company name. Address: Product Name:Car bluetooth FCC lD:2A3IA-V16 Model(s):V16, V15, V17, V18, V19, C26, C34, CSl, CSz, CS3, CS4, CSs, CS6, CS7, cs8 2,91{(dX7} USA Designated Agent for Service of Process We, designate for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year afier either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is latei. USA Agent Company name: Address: Contact Name: Telephone No: Email: GSS SERVICE INC GSS SERVICE INC Michoux Logan 001-949-2990192 [email protected] GSS SERVICE INC 6547 N Academy Blvd #2266 Colorado Springs Co 80918 USA GSS SERVICE INC GSS SERVICE INC FRN 6547 N Academy Blvd #226 Colorado Colorado United States : 0033402082 Signature: Title: Manager Date:2023.02.09 三监。女酌 NOTE 1: An applicant located in the United States may designate of process. Reference; Federal Register document 2022-28263 published on 02/06/23 httos://www.federalreoister.oov/documents/2023/02/06/2022-28263/orotectina-aaainst-nation al-securi�h-the 2.911 (d)(7)USA Agent vl.2

Dongguan KWD Electronic Co.,Ltd Agent Authorization Com pany: Dongguan [$t D Electronic Co.,Ltd Address:3rd Floor,Building 1,No.I5,3rd street of Tanglian Lian Hu community, Tangxia Tourn, Dongguan city, Guangdong Province, China Product Name:Car bluetooth Model Number(s):V{6, V{5, V17,V18,V{9, C26, C34, G$1, GS2, CS3, C$4, CS5, cs6, cs7, csg Product Description :Car bluetooth We authorize MiCOM Labs lnc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs lnc. is allowed to fonrvard all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by M|COM Labs on our behalf shall have the same effect as acts of our own. Signature: Name: Title: Company:

Dongguan KWD Electronic Co.,Ud V16_Model Difference Product description: Car bluetooth Model name: V16, V15, V17, V18, V19, C26, C34, CS1, CS2, CS3, CS4, CS5, CS6, CS7, CS8 FCC ID: 2A31A-V16 All the models are the same circuit and RF module. Only the model names are different. The model V16 is the tested sample. Regards Sincerely Client's si Client's na Contact in loor,Building 1,No.15,3rd street of Tanglian Lian community, Tangxia Town, Dongguan city, �uangdong Province, China

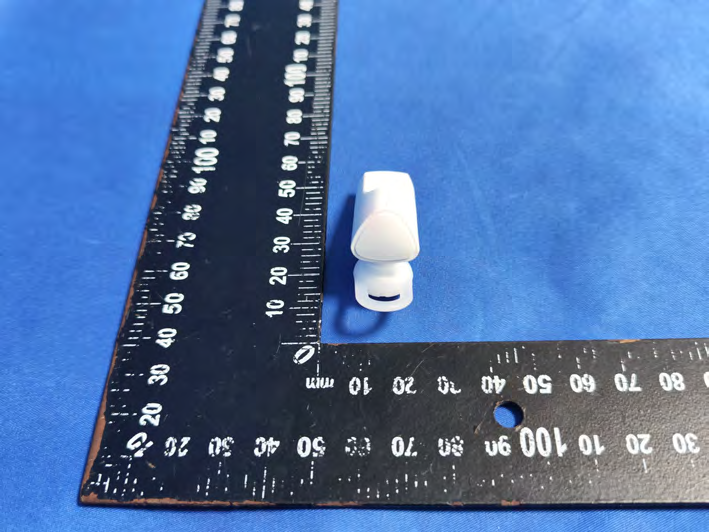

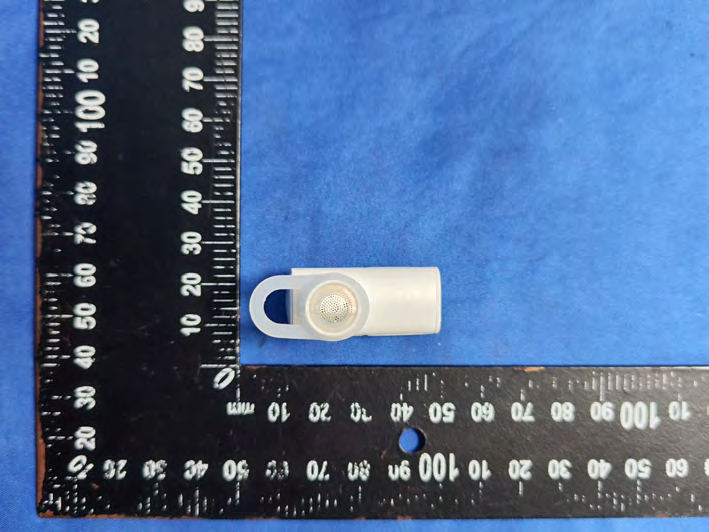

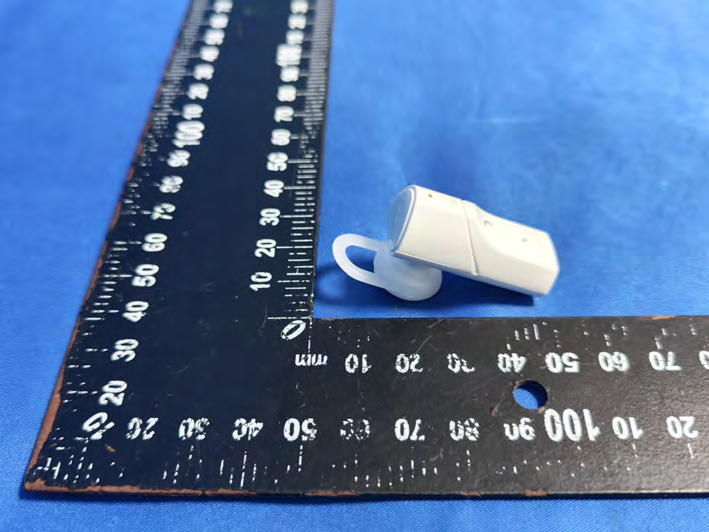

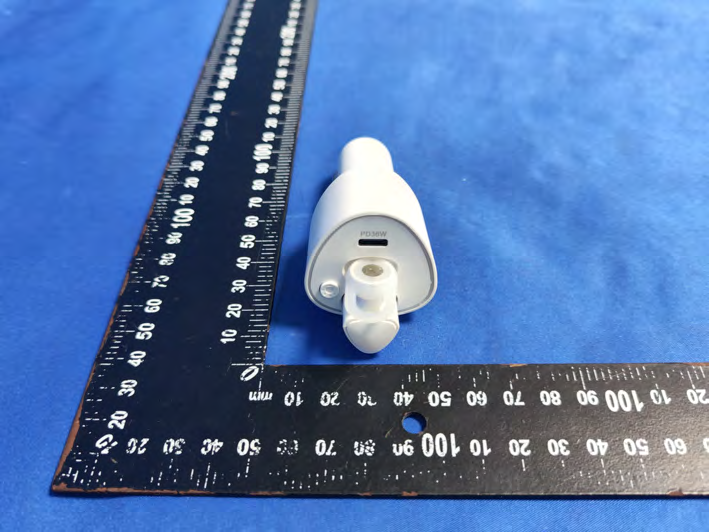

FCC ID: 2A3IA-V16 EUT PHOTOS(ExternalPhotos) FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16

FCC ID: 2A3IA-V16 L*W:1.5*0.6cm

FCC ID: 2A3IA-V16 EUT PHOTO(InternalPhotos) FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 FCC ID: 2A3IA-V16 ※※※※※END OF REPORT※※※※※ ANT

FCCID:2A3IA-V16 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBluetooth Mode Max Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit BR/EDR1.961 ± 11.58248050.4993.0 SoaSARtestisnotrequired

ANTENNA SPECIFICATION Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.88mm Manufacture Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536
