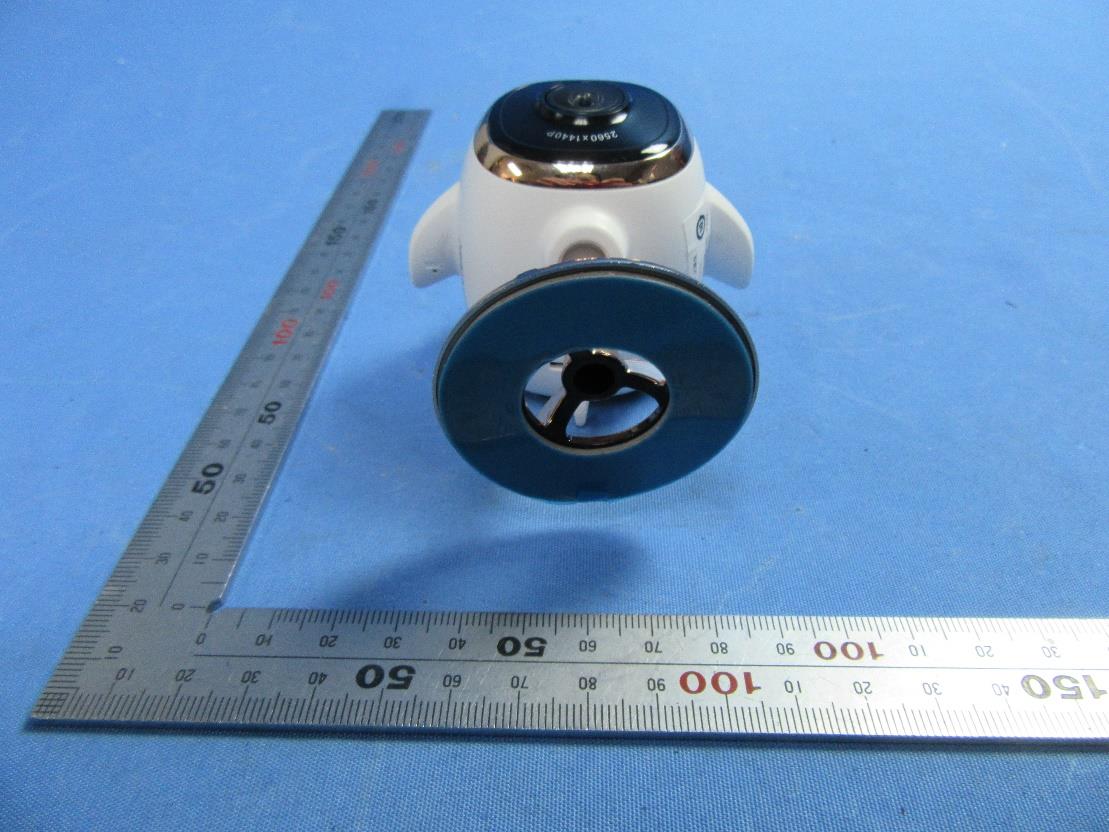

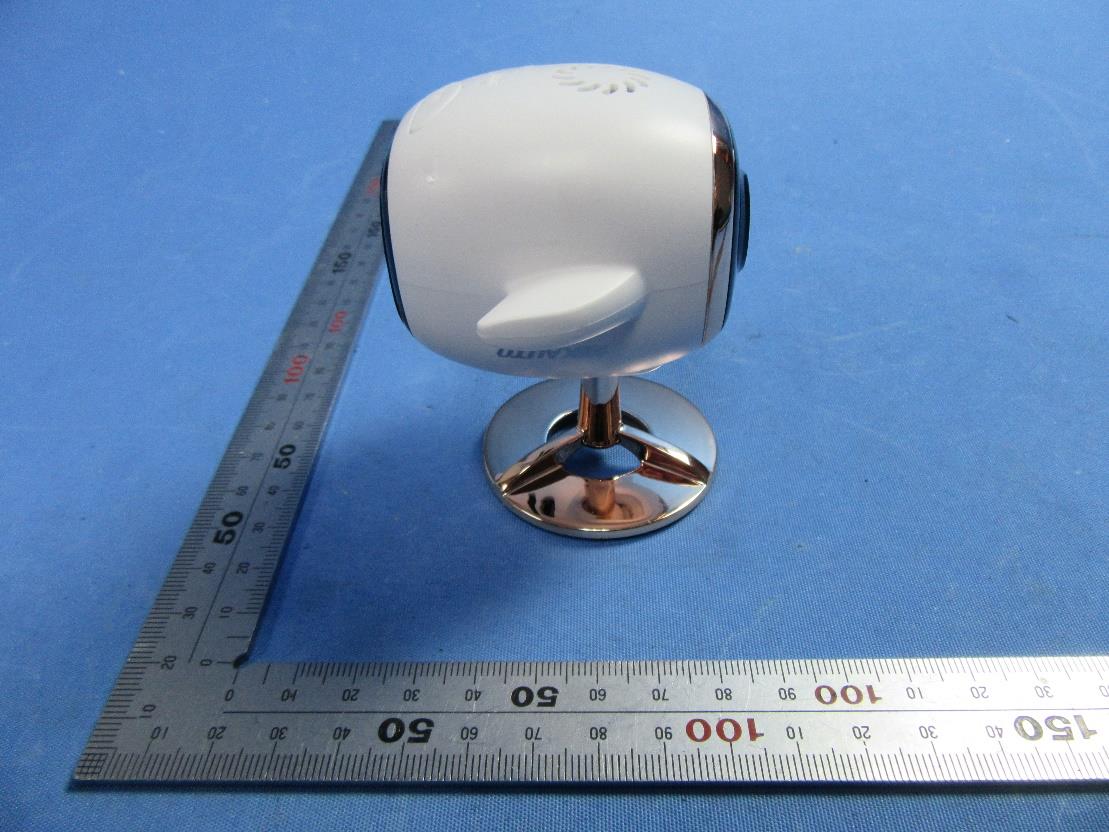

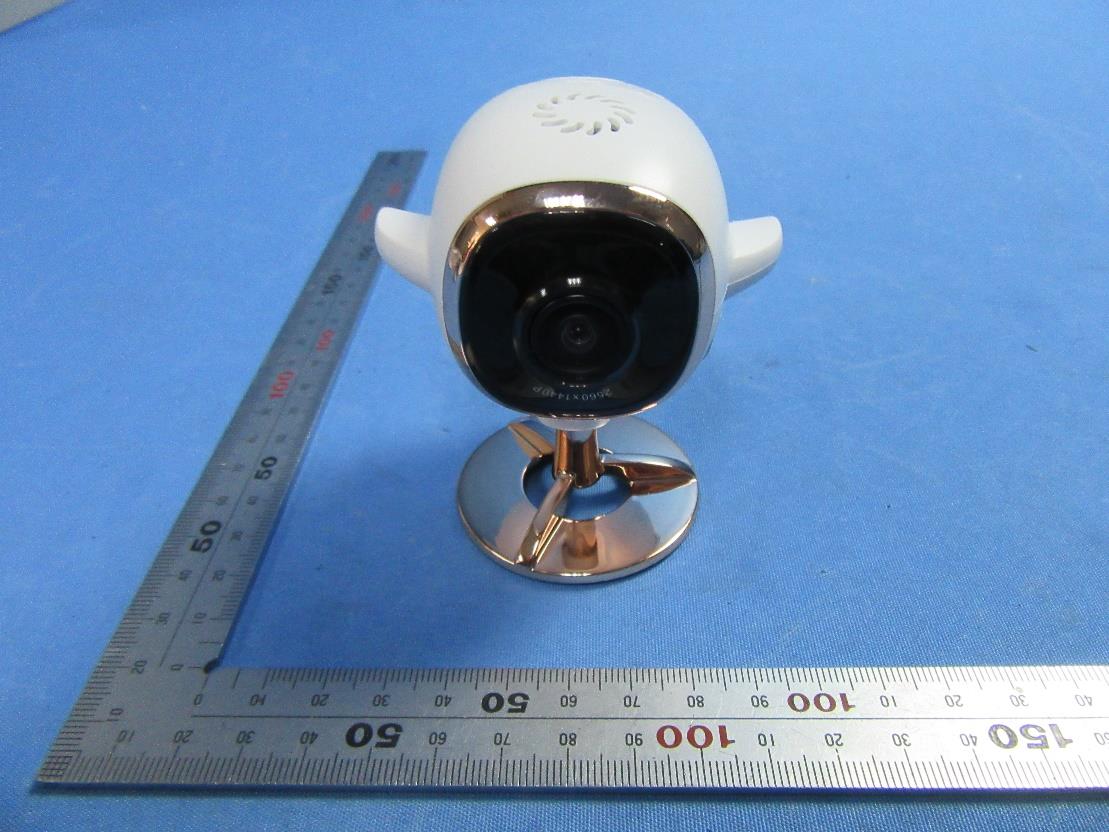

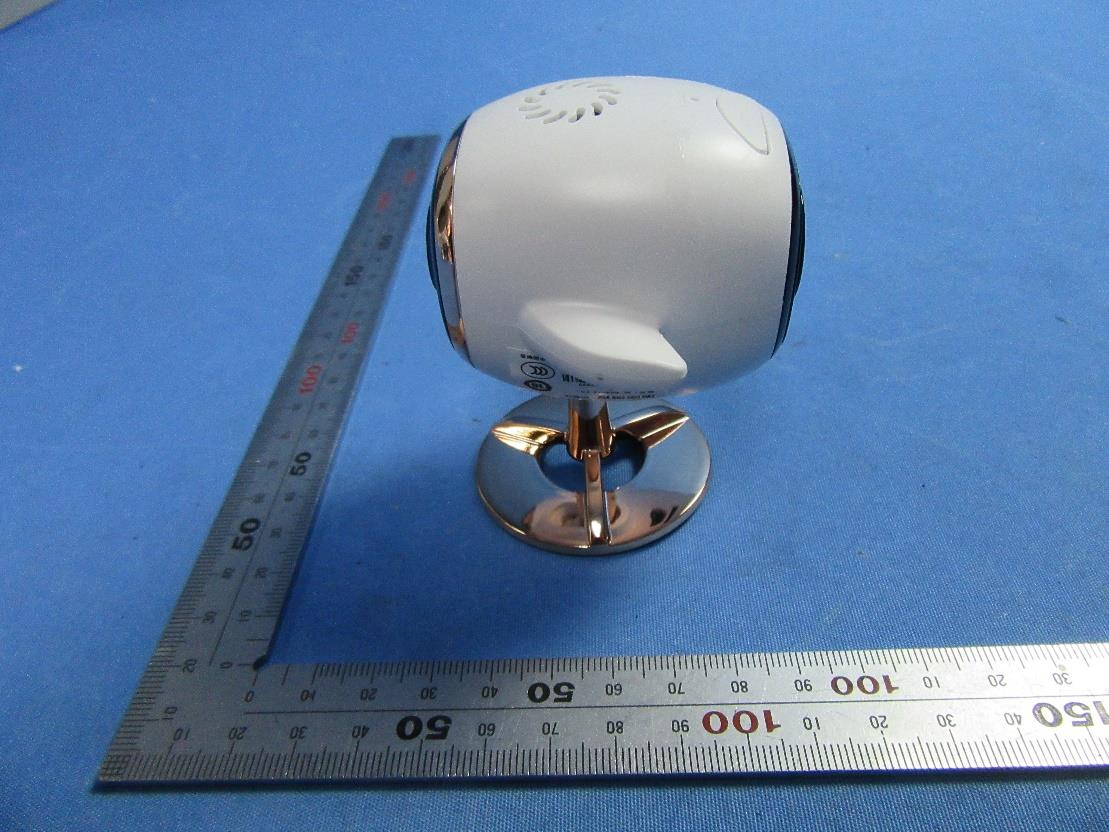

Compliance Certification Services (Kunshan) Inc. Page: 1 of 5 External Photos for KSCR2210002035AT Compliance Certification Services (Kunshan) Inc. Page: 2 of 5 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 5 Compliance Certification Services (Kunshan) Inc. Page: 4 of 5 Compliance Certification Services (Kunshan) Inc. Page: 5 of 5

Compliance Certification Services (Kunshan) Inc. Page: 1 of 6 Internal Photos for KSCR2210002035AT Compliance Certification Services (Kunshan) Inc. Page: 2 of 6 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 6 Compliance Certification Services (Kunshan) Inc. Page: 4 of 6 Compliance Certification Services (Kunshan) Inc. Page: 5 of 6 Compliance Certification Services (Kunshan) Inc. Page: 6 of 6

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203502 Page: 1 of 9 Eric Lin Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2210002035AT FCC ID: 2A3IQ-AEF5 Applicant: Hangzhou HikAuto Technology Co., Ltd. Address of Applicant: Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China Manufacturer: Hangzhou HikAuto Technology Co., Ltd. Address of Manufacturer: Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China Factory: Hangzhou HikAuto Technology Co., Ltd. Address of Factory: 1, Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China 2, No.188,Dongjia Road, Tonglu County ,Hangzhou City, Zhejiang,311500, China 3, No.700,Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China Equipment Under Test (EUT): EUT Name: DashCam Model No.: AE-DC4015-F5, AE-DC4015-F5PRO, AE-DC4015-F5S, AE-DC4015-F5PLUS, AE-DC4015-F5PLUS, AE-DC4XXX-FXXXXX (X=0-9 or A-Z or / or - or * or blank)   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2022-10-28 Date of Test: 2022-10-28 to 2022-11-03 Date of Issue: 2022-11-04 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203502 Page: 2 of 9 Revision Record Version Description Date Remark 00 Original 2022-11-04 / Authorized for issue by: Damon Zhou/Project Engineer Eric Lin /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203502 Page: 3 of 9 2 Contents Page 1 COVER PAGE .................................................................................................................................... 1 2 CONTENTS ........................................................................................................................................ 3 3 GENERAL INFORMATION ................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................ 4 3.2 DETAILS OF E.U.T. ....................................................................................................................... 4 3.3 SEPARATION DISTANCE ................................................................................................................ 4 3.4 TEST LOCATION ............................................................................................................................ 4 3.5 TEST FACILITY .............................................................................................................................. 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................... 6 4.1 BLANKET 1 MW BLANKET EXEMPTION ........................................................................................... 6 4.2 MPE-BASED EXEMPTION .............................................................................................................. 6 4.3 SAR-BASED EXEMPTION ............................................................................................................... 7 5 MEASUREMENT AND CALCULATION ............................................................................................ 9 5.1 MAXIMUM TRANSMIT POWER ......................................................................................................... 9 5.2 RF EXPOSURE CALCULATION ........................................................................................................ 9 Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203502 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 5V 1A from Charger Charger Model: TC16A2-0503100D Input: DC12V-24V Output: DC5.0V 3.1A 3.2 Details of E.U.T. Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz;802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK);802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: Chip Antenna Antenna Gain: 3.0 dBi (Provided by manufacturer) 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203502 Page: 5 of 9 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS- CL01 Accreditation C…

Text truncated - open the document above for the full version.

Antenna specification： Design Specifications Typical Units 天线形式 Chip 工作频率 (working Frequency) 2400 MHz～2500 MHz； 5000 MHz ~ 6000 MHz MHz 增益（ Gain ） Peak Gain (Max) 3.0 dBi Typ.--- ( 2400 MHz～2500 MHz)； Peak Gain (Max) 3.3 dBi Typ.--- ( 5000 MHz ~ 6000 MHz) dBi 天线效率（ Antenna efficiency ） Peak Efficiency(Max) 73.4% Typ. ---( 2400 MHz～2500 MHz)； Peak Efficiency(Max) 80.2% Typ. ---( 5000 MHz ~ 6000 MHz) % 电压驻波比（ VSWR ） ≤2 NA 极化方式 (Polarization) 线极化 NA 轴比 (Axial Ratio) >20 dB 辐射方向 (Radiation pattern) 全向 NA 馈电阻抗 (impedance) 50 ohm ohm 功率容量 (Power handling) Max 30dBm dBm 天线尺寸 (Overall dimensions) 5.2 x 3.7 x 0.7 mm 重量 (Weight) 50 mg/pcs 工作温度 (Working Temp) -40 to +105 °C 3D Gain Pattern (2450 MHz) Z X Y 2450 MHz 5500 MHz Chip Antenna L W H A B ACM3-5036-CC-A1 5.2±0.3 3.7±0.3 0.70±0.15 0.45±0.25 0.45±0.25 Antenna Dimension H L W A Marking is Black Top view B Bottom view (Unit: mm)

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203501 Page: 1 of 133 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2210002035AT FCC ID: 2A3IQ-AEF5 Applicant: Hangzhou HikAuto Technology Co., Ltd. Address of Applicant: Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China Manufacturer: Hangzhou HikAuto Technology Co., Ltd. Address of Manufacturer: Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China Factory: Hangzhou HikAuto Technology Co., Ltd. Address of Factory: 1, Room 309, Floor B, Building 2, No. 399, Danfeng Road, Binjiang District, Hangzhou City, Zhejiang,310052,China 2, No.188,Dongjia Road, Tonglu County ,Hangzhou City, Zhejiang,311500, China 3, No.700,Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China Equipment Under Test (EUT): EUT Name: DashCam Model No.: AE-DC4015-F5, AE-DC4015-F5PRO, AE-DC4015-F5S, AE-DC4015-F5PLUS, AE-DC4015-F5PLUS, AE-DC4XXX-FXXXXX (X=0-9 or A-Z or / or - or * or blank)   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2022-10-28 Date of Test: 2022-10-28 to 2022-11-03 Date of Issue: 2022-11-04 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203501 Page: 2 of 133 Revision Record Version Description Date Remark 00 Original 2022-11-04 / Authorized for issue by: Damon Zhou/Project Engineer Eric Lin /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203501 Page: 3 of 133 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247€ Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model AE-DC4015-F5 was tested since their differences are model number and software. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221000203501 Page: 4 of 133 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 POWER LEVEL SETTING USING IN TEST: .................................................................................................. 6 4.4 MEASUREMENT UNCERTAINTY .............................................................................................................. 7 4.5 TEST LOCATION .................................................................................................................................... 8 4.6 TEST FACILITY ...................................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ............................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 10 6.1 ANTENNA REQUIREMENT .................................................................................................................... 10 6.1.1 Test Requirement: ....................................................................................................................... 10 6.1.2 Conclusion ................................................................................................................................... 10 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 11 7.1 CONDUCTED PEAK OUTPUT POWER ........…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2210002035AT Test Model No.: AE-DC4015-F5 Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo RF Conducted Radiated Spurious Emissions Below 1GHz Compliance Certification Services (Kunshan) Inc. Page: 3 of 3 Radiated Spurious Emissions Above 1GHz The EUT Details of Zoom
