2A3MAEE1AI LED permanent lights

LEPRO INNOVATION INC. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: LEPRO INNOVATION INC. FRN: 0031168578 Contact Name: Vich Xun Address: 3651 Lindell Road Suite D1048, Las Vegas, NV 89103, USA Telephone No: 62872558 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: LEPRO INNOVATION INC. FRN: 0031168578 FCC ID: 2A3MAEE1 Contact Name: Vich Xun Address: 3651 Lindell Road Suite D1048, Las Vegas, NV 89103, USA Telephone No: 62872558 Email: [email protected] Applicant Signature: Date: 2025-11-11 Signed by (Printed Name/Title): Vich Xun/Manager

(Lepro Innovation INC) (2025.11.11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A3MAEE1) [Lepro Innovation INC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Vich Xun (Lepro Innovation INC) (2025.11.11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A3MAEE1) [Lepro Innovation INC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Vich Xun

Lepro Innovation INC 2025.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: AI LED permanent lights Trademark: MODEL : EE1-180, EE1-120, EE1-90, EE1-60, EE1-30 FCC ID : 2A3MAEE1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Vich Xun/Manager Contact information / address: 3651 Lindell Road Suite D1048, Las Vegas, NV 89103, USA

Lepro Innovation INC 2025.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Vich Xun/Manager Contact information / address: 3651 Lindell Road Suite D1048, Las Vegas, NV 89103, USA

LEPRO INNOVATION INC. Model Difference 2025-11-11 EUT NAME: AI LED permanent lights MODEL : EE1-180, EE1-120, EE1-90, EE1-60, EE1-30 FCC ID: 2A3MAEE1 IC: 27538EE1 All the model are the same circuit and RF module, except model names and the number of lamps. EE1-180 has 12 rows of lights, EE1-120 has 8 rows of lights, EE1-90 has 6 rows of lights, EE1-60 has 4 rows of lights, and EE1-30 has 2 rows of lights. Radiation and conduction were tested. The five models length of lamp strings and adapter are different, the RF chip remains unchanged. Model: EE1-180 Model: EE1-120 Model: EE1-90 Model: EE1-60 Model: EE1-30 Adapter 1 Information : (EE1-180） Manufacture: XY POWER SUPPLY LIMITED Model No.:XY90SR-290290VQ-UP Input: 100-120V~ 50/60Hz 2.5A Max Output: 29.0V2.9A Adapter 2 Information : (EE1-120） Manufacture:XY POWER SUPPLY LIMITED Model No.:XY65S-290207VQ-ZP Input: 100-120V~ 50/60Hz 1.5A Max Output: 29.0V2.07A Adapter 3 Information : (EE1-90） Manufacture: XY POWER SUPPLY LIMITED Model No.:XY48SR-290165VQ-UP Input: 100-120V~ 50/60Hz 1.2A Max Output: 29.0V1.65A Adapter 4 Information : (EE1-60） Manufacture: XY POWER SUPPLY LIMITED Model No.:XY36SR-290124VQ-UT Input: 100-120V~ 50/60Hz 1.0A Max Output: 29.0V1.24A Adapter 5 Information : (EE1-30） Manufacture: XY POWER SUPPLY LIMITED Model No.:XY24SR-290062VQ-UT Input: 100-120V~ 50/60Hz 0.6A Max Output: 29.0V0.62A Regards Sincerely Client’s signature: Client’s name / title : Vich Xun/Manager Contact information / address: 3651 Lindell Road Suite D1048, Las Vegas, NV 89103, USA

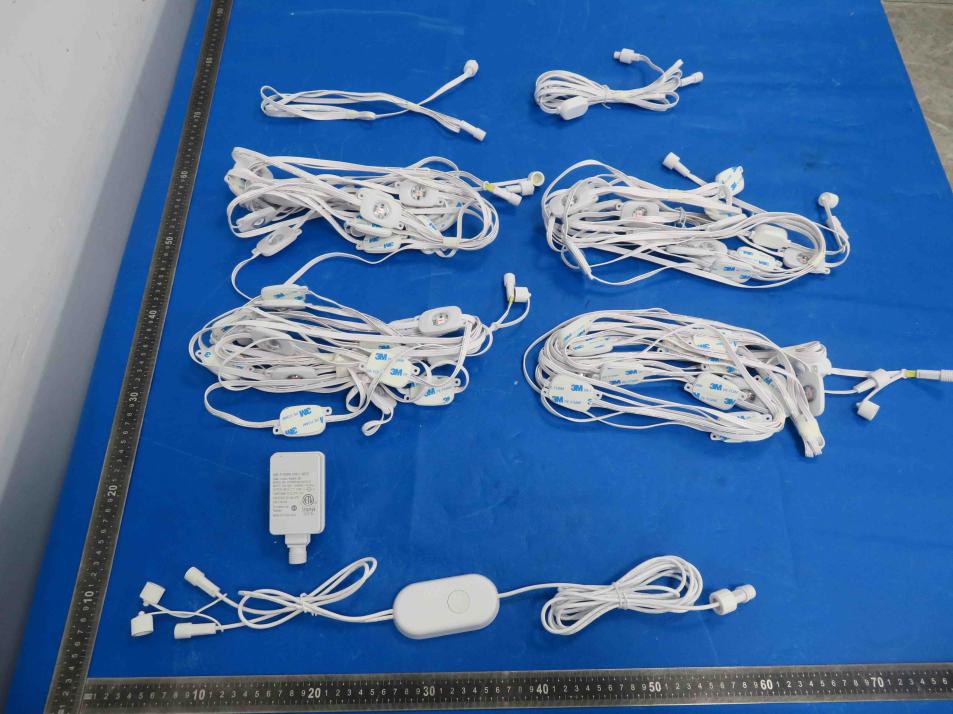

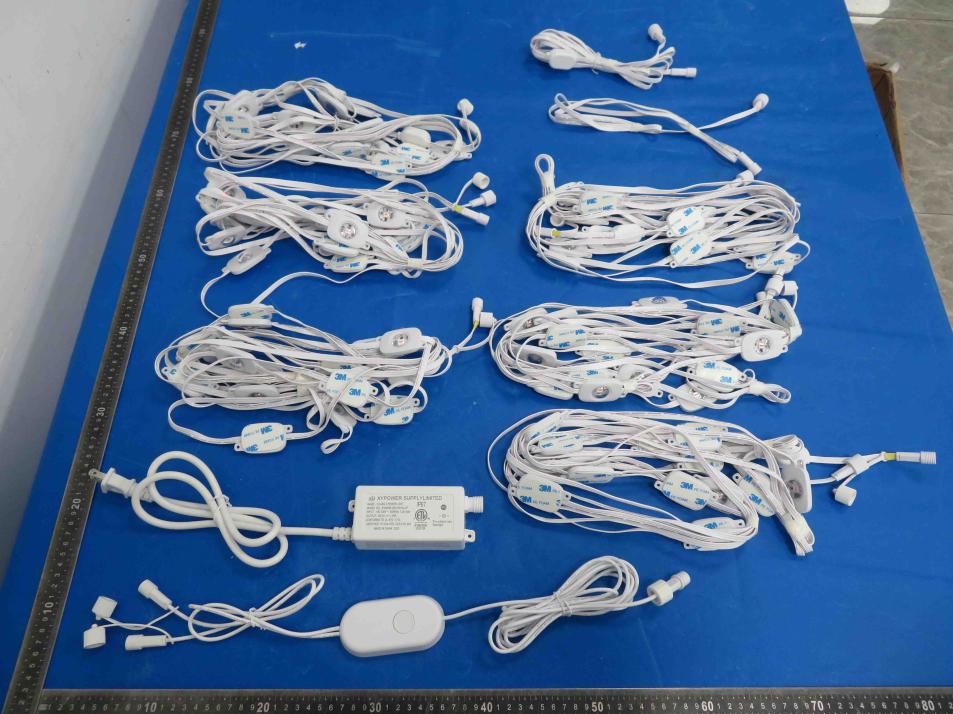

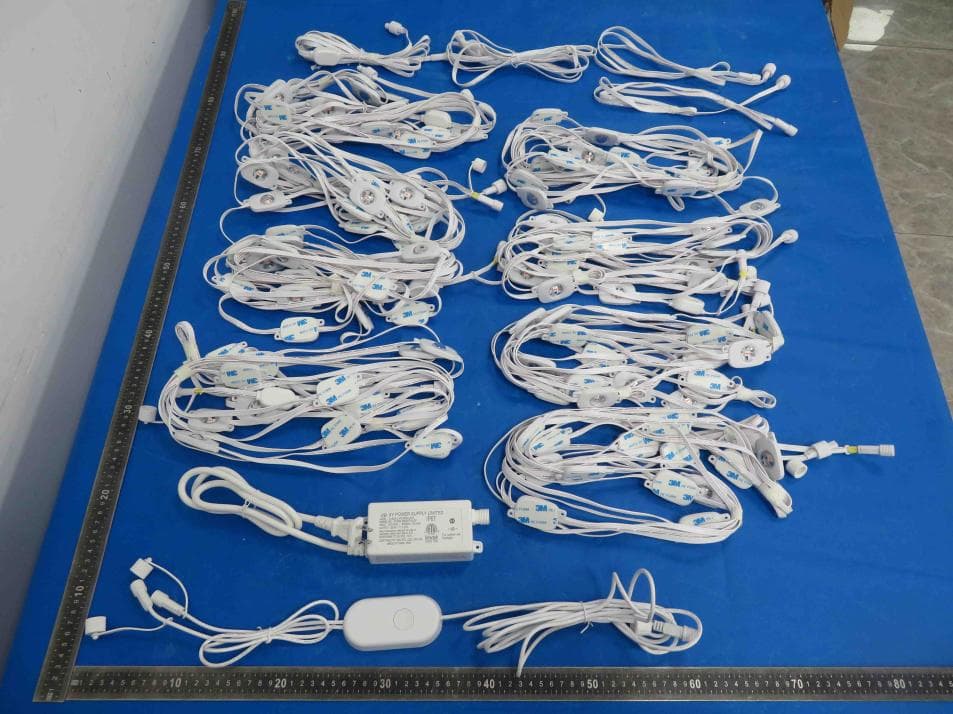

External Photos EE1-180 EE1-120 EE1-90 EE1-60 EE1-30 EE1-180 EE1-120 EE1-90 EE1-60 EE1-30 EE1-180+EE1-120 EE1-90+EE1-60+EEE1-30

Internal Photos EE1-90+EE1-60+EEE1-30 EE1-180+EE1-120 Antenna Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A3MAEE1 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Simultaneous transmitting evaluation: Bluetooth and 2.4G WIFI Mode Power Density (S) (mW/ cm2) Total (mW/ cm2) Limit (mW/ cm2) WIFI 2.4G 0.31237 0.32022 1 BLE 0.00785 Conclusion: For the max result : 0.32022≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result WIFI 2.4G 17±1 18 63.10 2.489 (3.96dBi) 0.31237 1 Pass BLE 1±1 2 1.58 2.489 (3.96dBi) 0.00785 1 Pass

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-MINI-1 Model ESP-ANT D-H Report No. Y2102A0260-T2 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …
