T119 Queue Wireless Calling System User Manual Henan Eshow Electronic Commerce Co., Ltd Add: 7/F, Sanjiang Building, No.170 Nanyang Road, Huiji District, Zhengzhou, Henan, China Facebookfacebook.com/RetekessWirelessSystem E-mail: [email protected] Web: www.retekess.com The Guest Paging System consists of a Numeric Keypad Transmitter and many Guest Pagers. It is widely used in fast food restaurants, coffee houses, pizza shops, other places where there are many guests waiting for their services. The system improves efficiency and service level, reduces labor costs and enhances image. HOW TO USE? 1) Guestes come to the restaurant and make an order. The waiter gives each guest a coaster pager; every pager has a number on it (No.1~999). 2) When an order is read, the waiter at the counter will press the number on the transmitter. The corresponding Guest gets the wireless dignal by his coaster pager vibrating or LED flashig or sounding, then he knows order is ready and goes to the counter to take his food. WHY YOU USE? - Minimize crowds in waiting line - Reduce staff chaos & improve ambience - Notify people faster - Reduce staff cost - Improve work efficiency - Enhances the restaurant’s image 1 Numeric Keypad Transmitter Features Numeric keypad is a very popular transmitter, its transmit power is bigger and has an antenna can tranmit the signal further. Moreover, it has a screen, you can see the number you pressed. (1) Feature - Key life: million and above, (Learning code) - Working current: ≤ 200mA ± 30mA - Standby current: 40mA ± 10mA - Operating temperature: 0-55 - Power supply: DC 5V/1A - Transmitter Distance: more than 500 meters (open area) - Material: ABS plastic - Screen: 65x25mm, 3 digits - Frequency: 433.92MHz - Dimensions: 153x113x53mm (2) Function keys and instruction 0-9 Numeric keypad: Press the number you want to call+ Enter Page up: Press theto view the call record. Page down: Press theto view the call record. SSave: Press theSbutton to save the number which on the screen. Backspace: Press the button to Del the number. ENTER Send button: Press the number(0-999) + ENTER to call the number you want CANCELStop button: Press theCANCELbutton to stop the pageer vibrating or Flashing or sounding. Mode - Dimension: 71x68x15(mm) - Power: Built-in 3.7V lithium battery - Charging periodl 2) Fuction keys and instrutioj The function key “Set” “Mdoe” on the back of pager could 2 Guest Pager (Coaster pager) Coaster pager is one of our most popular products. It is portable, user-friendly, novel design and which used in many areas. One keypad transmitter can maximally work with 999 pcs pager. And one pager can work with up to 5 keypad transmitters. Note: If one pager work with more than one keypad transmitters, the pager must pair the same number with the keypad transmitters. In addition, before pairing the pager with the second transmitter, please long press the MODE button for about 3 seconds until the pager beepers twice, then pair the pager in the normal way. 1) Features - Tube size: 15*10 (mm) RED LED display, 3 digits - Shell material: High quality polycarbonate - Prompt mode: Flash, Bell, Vibration or any vombaination of them - Frequency: 433.92MHz be activated by a pinpoint. Switch mode: Vibration / Buzzer / Vibration + Buzzer Set Short press into the Learning state; Long press 6 sec to clear code. Short press 2 sec to turn on / turn off T119 Queue Wireless Calling System User Manual 1 2 3) Setting of Prompt Mode The prompt or reminding mode could be Vibration / Buzzer / Vibration + Buzzer, touch the “MODE” button by a pinpoint, the pager will show the present prompt mode and choose which mode you want. 4) Setting of Number Registration Touch the “Set” key, the pager LED flashing, and then press a number (1~999)+ “ENTER” on the keypad transmitter, when this number is shown on the pager’s screen, the registration is successfully done. The number could be changed in the same way. 5) Working test After learning code, press the number you want to call and the pager LED flashing, at the same time the pager vibrating, buzzing or vibrating and buzzing. You can press the button orCancelto stop working. 6) Battey charging Please keep the pagers on the charger when not in use. When the pager beeps and blue LED flashing once every second, it needs be charged. When the pager is charging, the blue LED flashing one every second, that enter the state of charger. When the pager fully charged, the blue LED light on. If you want to find the pager but they are in charging, please call the number and you can see the pager red LED light flashing. 7) Clear code Long press theSetbutton and the Red LED on, when you hear the buzzer chirping, it means clear code successful. 8) Operation Note - Each rechargeable base could maximally support 10pcs of pagers. - One keypad transmitter can maximally work with 999pcs pager. But one pager just can work with only on keypad transmitter. 3 Common problem analysis solution 4 Packing list 5 Precautions RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE This radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. RF energy, which when used improperly, can cause biological damage. All Retekess radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of the radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.who.int/en/ Local Government Regulations When radios are used as a consequence of employment, the Local Government Regulations requires users to be fully aware of and able to control …

Text truncated - open the document above for the full version.

The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD . Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/20/2023 U.S. Agent Designation Contact Name: Liuye Li Company of U.S. agent: RETEVIS INC Physical U.S. address of agent: 1733 E BROOKPORT ST Covina, CA 91724 FRN of U.S. agent: 0033657701 Email address of U.S. agent: retevis- ZHENGZHOU YSAIR TECHNOLOGY CO.,LTDacknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A3NOT119): [email protected] RETEVIS INCacknowledges their obligation to accept service of process on behalf of ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7) ZHENGZHOU YSAIR TECHNOLOGY CO.,LTDwith the FRN 0031620636accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. . Sincerely, Signature [Weidong Shen] [General Manager] [ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD] Signature [Liuye Li] [Manager] [RETEVIS INC] 48_[mo del] US_Agent_2.911(d)(7) - U, V04

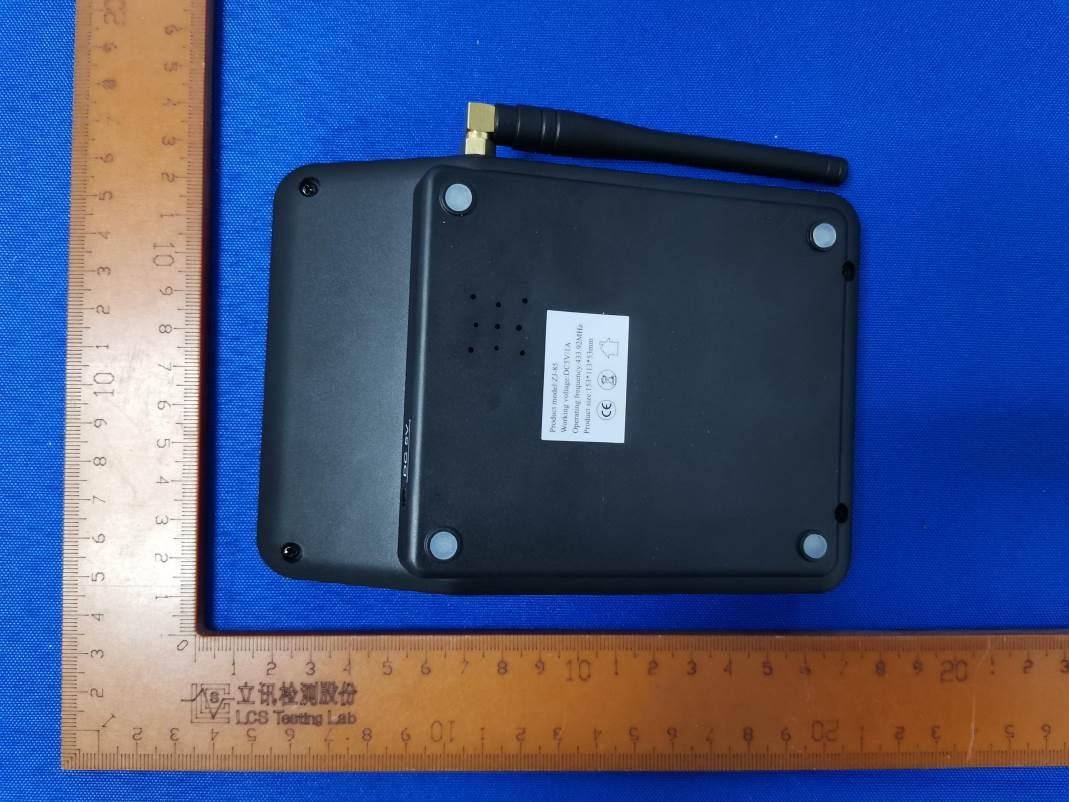

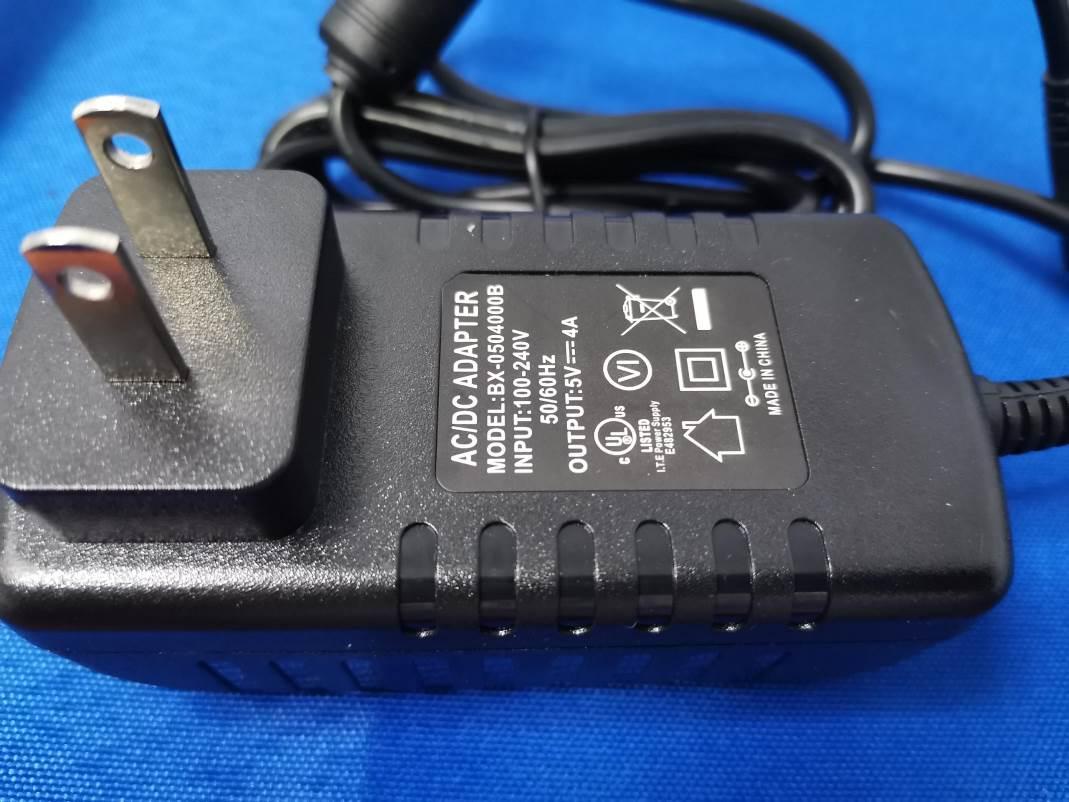

Page1of5FCCID:2A3NOT119 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2A3NOT119 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 ANT Page3of5FCCID:2A3NOT119 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2A3NOT119 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2A3NOT119 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9
