TR113 wideband full-band radio manual Bluetooth TF card AUX-in plays Recording 1: Overview of the product TR113 radio is a wide-band full-band radio that supports APP intelligent remote control and DSP digital display . This product is a wide-band multi-function receiver: it can not only receive FM, medium wave, short wave, VHF very high frequency (VHF-NFM & VHF-WFM), multi-band broadcast reception of North American weather bands, but also supports Bluetooth and TF cards. Multimedia music playback, high-fidelity sound quality. It also supports the APP -SOS alarm emergency function. It is an emergency product that can be prepared at home and can be carried when playing outdoors. If you want to know more, please read this operating guide and keep this manual properly. 2: Brief description of product features: 2.1: This product uses programming software to achieve wide-band reception and supports reception of the following frequency bands: FM frequency modulation, MW medium wave, SW short wave , USB upper sideband, LSB lower sideband, LW long wave, VHF very high frequency, UHF ultra high frequency , AIR aviation band, CB city band. Multi-band broadcast reception on the WB North American national weather band. Adjustable DEMOD demodulation mode, BW bandwidth value, LOCAL short-range, DX long-range, dual shuttle speed tuning radio, supports medium and short wave magnetic rod antenna reception, supports DIY medium and short wave loop antenna..., the product is extremely playable high. 2.2: This product supports multiple channel adjustment methods: Digital key frequency, shuttle fine-tuning, shuttle quick tuning, push-button fine-tuning, push-button automatic station search, fully automatic search and storage of stations. 2.3: This product uses two display screens, one main screen (displaying various working status, etc.) and one secondary screen (marquee/time/signal strength indication, etc.). The main screen uses a FSTN full-view screen, and the small screen uses VA color. It brings better visual effects to users. The main screen uses a large 3.54-inch display: (displayable window size: 82.9mmx45.2mm) Displayable window of secondary screen: 47.5x35.56mm 2.4: This product supports mobile APP smart remote control. Within a range of less than 20 meters, intelligent short-range remote control radios can be realized. 2.5: This product uses high-tech audio technology and can be connected to Bluetooth wireless music transmission and playback. 2.6: This product supports TF card music playback, up to 256G, and supports MP3, WMA, WAV, APE, and FLAC playback formats. 2.7: This product uses a polymer lithium battery with a capacity of 3600mAh, which has a long battery life. The battery is rechargeable to extend product life. 2.8: This product is designed with 5 meter waves in the AIR aviation band, 15 meter waves in the SW short wave, 8 meter waves in the VHF very high frequency, and 8 meter waves in the UHF UHF, making it easy and quick to switch frequencies. . Find the target station quickly. 2.9: The product has 3 options in the FM (frequency modulation) frequency range; there are two options in the AM (medium wave) frequency range: 1）: FM1: 87.5-108MHZ FM2: 76.0-108MHZ FM3: 64.0-108MHZ 2）: AM receiving frequency range: 522-1710KHZ (step value: 9KHZ); AM:520-1710KHZ (step value: 10KHZ) optional. 2.:10: When this product is playing music, it can turn on the marquee and lead you into the wonderful music melody. 2.11: This product has BASS bass sound quality and a 3-inch full-band 20W high-power speaker. It also supports listening with headphones, which is suitable for the needs of the majority of users. 2.12: This product can choose four types of playback in the TF card playback state: : (sequential playback: repeat all), : (single loop: repeat one), : (repeat songs in the current folder: repeat file), : (randomly play: random) 2.13: This product supports enabling the locking function to facilitate locking each button; 2.14: This product can set the sleep shutdown time, and you can set sleep cycles of different lengths such as 90/80/70/60/50/40/30/20/10 minutes. 2.15: This product can be set to two modes: scheduled power on/scheduled alarm clock , and two groups of scheduled power on/scheduled alarm times can be set. 2.16: After selecting the scheduled power on, you can set the scheduled time after the scheduled power on. 2.17: This product is equipped with backlight display/button lighting function, which is convenient for users to use in the dark. 2.18: In radio mode, this product has a large memory capacity and can store 1,600 radio stations (FM/MW/Shortwave/VHF/UHF/Longwave/Urban Band/Aviation. Each band can store 200). 2.19: This product can adjust a variety of EQ sound effects. 2.20: The product can display temperature, time, and adjustable perpetual calendar. 2.21: Adjustable display color, multiple lighting times, multiple alarm options..., humanized design, increased playability 2.22: The product supports restoring factory settings. 3: Packing list Name Quantity TR113 high performance full band radio 1 Strap 1 Polymer lithium battery, 3600mah 3.7V 2 (locked inside the product) USB TYPE-C data charging cable 1 Operating Instructions 2 (product operating instructions/APP operating instructions) Screwdriver 1 Cleaning sweep 1 Packaging box 1 4: APP related content description Mobile APP download process instructions (for detailed APP operation process, please refer to the APP manual): 1: The first step : turn on the TR113 radio, and at the same time, turn on the user's own mobile phone. 2: Step 2: Download the APP (if you already have our APP software Radio-C, you do not need to re-download it, you can click to connect to the product named " Retekess-TR113 " and then connect), the specific steps are as follows : A: For Android and Hongmeng system phones, please scan the following QR code to install the APP Android and Hongmeng system phones support "scanning" this QR code with the browser on the p…

Text truncated - open the document above for the full version.

ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD ROOM 709,SANJIANG BUILDING, NO.170 NANYANG ROAD,HUIJI DISTRICT,ZHENGZHOU,HENAN China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-10 To whom it may concern: We, ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2A3NOTR113) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Weidong Shen Manager ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD ROOM 709, SANJIANG BUILDING, NO.170 NANYANG ROAD, HUIJI DISTRICT, ZHENGZHOU HENAN CHINA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/05/07 U.S. Agent Designation ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A3NOTR113): Name and company of U.S. agent: RETEVIS INC Physical U.S. address of agent: 1733 E BROOKPORT ST Covina, CA 91724 United States FRN of U.S. agent: 0033657701 Email address of U.S. agent: [email protected] AOCE Corporation Inc. acknowledges their obligation to accept service of process on behalf of ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD. ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD. with the FRN [0031620636] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Weidong Shen Manager ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD. Signature Liuye Li Manager RETEVIS INC. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-5-10> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A3NOTR113 TR113 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Weidong Shen/Manager Company: ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD Address: ROOM 709,SANJIANG BUILDING, NO.170 NANYANG ROAD,HUIJI DISTRICT,ZHENGZHOU,HENAN China Phone: 0371-63262209 Fax: N/A E-Mail: [email protected]

ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD ROOM 709,SANJIANG BUILDING, NO.170 NANYANG ROAD,HUIJI DISTRICT,ZHENGZHOU,HENAN China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-10 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A3NOTR113 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Weidong Shen/Manager Company: ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD Address: ROOM 709,SANJIANG BUILDING, NO.170 NANYANG ROAD,HUIJI DISTRICT,ZHENGZHOU,HENAN China Phone: 0371-63262209 Fax: N/A E-Mail: [email protected]

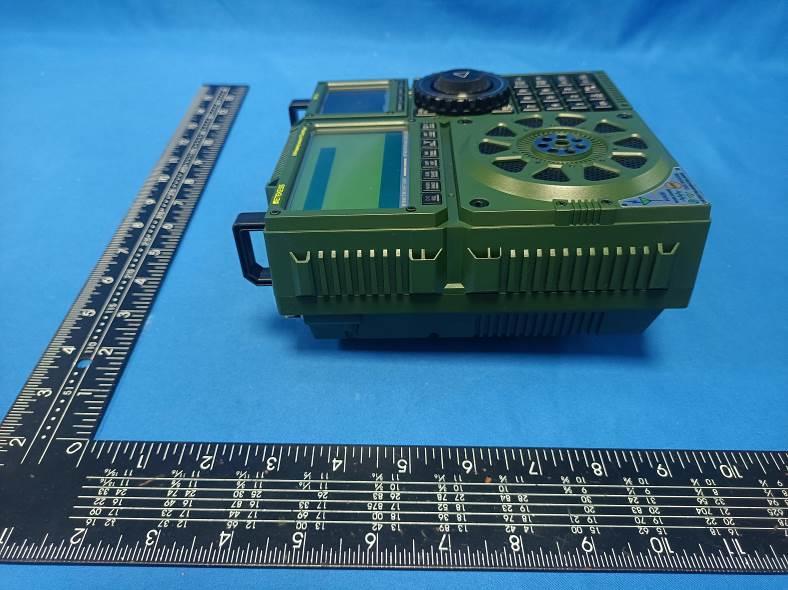

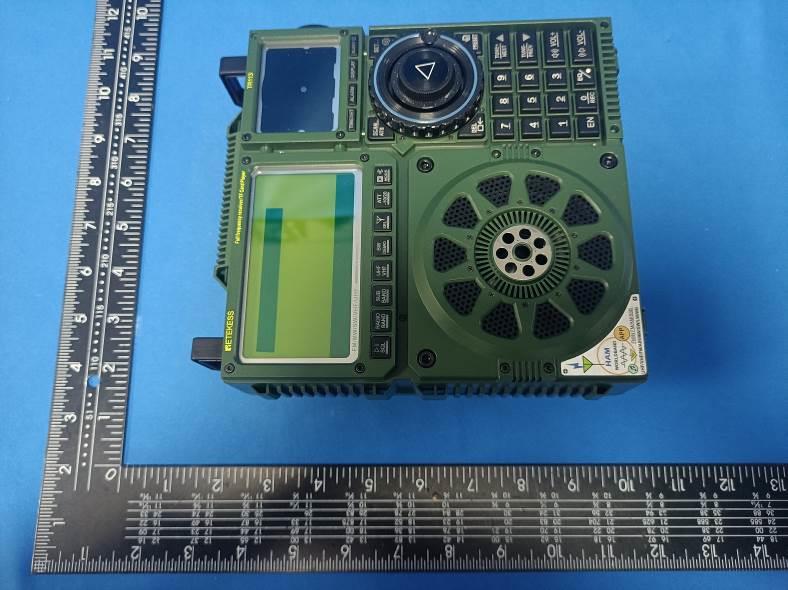

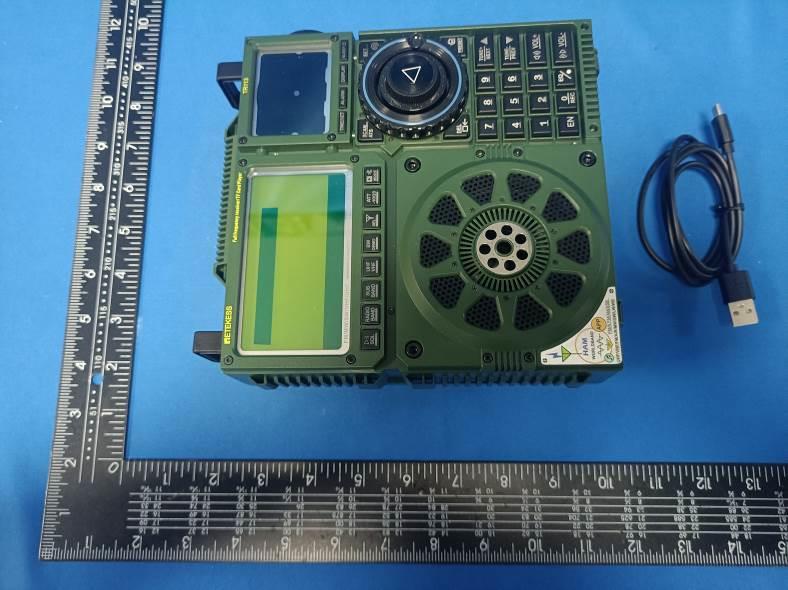

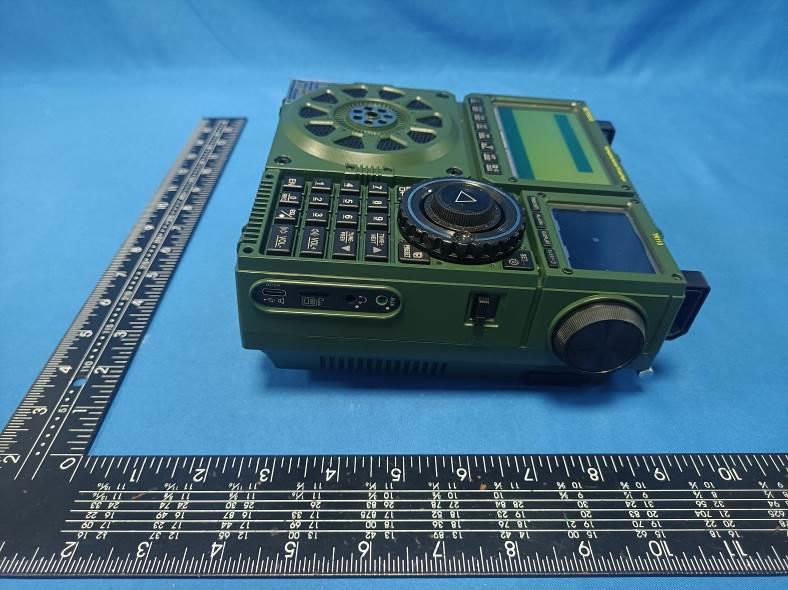

FCC ID: 2A3NOTR113 External Photos of the EUT FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113

Label and Location Size: L: 2.0cm*W: 2.5cm Label and Location

FCC ID: 2A3NOTR113 Internal Photos of the EUT FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 FCC ID: 2A3NOTR113 ANT FCC ID: 2A3NOTR113

RF Exposure evaluation FCC ID: 2A3NOTR113 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -3.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 0.0 1.00 0.3130<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model TR113 Frequency range 2400-2500MHz Manufacturer ZHENGZHOU YSAIR TECHNOLOGY CO.,LTD ANT Peak Gain 1.50 dBi 2. Antenna Photo: Length: 14.61mm Width: 3.46mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
