FM CD/ USB/TF REP PROG / CD Boombox TR634 USER'S MANUAL EN DE FR IT ES CONTENT EN01~08 Features Packing List Product Introduction LCD Display Remote Control Remote Control Operation Precautions CD Playback Operation Radio Operation Earphone Operation Specifications WARNINGS GUARANTEE DE09~18 FR19~27 IT 28~36 ES37~45 ........................................................................................................01 .................................................................................................02 ..................................................................................02 ..................................................................................................03 ...........................................................................................03 ........................................................................04 ..................................................................................................05 ..............................................................................05 ...........................................................................................06 ....................................................................................06 ..............................................................................................06 ...................................................................................................07 ...............................................................................................46 EU Importer NameGermany Retevis Technology GmbH AddressUetzenacker 29,38176 wendeburg Features CD/CD-R/RW/MP3 player USB/TF card input port FM band radio NOTE: PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE OPERATING THIS EQUIPMENT. 1.Please follow the prescribed steps while using the CD player, or you may suffer from harmful radiation. This CD player is a CLASS 1 LASER (I class laser) products. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT 2. When the CD cover is opened or negligently closed, invisible laser light will be generated, the item need to avoid irradiation of the radiation beam. 3.Please do not touch the bald head at will, otherwise it will affect the playback performance. Important Safety Instruction 1 Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool. 2. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 3. Do not block any ventilation openings. Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces. This product should never be placed near or over a radiator or heat source. 4. Object and liquid entry. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product. 5. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Only use a dry cloth for cleaning. 6. Only use attachments/ accessories specified by the manufacturer. Power Usage and Precautions Important Before connecting the AC power supply, ensure that the function switch is set to the off position. This machine can only be connected to AC household power supply. 01 To Operate the Unit Using AC Power Plug one end of the AC power cord into the AC power jack and the other end into a 110V/220V household power outlet. -When the AC plug was inserted into the AC IN Jack, the battery power will be cut off automatically. -When the switch is in the off position, the power supply in the machine is not completely cut off, and the power supply can only be cut off completely by unplugging the power plug. -When unplugging the AC power cord, you should hold the plug part instead of only pull the power cord -Never touch the AC power plug when your hands are wet. Otherwise it may cause fire or electric shock -Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Packing List Please ensure you have received all of the following parts CD boombox Remote control Charging cable Warranty card User manual Product Introduction 02 1.Carry handle 2.CD door 3.Telescope Antenna 4.Volume button (press to turn up/down volume) 5.FM radio (long press to automatically search for FM radio stations) 6.Power on/off power (the blue light is always on in the power-on state) 7.Stop button 8.Play/pause button (press it pause the playback, press it again to resume playback) 9.LCD display 10.Next song button (press it to skip to the next song, long press it for fast-forward playback) 11.Previous song button (press it to skip to the previous song, long press it for fast-backward playback) 12.CD/USB/TF mode selector 13.Bluetooth function button (the blue light is always on when the Bluetooth connection is established) 14.Repeat/program button 15.USB socket 16.AC power socket 17.TF card socket 18.Earphone jack LCD Display 1.CD play mode 2.Bluetooth play mode 3.USB play mode 4.TF card play mode 5.MP3 format playback 6.WMA format playback 7.Program mode 8.Loop play Single song repeat mode all repeat mode 9.FM radio mode 10.Frequency unit 11.Playing track and time It shows track when switching tracks It shows frequency in FM radio mode It displays time in normal working state 12.Play/pause mode indicator 12.INTRO button 13.Number keypad 14.Repeat button 15.Mute button 16.TF card play button 17.Bluetooth mode button 18.Frequency tuning …

Text truncated - open the document above for the full version.

Page1of1FCCID:2A3NOTR634 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L:4.0cmxW:8.0cm) LabelLocation CDBoombox Model:TR634 FCCID:2A3NOTR634

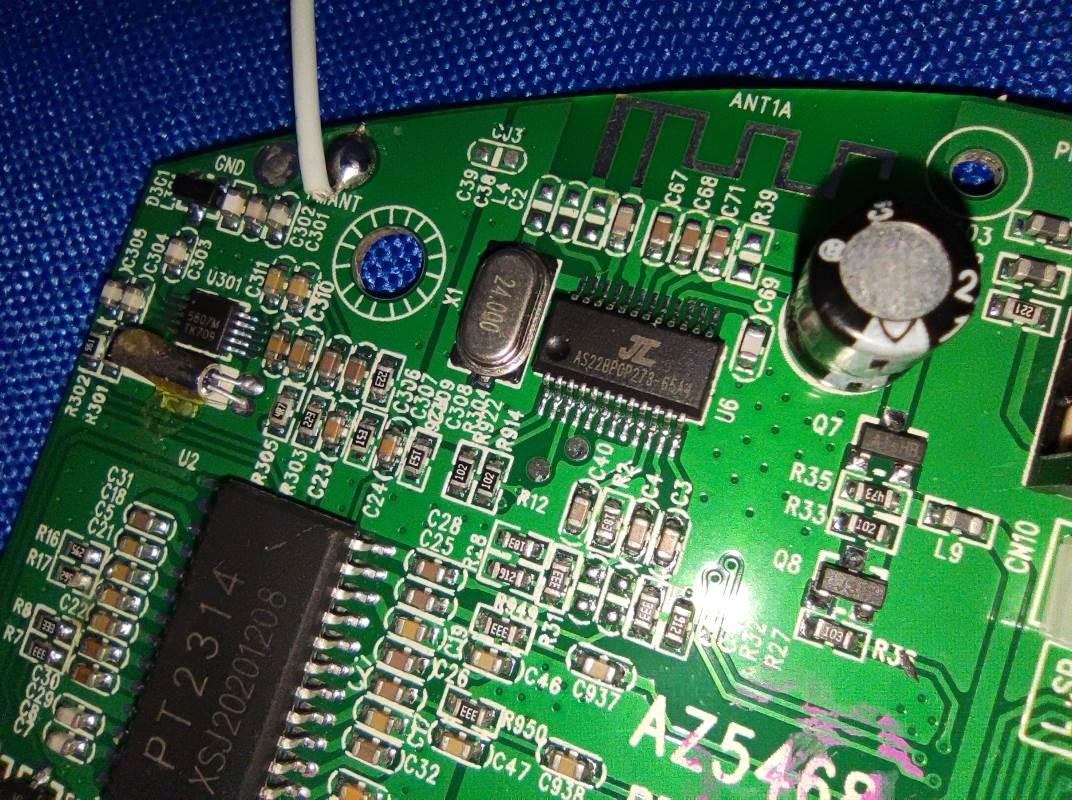

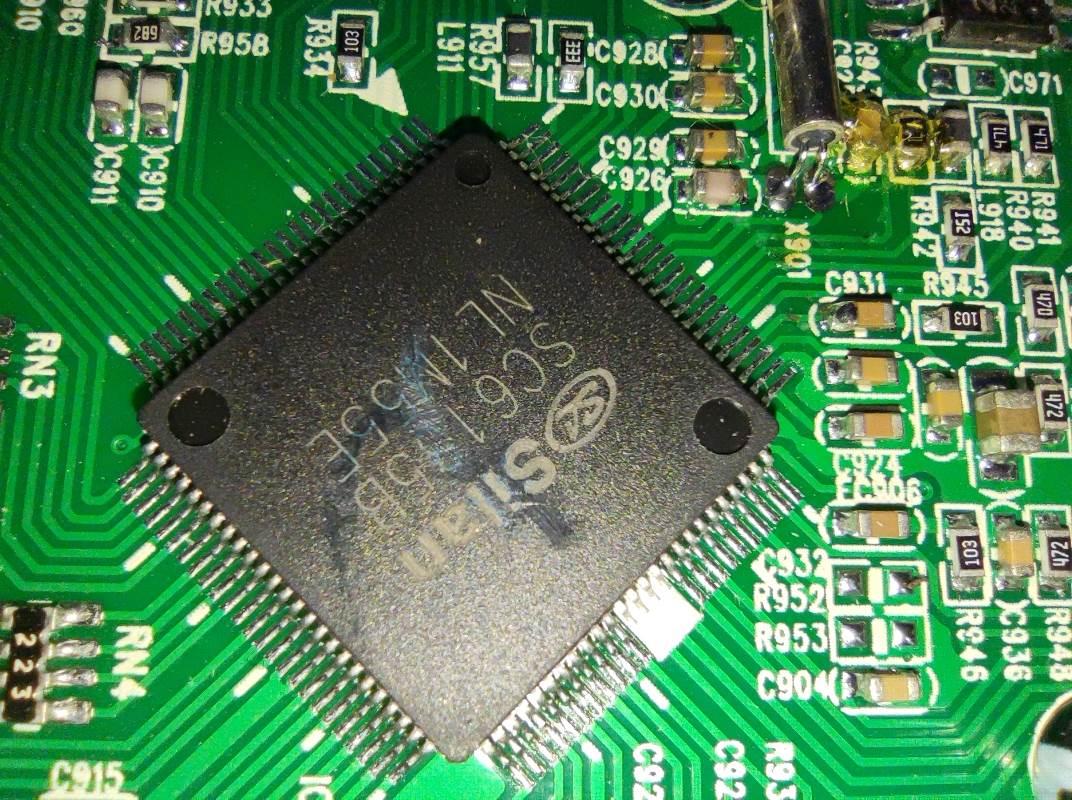

Page1of4FCCID:2A3NOTR634 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2A3NOTR634 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2A3NOTR634 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2A3NOTR634 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Antenna
