2A3OFNIGHTWARRIOR4KDigital Night Vision Camera

目录-Contents 1.致用户-ToUsers 2.使用及注意事项-Precautions 3.产品描述-Description&KeyFeatures 4.组成部件及按键说明-Components&Controls 5.安装步骤-Installation 6.操作说明-OperationInstruction 快捷键模式-ShortcutMode 1.ToUsers 2.Precautions 3.Description&KeyFeatures 4.Components&Controls 5.Installation 6.OperationInstruction ShortcutMode 致用户-ToUsers： 致用户 非常感谢您选用本公司生产的NightWarrior4K夜视套瞄。 在首次使用前请详细阅读本说明书并务必遵守本书中的操作规范，以免不当操作造成部 件损坏。阅读完毕后，请妥善保管本说明书，以备在使用过程中遇到问题时方便查阅。 本手册仅供参考，实际设备可能因版本升级等原因与此说明书有所偏差，在使用过程中 遇到任何问题，请及时通过官网与我们取得联系，我们将尽快为您解答！本说明书如有变更， 公司不再另行通知！ 深圳市普雷德科技有限公司对此手册享有最终解释权。 版权归深圳市普雷德科技有限公司所有！ Tousers ThankyouforyourcontinuedsupportandforchoosingPARDNightWarrior4Knight visiondevice.Pleasereadthismanualcarefullybeforeusingthedeviceforthefirsttime. Pleasefollowtheinstructionsinthismanualtoavoidanydamagecausedbyimproperuse andtoensurethatyourdeviceoperatesproperly. Afterreading,pleasekeepthismanualinasafeplace,forfuturereference.This manualprovidesstep-by-stepinstructionsonhowtouseyournightvisiondevice andisintendedforyourreferenceonly. Somevariationsmayinevitablyoccurduetoupgradesinthefirmware,werecommend youvisitingPARD'sofficialwebsiteforthemostup-to-dateinformation.PARDreservesthe finalrightofinterpretationofthismanual. 注意事项-Precautions： 注意事项 请使用额定电压3.7V的锂离子电池为本产品供电，使用前先取下电池上的绝缘胶带！ 超过10天不使用此产品，请取出电池保存。 使用和运输过程中请勿强烈摇晃或碰撞设备，运输时请务必使用原配包装。 请勿近距离直视IR红外补光灯，否则会对眼睛产生伤害！ 本产品红外灯开启状态会聚焦大量能量，严禁近距离对准可燃物体，否则可能会引起火 灾，不使用时请关闭IR红外补光灯，或进入休眠状态。 设备应放置在阴凉干燥，通风无强烈电磁场的环境中，储存环境温度不能低于-25°C/-13 °F或高于40°C/104°F。 切勿擅自打开机壳，如发生故障请及时与厂家联系，否则将视为放弃保修服务。 Precautions： Pleaseremovetheinsulatingtapebeforeusingthebatteryforthefirsttime.Itis recommendedtouseafullychargedlithium-ionbatterywitharatedvoltageof 3.7V. Whennotinuse,alwaysturnoffthedevice.Ifyouarenotgoingtousethedevice formorethan10days,pleaseremovethebatteryandstoreitinasafeplace. Useextremecautionandcarewhenusingortransportingthedevice.Itis recommendedthatoriginalpackagingbeusedduringtransportation. Toavoideyedamage,avoidstaringdirectlyintotheinfraredfilllightfromaclose distance! Whenthisproduct'sIRinfraredlightisturnedon,itwillusealargeamountof energy.Aimingatflammableobjectsupcloseisabsolutelyprohibitedbecause doingsocouldstartafire.PleasegointosleepmodeorturnofftheIRinfraredfill lightwhennotinuse. Thedeviceshouldbestoredinacool,dry,ventilatedenvironmentfreeofstrong electromagneticfields,withtemperaturesnolowerthan-25°C/-13°Fandnohigher than40°C/104°F. Donotdisassemblethedevicewithoutauthorization.Ifyouencounterany problems,pleasecontactourafter-salesteamandreportthemonourofficial website.Failuretodosowillrenderthewarrantyservicenullandvoid. 产品描述-Description&KeyFeatures: NightWarrior4K是一款小巧紧凑的高性能夜视瞄，承袭PARD瞄家族，将便捷玩转 到底的基因，精准贴合，日夜两用，一秒切换。1097m(1200yds)超强测距模组强势来袭， 探测目标快准狠，150米内精度可达±0.5米,帮您关键时刻快速作出判断。4K超高分辨率 传感器，灵敏度高达0.001lux，成像清晰，画质细腻。 主要功能特点： 日夜两用，快速拆装 紧凑超短机身 2560*1440CMOS成像传感器 1097m(1200yds)测距模块 350m(383yds)指向补光灯 射击预录 静音按键 WiFi 固件可升级 IP67防尘防水 6000J超强抗冲击性能 TheNightWarrior4Kisbackmounteddigitalnightvisionthelatestadditiontothe NightWarrior4Kseries,featuringahighsensitivity2KCMOSsensorandadvanced technology.ConvertyourstandardDayScopeintoahigh-performancenightvisionsystem quicklyandeasily.TheNightWarrior4K，isdesignedforavarietyofuses,includinghunting andsportshooting. Keyfeatures: Quickattachanddetach ShorterbodyLength, Extremelysensitive2560*1440CMOSsensor 1200ydsRangefinder DirectionIRlight Self-activatedrecording Stealthmode WiFi Firmwareupgrade IP67Waterproof 6000JRecoilresistance 组成部件说明-Components&Controls： （平面按照图示，选择合适角度的线条图做部件说明） NightWarrior4K部件图示： 图一 1.按键1 2.按键2 3.按键3 4.按键4 5.镜头/镜头盖 6.补光灯 7.测距模块 8.电池盖盖 9.目镜 1.Key1 2.Key2 3.Key3 4.Key4 5.Objectivelens 6.IRlight 7.Ranger 8.Batterycap 9.Diopter 图二 1.Type-C充电接口 2.HDMI高清接口 3.TF卡槽 1.Type-Cchargingport 2.HDMIportT 3.TFcardslot 使用及安装步骤-Installation 拆封 使用该产品前请先进行以下操作： (1)打开封装盒，取出设备和所有配件； (2)检查确保前面所列包装内容物都齐全； (3)检查设备的界面、机身、镜头、操作按钮等是否损坏； (4)检查设备的物镜目镜是否清洁并能正常使用； 注意：若有任何配件缺失或损坏，请及时联系售后； Unboxing Beforeusingthisdevice,pleasedothefollowing: (1)Opentheboxandremovethedevice. (2)Checktoensurethatthepackagecontentslistedaboveareallincludedinthebox. (3)Checkthedeviceforanydamagetothedisplay,body,lens,buttons,etc. (4)Makesurethattheobjectivelensandeyepieceareclean&functioningproperly. Note:Ifanyaccessoriesaremissingordamaged,pleasecontactouraftersalesserviceat once. 电池安装及开机 电池安装步骤如下： (1)逆时针旋开电池盖并取出电池； (2)撕掉电池上的绝缘胶带； (3)将电池正极朝内放入,再顺时针拧紧电池盖; (4)长按电源键约3秒后，按键板指示灯亮起，屏幕画面唤醒即可开始使用； 注意： 请使用额定电压为3.7V的18650可充电锂电池 请注意拧紧过程中对准螺纹，避免出现滑丝现象 禁止放入火中或在电池盖打开的情况下放入水中 请勿擅自拆卸 禁止用尖锐物体刺穿 电池应该放在儿童接触不到的地方，并确认电池的正负极是否安装正确 Batteryinstallationandstartup Thebatteryinstallationstepsareasfollows: (1)Unscrewthebatterycapcounterclockwiseandremovethebattery. (2)Removetheinsulatingtape. (3)Insertthebattery,ensuringthatthepositive(+)sidegoesinfirstandtightenthebattery capclockwise. (4)Toturnonthedevice,pressandholdthepowerbuttonforabout3seconds.(Whenthe powerlightilluminatesandthePARDLogoappearsonthescreen,thedeviceisreadyfor use.) Note: Pleaseuseasingle18650rechargeablelithium-ionbatteryrated3.7Vvoltage. Donotputbatteryintofire. Donotputdeviceintowaterwhenthebatterycapisopen. Donotdisassemblethedevicewithoutauthorization. Donotpiercethedevicewithsharpobjects. Batteryshouldbekeptoutofreachofchildren,andthepositiveandnegativeterminals ofthebatteryshouldbeinstalledcorrectly. 目镜调焦 目镜调焦又称屈光度调节，目的是为了不同视力的用户都能清晰的看清楚显示屏中的内容。 (1)开机后转动目镜调焦轮使自己能看清屏幕上的文字或图标为准。 (2)请注意并不是调节后清晰地看到图像，只要保证清晰地看到显示屏上的十字线和文字即 可(在物镜未调焦好时看到的图像可能不清晰)，同一个人一只眼睛只需要调节一次。 Diopterfocusing Diopterfocusingisusedtoadjustuserswithdifferentlevelsofcorrectedvisiontoclearlysee thecontentdisplayedonthescreen. (1)Afterpoweringthedevice,rotatethediopterfocusingwheelsothatyoucanseethe screenclearly. (2)Aslongasyoucanclearlyseethecrosshairandtextonthedisplay,thediopterfocusing settinghasbeencompleted. Note:Theimagemaynotseemclearafterdiopteradjustment,astheobjectivelensstill needstobefocused. 物镜调焦 (1)物镜对焦前请确认目镜调焦（屈光度调节）已经完成； (2)调节物镜调焦轮，使自己能从目镜里清晰地看到光瞄里的十字线； Objectivelensfocusing (1)Beforeyoufocustheobjectivel…

Text truncated - open the document above for the full version.

ShenzhenPardTechnologyCo.,Ltd FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:May30,2024 FCCID:2A3OFNIGHTWARRIOR4K Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing (“ShenzhenPardTechnologyCo.,Ltd”)certifiesthattheequipmentforwhichauthorization issoughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorization pursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing (“ShenzhenPardTechnologyCo.,Ltd”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Applicant:ShenzhenPardTechnologyCo.,Ltd Address:B78,18/F,Guangyinbuilding,38FutianSouthRoad,portcommunity,Futianstreet, FutianDistrict,Shenzhen ContactPerson:AnnaAi Tel.:+860755-29484438 Email:[email protected] Sincerely, Signature:

ShenzhenPardTechnologyCo.,Ltd Address:B78,18/F,Guangyinbuilding,38FutianSouthRoad,portcommunity,Futianstreet,Futian District,Shenzhen FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2A3OFNIGHTWARRIOR4K FRN:0031633134 (“ShenzhenPardTechnologyCo.,Ltd”)certifiesthat,asofthedateofthefilingofthe application,GSSSERVICEINCisourdesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID.(“ShenzhenPardTechnologyCo.,Ltd”)acceptstomaintainan agentfornolessthanoneyearafterthegranteehasterminatedallmarketingandimportation ortheconclusionofanyCommission-relatedproceedinginvolvingtheequipment. GSSSERVICEINCaccepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GSSSERVICEINC Address:6547NAcademyBlvd#2266ColoradoSpringsCOLORADO80918UnitedStates FRN：0033402082 ContactPerson:MichouxLogan Tel.:001-949-2990192 Email:[email protected] Sincerely, Signedonbehalfof（ShenzhenPard TechnologyCo.,Ltd） SignedonbehalfofGSSSERVICEINC Name:AnnaAiName:MichouxLogan Title:ManagerTitle:Manager Date:2024-05-30Date:2024-05-30

ShenzhenoneplusonewirelesscommunicationtechnologyCo.,Ltd : PRODUCTNAME ： CUSTOMERNAME ： Product specification Mobile communication terminal antenna Product design and manufacturing Part number (P/N) OWLNV L3 2.4G WIFI Antenna Pard W3106A-F8COB-070-A Manufacturer: Shenzhen Pard Technology Co.,Ltd Address: B78,18/F,Guangyin building,38 Futian South Road, port community, Futian street, Futian District, Shenzhen ShenzhenoneplusonewirelesscommunicationtechnologyCo.,Ltd 1. 2. 2.1 OWLNVL3 :2.4GWIFI 3. 3.1 2400-2480MHz 2400-2480MHz:<1.5 2400-2480MHz:1.5dBi±0.5dBi 2400-2480MHz:>30% 50ohm -30 ̊C~+85 ̊C -30 ̊C~+85 ̊C 3.2 ListTestingprojectEquipment 1.SParameters 1.Returnloss 2.VSWRat Networkanalyzer:Agilent8753ES 2.Couplingpowertest 1.Transmissionpower 2.Receivingsensitivity Comprehensivetester:Agilent8960 E5515C 3.Radiationpatternandgain 1.Radiationpattern 2.Antennagain 1.Darkroom ： 7x4x3m(3D) 2.Networkanalyzer ： Agilent 8753ES Purpose Product category and product model overview Description of basic parameters and experimental equipment To standardize the product specifications and test methods of the mobile communication terminal antenna produced by OnePlus One. Avoid error caused by different test conditions and methods. Product model overview The main outline of this report is Electrical results of the antenna designed for the project. The antenna design frequency band is Basic parameter Description of experimental equipment Operating frequency range Standing-wave ratio Antenna gain Radiation efficiency Impedance Product material description Product electrical performance index Coaxial line FPC Electrolytic copper +PI Braided wire + terminal Operating temperature Storage temperature Product environment description ShenzhenoneplusonewirelesscommunicationtechnologyCo.,Ltd 4. 4.1 Fre.(Mhz)Efficiency(%)Gain(dBi) 2400 52.251.09 2410 51.411.08 2420 53.251.30 2430 55.471.28 2440 55.631.41 2450 58.471.50 2460 54.631.30 2470 53.251.25 2480 53.671.14 5.1 Antenna test data Efficiency/gain Wifi:2.4G 2.4G apple chart ShenzhenoneplusonewirelesscommunicationtechnologyCo.,Ltd 6.1 Standing-wave ratio ShenzhenoneplusonewirelesscommunicationtechnologyCo.,Ltd 7.1 Product 2D structure diagram and remarks Line length Unit: mm

ShenzhenPardTechnologyCo.,Ltd Date：2024-05-30 ProductModelNumber:NightWarrior4K,NightWarriorHD,NightWarriorFHD, NightWarrior2K,NightWarrior4K60,ApparitionHD,ApparitionFHD, Apparition2K,Apparition4K,Apparition4K60,NV-B150,NV-S450C, NV-S450CL,NV-S470C,NV-S470CL,NV007V2,NV007V3,NV007V4,NV007V5, NV007V6,NV007SP2,NV007SP3,NV007SP4,NV007SP5,NV007SP6,NV008SP2, NV008SP3,NV008SP4,NV008SP5,NV008SP6,AP2,AP3,AP4,AP5,AP6,NS2, NS4,NS460,DS5-LRF,DS5 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C.Canada V5J5K5toactonourbehalfonallmattersconcerningtheabovenamedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatORGANIZATION.isallowedtoforwardallinformationrelatedtothe approvalprojecttotheappliedcertificationbodyandtothenotificationentitiesandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedout byORGANIZATION.onourbehalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:+860755-29484438 Onbehalfof:ShenzhenPardTechnologyCo.,Ltd

ShenzhenPardTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:May30,2024 Subject;RequestforConfidentiality FCCID:2A3OFNIGHTWARRIOR4K ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:AnnaAi Title:Manager

ShenzhenPardTechnologyCo.,Ltd ModelDifference Productdescription:ThermalImagingCamera Modelname:NightWarrior4K,NightWarriorHD,NightWarriorFHD,NightWarrior2K, NightWarrior4K60,ApparitionHD,ApparitionFHD,Apparition2K,Apparition4K, Apparition4K60,NV-B150,NV-S450C,NV-S450CL,NV-S470C,NV-S470CL,NV007V2, NV007V3,NV007V4,NV007V5,NV007V6,NV007SP2,NV007SP3,NV007SP4, NV007SP5,NV007SP6,NV008SP2,NV008SP3,NV008SP4,NV008SP5,NV008SP6, AP2,AP3,AP4,AP5,AP6,NS2,NS4,NS460,DS5-LRF,DS5 FCCID:2A3OFNIGHTWARRIOR4K NightWarrior4Kistestedmodel,othermodelsarederivativemodels.Themodels areidenticalincircuit,onlydifferentonthemodelnames.SothetestdataofNight Warrior4Kcanrepresenttheremainingmodels. Regards Sincerely Client’ssignature: Client’sname/title: AnnaAi /Manager Contactinformation/address:B78,18/F,Guangyinbuilding,38FutianSouthRoad, portcommunity,Futianstreet,FutianDistrict,Shenzhen

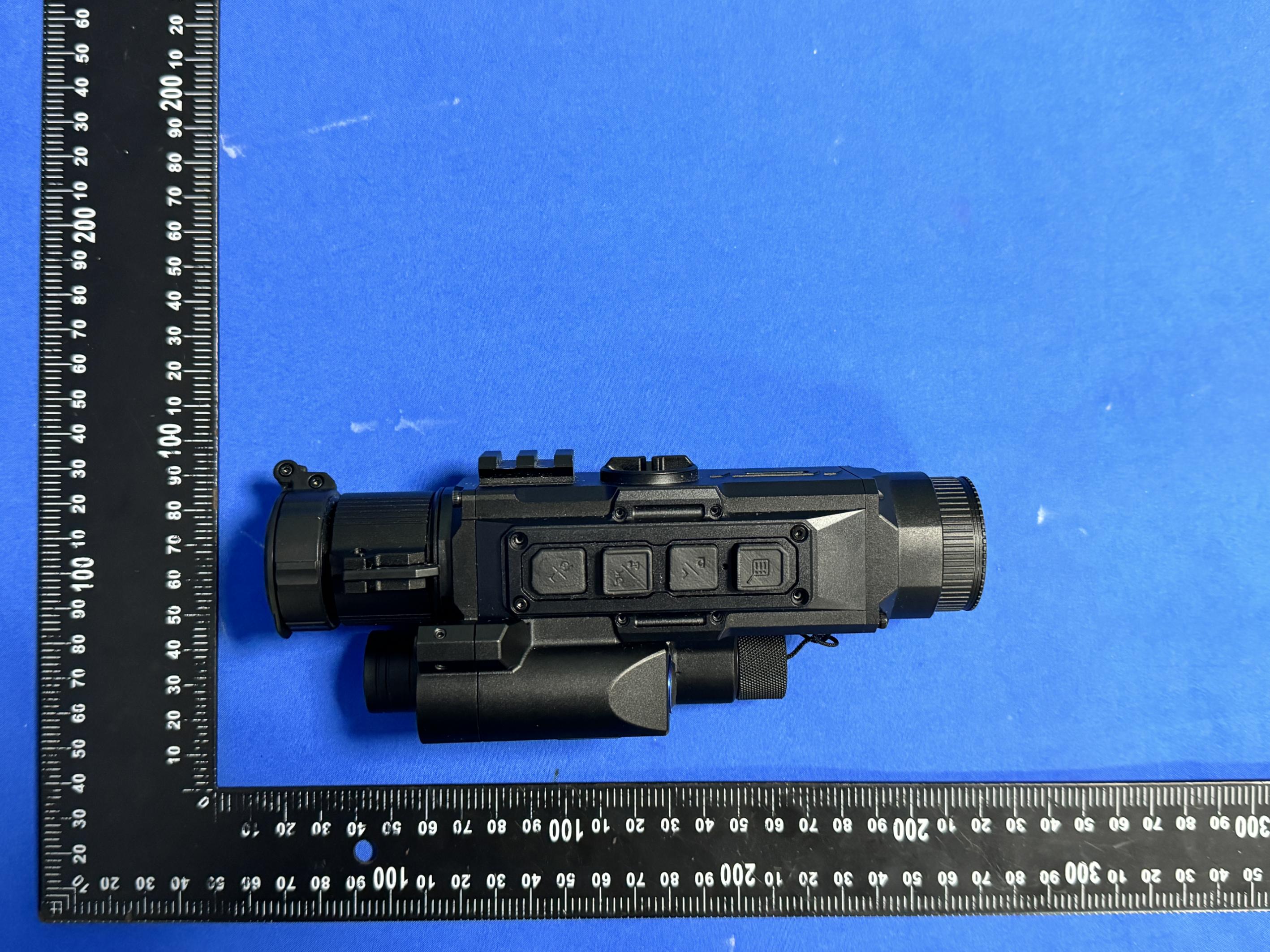

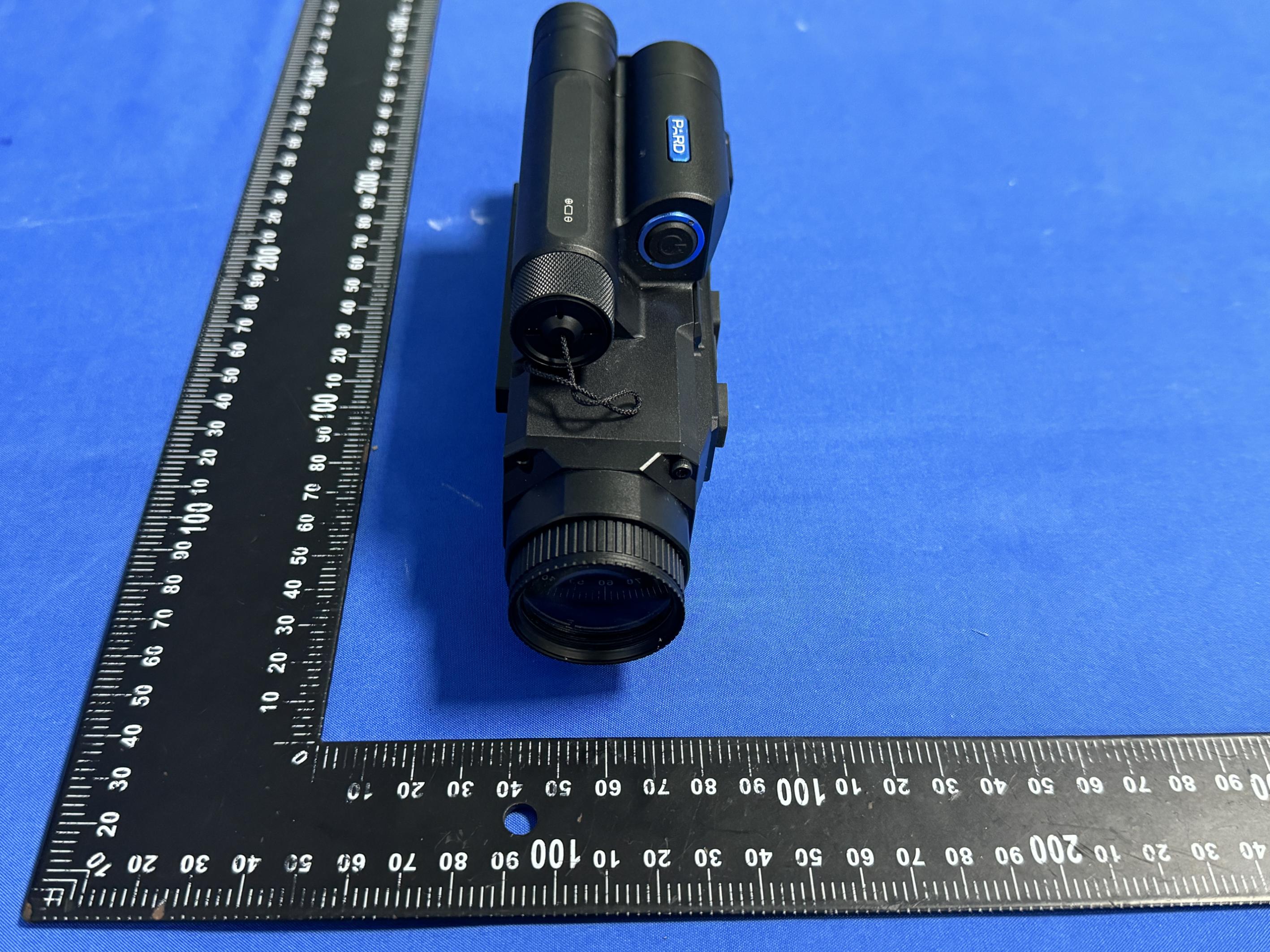

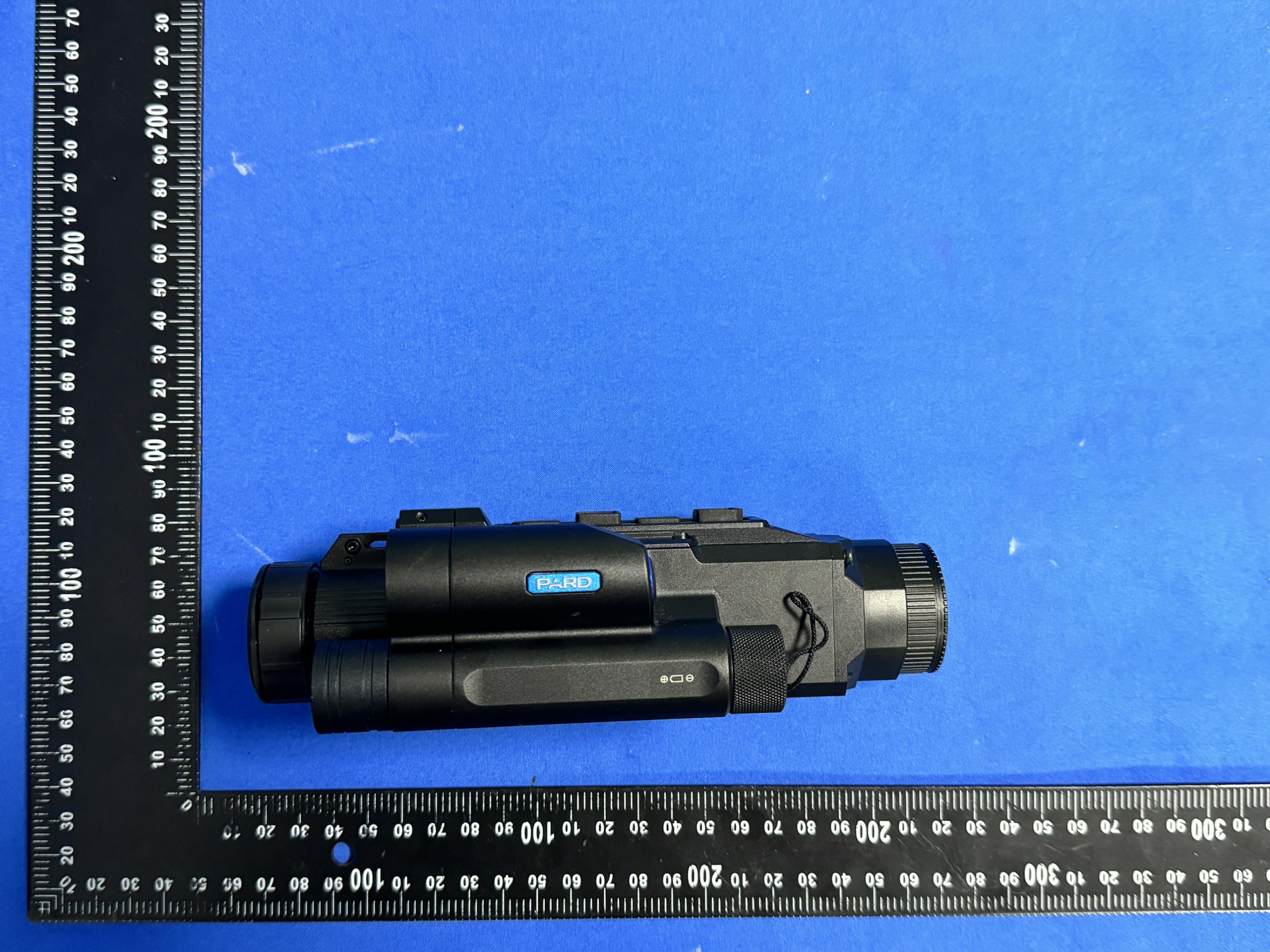

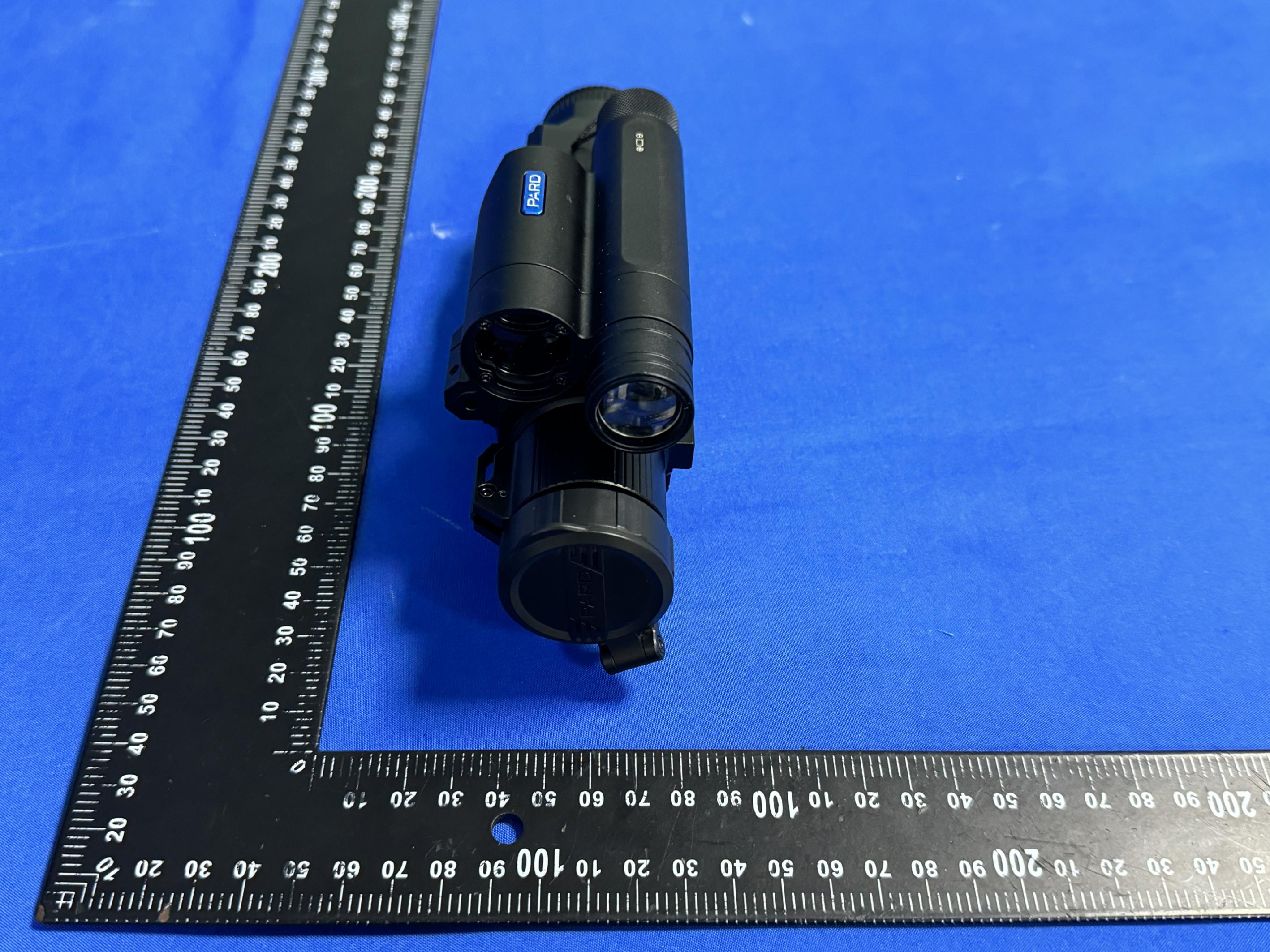

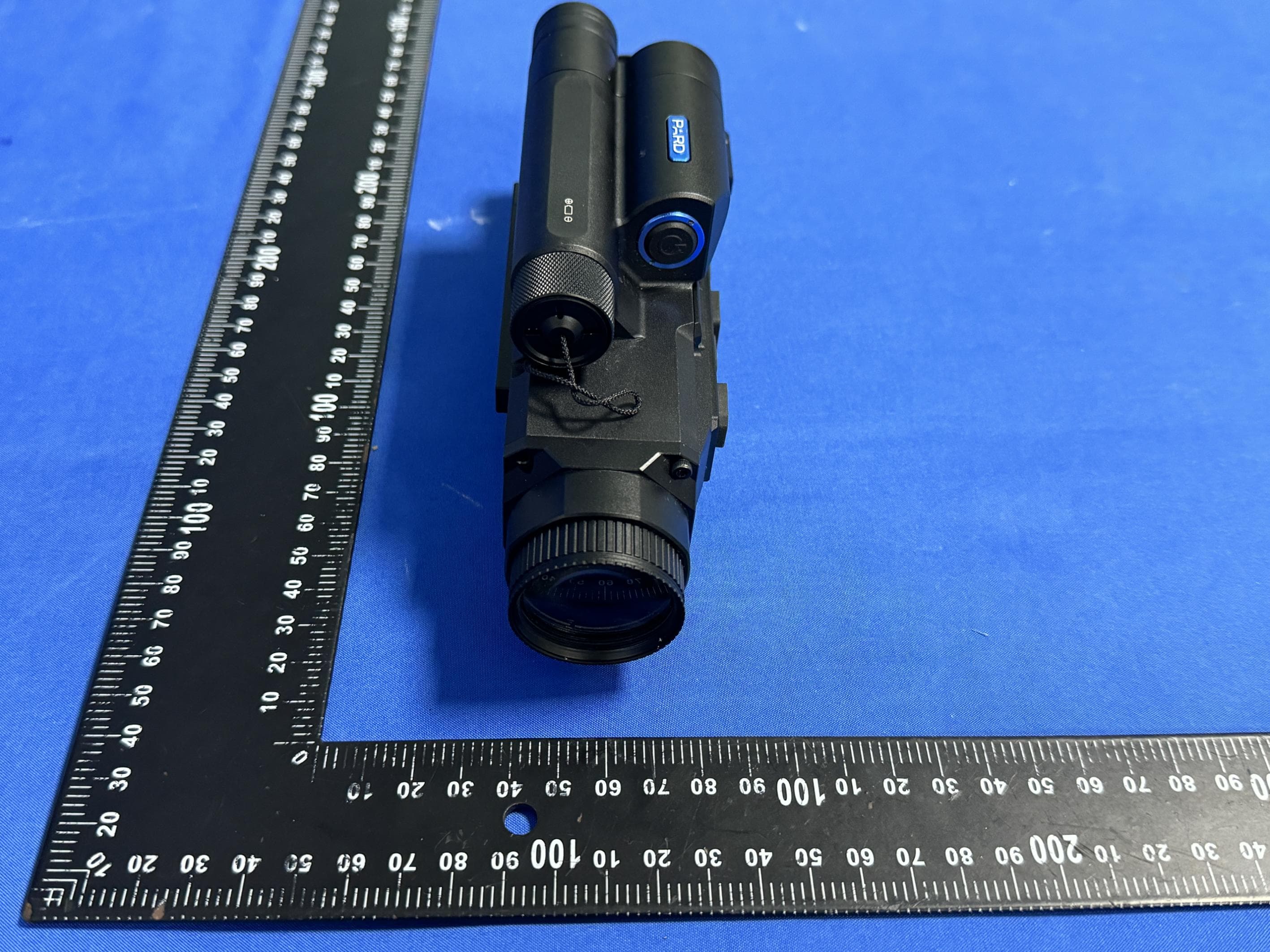

FCCID:2A3OFNIGHTWARRIOR4K EUTPHOTOS(ExternalPhotos) FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K ※※※※※ENDOFREPORT※※※※※

LabelandLabelLocation FCCID:2A3OFNIGHTWARRIOR4K L*W:30mm*10mm

FCCID:2A3OFNIGHTWARRIOR4K EUTPHOTOS(InternalPhotos) FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K ANT FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K FCCID:2A3OFNIGHTWARRIOR4K ※※※※※ENDOFREPORT※※※※※

FCCID:2A3OFNIGHTWARRIOR4K RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, Mode Max Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit 2.4GWiFi7.497 ± 15.61246251.983.0 SoaSARtestisnotrequired

ProjectNo.: ZHT-240401031E Page 1 of 85 FCC TEST REPORT FCC ID:2A3OFNIGHTWARRIOR4K ReportNumber. .................................. :ZHT-240401031E Dateof Test...........................................:Apr. 01, 2024to Apr. 10, 2024 Dateof issue.........................................:Apr. 10, 2024 Test Result............................................:PASS TestingLaboratory. ........................... :GuangdongZhonghanTestingTechnologyCo., Ltd. Address ............................................... :Room104, Building1, YibaolaiIndustrialPark,QiaotouCommunity, FuhaiStreet,Bao'anDistrict,Shenzhen,Guangdong,China Applicant'sname.............................:ShenzhenPard TechnologyCo.,Ltd Address ............................................... :B78,18/F,Guangyinbuilding,38FutianSouthRoad,port community, Futianstreet,FutianDistrict,Shenzhen Manufacturer'sname......................:ShenzhenPard TechnologyCo.,Ltd Address...............................................:B78,18/F,Guangyinbuilding,38FutianSouthRoad,port community, Futianstreet,FutianDistrict,Shenzhen Test specification: Standard................................................:FCCCFR Title 47 Part 15 SubpartC Section15.247 Test procedure......................................:KDB558074D01 15.247MeasGuidancev05r02 ANSIC63.10:2013 Non-standardtest method ................ :N/A This devicedescribedabovehas beentestedby ZHT,and the test resultsshowthat the equipmentunder test (EUT)is in compliancewith the FCCrequirements.And it is applicableonly to the testedsample identifiedin the report. This reportshallnot be reproducedexceptin full, withoutthe writtenapprovalof ZHT,this documentmay be alteredor revisedby ZHT,personalonly, and shallbe notedin the revisionof the document. Productname.....................................:DigitalNight VisionCamera Trademark...........................................:PARD Model/Typereference ......................... :NightWarrior4K NightWarriorHD , NightWarriorFHD , NightWarrior2K , NightWarrior4K60, ApparitionHD , ApparitionFHD , Apparition2K , Apparition4K , Apparition4K60, NV-B150, NV-S450C, NV-S450CL, NV-S470C, NV-S470CL, NV007V2, NV007V3, NV007V4, NV007V5, NV007V6, NV007SP2, NV007SP3, NV007SP4, NV007SP5, NV007SP6, NV008SP2 , NV008SP3 , NV008SP4 , NV008SP5 , NV008SP6 , AP2 , AP3 , AP4 , AP5 , AP6 , NS2 , NS4 , NS460, DS5-LRF, DS5 ModelDifference ................................ :NightWarrior4K is testedmodel,othermodelsare derivative models.The modelsare identicalin circuit,only differenton the modelnames.So the test data of NightWarrior4K can representthe remainingmodels. Ratings .................................................. :Input:5V1A or DC 3.7Vby Li-ionbattery ProjectNo.: ZHT-240401031E Page 2 of 85 Testingprocedureand testinglocation: TestingLaboratory.......................................:GuangdongZhonghanTestingTechnologyCo., Ltd. Address............................................................:Room104, Building1, YibaolaiIndustrialPark,Qiaotou Community,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China LeonLi Testedby (name+ signature).......................: BaretWu Reviewer(name+ signature).......................: Levi Lee Approved(name+ signature).......................: ProjectNo.: ZHT-240401031E Page 3 of 85 Table of Contents Page 1. VERSION....................................................................................................................................................5 2. SUMMARYOF TEST RESULTS................................................................................................................6 2.1 TEST FACILITY..................................................................................................................................7 2.2 MEASUREMENTUNCERTAINTY.....................................................................................................7 3. GENERALINFORMATION........................................................................................................................8 3.1 GENERALDESCRIPTIONOF EUT ..................................................................................................8 3.2 DESCRIPTIONOF TEST MODES.....................................................................................................9 3.3 BLOCKDIGRAMSHOWINGTHE CONFIGURATIONOF SYSTEMTESTED................................9 3.4 DESCRIPTIONOF SUPPORTUNITS(CONDUCTEDMODE).......................................................10 3.5 EQUIPMENTSLIST FOR ALL TEST ITEMS...................................................................................11 4. EMC EMISSIONTEST .............................................................................................................................13 4.1 CONDUCTEDEMISSIONMEASUREMENT...................................................................................13 4.1.1 POWERLINE CONDUCTEDEMISSIONLimits...................................................................13 4.1.2 TEST PROCEDURE................................................................................................................13 4.1.3 DEVIATIONFROMTEST STANDARD..................................................................................13 4.1.4 TEST SETUP...........................................................................................................................14 4.1.5 EUT OPERATINGCONDITIONS............................................................................................14 4.2 RADIATEDEMISSIONMEASUREMENT.......................................................................................17 4.2.1 RADIATEDEMISSIONLIMITS...............................................................................................17 4.2.2 TEST PROCEDURE................................................................................................................17 4.2.3 DEVIATIONFROMTEST STANDARD..................................................................................18 4.2.4 T…

Text truncated - open the document above for the full version.

ProjectNo.: ZHT-240401031E Page 66 of 85 BandEdgeNVNTg 2412MHzAnt1Ref BandEdgeNVNTg 2412MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 67 of 85 BandEdgeNVNTg 2462MHzAnt1Ref BandEdgeNVNTg 2462MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 68 of 85 BandEdgeNVNTn20 2412MHzAnt1Ref BandEdgeNVNTn20 2412MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 69 of 85 BandEdgeNVNTn20 2462MHzAnt1Ref BandEdgeNVNTn20 2462MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 70 of 85 BandEdgeNVNTn40 2422MHzAnt1Ref BandEdgeNVNTn40 2422MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 71 of 85 BandEdgeNVNTn40 2452MHzAnt1Ref BandEdgeNVNTn40 2452MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 72 of 85 11.6 CONDUCTEDRF SPURIOUSEMISSION ModeFrequency(MHz)Max Value(dBc)Limit (dBc)Verdict b2412-43.74-20Pass b2437-44.4-20Pass b2462-44.17-20Pass g2412-41.61-20Pass g2437-43.26-20Pass g2462-41.67-20Pass n202412-41.77-20Pass n202437-41.98-20Pass n202462-41.55-20Pass n402422-38.91-20Pass n402437-37.79-20Pass n402452-37.51-20Pass ProjectNo.: ZHT-240401031E Page 73 of 85 Test Graphs Tx. SpuriousNVNTb 2412MHzAnt1Ref Tx. SpuriousNVNTb 2412MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 74 of 85 Tx. SpuriousNVNTb 2437MHzAnt1Ref Tx. SpuriousNVNTb 2437MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 75 of 85 Tx. SpuriousNVNTb 2462MHzAnt1Ref Tx. SpuriousNVNTb 2462MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 76 of 85 Tx. SpuriousNVNTg 2412MHzAnt1Ref Tx. SpuriousNVNTg 2412MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 77 of 85 Tx. SpuriousNVNTg 2437MHzAnt1Ref Tx. SpuriousNVNTg 2437MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 78 of 85 Tx. SpuriousNVNTg 2462MHzAnt1Ref Tx. SpuriousNVNTg 2462MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 79 of 85 Tx. SpuriousNVNTn20 2412MHzAnt1Ref Tx. SpuriousNVNTn20 2412MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 80 of 85 Tx. SpuriousNVNTn20 2437MHzAnt1Ref Tx. SpuriousNVNTn20 2437MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 81 of 85 Tx. SpuriousNVNTn20 2462MHzAnt1Ref Tx. SpuriousNVNTn20 2462MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 82 of 85 Tx. SpuriousNVNTn40 2422MHzAnt1Ref Tx. SpuriousNVNTn40 2422MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 83 of 85 Tx. SpuriousNVNTn40 2437MHzAnt1Ref Tx. SpuriousNVNTn40 2437MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 84 of 85 Tx. SpuriousNVNTn40 2452MHzAnt1Ref Tx. SpuriousNVNTn40 2452MHzAnt1Emission ProjectNo.: ZHT-240401031E Page 85 of 85 12. TEST SETUPPHOTO Referenceto the appendixI for details. 13. EUT CONSTRUCTIONALDETAILS Referenceto the appendixII for details. ※※※※※END OF REPORT※※※※※

FCCID:2A3OFNIGHTWARRIOR4K EUTTESTPHOTOS FCCID:2A3OFNIGHTWARRIOR4K ※※※※※ENDOFREPORT※※※※※
