2A3P9402CFinger Print Digital Deadbolt

The device has been evaluated to meet general RF exposure requirement. The device can be useo in mobile device condition without restriction. Contains FCC ID: 2A3P9402C FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. N OTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: R adiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help.

China Smart Lock Shared Platform Address: No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Date: 2023-09-06 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2A3P9402C To Whom It May Concern: China Smart Lock Shared Platform certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Date: 2023-09-06

China Smart Lock Shared Platform U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: September 06, 2023 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: China Smart Lock Shared Platform Grantee Code: 2A3P9 FCC ID: 2A3P9402C Contact Name: Zhang he Street Address: No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China City/Province/Zip: China Telephone No: 18938779755 Email: [email protected] Applicant Signature: Date: 2023.09.06 Signed by (Printed Name/Title): Zhang he / Manager

Page 1 CUSTOMER NAME: Graffiti Technology Ren Feng P/N:Printed Antenna WRITED: Wang Long DATE:20190520 VERSIONS:A ManufacturerShenzhen Shengshi Ruihong Electronics Co., Ltd Manufacturer Address 306, Building A, Huafeng Zhigu Yuanshan High tech Industrial Park, No. 62 Yinhe Road, He'ao Community, Yuanshan Street, Longgang District, Shenzhen Page 2 Dimension figure © 2011, Deman Electronics Page 3 Measurement data Frequency (MHz) 240024502500 Return Loss-8.73-11.76-11.21 VSWR 2.161.711.77 Page 4 Radiation pattern Z Y X Page 5 Directivity Diagram Z Y 2D Page 6 Directivity Diagram Phi 0 2D Page 7 Directivity Diagram Phi 90 2D Page 8 Directivity Diagram Theta 90 2D Page 9 © 2011, Deman Electronics 3D Page 10 Freq.（MHz）Effi(%)Gain (dBi) 2400 52.29 1.62 2410 52.17 1.71 2420 53.14 1.93 2430 54.16 1.98 2440 57.62 2.00 2450 59.64 2.17 2460 61.55 2.45 2470 60.64 2.38 2480 62.86 2.54 2490 59.85 2.30 2500 60.41 2.49 Efficiency&Gain

China Smart Lock Shared Platform No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 6, 2023 Subject; Request for Confidentiality FCC ID: 2A3P9402C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhang he Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 China Smart Lock Shared Platform No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Date：2023/09/06 Product Model Number: 402C, 402 FCC ID：2A3P9402C To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: Testing Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 18938779755 On behalf of: China Smart Lock Shared Platform

China Smart Lock Shared Platform No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Series Models Description To whom it may concern: The device (Product Name: Finger Print Digital Deadbolt) Models Name: 402C, 402 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Zhang he Phone: 18938779755 e-mail: [email protected] Dated: 09/06/2023

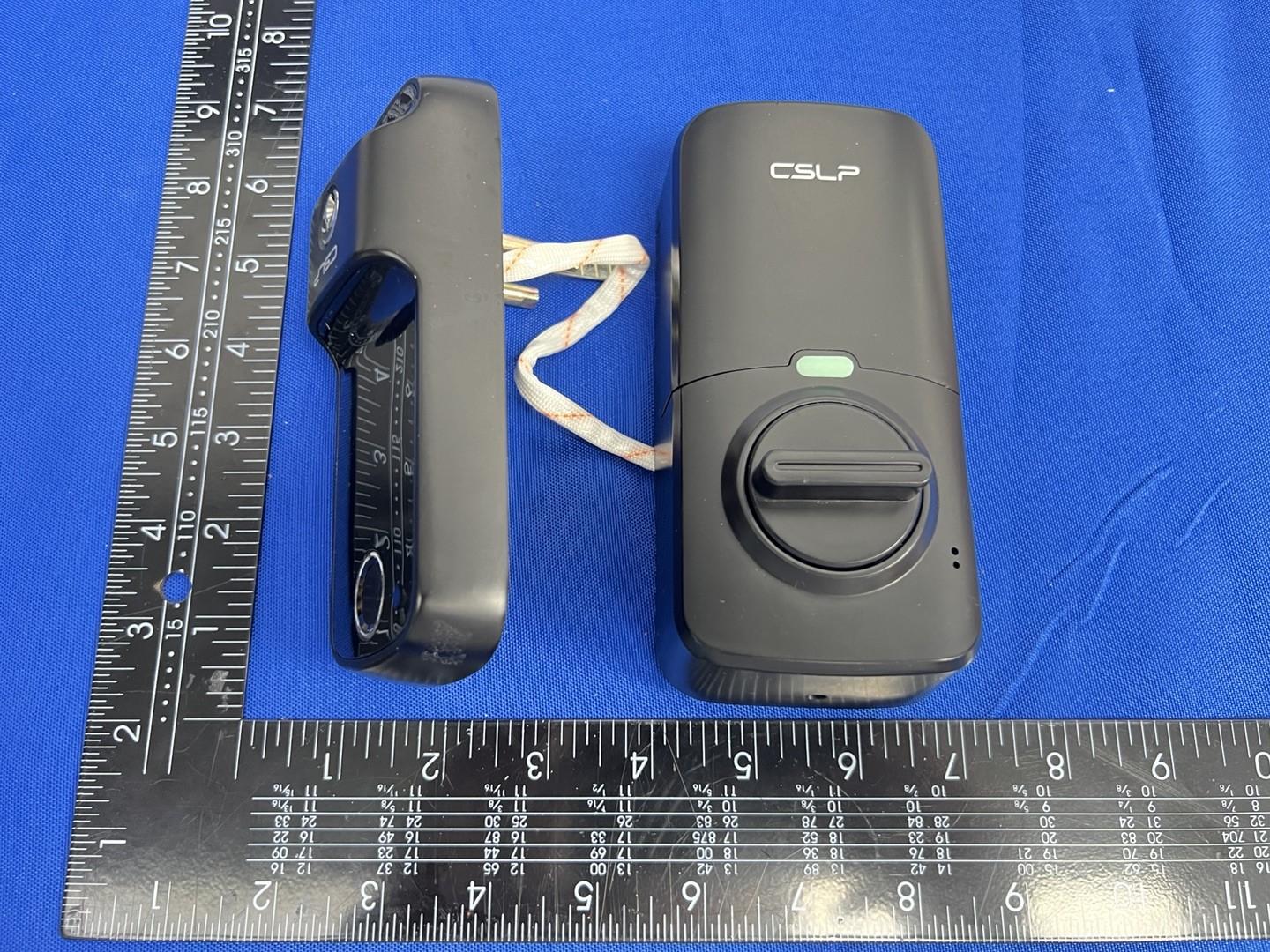

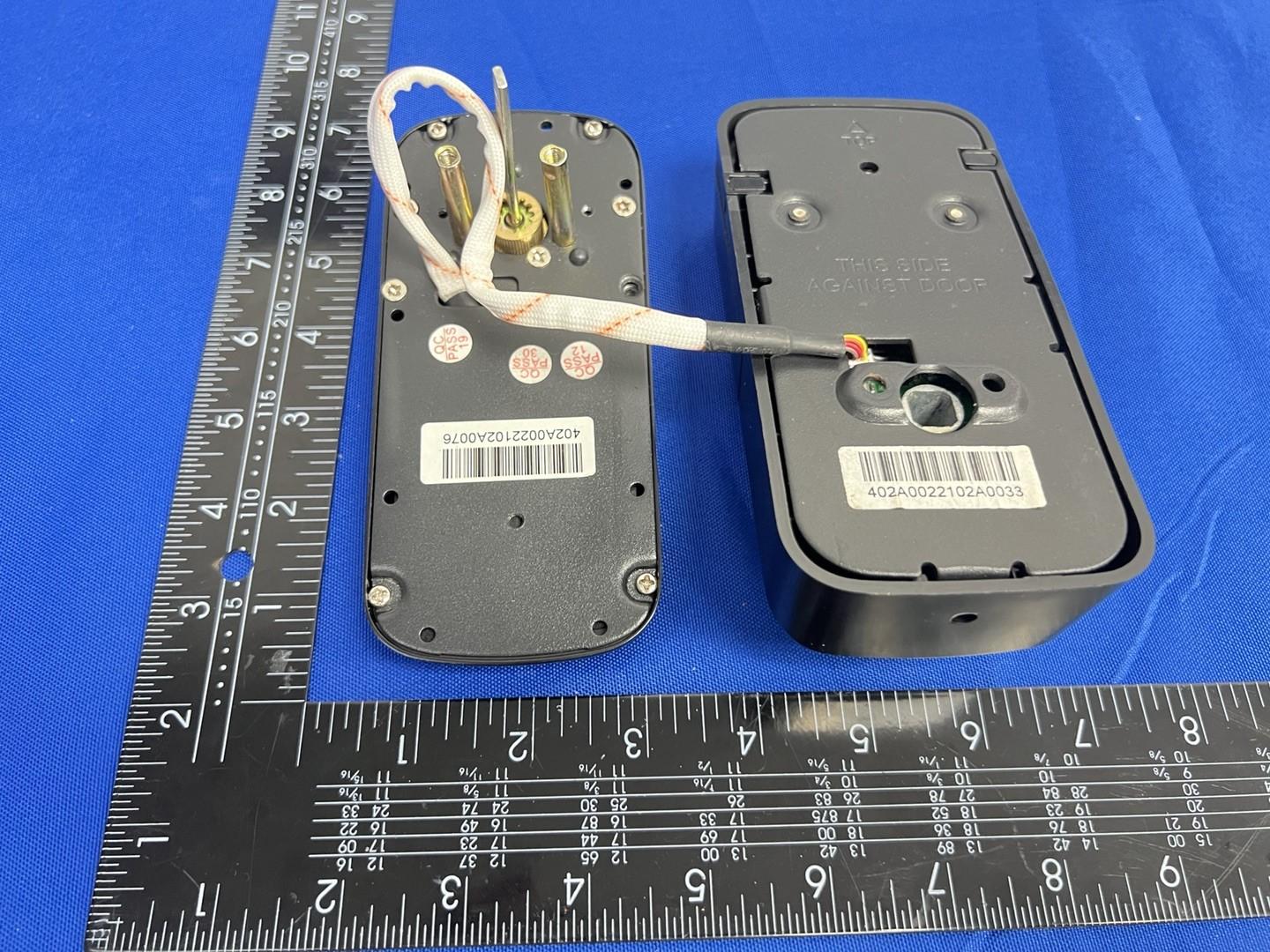

FCC ID: 2A3P9402C Page 1 of 4 Report No.: CTL2308242011-WF External Photos of EUT FCC ID: 2A3P9402C Page 2 of 4 Report No.: CTL2308242011-WF FCC ID: 2A3P9402C Page 3 of 4 Report No.: CTL2308242011-WF FCC ID: 2A3P9402C Page 4 of 4 Report No.: CTL2308242011-WF

FCC ID: 2A3P9402C Page 1 of 1 Report No.: CTL2308242011-WF FCC-ID Label Information 1. Label location: Finger Print Digital Deadbolt Model: 402C FCC ID: 2A3P9402C

FCC ID: 2A3P9402C Page 1 of 4 Report No.: CTL2308242011-WF Internal Photos of EUT FCC ID: 2A3P9402C Page 2 of 4 Report No.: CTL2308242011-WF FCC ID: 2A3P9402C Page 3 of 4 Report No.: CTL2308242011-WF Antenna FCC ID: 2A3P9402C Page 4 of 4 Report No.: CTL2308242011-WF

FCC ID: 2A3P9402C Page 1 of 3 Report No.: CTL2308242011-WF FCC RF Exposure Evaluation 1. Product Information FCC ID 2A3P9402C Product Name Finger Print Digital Deadbolt Test Model 402C, 402 Power Supply DC 6V battery powered Modulation Type Bluetooth LE: GFSK Antenna Type PCB Antenna Antenna Gain 2.54dBi Frequency Range 2402 – 2480MHz Exposure Category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 FCC ID: 2A3P9402C Page 2 of 3 Report No.: CTL2308242011-WF Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information 402C can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Note PCB Antenna 2402 MHz – 2480 MHz 2.54dBi Bluetooth Antenna 6.Conducted Power Results [BLE] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 1M 0 2402 1.45 19 2440 1.38 39 2480 1.21 7.Manufacturing Tolerance <BLE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 FCC ID: 2A3P9402C Page 3 of 3 Report No.: CTL2308242011-WF 8. Evaluation Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. BLE Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW GFSK 2.0 1.5849 2.54 1.7949 100% 0.0006 1.0000 Emark: 1. Output power including tune-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer; 8.2 Simultaneous Transmission MPE The sample supports a modular, 1 antennas. This means they don't transmit at the same time, and MIMO mode is not supported. No need to consider simultaneous transmission; 9.Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. .......................THE END OF REPORT.........................

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2308242011-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) James Yu (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Finger Print Digital Deadbolt Model/Type reference ................ : 402C List Model(s) ............................... : 402 Trade Mark .................................. : N/A FCC ID ......................................... : 2A3P9402C Applicant’s name ....................... : China Smart Lock Shared Platform Address of applicant ................. : No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Aug. 24 2023 Date of Test Date ........................ : Aug. 24 2023-Aug. 30 2023 Date of Issue .............................. : Aug. 31 2023 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 35 Report No.: CTL2308242011-WF TEST REPORT Test Report No. : CTL2308242011-WF Aug. 31 2023 Date of issue Equipment under Test : Finger Print Digital Deadbolt Sample No : CTL2308242011 Model /Type : 402C Listed Models : 402 Applicant : China Smart Lock Shared Platform Address : No.36, Xiaolan Industrial Avenue, Zhongshan, Guangdong, China Manufacturer : Guangdong Mansion Intelligent Technology Co., Ltd. Address : Industrial Road Middle #36,Xiaolan,Zhongshan,Guangdong, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 35 Report No.: CTL2308242011-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2023-08-31 CTL2308242011-WF Tracy Qi V1.0 Page 4 of 35 Report No.: CTL2308242011-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 9 2.6. MODIFICATIONS ........................................................................................................................................................... 9 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 21 3.4. POWER SPECTRAL DENSITY ................................................................................…

Text truncated - open the document above for the full version.

V1.0 Page 1 of 19 Report No.: CTL2308242011-WF Test Data for Bluetooth Product Name: Finger Print Digital Deadbolt Test Model: 402C 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 1M SISO 2402 1 0.931 Pass 2440 1 0.933 Pass 2480 1 0.949 Pass V1.0 Page 2 of 19 Report No.: CTL2308242011-WF 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 3 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 4 of 19 Report No.: CTL2308242011-WF 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.653 >=0.5 Pass 2440 1 0.654 >=0.5 Pass 2480 1 0.659 >=0.5 Pass V1.0 Page 5 of 19 Report No.: CTL2308242011-WF 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 6 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 7 of 19 Report No.: CTL2308242011-WF 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 1.45 <=30 Pass 2440 1.38 <=30 Pass 2480 1.21 <=30 Pass Note1: Antenna Gain: Ant1: 2.54dBi; V1.0 Page 8 of 19 Report No.: CTL2308242011-WF 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 9 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 10 of 19 Report No.: CTL2308242011-WF 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -11.29 <=8 Pass 2440 -11.40 <=8 Pass 2480 -11.56 <=8 Pass Note1: Antenna Gain: Ant1: 2.54dBi; V1.0 Page 11 of 19 Report No.: CTL2308242011-WF 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 12 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 19 Report No.: CTL2308242011-WF 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 0.74 2440 1 0.70 2480 1 0.44 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 14 of 19 Report No.: CTL2308242011-WF 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 15 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 16 of 19 Report No.: CTL2308242011-WF 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 0.74 -19.26 Pass 2440 1 0.74 -19.26 Pass 2480 1 0.74 -19.26 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 17 of 19 Report No.: CTL2308242011-WF 4.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV V1.0 Page 18 of 19 Report No.: CTL2308242011-WF 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 19 of 19 Report No.: CTL2308242011-WF 1M_HCH_2480MHz_Ant1_NTNV

FCC ID: 2A3P9402C Page 1 of 2 Report No.: CTL2308242011-WF Test Setup Photos of the EUT FCC ID: 2A3P9402C Page 2 of 2 Report No.: CTL2308242011-WF
