2A3PA-RADXA-ROCK3CRadxa ROCK 3 Model C

U s e r Manual Radxa ROCK 3C User Manual Well established form factor Single Board Computer Revision 1.0 2023-3-15 RadxaROCK3CUserManual Contents 1 Revision2 2 Introduction3 3 Features4 3.1 Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3.2 Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3.3 Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 4 Electrical Specification5 4.1 Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 4.2 GPIO Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 5 Peripherals6 5.1 GPIO Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 5.1.1 GPIO Alternate Functions. . . . . . . . . . . . . . . . . . . . . . . . .6 5.2 eMMC Module Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 5.3 Camera and Display Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . .7 5.4 USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 5.5 HDMI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 5.6 Audio Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 5.7 M.2 Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 5.8 Operating Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 5.9 Fan Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 6 Availability8 7 Support8 RadxaComputer1 RadxaROCK3CUserManual 1 Revision Version DateChanges from previous version 1.018/05/2023First version RadxaComputer2 RadxaROCK3CUserManual 2 Introduction Radxa ROCK 3C is a Single Board Computer (SBC) in an ultra‑small form factor that offers class‑leading performance while leveraging outstanding mechanical compatibility. Radxa ROCK 3C offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality. RadxaComputer3 RadxaROCK3CUserManual 3 Features 3.1 Hardware ・Rockchip RK3566 SoC ・Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz ・Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0 ・1GB / 2GB LPDDR4 available ・Storage is supported by eMMC storage, micro SD card and SSD through the M.2 con‑ nector ・Display via HDMI or MIPI DSI. They can not work at the same time ・H.264/H.265 decoder up to 4K@60fps ・H.264/H.265 encoder up to 1080P@60fps RadxaComputer4 RadxaROCK3CUserManual 3.2 Interfaces ・802.11 b/g/n/ac Wireless LAN support‑ ing WiFi 5 ・BT 5.0 ・1x HDMI 2.0 port supporting displays up to 1080P@60fps resolution ・1x SD Card slot ・2x USB2 HOST ports ・1x USB2 OTG/HOST port ・1x USB3 HOST port ・1x Gigabit Ethernet port. It supports PoE with add‑on PoE HAT ・1x M.2 M‑Key connector for NVMe SSD or SATA SSD ・1x camera port supporting 2‑lane MIPI CSI ・1x display port supporting 2‑lane MIPI DSI ・3.5mm jack with microphone. The HD codec supports up to 24‑bit/96KHz au‑ dio ・40x user GPIO supporting various inter‑ face options: –up to 5 x UART –1 x SPI bus –up to 2 x I2C bus –1 x PCM/I2S –up to 6 x PWM –up to 28 x GPIO –2 x 5V DC power in –2 x 3.3V power pin 3.3 Software ・ARMv8 Instruction Set ・Debian/Ubuntu Linux support ・Android 11 support ・Hardware access/control library for Linux/Android 4 Electrical Specification 4.1 Power Requirements Radxa ROCK 3C can only be powered by +5V. ・USB Type‑C® 5V ・5V Power from the GPIO PIN 2 & 4 The recommended power source capacity is at least 5V/3A without M.2 SSD or 5V/4A using with M.2 SSD. RadxaComputer5 RadxaROCK3CUserManual 4.2 GPIO Voltage GPIO Voltage Level Tolerance All GPIO 3.3V3.63V 5 Peripherals 5.1 GPIO Interface Radxa ROCK 3C offers 40P GPIO expansion which is compatible with most accessories on the market. 5.1.1 GPIO Alternate Functions Function5 Function4Function3Function2 Function1 Pin# Pin# Function1 Function2 Function3 Function4 Function5 +3.3V12+5.0V I2C3_SDA_M0 UART3_RX_M0 GPIO1_A0 34+5.0V I2C3_SCL_M0 UART3_TX_M0 GPIO1_A1 56GND PWM14_M0GPIO3_C4 78GPIO0_D1 UART2_TX_M0 GND910GPIO0_D0 UART2_RX_M0 GPIO3_A1 1112GPIO3_A3I2S3_SCLK_M0 I2S3_MCLK_M0GPIO3_A2 1314GND GPIO3_B0 1516GPIO3_B1 UART4_RX_M1PWM8_M0 +3.3V1718GPIO3_B2 UART4_TX_M1PWM9_M0 PWM15_IR_M1 I2S3_SCLK_M1 SPI3_MOSI_M1 GPIO4_C3 1920GND UART9_TX_M1PWM12_M1 I2S3_SDO_M1 SPI3_MISO_M1 GPIO4_C5 2122GPIO3_C1I2S1_SDO2_M2 PWM14_M1 I2S3_MCLK_M1 SPI3_CLK_M1 GPIO4_C2 2324GPIO4_C6 SPI3_CS0_M1 PWM13_M1 UART9_RX_M1I2S3_SDI_M1 GND2526GPIO4_D1 SPI3_CS1_M1 I2C4_SDA_M0 I2S2_SDI_M1GPIO4_B2 2728GPIO4_B3I2C4_SCL_M0 I2S2_SDO_M1 GPIO3_B3 2930GND GPIO3_B4 31 32GPIO3_C2 UART5_TX_M1 I2S1_SDO3_M2 UART5_RX_M1I2S1_SCLK_RX_M2GPIO3_C3 3334GND I2S3_LRCK_M0GPIO3_A4 3536GPIO3_A7 I2S1_SCLK_RX_M0GPIO1_A4 3738GPIO3_A6I2S3_SDI_M0 GND3940GPIO3_A5I2S3_SDO_M0 5.2 eMMC Module Connector ROCK 3C offers a high speed eMMC socket for eMMC modules which can be used for OS and data storage. The eMMC socket is compatible with readily available industrial pinout and RadxaComputer6 RadxaROCK3CUserManual form factor hardware. The maximum eMMC size supported is 128GB. 5.3 Camera and Display Interfaces Radxa ROCK 3C has 1x 2‑lane MIPI CSI camera connector and 1x 2‑lane MIPI DSI display connector. These connectors are backwards compatible with standard industrial camera and display peripherals. 5.4 USB Radxa ROCK 3C has two USB2 HOST connectors, one USB3 HOST connector and one USB2 OTG/HOST connector. The board has a hardware switch to set the USB2 operation to ei‑ ther HOST or OTG. The power output across these ports is 2.8A in aggregate over the four connectors. 5.5 HDMI Radxa ROCK 3C has one HDMI port supporting CEC and HDMI 2.0 with resolutions up to 1080P@60fps. 5.6 Audio Jack The ROCK 3C supports near‑CD‑quality analogue audio output via a 4‑ring 3.5mm head‑ phonejack. TheHDcodecsupportsupto24bitat96Hz. Theanalogaudiooutputcandrive 32 Ohm headphones directly. The headpho…

Text truncated - open the document above for the full version.

ROCKPI TRADING LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: ROCKPI TRADING LIMITED Address: Room 11, 27 / f, Ga wah international centre, 191 Javaroad, north point, Hong Kong Product Name: Radxa ROCK 3 Model C FCC ID: 2A3PA-RADXA-ROCK3C Model(s): Radxa ROCK 3 Model C, Radxa ROCK 3 Model C 1GB, Radxa ROCK 3 Model C 2GB, Radxa ROCK 3 Model C 4GB, Radxa ROCK 3 Model C 8GB 2.911(d)(5)(i) Equipment Type We, [ROCKPI TRADING LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: 2023.5.29 Title and Company name: Luffy Wang/ Manager NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ROCKPI TRADING LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: ROCKPI TRADING LIMITED Address: Room 11, 27 / f, Ga wah international centre, 191 Javaroad, north point, Hong Kong Product Name: Radxa ROCK 3 Model C FCC ID: 2A3PA-RADXA-ROCK3C Model(s): Radxa ROCK 3 Model C, Radxa ROCK 3 Model C 1GB, Radxa ROCK 3 Model C 2GB, Radxa ROCK 3 Model C 4GB, Radxa ROCK 3 Model C 8GB 2.911(d)(5)(ii) Applicant filing We, [ROCKPI TRADING LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date: 2023.5.29 Title and Company name: Luffy Wang/ Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ROCKPI TRADING LIMITED R oom 11, 27 I f, Ga wah international centt飞191 Java road, north point, Hong Kong Email: [email protected] (ROCKPI TRADING LIMITED) Federal Communications Commission Authorization and Evaluation Division 7 435 Oakland Mills Road Columbia, MD 21046 USA Date: 04 -23-2023 R ef: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2A3PA-RADXA-ROCK3C [ ROCKPI TRADING LIMITED] （ ” the applicant ” ） certifies t hat, as of the date of the filing of the application, RS Americas, Inc is 。ur designated U.S. agent for service of process for the above referenced FCC ID. [ROCKPI TRADING LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and imp。rtation or the conclusion of any Commission-related proceeding involving the equipment. RS Americas, Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process f。r the above referenced FCC ID. Applicant Information: Company name: ROCKPI TRADING LIMITED Contact Name: L uffy Wang Address: Room 11, 27 If, Ga wah international centre, 191 Java road, north point, Hong K。ng, China Telephone No: 13760396499 Email: s [email protected] Designated U.S. Agent Information: Name: RS Americas, Inc Address: 7151 Jack Newell Blvd. S. Fort Worth, Texas 76118 U.S.A. F RN:0033468364 Contact Person: Carlos Sanchez Tel.: +1 (866) 433-5722 Email: [email protected] Sincerely, Rev 1/26/2023

ROCKPI TRADING LIMITED Agent Authorization Company: ROCKPI TRADING LIMITED Address: Room 11, 27 / f, Ga wah international centre, 191 Javaroad, north point, Hong Kong Product Name: Radxa ROCK 3 Model C Model Number(s): Radxa ROCK 3 Model C, Radxa ROCK 3 Model C 1GB, Radxa ROCK 3 Model C 2GB, Radxa ROCK 3 Model C 4GB, Radxa ROCK 3 Model C 8GB Product Description: Radxa ROCK 3 Model C We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/05/29 Name: Luffy Wang Title: Manager Company: ROCKPI TRADING LIMITED

ROCKPI TRADING LIMITED Model Difference 2023/05/29 EUT NAME: Radxa ROCK 3 Model C FCC ID: 2A3PA-RADXA-ROCK3C MODEL : Radxa ROCK 3 Model C, Radxa ROCK 3 Model C 1GB, Radxa ROCK 3 Model C 2GB, Radxa ROCK 3 Model C 4GB, Radxa ROCK 3 Model C 8GB All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title :Luffy Wang / Manager Contact information / address:Room 11, 27/f, Ga wah international centre, 191 Javaroad, north point,Hong Kong, China

ROCKPI TRADING LIMITED FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/05/29 Subject; Modular Transmitter Application Company name: ROCKPI TRADING LIMITED FCC ID: 2A3PA-RADXA-ROCK3C Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2A3PA-RADXA-ROCK3C has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, This module have buffered modulation/data inputs . The module must contain power supply regulation on the module. Yes,The module have power supply regulation, The supply voltage is DC 3.3V. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, This module has a permanent antenna connector The module must demonstrate compliance in a stand-alone configuration. Yes, This module is a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The product label is permanently fixed on the prototype. For details, see Label The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, This module meets the requirements of FCC part 15C(15.247).it specifically establish the 6dB Bandwidth,, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) &Measurement, This module meets the ROCKPI TRADING LIMITED FCC Modular Approval Request Rev 3.0 requirements of FCC part 15E(15.407).it specifically establish the 6dB Bandwidth, 26 dB and 99% Emission Bandwidth, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) , Frequency Stability Measurement The module must comply with RF exposure requirements Yes,This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID : 2A3PA-RADXA-ROCK3C Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 10 2.3 Summarize the specific operational use conditions Page 10 2.4 Limited module procedures Page 10 2.5 Trace antenna designs Page 11 2.6 RF exposure considerations Page 11 2.7 Antennas Page 12 2.8 Label and compliance information Page 12 2.9 Information on test modes and additional testing requirements Page 12 2.10 Additional testing, Part 15 Subpart B disclaimer Page 12 Name: Luffy Wang Date: 2023/05/29 Title: manager Yours sincerely, Name: Date: 2023.5.29 ROCKPI TRADING LIMITED FCC Modular Approval Request Rev 3.0 Title and Company name: Luffy Wang/ Manager Signature of applicant

ROCKPI TRADING LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/05/29 Subject; Request for Confidentiality FCC ID: 2A3PA-RADXA-ROCK3C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram software security requirement Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Luffy Wang Title: Manager

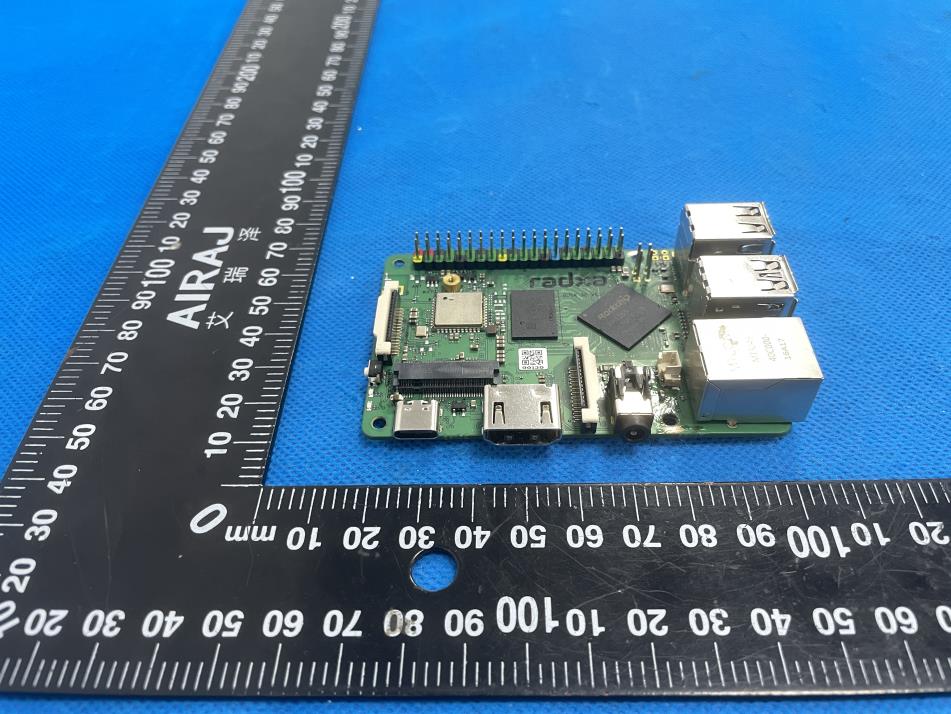

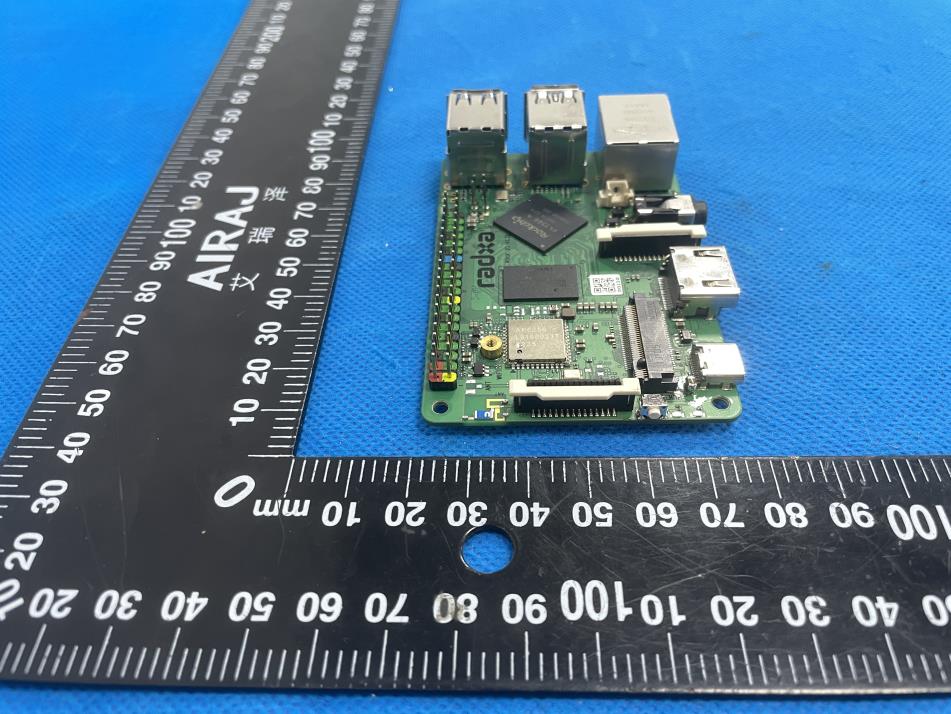

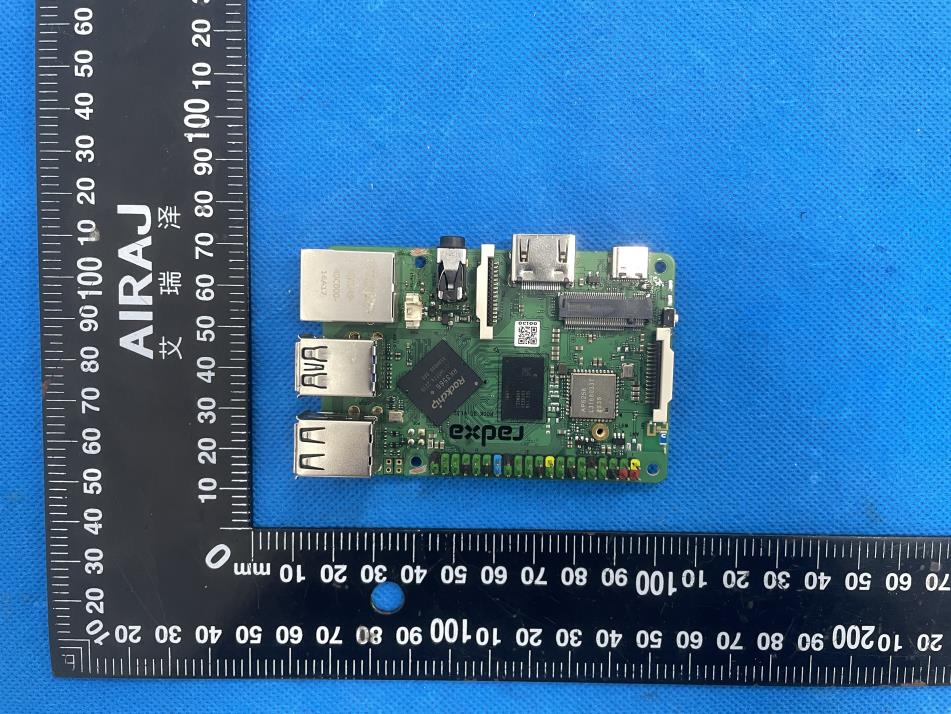

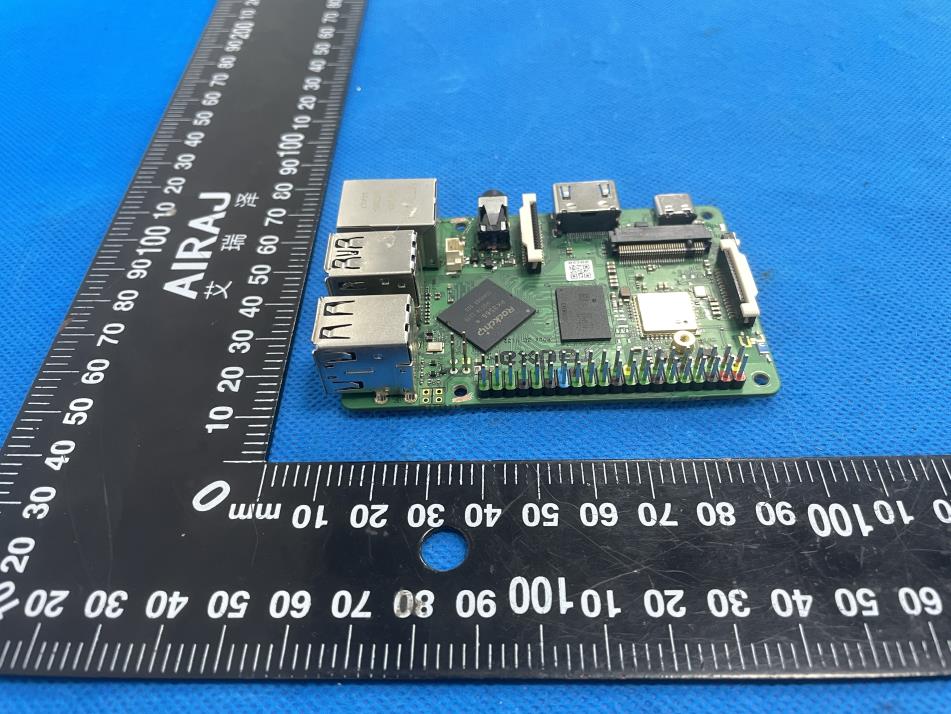

External Photos

Label & label location 20*10mm Label location FCC ID: 2A3PA-RADXA-ROCK3C

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A3PA-RADXA-ROCK3C Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS For the max result : 0.00445≤ 1.0, compliance with FCC's RF Exposure. Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BT 3±1 4 2.51 1.41(1.5dBi) 0.00070 1 Pass BLE 2±1 3 2.0 1.41(1.5dBi) 0.00056 1 Pass 2.4G WIFI 11±1 12 15.85 1.41(1.5dBi) 0.00445 1 Pass 5G WIFI 2±1 3 2.0 1.70(2.3dBi) 0.00068 1 Pass

No.：BCTC/RF-EMC-007 Page: 1 of 80 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2304355056-1E Applicant: ROCKPI TRADING LIMITED Product Name: Radxa ROCK 3 Model C Model/Type reference: Radxa ROCK 3 Model C Tested Date: 2023-04-07 to 2023-05-17 Issued Date: 2023-05-17 Report No.:BCTC2304355056-1E No.：BCTC/RF-EMC-007 Page: 2 of 80 Edition：A.5 FCC ID: 2A3PA-RADXA-ROCK3C The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Radxa ROCK 3 Model C Trademark: N/A Model/Type Reference: Radxa ROCK 3 Model C Radxa ROCK 3 Model C 1GB, Radxa ROCK 3 Model C 2GB, Radxa ROCK 3 Model C 4GB, Radxa ROCK 3 Model C 8GB Prepared For: ROCKPI TRADING LIMITED Address: Room 11, 27 / f, Ga wah international centre, 191 Javaroad, north point, Hong Kong Manufacturer: ROCKPI TRADING LIMITED Address: Room 11, 27 / f, Ga wah international centre, 191 Javaroad, north point, Hong Kong Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-04-07 Sample tested Date: 2023-04-07 to 2023-05-17 Issue Date: 2023-05-17 Report No.: BCTC2304355056-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.:BCTC2304355056-1E No.：BCTC/RF-EMC-007 Page: 3 of 80 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 Test Resu…

Text truncated - open the document above for the full version.

詠業科技股份有限公司 UnictronTechnologiesCorporation Website:www.unictron.com THISDRAWINGSANDSPECIFICATIONSARETHE PROPERTYOFUNICTRONTECHNOLOGIES CORPORATIONANDSHALLNOTBEREPRODUCED ORUSEDASTHEBASISFORTHEMANUFACTUREOR SALEOFAPPARATUSORDEVICESWITHOUT PERMISSION Preparedby:XeniaDesignedby:GeorgeCheckedby:MikeApprovedby：Herbert TITLE： 3.2x1.6x0.5(mm)WiFiDualBandChip Antenna(AA077)EngineeringSpecification DOCUMENT H2U84W1H1S0100 REV. NO.H PAGE 1 OF 22 3.2x1.6x0.5(mm)WiFiDualBandChipAntenna(AA077) EngineeringSpecification 1.ProductNumber 2.Features *Stableandreliableperformancesinboth2.4and5GHzbands *Lowprofileandcompactsize *RoHScompliance *SMTprocessescompatible 3.Applications *Wi-FiCERTIFIEDacapplications *WirelesscommunicationdeviceswhenIEEE802.11a/b/g/n/acfunctionsareneeded. *IoTapplications 4.Description Unictron’sAA077ceramicchipantennaisdesignedforWi-FiCERTIFIEDac applications,coveringboth2400~2500MHz&5150~5850MHzfrequencybands. Fabricatedwithproprietarydesignandprocesses,AA077showsexcellent performanceandisfullycompatiblewithSMTprocesseswhichcandecreasethe assemblycostandimprovedevice’squalityandconsistency. 詠業科技股份有限公司 UnictronTechnologiesCorporation Website:www.unictron.com THISDRAWINGSANDSPECIFICATIONSARETHE PROPERTYOFUNICTRONTECHNOLOGIES CORPORATIONANDSHALLNOTBEREPRODUCED ORUSEDASTHEBASISFORTHEMANUFACTUREOR SALEOFAPPARATUSORDEVICESWITHOUT PERMISSION Preparedby:XeniaDesignedby:GeorgeCheckedby:MikeApprovedby：Herbert TITLE： 3.2x1.6x0.5(mm)WiFiDualBandChip Antenna(AA077)EngineeringSpecification DOCUMENT H2U84W1H1S0100 REV. NO.H PAGE 2 OF 22 5.LayoutGuide&ElectricalSpecifications 5-1.LayoutGuide(unit：mm) SolderLandPattern: Thesolderlandpattern(goldmarkingareas)isshownbelow.Recommendationon matchingcircuitwillbeprovidedaccordingtocustomer’sinstallationconditions. TopView BottomView TransmissionLinewith50ΩImpedanceCharacteristic SignalInput 詠業科技股份有限公司 UnictronTechnologiesCorporation Website:www.unictron.com THISDRAWINGSANDSPECIFICATIONSARETHE PROPERTYOFUNICTRONTECHNOLOGIES CORPORATIONANDSHALLNOTBEREPRODUCED ORUSEDASTHEBASISFORTHEMANUFACTUREOR SALEOFAPPARATUSORDEVICESWITHOUT PERMISSION Preparedby:XeniaDesignedby:GeorgeCheckedby:MikeApprovedby：Herbert TITLE： 3.2x1.6x0.5(mm)WiFiDualBandChip Antenna(AA077)EngineeringSpecification DOCUMENT H2U84W1H1S0100 REV. NO.H PAGE 3 OF 22 5-2.ElectricalSpecifications(EvaluationBoardDimensions:80x40mm 2 ) 5-2-1.ElectricalTable(2400~2500MHzBand) CharacteristicsSpecificationsUnit OutlineDimensions3.2x1.6x0.5mm GroundPlaneDimensions80x40mm WorkingFrequency2400~2500MHz VSWR(@centerfrequency)*2Max. CharacteristicImpedance50  PolarizationLinearPolarization PeakGain (@2442MHz) 1.4(typical)dBi Efficiency76(typical)% *Centerfrequencymeansthefrequencywiththelowestvalueinreturnlossofthechipantennaontheevaluationboard. 5-2-2.ElectricalTable(5150~5850MHzBand) CharacteristicsSpecificationsUnit WorkingFrequency5150~5850MHz VSWR(@centerfrequency)*2Max. CharacteristicImpedance50  PolarizationLinearPolarization PeakGain (@5550MHz) 2.3(typical)dBi Efficiency67(typical)% *Centerfrequencymeansthefrequencywiththelowestvalueinreturnlossofthechipantennaontheevaluationboard. 詠業科技股份有限公司 UnictronTechnologiesCorporation Website:www.unictron.com THISDRAWINGSANDSPECIFICATIONSARETHE PROPERTYOFUNICTRONTECHNOLOGIES CORPORATIONANDSHALLNOTBEREPRODUCED ORUSEDASTHEBASISFORTHEMANUFACTUREOR SALEOFAPPARATUSORDEVICESWITHOUT PERMISSION Preparedby:XeniaDesignedby:GeorgeCheckedby:MikeApprovedby：Herbert TITLE： 3.2x1.6x0.5(mm)WiFiDualBandChip Antenna(AA077)EngineeringSpecification DOCUMENT H2U84W1H1S0100 REV. NO.H PAGE 4 OF 22 5-2-3.ReturnLoss&VSWR ReturnLoss(S 11 )VSWR(S 11 ) 6.OutlineDimensionsofAntenna&EvaluationBoard(unit:mm) 6-1.AntennaDimensions 詠業科技股份有限公司 UnictronTechnologiesCorporation Website:www.unictron.com THISDRAWINGSANDSPECIFICATIONSARETHE PROPERTYOFUNICTRONTECHNOLOGIES CORPORATIONANDSHALLNOTBEREPRODUCED ORUSEDASTHEBASISFORTHEMANUFACTUREOR SALEOFAPPARATUSORDEVICESWITHOUT PERMISSION Preparedby:XeniaDesignedby:GeorgeCheckedby:MikeApprovedby：Herbert TITLE： 3.2x1.6x0.5(mm)WiFiDualBandChip Antenna(AA077)EngineeringSpecification DOCUMENT H2U84W1H1S0100 REV. NO.H PAGE 5 OF…
