2A3PB-552605Push Button Module EVOe

Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: R eorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Consult the dealer or an experienced radio/TV technician for help. T his device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. F CC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Vision Guarantees that every transmitter is free from physical defects in material and workmanship under normal usage for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent usage; (2) units which have been repaired, taken apart, or modified by an authorized personnel; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. -3- Operation Manual Push Button Module EVOe 552 605 Introduction Thanks for choosing the transmitter of the home security device. This product is a one-way RF technology enabled device. Specification Specification: Frequency Range: 433 MHz Operating Range: Up to 100 feet line of sight Operating Temp.: -10°C~ 50°C (14°F~122°F) Remote This is a remote control transmitter can control roll cover open and close. Operation 1. Power on: supply +12V 2. Un-Lock mode: to short circuit “Unlock” pin and +12V for 0.1-3 sec. and then enter operation mode To open the roll cover: Press button and then light flash 0.5 sec. 3. To close the roll cover: Press button and then light flash 0.5sec. 4. Lock mode: to short circuit “Lock” pin and +12V for 0.1-3 sec. 5.

RF_160, Issue 04 (On manufacturer’s company letter heading) Declaration of Authorization We Name: Mountain Top (Denmark) ApS Address: Pedersholmparken 10, 3600, ............................... City: Frederikssund ............................................................................ Country: Denmark ............................................................................ Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: Compliance certification Services Inc. ............. Address: No.8,Jiu Cheng Ling, Jiaokeng Village, Sinhua Dist.,712,. City: Tainan City.. Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: ......... Push Button Module EVOe ........................................... Type designation: .........552 605........................................... Trademark: .................................................... Validity/ expiry date on our behalf. Date: ................................ City: Frederikssund ................................ Name: Jakob Thomsen................................ (2) Function: Project Manager............................... Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

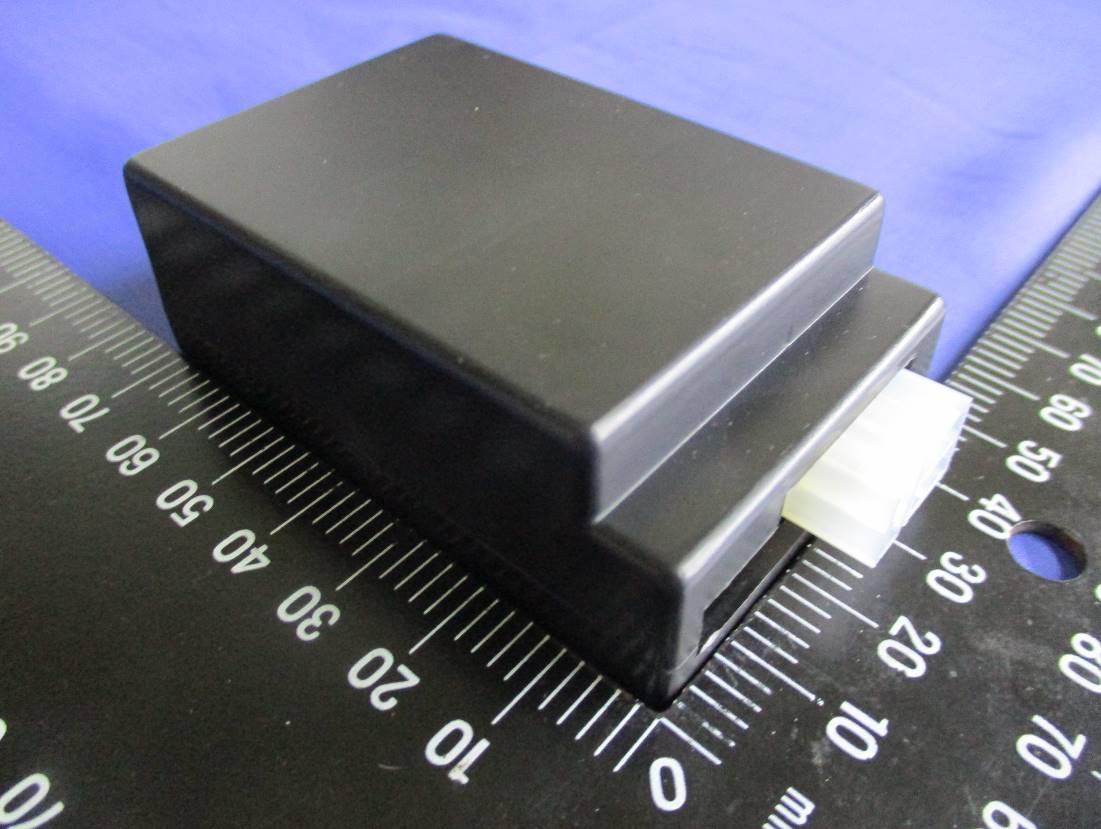

Page: 38 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 10. APPENDIX 2 PHOTOGRAPHS OF EUT External Photo Model: 552 605 Page: 39 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00

Push Button Module EVOe Diagram 552 605 Model: 552 605 FCC ID: 2A3PB-552605 Label location

Page: 40 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 Internal Photo Model: 552 605 Page: 41 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 Page: 42 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 Page: 43 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2109000295P FCC ID: 2A3PB-552605 Page: 1 / 1 Report No.: TMWK2203001116KR Rev.: 00 FCC ID: 2A3PB-552605 According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *ꞏ[√f(GHz)] ≤ 3.0 The tune-up power is -9.0dBm +/- 0.5dB, therefore the highest tune-up power is -8.5 dBm(0.14 mW)@ 433.92 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (0.14mW / 5mm)* (0.434GHz ^0.5 )= 0.02 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.01 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. Note: 1. The tune up power referred the field strength of fundamental signal of the test report (TMTN2109000323NR) for SAR test exclusion purpose.

Project No.: TM-2109000295P FCC ID: 2A3PB-552605 Page: 1 / 43 Report No.: TMTN2109000323NR Rev.: 00 No.8, Jiucengling, Xinhua Dist., Tainan City, Taiwan /台南市新化區礁坑里九層嶺8號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C ANSI C63.10: 2013 TEST REPORT For Push Button Module EVOe Model: 552 605 Data Applies To: N/A Brand: MOUNTAINTOP; Test Report Number: TMTN2109000323NR Issued to Montain Top (Denmark) ApS Pedersholmparken 10, Frederikssund, Denmark, 3600 Issued by Compliance Certification Services Inc. Tainan Lab. No.8, Jiucengling, Xinhua Dist., Tainan Cit y , Taiwan Issued Date: March 22, 2022 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page: 2 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 March 22, 2022 Initial Issue ALL Daphne Liang 01 March 21, 2022 See the following note rev.01 ALL Gina Lin 02 September10, 2018 See the following note rev.02 ALL Gina Lin Note: ※ Rev.00 Issue Date： March 22, 2022 ※ Rev.02 Issue Date： September 10, 2018 Update test result summar y. Page: 3 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. TEST RESULT SUMMARY ................................................................................. 5 3. EUT DESCRIPTION ............................................................................................. 6 4. TEST METHODOLOGY ....................................................................................... 7 4.1 EUT CONFIGURATION ............................................................................... 7 4.2 EUT EXERCISE ........................................................................................... 7 4.3 GENERAL TEST PROCEDURES ................................................................ 7 4.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................... 8 4.5 DESCRIPTION OF TEST MODES ............................................................... 8 5. INSTRUMENT CALIBRATION ............................................................................ 9 5.1 MEASURING INSTRUMENT CALIBRATION ............................................... 9 5.2 MEASUREMENT EQUIPMENT USED ......................................................... 9 5.3 MEASUREMENT UNCERTAINTY ............................................................. 10 6. FACILITIES AND ACCREDITATIONS .............................................................. 11 6.1 FACILITIES................................................................................................. 11 6.2 EQUIPMENT .............................................................................................. 11 6.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................ 11 6.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................ 12 7. SETUP OF EQUIPMENT UNDER TEST ........................................................... 12 7.1 SETUP CONFIGURATION OF EUT ........................................................... 12 7.2 SUPPORT EQUIPMENT ............................................................................ 13 7.3 EUT OPERATING CONDITION ................................................................. 13 8. FCC PART 15.231 REQUIREMENTS ................................................................ 14 8.1 99% BANDWIDTH ...................................................................................... 14 8.2 20dB BANDWIDTH ..................................................................................... 16 8.3 LIMIT OF TRANSMISSION TIME ............................................................... 18 8.4 DUTY CYCLE ............................................................................................. 20 8.5 RADIATED EMISSIONS ............................................................................. 24 8.6 POWERLINE CONDUCTED EMISSIONS ................................................. 33 9. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ............................................ 34 10. APPENDIX 2 PHOTOGRAPHS OF EUT ........................................................... 38 Page: 4 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 1. TEST RESULT CERTIFICATION Product: Push Button Module E…

Text truncated - open the document above for the full version.

Page: 34 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 9. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Below 1GHz Page: 35 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 Page: 36 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00 RADIATED RF MEASUREMENT SETUP Above 1GHz Page: 37 / 43 Report No.: TMTN2109000323NR Ref. No.: Rev.: 00
