Robint Hotel Service Robot User Manual ȔHello, please deliver a bottle of water to Room 808ȕ “Okay, please wait for a moment while we get the robot to deliver that for you” GuestReception zPress“Delivery” zSelect room number zPlace the item inside the cabin after it automatically opens zThe delivery automatically starts in 5 seconds. If an item is left out or misplaced, press “Suspend the Task” zCalls the guest when it arrives at the door zThe guest picks up the delivery, and the robot returns to the charging pile Scenario 1: The guest calls the Reception requesting room delivery service ȔHello, the guest staying at 808 couldn’t come down to pick this up, please deliver this to the room.ȕ ȔOkayȕ CourierReception Scenario 2 : The guest couldn’t go downstairs to pick up the delivery or takeaway Scenario 3: The guest places an order via the WeChat applet zThe user places an order zThe robot automatically goes to the intelligent delivery container or pickup spot to pick up the goods ȔThe baby is thirsty. I’ll order him some water via the applet zThe intelligent delivery container automatically places the goods in the cabin of the robot. zCalls the guest’s cellphone when the robot arrives at the door zThe robot automatically returns to the charging pile after the guest picks up the goods v4.0.2 intelligent delivery container Note: The intelligent delivery container to be used together with the robot is purchased separately Scenario 4Cruising adverts ȔChen, we are catering a wedding this afternoonͫplease get the robot to cruise the wedding venueȕ ȔOkayȕ zPress “Cruise” zSet the configuration including automatic cruising, cruising duraton, cruising destination, voice mode, and open the cabin or not zThe robot goes to the cruising destination when the cruise is finished zPromotional materials and beverages can be placed inside the cabin for users to help themselves The guest would like a bigger screen to display the content. What should I do?” On-the-loop display Solution 1: Enter the hotel management back end ——Advert Center—— Change the pictures in Playlist Management. (Recommended) Solution 2͵Send the picture to after-sales technical manager and update it from the back end. Scenario 5: Show the guests to their rooms or any other spot ȔYes, the services here are great.” ”Your checkin is done, would you like the robot to show you to your room?” Note͹The simplified version does not offer the big screen function . ȔHello, Rockit. Please show me to room 808.ȕ ”I guess you would like to go to room 808 on the 8 th floor. Please press “Okay, let’s go.”on the screen to confirm. If the destination is wrong, please select manually.” PressȔOkay, let’s go”. zThe robot returns to the charging pile when the tour is finished. Scenario 6: Guest reception at any spot in the hotel ȔHello, welcome to ˜˜Hotelȕ zPress ȐReceptionȑ zSet the configuration including automatic reception, reception duration, reception spot, voice mode and greeting lines as required zInteracts with the guest while they are walking ȔWe are conveniently located near the foreign embassies......ȕ ȔCan you tell me about this hotel?ȕ ȔIs there any sightseeing spot around the hotel?ȕ Ȕ......ȕ zAutomatically goes to the reception spot Lobby reception The robot automatically identifies humans and greet them. Note: The simplified version does not offer this function. We have an important guest this afternoon. Please get Rockit to do a proper tour and introduction Okay, I’ll prepare the introduction content. Scenario 8: Taking pictures anywhere, anytime Hello, Rockit Hello, what can I help you with? Please take a picture of us Rockit will now turn around to take a picture, please pose for the picture. zA QR code will be displayed on the screen when the picture is taken. The picture can be downloaded to cellphones by scanning the QR code. zPress ȐSettingsȑ zSelect the settings for tour zSelect the main interface zReturn to homepage and press “Explain” zSet the introduction lines, tour spot 1 and explanation, transition sentences, tour spot 2 and explanation......save the tour route zCreate a tour route The simplified version does not offer this function zAutomatically plays the introduction lines, and goes to tour spot 1 ȔWhat should I do if I want to check the delivery orders and operation location of the robot to ensure on-time delivery?ȕ Scenario 9: What if I want to check how the robot is doing? zSelect [Monitor the Robot] to check current operation status zScan the corresponding QR code for applet, and log in to check the operation status and delivery orders zCurrent location of the robot zInformation on delivery orders Scenario 10: What should I do if I want to lease the robot to an event organizer? zOpen the Rockit applet zSelect [Mine] –[Robot Lease] Enter the lease duration, robot information, event organizer, and the corresponding organizer will acquire access to the robot zThe event organizer should scan the applet QR code for [Robint Conference Helper]. ѫઑԉ۴ڴڷ࡯ zConferences and related materials can be initiated and uploaded online. Scenario 11: How do I call for the robot zSelect [Call for the Robot] zOpen the Rockit applet zSelect which robot you want to call for, where you want it to go, and the contact phone number If there are multiple delivery spots in the hotel, the staff can call for the robot with a single press, so that delivery and other settings can be made in time. The detail is as follows: Voice TypeExample Activate•Hello, Rockit. Charging •Charge yourself •... Music and media •Sing me a song •Play a song •Play Foam by G.E.M. •Previous song/Next song •Volume up/Volume down •Pause/Continue •... Weather •How’s the weather today? •Is it going to rain? •How’s the airquality today? •How’s the ultraviolet intensity today? ... Calendar •What day is it? •What time is it? •What is the holiday today? •What day of the week is it? •... Unit conversion •One liter is equal to how many milliliters •... Translation •How do you say “I love …

Text truncated - open the document above for the full version.

Beijing Robint Technology Co., Ltd. Agent Authorization Company: Beijing Robint Technology Co., Ltd. Ltd.Address: Room 2006, Jinqiu International Building, No.6 Zhichun Road, Haidian District, Beijing China Product Name: Robint-Delivery Model Number(s): R1 R2、RHS1、RHS2、RDL1、RDL2 Product Description: Robint-Delivery We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-13 Name: A Ning Luo Title: quality manager Company: Beijing Robint Technology Co., Ltd.

Beijing Robint Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/13 Subject; Request for Confidentiality FCC ID: 2A3PX-R1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC Software Security Requirements for UNII devices BOM FCC Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: A Ning Luo Title: quality manager

Beijing Robint Technology Co., Ltd. Model Difference Data：2022.06.13 Product description: Robint-Delivery Model name: R1 R2、RHS1、RHS2、RDL1、RDL2 Trade Name: ROBINT FCC ID: 2A3PX-R1 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : A Ning Luo （quality manager） Contact information / address：Room 2006, Jinqiu International Building, No.6 Zhichun Road, Haidian District, Beijing China

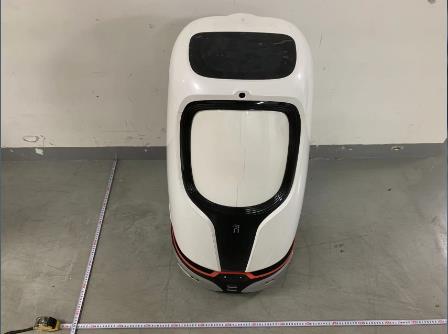

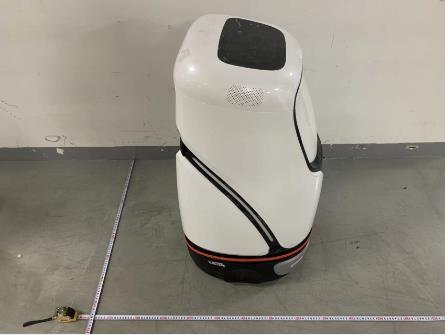

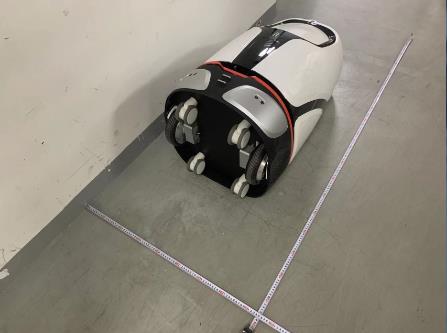

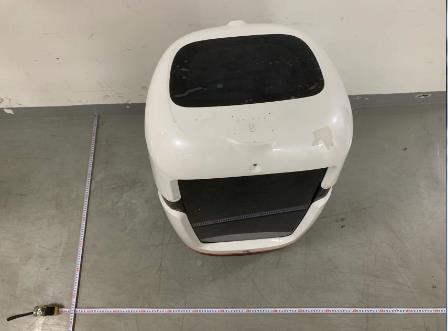

External Photos

Model: R1 FCC ID: 2A3PX-R1 Label Location

Internal Photos 4G ANT 2.4G+5G WIFI+BT ANT

FCC 22H 24E 27L, §2.1091 – RF Exposure FCC ID: 2A3PX-R1 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=20cm Test Result of RF Exposure Evaluation Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Anten na Gain (nume ric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE 0±1 1 1.2589 1.183 (0.73dBi) 0.000296 1 Pass EDR 3±1 4 2.51 1.183 (0.73dBi) 0.000591 1 Pass 2.4G WIFI 9±1 10 10 1.183 (0.73dBi) 0.002355 1 Pass 5.1G WIFI 8±1 9 7.94 1.208 (0.82dBi) 0.00191 1 Pass LTE BADN 2 23±1 24 251.19 1.099 (0.41dBi) 0.054948 1 Pass LTE BADN 5 23±1 24 251.19 0.550 (- 2.6dBi) 0.027476 0.549 Pass LTE BADN 7 24±1 25 316.23 1.343 (1.28dBi) 0.084518 1 Pass LTE BADN 38 24±1 25 316.23 1.265 (1.02dBi) 0.079607 1 Pass LTE BADN 41 23±1 24 251.19 1.191 (0.76dBi) 0.059559 1 Pass S=0.084518/1+0.000591/1+0.002355/1=0.087464
