2A3QT-DS-S1BLE iBeacon

Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId User's Manual Please read the product carefully and keep it properly before using it. Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Bluetooth beacon DS-S1 is a terminal device that periodically broadcasts Bluetooth beacons to the surrounding environment. It can be widely used in Internet of things applications such as indoor positioning, indoor navigation, exhibition navigation, patrol and clock in. Packaging list of Bluetooth beacon Serial NO. Name NO. Remarks 1 Bluetooth beacon 1 2 No.5 Battery 2 3 3M Glue 1 4 User's Manual 1 5 Certificate 1 ⚫ Bluetooth for precise positioning ⚫ Dustproof and waterproof ⚫ Configurable parameters ⚫ Low power consumption, long standby time, replaceable battery Product introduction Product features Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Communication Frequency：2402-2480MHz Communication Protocol：Bluetooth 4.0 Communication Distance：13m Standby Current：<0.3uA Battery Life：5 years (Actual life related to solution) Battery Specification：No.5 Battery Dimensions (L,W,H)：φ80mm*30mm UUID: FDA50693-A4E2-4FB1-AFCF-C6EB07647825(Fixed) Product parameters Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Instruction for use Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Serial NO. Common troubleshooting Exclusion method Remarks 1 No signal Take out the battery, check the front and back, and install it in the correct direction. Check whether the switch is on. Common troubleshooting Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Warranty Card Product Name Model User Name Tel Number Postal Address Purchase Date Purchase Route Product SN Warranty terms: 1、When purchasing this product, please fill in this card carefully and carefully read the warranty terms to ensure that the product is under effective warranty. 1) With the warranty card and purchase document (the copy is invalid), the user can enjoy the warranty service of the whole machine for one year from the date of purchase. During the warranty period, spare parts damage or machine failure caused by product quality problems can be repaired and replaced free of charge; 2) The information filled in this warranty card is true, otherwise it is invalid. 2、In case of any of the following circumstances during the warranty period, the warranty service cannot be enjoyed. 1) Damage or failure caused by improper installation, use and storage; 2) Damage or failure caused by force majeure (such as flood, fire, earthquake, etc.); 3) Damage or failure caused by disassembly and maintenance not approved by the company; 4) There is no warranty card and purchase document, and the purchase document is inconsistent with the product or altered. 3、After the warranty period expires, the user can still get the maintenance service of the company, and the corresponding maintenance, transportation and other expenses shall be paid at that time. Bluetooth beacon DS-S1 Ewell IOTechnology Co.,LId Production Address：11F, Building A, Yihui Center, No. 399, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Ewell IOTechnology Co.,LId Tel：400-086-3880 Email：310052 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) thi s device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance co ul d void the user's authority to operate the equipment. NOTE: This equipment has bee n tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed t o provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or r elocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be u sed in portable exposure condition without restriction FCC ID: 2A3QT-DS-S1

C5266091_X8_Ed.1 1/1 Letter of Authorization Ewell IOTechnology Co.,Lid Company: Ewell IOTechnology Co.,LId Address: Room A209, Building D, #66 Dongxin Avenue, Puyan Street, Binjiang District, Hangzhou City, Zhejiang Province, China Product Name: BLE iBeacon Model Number: DS-S1 FCC Identifier: 2A3QT-DS-S1 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jane Wu Date:Nov.19.2021 Title: manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Ewell IOTechnology Co.,LId Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Nov.19.2021 Subject: Request for Confidentiality FCC ID: 2A3QT-DS-S1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ____45 __ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Jane Wu Title: manager

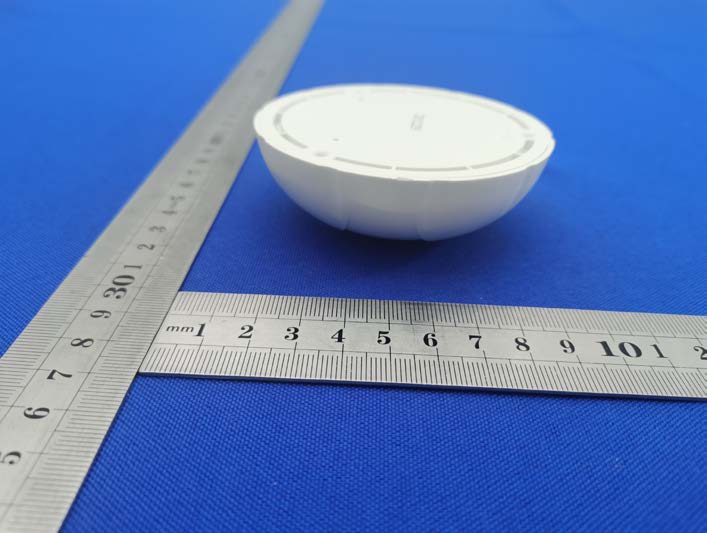

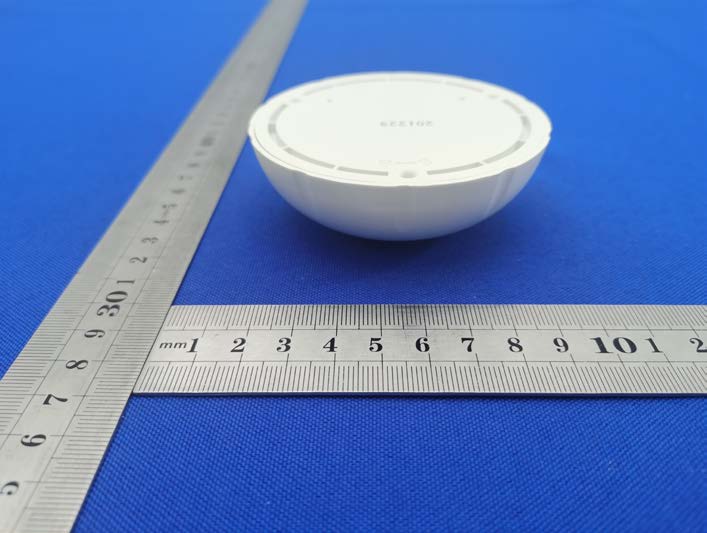

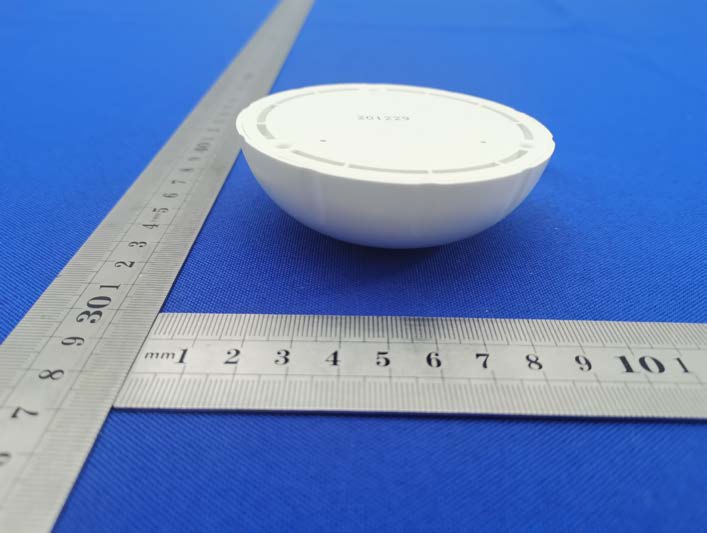

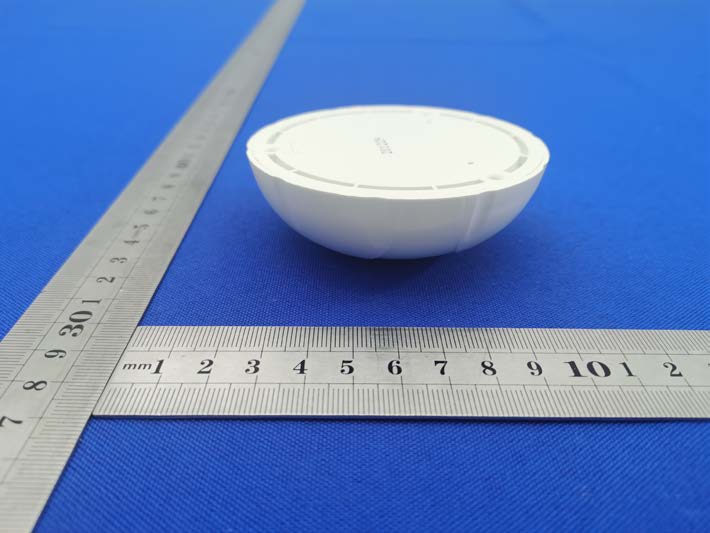

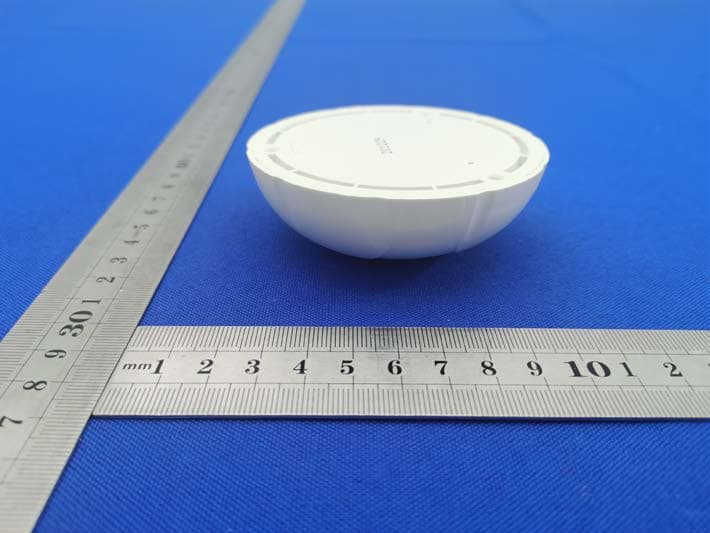

External Photos FCC ID: 2A3QT-DS -S1

Model: DS-S1 FCC ID: 2A3QT-DS-S1 Label Location

Internal Photos FCC ID: 2A3QT-DS-S1 ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2A3QT-DS-S1 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.4022.2521.68 3±14.002.51<5 0.77860 3.00YES 2.442.851 1.933±14.002.51<50.78474 3.00YES 2.4801.2431.332±13.002.00<5 0.628433.00YES GFSK Conclusion: For the max result : 0. 78474W/Kg ≤ FCC Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB211022009RF Report Tel: 4008-707-283Web: http://www.ctb-lab.netPage 1 of 34 TEST REPORT Compiled by: Reviewed by: Approved by: He Xiaona Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: BLE iBeacon FCC ID: 2A3QT-DS-S1 Trademark: N/A Model Number: DS-S1 Prepared For: Ewell IOTechnology Co.,LId Address: Room A209, Building D, #66 Dongxin Avenue, Puyan Street, Binjiang District, Hangzhou City, Zhejiang Province, China Manufacturer: Ewell IOTechnology Co.,LId Address: Room A209, Building D, #66 Dongxin Avenue, Puyan Street, Binjiang District, Hangzhou City, Zhejiang Province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Aug. 4, 2021 Sample tested Date: Aug. 4, 2021 to Oct. 22, 2021 Issue Date: Nov. 19, 2021 Report No.: CTB211022009RF Te s t Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB211022009RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 34 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION .............................. 12 6.1 Block Diagram Of Test Setup............................................ 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 Test Result ........................................................... 13 7. RADIATED SPURIOUS EMISSION ..................................... 14 7.1 Block Diagram Of Test Setup............................................ 14 7.2 Limit ................................................................. 14 7.3 Test procedure ........................................................ 15 7.4 Test Result ........................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 23 8.1 Block Diagram Of Test Setup............................................ 23 8.2 Limit ................................................................. 23 8.3 Test procedure ........................................................ 23 8.4 Test Result ........................................................... 24 9. COUDUCTED PEAK OUTPUT POWER ................................. 26 9.1 Block Diagram Of Test Setup............................................ 26 9.2 Limit ................................................................. 26 9.3 Test procedure ........................................................ 26 9.4 Test Result ........................................................... 27 10. 6DB OCCUPIED BANDWIDTH ........................................ 29 10.1 Block Diagram Of Test Setup .......................................... 29 10.2 Limit ................................................................ 29 10.3 Test procedure ....................................................... 29 10.4 Test Result .......................................................... 29 11. POWER SPECTRAL DENSITY ........................................ 31 11.1 Block Diagram Of Test Setup .......................................... 31 11.2 Limit ................................................................ 31 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB211022009RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 34 11.3 Test procedure ....................................................... 31 11.4 Test Result .......................................................... 31 12. ANTENNA REQUIREMENT ........................................... 33 13. EUT TEST SETUP PHOTOGRAPHS ................................... 34 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB211022009RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 34 1. VERSION Report N o. Issue Date Description Approved CTB211022009RF Nov. 19, 2021 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB211022009RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 34 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 N/A Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013 PAS S Band edge and RF Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d)/15.205(a) ANS…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G FCC ID: 2A3QT-DS -S1
