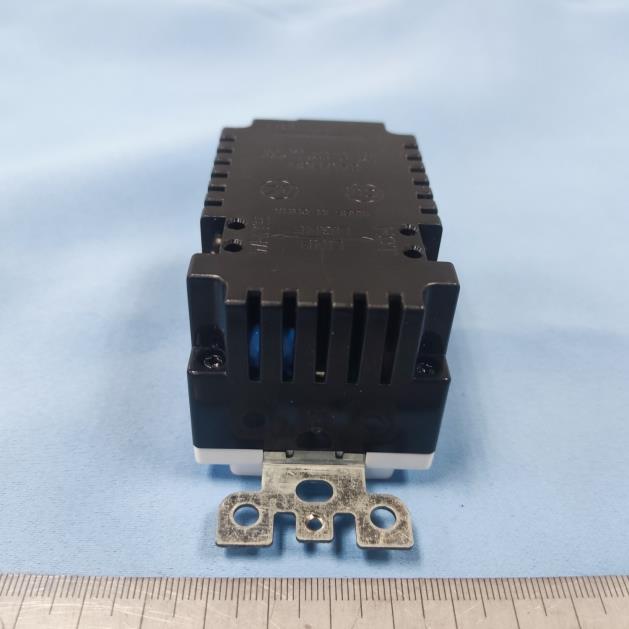

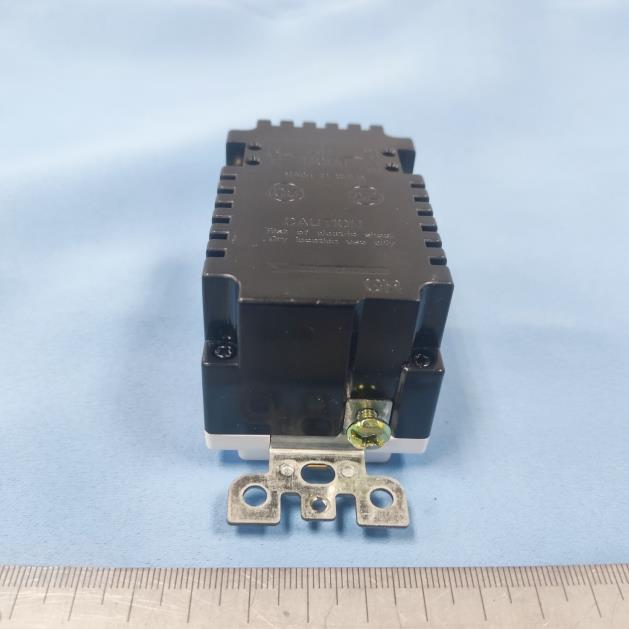

2A3RZ-BSG-001Smart Wall Outlet

R Company Name : LAYUP TRUCKING INC Contact Name : Feng Guo Address : 5646 N Willard Ave. Unit A San Gabriel, CA91776, USA Telephone No : +1 6264185267 Email : [email protected] Agent FRN : 0033419318 Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Increase the separation between the equipment and receiver. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 5 NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

BEIREAP® Model: BSG-001 Power supply: 125VAC,60Hz Receptacle Rating: 15Amp,125VAC FCC ID: 2A3RZ-BSG-001 Indoor use only Made in China USB Rating: USB-A: DC 5V/3A 9V/2A 12V/1.5A TYPE-C: DC 5V/3A 9V/2.22A 12V/1.67A USB-A+TYPE-C: DC 5V/3A Smart Wall Outlet

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room101/301/401/102/202/302/402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Job No.: 230703089GZU FCC ID: 2A3RZ-BSG-001 Version: 06 November 2020 Page 1 of 3 FCC simultaneously transmitter-Mobile (MPE) RF Exposure Compliance Requirement Model no.: BSG-001 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀, H׀ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100000 -- -- 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀,H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100000 -- -- 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room101/301/401/102/202/302/402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Job No.: 230703089GZU FCC ID: 2A3RZ-BSG-001 Version: 06 November 2020 Page 2 of 3 FCC simultaneously transmitter-Mobile (MPE) 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit BLE: Peak Output Power =6.16dBm (max.value declared by client), antenna gain = 0.04dBi as declared by applicant Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402-2480 1.009 6.16 4.13 0.0008 1 Complies MPE ratio: 0.0008(mW/cm 2 )/1(mW/cm 2 ) = 0.0008 WIFI: Peak Output Power = 16.2dBm (max.value declared by client), antenna gain = 0.04dBi as declared by applicant Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412-2462 1.009 16.2 41.69 0.0084 1 Complies MPE ratio: 0.0084(mW/cm 2 )/1(mW/cm 2 ) = 0.0084 Sum of the MPE ratio for all simultaneously transmitting antennas: 0.0008+0.0084 = 0.0092 < 1 Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room101/301/401/102/202/302/402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Job No.: 230703089GZU FCC ID: 2A3RZ-BSG-001 Version: 06 November 2020 Page 3 of 3 FCC simultaneously transmitter-Mobile (MPE) According to MPE test Exclusion condition in KDB 447498 (D01) General RF Exposure Guidance D01 v06, the MPE report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Jiangsu Barep Smart Technology Co., Ltd TEST REPORT SCOPE OF WORK EMC TESTING–BSG-001 REPORT NUMBER 230703089GZU-001 ISSUE DATE [REVISED DATE] 28-December-2023 [--------------------] PAGES 76 DOCUMENT CONTROL NUMBER FCC ISED WIFI-c © 2021 INTERTEK TEST REPORT Room101/301/401/102/202/302/ 402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room101/301/401/102/202/302/402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Version: 14 December 2022 Page 2 of 76 FCC ISED WIFI-c Applicant Name & Address : Jiangsu Barep Smart Technology Co., Ltd No. 6 of xionghua Rd.Tangqiao town, ZHANGJIAGANG, Jiangsu Manufacturing Site : Same as applicant Intertek Report No FCC ID : : 230703089GZU-001 2A3RZ-BSG-001 Test standards 47 CFR PART 15 Subpart C: 2021 section 15.247 Sample Description Product : Smart Wall Outlet Model No. : BSG-001 Electrical Rating : Input: 125V~ 60Hz Output: USB-A: DC 5V/3A 9V/2A 12V/1.5A TYPE-C: DC 5V/3A 9V/2.22A 12V/1.67A USB-A+USB-C:DC 5V/3A Serial No. Not Labeled Date Received : 03 July 2023 Date Test Conducted : 06 December 2023-27 December 2023 Prepared and Checked By Ace Yao Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 230703089GZU-001 Version: 14 December 2022 Page 3 of 76 FCC ISED WIFI-c CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 5 2.3 TEST METHODOLOGY ........................................................................................................... 6 2.4 TEST FACILITY ...................................................................................................................... 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 7 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................... 9 4.0 MEASUREMENT RESULTS ........................................................................................... 9 4.1 ANTENNA REQUIREMENT ...................................................................................................... 9 4.2 6 DB BANDWIDTH (DTS BANDWIDTH) .................................................................................. 10 4.3 DUTY CYCLE ...................................................................................................................... 18 4.4 MAXIMUM AVERAGE CONDUCTED OUTPUT POWER ................................................................ 22 4.4 PEAK POWER SPECTRAL DENSITY .......................................................................................... 24 4.5 OUT OF BAND CONDUCTED EMISSIONS ................................................................................. 32 4.6 OUT OF BAND RADIATED EMISSIONS .................................................................................... 39 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS .......................................................................... 40 4.8 BAND EDGES REQUIREMENT ................................................................................................ 67 4.9 CONDUCTED EMISSION TEST ................................................................................................ 73 5.0 TEST EQUIPMENT LIST ............................................................................................. 76 TEST REPORT Intertek Report No.: 230703089GZU-001 Version: 14 December 2022 Page…

Text truncated - open the document above for the full version.

Jiangsu Barep Smart Technology Co., Ltd TEST REPORT SCOPE OF WORK EMC TESTING–BSG-001 REPORT NUMBER 230703089GZU-002 ISSUE DATE [REVISED DATE] 28-December-2023 [--------------------] PAGES 40 DOCUMENT CONTROL NUMBER FCC BT 4.0- f © 2017 INTERTEK TEST REPORT Room101/301/401/102/202/302/ 402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room101/301/401/102/202/302/402/502/602/702/802, No. 7-2, Caipin Road, Huangpu District, Guangzhou, Guangdong, China Version: 14 December 2022 Page 2 of 40 FCC BT 4.0-f Applicant Name & Address : Jiangsu Barep Smart Technology Co., Ltd No. 6 of xionghua Rd.Tangqiao town, ZHANGJIAGANG, Jiangsu Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 230703089GZU-002 2A3RZ-BSG-001 Test standards 47 CFR PART 15 Subpart C: 2021 section 15.247 Sample Description Product : Smart Wall Outlet Model No. : BSG-001 Electrical Rating : Input: 125V~ 60Hz Output: USB-A: DC 5V/3A 9V/2A 12V/1.5A TYPE-C: DC 5V/3A 9V/2.22A 12V/1.67A USB-A+USB-C:DC 5V/3A Serial No. : Not Labeled Date Received : 03 July 2023 Date Test Conducted : 06 December 2023-27 December 2023 Prepared and Checked By Ace Yao Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 230703089GZU-002 Version: 14 December 2022 Page 3 of 40 FCC BT 4.0-f CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 6 2.3 TEST METHODOLOGY ........................................................................................................... 6 2.4 TEST FACILITY ...................................................................................................................... 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 8 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 9 4.0 MEASUREMENT RESULTS ......................................................................................... 10 4.1 ANTENNA REQUIREMENT .................................................................................................... 10 4.2 6 DB BANDWIDTH (DTS BANDWIDTH) .................................................................................. 11 4.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ..................................................................... 14 4.4 PEAK POWER SPECTRAL DENSITY .......................................................................................... 17 4.5 OUT OF BAND CONDUCTED EMISSIONS ................................................................................. 20 4.6 OUT OF BAND RADIATED EMISSIONS .................................................................................... 23 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS .......................................................................... 23 4.8 BAND EDGES REQUIREMENT ................................................................................................ 34 4.9 CONDUCTED EMISSION TEST ................................................................................................ 37 5.0 TEST EQUIPMENT LIST ............................................................................................. 40 TEST REPORT Intertek Report No.: 230703089GZU-002 Version: 14 December 2022 Page 4 of 40 FCC BT 4.0-f 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth (DTS bandwidth) FCC PART 15 C secti…

Text truncated - open the document above for the full version.

ANTENNAREPORT Manufacture：TUYA ProductName：CB2SAntenna AntennaType：PCB TestDate：2021.03.18 Testedby：HaigangRuan Approvedby：Licco Content 1.GeneralDescription..................................................................................1 2.TestConfigurations..................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment................................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults...............................................................................................3 3.1S11...................................................................................................3 3.2GainandEfficiency.........................................................................4 3.3RadiationPattern.............................................................................5 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto.......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameCB2SAntenna Productmodel CB2S AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1S11 Frequency(MHz)240024502500 ReturnLoss(dB)-8.73-11.76-11.21 VSWR2.161.711.77 4 3.2GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400-0.9824.43 2410-0.6725.64 2420-0.3726.24 2430-0.1227.04 24400.0427.48 2450-0.4525.25 2460-0.5523.88 2470-0.6922.65 2480-0.9321.78 2490-1.1120.04 2500-2.0716.18 5 3.3RadiationPattern Phi02D Phi902D Theta902D 6 4.AntennaDimensions 5.EUTPhoto 7 6.TestSetupPhoto

Note: EUT is positioned at the center of the turntable to keep 3m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (Below 1GHz) Radiated Emission (Above 1GHz) Conducted Emissions
