2A3SV-LD-W102WIRELESS CHARGING STAND

12 45 W101 45° 65mm 110mm 110mm 1m ! 120mm √ √ ×× 20W and above power adapter USB Type-A Micro-B Type-C CAUTION Do not use the device in a humid environment to prevent liquid from flowing into the device. Do not use in the environment of strong magnetic field; Do not use in high temperature environment; Please use indoors; Children must be used under adult supervision; Problems arising from misuse, disassembly or modification are not covered by this warranty. RECYCLE Advise customers to dispose of discarded wireless charging brackets and other equipment in an environmentally friendly manner; The wireless charging bracket contains batteries, do not directly discard them; Please recycle and reuse the used brackets to prevent environmental pollution. The useful ingredients can also be reused to save resources. ! WIRELESS CHARGING STAND FCC Information TThis device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

Ningbo Lede Computer Technology Co.,Ltd. Agent Authorization Company: Ningbo Lede Computer Technology Co.,Ltd. Address: 4th Floor, No.183 Xinjian North Road, Yuyao, China Product Name: WIRELESS CHARGING STAND Trade Mark: Model Number(s): LD-W102 FCC ID: 2A3SV-LD-W102 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-02-25 Name: Louis Lou Title: Manager Company: Ningbo Lede Computer Technology Co.,Ltd.

Date: 2022-02-25 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Ningbo Lede Computer Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2A3SV-LD-W102 Louis Lou Manager

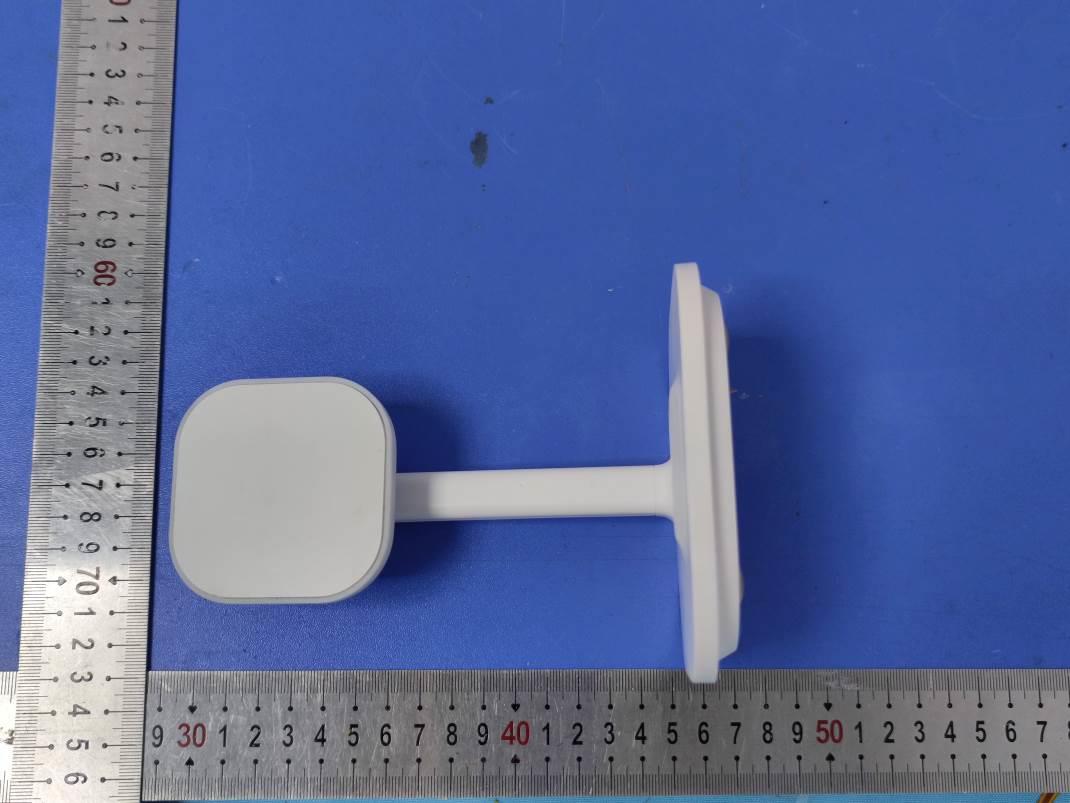

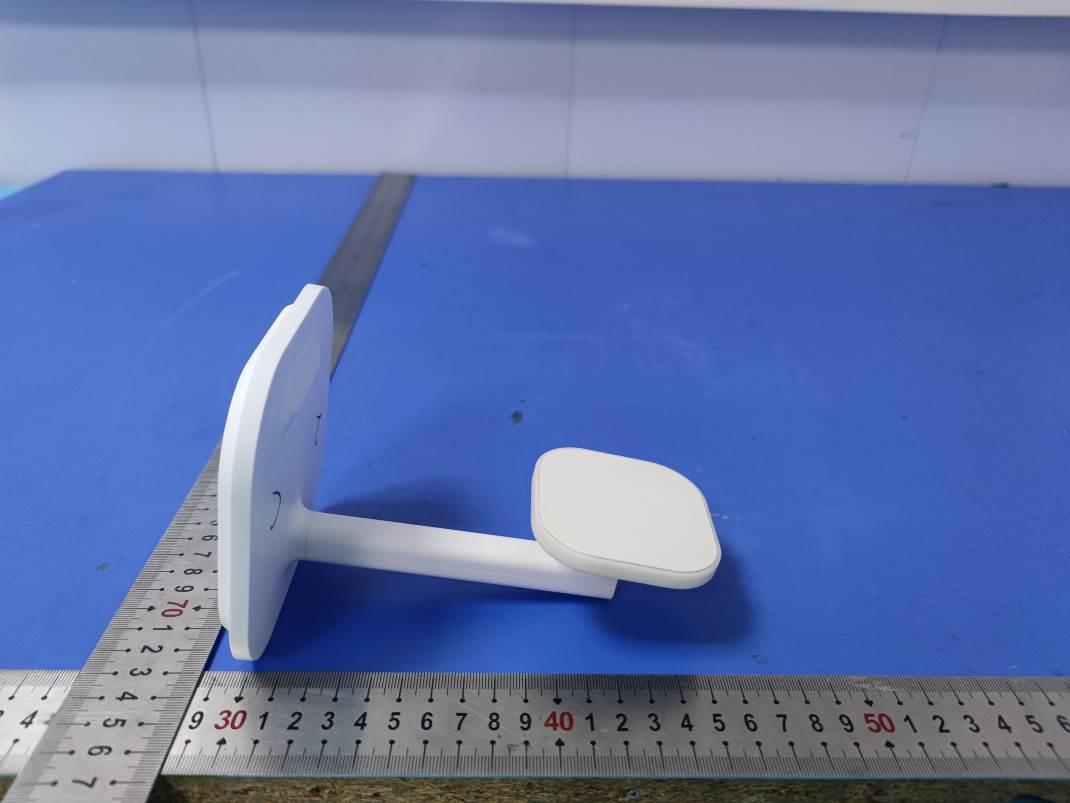

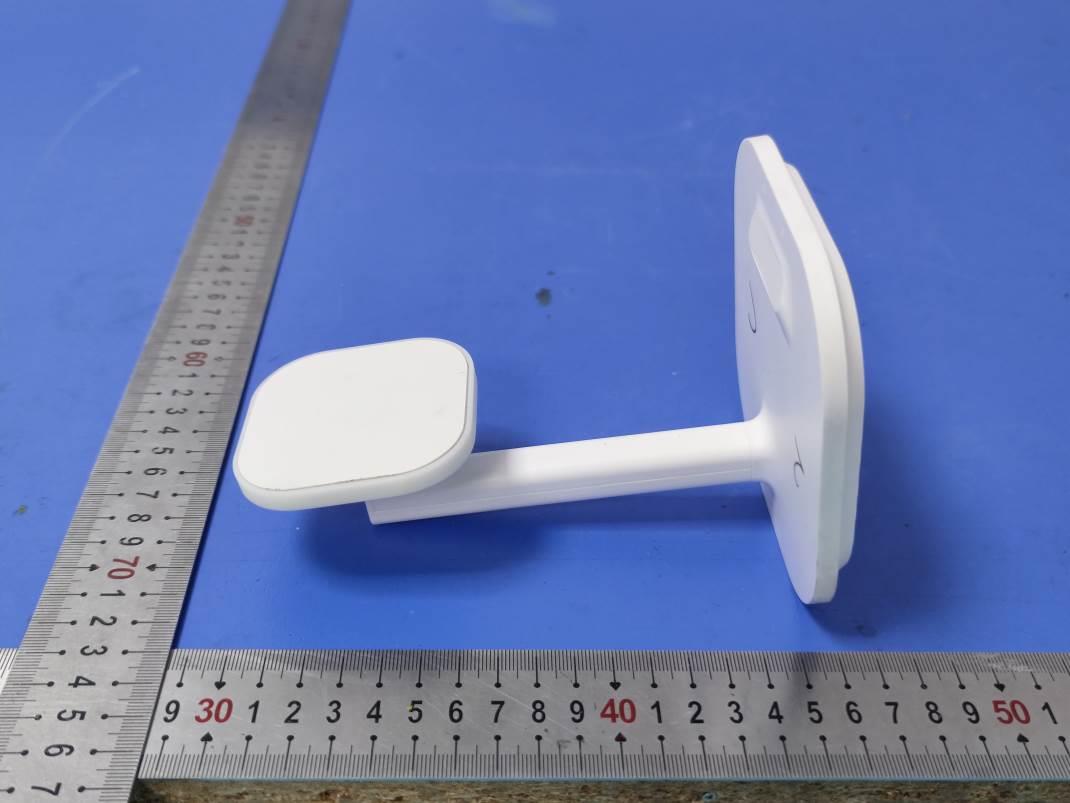

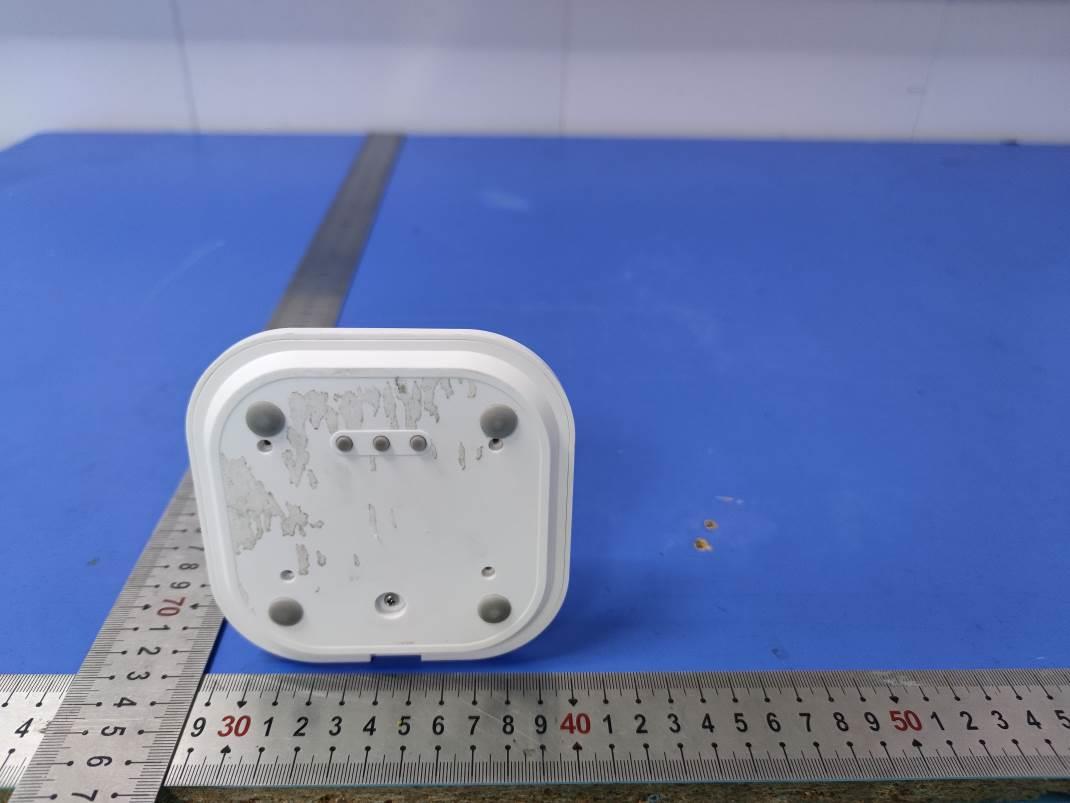

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Fig. 6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 1.0cm Label Location WIRELESS CHARGING STAND Model No.: LD-W102 FCC ID : 2A3SV-LD-W102

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Coil Antenna 1 Coil Antenna 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig. 3 Fig. 4

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2A3SV-LD-W102 Number of tested samples 2 Sample number 211108232A-1(Engineer sample), 211108232A-2(Normal sample) Product Name WIRELESS CHARGING STAND Model Number LD-W102 Power Supply Input: DC 5-9-12V, 3000mA, 15W Modulation Type Continuous Wave Frequency Range 111.0~205.0KHz Operation Frequency 133.0 KHz Antenna Type Coil Antenna 1 Coil Antenna 2 Hardware version HS070B92-20211030-V2.0 Software version HS070B92-20211030-V2.0 Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 10 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlle…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 Report No.: LCS211108232AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 22 FCC TEST REPORT For Ningbo Lede Computer Technology Co.,Ltd. WIRELESS CHARGING STAND Test Model: LD-W102 Prepared for : Ningbo Lede Computer Technology Co.,Ltd. Address : 4th Floor, No.183 Xinjian North Road, Yuyao, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 17, 2022 Number of tested samples : 2 Serial number : 211108232A-1, 211108232A-2 Date of Test : January 17, 2022 ~ January 20, 2022 Date of Report : January 21, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 Report No.: LCS211108232AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 22 FCC TEST REPORT FCC CFR 47 PART 15C Report Reference No. ................ : LCS211108232AEA Date Of Issue ................................. : January 21, 2022 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Ningbo Lede Computer Technology Co.,Ltd. Address .......................................... : 4th Floor, No.183 Xinjian North Road, Yuyao, China Test Specification Standard ......................................... : FCC CFR 47 PART 15C Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : WIRELESS CHARGING STAND Trade Mark ..................................... : Test Model ...................................... : LD-W102 Power Supply ................................. : Input: DC 5-9-12V, 3000mA, 15W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Kevin Huang/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 Report No.: LCS211108232AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 22 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Revision History Test Report No. : LCS211108232AEA January 21, 2022 Date of issue Test Model.............................. : LD-W102 EUT......................................... : WIRELESS CHARGING STAND Applicant............................... : Ningbo Lede Computer Technology Co.,Ltd. Address.................................. : 4th Floor, No.183 Xinjian North Road, Yuyao, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Ningbo Lede Computer Technology Co.,Ltd. Address................................... : 4th Floor, No.183 Xinjian North Road, Yuyao, China Telephone............................... : / Fax.......................................... : / Factory................................... : Ningbo Lede Computer Technology Co.,Ltd. Address................................... : 4th Floor, No.183 Xinjian North Road, Yuyao, China Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 Report No.: LCS211108232AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 22 Revision Issue Date Revision Content Revised By 000 January 21, 2022 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 Report No.: LCS211108232AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................... 6 1.1 Description of Device (EUT) ................................................................................................................ 6 1.2 Support equipment List ......................................................................................................................... 6 1.3 External I/O Cable ................................................................................................................................. 6 1.4 Description of Test Facility ...........................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission Radiated Emission below 30MHz Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A3SV-LD-W102 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission from 30MHz to 1GHz
