2A3VCZG-XT-KJAir Purifier

50#哑银 PET光膜 不干胶 黑白 尺寸：89*54mm Product model: Product Weight: Product Size: Rated voltage: Rated frequency: Rated power: Air Purifier xxxkg Rated current: 3.0A Motor power: 310V 0.244A XT-KJ1200 484.5*366*847mm CADR(Particulates): FCC ID:2A3VCZG-XT-KJ xxxxm³/h 60Hz 240W 120V~ Note: Refer to safety instructions in manual for more information. Remarque : Reportez-vous aux consignes de sécurité du manuel pour plus d'informations. Production Date: The -hr TWA Ozone for this product is XXX ppmv when tested in a  m chamber. Lozone de  heures pour ce produit est de XXXppmv lorsquil est testé dans une chambre de  m. mm-yyyy Foshan Shunde Xiangtai Scavenging Material Industrial CO.,LTD CONFROMS TO UL STD. 867& UL STD. 998 CERTIFIED TO CSA STD. C22.2 NO.187& CSA STD. C22.2 NO.104 5022790 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHANGHAI DEMAN INFORMATION TECHNOLOGY CO.,LTD. CUSTOMER NAME: 涂鸦科技 PRODUCT NAME: Ren Feng P/N: 印刷天线 Page 1 Ren Feng P/N: 印刷天线 WRITED: 汪龙 DATE:20190520 VERSIONS:A Measurement data Page 2 Frequency (MHz) 240024502500 Return Loss-8.73-11.76-11.21 VSWR 2.161.711.77 Radiation pattern Z Y Page 3 X Directivity Diagram Z Y X XY XZ Page 4 YZ Freq.（MHz）Effi(%)Gain (dBi) 2400 52.29 1.62 2410 52.17 1.71 2420 53.14 1.93 2430 54.16 1.98 Efficiency&Gain Page 5 2440 57.62 2.00 2450 59.64 2.17 2460 61.55 2.45 2470 60.64 2.38 2480 62.86 2.54 2490 59.85 2.30 2500 60.41 2.49

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 FCC ID: 2A3VCZG-XT-KJ  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 v06 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) From the maximum conducted output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain, the RF power density can be calculated as below: S(mW/cm2)= PG/4πR2 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Measured Power (dBm) Antenna Gain (dBi) Measured e.i.r.p (dBm) S(mW/cm 2 )= PG/4πR 2 Limit (mW/cm 2 ) 2.4GHz band Wi-Fi 19.46 2.5 21.96 0.03 1.0

Page 1 of 27 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report for Product name: Air Purifier Model name: XT-KJ1200, XT-KJ2000, XT-KJ1500, XT-KJ800, XT-KJ2000G, XT-KJ1500G, XT-KJ1200G, XT-KJ800G, ASP-C2, ASP-C2s, ASP-C2x, ALR-L2, AT-XL2 FCC ID: 2A3VCZG-XT-KJ Test Report Number: EFGX22070207-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, Fax: +86-0755-82910749 No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China Page 2 of 27 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 27 5 External Photos 27 6 Internal Photos 27 7 Appendix 27 Test Report No.: EFGX22070207-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 27 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator: 2022-08-30 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2022-08-30 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX22070207-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 27 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Foshan Shunde Xiangtai Scavenging Material Industrial CO., LTD Address : Block 1, No.9 Industrial Road, Fengjian Industrial Zone, Xingtan Town, Shunde, Foshan, Guangdong, China Telephone : +86 18666556820 Fax : N/A 1.4 Details of manufacturer Name : Foshan Shunde Xiangtai Scavenging Material Industrial CO., LTD Address : Block 1, No.9 Industrial Road, Fengjian Industrial Zone, Xingtan Town, Shunde, Foshan, Guangdong, China Telephone : +86 18666556820 Fax : N/A Test Report No.: EFGX22070207-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 27 1.5 Application details Date of receipt of application : 2022-07-15 Date of receipt of test item : 2022-07-15 Date of test : 2022-07-20 to 2022-08-09 Date of issue : 2022-08-30 1.6 Test item Product type : Air Purifier Test Model : XT-KJ1200 Sample ID 220715-16-001, 220715-16-002, 220715-16-003 Model name : XT-KJ1200, XT-KJ2000, XT-KJ1500, XT-KJ800, XT-KJ2000G, XT-KJ1500G, XT-KJ1200G, XT-KJ800G, ASP-C2, ASP-C2s, ASP-C2x, ALR-L2, AT-XL2 Serial number : N/A Hardware Version : ZHC-JHQ-KJ2000（B） Software / Firmware Version : XT-KJ2000-1.0 Ratings : XT-KJ2000, XT-KJ1500, XT-KJ2000G, XT-KJ1500G 120V~, 60Hz, 195W; XT-KJ1200, XT-KJ800, XT-KJ1200G, XT-KJ800G, ASP-C2, ASP-C2s, ASP-C2x, ALR-L2, AT-XL2 120V~, 60Hz, 240W Test voltage : 120V~ FCC ID : 2A3VCZG-XT-KJ Additional information : ./. RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : DSSS, OFDM Antenna type : PCB Maximum antenna gain : 2.5 dBi The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. Test Report No.: EFGX22070207-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 27 1.7 Test sta…

Text truncated - open the document above for the full version.

Page 1 of 70 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.040 2407.440 2416.480 0.5 PASS 2437 9.080 2432.440 2441.520 0.5 PASS 2462 9.080 2457.440 2466.520 0.5 PASS 11G Ant1 2412 16.320 2403.800 2420.120 0.5 PASS 2437 16.320 2428.800 2445.120 0.5 PASS 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.520 2403.200 2420.720 0.5 PASS 2437 17.560 2428.200 2445.760 0.5 PASS 2462 17.520 2453.200 2470.720 0.5 PASS Page 2 of 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Page 3 of 70 11B_Ant1_2462 11G_Ant1_2412 Page 4 of 70 11G_Ant1_2437 11G_Ant1_2462 Page 5 of 70 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Page 6 of 70 11N20SISO_Ant1_2462 Page 7 of 70 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] Limit[MHz] Verdict 11B Ant1 2412 14.127 --- --- 2437 14.130 --- --- 2462 14.149 --- --- 11G Ant1 2412 17.728 --- --- 2437 17.511 --- --- 2462 17.576 --- --- 11N20SISO Ant1 2412 18.419 --- --- 2437 18.420 --- --- 2462 18.436 --- --- Page 8 of 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Page 9 of 70 11B_Ant1_2462 11G_Ant1_2412 Page 10 of 70 11G_Ant1_2437 11G_Ant1_2462 Page 11 of 70 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Page 12 of 70 11N20SISO_Ant1_2462 Page 13 of 70 Appendix C: Maximum conducted output power Test Result TestMode Antenna Frequency[MHz] Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 17.92 ≤30.00 PASS 2437 19.13 ≤30.00 PASS 2462 18.48 ≤30.00 PASS 11G Ant1 2412 19.05 ≤30.00 PASS 2437 19.46 ≤30.00 PASS 2462 19.08 ≤30.00 PASS 11N20SI SO Ant1 2412 17.69 ≤30.00 PASS 2437 18.03 ≤30.00 PASS 2462 18.03 ≤30.00 PASS Page 14 of 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -13.05 ≤8.00 PASS 2437 -12.77 ≤8.00 PASS 2462 -13.16 ≤8.00 PASS 11G Ant1 2412 -16.36 ≤8.00 PASS 2437 -14.56 ≤8.00 PASS 2462 -15.06 ≤8.00 PASS 11N20SISO Ant1 2412 -16.96 ≤8.00 PASS 2437 -16.05 ≤8.00 PASS 2462 -15.58 ≤8.00 PASS Page 15 of 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Page 16 of 70 11B_Ant1_2462 11G_Ant1_2412 Page 17 of 70 11G_Ant1_2437 11G_Ant1_2462 Page 18 of 70 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Page 19 of 70 11N20SISO_Ant1_2462 Page 20 of 70 Appendix E: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] 11B Ant1 2412 2411.47 9.56 2437 2436.47 10.70 2462 2461.48 9.89 11G Ant1 2412 2413.25 8.11 2437 2438.25 8.81 2462 2463.23 8.25 11N20SISO Ant1 2412 2413.24 6.79 2437 2438.26 7.20 2462 2463.24 7.31 Page 21 of 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Page 22 of 70 11B_Ant1_2462 11G_Ant1_2412 Page 23 of 70 11G_Ant1_2437 11G_Ant1_2462 Page 24 of 70 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Page 25 of 70 11N20SISO_Ant1_2462 Page 26 of 70 Appendix F: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant1 Low 2412 9.56 -37.07 ≤-20.43 PASS High 2462 9.89 -47.47 ≤-20.11 PASS 11G Ant1 Low 2412 8.11 -22.12 ≤-21.89 PASS High 2462 8.25 -29.36 ≤-21.93 PASS 11N20SIS O Ant1 Low 2412 6.79 -24.77 ≤-23.21 PASS High 2462 7.31 -32.79 ≤-22.69 PASS Page 27 of 70 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 Page 28 of 70 11G_Ant1_Low_2412 11G_Ant1_High_2462 Page 29 of 70 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Page 30 of 70 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~1000 9.56 -62.51 ≤-20.43 PASS 1000~26500 9.56 -52.82 ≤-20.43 PASS 2437 30~1000 10.70 -61.33 ≤-19.3 PASS 1000~26500 10.70 -52.55 ≤-19.3 PASS 2462 30~1000 9.89 -61.85 ≤-20.11 PASS 1000~26500 9.89 -51.95 ≤-20.11 PASS 11G Ant1 2412 30~1000 8.11 -61.49 ≤-21.89 PASS 1000~26500 8.11 -52.74 ≤-21.89 PASS 2437 30~1000 8.81 -61.55 ≤-21.19 PASS 1000~26500 8.81 -53.22 ≤-21.19 PASS 2462 30~1000 8.25 -62.22 ≤-21.93 PASS 1000~26500 8.25 -53.4 ≤-21.93 PASS 11N20SISO Ant1 2412 30~1000 6.79 -62.03 ≤-23.21 PASS 1000~26500 6.79 -53.11 ≤-23.21 PASS 2437 30~1000 7.20 -61.97 ≤-22.8 PASS 1000~26500 7.20 -53.89 ≤-22.8 PASS 2462 30~1000 7.31 -61.44 ≤-22.69 PASS 1000~26500 7.31 -53.1 ≤-22.69 PASS Page 31 of 70 Test Graphs 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500

Page 32 of 70 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 Page 33 of 70 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Page 34 of 70 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Page 35 of 70 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Page 36 of 70 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Page 37 of 70 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Page 38 of 70 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Page 39 of 70 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Page 40 of 70 Appendix H: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 12.42 12.54 99.04 2437 12.42 12.54 99.04 2462 12.42 12.54 99.04 11G Ant1 2412 2.06 2.19 94.06 2437 2.06 2.19 94.06 2462 2.07 2.20 94.09 11N20SISO Ant1 2412 1.92 2.05 93.66 2437 1.92 2.05 93.66 2462 1.92 2.05 93.66 Page 41 of 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Page 42 of 70 11B_Ant1_2462 11G_Ant1_2412 Page 43 of 70 11G_Ant1_2437 11G_Ant1_2462 Page 44 of 70 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Page 45 of 70 11N20SISO_Ant1_2462 Page 46 of 70 Appendix I: Conducted emission AC power port Mode: WIFI TX Voltage: 120V~ Test Graph Final Data List NO. Freq. [MHz] Factor [dB] QP Value [dBμV] QP Limit [dBμV] QP Margin [dB] AV Value [dBμV] AV Limit [dBμV] AV Margin [dB] Polarity Verdict 1 0.4589 10.26 33.97 56.71 22.74 24.86 46.71 21.85 N PASS 2 1.1335 10.28 29.48 56.00 26.52 19.56 46.00 26.44 N PASS 3 1.6020 10.30 27.72 56.00 28.28 18.07 46.00 27.93 N PASS 4 2.0987 10.30 26.79 56.00 29.21 17.59 46.00 28.41 N PASS 5 3.0881 10.32 26.66 56.00 29.34 17.75 46.00 28.25 N PASS 6 4.0569 10.35 27.06 56.00 28.94 18.16 46.00 27.84 N PASS Page 47 of 70 Mode: WIFI TX Voltage: 120V~ Test Graph Final Data List NO. Freq. [MHz] Factor [dB] QP Value [dBμV] QP Limit [dBμV] QP Margin [dB] AV Value [dBμV] AV Limit [dBμV] AV Margin [dB] Polarity Verdict 1 1.0486 10.30 23.74 56.00 32.26 15.54 46.00 30.46 L PASS 2 1.5856 10.33 23.84 56.00 32.16 16.74 46.00 29.26 L PASS 3 2.1225 10.35 23.69 56.00 32.31 16.81 46.00 29.19 L PASS 4 2.5827 10.37 23.65 56.00 32.35 16.59 46.00 29.41 L PASS 5 3.1495 10.37 22.92 56.00 33.08 16.34 46.00 29.66 L PASS 6 3.5422 10.39 23.68 56.00 32.32 16.63 46.00 29.37 L PASS Page 48 of 70 Appendix J: Emissions in Restricted Bands Mode: B-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 63.25 -19.79 43.46 74.00 30.54 Horizontal PASS 2 2319.6096 63.76 -19.77 43.99 74.00 30.01 Horizontal PASS 3 2327.4575 63.05 -19.76 43.29 74.00 30.71 Horizontal PASS 4 2337.0671 64.15 -19.74 44.41 74.00 29.59 Horizontal PASS 5 2361.4915 63.81 -19.10 44.71 74.00 29.29 Horizontal PASS 6 2390.0000 62.43 -17.57 44.86 74.00 29.14 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 59.36 -19.79 39.57 54.00 14.43 Horizontal PASS 2 2319.6096 60.78 -19.77 41.01 54.00 12.99 Horizontal PASS 3 2327.4575 57.65 -19.76 37.89 54.00 16.11 Horizontal PASS 4 2337.0671 58.02 -19.74 38.28 54.00 15.72 Horizontal PASS 5 2361.4915 58.39 -19.10 39.29 54.00 14.71 Horizontal PASS 6 2390.0000 59.74 -17.57 42.17 54.00 11.83 Horizontal PASS Page 49 of 70 Mode: B-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 62.63 -19.79 42.84 74.00 31.16 Vertical PASS 2 2314.4044 62.15 -19.78 42.37 74.00 31.63 Vertical PASS 3 2335.7858 62.31 -19.75 42.56 74.00 31.44 Vertical PASS 4 2353.1632 62.31 -19.55 42.76 74.00 31.24 Vertical PASS 5 2363.4935 63.78 -19.00 44.78 74.00 29.22 Vertical PASS 6 2390.0000 61.19 -17.57 43.62 74.00 30.38 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 58.84 -19.79 39.05 54.00 14.95 Vertical PASS 2 2314.4044 57.81 -19.78 38.03 54.00 15.97 Vertical PASS 3 2335.7858 56.28 -19.75 36.53 54.00 17.47 Vertical PASS 4 2353.1632 57.82 -19.55 38.27 54.00 15.73 Vertical PASS 5 2363.4935 58.92 -19.00 39.92 54.00 14.08 Vertical PASS 6 2390.0000 57.12 -17.57 39.55 54.00 14.45 Vertical PASS Page 50 of 70 Mode: B-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 62.98 -18.02 44.96 74.00 29.04 Horizontal PASS 2 2487.3775 66.79 -18.68 48.11 74.00 25.89 Horizontal PASS 3 2489.0935 66.39 -18.87 47.52 74.00 26.48 Horizontal PASS 4 2489.6215 66.22 -18.93 47.29 74.00 26.71 Horizontal PASS 5 2498.1520 63.42 -18.88 44.54 74.00 29.46 Horizontal PASS 6 2500.0000 61.72 -18.85 42.87 74.00 31.13 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2483.5000 60.16 -18.02 42.14 54.00 11.86 Horizontal PASS 2 2487.3775 63.88 -18.68 45.20 54.00 8.80 Horizontal PASS 3 2489.0935 62.05 -18.87 43.18 54.00 10.82 Horizontal PASS 4 2489.6215 62.34 -18.93 43.41 54.00 10.59 Horizontal PASS 5 2498.1520 58.65 -18.88 39.77 54.00 14.23 Horizontal PASS 6 2500.0000 58.86 -18.85 40.01 54.00 13.99 Horizontal PASS Page 51 of 70 Mode: B-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 62.15 -18.02 44.13 74.00 29.87 Vertical PASS 2 2488.3675 64.25 -18.79 45.46 74.00 28.54 Vertical PASS 3 2490.5785 64.04 -18.97 45.07 74.00 28.93 Vertical PASS 4 2492.8225 63.13 -18.94 44.19 74.00 29.81 Vertical PASS 5 2498.4325 63.64 -18.87 44.77 74.00 29.23 Vertical PASS 6 2500.0000 61.14 -18.85 42.29 74.00 31.71 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] P…

Text truncated - open the document above for the full version.

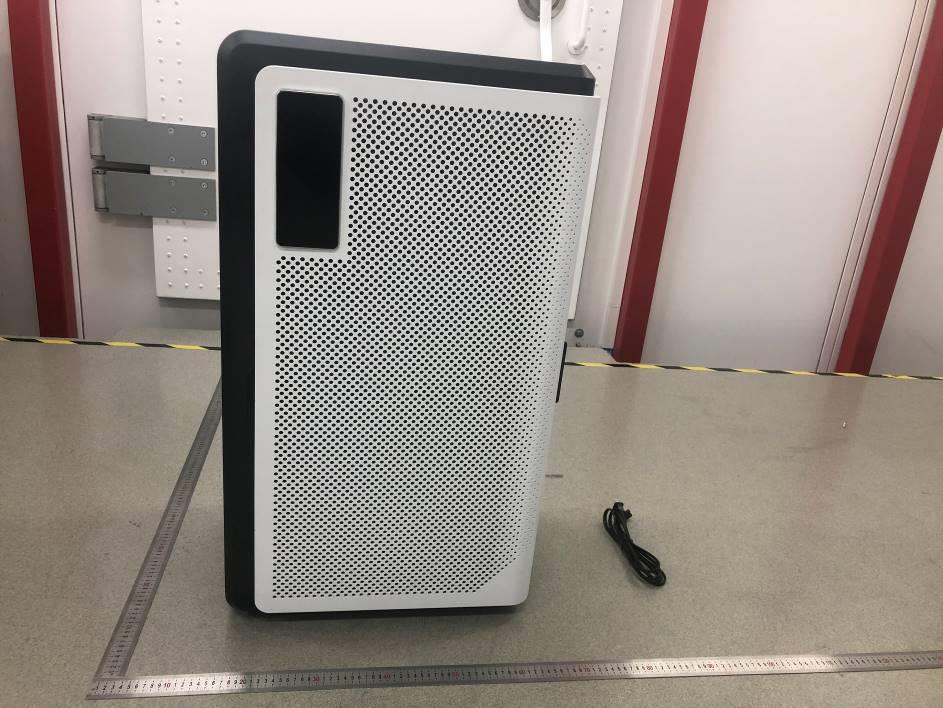

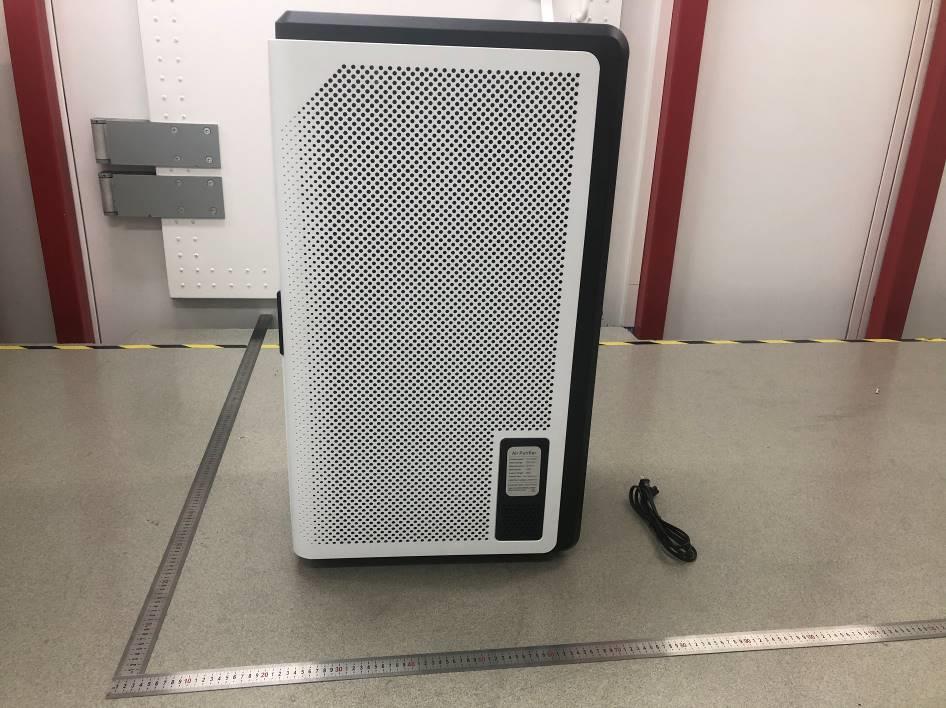

Page 1 of 2 AC line conducted Radiated Emission test below 1GHz Page 2 of 2 Radiated Emission test above 1GHz
