2A3WHUNILYNXBluetooth module

LED Smart Inc.
Bluetooth module - FCC ID 2A3WHUNILYNX - LED Smart Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 16, 2023
Application Purpose
Original Equipment
Date of Application
Jul 16, 2023
Equipment Note
Bluetooth module
Frequency Range
2402.00000000 - 2480.00000000
Company
LED Smart Inc.
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Grow3MeshModule UserManual 1.Descriptions ThismoduleisusedforcontrollingGrow3lightsforLEDSmartInc.throughBluetoothmesh network 2.Requirement 1)AphonewithAndroidOperatingSystem 2)OneormoreBLEandMeshmodules 3)Powersupply3.3V–5V 3.Installation SearchnRfConnectintheAPPstoreandinstallit. 4.ScanAccessPoint TurnontheBluetoothonthephoneandopenthisAPP.Clickthe“Scan”buttononthetop-right.Andit willbequickerifusethefilterfunction.Inthefilter,input“point”toonlyshowthecorrectaccesspoint becausethenameoftheBLEmoduleis“grow3MeshAccessPoint”.Inthisway,otherBluetoothpoint cannotshowonthescreen. 5.Connect Chooseoneoftheaccesspointsandclickthe“connect”button.Waitforamomentuntilithas connectedtotheBLEmodulesuccessfully. Then,it’snecessarytosettheconfigurationlikethefollowingpicture.Untick“Parseknown characteristics”.Afterthat,clickthetwoarrowimagesshowingintherightpicturestoeditcommands tocontrolthelights. Theuponeisusedforeditingandsendingcommands.Andtheotheroneisforturnon/offthe notificationfunction,whichmeansthatwhenitison,usercancheckwhetherthecommandhasbeen sentoutsuccessfullyornot. 6.Sendingcommands Therearetwoexamplesofcommandsfortesting. Input“0x0002FFFF000000000000”likethefollowingpicturetosettheintensityofallchannelsto0. Confirmitandsendit. Thereisanothercommand,“0x0202FFFF00”,whichisusedforturningoffthelights. Input“0x0002FFFF646464646464”likethefollowingpicturetosettheintensityofallchannelsto100. Confirmitandsendit.Thereisanothercommand,“0x0202FFFF00”,whichisusedforturningonthe lights. Aftersendingthecommands,switchtheapppage(swiperight)tocheckwhetherthesecommandsare sentsuccessfully. 7.Cautions Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference, (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation . ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator& yourbody. Thismanualforanintentionalorunintentionalradiatorshallcautiontheuserthatchangesor modificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's authoritytooperatetheequipment.Incaseswherethemanualisprovidedonlyinaformotherthan paper,suchasonacomputerdiskorovertheInternet,theinformationrequiredbythissectionmaybe includedinthemanualinthatalternativeform,providedtheusercanreasonablybeexpectedtohave thecapabilitytoaccessinformationinthatform. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody. ThisdevicecomplieswithIndustryCanadalicence-exemptRSSstandard(s). Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseinterference,and(2) Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofth edevice. Theantenna(s)usedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20cm fromallpersonsandmustnotbecollocatedoroperatinginconjunctionwithanyotherantennaor transmitter,End-UsersmustbeprovidedwithtransmitteroperationconditionsforsatisfyingRFexposure compliance. -French: LeprĂ©sentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio exemptsdelicence.L'exploitationestautorisĂ©eauxdeuxconditionssuivantes: (1)l'appareilnedoitpasproduiredebrouillage,et (2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioĂ©lectriquesubi,mĂȘmesile brouillageestsusceptibled'encompromettrelefonctionnement. CetĂ©quipementestconformeauxdirectivesd'expositionRF.l'utilisateurpeutobtenirdesinformations canadiennessurl'expositionauxRFetlaconformitĂ©.Ladistanceminimaleentrelecorpsetl'utilisateur del'appareilestde20cm A.AppendixA A.1.RequirementofFCCKDB996369D03formodulecertification: 1.1ListofapplicableFCCrules: ThemodulecomplieswithFCCPart15.247 1.2Summarizethespecificoperationaluseconditions: Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor transmitter. 1.3Limitedmoduleprocedures: Notapplicable. 1.4Traceantennadesigns: Notapplicable. 1.5RFexposureconsiderations: ThisequipmentcomplieswithFCC'sRFradiationexposurelimitssetforthforanuncontrolled environment.Theantenna(s)usedforthistransmittermustnotbecollocatedoroperatingin conjunctionwithanyotherantennaortransmitter. 1.6Antennas: TypeGainFrequencyBandsModulationMode PCB1.4dBi2402-2480MHzGFSK 1.7Labelandcomplianceinformation See7.Cautionsfordetails Thesystemintegratormustplaceanexteriorlabelontheoutsideofthefinalproducthousingthe 2A3WHUNILYNXModules.Belowisthecontentthatmustbeincludedonthislabel. 1.8Informationontestmodesandadditionaltestingrequirements: Whentestinghostproduct,thehostmanufactureshouldfollowFCCKDBPublication996369D04 ModuleIntegrationGuidefortestingthehostproducts.Thehostmanufacturermayoperatetheir productduringthemeasurements.Insettinguptheconfigurations,ifthepairingandcallboxoptions fortestingdoesnotwork,thenthehostproductmanufacturershouldcoordinatewiththemodule manufacture


Text truncated - open the document above for the full version.

Attestation Statements

LEDSmartInc 2023-03-06 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2A3WHUNILYNX) LEDSmartInccertifiesthattheequipmentforwhichauthorizationissoughtisnot “covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, Client’ssignature: Client’sname/title:JimXu/R&DManager LEDSmartInc 2023-03-06 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID#2A3WHUNILYNX) [LEDSmartInc](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Sincerely, Client’ssignature: Client’sname/title:JimXu/R&DManager

Cover Letter(s)

THISMUSTBESIGNEDBYTHEAPPLICANT/AGENTANDSHOULDBE PLACEDONAPPROPRIATELETTERHEAD RequestforModular/LimitedModularApproval Date:July11,2023 Subject:Manufacturer’sDeclarationfor☒-ModularApproval☐-SplitModularApproval ☐-LimitedModularApproval☐-LimitedSplitModularApproval ConfidentialityRequestfor:______2A3WHUNILYNX______ 8BasicRequirements–FCCPart15.212(a)(1) ForItemsMarked“NO(*)”,theLimitedModuleDescriptionMustbeFilledOutontheFollowingPages ModularApprovalRequirementRequirementMet 1.ThemodulartransmittermusthaveitsownRFshielding.Thisisintendedtoensurethatthemodule doesnothavetorelyupontheshieldingprovidedbythedeviceintowhichitisinstalledinorderforall modulartransmitteremissionstocomplywithFCClimits.Itisalsointendedtopreventcoupling betweentheRFcircuitryofthemoduleandanywiresorcircuitsinthedeviceintowhichthemoduleis installed.Suchcouplingmayresultinnon-compliantoperation.Thephysicalcrystalandtuning capacitorsmaybelocatedexternaltotheshieldedradioelements.15.212(a)(1)(i) ☒-YES☐-NO(*) Details:<example–ThemodulecontainsametalshieldwhichcoversallRFcomponentsandcircuitry.Theshieldislocatedon thetopoftheboardnexttoantennaconnector> 2.Themodulartransmittermusthavebufferedmodulation/datainputs(ifsuchinputsareprovided)to ensurethatthemodulewillcomplywithFCCrequirementsunderconditionsofexcessivedataratesor over-modulation.15.212(a)(1)(ii) ☒-YES☐-NO(*) Details:<example–Datatothemodulationcircuitisbufferedasdescribedintheoperationaldescriptionprovidedwiththe application> 3.Themodulartransmittermusthaveitsownpowersupplyregulationonthemodule.Thisisintendedto ensurethatthemodulewillcomplywithFCCrequirementsregardlessofthedesignofthepower supplyingcircuitryinthedeviceintowhichthemoduleisinstalled.15.212(a)(1)(iii) ☒-YES☐-NO(*) Details:<example–Themodulecontainsitsownpowersupplyregulation.Pleaserefertoschematicfiledwiththisapplication> 4.Themodulartransmittermustcomplywiththeantennaandtransmissionsystemrequirementsof§§ 15.203,15.204(b),15.204(c),15.212(a),and2.929(b).Theantennamusteitherbepermanently attachedoremploya‘‘unique’’antennacoupler(atallconnectionsbetweenthemoduleandthe antenna,includingthecable).The‘‘professionalinstallation’’provisionof§15.203isnotapplicable tomodulesbutcanapplytolimitedmodularapprovalsunderparagraph15.212(b).15.212(a)(1)(iv) ☒-YES☐-NO(*) Details:<example–ThemoduleconnectstoitsantennausinganUFLconnectorwhichisconsideredanon-standard connector.Alistofantennastestedandapprovedwiththisdevicemaybefoundinusersmanualprovidedwiththeapplication> 5.Themodulartransmittermustbetestedinastand-aloneconfiguration,i.e.,themodulemustnotbe insideanotherdeviceduringtesting.Thisisintendedtodemonstratethatthemoduleiscapableof complyingwithPart15emissionlimitsregardlessofthedeviceintowhichitiseventuallyinstalled. Unlessthetransmittermodulewillbebatterypowered,itmustcomplywiththeAClineconducted requirementsfoundinSection15.207.ACorDCpowerlinesanddatainput/outputlinesconnectedto themodulemustnotcontainferrites,unlesstheywillbemarketedwiththemodule(seeSection 15.27(a)).Thelengthoftheselinesshallbelengthtypicalofactualuseor,ifthatlengthisunknown,at least10centimeterstoinsurethatthereisnocouplingbetweenthecaseofthemoduleandsupporting equipment.Anyaccessories,peripherals,orsupportequipmentconnectedtothemoduleduringtesting shallbeunmodifiedorcommerciallyavailable(seeSection15.31(i)).15.212(a)(1)(v) ☒-YES☐-NO(*) Details:<example–Themodulewastestedstand-aloneasshownintestsetupphotographsfiledwiththisapplication> THISMUSTBESIGNEDBYTHEAPPLICANT/AGENTANDSHOULDBE PLACEDONAPPROPRIATELETTERHEAD ModularApprovalRequirementRequirementMet 6.ThemodulartransmittermustbelabeledwithitsownFCCIDnumber,oruseanelectrondisplay(see KDBPublication784748). IfusingapermanentlyaffixedlabelwithitsownFCCIDnumber,iftheFCCIDisnotvisiblewhen themoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthemoduleis installedmustalsodisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanusewording suchasthefollowing:“ContainsTransmitterModuleFCCID:XYZMODEL1”or“ContainsFCCID: XYZMODEL1.”Anysimilarwordingthatexpressesthesamemeaningmaybeused.TheGranteemay eitherprovidesuchalabel,anexampleofwhichmustbeincludedintheapplicationforequipment authorization,or,mustprovideadequateinstructionsalongwiththemodulewhichexplainthis requirement.Inthelattercase,acopyoftheseinstructionsmustbeincludedintheapplicationfor equipmentauthorization. IfthemodulartransmitterusesanelectronicdisplayoftheFCCidentificationnumber,theinformation mustbereadilyaccessibleandvisibleonthemodulartransmitteroronthedeviceinwhichitis installed.Ifthemoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthe moduleisinstalledmustdisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanuse wordingsuchasthefollowing:“ContainsFCCcertifiedtransmittermodule(s).”Anysimilarwording thatexpressesthesamemeaningmaybeused.Theusermanualmustincludeinstructionsonhowto accesstheelectronicdisplay.Acopyoftheseinstructionsmustbeincludedintheapplicationfor equipmentauthorization.15.212(a)(1)(vi) ☒-YES☐-NO(*) Details:<example–Thereisalabelonthemoduleasshowninthelabelingexhibitfiledwiththisapplication.Hostspecific labelinginstructionsareshownintheinstallationmanual.filedwiththisapplication.> 7.Themodulartransmittermustcomplywithallspecificruleoroperatingrequirementsapplicabletothe transmitter,includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee.Acopy oftheseinstructionsmustbeincludedintheapplicationforequipmentauthorization.Forexample, thereareverystrictoperationalandtimingrequirementsthatmustbemetbeforeatransmitteris authorizedforoperationunderSection15.231.Forinstance,datatransmissionisprohibited,exceptfor operationunderSection15.231(e),inwhichcasethereareseparatefieldstrengthlevelandtiming requirements.Compliancewiththeserequirementsmustbeassured.15.212(a)(1)(vii) ☒-YES☐-NO(*) Details:<example–ThemodulecomplieswithFCCPart15Crequirements.InstructionstotheOEMinstallerareprovidedin theinstallationmanualfiledwiththisapplication.> 8.Themodulartransmi


Text truncated - open the document above for the full version.

Cover Letter(s)

LEDSmartInc 2023-03-06 EurofinsElectricalandElectronicTestingNA,Inc 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(Bluetoothmodule/UNILYNX-1.0/ FCCID:2A3WHUNILYNX) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram/Schematics/Operation description/BOM)requiredtobesubmittedwiththisapplicationbepermanently withheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldneverget intothepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Client’ssignature: Client’sname/title:JimXu/R&DManager Contactinformation/address:1890532Ave.,SurreyBCV3Z1A7

Cover Letter(s)

ARTIKAFORLIVINGINC 2023-03-06 EurofinsElectricalandElectronicTestingNA,Inc 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeSTANDARD-TECHTESTINGSERVICES/Standard-Tech Building,No.6GuanhongRoad,GuangzhouScienceCity,Guangzhou510663,Chinatoacton ourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigning ofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Client’ssignature: Client’sname/title:JimXu/R&DManager Contactinformation/address:1890532Ave.,SurreyBCV3Z1A7

External Photos

STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICESAppendixPage 1 of 2 PhotooftheEUT UNILYNX-1.0 STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICESAppendixPage 2 of 2

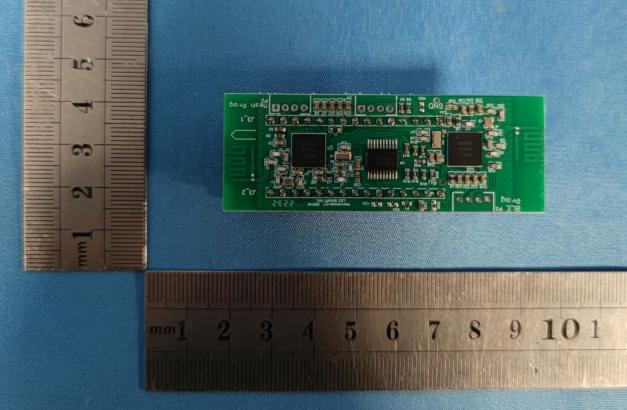

Internal Photos

STANDARD-TECHTESTINGSERVICES. STANDARD-TECHTESTINGSERVICESAppendixPage 1 of 2 PhotooftheEUT Antenna1 Antenna2 STANDARD-TECHTESTINGSERVICES. STANDARD-TECHTESTINGSERVICESAppendixPage 2 of 2

RF Exposure Info

FCCID2A3WHUNILYNX FCC§15.247(I)&§1.1310&§2.1091-MAXIMUMPERMISSIBLE EXPOSURE(MPE) ApplicableStandard Accordingtosubpart15.247(i)andsubpart1.1310(b)(1),2.1091systemsoperatingundertheprovisions ofthissectionshallbeoperatedinamannerthatensuresthepublicisnotexposedtoRFenergylevelin excessofthecommunicationguidelines. LimitsforGeneralPopulation/UncontrolledExposure FrequencyRange (MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm2) AveragingTime (minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/fÂČ)30 30-30027.50.0730.230 300-1500/f/150030 1500-100,000/1.030 f=frequencyinMHz;*=Plane-waveequivalentpowerdensity CalculatedFormulary: PredicationofMPElimitatagivendistance S=PG/4πRÂČ=powerdensity(inappropriateunits,e.g.mW/cm2); P=powerinputtotheantenna(inappropriateunits,e.g.,mW); G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator,thepowergain factor,isnormallynumericgain; R=distancetothecenterofradiationoftheantenna(appropriateunits,e.g.,cm) CalculatedData: Frequency Range (MHz) AntennaGain Tune-up ConductedPower Evaluation Distance (cm) Power Density (mW/cm2) MPE Limit (mW/cm2) (dBi)(numeric)(dBm)(mW) 24021.41.38-4.330.37200.000101.0000 24401.41.38-4.500.35200.000101.0000 24801.41.38-4.670.34200.000091.0000 Conclusion:TheEUTmeetsexemptionrequirement-RFexposureevaluationgreaterthan20cmdistancespecified in§2.1091.Ifthedevicebuiltintoahostasaportableusage,theadditionalRFexposureevaluationmayberequired asspecifiedby§2.1093.

RF Exposure Info

FCCID2A3WHUNILYNX FCC§15.247(I)&§1.1310&§2.1091-MAXIMUMPERMISSIBLE EXPOSURE(MPE) ApplicableStandard Accordingtosubpart15.247(i)andsubpart1.1310(b)(1),2.1091systemsoperatingundertheprovisions ofthissectionshallbeoperatedinamannerthatensuresthepublicisnotexposedtoRFenergylevelin excessofthecommunicationguidelines. LimitsforGeneralPopulation/UncontrolledExposure FrequencyRange (MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm2) AveragingTime (minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/fÂČ)30 30-30027.50.0730.230 300-1500/f/150030 1500-100,000/1.030 f=frequencyinMHz;*=Plane-waveequivalentpowerdensity CalculatedFormulary : PredicationofMPElimitatagivendistance S=PG/4πRÂČ=powerdensity(inappropriateunits,e.g.mW/cm2); P=powerinputtotheantenna(inappropriateunits,e.g.,mW); G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator,thepowergain factor,isnormallynumericgain; R=distancetothecenterofradiationoftheantenna(appropriateunits,e.g.,cm) CalculatedData: Frequency Range (MHz) AntennaGain Tune-up ConductedPower Evaluation Distance (cm) Power Density (mW/cm2) MPE Limit (mW/cm2) (dBi)(numeric)(dBm)(mW) 24021.41.38-2.120.61200.000171.0000 24401.41.38-2.880.52200.000141.0000 24801.41.38-3.930.40200.000111.0000 Conclusion:TheEUTmeetsexemptionrequirement-RFexposureevaluationgreaterthan20cmdistancespecified in§2.1091.Ifthedevicebuiltintoahostasaportableusage,theadditionalRFexposureevaluationmayberequired asspecifiedby§2.1093.

Test Report

Grow3MeshModulePCBAntennaSpecification 1.PCBAntenna TheantennaisPCBdesignonly,withoutextraantennaproductinuse 2.PCBMIFAantenna2.44GHzSpecification 3. Manufacturer:LEDSmartInc Address:1890532Ave.,SurreyBCV3Z1A7 ModelNo.:UNILYNX-ANTENNA 4.PCBMIFAAntennaFrequencyFeatures 5.PCBMIFAantenna3Dmodel

Test Report

STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICES.Page 1 of 35 FCCPART15CTESTREPORTFORCERTIFICATION OnBehalfof LEDSmartInc. *************************************** FCCID  2A3WHUNILYNX ReportType  Originalreport ProductType  Bluetoothmodule TestEngineer:ClintChen ReportNumber:STD-JBO221103F-001 ReportDate:2023-01-05 ReviewedBy: PhilipGuo PreparedBy: STANDARD-TECHTESTINGSERVICES Standard-TechBuilding,No.6GuanhongRoad GuangzhouScienceCity,GuangzhouCity,Guangdong Province,Guangzhou510663,People’sRepublicofChina Tel:+86-20-32290320/32290719 Fax:+86-20-32290422/32290556 www.standard-tech.com ThedevicedescribedaboveistestedbySTANDARD-TECHTESTINGSERVICES.toconfirmcomplywithalltheFCCPart15SubpartCrequirements.Thetestresults arecontainedinthistestreportandSTANDARD-TECHTESTINGSERVICESisassumedfullresponsibilityfortheaccuracyandcompletenessofthesetests.Also,this reportshowsthattheEquipmentUnderTest(EUT)istobetechnicallycompliantwiththeFCCrequirements.ThisReportismadeunderFCCPart2.1074.No modificationswererequiredduringtestingtobringthisproductintocompliance.Thisreportappliestoabovetestedsampleonly.Thisreportshallnotbereproducedin partwithoutwrittenapprovalofSTANDARD-TECHTESTINGSERVICES. STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICES.Page 2 of 35 TABLEOFCONTENTS DescriptionPage 1.SUMMARYOFSTANDARDSANDRESULTS.............................................................3 1.1.DescriptionofStandardsandResults......................................................................................3 2.GENERALINFORMATION.............................................................................................4 2.1.DescriptionofEquipmentUnderTest.....................................................................................4 2.2.FeatureofEquipmentUnderTest............................................................................................5 2.3.TestedSupportingSystemDetails...........................................................................................5 2.4.TestInformation......................................................................................................................6 2.5.EquipmentsUsedduringtheTest............................................................................................6 2.6.TestFacility.............................................................................................................................8 2.7.MeasurementUncertainty(95%confidencelevels,k=2)........................................................8 3.POWERLINECONDUCTEDEMISSIONTEST..........................................................9 3.1.BlockDiagramofTestSetup...................................................................................................9 3.2.PowerLineConductedEmissionTestLimits.........................................................................9 3.3.TestProcedure.........................................................................................................................9 3.4.PowerLineConductedEmissionTestResult..........................................................................9 4.RADIATEDEMISSIONTEST.......................................................................................12 4.1.BlockDiagramofTestSetup.................................................................................................12 4.2.RadiatedEmissionLimit.......................................................................................................12 4.3.TestProcedure.......................................................................................................................13 4.4.RadiatedEmissionTestResults.............................................................................................14 5.CONDUCTEDSPURIOUSEMISSIONS.......................................................................20 5.1.BlockDiagramofTestSetup.................................................................................................20 5.2.Limit.......................................................................................................................................20 5.3.TestProcedure.......................................................................................................................20 5.4.Testresult...............................................................................................................................20 6.BANDEDGECOMPLIANCETEST.............................................................................25 6.1.Limit.......................................................................................................................................25 6.2.TestProcedure........................................................................................................................25 6.3.TestResults............................................................................................................................25 7.6dBBandwidthTest..........................................................................................................28 7.1.BlockDiagramofTestSetup.................................................................................................28 7.2.Limit.......................................................................................................................................28 7.3.TestProcedure.......................................................................................................................28 7.4.TestResults............................................................................................................................28 8.OUTPUTPOWERTEST.................................................................................................31 8.1.Limit(FCCPart15C15.247b(3)).........................................................................................31 8.2.TestProcedure.................................................................................................................


Text truncated - open the document above for the full version.

Test Report

STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICES.Page 1 of 35 FCCPART15CTESTREPORTFORCERTIFICATION OnBehalfof LEDSmartInc. *************************************** FCCID  2A3WHUNILYNX ReportType  Originalreport ProductType  Bluetoothmodule TestEngineer:ClintChen ReportNumber:STD-JBO221103F-002 ReportDate:2023-01-05 ReviewedBy:PhilipGuo PreparedBy: STANDARD-TECHTESTINGSERVICES Standard-TechBuilding,No.6GuanhongRoad GuangzhouScienceCity,GuangzhouCity,Guangdong Province,Guangzhou510663,People’sRepublicofChina Tel:+86-20-32290320/32290719 Fax:+86-20-32290422/32290556 www.standard-tech.com ThedevicedescribedaboveistestedbySTANDARD-TECHTESTINGSERVICES.toconfirmcomplywithalltheFCCPart15SubpartCrequirements.Thetestresults arecontainedinthistestreportandSTANDARD-TECHTESTINGSERVICESisassumedfullresponsibilityfortheaccuracyandcompletenessofthesetests.Also,this reportshowsthattheEquipmentUnderTest(EUT)istobetechnicallycompliantwiththeFCCrequirements.ThisReportismadeunderFCCPart2.1074.No modificationswererequiredduringtestingtobringthisproductintocompliance.Thisreportappliestoabovetestedsampleonly.Thisreportshallnotbereproducedin partwithoutwrittenapprovalofSTANDARD-TECHTESTINGSERVICES. STANDARD-TECHTESTINGSERVICES STANDARD-TECHTESTINGSERVICES.Page 2 of 35 TABLEOFCONTENTS DescriptionPage 1.SUMMARYOFSTANDARDSANDRESULTS.............................................................3 1.1.DescriptionofStandardsandResults......................................................................................3 2.GENERALINFORMATION.............................................................................................4 2.1.DescriptionofEquipmentUnderTest.....................................................................................4 2.2.FeatureofEquipmentUnderTest............................................................................................5 2.3.TestedSupportingSystemDetails...........................................................................................5 2.4.TestInformation......................................................................................................................6 2.5.EquipmentsUsedduringtheTest............................................................................................6 2.6.TestFacility.............................................................................................................................8 2.7.MeasurementUncertainty(95%confidencelevels,k=2)........................................................8 3.POWERLINECONDUCTEDEMISSIONTEST..........................................................9 3.1.BlockDiagramofTestSetup...................................................................................................9 3.2.PowerLineConductedEmissionTestLimits.........................................................................9 3.3.TestProcedure.........................................................................................................................9 3.4.PowerLineConductedEmissionTestResult..........................................................................9 4.RADIATEDEMISSIONTEST.......................................................................................12 4.1.BlockDiagramofTestSetup.................................................................................................12 4.2.RadiatedEmissionLimit.......................................................................................................13 4.3.TestProcedure.......................................................................................................................13 4.4.RadiatedEmissionTestResults.............................................................................................14 5.CONDUCTEDSPURIOUSEMISSIONS.......................................................................20 5.1.BlockDiagramofTestSetup.................................................................................................20 5.2.Limit.......................................................................................................................................20 5.3.TestProcedure.......................................................................................................................20 5.4.Testresult...............................................................................................................................20 6.BANDEDGECOMPLIANCETEST.............................................................................25 6.1.Limit.......................................................................................................................................25 6.2.TestProcedure........................................................................................................................25 6.3.TestResults............................................................................................................................25 7.6dBBandwidthTest..........................................................................................................28 7.1.BlockDiagramofTestSetup.................................................................................................28 7.2.Limit.......................................................................................................................................28 7.3.TestProcedure.......................................................................................................................28 7.4.TestResults............................................................................................................................28 8.OUTPUTPOWERTEST.................................................................................................31 8.1.Limit(FCCPart15C15.247b(3)).........................................................................................31 8.2.TestProcedure................................................................................................................


Text truncated - open the document above for the full version.

Contact Information

Applicant

Jim Xu(R&D manager)
[email protected]6043851236Fax: 7804386624

Test Firm

Standard-Tech Testing ServicesMichael Xiao
[email protected]862032290132

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz610.00 ”W
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines.
