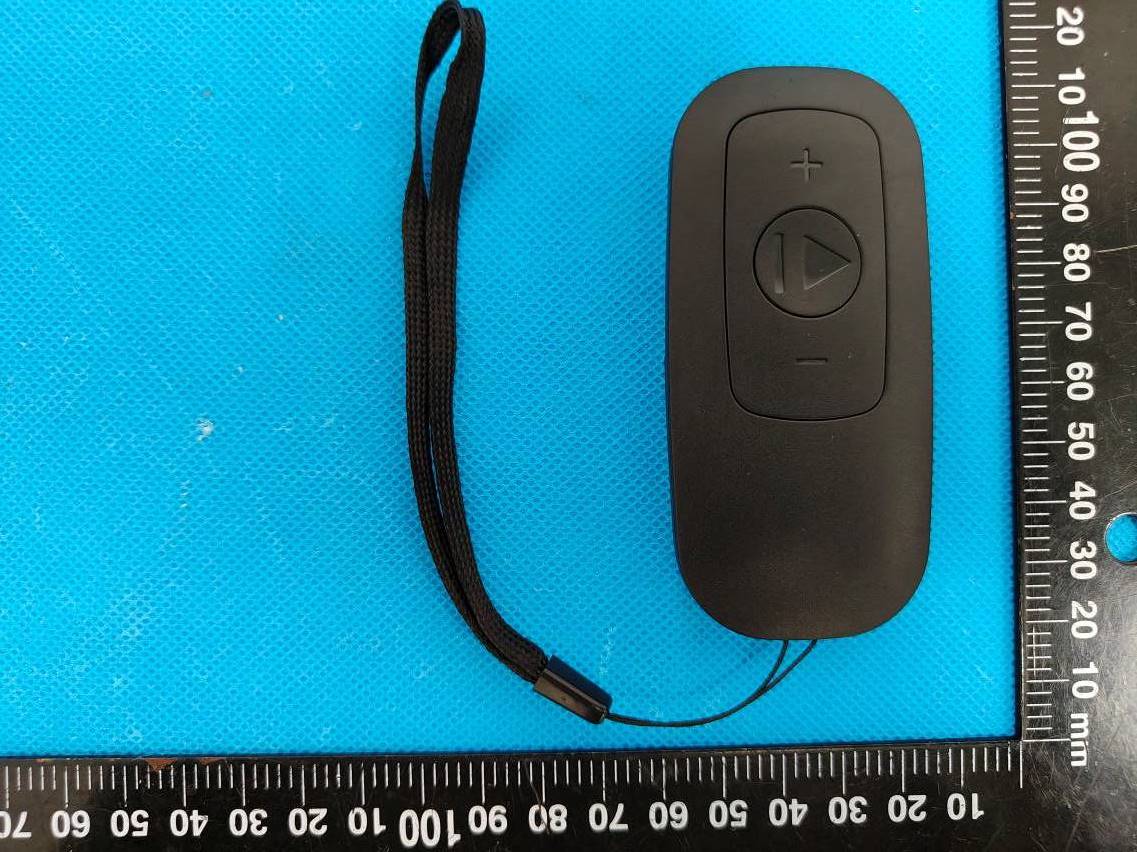

• 433M remote control instruction manual Pictures of objects: Parameters: Product Model: TM-AK101 Operating voltage: DC3V (one 2032 button battery) Operating current: less than 20MA when transmitting Operating frequency: 433.92MHz Modulation mode: OOK Standby current: less than 5UA Size: 90*42*14mmMM Product quality: 24.5g This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Instructions for operation: 1: Press the PL AY button, send signal, open the machine, release to stop sending. 2: Press the+key, send signal,speed+, release to stop sending. 3:Press the-key, send signal,speed-, release to stop sending. Application production scene: 1: The treadmill remote control 2: remote control toys. 3: Smart furniture. , etc. 4:Wireless remote control Warning: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ATTESTATION STATEMENT DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD Add:No. 4 plant, shuibeidengwu village, Shipai town, Dongguan, China Tel: 18569550315 Fax: 18569550315 Email:[email protected] Date: 2023-12-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID: 2A3Y6-TMAK101 DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD, certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD,certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Printed Name: Yadong Chen Title: Development Engineer Signature:

FCC ID:2A3Y6-TMAK101

QA-FR-170-B DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD Add:No. 4 plant, shuibeidengwu village, Shipai town, Dongguan, China Tel: 18569550315 Fax: 18569550315 Email:[email protected] FCC Authorization Date: 2023-12-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature : Printed Name: Yadong Chen Title: Development Engineer

QA -FR-171-A DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD Add:No. 4 plant, shuibeidengwu village, Shipai town, Dongguan, China Tel: 18569550315 Fax: 18569550315 Email:[email protected] FCC Confidential Authorization D ate: 2023-12-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A3Y6-TMAK101 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD ) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. S incerely, S ignature: P rinted Name: Yadong Chen Title: Development Engineer

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-EXP Page 1 of 3 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-EXP Page 2 of 3 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-EXP Page 3 of 3

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-INP Page 1 of 5 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-INP Page 2 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-INP Page 3 of 5 Chip China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-INP Page 4 of 5 Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-INP Page 5 of 5

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-00 Page 38 of 40 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard §1.1307(b)(3)(i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); 5.2 Measurement Result Frequency (MHz) Maximum EIRP (dBm) Antenna Gain (dBi) Maximum Conducted Output Power 1-mW Test Exemption dBm mW 433.92 -7.75 0.8 -8.55 0.14 Compliant Note: 1. Chose the maximum power to do RF Exposure Evaluation. 2. This device maximum E-Field level is 87.45 dBμV/m at 3m, so the EIRP power is -7.75 dBm. 3. Pout EIRP (dBm)=Field Strength of Fundamental(dBuV/m)-95.2 4. Conducted Output Power = EIRP - Antenna Gain Result: Compliant. RF Exposure is exemption.

TEST REPORT Applicant: DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD Address: NO.4 plant, shuibeidengwu village, Shipai town, Dongguan, China FCC ID: 2A3Y6-TMAK101 Product Name: remote control Standard(s): 47 CFR Part 15, Subpart C (15.231) ANSI C63.10-2013 The above device has been tested and found compliance with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR231058680-00 Date Of Issue: 2023/12/13 Reviewed By: Calvin Chen Title:RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-00 Page 2 of 40 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR231058680-00 Page 3 of 40 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition .............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup.................................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 11 3.1.4 Test Procedure ............................................................................................................................................. 12 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 12 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 13 3.2.1 Applicable Standard ..................................................................................................................................... 13 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH: .......................................................................................................... 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup.................................................................................................................................................... 16 3.3.3 Test Procedure ...................................................................................................................................…
