2A3YR-RM9000-001RM9000

System Design Co., Ltd.
RM9000 - FCC ID 2A3YR-RM9000-001 - System Design Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 11, 2022
Application Purpose
Original Equipment
Date of Application
Jun 11, 2022
Equipment Note
RM9000
Frequency Range
2402.00000000 - 2480.00000000
Company
System Design Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

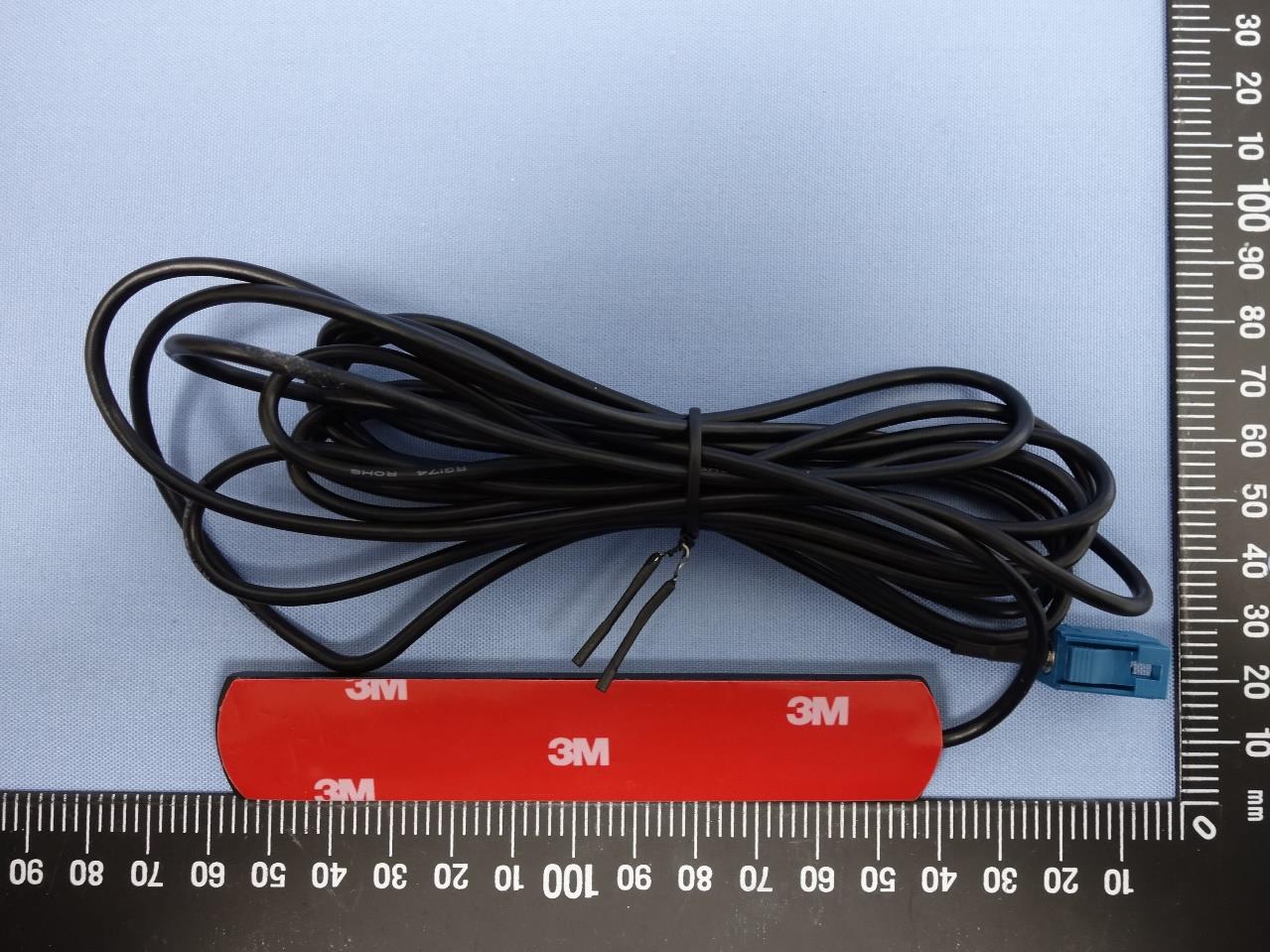

External Photos

↗

ID Label/Location Info

↗

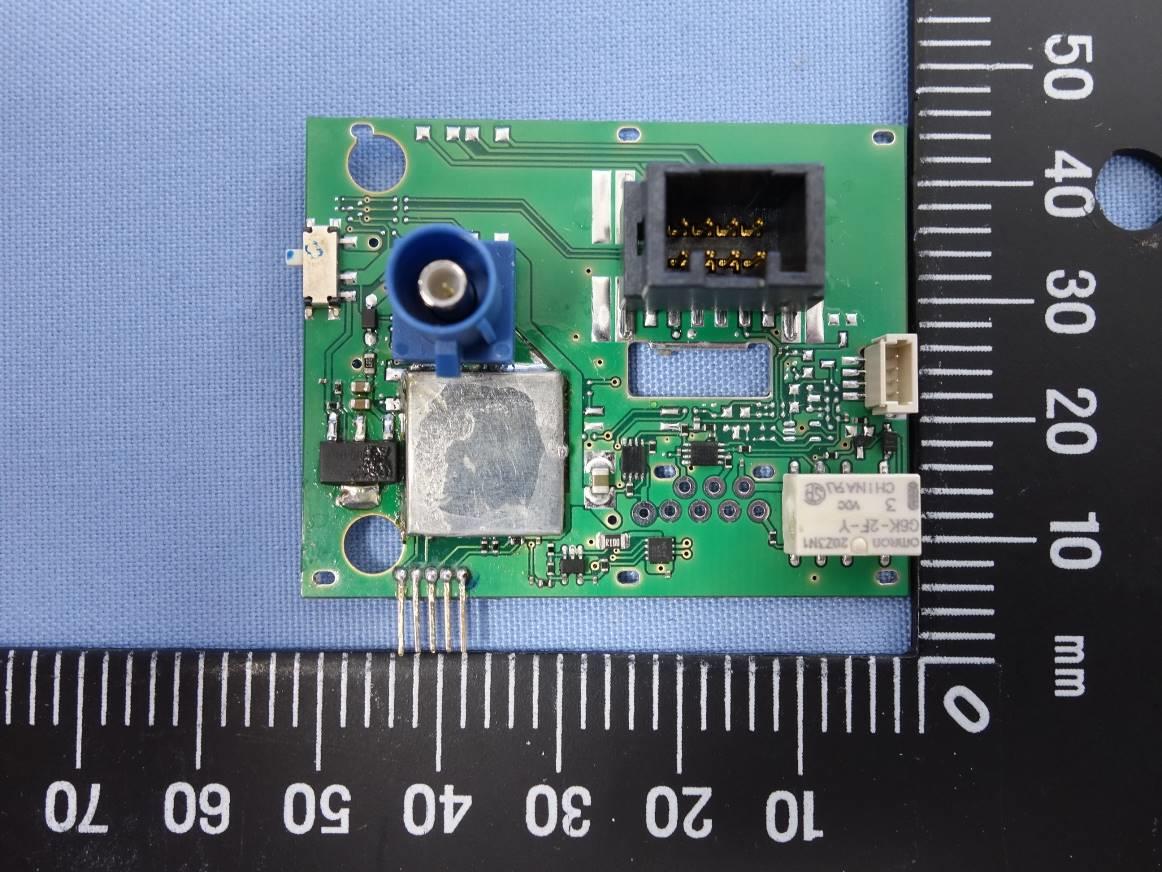

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RM9000 Multiprotocol 2.4GHz Wireless Module Datasheet 1 / 17 System Design Co., Ltd. General Description RM9000 module is a multiprotocol 2.4 GHz wireless microcontroller (MCU) supporting Bluetooth ® 5.2 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver. The device is optimized for low-power wireless communication and advanced sensing in building security systems, HVAC, medical, portable electronics, home theater & entertainment, and connected peripherals markets. The highlighted features of this module include: • Wide flexibility of protocol stack support. • Enable long-range and low-power applications using integrated +5 dBm high-power amplifier with best-in- class transmit current consumption at 85 mA. • Coin-cell operation at +5 dBm with transmit current consumption of 22 mA. • Longer battery life wireless applications with low standby current of 0.94 μA with full RAM retention. • Industrial temperature ready with lowest standby current of 5 μA at 85°C. • Advanced sensing with a programmable, autonomous ultra-low power Sensor Controller CPU with fast wake- up capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at 1 μA system current. • Low SER (Soft Error Rate) FIT (Failure-in-time) for long operation lifetime with no disruption for industrial markets with always-on SRAM parity against corruption due to potential radiation events. • Dedicated software-controlled radio controller (Arm ® Cortex ® -M0) providing flexible low-power RF transceiver capability to support multiple physical layers and RF standards. • Excellent radio sensitivity and robustness (selectivity and blocking) performance for Bluetooth ® Low Energy (-105 dBm for 125-kbps LE Coded PHY). Features • Microcontroller – Powerful 48-MHz Arm ® Cortex ® -M4F processor – EEMBC CoreMark ® score: 148 – 352KB of in-system programmable flash – 256KB of ROM for protocols and library functions – 8KB of cache SRAM (alternatively available as general-purpose RAM) – 80KB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation. – 2-pin cJTAG and JTAG debugging – Supports over-the-air (OTA) update • Ultra-low power sensor controller with 4KB of SRAM – Sample, store, and process sensor data – Operation independent from system CPU – Fast wake-up for low-power operation • TI-RTOS, drivers, bootloader, Bluetooth ® 5.2 low energy controller, and IEEE 802.15.4 MAC in ROM for optimized application size • 7-mm × 7-mm RGZ VQFN48 (26 GPIOs) Peripherals – Digital peripherals can be routed to any GPIO – 4× 32-bit or 8× 16-bit general-purpose timers – 12-bit ADC, 200 kSamples/s, 8 channels – 2× comparators with internal reference DAC (1× continuous time, 1× ultra-low power) – Programmable current source – 2× UART RM9000 Multiprotocol 2.4GHz Wireless Module Datasheet 2 / 17 System Design Co., Ltd. – 2× SSI (SPI, MICROWIRE, TI) – I 2 C and I 2 S – Real-time clock (RTC) – AES 128- and 256-bit cryptographic accelerator – ECC and RSA public key hardware accelerator – SHA2 accelerator (full suite up to SHA-512) – True random number generator (TRNG) – Capacitive sensing, up to 8 channels – Integrated temperature and battery monitor • External system – On-chip buck DC/DC converter • Low power – Active mode RX: 6.9 mA – Active mode TX 0 dBm: 7.3 mA – Active mode TX 5 dBm: 9.6 mA – Active mode MCU 48 MHz (CoreMark): 3.4 mA (71 μA/MHz) – Sensor controller, low power-mode, 2 MHz, running infinite loop: 30.1 μA – Sensor controller, active mode, 24 MHz, running infinite loop: 808 μA – Standby: 0.94 μA (RTC on, 80KB RAM and CPU retention) – Shutdown: 150 nA (wakeup on external events) • Radio section – 2.4 GHz RF transceiver compatible with Bluetooth 5.2 Low Energy and earlier LE specifications and IEEE 802.15.4 PHY and MAC – 3-wire, 2-wire, 1-wire PTA coexistence mechanisms – Excellent receiver sensitivity: -100 dBm for 802.15.4 (2.4 GHz), -105 dBm for Bluetooth 125-kbps (LE Coded PHY) – Output power up to +5 dBm with temperature compensation – Suitable for systems targeting compliance with worldwide radio frequency regulations • EN 300 328, (Europe) • EN 300 440 Category 2 • FCC CFR47 Part 15 • ARIB STD-T66 (Japan) • Wireless protocols – Bluetooth ® 5.2 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, SimpleLink ™ TI 15.4 stack (2.4 GHz), and dynamic multiprotocol manager (DMM) driver. RM9000 Multiprotocol 2.4GHz Wireless Module Datasheet 3 / 17 System Design Co., Ltd. Applications • 2400 to 2480 MHz ISM and SRD systems 1 with down to 4 kHz of receive bandwidth • Building automation – Building security systems – motion detector, electronic smart lock, door and window sensor, garage door system, gateway – HVAC – thermostat, wireless environmental sensor, HVAC system controller, gateway – Fire safety system – smoke and heat detector, fire alarm control panel (FACP) – Video surveillance – IP network camera – Elevators and escalators – elevator main control panel for elevators and escalators • Grid infrastructure – Smart meters – water meter, gas meter, electricity meter, and heat cost allocators – Grid communications – wireless communications – Long-range sensor applications – Other alternative energy – energy harvesting • Industrial transport – asset tracking • Factory automation and control • Medical • Electronic point of sale (EPOS) – Electronic Shelf Label (ESL) • Communication equipment – Wired networking – wireless LAN or Wi-Fi access points, edge router , small business router • Personal electronics – Portable electronics – RF smart remote control – Home theater & entertainment – smart speakers, smart display, set-top box – Connected peripherals – consumer wireless module, pointing devices, keyboards and keypads – Gaming – electronic and robotic toys – Wearables (non-medical) – smart trackers, smar…
