2A3Z6TOBYL3414LTE Module

Tashang Semiconductor(Shanghai) Co., Ltd.
LTE Module - FCC ID 2A3Z6TOBYL3414 - Tashang Semiconductor(Shanghai) Co., Ltd.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Nov 06, 2022
Application Purpose
Original Equipment
Date of Application
Nov 06, 2022
Equipment Note
LTE Module
Frequency Range
673.00000000 - 688.00000000
Company
Tashang Semiconductor(Shanghai) Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TOBY-L3 series Multi-mode LTE (Cat 4) modules with 3G and 2G fallback System Integration Manual 35.6 x 24.8 x 2.6 mm LTE Module Abstract This document describes the features and the system integration of TOBY-L3 series multi-mode cellular modules. The modules are a complete and cost efficient LTE-FDD, LTE-TDD, DC-HSPA+, (E)GPRS multi- mode and multi-band solution with open CPU embedded Linux programming capability. The modules offer up to 150 Mb/s download and up to 50 Mb/s upload data rates with Category 4 LTE technology in the compact TOBY form factor. TOBY-L3 series - System Integration Manual TSD-19090601 - R15 Page 2 of 143 Document Information Title TOBY-L3 series Subtitle Multi-mode LTE (Cat 4) modules with 3G and 2G fallback Document type System Integration Manual Document number TSD-19090601 Revision and date R15 03-Nov-2022 Disclosure Restriction Product status Corresponding content status Functional Sample Draft For functional testing. Revised and supplementary data will be published later. In Development / Prototype Objective Specification Target values. Revised and supplementary data will be published later. Engineering Sample Advance Information Data based on early testing. Revised and supplementary data will be published later. Initial Production Early Production Information Data from product verification. Revised and supplementary data may be published later. Mass Production / End of Life Production Information Document contains the final product specification. This document applies to the following products: Product name Type number Modem version Application version PCN reference Product status TOBY-L3104 TOBY-L3104-50A-00-00 M31.01.01.03.11 A31.50.20.11 Mass Production TOBY-L3104-50A-00-01 M31.01.01.03.12 A31.50.20.12 TSD-21121301 Mass Production TOBY-L3104-50A-00-02 M31.01.01.04.13 A31.50.20.13 TSD-22070501 Mass Production TOBY-L3204 TOBY-L3204-50A-00-00 M31.02.01.03.12 A31.50.20.12 Mass Production TOBY-L3404 TOBY-L3404-50A-00-00 M31.04.01.03.12 A31.50.20.12 Mass Production TOBY-L3404-50A-00-01 M30.04.01.03.13 A30.50.20.13 TSD-22072601 Mass Production TOBY-L3414 TOBY-L3414-50A-00-00 M31.04.11.01.01 A31.50.20.01 Prototype TOBY-L3904 TOBY-L3904-50A-00-00 M31.09.00.03.14 A31.50.20.14 Mass Production TOBY-L3904-50A-00-01 M31.09.00.03.15 A31.50.20.15 TSD-22072601 Mass Production TOBY-L3904-50A-01-00 M31.09.01.01.10 A31.50.20.10 Mass Production TOBY-L3904-50A-01-01 M31.09.01.03.13 A31.50.20.13 TSD-21090101 Mass Production TOBY-L3904-50A-01-02 M31.09.01.03.14 A31.50.20.14 TSD-21101501 Mass Production TOBY-L3 series - System Integration Manual TSD-19090601 - R15 Page 3 of 143 Contents Contents...................................................................................................................................................... 3 1 System description ............................................................................................................................ 7 1.1 Overview ........................................................................................................................................................................................... 7 1.2 Architecture ................................................................................................................................................................................... 11 1.3 Pin-out ............................................................................................................................................................................................. 12 1.4 Operating modes ....................................................................................................................................................................... 20 1.5 Supply interfaces ........................................................................................................................................................................ 23 1.5.1 Module supply input (VCC) ......................................................................................................................................... 23 1.5.2 Generic digital interfaces supply output (V_INT) .............................................................................................. 30 1.6 System function interfaces ..................................................................................................................................................... 31 1.6.1 Module power-on ............................................................................................................................................................ 31 1.6.2 Module power-off ............................................................................................................................................................ 33 1.6.3 Module reset ...................................................................................................................................................................... 35 1.6.4 Module / host configuration selection .................................................................................................................. 36 1.7 Antenna interfaces ..................................................................................................................................................................... 37 1.7.1 Antenna RF interfaces (ANT1 / ANT2) ................................................................................................................... 37 1.7.2 Antenna detection interface (ANT_DET) ................................................................................................................ 39 1.8 SIM interfaces............................................................................................................................................................................... 39 1.8.1 SIM interfaces ..................................................................................................…

Text truncated - open the document above for the full version.

External Photos

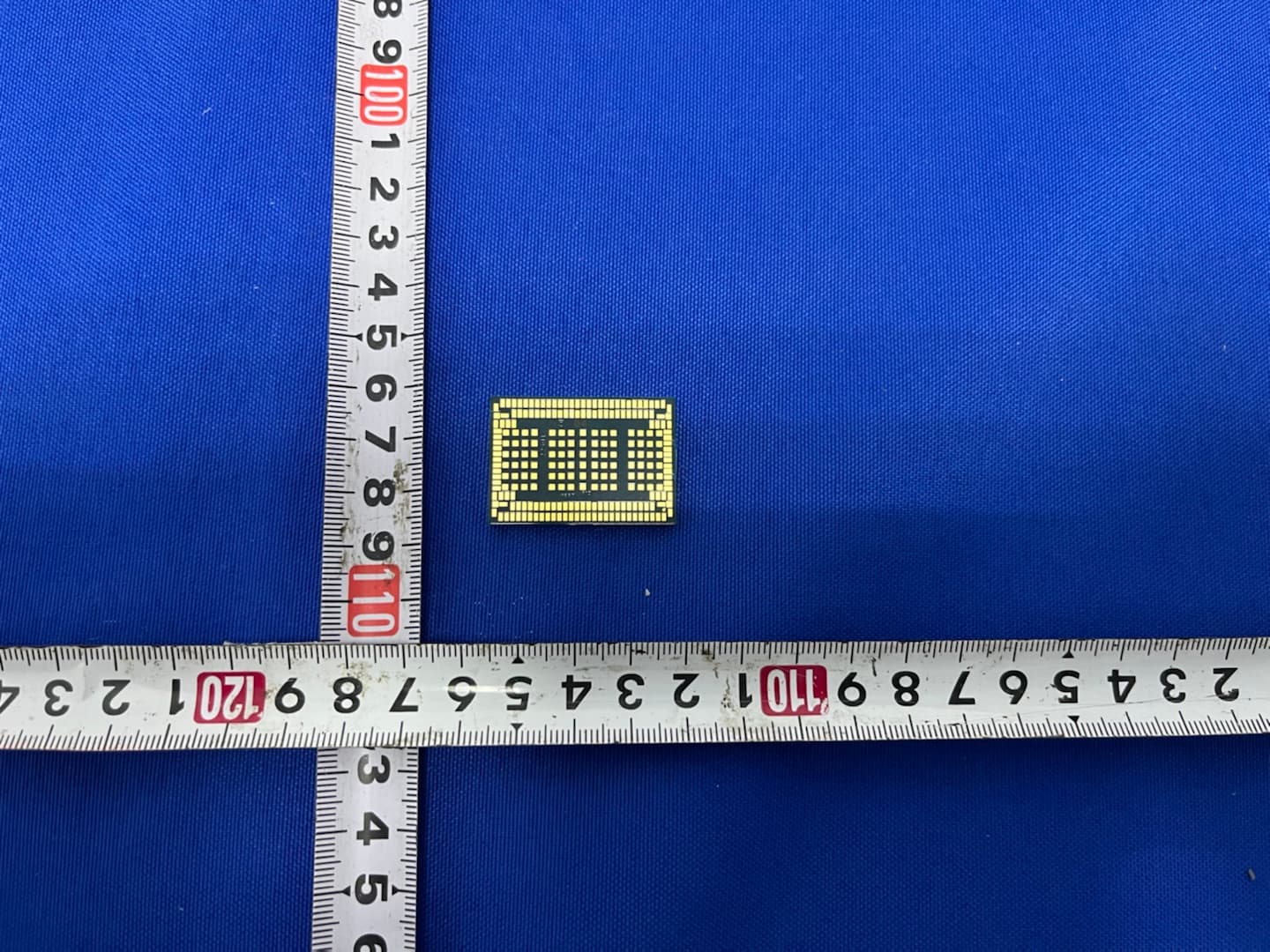

FCC ID: 2A3Z6TOBYL3414 Page 1 of 2 TIRT-TRF/FCC01-2(E):2021A0 ATTACHMENT PHOTOGRAPHS OF EUT FCC ID: 2A3Z6TOBYL3414 Page 2 of 2 TIRT-TRF/FCC01-2(E):2021A0 TOP VIEW OF EUT BOTTOM VIEW OF EUT

ID Label/Location Info

Label Label location

Internal Photos

FCC ID: 2A3Z6TOBYL3414 Page 1 of 2 TIRT-TRF/FCC01-2(E):2021A0 ATTACHMENT PHOTOGRAPHS OF EUT FCC ID: 2A3Z6TOBYL3414 Page 2 of 2 TIRT-TRF/FCC01-2(E):2021A0 OPEN VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 1)

RF Exposure Info

Report No.: FCC022022-05502RF13 Page 1 of 8 Product Name: LTE Module Report No: FCC022022-05502RF13 Product Model: TOBY-L3414 Security Classification: Open Version: V1.0 Total Page: 8 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-05502RF13 Page 2 of 8 FCC RF EXPOSURE REPORT FCC ID: 2A3Z6TOBYL3414 Equipment : LTE Module Brand Name : TASHANG Test Model : TOBY-L3414 Series Model : N/A Applicant : Tashang Semiconductor(Shanghai) Co., Ltd. Address : Room 818, Building 4, No.89, Sanshahong Road, Chengqiao Town, Chongming District, Shanghai Manufacturer : Tashang Semiconductor(Shanghai) Co., Ltd. Address : Room 818, Building 4, No.89, Sanshahong Road, Chengqiao Town, Chongming District, Shanghai Date of Receipt : 2022.08.21 Date of Test : 2022.09.06-2022.09.30 Issued Date : 2022.10.20 Report Version : V1.0 Test Sample : Engineering Sample No.: 20220820018527 Standard(s) : FCC Title 4 7 Part 2. 1091 KDB 447498 001 General RF exposure guidance v06 β€’ The test result referred exclusively to the presented test model /sample. β€’ Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add:101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China TEL: +86-0755-27087573 Report No.: FCC022022-05502RF13 Page 3 of 8 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-05502RF13 V1.0 Original Report 2022.10.20 Valid FCC022022-05502RF13 V1.0 Revised issue 2022.11.03 Valid Report No.: FCC022022-05502RF13 Page 4 of 8 1. TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China CNAS Registration Number: CNAS L14158 A2LA Registration Number 6049.01 Telephone: +86-0755-27087573 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No.: FCC022022-05502RF13 Page 5 of 8 Antenna Specification: For 2G-PCS1900 &3G-Band II&LTE-BAND2 : Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 0.43 For 3G BANDIV&LTE-BAND4&LTE-BAND66: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 3.05 For LTE-BAND7: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 1.48 For LTE-BAND12&BAND71: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 0.73 For LTE-BAND13: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 0.22 For LTE-BAND41: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A N/A N/A 1.58 Note: The antenna gain is provided by the manufacturer. Report No.: FCC022022-05502RF13 Page 6 of 8 3. TEST RESULTS For PCS1900: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 30.05 1011.579454 0.222 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 32 1584.893192 0.348 1 Complies For 3G-BAND II: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 23.03 200.9092813 0.044 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 25 316.227766 0.0695 1 Complies For 3G-BAND IV: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.05 2.02 24.01 251.77 0.101 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.05 2.02 25 316.227766 0.127 1 Complies For LTE-BAND2: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 24.33 271.0191632 0.060 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.43 1.10 25 316.227766 0.0695 1 Complies Report No.: FCC022022-05502RF13 Page 7 of 8 For LTE-BAND4: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.05 2.02 24.41 276.0577856 0.111 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.05 2.02 25 316.227766 0.127 1 Complies For LTE-BAND7: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.48 1.41 24.30 269.1520543 0.075 1 Complies Directional Gain (dBi) Directional Gain (numeric) Tune-up (dBm) Tune-up (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.48 1.41 25 316.227766 0.0885 1 Complies For LTE-BAND12: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.73 1.18 24.85 305.4921113 0.072 0.47 Complies Directional Gain (dBi) Directional Gain …

Text truncated - open the document above for the full version.

Test Report

Report No.: FCC022022-05502RF12(a) Appendix A Page 1 / 67 Appendix for LTE B2 test report Report No.: FCC022022-05502RF12(a) Appendix A Page 2 / 67 Table of Contents Appendix for LTE B2 test report ..................................................................................... 1 Appendix A: Effective (Isotropic) Radiated Power Output Data................. 3 Appendix B: Peak-to-Average Ratio .......................................................... 12 Appendix C: Modulation Characteristics ................................................... 13 Appendix D: Bandwidth .............................................................................. 14 Appendix E: Band Edges Compliance ....................................................... 33 Appendix F Spurious Emission at Antenna Terminals ............................. 46 Appendix G Field Strength of Spurious Radiation .................................... 56 Appendix H: Frequency Stability ............................................................... 65 Report No.: FCC022022-05502RF12(a) Appendix A Page 3 / 67 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Results: Band Bandwidth Modulation Channel RB Configuration Conducted Power[dB m] EIRP (dBm) Limit (dBm) Verdic t Band2 1.4MHz QPSK 18607 1RB#0 23.86 24.29 33 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.91 24.34 33 PASS Band2 1.4MHz QPSK 18607 1RB#5 23.75 24.18 33 PASS Band2 1.4MHz QPSK 18607 3RB#0 23.78 24.21 33 PASS Band2 1.4MHz QPSK 18607 3RB#1 23.74 24.17 33 PASS Band2 1.4MHz QPSK 18607 3RB#3 23.86 24.29 33 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.76 23.19 33 PASS Band2 1.4MHz QPSK 18900 1RB#0 23.86 24.29 33 PASS Band2 1.4MHz QPSK 18900 1RB#2 24.23 24.66 33 PASS Band2 1.4MHz QPSK 18900 1RB#5 24.01 24.44 33 PASS Band2 1.4MHz QPSK 18900 3RB#0 24.06 24.49 33 PASS Band2 1.4MHz QPSK 18900 3RB#1 23.80 24.23 33 PASS Band2 1.4MHz QPSK 18900 3RB#3 23.86 24.29 33 PASS Band2 1.4MHz QPSK 18900 6RB#0 22.86 23.29 33 PASS Band2 1.4MHz QPSK 19193 1RB#0 23.87 24.30 33 PASS Band2 1.4MHz QPSK 19193 1RB#2 24.13 24.56 33 PASS Band2 1.4MHz QPSK 19193 1RB#5 24.18 24.61 33 PASS Band2 1.4MHz QPSK 19193 3RB#0 23.90 24.33 33 PASS Band2 1.4MHz QPSK 19193 3RB#1 23.78 24.21 33 PASS Band2 1.4MHz QPSK 19193 3RB#3 23.84 24.27 33 PASS Band2 1.4MHz QPSK 19193 6RB#0 22.77 23.20 33 PASS Band2 1.4MHz 16QAM 18607 1RB#0 22.70 23.13 33 PASS Band2 1.4MHz 16QAM 18607 1RB#2 22.33 22.76 33 PASS Band2 1.4MHz 16QAM 18607 1RB#5 22.76 23.19 33 PASS Band2 1.4MHz 16QAM 18607 3RB#0 22.70 23.13 33 PASS Band2 1.4MHz 16QAM 18607 3RB#1 22.75 23.18 33 PASS Report No.: FCC022022-05502RF12(a) Appendix A Page 4 / 67 Band2 1.4MHz 16QAM 18607 3RB#3 22.91 23.34 33 PASS Band2 1.4MHz 16QAM 18607 6RB#0 21.87 22.30 33 PASS Band2 1.4MHz 16QAM 18900 1RB#0 22.90 23.33 33 PASS Band2 1.4MHz 16QAM 18900 1RB#2 22.45 22.88 33 PASS Band2 1.4MHz 16QAM 18900 1RB#5 22.68 23.11 33 PASS Band2 1.4MHz 16QAM 18900 3RB#0 22.72 23.15 33 PASS Band2 1.4MHz 16QAM 18900 3RB#1 22.58 23.01 33 PASS Band2 1.4MHz 16QAM 18900 3RB#3 22.62 23.05 33 PASS Band2 1.4MHz 16QAM 18900 6RB#0 21.68 22.11 33 PASS Band2 1.4MHz 16QAM 19193 1RB#0 22.65 23.08 33 PASS Band2 1.4MHz 16QAM 19193 1RB#2 22.92 23.35 33 PASS Band2 1.4MHz 16QAM 19193 1RB#5 22.47 22.90 33 PASS Band2 1.4MHz 16QAM 19193 3RB#0 22.74 23.17 33 PASS Band2 1.4MHz 16QAM 19193 3RB#1 23.00 23.43 33 PASS Band2 1.4MHz 16QAM 19193 3RB#3 23.06 23.49 33 PASS Band2 1.4MHz 16QAM 19193 6RB#0 21.73 22.16 33 PASS Band2 3MHz QPSK 18615 1RB#0 23.92 24.35 33 PASS Band2 3MHz QPSK 18615 1RB#8 23.81 24.24 33 PASS Band2 3MHz QPSK 18615 1RB#14 23.77 24.20 33 PASS Band2 3MHz QPSK 18615 8RB#0 22.75 23.18 33 PASS Band2 3MHz QPSK 18615 8RB#4 22.79 23.22 33 PASS Band2 3MHz QPSK 18615 8RB#7 22.75 23.18 33 PASS Band2 3MHz QPSK 18615 15RB#0 22.75 23.18 33 PASS Band2 3MHz QPSK 18900 1RB#0 23.83 24.26 33 PASS Band2 3MHz QPSK 18900 1RB#8 23.91 24.34 33 PASS Band2 3MHz QPSK 18900 1RB#14 23.92 24.35 33 PASS Band2 3MHz QPSK 18900 8RB#0 22.70 23.13 33 PASS Band2 3MHz QPSK 18900 8RB#4 22.75 23.18 33 PASS Band2 3MHz QPSK 18900 8RB#7 22.77 23.20 33 PASS Band2 3MHz QPSK 18900 15RB#0 22.70 23.13 33 PASS Band2 3MHz QPSK 19185 1RB#0 23.97 24.40 33 PASS Band2 3MHz QPSK 19185 1RB#8 24.12 24.55 33 PASS Band2 3MHz QPSK 19185 1RB#14 23.90 24.33 33 PASS Band2 3MHz QPSK 19185 8RB#0 22.95 23.38 33 PASS Report No.: FCC022022-05502RF12(a) Appendix A Page 5 / 67 Band2 3MHz QPSK 19185 8RB#4 22.81 23.24 33 PASS Band2 3MHz QPSK 19185 8RB#7 22.84 23.27 33 PASS Band2 3MHz QPSK 19185 15RB#0 22.87 23.30 33 PASS Band2 3MHz 16QAM 18615 1RB#0 22.44 22.87 33 PASS Band2 3MHz 16QAM 18615 1RB#8 22.64 23.07 33 PASS Band2 3MHz 16QAM 18615 1RB#14 22.47 22.90 33 PASS Band2 3MHz 16QAM 18615 8RB#0 21.80 22.23 33 PASS Band2 3MHz 16QAM 18615 8RB#4 21.87 22.30 33 PASS Band2 3MHz 16QAM 18615 8RB#7 21.86 22.29 33 PASS Band2 3MHz 16QAM 18615 15RB#0 21.80 22.23 33 PASS Band2 3MHz 16QAM 18900 1RB#0 22.61 23.04 33 PASS Band2 3MHz 16QAM 18900 1RB#8 22.50 22.93 33 PASS Band2 3MHz 16QAM 18900 1RB#14 22.60 23.03 33 PASS Band2 3MHz 16QAM 18900 8RB#0 22.50 22.93 33 PASS Band2 3MHz 16QAM 18900 8RB#4 21.60 22.03 33 PASS Band2 3MHz 16QAM 18900 8RB#7 21.64 22.07 33 PASS Band2 3MHz 16QAM 18900 15RB#0 21.50 21.93 33 PASS Band2 3MHz 16QAM 19185 1RB#0 22.61 23.04 33 PASS Band2 3MHz 16QAM 19185 1RB#8 22.52 22.95 33 PASS Band2 3MHz 16QAM 19185 1RB#14 22.54 22.97 33 PASS Band2 3MHz 16QAM 19185 8RB#0 21.91 22.34 33 PASS Band2 3MHz 16QAM 19185 8RB#4 22.06 22.49 33 PASS Band2 3MHz 16QAM 19185 8RB#7 22.01 22.44 33 PASS Band2 3MHz 16QAM 19185 15RB#0 21.70 22.13 33 PASS Band2 5MHz QPSK 18625 1RB#0 23.96 24.39 33 PASS Band2 5MHz QPSK 18625 1RB#12 24.03 24.46 33 PASS Band2 5MHz QPSK 18625 1RB#24 23.88 24.31 33 PASS Band2 5MHz QPSK 18625 12RB#0 22.68 23.11 33 PASS Band2 5MHz QPSK 18625 12RB#6 22.71 23.14 33 PASS Band2 5MHz QPSK 18625 12RB#13 22.62 23.05 33 PASS Band2 5MHz QPSK 18625 25RB#0 22.72 23.15 33 PASS Band2 5MHz QPSK 18900 1RB#0 23.79 24.22 33 PASS Band2 5MHz QPSK 18900 1RB#12 23.79 24.22 33 PASS Band2 5MHz QP…

Text truncated - open the document above for the full version.

Test Report

Report No.: FCC022022-05502RF12(a) Appendix B Page 1 / 66 Appendix for LTE B4 test report Report No.: FCC022022-05502RF12(a) Appendix B Page 2 / 66 Table of Contents Appendix for LTE B4 test report ..................................................................................... 1 Appendix A: Effective (Isotropic) Radiated Power Output Data................. 3 Appendix B: Peak-to-Average Ratio .......................................................... 11 Appendix C: Modulation Characteristics ................................................... 12 Appendix D: Bandwidth .............................................................................. 13 Appendix E: Band Edges Compliance ....................................................... 32 Appendix F Spurious Emission at Antenna Terminals ............................. 45 Appendix G Field Strength of Spurious Radiation .................................... 55 Appendix H: Frequency Stability ............................................................... 64 Report No.: FCC022022-05502RF12(a) Appendix B Page 3 / 66 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Results: Band Bandwidth Modulation Channel RB Configuration Conducted Power[dBm] EIRP (dBm) Limit (dBm) Verdict Band4 1.4MHz QPSK 19957 1RB#0 23.87 26.92 30 PASS Band4 1.4MHz QPSK 19957 1RB#2 24.08 27.13 30 PASS Band4 1.4MHz QPSK 19957 1RB#5 24.10 27.15 30 PASS Band4 1.4MHz QPSK 19957 3RB#0 23.87 26.92 30 PASS Band4 1.4MHz QPSK 19957 3RB#1 23.85 26.90 30 PASS Band4 1.4MHz QPSK 19957 3RB#3 23.84 26.89 30 PASS Band4 1.4MHz QPSK 19957 6RB#0 22.76 25.81 30 PASS Band4 1.4MHz QPSK 20175 1RB#0 23.86 26.91 30 PASS Band4 1.4MHz QPSK 20175 1RB#2 23.82 26.87 30 PASS Band4 1.4MHz QPSK 20175 1RB#5 23.73 26.78 30 PASS Band4 1.4MHz QPSK 20175 3RB#0 23.75 26.80 30 PASS Band4 1.4MHz QPSK 20175 3RB#1 23.73 26.78 30 PASS Band4 1.4MHz QPSK 20175 3RB#3 23.66 26.71 30 PASS Band4 1.4MHz QPSK 20175 6RB#0 23.13 26.18 30 PASS Band4 1.4MHz QPSK 20393 1RB#0 24.19 27.24 30 PASS Band4 1.4MHz QPSK 20393 1RB#2 24.23 27.28 30 PASS Band4 1.4MHz QPSK 20393 1RB#5 24.33 27.38 30 PASS Band4 1.4MHz QPSK 20393 3RB#0 23.95 27.00 30 PASS Band4 1.4MHz QPSK 20393 3RB#1 23.91 26.96 30 PASS Band4 1.4MHz QPSK 20393 3RB#3 23.96 27.01 30 PASS Band4 1.4MHz QPSK 20393 6RB#0 22.96 26.01 30 PASS Band4 1.4MHz 16QAM 19957 1RB#0 23.04 26.09 30 PASS Band4 1.4MHz 16QAM 19957 1RB#2 23.18 26.23 30 PASS Band4 1.4MHz 16QAM 19957 1RB#5 23.30 26.35 30 PASS Band4 1.4MHz 16QAM 19957 3RB#0 22.75 25.80 30 PASS Band4 1.4MHz 16QAM 19957 3RB#1 22.71 25.76 30 PASS Band4 1.4MHz 16QAM 19957 3RB#3 22.66 25.71 30 PASS Report No.: FCC022022-05502RF12(a) Appendix B Page 4 / 66 Band4 1.4MHz 16QAM 19957 6RB#0 21.82 24.87 30 PASS Band4 1.4MHz 16QAM 20175 1RB#0 23.04 26.09 30 PASS Band4 1.4MHz 16QAM 20175 1RB#2 23.08 26.13 30 PASS Band4 1.4MHz 16QAM 20175 1RB#5 23.00 26.05 30 PASS Band4 1.4MHz 16QAM 20175 3RB#0 22.87 25.92 30 PASS Band4 1.4MHz 16QAM 20175 3RB#1 22.85 25.90 30 PASS Band4 1.4MHz 16QAM 20175 3RB#3 22.84 25.89 30 PASS Band4 1.4MHz 16QAM 20175 6RB#0 22.40 25.45 30 PASS Band4 1.4MHz 16QAM 20393 1RB#0 22.70 25.75 30 PASS Band4 1.4MHz 16QAM 20393 1RB#2 23.03 26.08 30 PASS Band4 1.4MHz 16QAM 20393 1RB#5 22.98 26.03 30 PASS Band4 1.4MHz 16QAM 20393 3RB#0 23.29 26.34 30 PASS Band4 1.4MHz 16QAM 20393 3RB#1 23.25 26.30 30 PASS Band4 1.4MHz 16QAM 20393 3RB#3 23.22 26.27 30 PASS Band4 1.4MHz 16QAM 20393 6RB#0 22.20 25.25 30 PASS Band4 3MHz QPSK 19965 1RB#0 23.88 26.93 30 PASS Band4 3MHz QPSK 19965 1RB#8 24.00 27.05 30 PASS Band4 3MHz QPSK 19965 1RB#14 24.03 27.08 30 PASS Band4 3MHz QPSK 19965 8RB#0 22.85 25.90 30 PASS Band4 3MHz QPSK 19965 8RB#4 22.83 25.88 30 PASS Band4 3MHz QPSK 19965 8RB#7 22.88 25.93 30 PASS Band4 3MHz QPSK 19965 15RB#0 22.86 25.91 30 PASS Band4 3MHz QPSK 20175 1RB#0 23.85 26.90 30 PASS Band4 3MHz QPSK 20175 1RB#8 23.77 26.82 30 PASS Band4 3MHz QPSK 20175 1RB#14 23.60 26.65 30 PASS Band4 3MHz QPSK 20175 8RB#0 23.08 26.13 30 PASS Band4 3MHz QPSK 20175 8RB#4 23.06 26.11 30 PASS Band4 3MHz QPSK 20175 8RB#7 23.08 26.13 30 PASS Band4 3MHz QPSK 20175 15RB#0 23.09 26.14 30 PASS Band4 3MHz QPSK 20385 1RB#0 23.96 27.01 30 PASS Band4 3MHz QPSK 20385 1RB#8 24.07 27.12 30 PASS Band4 3MHz QPSK 20385 1RB#14 24.13 27.18 30 PASS Band4 3MHz QPSK 20385 8RB#0 23.17 26.22 30 PASS Band4 3MHz QPSK 20385 8RB#4 23.12 26.17 30 PASS Report No.: FCC022022-05502RF12(a) Appendix B Page 5 / 66 Band4 3MHz QPSK 20385 8RB#7 23.02 26.07 30 PASS Band4 3MHz QPSK 20385 15RB#0 23.02 26.07 30 PASS Band4 3MHz 16QAM 19965 1RB#0 23.18 26.23 30 PASS Band4 3MHz 16QAM 19965 1RB#8 23.12 26.17 30 PASS Band4 3MHz 16QAM 19965 1RB#14 22.81 25.86 30 PASS Band4 3MHz 16QAM 19965 8RB#0 22.05 25.10 30 PASS Band4 3MHz 16QAM 19965 8RB#4 22.02 25.07 30 PASS Band4 3MHz 16QAM 19965 8RB#7 22.08 25.13 30 PASS Band4 3MHz 16QAM 19965 15RB#0 21.86 24.91 30 PASS Band4 3MHz 16QAM 20175 1RB#0 23.08 26.13 30 PASS Band4 3MHz 16QAM 20175 1RB#8 22.86 25.91 30 PASS Band4 3MHz 16QAM 20175 1RB#14 22.83 25.88 30 PASS Band4 3MHz 16QAM 20175 8RB#0 22.14 25.19 30 PASS Band4 3MHz 16QAM 20175 8RB#4 22.07 25.12 30 PASS Band4 3MHz 16QAM 20175 8RB#7 21.99 25.04 30 PASS Band4 3MHz 16QAM 20175 15RB#0 22.09 25.14 30 PASS Band4 3MHz 16QAM 20385 1RB#0 23.44 26.49 30 PASS Band4 3MHz 16QAM 20385 1RB#8 23.35 26.40 30 PASS Band4 3MHz 16QAM 20385 1RB#14 23.33 26.38 30 PASS Band4 3MHz 16QAM 20385 8RB#0 22.46 25.51 30 PASS Band4 3MHz 16QAM 20385 8RB#4 22.42 25.47 30 PASS Band4 3MHz 16QAM 20385 8RB#7 22.50 25.55 30 PASS Band4 3MHz 16QAM 20385 15RB#0 22.01 25.06 30 PASS Band4 5MHz QPSK 19975 1RB#0 23.67 26.72 30 PASS Band4 5MHz QPSK 19975 1RB#12 23.63 26.68 30 PASS Band4 5MHz QPSK 19975 1RB#24 23.75 26.80 30 PASS Band4 5MHz QPSK 19975 12RB#0 22.76 25.81 30 PASS Band4 5MHz QPSK 19975 12RB#6 22.72 25.77 30 PASS Band4 5MHz QPSK 19975 12RB#13 22.82 25.87 30 PASS Band4 5MHz QPSK 19975 25RB#0 22.72 25.77 30 PASS Band4 5MHz QPSK 20175 1RB#0 23.64 26.69 30 PASS Band4 5MHz QPSK 20175 1RB#12 23.64 26.69 30 PASS Band4 5MHz QPSK…

Text truncated - open the document above for the full version.

Test Report

Report No.: FCC022022-05502RF12(a) Appendix C Page 1 / 45 Appendix for LTE B7 test report Report No.: FCC022022-05502RF12(a) Appendix C Page 2 / 45 Table of Contents Appendix A: Effective (Isotropic) Radiated Power Output Data ................. 3 Appendix B: Peak-to-Average Ratio ............................................................. 9 Appendix C: Modulation Characteristics ................................................... 10 Appendix D: Bandwidth ............................................................................... 11 Appendix E: Band Edges Compliance ....................................................... 22 Appendix F: Spurious Emission at Antenna Terminals ............................ 30 Appendix G: Field Strength of Spurious Radiation ................................... 36 Appendix H: Frequency Stability ................................................................ 43 Report No.: FCC022022-05502RF12(a) Appendix C Page 3 / 45 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result: Band Bandwi dth Modulation Channel RB Configuration Result(dBm) EIRP (dBm) Limit (dBm) Verdict Band7 5MHz QPSK 20775 1RB#0 23.99 25.47 30 PASS Band7 5MHz QPSK 20775 1RB#12 24.07 25.55 30 PASS Band7 5MHz QPSK 20775 1RB#24 23.70 25.18 30 PASS Band7 5MHz QPSK 20775 12RB#0 22.78 24.26 30 PASS Band7 5MHz QPSK 20775 12RB#6 22.83 24.31 30 PASS Band7 5MHz QPSK 20775 12RB#13 22.84 24.32 30 PASS Band7 5MHz QPSK 20775 25RB#0 22.80 24.28 30 PASS Band7 5MHz QPSK 21100 1RB#0 23.94 25.42 30 PASS Band7 5MHz QPSK 21100 1RB#12 23.95 25.43 30 PASS Band7 5MHz QPSK 21100 1RB#24 23.72 25.20 30 PASS Band7 5MHz QPSK 21100 12RB#0 22.84 24.32 30 PASS Band7 5MHz QPSK 21100 12RB#6 22.88 24.36 30 PASS Band7 5MHz QPSK 21100 12RB#13 22.79 24.27 30 PASS Band7 5MHz QPSK 21100 25RB#0 22.98 24.46 30 PASS Band7 5MHz QPSK 21425 1RB#0 24.02 25.50 30 PASS Band7 5MHz QPSK 21425 1RB#12 24.11 25.59 30 PASS Band7 5MHz QPSK 21425 1RB#24 24.18 25.66 30 PASS Band7 5MHz QPSK 21425 12RB#0 22.96 24.44 30 PASS Band7 5MHz QPSK 21425 12RB#6 23.00 24.48 30 PASS Band7 5MHz QPSK 21425 12RB#13 22.95 24.43 30 PASS Band7 5MHz QPSK 21425 25RB#0 22.86 24.34 30 PASS Band7 5MHz 16QAM 20775 1RB#0 22.64 24.12 30 PASS Band7 5MHz 16QAM 20775 1RB#12 22.91 24.39 30 PASS Band7 5MHz 16QAM 20775 1RB#24 22.45 23.93 30 PASS Band7 5MHz 16QAM 20775 12RB#0 21.74 23.22 30 PASS Band7 5MHz 16QAM 20775 12RB#6 21.71 23.19 30 PASS Band7 5MHz 16QAM 20775 12RB#13 21.92 23.40 30 PASS Band7 5MHz 16QAM 20775 25RB#0 21.75 23.23 30 PASS Band7 5MHz 16QAM 21100 1RB#0 22.39 23.87 30 PASS Band7 5MHz 16QAM 21100 1RB#12 22.70 24.18 30 PASS Report No.: FCC022022-05502RF12(a) Appendix C Page 4 / 45 Band7 5MHz 16QAM 21100 1RB#24 22.81 24.29 30 PASS Band7 5MHz 16QAM 21100 12RB#0 21.65 23.13 30 PASS Band7 5MHz 16QAM 21100 12RB#6 21.75 23.23 30 PASS Band7 5MHz 16QAM 21100 12RB#13 21.70 23.18 30 PASS Band7 5MHz 16QAM 21100 25RB#0 21.72 23.20 30 PASS Band7 5MHz 16QAM 21425 1RB#0 22.60 24.08 30 PASS Band7 5MHz 16QAM 21425 1RB#12 22.79 24.27 30 PASS Band7 5MHz 16QAM 21425 1RB#24 22.72 24.20 30 PASS Band7 5MHz 16QAM 21425 12RB#0 21.93 23.41 30 PASS Band7 5MHz 16QAM 21425 12RB#6 21.98 23.46 30 PASS Band7 5MHz 16QAM 21425 12RB#13 22.09 23.57 30 PASS Band7 5MHz 16QAM 21425 25RB#0 21.82 23.30 30 PASS Band7 10MHz QPSK 20800 1RB#0 23.90 25.38 30 PASS Band7 10MHz QPSK 20800 1RB#24 24.27 25.75 30 PASS Band7 10MHz QPSK 20800 1RB#49 24.08 25.56 30 PASS Band7 10MHz QPSK 20800 25RB#0 23.06 24.54 30 PASS Band7 10MHz QPSK 20800 25RB#12 22.96 24.44 30 PASS Band7 10MHz QPSK 20800 25RB#25 22.95 24.43 30 PASS Band7 10MHz QPSK 20800 50RB#0 22.92 24.40 30 PASS Band7 10MHz QPSK 21100 1RB#0 23.98 25.46 30 PASS Band7 10MHz QPSK 21100 1RB#24 24.56 26.04 30 PASS Band7 10MHz QPSK 21100 1RB#49 23.94 25.42 30 PASS Band7 10MHz QPSK 21100 25RB#0 23.00 24.48 30 PASS Band7 10MHz QPSK 21100 25RB#12 22.93 24.41 30 PASS Band7 10MHz QPSK 21100 25RB#25 22.89 24.37 30 PASS Band7 10MHz QPSK 21100 50RB#0 22.84 24.32 30 PASS Band7 10MHz QPSK 21400 1RB#0 24.30 25.78 30 PASS Band7 10MHz QPSK 21400 1RB#24 24.21 25.69 30 PASS Band7 10MHz QPSK 21400 1RB#49 24.20 25.68 30 PASS Band7 10MHz QPSK 21400 25RB#0 23.17 24.65 30 PASS Band7 10MHz QPSK 21400 25RB#12 23.06 24.54 30 PASS Band7 10MHz QPSK 21400 25RB#25 23.03 24.51 30 PASS Band7 10MHz QPSK 21400 50RB#0 23.10 24.58 30 PASS Band7 10MHz 16QAM 20800 1RB#0 22.86 24.34 30 PASS Report No.: FCC022022-05502RF12(a) Appendix C Page 5 / 45 Band7 10MHz 16QAM 20800 1RB#24 22.65 24.13 30 PASS Band7 10MHz 16QAM 20800 1RB#49 23.02 24.50 30 PASS Band7 10MHz 16QAM 20800 25RB#0 21.93 23.41 30 PASS Band7 10MHz 16QAM 20800 25RB#12 21.90 23.38 30 PASS Band7 10MHz 16QAM 20800 25RB#25 21.87 23.35 30 PASS Band7 10MHz 16QAM 20800 50RB#0 21.84 23.32 30 PASS Band7 10MHz 16QAM 21100 1RB#0 22.82 24.30 30 PASS Band7 10MHz 16QAM 21100 1RB#24 23.22 24.70 30 PASS Band7 10MHz 16QAM 21100 1RB#49 22.95 24.43 30 PASS Band7 10MHz 16QAM 21100 25RB#0 21.85 23.33 30 PASS Band7 10MHz 16QAM 21100 25RB#12 22.04 23.52 30 PASS Band7 10MHz 16QAM 21100 25RB#25 21.81 23.29 30 PASS Band7 10MHz 16QAM 21100 50RB#0 21.78 23.26 30 PASS Band7 10MHz 16QAM 21400 1RB#0 22.95 24.43 30 PASS Band7 10MHz 16QAM 21400 1RB#24 23.00 24.48 30 PASS Band7 10MHz 16QAM 21400 1RB#49 23.18 24.66 30 PASS Band7 10MHz 16QAM 21400 25RB#0 21.94 23.42 30 PASS Band7 10MHz 16QAM 21400 25RB#12 22.19 23.67 30 PASS Band7 10MHz 16QAM 21400 25RB#25 22.04 23.52 30 PASS Band7 10MHz 16QAM 21400 50RB#0 21.95 23.43 30 PASS Band7 15MHz QPSK 20825 1RB#0 24.22 25.70 30 PASS Band7 15MHz QPSK 20825 1RB#38 24.27 25.75 30 PASS Band7 15MHz QPSK 20825 1R…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Yan Wang(Project manager)
[email protected]15317171809Fax: 4008266163-26996

Test Firm

Beijing TIRT Technology Service Co.,Ltd ShenzhenQuan Chen
[email protected]+86 150 0208024

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
2727673 MHz - 688 MHz151.70 mW17M9W7D8.55 Hz
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. OEM integrators must be provided labeling requirements for finished products. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Output Power is EIRP and ERP for above and below 1 GHz, respectively. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. The Antenna(s) used for this transmitter must not exceed a maximum gain as described in the filing. This device supports: LTE of 1.4, 3, 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Band 2, 4 and 66; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Band 12; LTE of 5 and 10 MHz bandwidth modes for FDD LTE Band 13; LTE of 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Bands 7 and 71; LTE of 5, 10, 15, and 20 MHz bandwidth modes for TDD LTE Band 41. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
