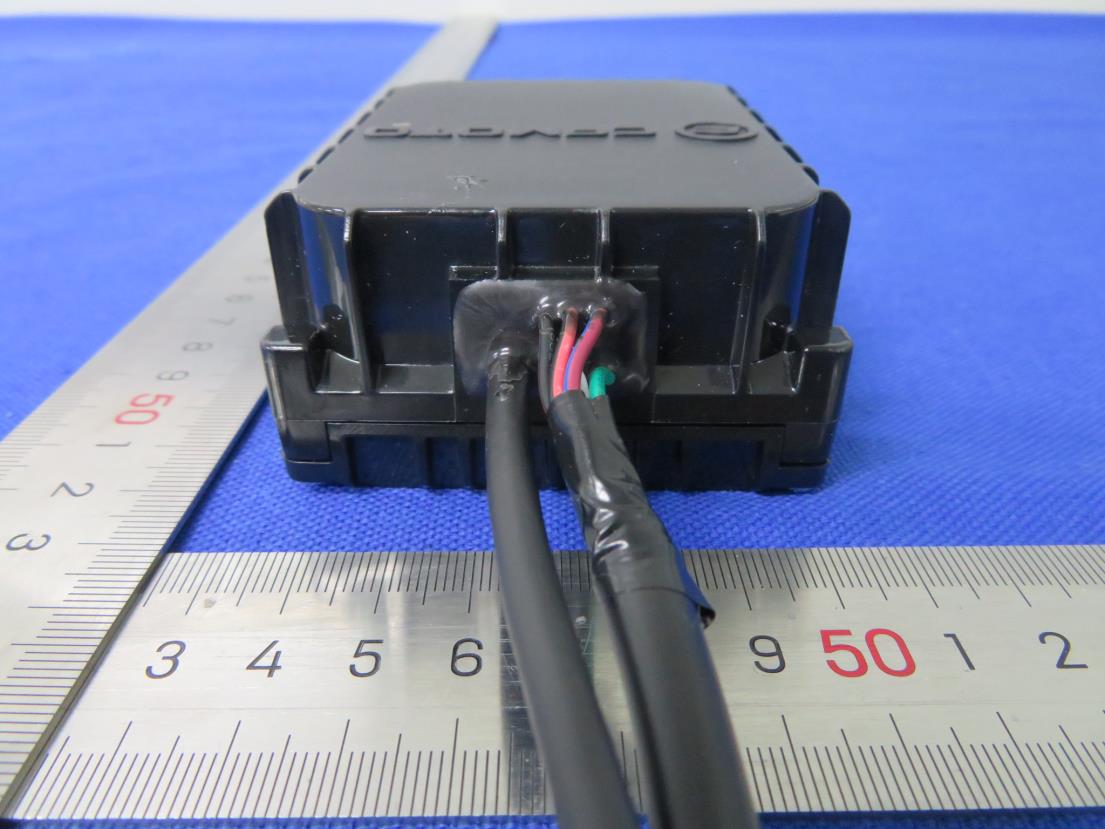

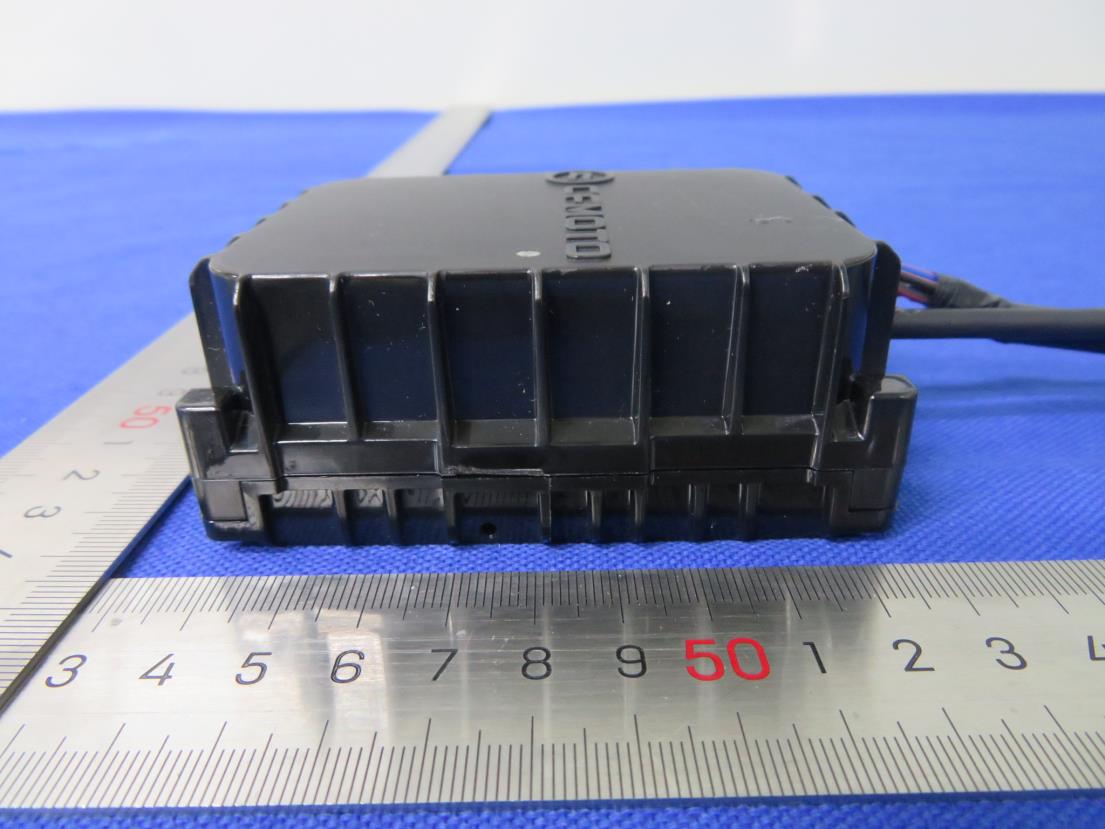

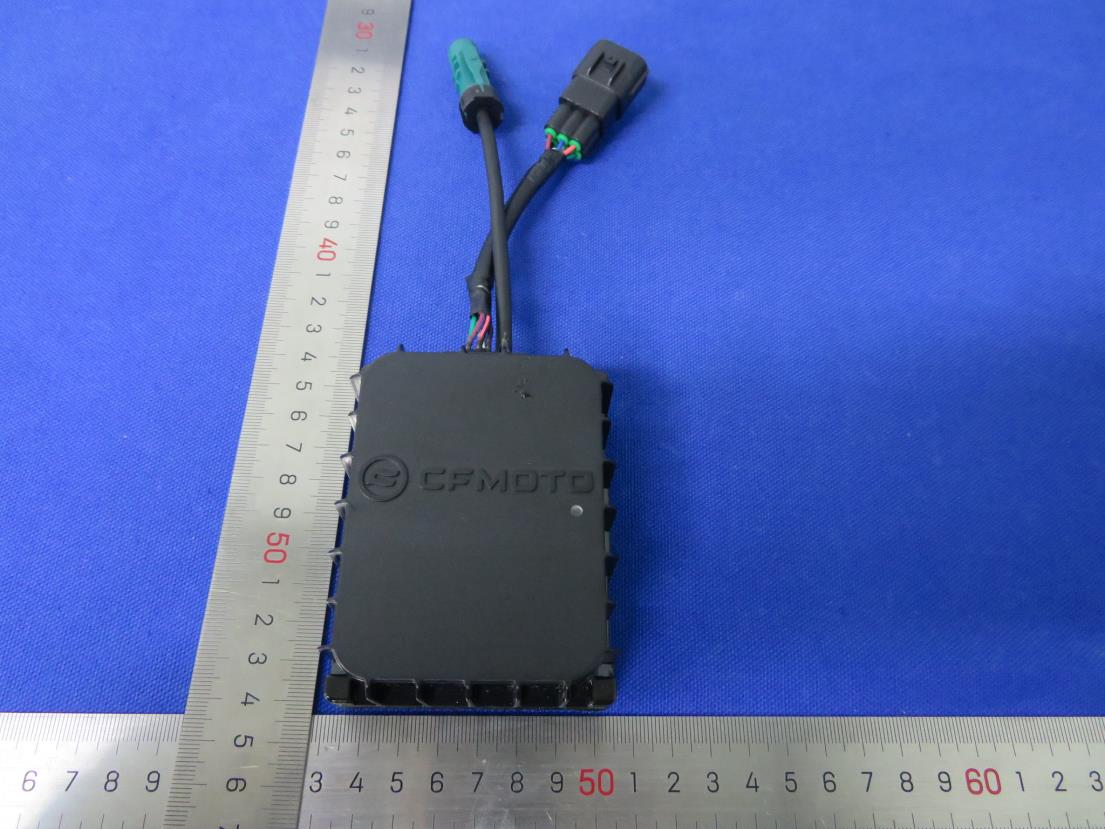

Hangzhou Zhiyuan Electronics Co.,Ltd. Ev2-G series intelligent central control Installation and operation instructions Hangzhou Zhiyuan Electronics Co.,Ltd. Catalogue Summary.......................................................................................................................................... 3 Dimension and Drawing .................................................................................................................. 3 The main parameters ...................................................................................................................... 3 Wireless parameters ....................................................................................................................... 4 Connection ...................................................................................................................................... 4 Block diagram .................................................................................................................................. 5 Indicator status ................................................................................................................................ 5 Warning ........................................................................................................................................... 5 Note ................................................................................................................................................. 6 Manufacturer information .............................................................................................................. 7 Hangzhou Zhiyuan Electronics Co.,Ltd. Specification Summary Ev2-G is a 4G version of intelligent central control terminal which is installed on the vehicles . it provides remote communication interface for the whole vehicle, and can provide services such as driving data acquisition, driving track recording, vehicle positioning (GPS, Beidou), vehicle fault monitoring,BLE communication and so on. TBOX shall be installed in a position with good stability and concealment. Avoid the position next to high-temperature heating parts such as mailbox, engine, and avoid the position of cyclists and passengers. Dimension and Drawing Body size: 90.2mm*70.2mm*36.5mm or The main parameters operating temperature range -40°C～+60°C storage temperature range -40°C～+60°C Battery Charge temperature range * －10°C～+60°C Operating Voltage DC12V Typical working current ＜300mA@12V Quiescent current during sleep ＜0.5mA@12V Average operating current ＜300mA@12V MAX. output power BT: -1.95 dBm GSM: 33 dBm WCDMA: 24 dBm LTE = 23 dBm Frequency Stability BT: ±30 ppm Hangzhou Zhiyuan Electronics Co.,Ltd. Receiver Sensitivity BT: -94 dBm Modulation GFSK (BT), GMSK,8PSK (GSM), BPSK, QPSK,16QAM,64QAM (WCDMA), QPSK,16QAM (LTE) Wireless parameters modular frequency Maximum transmit power Minimum transmit power GSM EGSM900 33dBm±2dB 5dBm±5dB DCS1800 30dBm±2dB 0dBm±5dB GSM850 33dBm±2dB 5dBm±5dB PCS1900 30dBm±2dB 0dBm±5dB WCDMA WCDMA B1 24dBm+1/-3dB <-49dBm WCDMA B3 24dBm+1/-3dB <-49dBm WCDMA B4 24dBm+1/-3dB <-49dBm WCDMA B5 24dBm+1/-3dB <-49dBm WCDMA B8 24dBm+1/-3dB <-49dBm LTE FDD LTE FDD B1 23dBm±2dB <-39dBm LTE FDD B2 23dBm±2dB <-39dBm LTE FDD B3 23dBm±2dB <-39dBm LTE FDD B4 23dBm±2dB <-39dBm LTE FDD B5 23dBm±2dB <-39dBm LTE FDD B7 23dBm±2dB <-39dBm LTE FDD B8 23dBm±2dB <-39dBm LTE FDD B28 23dBm±2dB <-39dBm BT 2400~2483.5MHz 0dBm±2dB / GNSS GPS/GLONASS/BeiDou/Galileo/ QZSS / / Connection PIN Function Remark 1 VBAT DC12V 2 KL15 ACC 3 CAN_H 4 CAN_L 5 K_LINE 6 GND Hangzhou Zhiyuan Electronics Co.,Ltd. Block diagram 4G LTE MCU BATTERYBLE5.0 INSIDE LTE ANT INSIDE GPS ANT HSD Cable （optional） MEMSFLASH CAN transceiver POWER IC K-LINE LED CAN ACC POWER Main Wire USART INTUSART 32MHz OSC 16MHz OSC SIM Indicator status Led status equipment status Remark Slow flash Network searching 200ms on, 1800ms off Slow flash Standby 1800ms on, 200ms off Fast flash Data transmission 125ms on, 125ms off OFF Deep sleep Warning  Please confirm that the TBOX and connecting wire are correct before powering up the TBOX to prevent damage to the vehicle or TBOX. Don`t install or disassemble TBOX when it is powered on. If there is omission or misconnection, cut off the power supply before operation.  This equipment is a wireless communication equipment. Please cut off the power Hangzhou Zhiyuan Electronics Co.,Ltd. supply before entering the oil depot and dangerous goods place.  This equipment is a wireless communication equipment. It will not work normally when the wireless network is artificially shielded or in the blind area of coverage.  If any abnormality is found during use, please go to the designated place for maintenance or contact the dealer.  Disposal of a battery into fire or hot oven ,or mechanically crushing or cutting of a battery ,that can result in an explosion .  Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.  A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Note Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tu…

Text truncated - open the document above for the full version.

BT Antenna Specification Antenna Gain and efficiency No. Frequency (MHz) Efficiency (%) Peak Gain (dBi) Average Gain (dBi) 1 2402 40.3009 -0.425673 -3.94685 2 2422 40.6243 -0.0503778 -3.91214 3 2432 41.0771 -0.17762 -3.864 4 2442 38.6287 -0.296675 -4.1039 5 2452 36.5265 -0.557573 -4.37392 6 2462 35.8366 -0.735736 -4.45674 7 2482 34.9753 -0.771779 -4.56239 3D Patterns Theta Resp o n se (d B) -35 0 -30 -25 -20 -15 -10 -5 X Y Z Azi m uth = 0.0 El evati on = 0.0 Rol l = 0.0 Phi Resp o n se (d B) -50 0 -45 -40 -35 -30 -25 -20 -15 -10 -5 X Y Z Azi m uth = 0.0 El evati on = 0.0 Rol l = 0.0 Total Resp o n se (d B) -14 0 -12 -10 -8 -6 -4 -2 Y XZ Azi m uth = 0.0 El evati on = 0.0 Rol l = 0.0
