2A47N-PRW3PI3 Outlet Wall MNT Smart Power

PR-W3PI INTRODUCTION Thank you for purchasing the PR-W3PI. Your new Power Distribution Unit (PDU) by Big Dog Power provides filtered AC power to your equipment. 3 individually controlled outlets provide up to 2380 Joules of surge Protection. Wi-Fi and Wired LAN connections give flexibility with placement and network connectivity. The built in Self-Healing functions of the PR-W3PI will keep your network connected equipment going by automatically rebooting and maintaining the equipment. The PR-W3PI is designed to be used in an ITE Computer room or within an equipment rack. It can be surface mounted in many orientations such as to the inside of a rack, the underside of a rack shelf that has slots or drilled holes or onto the wall of an IT or server room. Features •3 individually controlled outlets •Wall/Surface Mountable •Self-Healing functions for network connected equipment •2380 Joule Surge Protection (L-N Protection) •Web and Mobile app for remote management and notification •IP automation integration •120V/12A Rating Anatomy A.At a glance status LEDs a.See LED functions for mor e information B.Recessed Reset Button a.Hold button for 10 seconds to perform factory restore C.Configurable Power Button D.Outlet Status LEDs a.See LED functions for mor e information E.15-amp Circuit Breaker F.Wi-Fi Antenna G.Ethernet Port H.Individually controlled Outlets I.IEC Power Input 120v J.Surface mount ear attachment locations LED Indicators “G” or Ground On: PDU is grounded properly Off: PDU is not grounded “P” or Power Blue: Good / Protected and Clean power Red: Bad, No Protection “N” or Network Blinking Red: No Network Connection Solid Blue: Good Network Connection Rapid Blinking Red: PDU failure requires reboot or reset Outlet Status On: Outlet is On Off: Outlet is Off INSTALLATION Surface Mount Step 1)Use the included screws to attach surface mount ears to PDU a)Surface mount ears may be attached at 0°, 90°, 180°, and 270° to accommodate desired mounting orientation Step 2)Install appropriate surface mount screws (not included) through the surface mount ears into the desired surface. CONNECTIONS and USE Physical Connections Step 1)Plug in all to be used connections Including: a)Ethernet LAN i)Skip the Ethernet cable if you will be using Wi-Fi b)Connected equipment power cables Step 2)Insert the female end of the included 6ft power cord into the PR-W3PI Step 3)Plug in the Male end of the included 6ft power cord into the mains outlet on the wall. Wi-Fi Setup If using the Wi-Fi connection, follow these instructions Step 1)Plug in the included power cable to the PDU and to the AC mains outlet on the wall. a)Wait approximately 15-30 seconds, the power button will begin to flash. Step 2)Scan for Wi-Fi on your Wi-Fi enabled device with a web browser Step 3)Connect to the Wi-Fi SSID of the PDU a)The SSID of the PDU will be “Metra-xxxxxxxxxxxx” where the “x” are the MAC address or device ID of the PDU. i)Verify the code of the SSID matches the MAC address of the PDU with the Sticker that is attached to the bottom of the PDU. Step 4)In a web browser go to “192.168.4.1” Step 5)Go to “Network” Step 6)Click “SCAN NETWORKS” a)The network mode can also be changed before scanning. For ease of setup we’ll use the default DHCP settings. Step 7)Select the desired network SSID NOTE: the PDU requires a 2.4Ghz Wi-Fi connection. Step 8)If required enter the password for the Wi-Fi connection Step 9)Click “Save” a)The PDU will now connect and reboot. After it has rebooted it will attempt to connect to the Wi-Fi signal. Step 10)Once the PDU has been connected to the network and has access to the web, proceed to the next steps Cloud setup Step 1)Log in to your MAVbase.com account Step 2)Click the Add New button a)Then click “ADD PDU” Step 3)Add the PR-W3PI to your account using the MAC address of the PDU Surge Protection Protected Circuit(s) Internal 2380 Total Joule Protection from the Line to Neutral circuit. IMPORTANT SAFETY INSTRUCTIONS Read and observe the following safety points at all times. Notice For indoor use only. Internal components are not sealed from the environment. The device can only be used in a fixed location such as a telecommunication centre, or a dedicated computer room. When you install the device, ensure that the protective earthing connection of the socket-outlet is verified by a skilled person. Suitable for installation in Information Technology Rooms to power ITE equipment such as Monitors, Computers, Etc. Only use brackets/attachments/accessories specified by the manufacturer. Do not place the device in an unstable position where it might fall and cause injuries. This equipment is not suitable for use in locations where children are likely to be present. Do not cover this device with a cloth. Do not install it on a carpet or rug. Caution – Potential injury Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or UPS devices (other than a Big Dog Power UPS). The power capacity of these accessories can be overloaded by this product and may result in a risk of fire, or property damage. Warning – Power sources, grounding, polarization This plug is designed to be inserted into a NEMA 5-15 (three-prong grounded) outlet only. Do not force the plug into an outlet that is not designed to accept it. Never dismantle the plug or to alter the power cord, and do not attempt to defeat the grounding feature by using a 3-to-2 prong adapter. If you have questions about grounding, consult your local power company or a qualified electrician. This PDU requires a properly grounded outlet for safety. If you’re not sure if your home’s electrical wiring is properly grounded, have it checked by a qualified electrician. If a rooftop device such as a satellite dish connects to the PDU, ensure that the device’s wires are also properly grounded. Warning – Liquid: avoiding electrical shocks Do not operate the PDU if liquid of any kind is spilled onto or inside the unit. Do not operate…

Text truncated - open the document above for the full version.

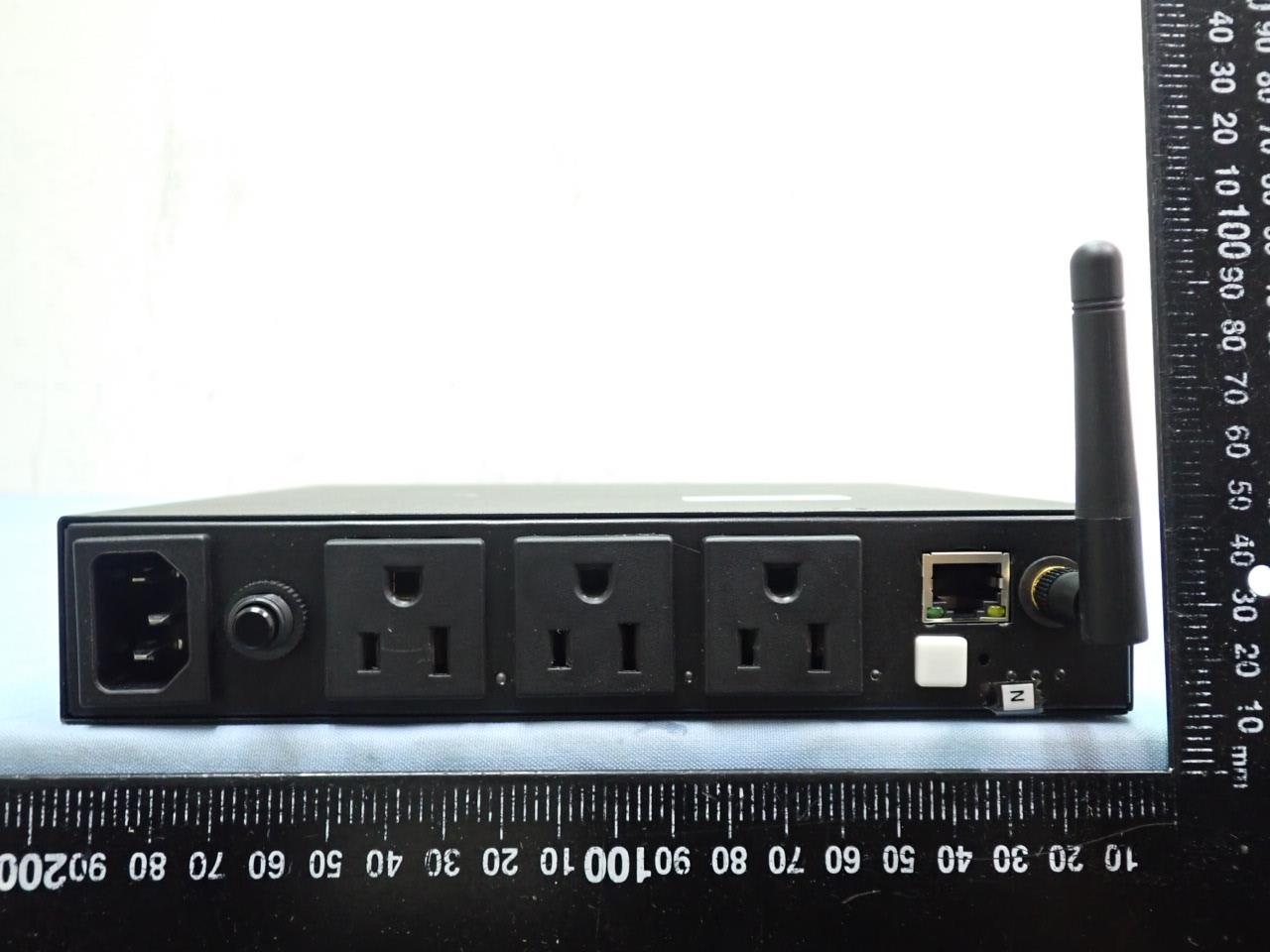

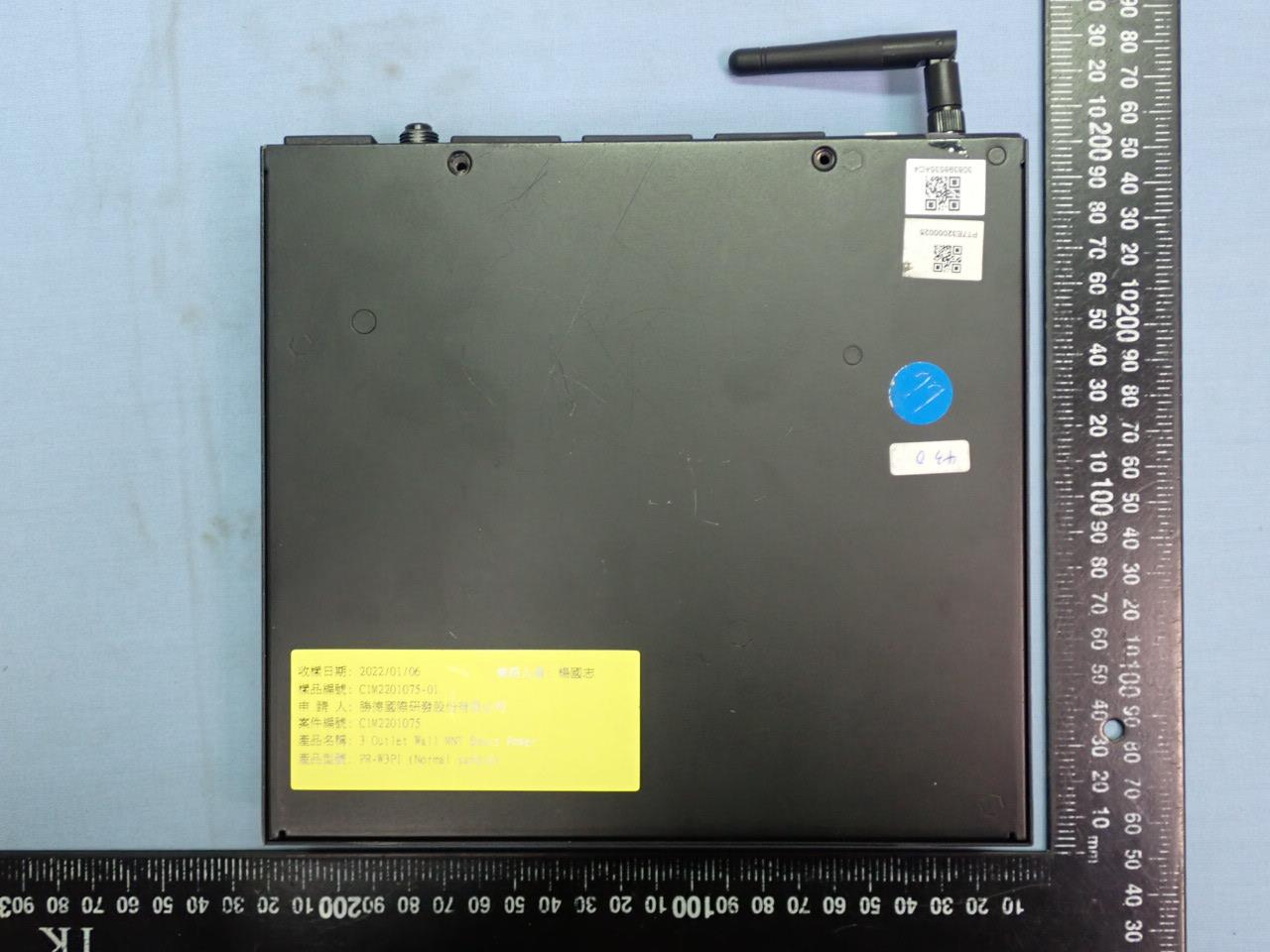

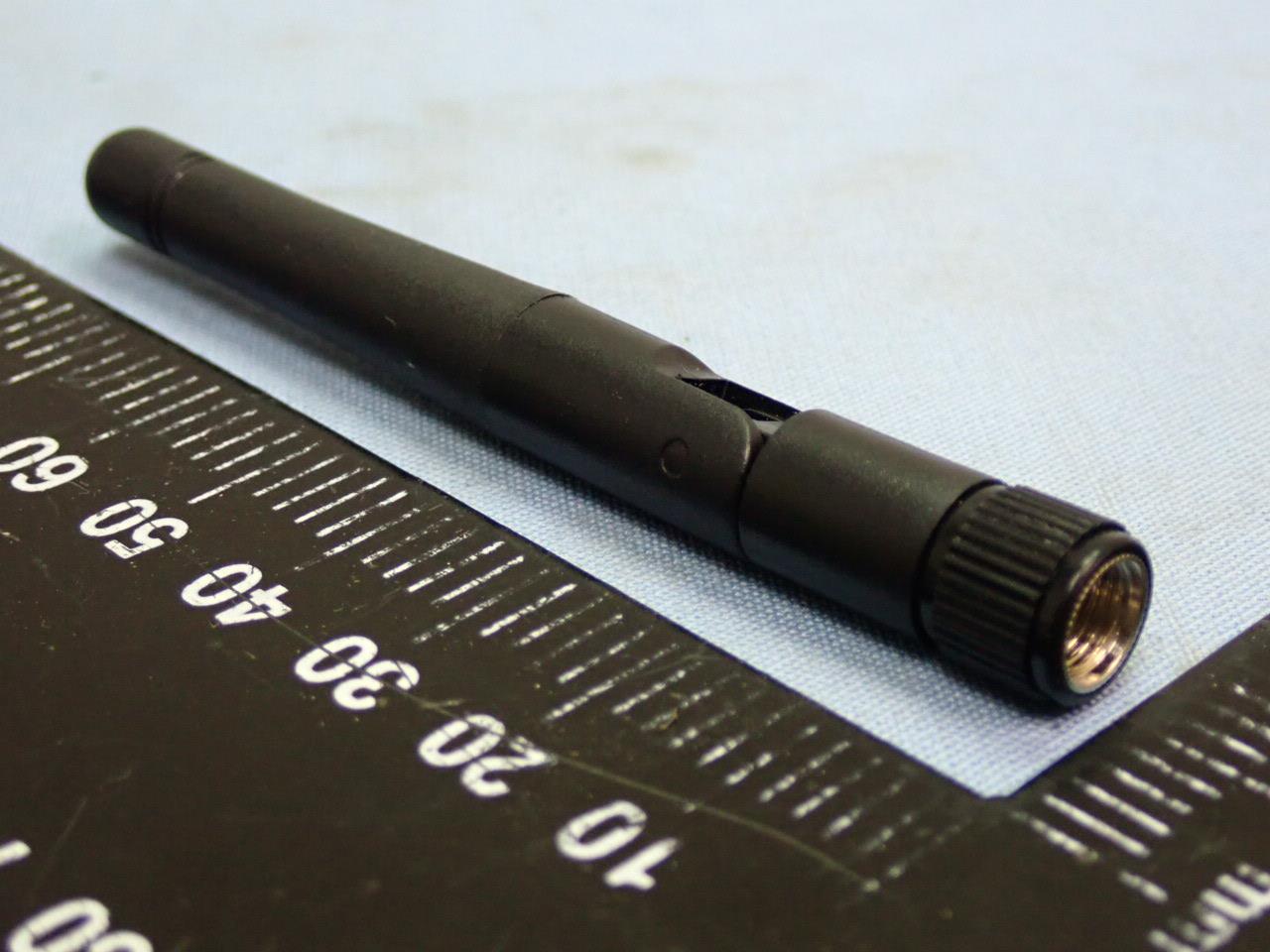

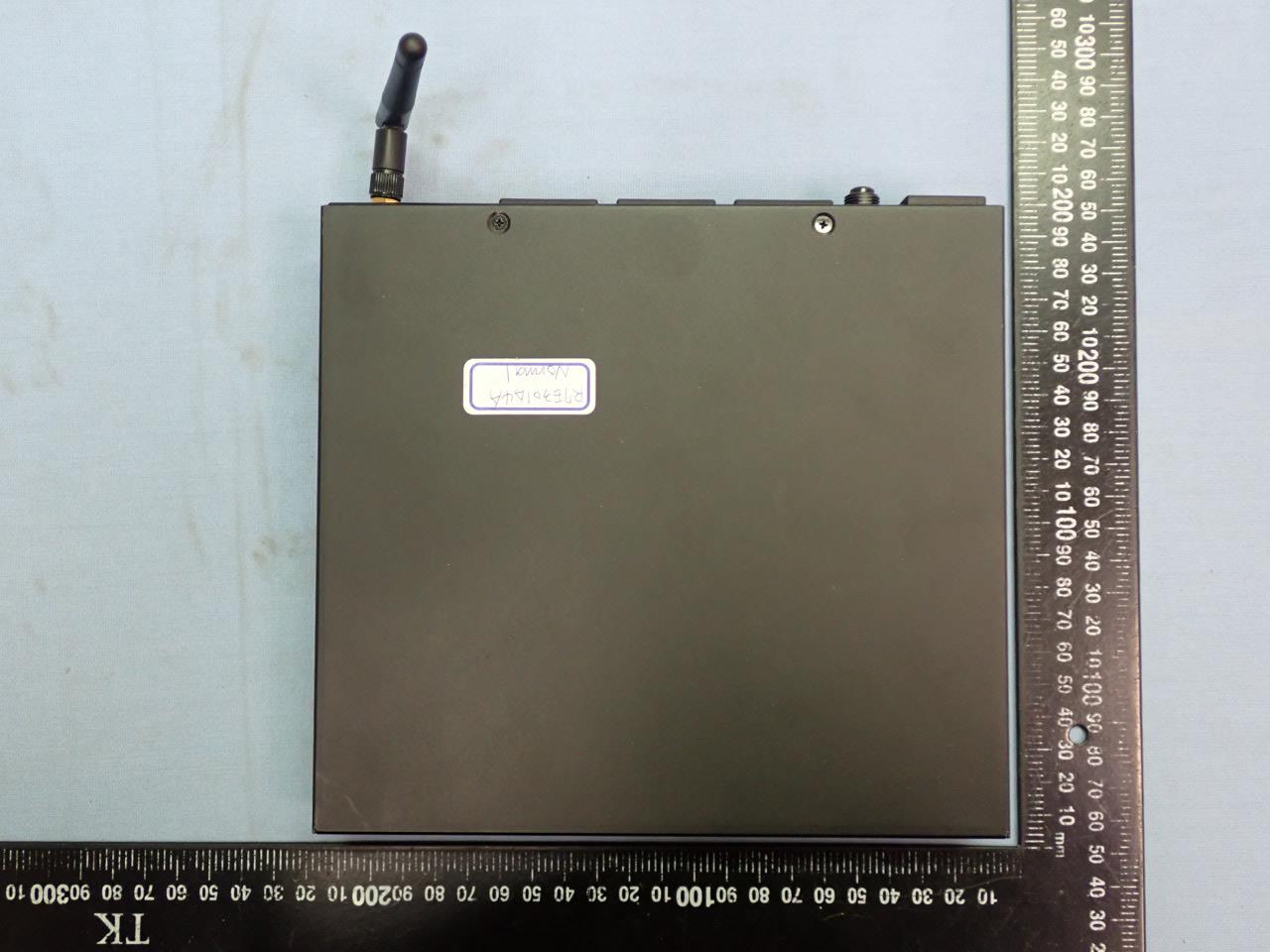

Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI EUT External Photos Figure 1 General Appearance, Top View Figure 2 General Appearance, Bottom View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 3 General Appearance, Side View Figure 4 General Appearance, Side View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 5 General Appearance, Side View Figure 6 General Appearance, Side View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 7 Dipole Antenna View Figure 8 Power Cord View

Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Label Location  Label Placement Location Label Placement Location (EUT Bottom View)  Label Format

Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI EUT Internal Photos Figure 9 Internal View (Removed Dipole Antenna) Figure 10 Internal View (Removed Cover) Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 11 Internal View Figure 12 Internal View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 13 Main Board, Front View Figure 14 Main Board, Back View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 15 Internal View Figure 16 Internal View (RF Module) Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 17 PCB, Front View Figure 18 PCB, Back View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 19 RF Module, Front View Figure 20 RF Module, Back View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 21 RF Module, RF IC View Figure 22 RF Module, Crystal View Ethereal Home Theater, LLC 3 Outlet Wall MNT Smart Power Model : PR-W3PI Figure 23 RJ45 Network IC & Crystal View

Maximum Permissive Exposure FCC ID: 2A47N-PRW3PI Product Description: 3 Outlet Wall MNT Smart Power Model No: PR-W3PI 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation Ethereal Home Theater, LLC declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Mode Max Output Power (dBm) Tune-up factor Tune-up max power (dBm) WLAN 2.4GHz 16.47 1.03 17 **The value presented in the MPE is the maximum tune-up power. Based on safety distance (r) 20cm , the antenna gain (G) is 1.585 Numerical, and the highest power output (P) is 50.12mW , the power density (S) is 0.015804mW/cm 2 . RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r) = 20 cm Highest Power Output (P) = 17 dBm = 50.12 mW Antenna Gain (G) = 2.0 dBi = 1.585 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = (50.12*1.585)/(4*π*20 2 ) = 0.015804 mW/cm 2 Sincerely Yours, Mr. Johnny Hsueh Section Manager AUDIX Technology Corporation

of Applicant: Ethereal Home Theater, LLC Address: 460 Walker St. Holly Hill Florida 32117 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW1072 Industry Canada filed test laboratory Reg. No. 20037, 5107A Report No.: W6M22201-21487-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for 3 OUTLET WALL MNT SMART POWER Model No.: PR-W3PI FCC ID: 2A47N-PRW3PI Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 63 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES............................................................................................................................................ 2 1.2 TESTING LABORATORY .................................................................................................................. 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ..................................................................................................... 3 1.4 A PPLICATION DETAILS ................................................................................................................... 3 1.5 GENERAL INFORMATION OF TEST ITEM .......................................................................................... 4 1.6 T EST STANDARDS .......................................................................................................................... 5 2 TECHNICAL TEST ......................................................................................................................... 6 2.1 S UMMARY OF TEST RESULTS .......................................................................................................... 6 2.2 TEST ENVIRONMENT ...................................................................................................................... 6 2.3 TEST EQUIPMENT LIST .................................................................................................................. 7 2.4 GENERAL TEST PROCEDURE ........................................................................................................ 10 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 12 3.1 DUTY CYCLE ............................................................................................................................... 13 3.2 P EAK OUTPUT POWER (TRANSMITTER) ........................................................................................ 16 3.3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) ..................................................................... 23 3.4 EXEMPTION LIMITS FOR ROUTINE EVALUATION .......................................................................... 23 3.5 TRANSMITTER EMISSIONS IN NON-RESTRICTED BANDS............................................................... 2 5 3.6 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ..................................................... 30 3.7 B AND EDGE .................................................................................................................................. 31 3.8 M INIMUM 6 DB BANDWIDTH ....................................................................................................... 47 3.9 PEAK POWER SPECTRAL DENSITY ............................................................................................... 54 3.10 R ADIATED EMISSION FROM RECEIVER PART ............................................................................... 61 3.11 P OWER LINE CONDUCTED EMISSION ........................................................................................... 62 A PPENDIX .............................................................................................................................................. 64 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 63 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part…

Text truncated - open the document above for the full version.

Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 1 of 39 Appendix A. Photos 1. External Photos 2. Internal Photos 3. Set Up Photo of Radiated Emission 4. Set Up Photo of Conducted Emission B. Measurement diagrams Spurious Emissions radiated Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 39 External Photos Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 39 Internal Photos Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 32 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 33 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 34 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 35 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 36 of 39 Set Up Photo of Radiated Emission Below 1 GHz Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 37 of 39 Above 1 GHz Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 38 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 39 of 39 Set Up Photo of Conducted Emission

Operator: Temperature:21.4 °C File :1_WiFi 2Data :#1Date: 3/29/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:63.2 % Time: 2:37:53 PM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_30-1000MHz W6M22201-21487 Test Mode : Polarization:Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment 129.138329.7035.6943.50-13.80QP-5.9910427 169.960025.7736.1943.50-17.73QP-10.4210631 288.537124.3429.9546.00-21.66QP-5.611076 327.414824.9929.9746.00-21.01QP-4.98110247 640.380831.7630.9446.00-14.24QP0.82103119 *801.723435.5633.4246.00-10.44QP2.141005 *:Maximum data x:Over limit !:over margin TX Spurious Emissions radiated – Transmitter operating Operator: Temperature:21.4 °C File :1_WiFi 2Data :#2Date: 3/29/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:63.2 % Time: 2:39:13 PM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_30-1000MHz W6M22201-21487 Test Mode : Polarization:Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment *39.719434.6643.4640.00-5.34QP-8.8012021 61.102232.3044.0240.00-7.70QP-11.72117204 113.587123.9530.7443.50-19.55QP-6.791043 171.903721.9232.5343.50-21.58QP-10.6110916 383.787524.2728.0046.00-21.73QP-3.7312192 560.681427.2628.6046.00-18.74QP-1.3411471 *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#1Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:12:43 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#6Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:16:59 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#2Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:13:44 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment 4825.65153.6052.1374.00-20.40peak1.47150135 *4825.65148.4046.9354.00-5.60AVG1.47150135 7236.00044.9038.9774.00-29.10peak5.93150200 *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#7Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:17:59 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment 4817.63554.9453.5174.00-19.06peak1.43150210 *4817.63550.6349.2054.00-3.37AVG1.43150210 7236.00045.2839.3574.00-28.72peak5.93150170 *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#3Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:14:51 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment 9648.00042.3233.3874.00-31.68peak8.9415018 *12060.00046.4632.5074.00-27.54peak13.96150233 *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#8Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:18:59 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201-21487 Test Mode : Polarization:Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : Chamber Comment 9648.00042.3733.4374.00-31.63peak8.9415041 *12060.00046.9132.9574.00-27.09peak13.96150330 *:Maximum data x:Over limit !:over margin Operator: Temperature:25.0 °C File :3Data :#4Date: 3/31/2022 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Sky Tel:+886-2-6606-8877 Fax:+886-2-6606-8879 Humidity:61.7 % Time: 9:15:49 AM Condition : EUT : M/N: Note : TX 802.11b CH1 FCC_part 15 RE-Class C_Above 1GHz_PK W6M22201…

Text truncated - open the document above for the full version.

Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 36 of 39 Set Up Photo of Radiated Emission Below 1 GHz Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 37 of 39 Above 1 GHz Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 38 of 39 Registration number: W6M22201-21487-C-1 FCC ID: 2A47N-PRW3PI Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 39 of 39 Set Up Photo of Conducted Emission
