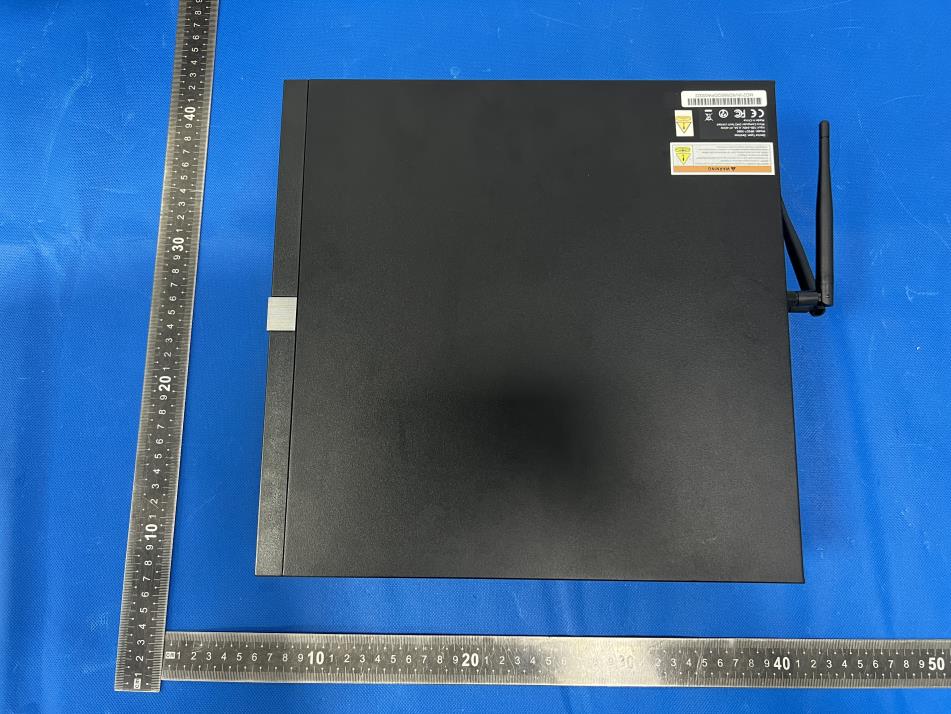

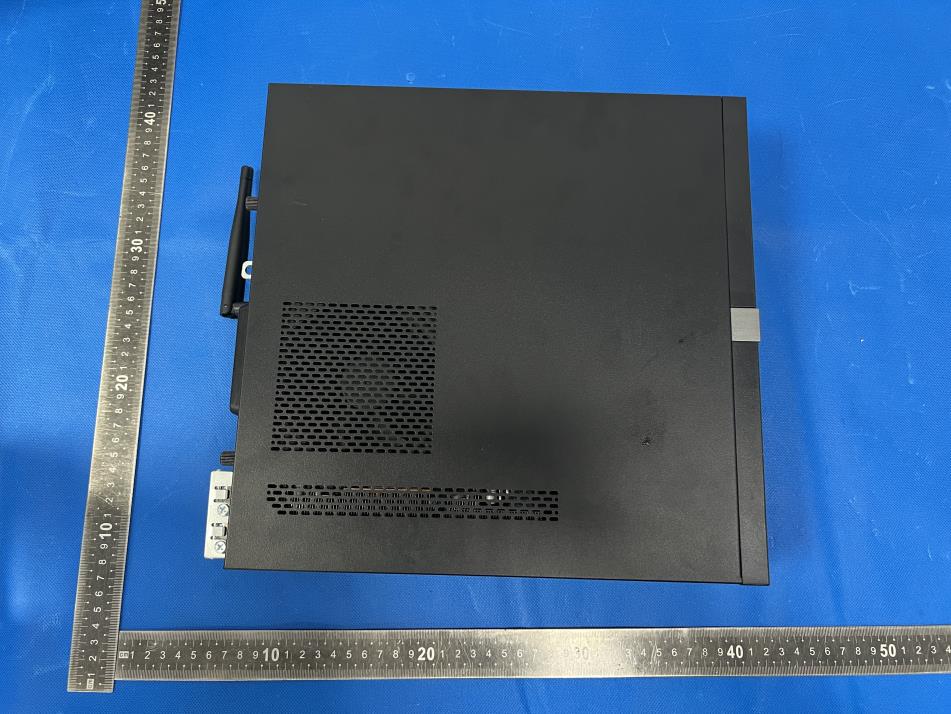

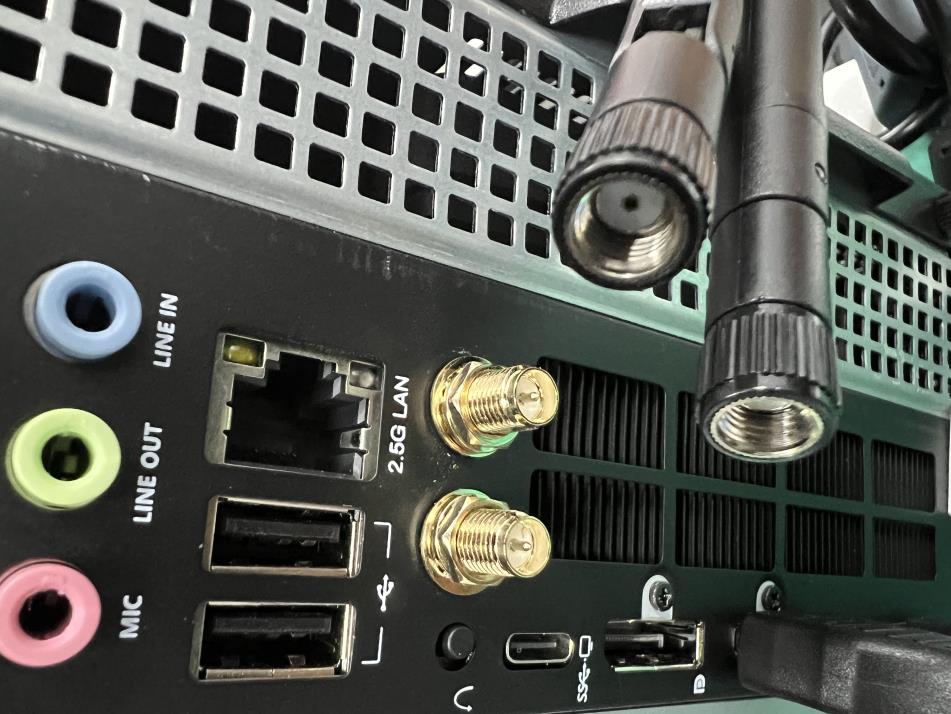

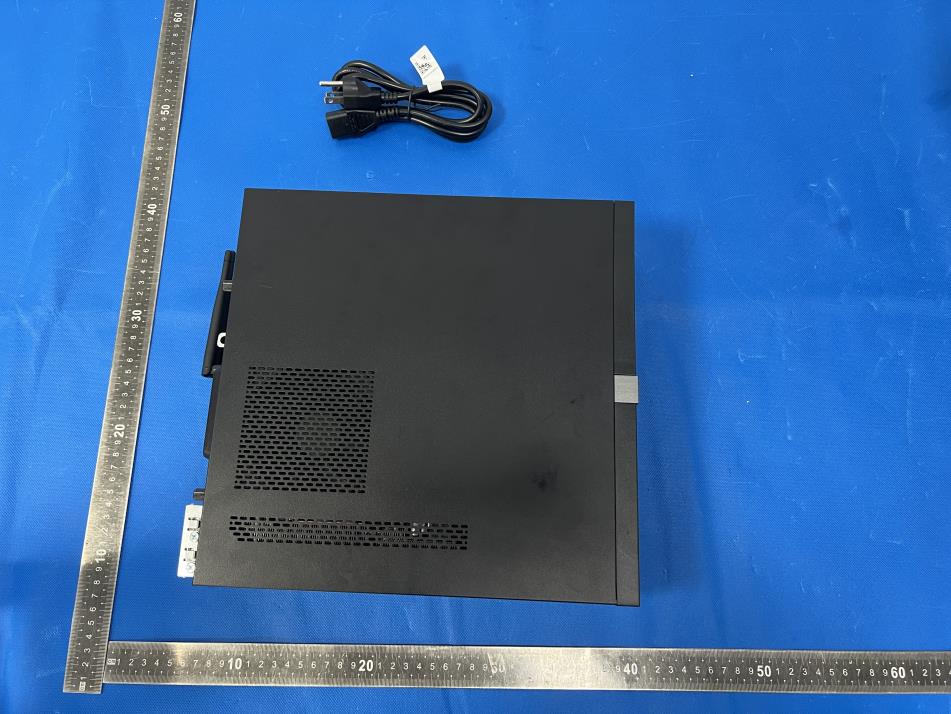

No.：BCTC/KJ-RF-ICT-001 Page 1 of 24 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2605837120-5E Applicant: MICRO COMPUTER (HK) TECH LIMITED Product Name: Mini PC Test Model: 895D7-5060 Tested Date: 2026-06-02 to 2026-08-10 Issued Date: 2026-08-11 Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 2 of 24 Edition：B.1 FCC ID: 2A49R-895D7 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Mini PC Trademark: N/A Model/Type Reference: 895D7-5060 ***D7********(Where*="0-9","A-Z","-"and spaces) Prepared For: MICRO COMPUTER (HK) TECH LIMITED Address: RM 18, 28/F, Shui On Centre, 6-8 Harbour Road, WaterfRont, Wan Chai, HK Manufacturer: MICRO COMPUTER (HK) TECH LIMITED Address: RM 18, 28/F, Shui On Centre, 6-8 Harbour Road, WaterfRont, Wan Chai, HK Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China. Sample Received Date: 2026-06-02 Sample Tested Date: 2026-06-02 to 2026-08-10 Report No.: BCTC2605837120-5E Test Standards: 47 CFR Part 15 Subpart E (clause 15.407) KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 Test Results: PASS Remark: This is WIFI-5GHz band radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng Mike Zheng Sewen Guo Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 3 of 24 Edition：B.1 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Test Setup Configuration ...................................................................................... 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Dynamic Frequency Selection (DFS) Test Result ............................................... 10 6.1 DFS Parameters ................................................................................................. 10 6.2 Applicability of DFS Requirements Prior to Use of a Channel ............................. 11 6.3 Applicability of DFS Requirements during Normal Operation .............................. 11 6.4 Uniform Spreading .............................................................................................. 12 6.5 User Access Restrictions .................................................................................... 12 6.6 Channel Loading/Data Streaming ....................................................................... 12 6.7 Radar Test Waveform Calibration ....................................................................... 13 6.8 UNII Detection Bandwidth ................................................................................... 17 6.9 In-service Monitoring ........................................................................................... 18 7. EUT Test Setup Photographs.............................................................................. 23 (Note: N/A Means Not Applicable) Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 4 of 24 Edition：B.1 1. Version Report No. Issue Date Description Approved BCTC2605837120-5E 2026-08-11 Original Valid Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 5 of 24 Edition：B.1 2. Test Summary The Product has been tested according to the following specifications: Items Description of Test Result Performance Requirements Check Initial Channel Availability Check Time (CAC) Not Applicable Radar Burst at the Beginning of the CAC Not Applicable Radar Burst at the End of the CAC Not Applicable In-Service Monitoring Channel Move Time Compliance Channel Closing Transmission Time Compliance Non-Occupancy Period Compliance Radar Detection Statistical Performance Check Not Applicable Note: EUT is client device without radar detection. Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 6 of 24 Edition：B.1 3. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2:2011/AMD2:2018. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 Power Spectral Density U=3.46dB 2 Peak Power U=0.31dB 3 Occupied Bandwidth/Frequency Range U=3.46% 4 Conducted output power uncertainty U=0.55dB 5 Frequency Error U= 53.50 Hz 6 Frequency Drift U=0.64 KHz 7 Temperature U= 0.59 °C 8 Humidity U= 5.3 % Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 7 of 24 Edition：B.1 4. Product Information And Test Setup 4.1 Product Information Model/Type reference: 895D7-5060 ***D7********(Where*="0-9","A-Z","-"and spaces) Model differ…

Text truncated - open the document above for the full version.

Report No.:BCTC2605837120-1E No.：BCTC/KJ-RF-ICT-001 Page 85 of 87 Edition：B.1 16. EUT Test Setup Photographs Conducted emissions Report No.:BCTC2605837120-1E No.：BCTC/KJ-RF-ICT-001 Page 86 of 87 Edition：B.1 Radiated Measurement Photos Report No.: BCTC2605837120-5E No.：BCTC/KJ-RF-ICT-001 Page 23 of 24 Edition：B.1 7. EUT Test Setup Photographs

Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. SPECIFICATION APPLICATION FOR APPROVAL 客户名称CUSTOMER : 客户案号CS P/N : FPFAM 零件名称PART NAME : M05.08.FPFAM003 耀登案号DEVE NO. : AUK02787- 零件料号PART NAME : A73839-31 承认日期DATE : Jul. 8, 2026 总部 Head Quarter 耀登電通科技(昆山)有限公司 江苏省昆山市周市镇迎宾路15号 TEL: 0512-57646998 FAX: 0512-57646168 分公司： Auden Techno(KUNSHAN)CO.LTD NO.15 YING-BIN ROAD, LUYANGTOWN，KUNSHAN ，JIANGSU CHINA Branch 耀登電通科技(昆山)有限公司西安分公司 西安市 高新区 唐延南路10号 中兴产业园 E1-04 TEL: 13382157879 Auden Techno(KUNSHAN)CO.LTD. Xi 'an branch E1-04, zhongxing industrial park, no.10 tangyan south road, high-tech zone, xi 'an 耀登電通科技(昆山)有限公司深圳分公司 地址：深圳市南山区桃源街道红花岭工业区第五区A栋二楼201- 202（南区） TEL: 185 8845 5257 Auden Techno(KUNSHAN)CO.LTD. Shenzhen branch Address: 201-202, 2nd floor, building A, zone 5, honghualing industrial zone, taoyuan street, nanshan district, shenzhen (southern district) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. INDEX 一、规格书封面（Cover） 二、规格书目录（Index） 三、天线基本参数（The Basic Parameters） 四、电气测试报告（RF Performance Test Report） 五、工程图纸（Product Drawing） 六、尺寸报告 (Dimensional check reports) 七、可靠性测试报告(Reliability test report) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 天线基本参数（The Basic Parameters） 项目（Item） 特性（Specifications） 频率（ Frequency） 2.4g~5.8g 驻波比（V.S.W.R） ≤2 增益（Gain） ≤6 极化方式（Polarization） 线极化 特性阻抗（Impedance） 50Ω 塑胶材质（Plastic material） 无 接头形式（joint type） 4代端子+Cable 工作温度（Operation temperature） -40°C to 85°C 储存温度（Storage temperature） -40°C to 85°C 湿度（humidity） Non-condensing 65°C 95% RH ANT Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 电气测试报告（RF Performance Test Report） Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. VSWR Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. Passive test data Efficiency- DB Efficiency-% Gain(dBi) 2400 -3.02 49.84 0.55 2410 -2.93 50.97 0.6 2420 -2.83 52.17 0.68 2430 -2.73 53.3 0.7 2440 -2.55 55.53 0.84 2450 -2.41 57.35 0.87 2460 -2.34 58.28 0.88 2470 -2.18 60.49 0.85 2480 -2.05 62.33 0.88 2490 -1.99 63.23 0.88 2500 -1.93 64.11 1.09 5150 -2.11 61.52 1.95 5200 -2.32 58.6 1.59 5250 -2.11 61.47 1.79 5300 -2.37 57.93 1.65 5350 -2.36 58.07 1.47 5400 -2.65 54.37 1.61 5450 -2.82 52.22 1.83 5500 -3.07 49.28 1.81 5550 -3.48 44.88 1.85 5600 -3.69 42.74 1.79 5650 -4.13 38.65 1.56 5700 -4.07 39.14 1.88 5750 -4.41 36.23 1.42 5800 -4.38 36.45 1.83 5850 -4.48 35.68 1.42 5925 -4.47 35.76 1.28 5975 -4.71 33.77 0.46 6025 -4.89 32.41 0.14 6075 -4.81 33.06 -0.1 6125 -5.13 30.69 -0.73 6175 -5.09 30.96 -0.27…

Text truncated - open the document above for the full version.

Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 342 of 382 Edition：B.1 Tx. Spurious NVNT be40 5510MHz Emission Tx. Spurious NVNT be40 5550MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 343 of 382 Edition：B.1 Tx. Spurious NVNT be40 5670MHz Emission Tx. Spurious NVNT be80 5530MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 344 of 382 Edition：B.1 Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A, only shown Antenna A. Plot. Test Graphs Tx. Spurious NVNT a 5745MHz Emission Tx. Spurious NVNT a 5785MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 345 of 382 Edition：B.1 Tx. Spurious NVNT a 5825MHz Emission Tx. Spurious NVNT n20 5745MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 346 of 382 Edition：B.1 Tx. Spurious NVNT n20 5785MHz Emission Tx. Spurious NVNT n20 5825MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 347 of 382 Edition：B.1 Tx. Spurious NVNT n40 5755MHz Emission Tx. Spurious NVNT n40 5795MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 348 of 382 Edition：B.1 Tx. Spurious NVNT ac20 5745MHz Emission Tx. Spurious NVNT ac20 5785MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 349 of 382 Edition：B.1 Tx. Spurious NVNT ac20 5825MHz Emission Tx. Spurious NVNT ac40 5755MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 350 of 382 Edition：B.1 Tx. Spurious NVNT ac40 5795MHz Emission Tx. Spurious NVNT ac80 5775MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 351 of 382 Edition：B.1 Tx. Spurious NVNT ax20 5745MHz Emission Tx. Spurious NVNT ax20 5785MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 352 of 382 Edition：B.1 Tx. Spurious NVNT ax20 5825MHz Emission Tx. Spurious NVNT ax40 5755MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 353 of 382 Edition：B.1 Tx. Spurious NVNT ax40 5795MHz Emission Tx. Spurious NVNT ax80 5775MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 354 of 382 Edition：B.1 Tx. Spurious NVNT be20 5745MHz Emission Tx. Spurious NVNT be20 5785MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 355 of 382 Edition：B.1 Tx. Spurious NVNT be20 5825MHz Emission Tx. Spurious NVNT be40 5755MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 356 of 382 Edition：B.1 Tx. Spurious NVNT be40 5795MHz Emission Tx. Spurious NVNT be80 5775MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 357 of 382 Edition：B.1 13. Frequency Stability Measurement 13.1 Block Diagram Of Test Setup 13.2 Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. The transmitter center frequency tolerance shall be ± 20 ppm maximum for the 5 GHz band (IEEE 802.11n specification). 13.3 Test Procedure 1. The transmitter output (antenna port) was connected to the spectrum analyzer. 2. EUT have transmitted absence of modulation signal and fixed channelize. 3. Set the spectrum analyzer span to view the entire absence of modulation emissions bandwidth. 4. Set RBW = 10 kHz, VBW = 10 kHz with peak detector and maxhold settings. 5. fc is declaring of channel frequency. Then the frequency error formula is (fc-f)/fc × 106 ppm and he limit is less than ±20ppm (IEEE 802.11nspecification). 6. The test extreme voltage is to change the primary supply voltage from 85 to 115 percent of the nominal value 7. Extreme temperature is -20°C~70°C. Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 358 of 382 Edition：B.1 13.4 Test Result Temperature: 26 °C Relative Humidity: 54% Pressure: 101KPa Test Voltage: AC 120V/60Hz Test Mode: TX (5.1G) Mode Frequency U-NII-1 (5180-5240MHz) Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency:5180MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 120.00 5180.0067 5180 0.0067 1.2934 V max (V) 138.00 5180.0101 5180 0.0101 1.9498 V min (V) 102.00 5180.0076 5180 0.0076 1.4672 Limits 5150-5250 MHz Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency:5180MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 120 T (°C) -20 5180.0067 5180 0.0067 1.2934 T (°C) -10 5180.0004 5180 0.0004 0.0772 T (°C) 0 5180.0129 5180 0.0129 2.4903 T (°C) 10 5180.0087 5180 0.0087 1.6795 T (°C) 20 5180.0135 5180 0.0135 2.6062 T (°C) 30 5180.0048 5180 0.0048 0.9266 T (°C) 40 5180.0039 5180 0.0039 0.7529 T (°C) 50 5180.0004 5180 0.0004 0.0772 T (°C) 60 5180.0049 5180 0.0049 0.9459 T (°C) 70 5180.0016 5180 0.0016 0.3089 Limits 5150-5250 MHz Result Complies Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 359 of 382 Edition：B.1 Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency:5200MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 120.00 5200.0013 5200 0.0013 0.2500 V max (V) 138.00 5200.0040 5200 0.0040 0.7692 V min (V) 102.00 5200.0118 5200 0.0118 2.2692 Limits 5150-5250 MHz Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency:5200MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 120 T (°C) -20 5200.01080 5200 0.01080 2.0769 T (°C) -10 5200.00660 5200 0.00660 1.2692 T (°C) 0 5200.01120 5200 0.01120 2.1538 T (°C) 10 5200.01320 5200 0.01320 2.5385 T (°C) 20 5200.00960 5200 0.00960 1.8462 T (°C) 30 5200.00180 5200 0.00180 0.3462 T (°C) 40 5200.00440 5200 0.00440 0.8462 T (°C) 50 5200.01240 5200 0.01240 2.3846 T (°C) 60 5200.00530 5200 0.00530 1.0192 T (°C) 70 5200.00060 5200 0.00060 0.1154 Limits 5150-5250 MHz Result Complies Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 360 of 382 Edition：B.1 Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency:5240MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 …

Text truncated - open the document above for the full version.

Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 293 of 382 Edition：B.1 Band Edge NVNT ac20 5745MHz Low Band Edge NVNT ac20 5825MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 294 of 382 Edition：B.1 Band Edge NVNT ac40 5755MHz Low Band Edge NVNT ac40 5795MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 295 of 382 Edition：B.1 Band Edge NVNT ac80 5775MHz High Band Edge NVNT ac80 5775MHz Low Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 296 of 382 Edition：B.1 Band Edge NVNT ax20 5745MHz Low Band Edge NVNT ax20 5825MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 297 of 382 Edition：B.1 Band Edge NVNT ax40 5755MHz Low Band Edge NVNT ax40 5795MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 298 of 382 Edition：B.1 Band Edge NVNT ax80 5775MHz High Band Edge NVNT ax80 5775MHz Low Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 299 of 382 Edition：B.1 Band Edge NVNT be20 5745MHz Low Band Edge NVNT be20 5825MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 300 of 382 Edition：B.1 Band Edge NVNT be40 5755MHz Low Band Edge NVNT be40 5795MHz High Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 301 of 382 Edition：B.1 Band Edge NVNT be80 5775MHz High Band Edge NVNT be80 5775MHz Low Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 302 of 382 Edition：B.1 12. Spurious RF Conducted Emissions 12.1 Block Diagram Of Test Setup 12.2 Limit Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1)For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2)For transmitters operating in the 5.725-5.85 GHz band(i) All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge.. (3)For transmitters operating in the 5.25-5.35 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (4)For transmitters operating in the 5.47-5.725 GHz band: All emissions outside of the 5.47-5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. 12.3 Test Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz with a convenient frequency span. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. 12.4 Test Result Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege measurement data. About:26.5GHz-40GHz, The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 303 of 382 Edition：B.1 Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A, only shown Antenna A. Plot. Test Graphs Tx. Spurious NVNT a 5180MHz Emission Tx. Spurious NVNT a 5200MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 304 of 382 Edition：B.1 Tx. Spurious NVNT a 5240MHz Emission Tx. Spurious NVNT n20 5180MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 305 of 382 Edition：B.1 Tx. Spurious NVNT n20 5200MHz Emission Tx. Spurious NVNT n20 5240MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 306 of 382 Edition：B.1 Tx. Spurious NVNT n40 5190MHz Emission Tx. Spurious NVNT n40 5230MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 307 of 382 Edition：B.1 Tx. Spurious NVNT ac20 5180MHz Emission Tx. Spurious NVNT ac20 5200MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 308 of 382 Edition：B.1 Tx. Spurious NVNT ac20 5240MHz Emission Tx. Spurious NVNT ac40 5190MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 309 of 382 Edition：B.1 Tx. Spurious NVNT ac40 5230MHz Emission Tx. Spurious NVNT ac80 5210MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 310 of 382 Edition：B.1 Tx. Spurious NVNT ax20 5180MHz Emission Tx. Spurious NVNT ax20 5200MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 311 of 382 Edition：B.1 Tx. Spurious NVNT ax20 5240MHz Emission Tx. Spurious NVNT ax40 5190MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 312 of 382 Edition：B.1 Tx. Spurious NVNT ax40 5230MHz Emission Tx. Spurious NVNT ax80 5210MHz Emission Report No.: BCTC2605837120-4E No.：BCTC/KJ-RF-ICT-001 Page 313 of 382 Edition：B.1 Tx. Spurious NVNT be20 5180MHz Emission Tx. Spurious NVNT be20 5200MHz Emission Report No.: BCTC2605…
