2A49T-AMON1AMON Speaker

DC 5V/700mA 45mm 10W 4Ω 87dB 10W 8.5W 650g 2000mAh V5.3 170x170x209mm 170mm 209mm M-Y-AMON1 AMON 阿蒙毛绒音响 150Hz-18KHz 170mm 209mm Product Name：AMON Speaker Product model：M-Y-AMON1 Product size：170x170x209mm Net Weight:650g Rated output：8.5W Maximum power：10W Battery capacity：2000mAh Bluetooth version：V5.3 Power input：DC 5V/700mA Frequency response：150Hz-18KHz Maximum sound pressur：87dB Speaker unit：45mm 10W 4Ω Before using the product, please read this manual carefully and keep it properly. 12 34 Packing listProduct PresentationLighting Instructions Hazardous Substance Plastic Silicone Hardware Circuit board Auditory Tone Cues Matters Need Attention Environmental Protection Reminder Lighting Operation Instructions Packing list AMON Speaker * 1 User Manual * 1 Bluetooth connection TWS connection AUX Mode 1. After turning on the device, it will search for the Bluetooth name "Frifizz" and connect to it for pairing. Once the connection is successful, the audio system will automatically enter a silent state (it will automatically shut down after 10 minutes of no operation without any operation). 2. If the connection is disconnected within 30 minutes, the original device will return to the Bluetooth connection range and can automatically reconnect to the audio system. 3. Press the top button four times consecutively to forcibly disconnect Bluetooth. After Bluetooth is disconnected, you can re-search for new devices to pair. 1. Only one of the two devices is connected to Bluetooth: Perform a three-click action on the "top" of the device that is already connected to Bluetooth. Within 10 seconds, you will hear a prompt sound and the connection will be successful (the host/ left channel is the device that is already connected to Bluetooth). If both devices are not connected to Bluetooth: Perform a three-click action on any one of the "tops", and within 10 seconds, you will hear a prompt sound and the connection will be successful (the host/ left channel is the device that performs the three-click operation). Note: If there is no connection within 15 seconds, the team formation state will be exited. 2. When both devices are in a connected state, a three-click action on any one of the devices can exit the team formation state. In a team formation state, a three-click action on the device in the connected state can exit the team formation state. 2. To interrupt the AUX connection, remove the AUX cable to disconnect the connection and enter the Bluetooth connection mode. Bluetooth and TWS connections are successfulDENGDENG Bluetooth and TWS have disconnected:DU Power: PU Charge lamp Type-c AUX Button Press and hold the top button for 2 seconds to turn on or off the device. Long press the top button for 10 seconds to restore factory settings. Short press the button on the top of the device to play or pause the music. Short press the button on the top of the device to turn on or off the lights. Power on/off USB Cable * 1 AUX Connecting line Specification Function Operational Specification Bluetooth button / power switch / volume adjustment button / light switch / TWS connection button Power indicator light/ ambient light Turn on/off: Turn on/off. Bluetooth pairing: Breathing light. Bluetooth pairing successful: The light changes from breathing light to constant bright light. Bluetooth disconnected: Switch to breathing light. Play music: Breathing light (the brightness of the light is proportional to the volume) . Pause playback: Constant bright light. TWS pairing in progress: Switch to left-right flashing effect. TWS pairing successful: In playback mode, the light changes from flashing to breathing light, and in pause mode, it changes to constant bright light. AUX connection successful: Flash twice and then switch to breathing light. AUX connection interrupted: Flash twice and then switch to constant bright light Volume adjustment: Light is proportional to volume Increase/decrease. Volume while playing music: Light changes to constant bright light . Low battery indication: Light brightness is reduced to dim light mode, playback state light effect is dim light and constant bright, in other states except for brightness, there is no change. Charging status: Bottom indicator light is constantly on. Full charge status: Bottom indicator light is off. AUX connection successful: Bottom indicator light flashes twice AUX connection interrupted: Bottom indicator light flashes twice. 1. When the AUX connection is established, by inserting the bottom AUX interface of the AUX cable, it enters the AUX connection mode and prioritizes AUX data. ● Do not subject the main unit to severe impact ● Do not come into contact with chemicals such as benzene and solvents. ● Please do not use near strong magnetic or electric fields. ● Please avoid direct sunlight or heat sources. ● Do not disassemble, repair or modify by yourself. ● Do not listen at a high volume for a long time to avoid adverse effects on hearing. Do not clean the device with water. Please clean the surface with a slightly damp cloth: Low voltage use may cause sound distortion and please charge promptly. If not used for a long time, please disconnect the power supply. ● The Bluetooth function is compatible with common smartphones, tablets, etc. However, depending on the device or application you are using, some functions may not be supported. ● Low battery voltage may cause abnormal device operation. Please charge promptly. This table is compiled in accordance with the provisions of SJ/T 11364. O: Indicates that the content of this harmful substance in all homogeneous materials of this component is below the limit requirements stipulated in GB/T 26572-2011. X: Indicates that the content of this harmful substance in at least one homogeneous material of this component exceeds the limit requirements stipulated in GB/T 26572-2011. Environmental protection reminder: This product is equipped with a rechargeable lithium battery. If the product or any of its components are…

Text truncated - open the document above for the full version.

Shenzhen Fusion Hi-TechCo.,Ltd 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Jan. 23, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2A49T-AMON1 Shenzhen Fusion Hi-TechCo.,Ltd(“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Amy Liao Title:Manager Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Tel.: 13168331943 Email: [email protected]

1 | P a g e Shenzhen Fusion Hi-TechCo.,Ltd 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Attestation Statements To: Federal Communications Commission Date: Jan. 23, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: [2A49T-AMON1] Product Name: [AMON Speaker] This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Amy Liao Title:Manager Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Tel.: 13168331943 Email: [email protected] 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. The MCU “ AC6966B“, The RF chip “ AC6966B“ don’t support the mentioned function. ☐ The Memory used is limited to run the Cybersecurity or anti-virus software. The memory size is XXX, so don’t support the mentioned function. ☐ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. The storage capacity is XXX, so don’t support the mentioned function. ☐ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. The Operating system “XXX“ don’t support the mentioned function. Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Shenzhen Fusion Hi-TechCo.,Ltd 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Jan. 23, 26 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A49T-AMON1 Shenzhen Fusion Hi-TechCo.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, [Herland International Trading Inc] (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. [Herland International Trading Inc] ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Herland International Trading Inc FRN: 0036324101 Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Signature: Contact Person: Jianfeng Gao Tel: 001-909-772-1888 Email: jianfenggao@hyunturlee- commerce.com Applicant Company Name: Shenzhen Fusion Hi-TechCo.,Ltd FRN: 0032036337 Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Signature: Contact Person: Amy Liao Tel: 13168331943 Email: [email protected]

Shenzhen Fusion Hi-TechCo.,Ltd 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Date: Jan. 23, 26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2A49T-AMON1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Sincerely, Applicant Signature Printed Name: Amy Liao Title:Manager Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Tel.: 13168331943 Email: [email protected]

Shenzhen Fusion Hi-TechCo.,Ltd 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Date: Jan. 23, 26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID:2A49T-AMON1 I, the undersigned, hereby authorize (Shenzhen DL Testing Technology Co., Ltd.) to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by (Shenzhen DL Testing Technology Co., Ltd.) shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with (Shenzhen Fusion Hi- TechCo.,Ltd). We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Applicant Signature Printed Name: Amy Liao Title:Manager Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Tel.: 13168331943 Email: [email protected]

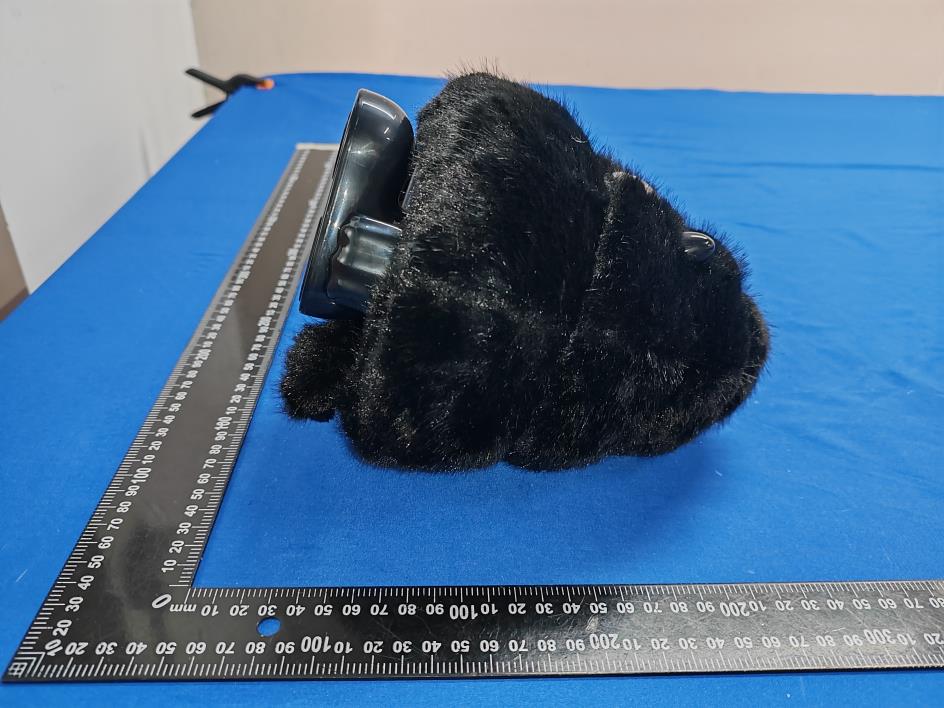

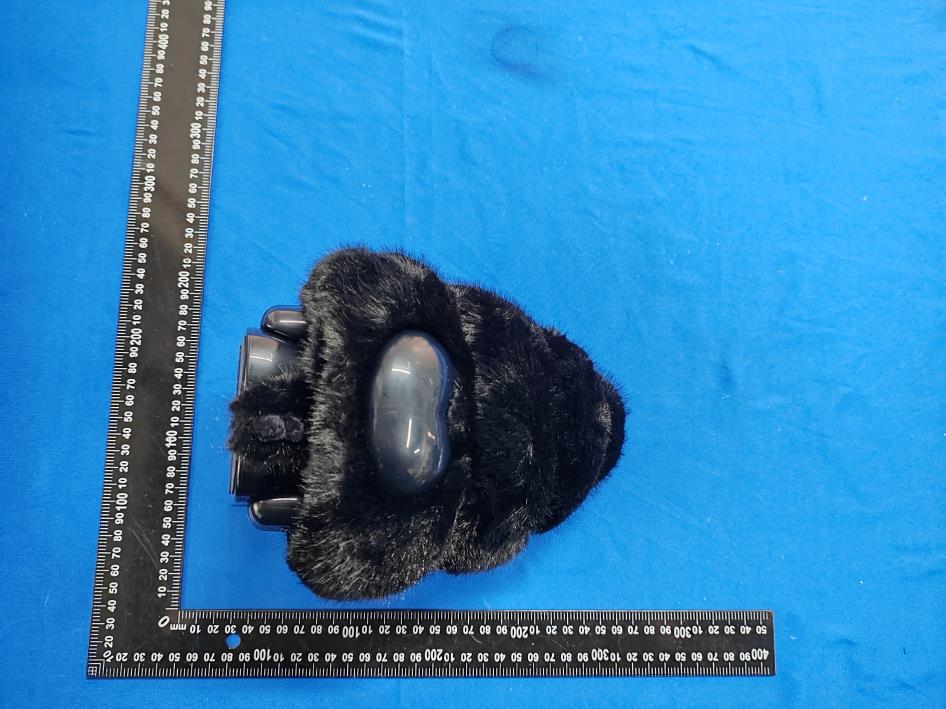

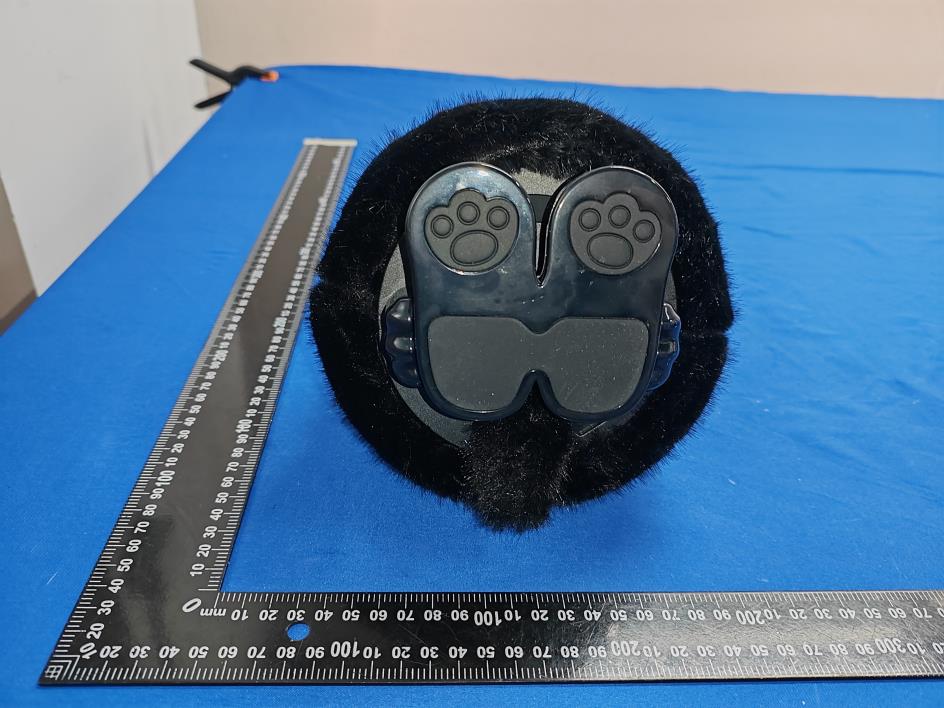

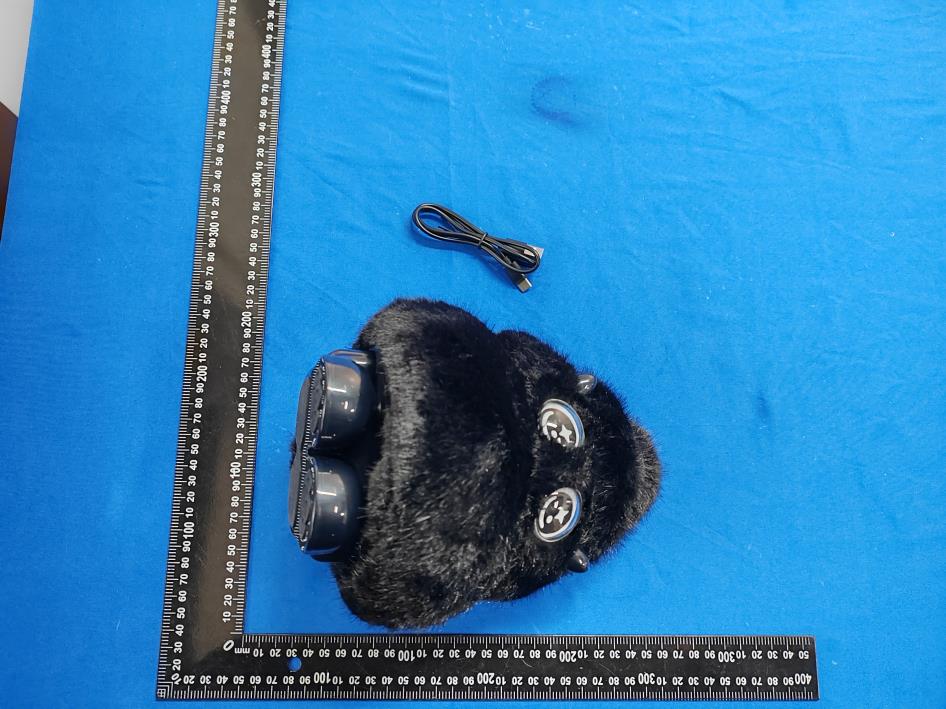

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 ※※※※※ END OF REPORT ※※※※※

Size: 20*10mm Model:M-Y-AMON1 FCC ID:2A49T-AMON1 Label location

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 ANT Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 ※※※※※ END OF REPORT ※※※※※

FCC ID: 2A49T-AMON1 RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, Mw) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest Mw and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, BT Test Mode Conducted power (dBm) Max tune-up (Mw) Frequency (MHz) Min. distance(mm) Calc. thresholds limit EDR 1.158 1.306 2441 5 0.41 3.0 So a SAR test is not required

MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 1 Inverted F Antenna Specification MANUFACTURE :SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD PRODUCT NAME :MV_BP10xx PCB Antenna DATE:2019-10-30 MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 2 1. Antenna describe Antenna plate ： Inverted F Antenna Frequency range ： 2.4GHz-2.48GHz ITEM Name Inverted F Antenna Specification Model Name2.4GHz Antenna PolarizationHorizontal and Vertical Azimuth Beam PattemOmni-directional Impedance50 Ohm Antenna Lengh14.4mm Gain(Max) 2.81(±1 dBi ） 2. Antenna Photo& Lengh （ mm ） MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 3 3. Gain Frequency Gain （ dBi ） 2400MHz2.81 2410MHz2.74 2420MHz2.70 2430MHz2.73 2440MHz1.01 2450MHz1.26 2460MHz1.50 2470MHz1.49 2480MHz1.42 2490MHz0.36 2500MHz0.33 4. Return Loss/VSWR/Input Impedance Frequency Return Loss (dB)VSWR Input Impedance( Ω） 2400MHz-7.232.5325.37 2400MHz-6.472.8017.99 2450MHz-6.222.9017.18 2480MHz-5.183.4415.55 2500MHz-4.563.8915.48 MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 4 Annex A Photographs 1. Test Setup Annex B Figures 1.2D Radiation Pattern Phi=0° MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 5 Phi=90° Theta=90° MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 6 2.3D Radiation Pattern 2400MHz 2450MHz MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 7 2500MH 3.Return Loss MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 8 4.VSWR END

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251224019R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 46 FCC Part 15C Test Report FCC ID: 2A49T-AMON1 Applicant: Shenzhen Fusion Hi-TechCo.,Ltd Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Manufacturer: Shenzhen Fusion Hi-TechCo.,Ltd Address: 3F, Building6, TianFuAnIndustry, XiXiang, Bao’anDistrict., Shenzhen, China Product Name: AMON Speaker Trade Mark: N/A Model Number: M-Y-AMON1 Date of Receipt: Dec. 24, 2025 Test Date: Dec. 24, 2025 - Jan. 12, 2026 Date of Report: Jan. 12, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251224019R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251224019R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 46 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 21 3.3.1 TEST REQUIREMENT: 21 3.3.2 TEST PROCEDURE 21 3.3.3 DEVIATION FROM TEST STANDARD 21 3.3.4 TEST SETUP 22 3.3.5 EUT OPERATING CONDITIONS 22 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 25 3.4.1 APPLICABLE STANDARD 25 3.4.2 TEST PROCEDURE 25 3.4.3 DEVIATION FROM STANDARD 25 3.4.4 TEST SETUP 25 3.4.5 EUT OPERATION CONDITIONS 26 3.4.6 TEST RESULTS 26 4 . PEAK OUTPUT POWER 32 4.1 APPLIED PROCEDURES / LIMIT 32 4.1.1 TEST PROCEDURE 32 4.1.2 DEVIATION FROM STANDARD 32 4.1.3 TEST SETUP 32 4.1.4 EUT OPERATION CONDITIONS 32 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251224019R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 46 Table of Contents Page 4.1.5 TEST RESULTS 33 5 . NUMBER OF HOPPING CHANNEL 35 5.1 APPLIED PROCEDURES / LIMIT 35 5.1.1 TEST PROCEDURE 35 5.1.2 DEVIATION FROM STANDARD 35 5.1.3 TEST SETUP 35 5.1.4 EUT OPERATION CONDITIONS 35 5.1.5 TEST RESULTS 35 6 . BANDWIDTH TEST 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 40 7.1 APPLIED PROCEDURES / LIMIT 40 7.1.1 TEST PROCEDURE 40 7.1.2 DEVIATION FROM STANDARD 40 7.1.3 TEST SETUP 40 7.1.4 EUT OPERATION CONDITIONS 40 7.1.5 TEST RESULTS 40 8 . DWELL TIME OF OCCUPANCY 42 8.1 APPLIED PROCEDURES / LIMIT 42 8.1.1 TEST PROCEDURE 42 8.1.2 DEVIATION FROM STANDARD 42 8.1.3 TEST SETUP 42 8.1.4 EUT OPERATION CONDITIONS 42 8.1.5 TEST RESULTS 43 9 . ANTENNA REQUIREMENT 46 9.1 STANDARD REQUIREMENT 46 9.2 EUT ANTENNA 46 10 . TEST SETUP PHOTO 46 11 . EUT PHOTO 46 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251224019R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 46 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b)(1) Peak Output Power PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.247(a)(1) Hopping Channel Separation PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 20dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251224019R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 46 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: AMON Speaker Trade Mark: N/A Model Number: M-Y-AMON1 Test Model: M-Y-AMON1 Model Difference： N/A Operation Frequency:…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2A49T-AMON1 Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
