2A4C5-HF-643-in-1 Wireless Charging Station Alarm Clock

3-in-1 Wireless Charging Station Alarm Clock · Fast Wireless Charging: Built-in high-speed charging chip in a compact, stylish design. · Phone Compatibility: Works with all Qi-enabled phones, including iPhone 12 and newer. · MagSafe Phones: For best results, charge without a case. · Using a Case: If a case is needed, make sure it has a magnetic alignment feature that matches your phone’s magnetic position. · Optimal Charging Distance: Keep your phone within 0.08 inches (2mm) of the charging area. · Other Wireless Phones: Using a magnetic case can help improve charging eciency. Mobile phone magnetic wireless charging area Night light Charging indicator andnight light touch light Watch wireless charging area Clock display area TWS wireless charging area Folding button User Manual Product Introduction 1. Entering Alarm Setting Mode: Long press the Alarm button. The hour digits on the left will ash. Use the + / – buttons to adjust the hour. Press the Alarm button again to move to the minute digits, which will start ashing. Use the + / – buttons to adjust the minutes. Long press the Alarm button for 3–10 seconds without operation to exit the interface automatically. 2. Turning Alarm On/O: Short press the Alarm button to turn the alarm on — the alarm indicator light will stay on. Short press the Alarm button again to turn the alarm o — the indicator light will go out. 3. Alarm Ring & Snooze: The alarm rings for 60 seconds at volume levels 30%, 50%, 75%, 100%. To pause the alarm without turning it o: short press the Alarm button to cancel; or press any of the other three buttons to activate snooze. Snooze duration: 5 minutes. Alarm Settings 1. Function Keys: + key, M key, – key, Alarm key. 2. When powered on, the clock performs a self-test by scanning numbers 0–9. 3. Default time and alarm: 06:00. 4. Time format: Short press the M key to switch between 12-hour and 24-hour formats: 12-hour format: AM/PM is displayed. 24-hour format: AM/PM is not displayed. 5. Clock brightness: 3 levels. Default: brightest. Short press “–“key : reduces brightness by 30% per press, third press turns o display. Short press “+” key: increases brightness accordingly. Clock / Alarm Functions • Model No: HF-64 • Output 1 (Phone): 5W/7.5W/10W/15W(MAX) • Output 2 (TWS – wireless earbuds): 3W • Output 3 (Watch): 2W • Input: 5V/3A, 9V/3A • Input Power: 27W (MAX) • Size: 6.38 × 3.82 × 1.61 in (162 × 97 × 41 mm) • Weight: 9.76 oz (276.5 g) Specications NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 1*C-C Data Cable 1* 3-in-1 Wireless Charging Station Alarm Clock 1* User Manual Standard Accessories The touch switch is located below the phone and indicator light. • Tap once: turn light on/o • Long press: gradually brighten or dim the light Night Light This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Radiation Exposure Statement: 1. Devices with a built-in wireless charging receiver (supports quick or standard charge depending on the device). 2. Devices with an external wireless charging receiver. 3. Devices with a wireless charging receiver inside a protective case. Note: All devices must be Qi-compatible. Applicable Devices 1. Connect a device to the USB-C port of the product. The green light will turn on, indicating standby mode. Instructions Charging Product Outline Heat dissipation hole Non-slip mat * 4 Heat dissipation hole Charging port 2. When a phone or TWS device (Earbuds Case) is charging, the corresponding indicator light stays blue. When fully charged, the blue light remains on. 3. When a watch is charging, the indicator light does not change. 4. lf the blue light ashes, a phone or TWS have foreign object may be detected. Note: If the watch is low on power, it will charge more slowly. It is recommended to charge when battery level is around 10%. Full charging may take up to 1 hour; please be patient. 6. Entering Clock Setting Mode: Long press the M key to enter the clock setting interface. The hour digits on the left will start ashing. Use the + / – buttons to adjust the hour. Press the M key again to move to the minute digits, which will start ashing. Use the + / – buttons to adjust the minutes. Long press the M key for 3–10 seconds without operation to exit the setting interface automatically.

* theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. SC5090003 U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 1/13/2026 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2A4C5-HF-64 FRNofapplicant:0031891609 Persection2.911(d)(7)oftheFCCrules,[CosmoFiberCorp.FRN:0031891609](“theapplicant”) certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S. agent*forserviceofprocess: CompanyName:GlobalProductServicesandConsultationLLC FCCRegistrationNumber(FRN):0033406703 PhysicalU.S.CompanyAddress:328WPalmAve.,Monrovia,CA91016,UnitedStates ContactPerson:MichaelChan Tel:+16263664358 AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:SidneyRu Title:Manager CompanyName:CosmoFiberCorp. Address:1802SantoDomingoAve,Duarte,CA 91010 Signed: Printedname:MichaelChan Title:TechnicalDirector CompanyName:GlobalProductServicesand ConsultationLLC Date:1/14/2026 Date:1/13/2026

Cosmo Fiber Corp. 2026-01-13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A4C5-HF-64) [Cosmo Fiber Corp.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Sidney Ru Manager Cosmo Fiber Corp. 1802 Santo Domingo Ave,Duarte, CA 91010 Cosmo Fiber Corp. 2026-01-13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A4C5-HF-64) [Cosmo Fiber Corp.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Sidney Ru Manager Cosmo Fiber Corp. 1802 Santo Domingo Ave,Duarte, CA 91010

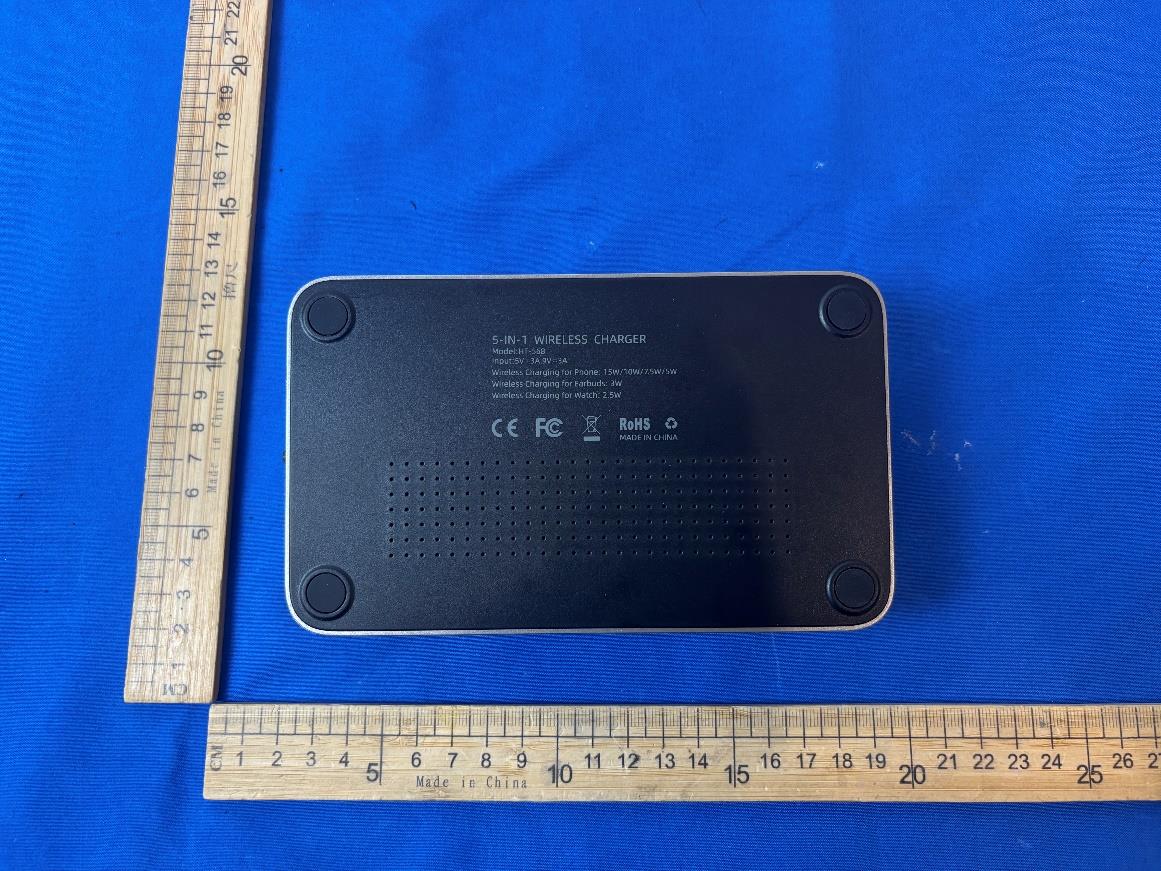

External Photographs View of EUT-1 View of EUT-2 Page 2 of 5 View of EUT-3 View of EUT-4 Page 3 of 5 View of EUT-5 View of EUT-6 Page 4 of 5 View of EUT-7 View of EUT-8 Page 5 of 5 View of EUT-9

1.丝印色号：冷灰8C 2. 塑材，哑面晒纹 1.丝印色号：冷灰9C 2. 喷漆，纹面 1.丝印色号：冷灰8C 2.单面带背胶 3.厚度0.6 1.丝印色号：冷灰8C 2. 塑材，哑面晒纹 保护膜挂耳 3-in-1 Wireless Charging Station Alarm Clock Model: HF-64 Type-C Input: 5V⎓3A, 9V⎓3A Wireless Charger for Phone: 5W/7.5W/10W/15W(MAX) Wireless Charger for Watch: 2W Wireless Charger for Earphone: 3W FCC ID: 2A4C5-HF-64 3-in-1 Wireless Charging Station Alarm Clock Model: HF-64 Type-C Input: 5V⎓3A, 9V⎓3A Wireless Charger for Phone: 5W/7.5W/10W/15W(MAX) Wireless Charger for Watch: 2W Wireless Charger for Earphone: 3W FCC ID: 2A4C5-HF-64

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 5 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 5 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 5 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 5 Internal View of EUT-9

EUT Specification FCC ID: 2A4C5-HF-64 Characteristics Description Product Name 3-in-1 Wireless Charging Station Alarm Clock Model number HF-64 Series Model / Power Supply DC 5V, 9V Operating Frequency Range 111-205KHz for Phone charging 111-205KHz for Earphone charging 300-350KHz for Watch charging Modulation Technique ASK Antenna Type Coil Antenna Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation SAR Evaluation 2 / 10 Applicable Standard: FCC Part 1(1.1310), Part 2(2.1093) and KDB 680106 D01 Wireless Power Transfer v04 Applicable Requirement: Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR ß2.1091. Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFRß2.1093). The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception oftransient persons, this phrase also means that an exposed person has received appropriate training 3 / 10 regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Licensees and applicants are responsible for compliance with both the occupational/controlled exposure limits and the general population/uncontrolled exposure limits as they apply to transmitters under their jurisdiction. Licensees and applicants should be aware that the occupational/controlled exposure limits apply especially in situations where workers may have access to areas in very close proximity to antennas and access to the general public may be restricted. In lieu of evaluation with the general population/uncontrolled exposure limits, amateur licensees authorized under part 97 of this chapter and members of his or her immediate household may be evaluated with respect to the occupational/controlled exposure limits in this section, provided appropriate training and information has been provided to the amateur licensee and members of his/her household. Other nearby persons who are not members of the amateur licensee's household must be evaluated with respect to the general population/uncontrolled exposure limits. 4 / 10 Test Setup Block Test Procedure 1.Connect the EUT and equipment as above diagram of test configuration. 2.EUT was placed on a table, and the measure probe was placed at a measurement distance of 20cm from the EUT to the center of the probe. 3.Power on the measuring probe, the EUT was set at the maximum field strength emission state. 4.The EUT was put in different directions (Left, Right, Front, Rear, Top and Bottom) toward to the measure probe. The distance from the top of the EUT to the probe is 20CM, and the distance from other directions is 20cm.Measure the value of field strength. 5.Record the worst data of the different directions. Measuring Device And Test Equipment Used Equipment Manufacturer Model No. Serial No. Last Cal. Due Date  E&H-Field Probe(9kHz-30M Hz) Narda EHP-200A 180ZX11012 2025/08/28 2026/08/27 5 / 10 Description of Support Device Adapter ： Model …

Text truncated - open the document above for the full version.

Fine Page 1 of 4 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 海芯 客 戶 料 號： CUST P/N: 音泽 料 號： FINE P/N: G50*0.8-20.5-#-10TS-6.8UH-L50MM+BJ 産 品 型 號： DESC: Φ50MMX0.8MM 日 期： DATE: 2024/09/11 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 何立成 马莉 但可清 东莞市音泽电子科技有限公司 工廠地址：东莞市茶山镇兴韩路（创富中心城）2栋901号 但可清 TEL：18617251159 版本變更履歷 Fine Page 2 of 4 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024.09.11 但可清 Fine Page 3 of 4 SPECIFICATION 産 品 型 號： DESC G50*0.8-20.5-#-10TS-6.8UH- L50MM+BJ 版本 Rev：A.0 客戶CUST: 海芯 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 50±0.5 B 40.5±0.5 C 20.5±0.5 D 50±2 E 3±2 F 5.3±0.2 K 0.8±0.05 J ≤2.3 I 注： 1.交叉出线; 2.线圈贴双槽磁片，磁片尺寸 50±0.5mm,，厚度为0.8±0.05mm. 3.磁片背面贴背胶 Note: 1. Cross winding leads. 2. Attach dual-slot magnetic plates to the coil. The magnetic plate dimensions shall be 50±0.5 mm in size and 0.8±0.05 mm in thickness. 3. Apply adhesive backing to the rear side of the magnetic plate. Fine Page 4 of 4 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 丝包线# 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.7uH ±10%单独 线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10%加磁 片 100KHz/1.0V LCZ METER 1062B 3 DCR S-R ≤110mΩ LCZ METER 502B DCR Q ≥39.5 100KHz/1.0V LCZ METER 1062B 5.MATERIAL LIST: NO ITEM DESCRIPTION RATING SUPPLIERS UL NO. REMARK 1 WIRE 丝包线# 155°C Guangdong Xinju wire Co., LTD 2 SOLDER 99.3/0.7 Dongguan Feiquan electronic material Co., LTD 3 CORE G50*0.8-20.5-#(开LI 双槽） Huizhou Huibo Cheng Electronics Co., LTD 4 EPOXY 1603HFR-HS Dongguan Wan He new material Co., LTD 5 TAPE PI 260°C Dongguan die cut charm sound Co., LTD 1.Tested at 1.0Kz0.25vrmS,0 AaC Average current for 40 temperature rise from25°C 2.Saturaion current(Isat):Inductance drop:10% typ at Isat. 3.Heat rating current(Irms):3L@IrmS=AT≤40°C. 4.Electrical specifications at25°C 5.Storage Temp:-40°C....+85°C 6.Operating Temp:-40°C....+85°C 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 何立成2024.09.11

Fine Page 1 of 4 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 海芯 客 戶 料 號： CUST P/N: 音泽 料 號： FINE P/N: G43.5*0.75-20.5-0.08*48P-10TS-6.5UH-L210MM+BJ 産 品 型 號： DESC: Φ43.5MMX0.75MM 日 期： DATE: 2024/05/24 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 何立成 马莉 但可清 东莞市音泽电子科技有限公司 工廠地址：东莞市茶山镇兴韩路（创富中心城）2栋901号 但可清 TEL：18617251159 版本變更履歷 Fine Page 2 of 4 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024.05.24 但可清 Fine Page 3 of 4 SPECIFICATION 産 品 型 號： DESC G43.5*0.75-20.5-0.08*48P-10 TS-6.5UH-L210MM+BJ 版本 Rev：A.0 客戶CUST: 海芯 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 43.5±0.5 B 38.3±0.5 C 20.5±0.5 D 210 ±2 E 3±2 F 5.3±0.2 G 0.75±0.05 H 1.65±0.1 I K 注： 1.交叉出线; 2.线圈贴双槽磁片，磁片尺寸 43.5±0.5mm,，厚度为 0.75±0.05mm. 3.磁片背面贴背胶 Note: 1. Cross winding leads. 2. Attach dual-slot magnetic plates to the coil. The magnetic plate dimensions shall be 43.5 ±0.5 mm in size and 0.75± 0.05 mm in thickness. 3. Apply adhesive backing to the rear side of the magnetic plate. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 热风线0.08*48P 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.7uH ±10%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤100mΩ LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE Fine Page 4 of 4 何立成2024.05.24

Fine Page 1 of 4 FY-GZ001 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： 海芯 CUSTOMER: 客 戶 料 號： CUST P/N: 音泽 料 號： BESOFTP/N: 産 品 型 號： DESC: 日 期： 带槽硬磁手表线圈 14.9-0.08*24-11T-7.8UH-L13MM+磁铁+BJ 2024/07/09 DATE: 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 何立成 马莉 但可清 东莞市音泽电子有限公司 工廠地址：东莞市茶山镇兴韩路 （创富中心城）2栋901号 TEL： 18617251159 Fine Page 2 of 4 FY-GZ001 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024/07/09 但可清 FY-GZ001 Fine Page 3 of 4 SPECIFICATION 注： 1.线圈贴磁片，磁片尺寸 25mm,厚度为2.7mm带缺口 2.磁片背面贴带手撕位圆形直 径17mm(ref）普通双面胶。 Note: 1. Attach a magnetic plate to the coil. The magnetic plate dimensions shall be 25 mm in size and 2.7 mm in thickness, with a notch. 2. Apply a circular ordinary double-sided adhesive tape with a hand-tear tab to the rear side of the magnetic plate. The diameter of the tape is 17 mm (ref). 産 品 型 號： DESC 带槽硬磁手表线圈14.9- 0.08*24-11T-7.8UH- L13MM+磁铁+BJ 版本 Rev：A.0 客戶 CUST: 海芯 客户料号 CUST P/N: 一、尺寸 DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 25±0.5 B 2.7±0.5 C 23.7±0.25 D 20.5±1 E 14.5±0.3 H 8±0.3 I 2±1 J 13±2 K 7.5*2.0 FY-GZ001 Fine Page 4 of 4 SPECIFICATION 三、绕线参数 Winding Specification: 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25 ±10°C, 湿度 RELATIVE HUMIDITY:65 ±20% 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 热风线 0.08*24P 11TS CCW 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.7uH ±20%单独线圈 100KHz/1V LCZ METER 1062B 2 IND. S-F 7.8uH ±10%加磁片 100KHz/1V LCZ METER 1062B 3 Q 值 S-Q ≤4 100KHz/1V LCZ METER 1062B 4 DCR S-R ≤105mΩ 序号 number 材 料 名 称 Material name 品 名 描 述 Description 制 造 商 Manufacturer 1 热风线 0.08*24 股 热风线 0.08*24 股 2 无铅锡条 无铅锡条 3 磁片 Φ24.5*12.7mm 锰锌带槽硬磁片 4 胶水 460 胶水 5 磁铁 7.5*2mm 6 无孔双面胶 圆形直径17mm(ref)背胶 産 品 型 號： DESC 带槽硬磁手表线圈-CLB 版本 Rev：A.0 客戶 CUST: 辉码 音泽料号 Fine P/N： 客户料号 CUST P/N: 擬制/日期 PREPARED BY/DATE 審核/日期 CHECKED BY/DATE 何立成 2024/07/09

CFR 47 FCC PART 15 SUBPART C TEST REPORT For 3-in-1 Wireless Charging Station Alarm Clock MODEL NUMBER: HF-64 REPORT NUMBER: E04A25111103F00101 ISSUE DATE: December 11, 2025 FCC ID: 2A4C5-HF-64 Prepared for Cosmo Fiber Corp. 1802 Santo Domingo Ave,Duarte, CA 91010 Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25111103F00101 Page 2 of 28 Revision History Rev. Issue Date Revisions Revised By V0 December 11, 2025 Initial Issue REPORT NO.: E04A25111103F00101 Page 3 of 28 Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203 Pass AC Power Line Conducted Emission FCC Part 15.207 Pass 20dB Bandwidth FCC Part 15.215 Pass Radiated Emission FCC Part 15.205/15.209 Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25111103F00101 Page 4 of 28 CONTENTS 1. ATTESTATION OF TEST RESULTS ......................................................................... 5 2. TEST METHODOLOGY ............................................................................................. 6 3. FACILITIES AND ACCREDITATION ......................................................................... 6 4. CALIBRATION AND UNCERTAINTY ........................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION ................................................ 7 4.2. MEASUREMENT UNCERTAINTY ................................................................ 7 5. EQUIPMENT UNDER TEST ....................................................................................... 8 5.1. DESCRIPTION OF EUT ................................................................................ 8 5.2. TEST MODE ................................................................................................. 8 5.3. SUPPORT UNITS FOR SYSTEM TEST ....................................................... 9 5.4. SETUP DIAGRAM ......................................................................................... 9 6. MEASURING EQUIPMENT AND SOFTWARE USED ............................................. 10 7. RADIATED TEST RESULTS ................................................................................... 11 7.1. Radiated Spurious Emission ........................................................................ 15 8. AC POWER LINE CONDUCTED EMISSION ............................................................. 1 9. 20DB BANDWIDTH ................................................................................................... 5 10. ANTENNA REQUIREMENT .......................................................................... 7 REPORT NO.: E04A25111103F00101 Page 5 of 28 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Cosmo Fiber Corp. Address: 1802 Santo Domingo Ave,Duarte, CA 91010 Manufacturer Information Company Name: Shenzhen Ground Enterprises Co.,Ltd. Address: 6th Floor, Building F, MingYueHuaDu, Gonghe industrial Rd., XiXiang, Bao’an, Shenzhen China 518102 EUT Information Product Description: 3-in-1 Wireless Charging Station Alarm Clock Model: HF-64 Series Model: / Brand: / Sample Received Date: December 5, 2025 Sample Status: Normal Sample ID: A25111103 001 Date of Tested: December 6, 2025 to December 10, 2025 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C Pass Prepared By: Checked By: Ellie Yang Alan He Project Engineer Laboratory Leader Approved By: Shawn Wen Laboratory Manager REPORT NO.: E04A25111103F00101 Page 6 of 28 2. TEST METHODOLOGY All tests were performed in accordance with the standard CFR 47 FCC PART 15 SUBPART C 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 6947.01) Guangdong Global Testing Technology Co., Ltd. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1343) Guangdong Global Testing Technology Co., Ltd. has been recognized to perform compliance testing on equipment subject to Supplier's Declaration of Conformity (SDoC) and Certification rules ISED (Company No.: 30714) Guangdong Global Testing Technology Co., Ltd. has been registered and fully described in a report filed with ISED. The Company Number is 30714 and the test lab Conformity Assessment Body Identifier (CABID) is CN0148. Note: All tests measurement facilities use to collect the measurement data are located at Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 REPORT NO.: E04A25111103F00101 Page 7 of 28 4. CALIBRATION AND UNCERTAINTY 4.1. MEASURING INSTRUMENT CALIBRATION The measuring equipment utilized to perform the tests documented in this report has been calibrated in accordance with the manufacturer's recommendations and is traceable to recognized national standards. 4.2. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Test Items k Uncertainty 20dB Emission Bandwidth 2 ±9.2 PPM Temperature 2 ±0.5°C Humidity 2 ±3% Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test Item Measurement Frequency Range K U(dB) Conducted emissions from the AC mains power ports (AMN) 150 kHz…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Radiated Spurious Emission Page 2 of 4 RF Exposure Evaluation Page 3 of 4 Page 4 of 4
