2A4CG-GC2856861CH Hub

1CH - Hub: User/Installation Guide REV: 12 - 02/09/2022 WideSky Hub – 1CH - Hub: User/Installation Guide – 2 Table of Contents 1Overview.................................................................................................3 2Specifications.........................................................................................4 2.1Electrical..................................................................................................................4 2.2Radio........................................................................................................................4 2.3Antenna...................................................................................................................4 2.4Mechanics................................................................................................................5 2.5Environment............................................................................................................5 2.6Connections............................................................................................................6 3Installation.............................................................................................7 3.1Warnings and Declaration......................................................................................7 3.2General....................................................................................................................7 3.3Federal Communications Commission:.................................................................7 3.4Industry Canada:.....................................................................................................8 4Certifications [WIP]..............................................................................10 OVERVIEW WideSky.Cloud Pty Ltdrev- 12 Page 3 of 10 1 Overview 1 WideSky Hub - Model: 1P-AC The WideSky Hub-1S is a wireless IoT data collection and control device which operates on the 2.4GHz ISM band using IEEE 802.15.4 communications. There are no user-serviceable parts and no configuration access for the user. The maximum transmission power is fixed by user inaccessible software configurations to the region’s regulatory limits. SPECIFICATIONS WideSky.Cloud Pty Ltdrev- 12 Page 4 of 10 2 Specifications 2.1 Electrical Input Voltage 100ACV - 240ACV Frequency 50/60 Hz Max. Current 0.15A Max. Operation Temperature 70°C 2.2 Radio Standard IEEE 802.15.4 (Zigbee / Thread) Operation Frequency 2400 - 2483.5 MHz ISM band No of Channels 16 Max Transfer Rate 250kbps Modulation O-QPSK Max. Transmit Power Automatic limitation to regional regulatory limitations (e.g. for US (FCC) 20dbm, Europe (CE) 10dbm) 2.3 Antenna Pulse Larsen Antenna, manuf. Part no. W1010 Frequency: 2.4 – 2.5 GHz Gain(dBi): 2.0 SPECIFICATIONS WideSky.Cloud Pty Ltdrev- 12 Page 5 of 10 Impedance: 50 Ohm VSWR <= 2.0 Polarization Vertical Electrical Length: ¼, dipole Radiation: Omni directional 2.4 Mechanics Enclosure ABS with mounting hardware Mounting DIN-rail Dimensions 35x57x86mm (WxHxD) Weight 0.3kg Operating Temp -20 to +70 °C Humidity 5-95% RH IP Rating 30 2.5 Environment Operating Temp -20 to +75 °C Humidity 5-95% RH SPECIFICATIONS WideSky.Cloud Pty Ltdrev- 12 Page 6 of 10 1. 2. 3. 2.6 Connections There are three connectors on the hub: A three-pin AC input terminal block A five-pin DC terminal block for communications An SMA antenna jack. The AC input requires the usual L/N/PE lines, the DC connector has two RS485 differential lines (A/Y & B/Z), a Ground terminal and a digital pulse input. The fifth line is unused and not connected. The connection pins as seen from the top are DC terminal block: 678910 GNDn/cPulseB/Z (D-)A/Y (D+) AC terminal block: 123 LineProtective EarthNeutral INSTALLATION WideSky.Cloud Pty Ltdrev- 12 Page 7 of 10 1. 2. 3. 4. • • • • 3 Installation The installation must only be performed by qualified and authorized personnel. Steps: The device is in a standard DIN-rail enclosure, it needs to be ‘clicked’ onto the rail. Make sure the rail latch at the bottom of the device is securely latched to the rail. Terminate the cables and insert the screw terminals. Fasten screws with a maximum torque of 0.5Nm. Screw the antenna on the provided connector. 2 Attach to DIN 3 Terminate cables and insert terminals 4 Attach antenna 3.1 Warnings and Declaration 3.2 General Installation and service must be performed by qualified and authorized persons only. Make sure power is OFF during installation DO NOT use this device in an environment with direct exposure to water DO NOT use the device in a direct outdoor environment without an electrical enclosure Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 3.3 Federal Communications Commission: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INSTALLATION WideSky.Cloud Pty Ltdrev- 12 Page 8 of 10 • • • • 1. 2. 1. 2. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whi…

Text truncated - open the document above for the full version.

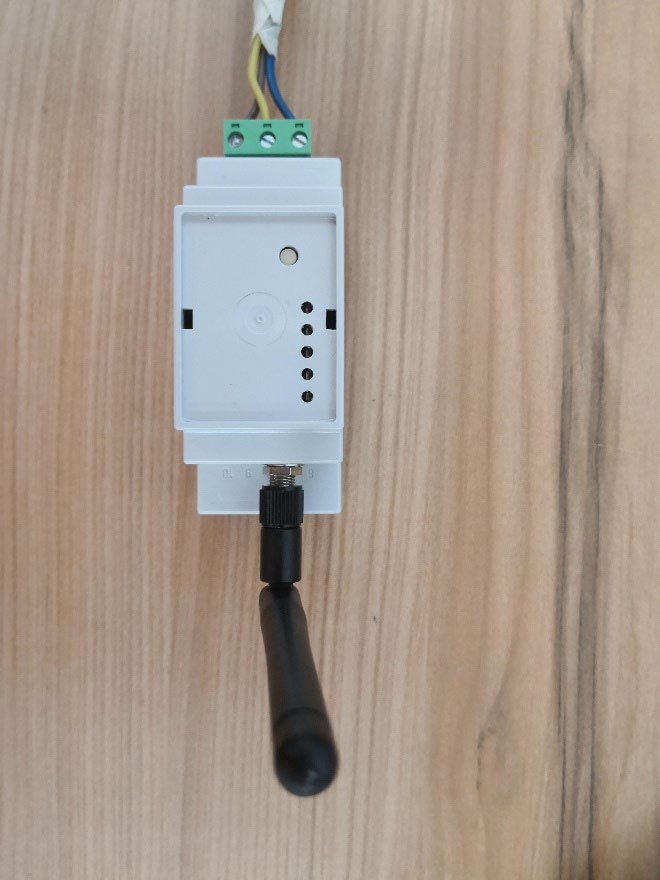

REPORT No.: UL20220302-000647-WFC Page 38 of 38 UL INTERNATIONAL-SINGAPORE PTE LTD FORM NO: 16-EM-F0861 Rev2 This report shall not be reproduced except in full, without the written approval of UL INTERNATIONAL-SINGAPORE PTE LTD EUT PHOTOS END OF REPORT

Test report No. : 4790260569-US-R0-V0 Page : 1 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Maximum Permissible Exposure Report Product : 1CH Hub Model Name : Thread-1P-AC FCC ID : 2A4CG-GC285686 Test Regulation : 47 CFR FCC Part 2.1091 Received Date : 2022/2/25 Test Date : 2022/2/25 ~ 2022/4/27 Issued Date : 2022/5/25 Applicant : WideSky.Cloud Pty Ltd 38b Douglas St Milton, QLD 4064, Australia Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790260569-US-R0-V0 Page : 2 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 REVISION HISTORY Original Test Report No.: 4790260569-US-R0-V0 Rev. Test report No. Date Page revised Contents Original 4790260569-US-R0-V0 2022/5/25 - Initial issue Test report No. : 4790260569-US-R0-V0 Page : 3 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Table of Contents 1. Attestation of Test Results ......................................................................................... 4 2. Test Methodology and Reference Procedures ......................................................... 5 3. Facilities and Accreditation ...................................................................................... 5 4. Equipment Under Test .............................................................................................. 6 4.1. Description of EUT .............................................................................................. 6 4.2. Description of Available Antennas ...................................................................... 6 5. Requirement ............................................................................................................... 7 6. Radio Frequency Radiation Exposure Evaluation ................................................. 8 Test report No. : 4790260569-US-R0-V0 Page : 4 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 1. Attestation of Test Results APPLICANT: WideSky.Cloud Pty Ltd 38b Douglas St Milton, QLD 4064, Australia MANUFACTURER: WideSky.Cloud Pty Ltd 38b Douglas St Milton, QLD 4064, Australia EUT DESCRIPTION: 1CH Hub MODEL: Thread-1P-AC SAMPLE STAGE: Identical Prototype APPLICABLE STANDARDS STANDARD Test Results 47 CFR FCC PART 2.1091 PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Prepared By: Approved and Authorized By: Sally Lu Date : 2022/5/25 Kent Liu Date : 2022/5/25 Project Handler Senior Laboratory Engineer Test report No. : 4790260569-US-R0-V0 Page : 5 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 2. Test Methodology and Reference Procedures The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. Facilities and Accreditation Test Location Underwriters Laboratories Taiwan Co., Ltd. Address Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Accreditation Certificate Underwriters Laboratories Taiwan Co., Ltd. is accredited by TAF, Laboratory Code 3398. Test report No. : 4790260569-US-R0-V0 Page : 6 of 8 Issued date : 2022/5/25 FCC ID : 2A4CG-GC285686 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 TEST REPORT For 1CH Hub MODEL NUMBER: Thread-1P-AC REPORT NUMBER: UL20220302-000647-WFC FCC ID: 2A4CG-GC285686 IC: 28179-GC285686 ISSUE DATE: 5/25/2022 Prepared for WideSky.Cloud Pty Ltd Prepared by UL INTERNATIONAL-SINGAPORE PTE LTD 20 KIAN TECK LANE SINGAPORE 627854 Website: www.ul.com REPORT No.: UL20220302-000647-WFC Page 2 of 38 UL INTERNATIONAL-SINGAPORE PTE LTD FORM NO: 16-EM-F0861 Rev2 This report shall not be reproduced except in full, without the written approval of UL INTERNATIONAL-SINGAPORE PTE LTD Revision History Rev. Issue Date Revisions Revised By 0 5/25/2022 Initial Issue REPORT No.: UL20220302-000647-WFC Page 3 of 38 UL INTERNATIONAL-SINGAPORE PTE LTD FORM NO: 16-EM-F0861 Rev2 This report shall not be reproduced except in full, without the written approval of UL INTERNATIONAL-SINGAPORE PTE LTD Summary of Test Results Clause Test Items FCC Test Results 1 6db DTS Bandwidth FCC 15.247 (a) (2) RSS-247 Clause 5.1 (1) Pass 2 Peak Conducted Power FCC 15.247 (b) (3) RSS-247 Clause 5.4 (4) Pass 3 Power Spectral Density FCC 15.247 (3) RSS-247 Clause 5.2 (2) Pass 4 Conducted Band edge And Spurious emission FCC 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Spurious emission FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC 15.203 RSS-GEN Clause 8.3 Pass REPORT No.: UL20220302-000647-WFC Page 4 of 38 UL INTERNATIONAL-SINGAPORE PTE LTD FORM NO: 16-EM-F0861 Rev2 This report shall not be reproduced except in full, without the written approval of UL INTERNATIONAL-SINGAPORE PTE LTD TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT ...................................................................................................... 8 5.2. MAXIMUM OUTPUT POWER ............................................................................................ 9 5.3. CHANNEL LIST ................................................................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ...................................................................................... 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ................................................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ..........................................................................10 5.7. DESCRIPTION OF TEST SETUP ..........................................................................................10 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................................11 7. MEASUREMENT METHODS ...................................................................................................11 8. TEST PROCEDURES AND RESULTS ..........................................................................................12 8.1. NORMAL AND EXTREME CONDITIONS..............................................................................12 8.2. 6 dB BANDWIDTH & 99% BANDWIDTH ............................................................................13 8.3. PEAK CONDUCTED OUTPUT POWER ................................................................................16 8.4. POWER SPECTRAL DENSITY .............................................................................................17 8.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ................................................19 8.6. RADIATED SPURIOUS EMISSION ......................................................................................21 8.7. AC POWER LINE CONDUCTED EMISSIONS .........................................................................32 RADIATED SPURIOUS DOMAIN EMISSION BELOW 30 MHz TEST PHOTOS .........................................34 RADIATED SPURIOUS DOMAIN EMISSION ABOVE 30 MHz TEST PHOTOS .........................................35 EUT PHOTOS ...............................................................................................................................38 REPORT No.: UL20220302-000647-WFC Page 5 of 38 UL INTERNATIONAL-SINGAPORE PTE LTD FORM NO: 16-EM-F0861 Rev2 This report shall not be reproduced except in full, without the written approval of UL INTERNATIONAL-SINGAPORE PTE LTD 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: WideSky.Cloud Pty Ltd Address: 38b Douglas St Milton, QLD 4064, Australia Manufacturer Information Company Name: WideSky.Cloud Pty Ltd Address: 38b Douglas St Milton, QLD 4064, Australia EUT Description EUT Name: 1CH Hub EUT Description: The WideSky Hub is a wireless IoT data collection and control device which operates on the 2.4GHz ISM band using IEEE802…
