2A4F8-PLT004COREInsight BLE Beacon tag

PLT004 User Manual Specific atio ns, dev ice installat io n, co m pliance , and sa fety info rm atio n Updated: 2023-06-13 CONFIDENTIAL All rights reserved. No part of this document may be reproduced by any means whatsoever without the prior permission of Core Transport Technologies Limited. Although Core Transport Technologies has taken reasonable care in the preparation of this document; Core Transport Technologies acceptsno liability whatsoever of whatsoever nature for any loss or expense incurred due to reliance on or use of this document. This document contains confidential information that is the property of Core Transport Technologies Limited. All use, disclosure and/or reproduction not specifically authorised by Core Transport Technologies is prohibited. All names are trademarks of their respective holders. 2 Table Of Contents Revision History ................................................................................................................................... 3 Introduction .......................................................................................................................................... 4 Specifications ....................................................................................................................................... 4 Compliance ........................................................................................................................................... 5 PLT004 .................................................................................................................................................. 6 Installation ........................................................................................................................................ 6 Usage ................................................................................................................................................. 6 3 Revision History Name Date Description Version MARIA 2023/06/13 Create document 1.0 4 Introduction The PLT004COREInsight® BLE Beacon tag is an active BLE beacon which utilises the Nordic nRF5810 module encased in a housing. This document explains how to use the PLT004tag in a production setting. The PLT004tag advertises at an optimal interval of 7 times every 60seconds. The beacon message is sent on the advertisement channels for BLE: 37 (2402 MHz), 38 (2440 MHz) and 39 (2480 MHz). The tag has a Theoretical lifetime of 5 years. Specifications FCC ID 2A4F8-PLT004 RF specification operating frequency 2402 MHz (low), 2440 MHz (medium), 2480 MHz (high) Type of modulation GFSK Number of channels 40 channels Antenna type Pillar Antenna gain -0.4dBi Specialty Bluetooth Low Energy Function Bluetooth Low Energy Power supply N/A Power cord N/A Battery 2 lithium metal cell batteries Lifetime 5 years 5 Compliance Per FCC 15.19(a)(3) and (a)(4): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Our beacon device falls under FCC rules part 15.247 as it transmits within 2400-2483.5MHz. 6 PLT004 Production versions of the tag come in a sealed case with the batteries installed. They are already powered on and ready for installation. The tags pass through a quality assurance phase to ensure they are fit for purpose. This includes a range test to ensure the tag performs well at a distance. Installation The tag is already powered on and ready to install. Simply insert the tag into the rail on the pallet. Once it has been installed, assign the tag into the CORE system. Usage The PLT004COREInsight BLE Beacon tag is an active BLE beacon. The PLT004tag advertises at an interval of 7 times every 60seconds. COREInsight® Readers listen for special (custom) adverts from the Beacon Tag and when it is in range (approx. 60 meters), the Reader collects these detections. Images are indicative only, actual product may vary

Descartes System Group Inc 105 Trafalgar Street, Floor 2 Floor 2 Nelson, 7010 New Zealand Date: 07/10/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A4F8-PLT004 Attestation Statements Part 2.911(d)(5)(i) Filing To whom it may concern, Descartes System Group Inc, certifies that the equipment is seeking authorization is not on the “List of Equipment and Services Covered by Section 2 of the Secure Networks Act,” which it is prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Casimir Mackenzie QA Manager

Descartes System Group Inc 105 Trafalgar Street, Floor 2 Floor 2 Nelson, 7010 New Zealand Date: 07/10/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A4F8-PLT004 Attestation Statements Part 2.911(d)(5)(ii) Filing To whom it may concern, Descartes System Group Inc certifies that, as of the date of the filing of the application, Descartes System Group Inc is not identified on the “List of Equipment and Services Covered by Section 2 of the Secure Networks Act,” as an entity producing “covered” equipment. Sincerely, Signature: Casimir Mackenzie QA Manager

Descartes System Group Inc 105 Trafalgar Street, Floor 2 Floor 2 Nelson, 7010 New Zealand Date: 07/10/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A4F8-PLT004 Confidentiality Request To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: ☒Block Diagram ☐Tune-Up Information ☒Operational Description ☐Security Information ☒Schematics ☐Software Defined Radio (SDR) Information ☒Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Casimir Mackenzie QA Manager

Descartes System Group Inc 105 Trafalgar Street, Floor 2 Floor 2 Nelson, 7010 New Zealand Date: 07/10/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A4F8-PLT004 Declaration of Authorization To whom it may concern, I, the undersigned, hereby authorize, Jandy So, of Waltek Testing Group (Shenzhen) Co., Ltd., (WALTEK) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jandy So, of Waltek Testing Group (Shenzhen) Co., Ltd., (WALTEK) on our behalf shall have the same effects as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). This authorization is valid until further written notice from the applicant. Sincerely, Signature: Casimir Mackenzie QA Manager

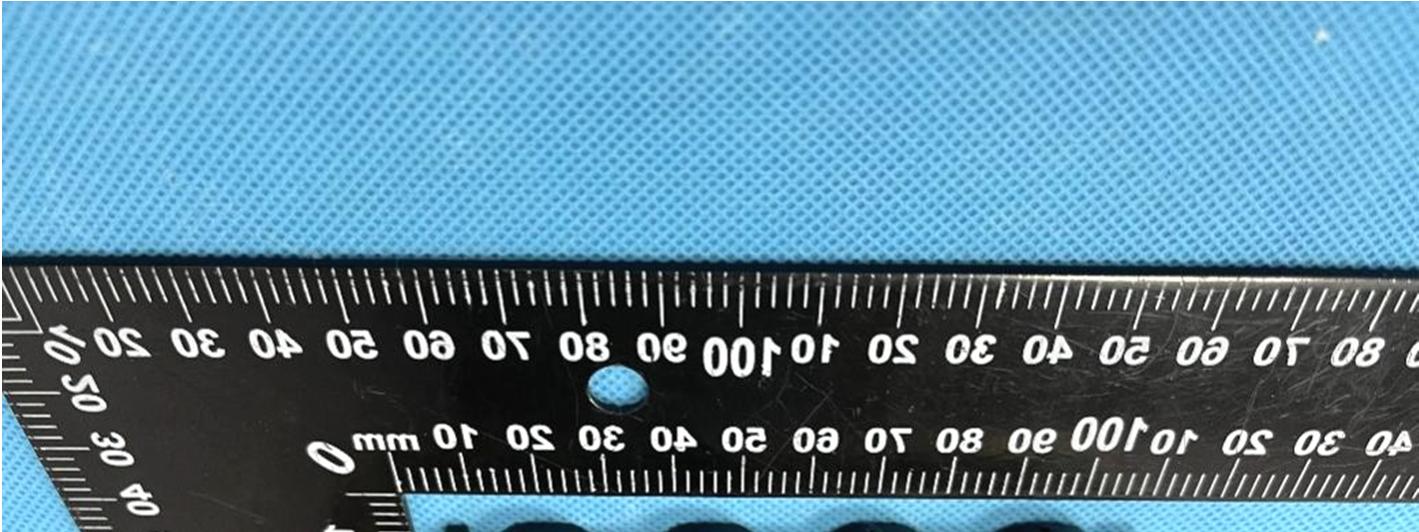

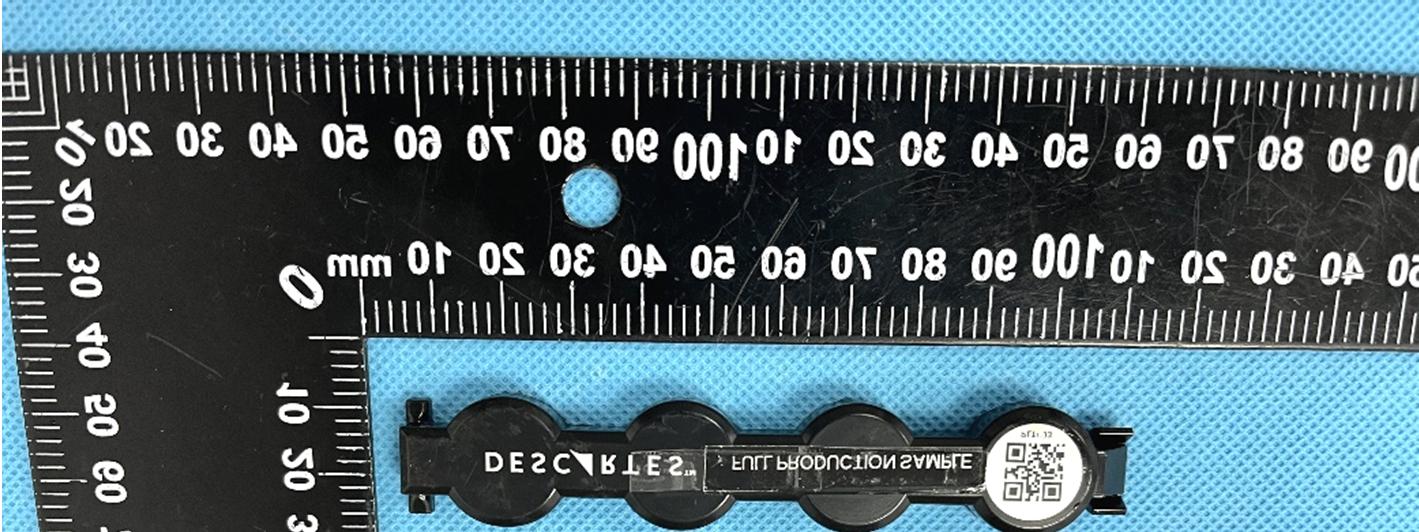

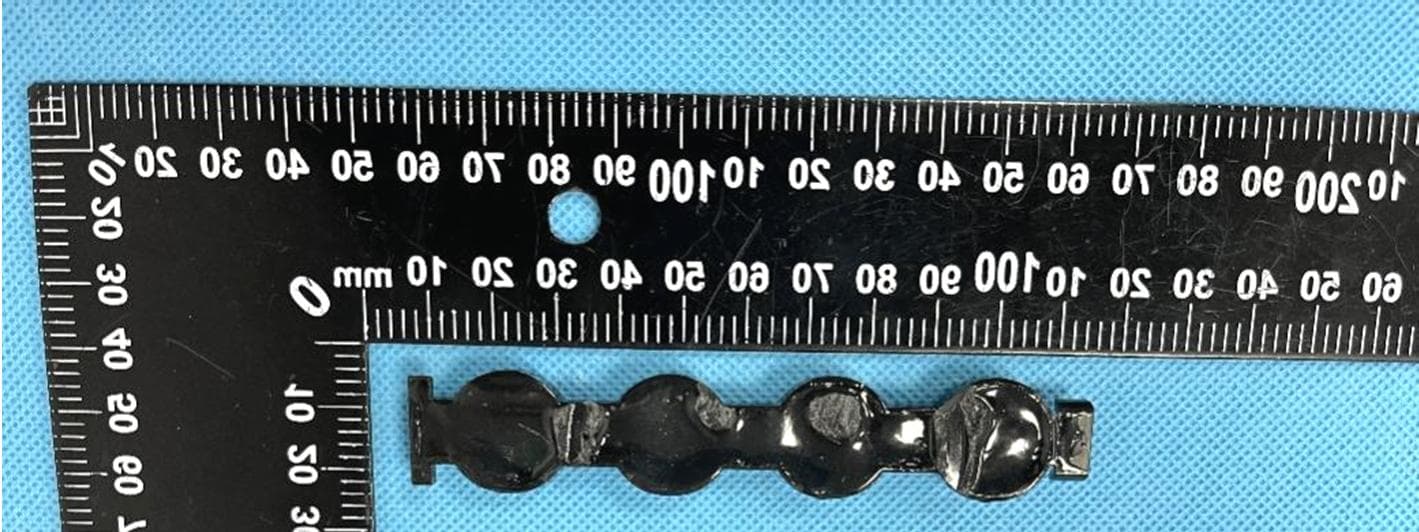

Reference No.: WTX23X06133613W Page 2 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X06133613W Page 3 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X06133613W Page 4 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX23X06133613W Page 1 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Product Label Packaging Label Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location Label on Product Label on Product Packaging

Reference No.: WTX23X06133613W Page 5 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X06133613W Page 6 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Descartes System Group Inc Address of applicant: 105 Trafalgar Street, Floor 2 Floor 2, Nelson, 7010 New Zealand Manufacturer: Descartes System Group Inc Address of manufacturer: 105 Trafalgar Street, Floor 2 Floor 2, Nelson, 7010 New Zealand General Description of EUT: Product Name: COREInsight® BLE Beacon tag Trade Name / Model No.: PLT004 Adding Model(s): / Rated Voltage: Battery:DC3V Power Adapter: / FCC ID: 2A4F8-PLT004 Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.0 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: 2.24dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: No Ground Clearance Vertical Polarization Pillar Antenna Antenna Gain: -0.4dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 2.24 -0.4 100 3.00 0.45 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 B 0.5 3.00 2.00 2.788 0.72 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 1 OF 11 H 2 1 6 D K B 1 0 U B 0 1 0 3.0 x 3.0 x 3.3 (mm), 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification 1. Product Number 2. Features *No ground clearance requirement. *Vertical polarization. *Stable and reliable in performance. *RoHS 2.0 compliance *SMT processes compatible 3. Applications *Wireless earbud *Wearable device *ISM 2.4 GHz *ZigBee/BLE 4. Description Unictron’s CW337 pillar antenna is specifically designed for ISM 2.4GHz, ZigBee, BLE, IoT, wearable, etc. applications where there is no space for usual/typical antenna ground clearance. Fabricated with proprietary design and processes, CW337 shows excellent performance and is fully compatible with SMT processes which can decrease the assembly cost and improve device’s quality and consistency. ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 2 OF 11 5. Layout Guide & Electrical Specifications 5-1. Layout Guide (UnitǺmm) Solder Land Pattern: The solder land pattern (gold marking areas) is shown below, no ground clearance requirement on bottom side. Recommendation on matching circuit will be provided according to customer’s installation conditions. Top Layer View Inner Layer View Bottom Layer View Signal Input Transmission Line with 50ȍ Impedance Characteristic Antenna soldering pad ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 3 OF 11 5-2. Electrical Specifications 5-2-1. Electrical Table The data was measured with a 15 x 15 mm 2 EVB which has no ground clearance on opposite side. The material of substrate is FR4, thickness is 0.8mm. Characteristics Specifications Unit Outline Dimensions 3.0 x 3.0 x 3.3 mm Ground Plane Dimensions 15 x 15 mm Working Frequency 2400~ 2500 MHz VSWR (@ center frequency)* 2 Max. Characteristic Impedance 50 : Polarization Vertical Polarization Peak Gain (@2442 MHz) -0.4(typical)** dBi Efficiency 25.6(typical)** % *Center frequency means the frequency with the lowest value in return loss of the chip antenna on the evaluation board. **A Typical value is for reference only, not guaranteed. 5-2-2. Frequency vs. V.S.W.R. and Total Radiation Gain ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 4 OF 11 6. Outline Dimensions of Antenna & Evaluation Board (unit: mm) 6-1. Antenna Dimensions 6-2. Direction of antenna signal feed-in White marking Antenna signal feed-in ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 5 OF 11 6-3. Evaluation Board with Antenna Unit: mm ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specification DOCUMENT H2UB6D1K1B0100 REV. NO. D PAGE 6 OF 11 7. 3D Radiation Gain Pattern (with 15 x 15 mm 2 Evaluation Board) 3D Radiation Gain Pattern @ 2442 MHz (Unit: dBi) Y Z X X Y Z X X Y Z Y Z ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.0 x 3.0 x 3.3 (mm) 2.4 GHz, No Ground Clearance Vertical Polarization Pillar Antenna (CW337) Engineering Specific…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 35 TEST REPORT Reference No. .................... : WTX23X06133613W FCC ID ................................ : 2A4F8-PLT004 Applicant ........................... : Descartes System Group Inc Address.............................. : 105 Trafalgar Street, Floor 2 Floor 2, Nelson, 7010 New Zealand Manufacturer ..................... : The same as Applicant Address.............................. : The same as Applicant Product Name ................... : COREInsight® BLE Beacon tag Model No.. .......................... : PLT004 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-06-20 Date of Test........................ : 2023-06-20 to 2023-06-27 Date of Issue ..................... : 2023-06-27 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTX23X06133613W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .........................................................................4 1.2 TEST STANDARDS .................................................................................................................................................5 1.3 TEST METHODOLOGY ...........................................................................................................................................5 1.4 TEST FACILITY ......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE ..............................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................7 1.7 TEST EQUIPMENT LIST AND DETAILS ...................................................................................................................8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................. 11 3.1 STANDARD APPLICABLE ..................................................................................................................................... 11 3.2 EVALUATION INFORMATION ................................................................................................................................ 11 4. POWER SPECTRAL DENSITY ........................................................................................................................... 12 4.1 STANDARD APPLICABLE ..................................................................................................................................... 12 4.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 12 4.3 TEST PROCEDURE .............................................................................................................................................. 12 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 12 5. DTS BANDWIDTH ................................................................................................................................................. 13 5.1 STANDARD APPLICABLE ..................................................................................................................................... 13 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 13 5.3 TEST PROCEDURE .............................................................................................................................................. 13 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 13 6. RF OUTPUT POWER ............................................................................................................................................ 14 6.1 STANDARD APPLICABLE ..................................................................................................................................... 14 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 14 6.3 TEST PROCEDURE .............................................................................................................................................. 14 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 14 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ..............................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX23X06133613W Page 7 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Reference No.: WTX23X06133613W Page 8 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX23X06133613W Page 9 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
