2A4IE-S14Solar String Light (Bluetooth)

Shenzhen Haoyang Lighting Co.,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 07, 2022
Application Purpose: Original Equipment
Date of Application: Jun 06, 2022
Equipment Note: Solar String Light (Bluetooth)
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shenzhen Haoyang Lighting Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Thank you for purchasing our string light. PLEASE READ FIRSTLY AND CAREFULLY THIS USER MANUAL. HOW TO USE User Manual Thank you for purchasing Solar String Light (Bluetooth control), please read this user manual carefully first, we will introduce some of the important features and operaons procedures of this products, please keep this manual in a safe place for future reference. Package Lists 1* LED String Light 1* Solar panel 1* Post & Spike 1* RF remote control 1* User manual SOLAR STRING LIGHT (Bluetooth) 1. This solar string light can use solar or USB for charging. 2. Shortly press the buon, the string light will be ON or OFF. 3. Aer turn on the string light, shortly press the “mode” buon again, can change the light bulb color, and achieve different lighng modes. 4. The solar string light will be turned on automacally at night. 5. The solar string light will be turned off automacally for charging at dayme. 6. When turn on the string light, the indicaons will be always ON. 7. Three control modes: Smart APP +RF remote control+ Buon control SPECIFICATIONS S14-4815-SS-3R L226 x W126 mm 3W/DC5V Polysilicon solar panel 600mA DC3V 4-6hrs(40000Lux) 3-5hrs(Aer full charge) 48FT/14.6M S14(15pcs),0.2W/pcs 3FT/0.9M RGB&W(2700K) IP65 Warm lighng/Colorful change Solar charging or USB charging Smart APP + RF remote control + Buon control Item No. Working Current Working Voltage Solar Panel Solar Panel Size Charging Time Working Time LED Bulb Bulb Spacing Total Length Working mode CCT Waterproof Rated Control mode Charging mode Charge USB Indicaon -1- INSTALLATION Connecng String Lights Install cable with the empty sockets in desired locaon 1. Insert the solar panel into the lawn with a post and a spike 2. With three wall screws, aach the solar panel to the wall or the top of the wall or a tree stump 1 23 Fix the solar panel first (Two installaon methods): Smart APP Connecon 1. Search and Download the “HappyLighng” APP from APP store (for IOS) and Google play store(for Android). 2. Shortly press the ON/OFF buon to turn on the string light, turn on the “Bluetooth” funcon on your phone , then open the “HappyLighng” APP, your APP will pair with the smart string light automacally . 3. App more funcons can be freely controlled by you. a. Warm white mode: Warm white light brings you so and comfortable lighng. b. RGB mode: RGB LED can change different light color. c. Music mode: Lights can change colors with the beauful rhythm of music. d. Tape mode: Lights can be moved followed by the outside voice/music. e. 256 scene modes can be selected. f. Timing funcon, you can set the corresponding scene to change the color of the light. g. You can shake the phone to change the color of the light. h. Also you can take color from the photos on the mobile phone for light transformaon. -2- Unable to Connect Troubleshoong (1) Check if the power supply of the string light is normal. (2) Check if the Bluetooth is turn on. (3) Check if there are other mobile phone are connected, Bluetooth 4.0 only support connecons one to many, dose not support many to many. (4) Check APP Bluetooth seng if the phone is connected to the device, if connect, exit the APP and reopen, the APP will go to connect automacally. (5) Normal operaons and can not connect, please exit the APP and reopen. (6) Exit APP, restart mobile phone, power on the string light, reopen the APP, then them will connect automacally. -3- Remote Controller Operaon ON/OFF AUTO: 256 scene modes can be changed automacally Speed +/-: Dynamic status speed +/- Mode +/-: 256 scene modes +/- Brightness +/-: Adjust the RGB&W brightness +/- Timing: 1H/2H ming funcon Music rhythm mode: 8 music rhythm modes In the white light mode, 11 preset colors can be changed cyclically. RGBW: Click to change to relevant colors. Note: RF Remote controller can work when the led string light not in quick blink status. Remote funcon descripon On AUTO Off S+M+ W S- RGB Speed +/- Timing Rhythm sensivity +/- Brightness +/-Mode +/- Music rhythm mode MADE IN CHINA Cauons & Warnings 1. The bulb is 3V only, please do not put the bulb into other fixtures. 2. Do not repair, disassemble, or modify the product without approval. 3. Do not place the light near any heat sources. 4. Please keep it away from children. 5. Please keep the light dry and clean. 6. Please do not hang anything from the string lights as the extra weight may break the light wire and cause potenal fire hazard. 7. Although our lights are built with safety measures, we do not recommended leaving the light unaended or turning on permanently. 8. Please unplug the switch when it is not in use. 9. Please cut off the power before installing the bulb. + - + - 1H 2H -4- FCCCaution: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid theuser'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterference byoneormoreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferent fromthattowhichthereceiverisconnected. --Consultthed…

Text truncated - open the document above for the full version.

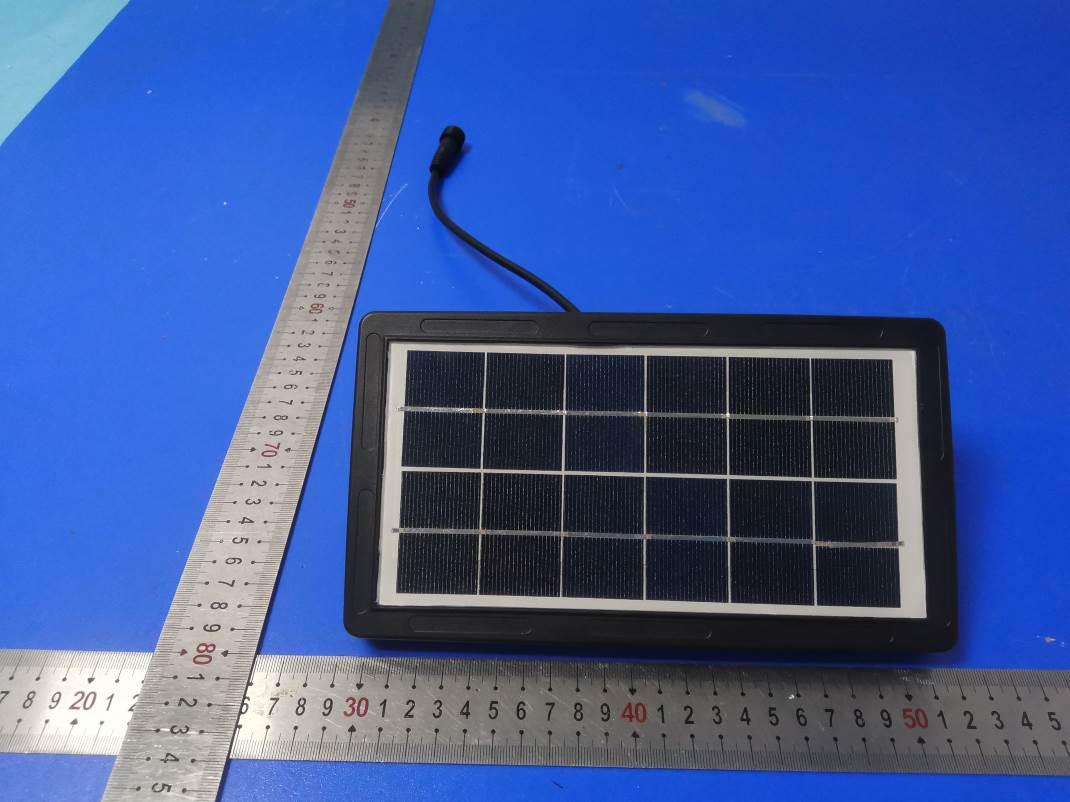

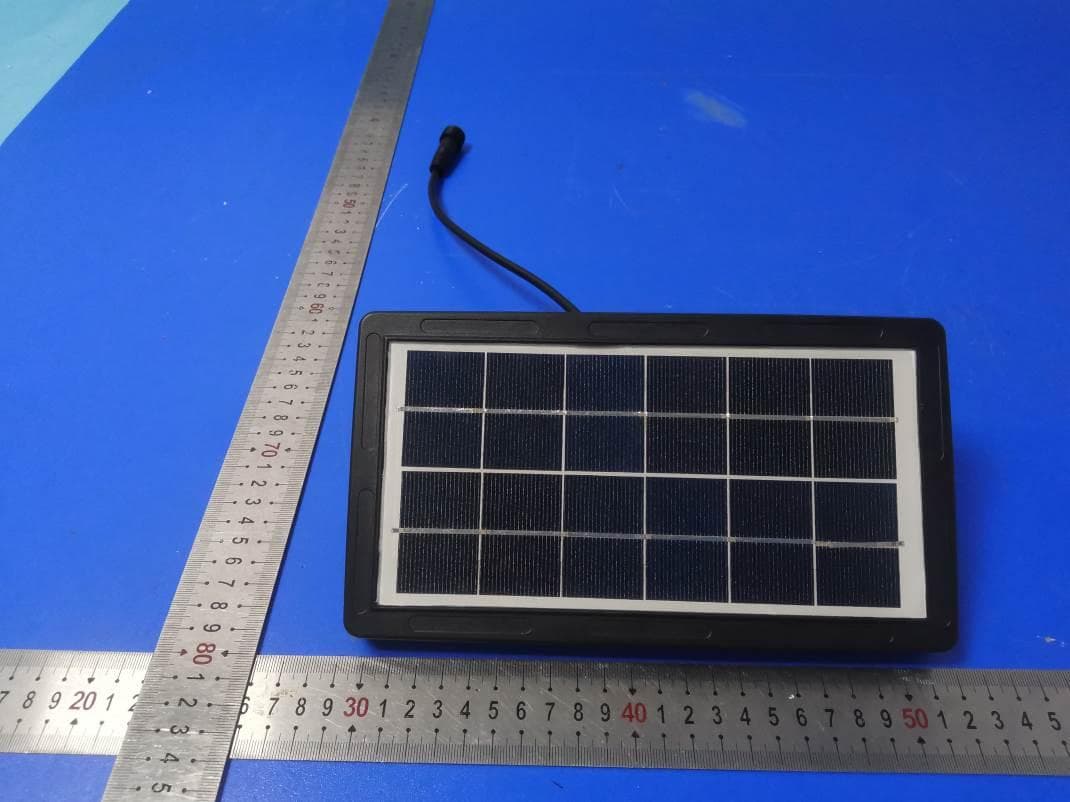

External Photos

Page1of4FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7

ID Label/Location Info

Page1of1FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L4.0cmx3.0cm) LabelLocation SolarStringLight(Bluetooth) Model:S14-4815-SS-3R FCCID:2A4IE-S14

Internal Photos

RF Exposure Info

Page1of3FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation FCCID:2A4IE-S14 EUT:SolarStringLight(Bluetooth) TestModel:S14-4815-SS-3R AdditionalModelNo.: AAAA-XXXYY-SS-PR/W:“AAAA”representstheBulbtype,whichcanbe G16.5、G25、G40、G45、G50、S14、ST38、ST58、ST64、A47、A60、DIY; “XXX”representstheLinelenght,whichcanbe“10”=10FT,“48”=48FT;“YY” representthenumberoflampholders,whichcanbe06-15,“06” =6pcs,“15”=15pcs;“SS”representthesolarpanel,whichusingsolarcharging; “P”representthesolarpanelpower,whichcanbe“1.5-3W”;R/W,represent thecolor,“R”=RGB,“W”=WarmWhite ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethesame,So noadditionalmodelsweretested PowerSupply:Input:AC100-240V,Max3W DC3.7VbyRechargeableLi-ionBattery,2600mAh HardwareVersion:/ SoftwareVersion:/ Bluetooth: FrequencyRange:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV5.0(DTS) ChannelSpacing:2MHzforBluetoothV5.0(DTS) ModulationType:GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaDescription:PCBAntenna,0dBi(Max.) Exposurecategory : Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice Page2of3FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevice wherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissible Exposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioof eachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsand exposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthe testfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulations maybeusedtodeterminetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimple calculationsbasedonfar-fieldplane-waveequivalentconditions.Theantennainstallationandoperating requirementsforthehostdevicemustmeettheminimumtestseparationdistancesrequiredbyallantennas,inboth standaloneandsimultaneoustransmissionoperations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic,and ElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna Page3of3FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PCBAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Notes AntennaPCBAntenna2400MHz-2500MHz0dBiBTAntenna 6.ConductedPower [BTLE] ModeChannelFrequency(MHz) PeakConductedOutputPower (dBm) GFSK 0024022.88 1924402.45 3924802.49 7.ManufacturingTolerance [BTLE] GFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)2.02.02.0 Tolerance±(dB)1.01.01.0 8.MeasurementResults 8.1StandaloneMPEEvaluation AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromanybodypart oftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparationdistance,r=20cm, aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensitycanbeobtained. [BTLE] ModulationType OutputpowerAntenna Gain (dBi) AntennaGain (linear) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW BTLE3.01.995301.00000.00041.0000 Remark: 1.Outputpowerincludingturn-uptolerance; 2.Outputpowerwasadjusttodutycycleat100%ifmeasureddutycyclelessthan98%; 3.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 8.2SimultaneousTransmissionMPEEvaluation TheEUTequipedwithonemoduleandoneantenna.Sononeedconsider…

Text truncated - open the document above for the full version.

Test Report

Page1of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBLE(ConductedMeasurement) ProductName:SolarStringLight(Bluetooth) TestModel:S14-4815-SS-3R EnvironmentalConditions Temperature: 23.5  C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer:JackCheng Supervisedby:LiHuan Page2of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.7010.5Pass NVNTBLE1M2440Ant10.6680.5Pass NVNTBLE1M2480Ant10.710.5Pass Page3of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 Page4of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2480MHzAnt1 Page5of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) DutyFactor (dB) TotalPower (dBm) Limit (dBm) Verdict NVNTBLE1M2402Ant12.8802.8830Pass NVNTBLE1M2440Ant12.4502.4530Pass NVNTBLE1M2480Ant12.4902.4930Pass Page6of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt1 PowerNVNTBLE1M2440MHzAnt1 Page7of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt1 Page8of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-13.020-13.028Pass NVNTBLE1M2440Ant1-13.240-13.248Pass NVNTBLE1M2480Ant1-13.40-13.48Pass Page9of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 Page10of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 Page11of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-42.83-20Pass NVNTBLE1M2480Ant1-53.71-20Pass Page12of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission Page13of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission Page14of23FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.5ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-40.59-20Pass NVNTBLE1M2440Ant1-36.96-20Pass NVNTBLE1M2480Ant1-37.51-20Pass Page15of23FCCID:2A4IE-S1…

Text truncated - open the document above for the full version.

Test Report

Page1of34FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ShenzhenHaoyangLightingCo.,Ltd SolarStringLight(Bluetooth) TestModel:S14-4815-SS-3R AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ShenzhenHaoyangLightingCo.,Ltd Address:Room301,BuildingB,SanbaoIndustrialZone,MinzhiStreet, LonghuaDistrict,ShenzhenCity,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:May14,2022 Numberoftestedsamples:2 SampleNo.:A051022039-1,A051022039-2 Serialnumber:Prototype DateofTest:May14,2022~May24,2022 DateofReport:May25,2022 Page2of34FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA051022039EA DateofIssue.......................................:May25,2022 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenzhenHaoyangLightingCo.,Ltd Address................................................:Room301,BuildingB,SanbaoIndustrialZone,MinzhiStreet, LonghuaDistrict,ShenzhenCity,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:SolarStringLight(Bluetooth) TradeMark..........................................: TestModel...........................................:S14-4815-SS-3R Ratings.................................................:Input:AC100-240V,Max3W DC3.7VbyRechargeableLi-ionBattery,2600mAh Result...................................................:Positive Compiledby:Supervisedby:Approvedby: LhLi/Administrator JinWang/TechniqueprincipalGavinLiang/Manager Page3of34FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestModel...............................:S14-4815-SS-3R EUT.........................................:SolarStringLight(Bluetooth) Applicant...............................:ShenzhenHaoyangLightingCo.,Ltd Address..................................:Room301,BuildingB,SanbaoIndustrialZone,MinzhiStreet, LonghuaDistrict,ShenzhenCity,China Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ShenzhenHaoyangLightingCo.,Ltd Address...................................:Room301,BuildingB,SanbaoIndustrialZone,MinzhiStreet, LonghuaDistrict,ShenzhenCity,China Telephone...............................: / Fax..........................................: / Factory...................................:ShenzhenHaoyangLightingCo.,Ltd Address...................................:Room301,BuildingB,SanbaoIndustrialZone,MinzhiStreet, LonghuaDistrict,ShenzhenCity,China Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA051022039EA May25,2022 Dateofissue Page4of34FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000May25,2022InitialIssue--- Page5of34FCCID:2A4IE-S14ReportNo.:LCSA051022039EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS.................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of2FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2A4IE-S14 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3

Contact Information

Applicant

Tim Gong

[email protected]+86-18824323828Fax: +86-18824323828

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.90 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
