2A4JS80203900XT2039

User Manual P roj ec t no .: FC C User Manual Operational description Filename: User Manual Last saved by: 孙 振 Project no.: FCC Date: 2022/11/15 16:46 Page 2 of 5 Table of contents Table of contents 2 1 Version 3 2 Sensor Overview 3 3 Operational description 4 4 Specifications 4 5 FCC Statement 4 6 CE Compliance statement 5 User Manual Operational description Filename: User Manual Last saved by: 孙 振 Project no.: FCC Date: 2022/11/15 16:46 Page 3 of 5 1 Version Version Date Author Comments 0.1 05-04-2022 Kenneth Skou Willumsen First edition 0,2 2 Sensor Overview The sensor is depicted in Figure 1 Figure 1: Picture of the tracker The sensor is equipped with a button in the top middle and a small light indicator in the lower right corner of the button. The unit is equipped with 2 ”ears” for easy mounting. Mounting the sensor is simply done with 2 screws. The sensor will be equipped with a sticker on the back containing the serial number of the device both as a number and scannable QR code, along with the FCC code. This can be seen in Figure 2. Figure 2: Picture of the label on the device User Manual Operational description Filename: User Manual Last saved by: 孙 振 Project no.: FCC Date: 2022/11/15 16:46 Page 4 of 5 3 Operational From production the device is in sleep mode, and it can be enabled by a long key press. This can only be done once and after this the device is always powered on and cannot be turned off. The device functions as a simple tracker and is operated by a single button. To avoid pushing the button by accident the button press needs to have a duration of 2 seconds. Pressing the button for 2 seconds will make the device collect a GPS position and report it back home to a server. When this process is started the LED will blink green 5 times. If the button is pressed for two seconds again within 2 minutes of the first button press the LED will blink red 5 times to signal it is busy. This will not initiate a new process. 4 Specifications Primary physical specifications are listed below: • Dimensioner (mm): 106 mm x 58 mm x 27 mm • Product security and environmental: CE and RoHS • Operating temperature Range: –30°C - +80°C - Industrial grade • Battery type: Primary cell: Industrial 3,0V 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. User Manual Operational description Filename: User Manual Last saved by: 孙 振 Project no.: FCC Date: 2022/11/15 16:46 Page 5 of 5 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Refer to FCC 15.203 section The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” 6 CE Compliance statement Hereby, [Xtel Wireless ApS ] declares that the radio equipment type [XT2039] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address https://xtel.dk/

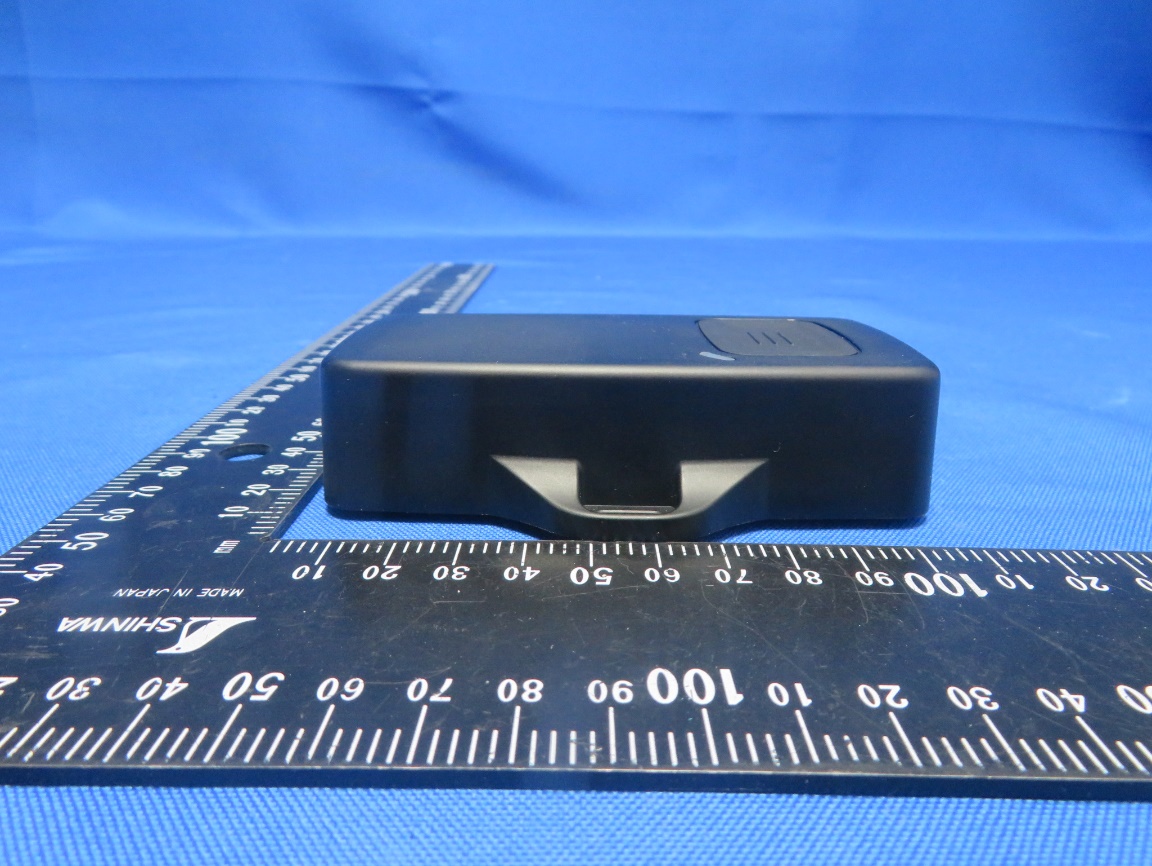

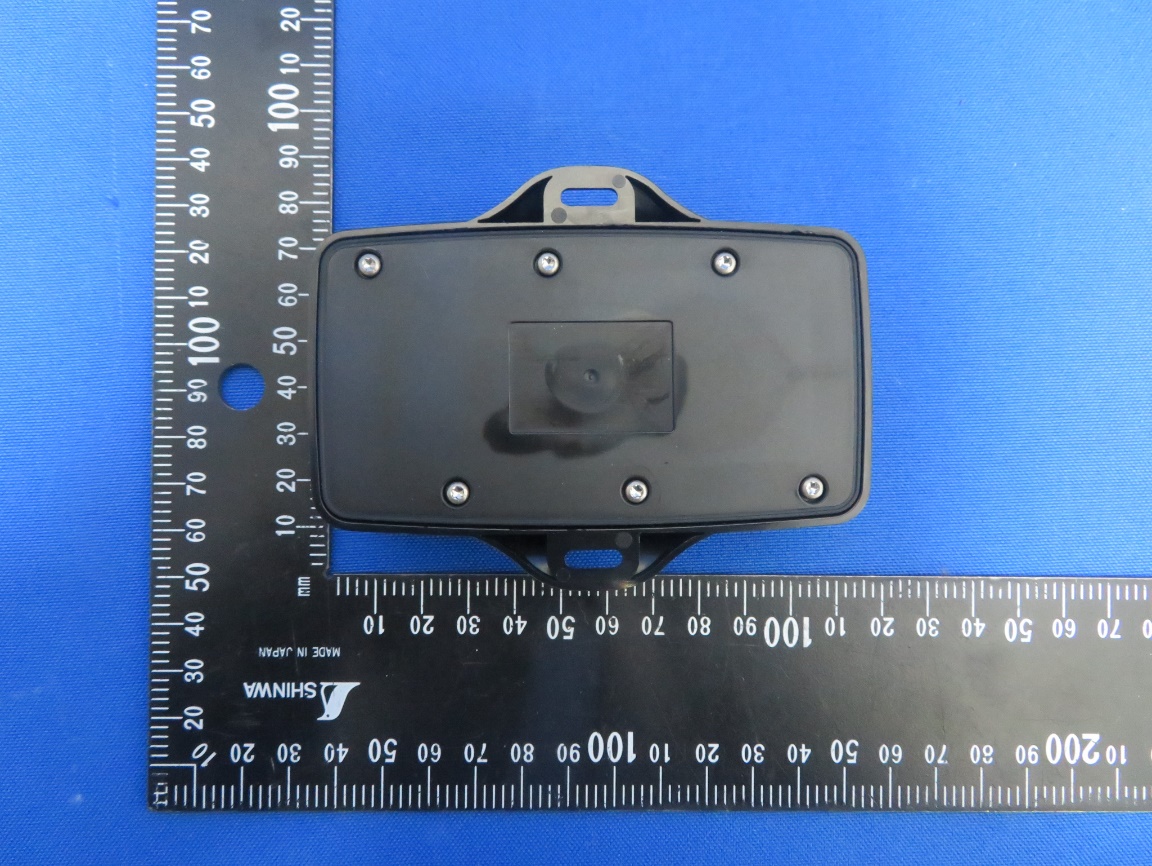

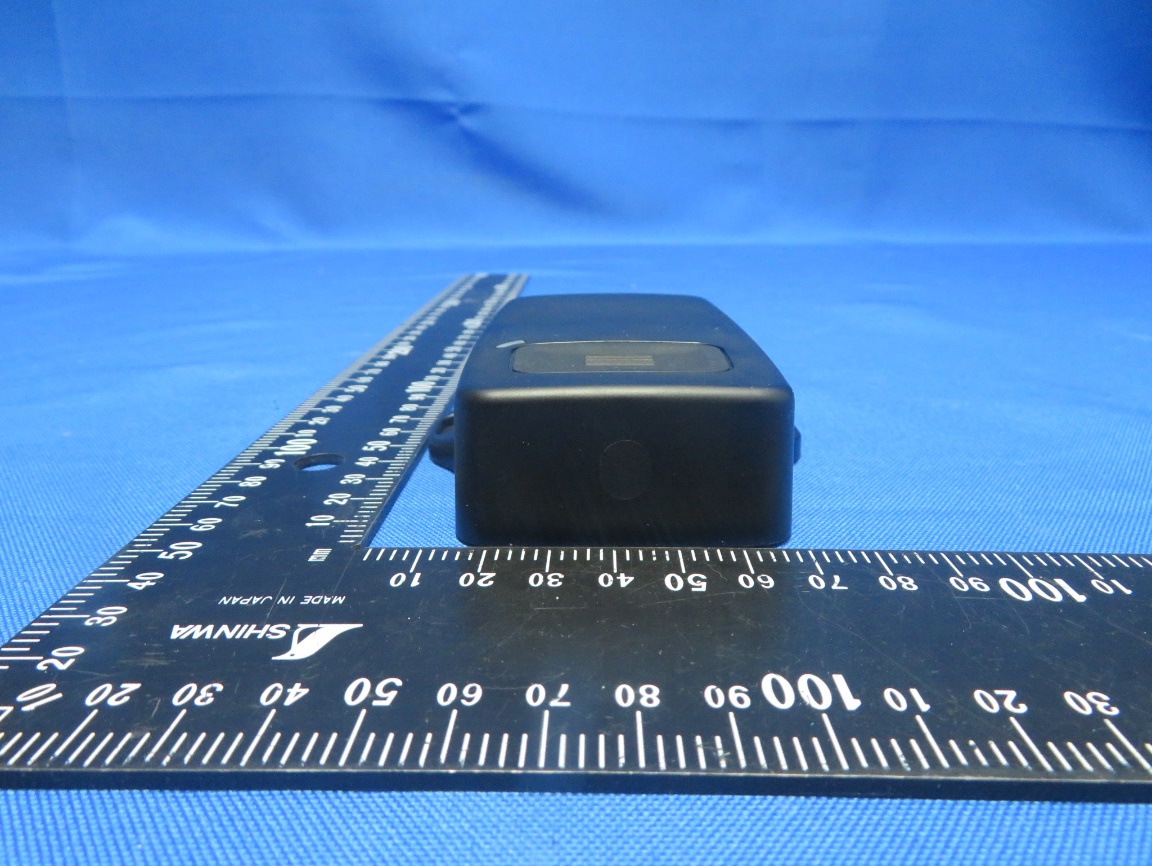

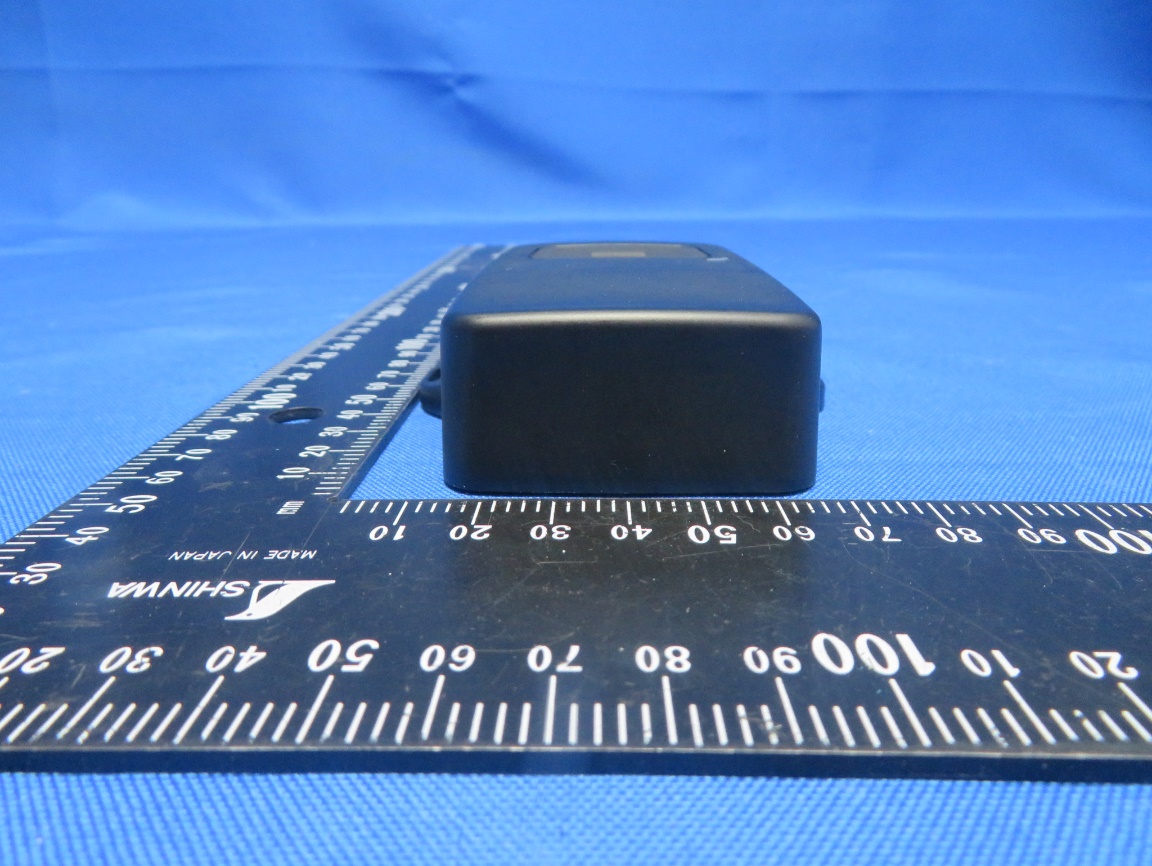

Report No.: 2203RSU035-UE 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2203RSU035-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2203RSU035-UE 3 of 3 (5) EUT Photo (6) EUT Photo

20,00+ - 0.05 20,00+ - 0.05 30,00+- 0.05 30,00+- 0.05 20,00+ - 0.05 30,00+- 0.05 P/N: XT2039 Xtel Wireless RoHS Compliant BLE 5.0 2,4GHz LTE M1, NB1 / NB2 Gateway ID:2039xxxxxxID:2039xxxxxx WWW.Xtel.dk FCC ID: 2A4JS80203900

Report No.: 2203RSU035-UE 1 of 7 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2203RSU035-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2203RSU035-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2203RSU035-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2203RSU035-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2203RSU035-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2203RSU035-UE 7 of 7 (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2203RSU035-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-10-20 Template Version:0.0 1 of 11 RF Exposure Evaluation Declaration FCC ID: 2A4JS80203900 Application: Xtel Wireless ApS Product: XT2039 Model No.: XT2039 Brand Name: Xtellio Gateway FCC Rule Part(s): FCC Part 2.1091 Result: Complies Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2203RSU035-U3 2 of 11 Revision History Report No. Version Description Issue Date Note 2203RSU035-U3 Rev. 01 Initial Report 2022-10-20 Valid Report No.: 2203RSU035-U3 3 of 11 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 6 1.6. Applied Standards ......................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.2. MPE Exemptions ........................................................................................................................... 8 2.3. Device Classification ................................................................................................................... 10 2.4. Calculated Result ......................................................................................................................... 11 Report No.: 2203RSU035-U3 4 of 11 1. General Information 1.1. Applicant Xtel Wireless ApS Gasvaerksvej 32E, 9000, Aalborg, Denmark. 1.2. Manufacturer Xtel Wireless ApS Gasvaerksvej 32E, 9000, Aalborg, Denmark. 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2203RSU035-U3 5 of 11 1.4. Product Information Product Name XT2039 Model No. XT2039 Brand Name Xtellio Gateway Bluetooth Version V4.2 single mode, BLE only Cat-M Single Band Band 2, 4, 12, 66 NB-IoT Single Band Band 2, 4, 12, 66 Operating Temperature -30 ~ 85 °C Supply Voltage: By Battery Integrated Modular Information (Cellular Module) Model No. BG77 FCC ID XMR201912BG77 Brand Name Quectel Accessories Lithium Battery Model: CR17500EP Output: 3.0V Remark: 1. This device is based on Quectel “BG77” module to assessing the radiated spurious emission. 2. The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Report No.: 2203RSU035-U3 6 of 11 1.5. Antenna Details Radio Spec. Antenna Type Frequency Band (MHz) Antenna Gain (dBi) Bluetooth Chip Antenna 2402 ~ 2480 1.0 Band 2 PCB Antenna 1850 ~ 1910 4.4 Band 4/66 PCB Antenna 1710 ~ 1780 4.4 Band 12 PCB Antenna 699 ~ 716 1.3 1.6. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2203RSU035-U3 7 of 11 2. RF Exposure Evaluation 2.1. Test Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 -- -- f/1500 <30 1,500-100,000 -- -- 1.0 <30 f= frequency in MHz. * = Plane-wave equivalent power den…

Text truncated - open the document above for the full version.

MPE TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201912BG77 Product LTE Cat M1 & Cat NB2 Module Brand Quectel Model BG77 Marketing Quectel BG77 Report No. R1909A0576-M1 Issue Date February 28, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC 47 CFR Part 1 1.1310. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 MPE Test Report Report No.: R1909A0576-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 2 of 10 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 3 1.1 Notes of the Test Report ......................................................................................................... 3 1.2. Test facility ............................................................................................................................ 3 1.3 Testing Location ...................................................................................................................... 3 1.4 Laboratory Environment .......................................................................................................... 4 2 Description of Equipment under Test .............................................................................................. 5 3 Maximum conducted output power (measured) and antenna Gain ................................................ 6 4 Test Result ..................................................................................................................................... 7 MPE Test Report Report No.: R1909A0576-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 3 of 10 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1 Test Laboratory 1.1 Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd.The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. 1.3 Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] MPE Test Report Report No.: R1909A0576-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 4 of 10 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4 Laboratory Environment Temperature Min. = 18C, Max. = 25 C Relative humidity Min. = 30%, Max. = 70% Ground system resistance < 0.5  Ambient noise is checked and found very low and in compliance with requirement of standards. Reflection of surrounding objects is minimized and in compliance with requirement of standards. MPE Test Report Report No.: R1909A0576-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 5 of 10 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2 Description of Equipment under Test Client Information Applicant Quectel Wireless Solutions Co., Ltd Applicant address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer Quectel Wireless Solutions Co., Ltd Manufacturer address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 General Technologies Model BG77 IMEI 866349040044541 Hardware Version R1.2 Software Version BG77LAR02A02 Date of Testing: December 13, 2019 ~January 14, 2020 Note: 1. The EUT is sent from the applicant to TA and the information of the EUT is declared by the applicant. 2. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. MPE Test Report Report No.: R1909A0576-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 6 of 10 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 3 Maximum conducted output power (measured) and antenna Gain The numeric gain (G) of the antenna with a gain specified in dB is determined by Numeric gain (G)=10^(antenna gain/10) Band Maximum Conducted Output Power (dBm) (dBm) (mW) LTE Band 2 22.00 158.489 LTE Band 4 22.00 158.489 LTE Band 5 22.00 158.489 LTE Band 12 22.00 158.489 LTE Band 13 22.00 158.489 LTE Band 14 22.00 158.489 LTE Band 25 22.00 158.489 LTE Band 26 22.00 158.489 LTE Band 66 22.00 15…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2203RSU035-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-10-20 Template Version:0.0 1 of 20 RF MEASUREMENT REPORT FCC ID: 2A4JS80203900 Application: Xtel Wireless ApS Product: XT2039 Model No.: XT2039 Brand Name: Xtellio Gateway FCC Rule Part(s): Part 24 (E), 27 Test Date: March 15 ~ 27, 2022 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2203RSU035-U2 2 of 20 Revision History Report No. Version Description Issue Date Note 2203RSU035-U2 Rev. 01 Initial Report 2022-10-20 Valid Report No.: 2203RSU035-U2 3 of 20 CONTENTS Description Page 1. General Information .................................................................................................................................. 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacture................................................................................................................................... 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Product Specification under Test ................................................................................................... 5 1.6. EIRP and Emission Designator ..................................................................................................... 6 1.7. Test Methodology .......................................................................................................................... 6 1.8. Device Capabilities ........................................................................................................................ 6 1.9. Configuration of Tested System .................................................................................................... 7 1.10. Test Environment Condition .......................................................................................................... 7 2. Test Equipment Calibration Dtae ............................................................................................................. 8 3. Measurement Uncertainty ........................................................................................................................ 9 3.1. Decision Rules .............................................................................................................................. 9 3.2. Measurement Uncertainty ............................................................................................................. 9 4. Test Result ...............................................................................................................................................10 4.1. Summary ..................................................................................................................................... 10 4.2. Radiated Spurious Emissions Measurement .............................................................................. 11 4.2.1. Test Limit ..................................................................................................................................... 11 4.2.2. Test Procedure ............................................................................................................................ 11 4.2.3. Test Setting .................................................................................................................................. 11 4.2.4. Test Setup.................................................................................................................................... 12 4.2.5. Test Result ................................................................................................................................... 12 Appendix A - Test Result .................................................................................................................................13 A.1 Radiated Spurious Emissions Test Result ......................................................................................... 13 Appendix B - Test Setup Photograph ............................................................................................................19 Appendix C - EUT Photograph .......................................................................................................................20 Report No.: 2203RSU035-U2 4 of 20 1. General Information 1.1. Applicant Xtel Wireless ApS Gasvaerksvej 32E, 9000, Aalborg, Denmark. 1.2. Manufacture Xtel Wireless ApS Gasvaerksvej 32E, 9000, Aalborg, Denmark. 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 …

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201912BG77 Product LTE Cat M1 & Cat NB2 Module Brand Quectel Model BG77 Report No. R1909A0576-R1V1 Issue Date April 3, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2019)/ FCC CFR 47 Part 22H (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF Test Report Report No.: R1909A0576-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 2 of 39 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ...................................................................................................................................... 4 1.1. Notes of the Test Report ............................................................................................................... 4 1.2. Test facility ..................................................................................................................................... 4 1.3. Testing Location ............................................................................................................................ 4 2. General Description of Equipment under Test ....................................................................................... 5 2.3. Applicant and Manufacturer Information ....................................................................................... 5 2.4. General Information ....................................................................................................................... 5 3. Applied Standards .................................................................................................................................. 6 4. Test Configuration .................................................................................................................................. 7 5. Test Case Results .................................................................................................................................. 8 5.1. RF Power Output and Effective Radiated Power .......................................................................... 8 5.2. Occupied Bandwidth ................................................................................................................... 11 5.3. Band Edge Compliance ............................................................................................................... 18 5.4. Peak-to-Average Power Ratio (PAPR) ....................................................................................... 23 5.5. Frequency Stability ...................................................................................................................... 25 5.6. Spurious Emissions at Antenna Terminals ................................................................................. 30 5.7. Radiates Spurious Emission ....................................................................................................... 33 6. Main Test Instruments ......................................................................................................................... 39 RF Test Report Report No.: R1909A0576-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 3 of 39 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results No. Test Case Clause in FCC rules Verdict 1 RF Power Output and Effective Radiated Power 2.1046 22.913(a)(5) PASS 2 Occupied Bandwidth 2.1049 PASS 3 Band Edge Compliance 2.1051 / 22.917(a) PASS 4 Peak-to-Average Power Ratio 22.913(d)/ KDB 971168 D01(5.7) PASS 5 Frequency Stability 2.1055 / 22.355 PASS 6 Spurious Emissions at Antenna Terminals 2.1051 / 22.917(a) PASS 7 Radiates Spurious Emission 2.1053 / 22.917 (a) PASS Date of Testing: November 28, 2019~ March 11, 2020 Note: All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. Note: This revised report (Report No.: R1909A0576-R1V1) supersedes and replaces the previously issued report (Report No.: R1909A0576-R1). Please discard or destroy the previously issued report and dispose of it accordingly. RF Test Report Report No.: R1909A0576-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 4 of 39 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. 1.3. Testing Location Company: TA Technology (Shan…

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201912BG77 Product LTE Cat M1 & Cat NB2 Module Brand Quectel Model BG77 Report No. R1909A0576-R2V1 Issue Date April 3, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2019)/ FCC CFR 47 Part 24E (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao App…
