2A4LH-PN-W322 in 1 Wireless Power Bank

PN-W32 尺寸:70 * 105 mm 105克铜版纸 折页 彩色双面印刷 风琴折 Magnetic Portable Power Bank 10000 mAh Thank you for using our product. To provide an easy user experience, we have provided detailed information about the product and instructions for use. Please read the instructions carefully before using this product so that you can use it correctly. 1. Product Details 2. Product Parameters 3. Product Features 1. Exclusive design, fashionable and beautiful. 2. Original A-class polymer battery provides safety and stability. 3. Wireless output, suitable for all iPhone with magnetic suction. 4. Large-capacity design, worry-free travel life. 4. Package Includes 1 * 2 in 1 Power Bank 1 * USB-C Charging Cable 1 * Velvet Storage Bag 1 * User Manual 6. Product Maintenance 7. Warning To ensure the maximum efficiency of this product, please note the following: 1. Keep away from wet corrosive substances. 2. Do not use chemicals to clean this product. 3. When the product is not used for a long time, please charge it every six months. 1. Not compatible with non-magnetic phone cases. 2. Magnetic function is only compatible with iPhone 12 series and later. 3. The watch charger is compatible with all Apple Watch models. 4. When the portable charger is charging or discharging, some heat may be generated due to the energy loss during the transmission process, which is a normal phenomenon. 1. This power bank is suitable for DC 5V/3A charging devices. Use of a device beyond this specification may cause damage to this product. 2. Please do not disassemble or modify the power bank. 3. Keep away from fire and keep dry to prevent failures. 4. Please do not use the power bank at high temperatures (≥45°C). 5. Please connect a device that conforms to the output specifications of this product. 6. If you see any bulging, swelling, leakage, or other abnormality from the power bank, stop using it immediately. FCC Statement 1. Every LATIMERIA Product is provided with 12 months of warranty and lifetime technical support. 2. If you have any problems with our products or services, please contact our dedicated customer service at [email protected]. We usually get back to you within24hours during business days. -R eorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an out let on a circuit dierent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 5.Instructions: Press the power button to turn on the power bank, the LED battery indicator lights up, if there is no charging device connected, the power bank will automatically shut down after 30 seconds. Press the power button twice to shut down the power bank. 1) Turn on/off Plug the USB-C cable or the Micro-USB cable into the power bank, and the other end into the port of the charger. The LED battery indicator will flash when charging, and the LED battery indicator will stay on when fully charged. 2) Charging the power bank Plug into your device, then press the power button to turn on the power bank, and the LED battery indicator lights up. 3) Charging the power bank *Cable charging 4) Charge your watch Place your Apple watch on the watch charger, and press the power button to charge. The watch charger is compatible with all Apple Watch models. 5) Wireless Charging Indicator light status Blue light: Watch charging Green light: Wireless charging Blue/Green light flash: Foreign object detection alarm Power Indicator light status Smart Indicators show the power status as 25% -50% -75% 100% Attach your phone to the wireless charging area of the power bank, then press the power button to charge your phone. The magnetic function is only compatible with iPhone 12 series and later. *Wireless charging Tips Micro USB Input USB-C Input USB-C Output USB Output Battery Capacity Wireless Charging Output DC 5V/2.4A DC 5V/2.4A DC 5V/3A DC 5V/3A (Max) 10000mAh 2.5W (Watch); 5W (Phone) User Manual PN-W32 Phone Wireless Charging Area Watch Wireless Charging Area Power Button Battery Status Indicator Foldable Leather Bracket Micro USB Input Wireless Charging Indicator USB-C Output/InputUSB Output 12 Wireless Charging Indicator Battery Status Indicator 25% 50% 75% 100% Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the product. NOTE: This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ShenzhenPannizheTechnologyCo.,Ltd. AgentAuthorization Company:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialParkHuangtian XixiangTownBaoanDistrictShenzhen,China518128 ProductName:2in1WirelessPowerBank ModelNumber(s):PN-W32 ProductDescription:2in1WirelessPowerBank WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2022.12.12 Name: MaojunHuang Title: GeneralManage Company: ShenzhenPannizheTechnologyCo.,Ltd.

ShenzhenPannizheTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022.12.12 Subject;RequestforConfidentiality FCCID:2A4LH-PN-W32 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MaojunHuang Title:GeneralManage

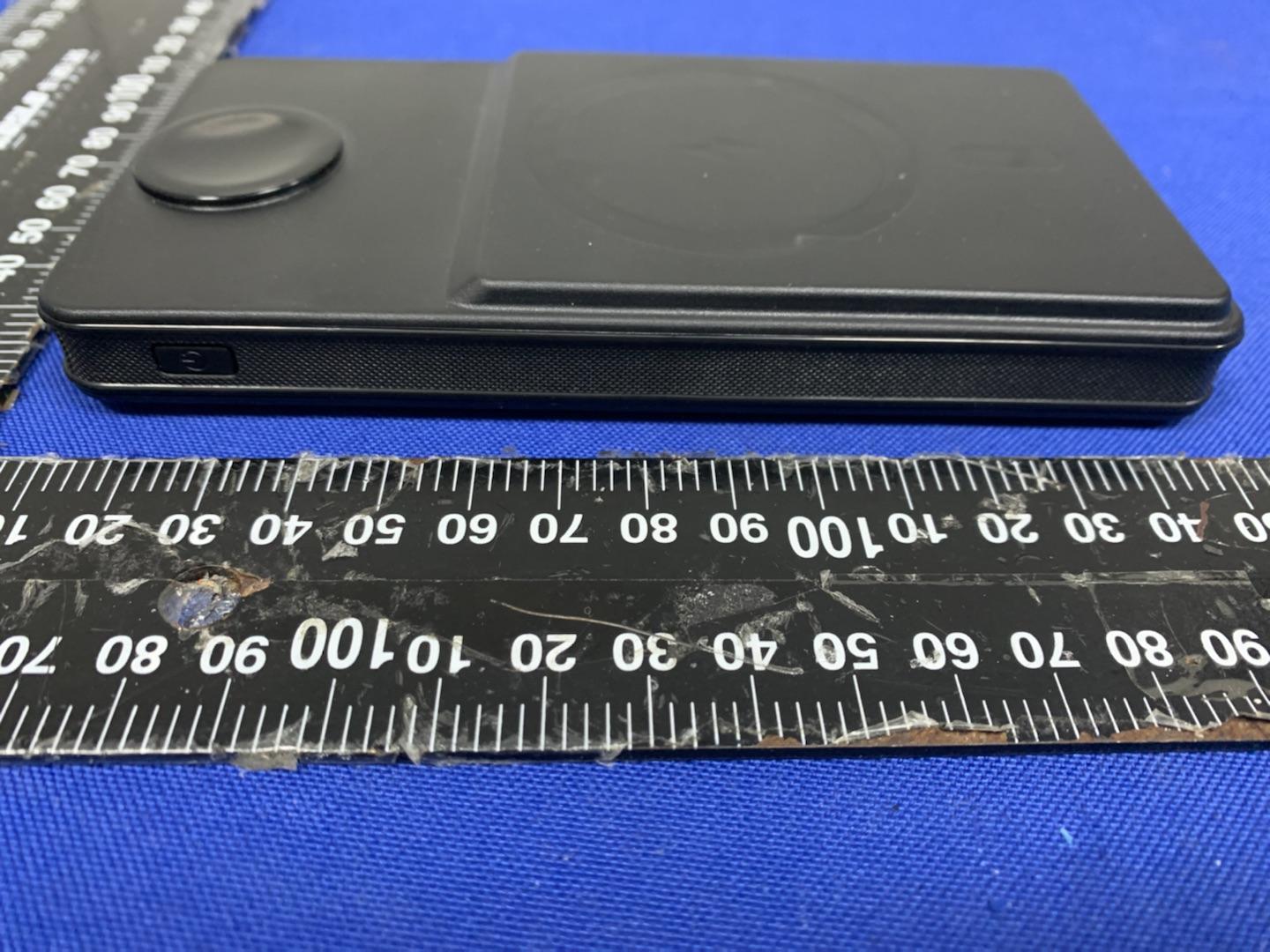

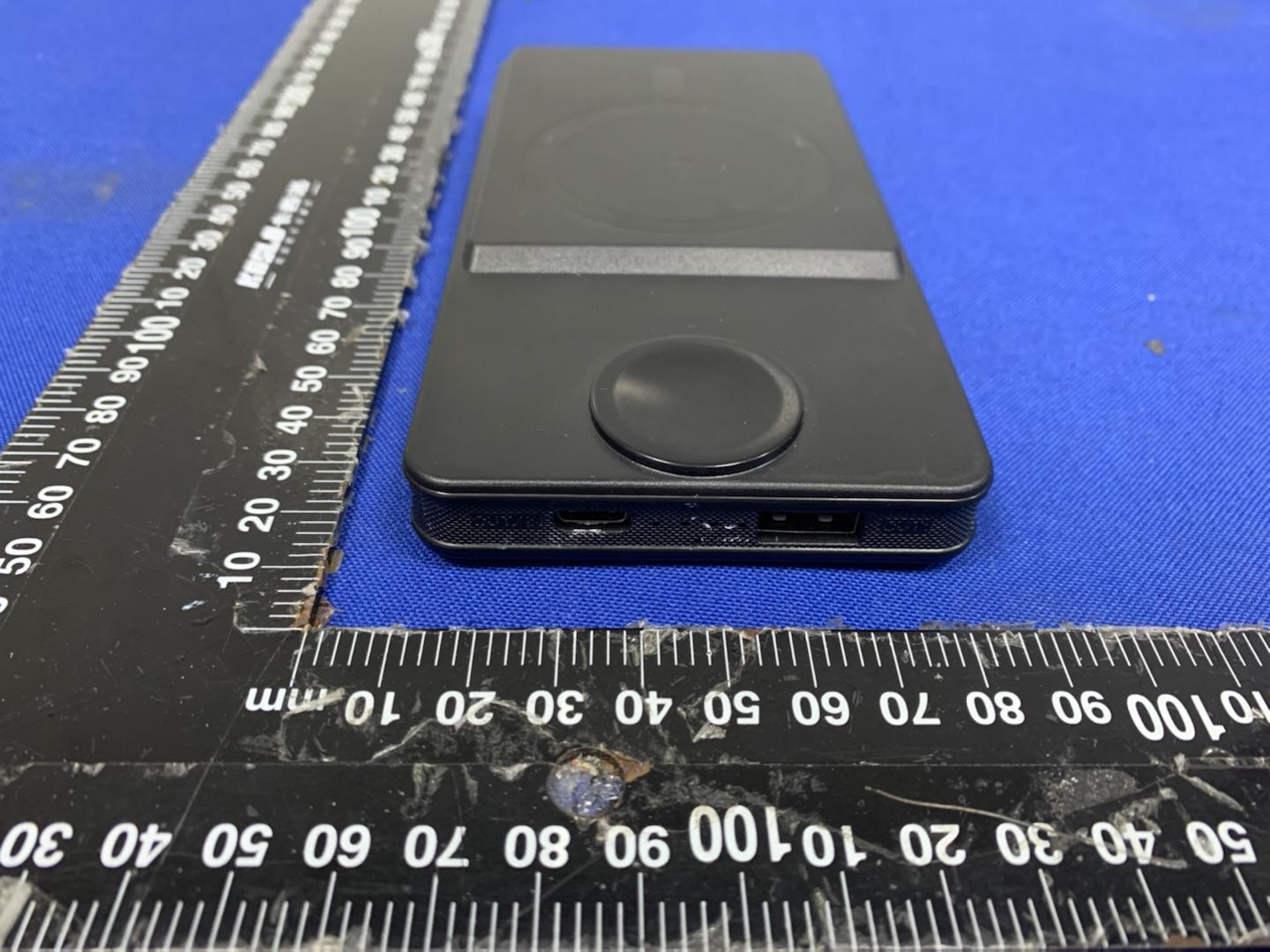

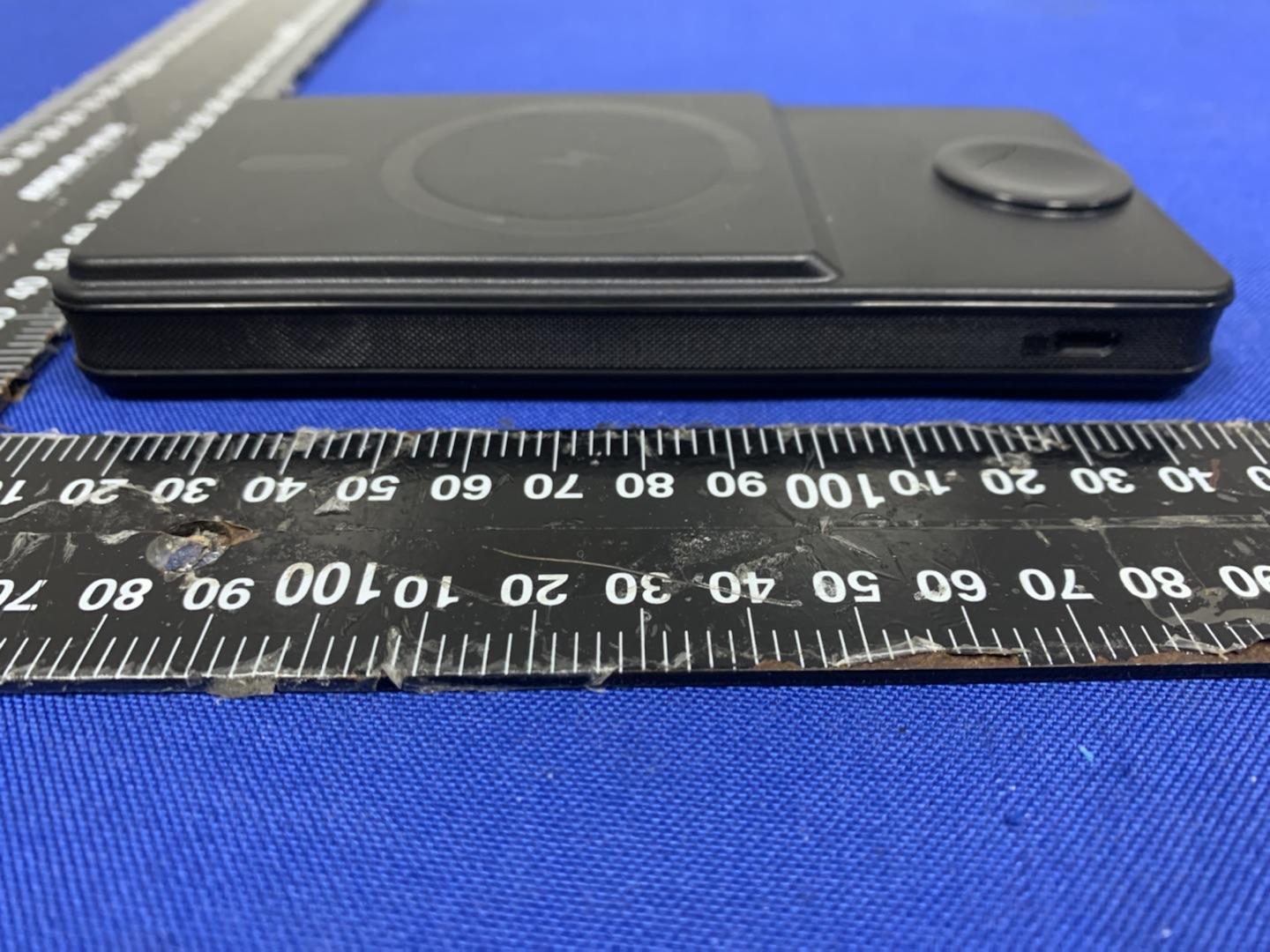

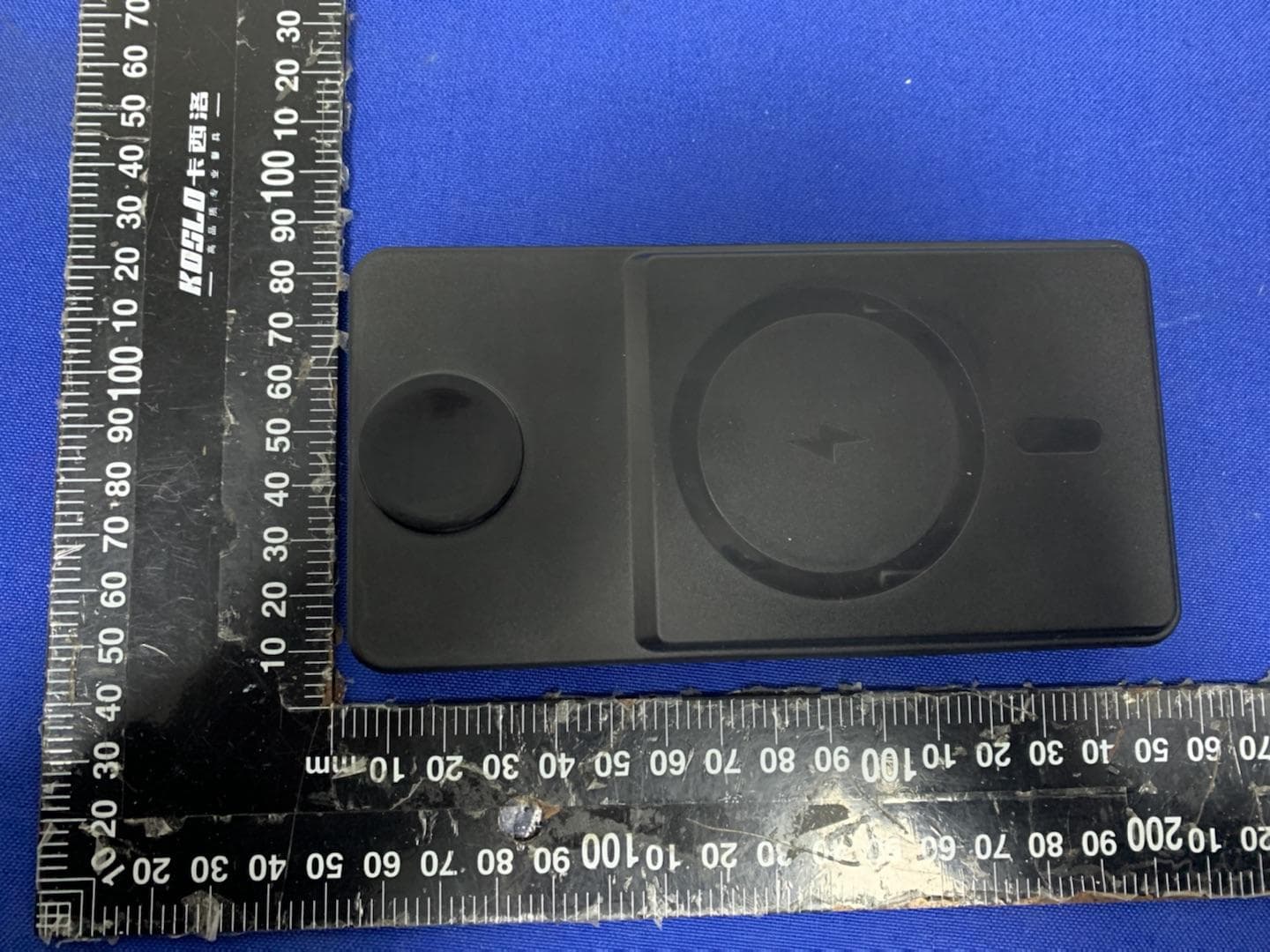

ExternalPhotos

Lable: 2in1WirelessPowerBank FCCID:2A4LH-PN-W32 Capacity:10000mAh MicroInput:5V/2.4AType-CInput:5V/2.4A Type-COutput:5V/3AUSB-AOutput:5V/3A WirelessOutputforWatch:2.5W WirelessOutputforPhone:5WMadeinChina

InternalPhotos CoilAntennaForWatch CoilAntennaForPhone

ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W32 RFExposureEvaluationReport 1ProductInformation FCCID: 2A4LH-PN-W32 ProductName: 2in1WirelessPowerBank ModelNumber: PN-W32 PowerSupply ： Capacity10000mAh MicroInput:5V/2.4A Type-CInput:5V/2.4A Type-COutput:5V/3A USB-AOutput:5V/3A WirelessOutputforWatch:2.5W WirelessOutputforPhone:5W FrequencyRange: 110-205KHz AntennaType: CoilAntenna Hardwareversion V1.0 Softwareversion V1.0 Accessories Watch：SE2 Mobilephone:OPPOA96 Adapter:PD-014 Exposurecategory Generalpopulation/uncontrolledenvironment EUTType ProductionUnit DeviceType PortableDevice ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W32 2EvaluationMethod PerKDB680106D01v03r01Section3.RFExposureRequirements; 1)ConsumerwirelesspowertransferdevicesapprovedunderPart18insomecaseshavetodemonstrate compliancewithRFexposurerequirements.Thepotentialforexposuremustbeassessedaccordingtothe operatingconfigurationsofthewirelesssystemandtheexposureconditionsofusersandbystanders.RF exposuremustbeevaluatedwiththeclientdevice(s)beingchargedbytheprimaryatmaximumoutputpower. TheRFexposurerequirementsmustbedeterminedinconjunctionwiththedeviceoperatingcharacteristics, accordingtothemobileandportableexposurerequirementsinSection2.1091andSection2.1093ofthe rules.SARandMPElimitsdonotcoverthefrequencyrangeforwirelesspowertransferapplicationswhich operatebelow100kHzand300kHzrespectively;therefore,RFexposurecomplianceneedstobe determinedwithrespectto1.1307(c)and(d)oftheFCCrules. 2)Basedonthedesignandimplementationofthepowertransferapplication,itmustbeclearlyidentifiedif mobileorportableRFexposureconditionsapply.Devicesthatareinstalledtoprovideseparationofatleast 20cmfromusersandbystandersmayqualifyformobileexposureconditions.Forsomeconditionswhere usersandbystandersmaybeexposedatcloserthan20cm,section2.1091(d)(4)oftherulesmayapply. 3)Fordevicesdesignedfortypicaldesktopapplications,suchawirelesschargingpads,RFexposure evaluationshouldbeconductedassumingauserseparationdistanceof15cm.EandHfieldstrength measurementsornumericalmodelingmaybeusedtodemonstratecompliance.Measurementsshouldbe madefromallsidesandthetopoftheprimary/clientpair,withthe15cmmeasuredfromthecenterofthe probe(s)totheedgeofthedevice.Emissionsbetween100kHzto300kHzshouldbeassessedversusthe limitsat300kHzinTable1ofSection1.1310:614V/mand1.63A/m.AKDBinquiryisrequiredtodetermine theapplicableexposurelimitsbelow100kHz 4)Portableexposureconditionsfrom100kHzto6GHzaredeterminedwithrespecttoSARrequirements. ExistingSARsystemsandtestproceduresaregenerallyintendedformeasurementsabove100MHz.While numericalmodelingcanbeanalternative,theconstraintsofsubstantialcomputationalresourcesatlow frequenciescouldintroducefurtherlimitations.Underthesecircumstances,includingoperationsbelow100 kHz,theCommissionmayconsideracombinationofanalyticalanalysis,fieldstrength,radiatedand conductedpowermeasurements,inconjunctionwithsomelimitednumericalmodelingtoassesscompliance. 5)Dependingontheoperatingfrequency,existingSARandMPEmeasurementproceduresmaybeadapted toevaluatewirelesspowertransferdevicesforcompliancewithrespecttomobileorportableexposure conditions.IfthegranteeoritstestlabhaveanyquestionsregardingRFexposureevaluationtheyshould contacttheFCCLaboratorywithsufficientsystemoperatingconfigurationdetailstodetermineifRFexposure evaluationisnecessaryand,ifrequired,howtoapplyspecifictestprocedures.Below100MHz,whenSAR testingisrequiredandthedeviceisoperatingatcloseproximitytopersons,informationondevicedesign, implementation,operatingconfigurations,exposureconditionsofusersandbystandersareneededto determinetheevaluationandtestingrequirements.Inaddition,theinfluenceofnearbyobjectsmayalsoneed considerationaccordingtothewirelesspowertransfersystemimplementation;forexample,theeffectsof placingthedevice,itscoilsorradiatingelementsonornearmetallicsurfaces. 6)AccordingtoApril2018TCBWorkshop,NoneedtoreportE-fieldmeasurements.Only H-fieldrequired. ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W32 3EvaluationLimit 3.1Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. 680106D01RFExposureWirelessChargingAppsv03r01:RFExposureConsiderationsforLow PowerConsumerWirelessPowerTransferApplications FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices FCCCFR47part18.107:Indusial,Scientific,andMedicalEquipment 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure F=frequencyinMHz *=Plane-waveequivalentpowerdensity AccordingtoFCC680106D01RFExposureWirelessChargingAppsv03r01Section3.RF ExposureRequirementsclause3theEmission-Limitsinthefrequencyrangefrom100KHzto300 KHzshouldbeassessedversusthelimitsat300KHzinTable1ofCFR47–Section1.310as following(measureddistanceshallbe15cmfromthecenteroftheprobetotheedgeofthedevice): AKDBinquirewasrequiredtodetermine/confirmtheapplicablelimitsbelow100KHz. ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W32 4TestSetup 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ExposureLevelTesterNardaELT-400N-0231June.252022June.242023 Magneticfieldprobe 100cm 2 NardaELTprobe100cm 2 M0675June.252022June.242023 IsotrpicElectricfield probe NardaEP-601611WX70332June.252022June.242023 6MeasurementProcedure a)TheRFexposuretestwasperformedon360degreeturntableinanechoicchamber. b)Themeasurementprobewasplacedattestdistance(0-20cm,in2cmmaximumincrement)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. c)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementof eachpoints(A,B,C,D,E,F)werecompleted. d)TheEUTweremeasuredaccordingtothedictatesof680106D01RFExposureWirelessChargingAppsv03r01 ShenzhenZKT TechnologyCo., Ltd.FCC ID: 2A4LH-PN-W32 7 EquipmentApprovalConsiderations The EUT doescomplywithitem5.2 of 680106D01 RF ExposureWirelessChargingAppsv03r01as followstable; Requirementsof…
