2A4LH-PN-W35Magnetic Wireless Power Bank

PN-W35 尺寸:70 * 105 mm 105克铜版纸 折页 彩色双面印刷 风琴折 Magnetic Wireless Power Bank 10000 mAh User Manual PN-W35 Thank you for choosing our product. In order to provide a better user experience, we have provided detailed information about the product and instructions for use. Please read the instructions carefully before using this product to use it correctly. 1. Exclusive design, fashionable and beautiful. 2. Original A-class polymer battery provides safety and stability. 3. Wireless output, compatible with all Qi-enabled mobile phones. 4. Strong magnetic portable design, perfectly absorb mobile phones (iPhone 12 series and later) and is not easy to drop. 5. Built-in two cables for charging at any time, compatible with various digital products. 6. Ring buckle bracket design, suitable for various application scenarios. 1. Product Details 2. Product Parameters 3. Product Features 4. Package Includes 1 * Magnetic Wireless Power Bank 1 * USB-C Charging Cable 1 * Ring Buckle 1 * User Manual Light-ning Input USB-C Input Light-ning Output USB-C Output Wireless Charging Output Battery Capacity DC 5V/2A DC 5V/2.4A DC 5V/2A DC 5V/3A (Max) 5W 10000mAh Wireless Charging Area Power Button Light-ning Input Port USB-C Input/Output Port Wireless Charging Indicator Ring Buckle USB-C Output Cable Light-ning Output Cable Velvet Battery Indicator 5.Instructions: Press the power button to turn on the power bank, and the LED battery indicator lights up, if there is no charging device connected, the power bank will automatically shut down after 30 seconds. 1) Turn on/off Plug the USB-C cable or the Light-ning cable into the power bank, and the other end into the port of the charger. The LED battery indicator will flash when charging, and the LED battery indicator will stay on when fully charged. 2) Charging the power bank Plug into your device, then press the power button to turn on the power bank, and the LED battery indicator lights up. 3) Charge your devices *Cable charging Attach your phone to the wireless charging area of the power bank, then press the power button to charge your phone. The magnetic function is only compatible with iPhone 12 series and later. *Wireless charging 6. Product Maintenance 7. Warning To ensure the maximum efficiency of this product, please note the following: 1. Keep away from wet corrosive substances. 2. Do not use chemicals to clean this product. 3. When the product is not used for a long time, please charge it every six months. 1. The magnetic wireless charging is not compatible with non-magnetic phone case. 2. Magnetic function is only compatible with iPhone 12 series and later. 3. When the portable charger is charging or discharging, some heat may be generated due to the energy loss during the transmission process, which is a normal phenomenon. 4. When the phone is connected to wireless charging and wired charging at the same time, the phone will automatically switch to wired charging, and wireless charging will stop. 1. This power bank is suitable for DC 5V/3A charging devices. Use of a device beyond this specification may cause damage to this product. 2. Please do not disassemble or modify the power bank. 3. Keep away from fire and keep dry to prevent failures. 4. Please do not use the power bank at high temperatures (≥45 °C). 5. Please connect a device that conforms to the output specifications of this product. 6. If you see any bulging, swelling, leakage, or other abnormality from the power bank, stop using it immediately. 8.Warranty & After-Sales Service 1) Every Fokimdo product is provided with 12 months of warranty and lifetime technical support. 2) If you have any problems with our products or services, please contact our dedicated customer service at [email protected]. We usually get back to you within 24 hours during business days. Tips Magnetic Wireless Power Bank 12 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the product. NOTE: This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

ShenzhenPannizheTechnologyCo.,Ltd. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialPark HuangtianXixiangTownBaoanDistrictShenzhen,China518128 ProductName:MagneticWirelessPowerBank FCCID:2A4LH-PN-W35 Model(s):PN-W35,PN-W32,PN-W25,PN-W26,PN-W27 2.911(d)(5)(i)EquipmentType We,[ShenzhenPannizheTechnologyCo.,Ltd.](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:MaojunHuangDate:2023.06.07 TitleandCompanyname:GeneralManager/ShenzhenPannizheTechnologyCo.,Ltd. NOTE1 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenPannizheTechnologyCo.,Ltd. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialPark HuangtianXixiangTownBaoanDistrictShenzhen,China518128 ProductName:MagneticWirelessPowerBank FCCID:2A4LH-PN-W35 Model(s):PN-W35,PN-W32,PN-W25,PN-W26,PN-W27 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenPannizheTechnologyCo.,Ltd.](“theapplicant”)certifythat,asofthedateofthe filingoftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:MaojunHuangDate:2023.06.07 TitleandCompanyname:GeneralManager/ShenzhenPannizheTechnologyCo.,Ltd. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenPannizheTechnologyCo.,Ltd. AgentAuthorization Company:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialParkHuangtian XixiangTownBaoanDistrictShenzhen,China518128 ProductName:MagneticWirelessPowerBank ModelNumber(s):PN-W35,PN-W32,PN-W25,PN-W26,PN-W27 ProductDescription:MagneticWirelessPowerBank WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2023.06.06 Name: MaojunHuang Title: GeneralManage Company: ShenzhenPannizheTechnologyCo.,Ltd.

ShenzhenPannizheTechnologyCo.,Ltd. ModelDifferent Modelname：MagneticWirelessPowerBank FCCID:2A4LH-PN-W35 Modelnumber:PN-W35,PN-W32,PN-W25,PN-W26,PN-W27 Allmodel’sthefunction,softwareandelectriccircuitarethesame,exceptthemodelnumber. Name:MaojunHuang Date:2023-06-07 Title:Manager Signatureofapplicant:

ShenzhenPannizheTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.06.07 Subject;RequestforConfidentiality FCCID:2A4LH-PN-W35 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MaojunHuang Title:GeneralManage

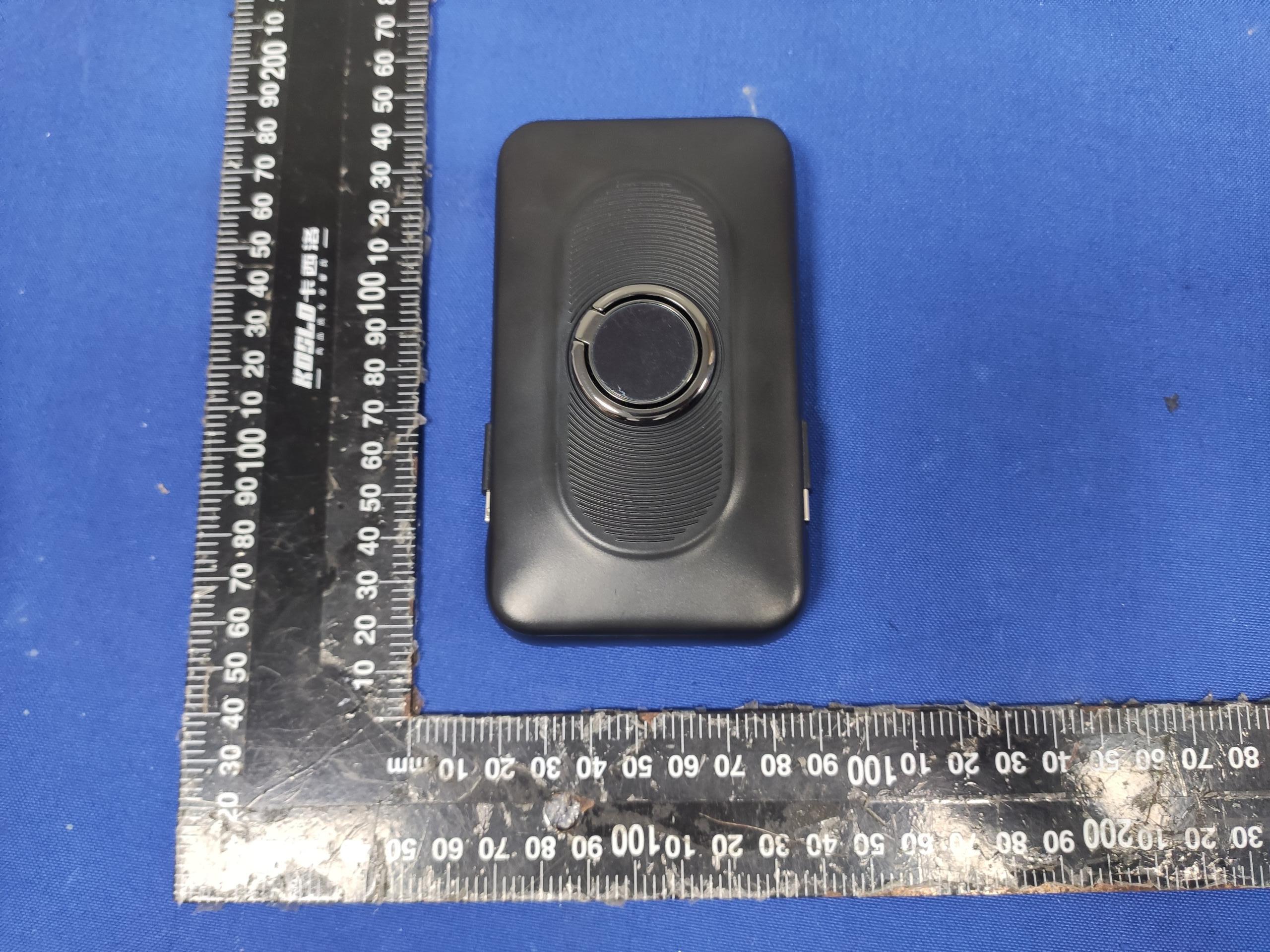

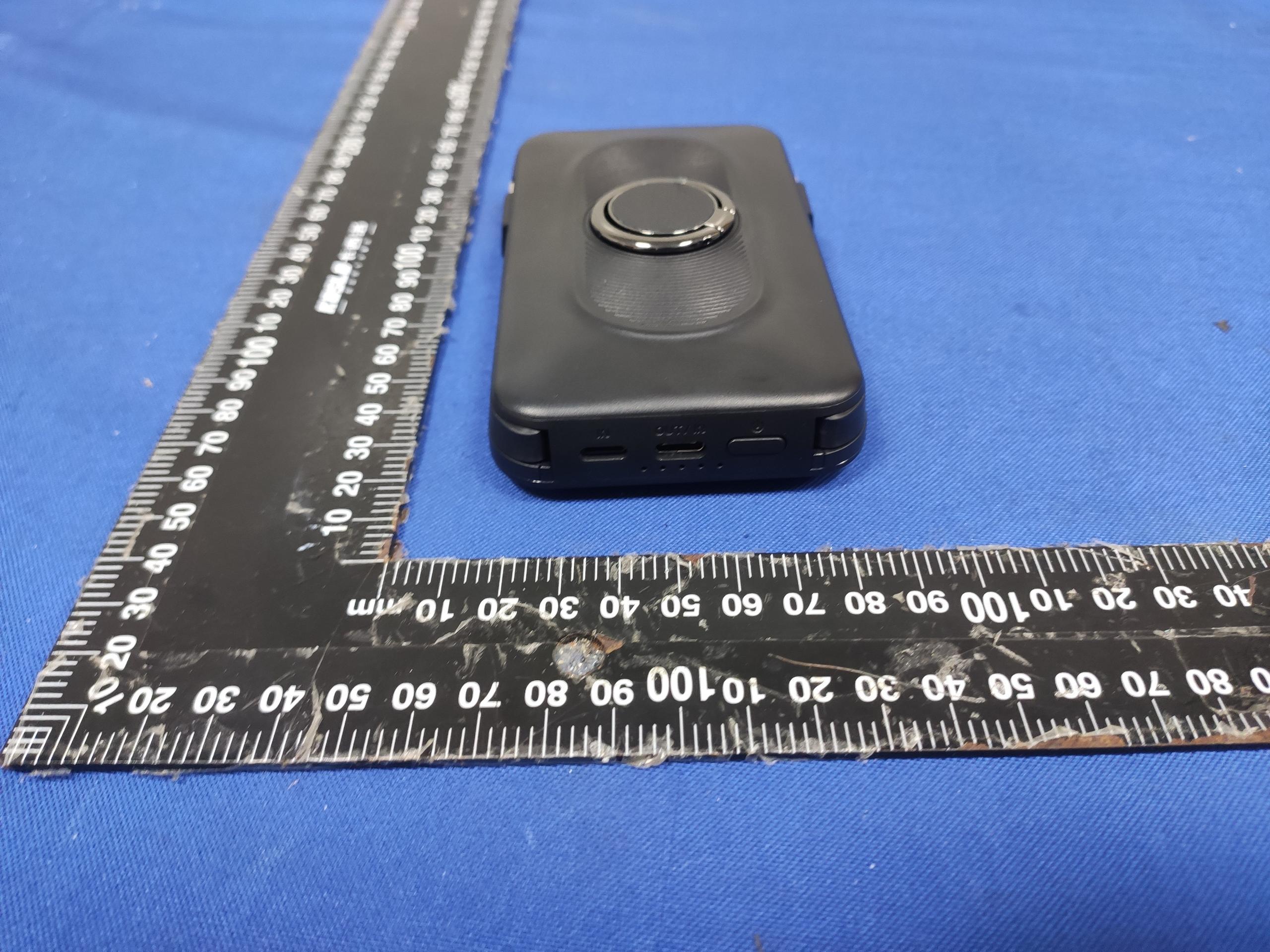

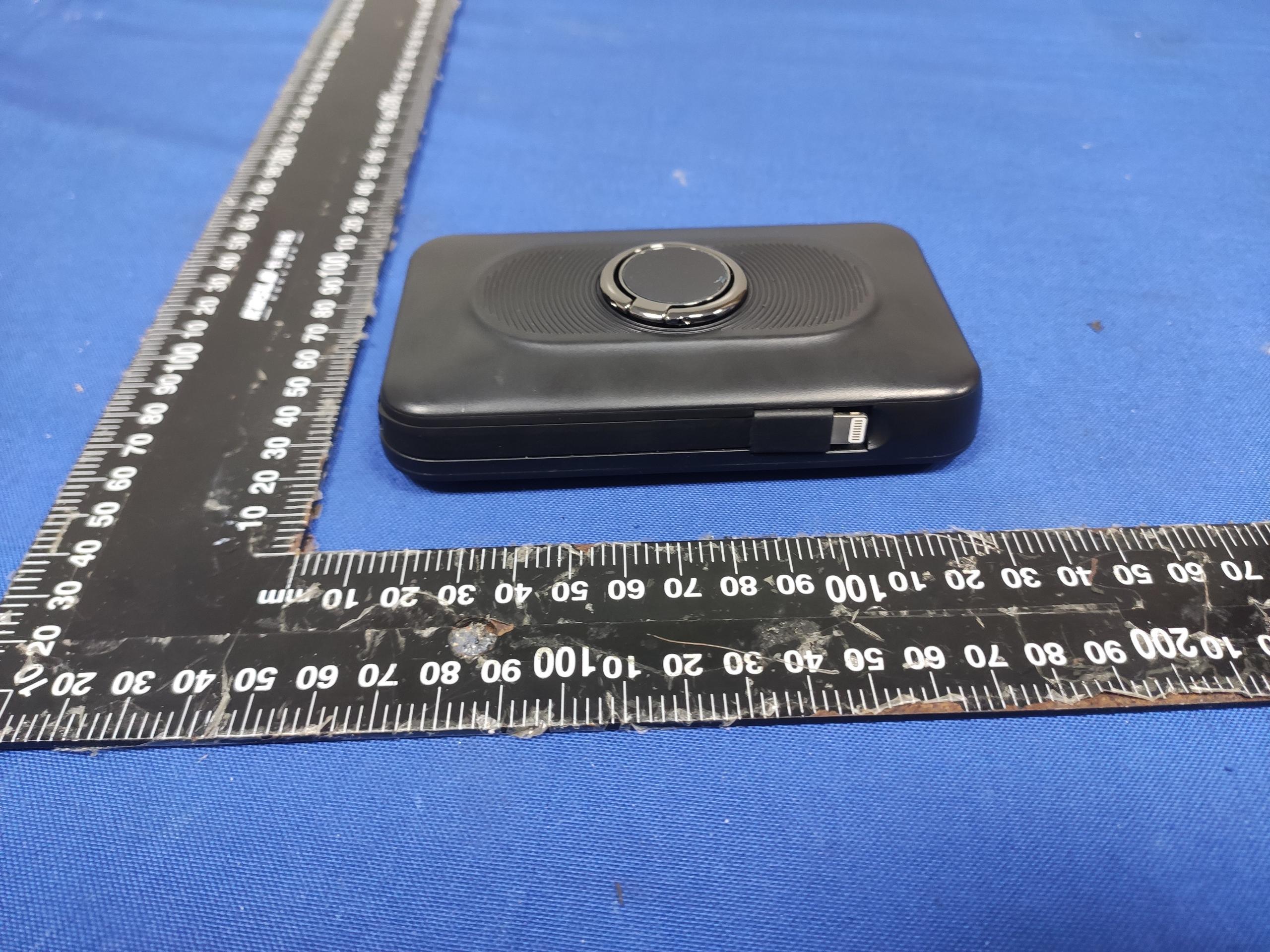

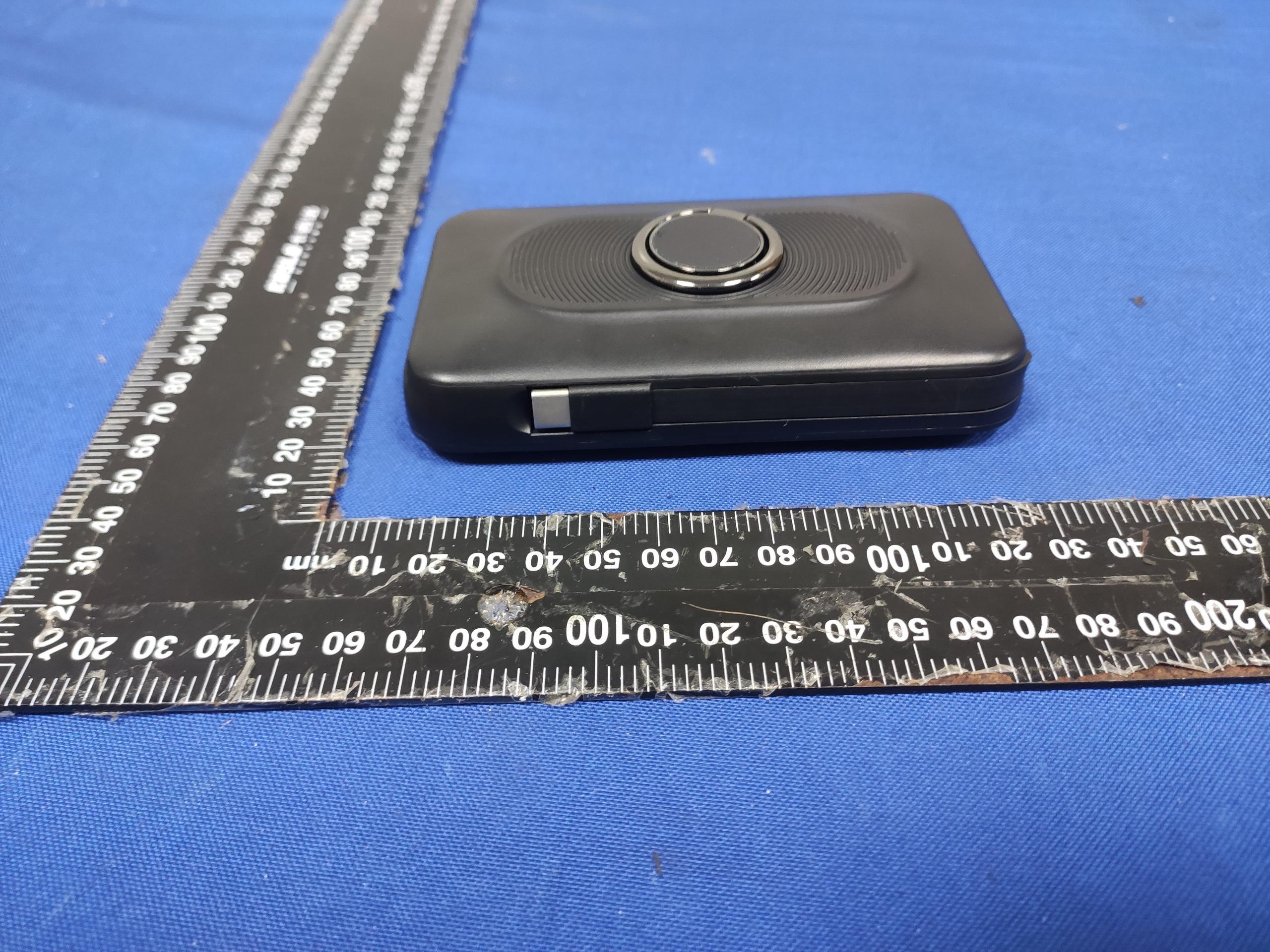

ExternalPhotos

Lable: MagneticWirelessPowerBank Model:PN-W25FCCID:2A4LH-PN-W35 Capacity:10000mAh/3.7V Input:DC5V/2.1A(MAX) Output:DC5V/3A(MAX) WirelessOutput:5W

InternalPhotos CoilAntenna

ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W35 RFExposureEvaluationReport 1ProductInformation FCCID: 2A4LH-PN-W35 ProductName: MagneticWirelessPowerBank ModelNumber: PN-W35,PN-W32,PN-W25,PN-W26,PN-W27 PowerSupply： Capacity:10000mAh/3.7V Input:DC5V/2.1A(MAX) Output:DC5V/3A(MAX) WirelessOutput:5W FrequencyRange: 110-205KHz AntennaType: CoilAntenna Hardwareversion V1.0 Softwareversion V1.0 Accessories Mobilephone:OPPOA96 Adapter:PD-014 Exposurecategory Generalpopulation/uncontrolledenvironment EUTType ProductionUnit DeviceType PortableDevice ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W35 2EvaluationMethod PerKDB680106D01v03r01Section3.RFExposureRequirements; 1)ConsumerwirelesspowertransferdevicesapprovedunderPart18insomecaseshavetodemonstrate compliancewithRFexposurerequirements.Thepotentialforexposuremustbeassessedaccordingtothe operatingconfigurationsofthewirelesssystemandtheexposureconditionsofusersandbystanders.RF exposuremustbeevaluatedwiththeclientdevice(s)beingchargedbytheprimaryatmaximumoutputpower. TheRFexposurerequirementsmustbedeterminedinconjunctionwiththedeviceoperatingcharacteristics, accordingtothemobileandportableexposurerequirementsinSection2.1091andSection2.1093ofthe rules.SARandMPElimitsdonotcoverthefrequencyrangeforwirelesspowertransferapplicationswhich operatebelow100kHzand300kHzrespectively;therefore,RFexposurecomplianceneedstobe determinedwithrespectto1.1307(c)and(d)oftheFCCrules. 2)Basedonthedesignandimplementationofthepowertransferapplication,itmustbeclearlyidentifiedif mobileorportableRFexposureconditionsapply.Devicesthatareinstalledtoprovideseparationofatleast 20cmfromusersandbystandersmayqualifyformobileexposureconditions.Forsomeconditionswhere usersandbystandersmaybeexposedatcloserthan20cm,section2.1091(d)(4)oftherulesmayapply. 3)Fordevicesdesignedfortypicaldesktopapplications,suchawirelesschargingpads,RFexposure evaluationshouldbeconductedassumingauserseparationdistanceof15cm.EandHfieldstrength measurementsornumericalmodelingmaybeusedtodemonstratecompliance.Measurementsshouldbe madefromallsidesandthetopoftheprimary/clientpair,withthe15cmmeasuredfromthecenterofthe probe(s)totheedgeofthedevice.Emissionsbetween100kHzto300kHzshouldbeassessedversusthe limitsat300kHzinTable1ofSection1.1310:614V/mand1.63A/m.AKDBinquiryisrequiredtodetermine theapplicableexposurelimitsbelow100kHz 4)Portableexposureconditionsfrom100kHzto6GHzaredeterminedwithrespecttoSARrequirements. ExistingSARsystemsandtestproceduresaregenerallyintendedformeasurementsabove100MHz.While numericalmodelingcanbeanalternative,theconstraintsofsubstantialcomputationalresourcesatlow frequenciescouldintroducefurtherlimitations.Underthesecircumstances,includingoperationsbelow100 kHz,theCommissionmayconsideracombinationofanalyticalanalysis,fieldstrength,radiatedand conductedpowermeasurements,inconjunctionwithsomelimitednumericalmodelingtoassesscompliance. 5)Dependingontheoperatingfrequency,existingSARandMPEmeasurementproceduresmaybeadapted toevaluatewirelesspowertransferdevicesforcompliancewithrespecttomobileorportableexposure conditions.IfthegranteeoritstestlabhaveanyquestionsregardingRFexposureevaluationtheyshould contacttheFCCLaboratorywithsufficientsystemoperatingconfigurationdetailstodetermineifRFexposure evaluationisnecessaryand,ifrequired,howtoapplyspecifictestprocedures.Below100MHz,whenSAR testingisrequiredandthedeviceisoperatingatcloseproximitytopersons,informationondevicedesign, implementation,operatingconfigurations,exposureconditionsofusersandbystandersareneededto determinetheevaluationandtestingrequirements.Inaddition,theinfluenceofnearbyobjectsmayalsoneed considerationaccordingtothewirelesspowertransfersystemimplementation;forexample,theeffectsof placingthedevice,itscoilsorradiatingelementsonornearmetallicsurfaces. 6)AccordingtoApril2022TCBWorkshop,“Largesize”probesmaypreventthemeasurementofE-and/or H-fieldsnearthesurfaceoftheradiatingstructure(e.g.,aWPTsourcecoil),Ifthecenteroftheprobesensing elementismorethan5mmfromtheprobeouteredge,thefieldstrengthsneedtobeestimatedforthe positionsthatarenotreachable(fromthesurface,in2cmincrements). ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W35 3EvaluationLimit 3.1Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. 680106D01RFExposureWirelessChargingAppsv03r01:RFExposureConsiderationsforLow PowerConsumerWirelessPowerTransferApplications FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices FCCCFR47part18.107:Indusial,Scientific,andMedicalEquipment 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure F=frequencyinMHz *=Plane-waveequivalentpowerdensity AccordingtoFCC680106D01RFExposureWirelessChargingAppsv03r01Section3.RF ExposureRequirementsclause3theEmission-Limitsinthefrequencyrangefrom100KHzto300 KHzshouldbeassessedversusthelimitsat300KHzinTable1ofCFR47–Section1.310as following(measureddistanceshallbe15cmfromthecenteroftheprobetotheedgeofthedevice): AKDBinquirewasrequiredtodetermine/confirmtheapplicablelimitsbelow100KHz. ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W35 4TestSetup 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) Electromagnetic radiationfrequency probe NardaEHP-200AN-1114Mar.01,2023Feb.29,2024 6MeasurementProcedure a)TheRFexposuretestwasperformedon360degreeturntableinanechoicchamber. b)Themeasurementprobewasplacedattestdistance(0-20cm,in2cmmaximumincrement)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. c)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementof eachpoints(A,B,C,D,E,F)werecompleted. d)TheEUTweremeasuredaccordingtothedictatesof680106D01RFExposureWirelessChargingAppsv03r01 ShenzhenZKTTechnologyCo.,Ltd.FCCID:2A4LH-PN-W35 7EquipmentApprovalConsiderations TheEUTdoescomplywithitem5.2of680106D01RFExposure…
