2A4LH-PN-W36Power Bank

PN-W36 尺寸:70 * 105 mm 105克铜版纸 折页 彩色双面印刷 风琴折 Portable Apple Watch Charger 1000 mAh User Manual PN-W36 Thank you for choosing BLAVOR product. In order to provide a better user experience, we have provided detailed information about the product and instructions for use. Please read the instructions carefully before using this product to use it correctly. a) Exclusive design, fashionable and beautiful. b) High-quality polymer batteries, safe and stable, charging anytime and anywhere. c) Using the original magnetic module, compatible with all models of Apple Watch. d) Strong magnetic charging and portable design, perfectly absorbing the watch to charge. e) Built-in infrared laser light, which can play with pets, point objects at a long distance, and point directions outdoors. 1. Product Details 2. Product Parameters 3. Product Features 4. Package Includes Portable Watch Charger X2 USB-C Cable X1 User Manual X1 USB-C Input Wireless Charging Output Battery Capacity DC5V/1A 2.5W 1000mAh/3.7V Charging areaPower button LED indicator Keychain USB-C PortLaser light 5.Instructions: Press the power button to turn on the charger, the indicator light is on, and if there is no charging device connected, it will automatically shut down after 10 minutes, or you can press the button twice to shut it down. 1) Turn on/off Plug into the USB-C charging cable, the LED indicator flashes red when charging, and keeps bright when fully charged. 2) Recharge the battery Press the power button, the blue indicator light is on. Put the watch in the wireless charging area and the watch will be absorbed and charged automatically. 3) Watch wireless charging Press and hold the button for about 3 seconds to turn on/off the laser light. 4) Funny cat laser light 6. Warning (1) Keep away from moisture and corrosive substances. (2) Do not use chemicals to clean this product. (3) When the product is not used for a long time, please charge it every three months. (4) This product is suitable for charging equipment within the specification of DC5V/3A. If the charging equipment exceeds this specification, it may cause damage to the product. (5) Please do not disassemble or modify this product. (6) Please pay attention to fire prevention, moisture-proof, to prevent malfunction. (7) Do not use this product in a high temperature environment (≥45 °C). (8) Please connect devices that meet the output specifications of this product. (9) If the battery swells, leaks or emits a strange smell, please stop using it immediately. (10) The built-in laser light of this product cannot directly shine on the eyes of people or animals, otherwise it may cause damage to the eyes. 7.Warranty & After-Sales Service (1) Each BLAVOR product provides a 12-month warranty from the date of purchase. (2) Products that are well packaged and undamaged can be returned for a full refund within 30 days from the date of purchase. Please note that if the product has no quality problems, the customer will bear the freight. (3) Free replacement of products with quality problems within 12 months (4) If you are not 100% satisfied with our products, please feel free to contact our customer service at [email protected]. We take customer feedback very seriously and will reply you within 24 hours [email protected] Please contact our after-sales Service department at 12 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the product. NOTE: This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

ShenzhenPannizheTechnologyCo.,Ltd. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialPark HuangtianXixiangTownBaoanDistrictShenzhen,China518128 ProductName:PowerBank FCCID:2A4LH-PN-W36 Model(s):PN-W36 2.911(d)(5)(i)EquipmentType We,[ShenzhenPannizheTechnologyCo.,Ltd.](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:MaojunHuangDate:2023.05.24 TitleandCompanyname:GeneralManager/ShenzhenPannizheTechnologyCo.,Ltd. NOTE1 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenPannizheTechnologyCo.,Ltd. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialPark HuangtianXixiangTownBaoanDistrictShenzhen,China518128 ProductName:PowerBank FCCID:2A4LH-PN-W36 Model(s):PN-W36 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenPannizheTechnologyCo.,Ltd.](“theapplicant”)certifythat,asofthedateofthe filingoftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:MaojunHuangDate:2023.05.24 TitleandCompanyname:GeneralManager/ShenzhenPannizheTechnologyCo.,Ltd. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenPannizheTechnologyCo.,Ltd. AgentAuthorization Company:ShenzhenPannizheTechnologyCo.,Ltd. Address:2ndFloor7thBuildingTiankouIndustrialParkHuangtian XixiangTownBaoanDistrictShenzhen,China518128 ProductName:PowerBank ModelNumber(s):PN-W36 ProductDescription:PowerBank WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2023.05.24 Name: MaojunHuang Title: GeneralManage Company: ShenzhenPannizheTechnologyCo.,Ltd.

ShenzhenPannizheTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.05.24 Subject;RequestforConfidentiality FCCID:2A4LH-PN-W36 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MaojunHuang Title:GeneralManage

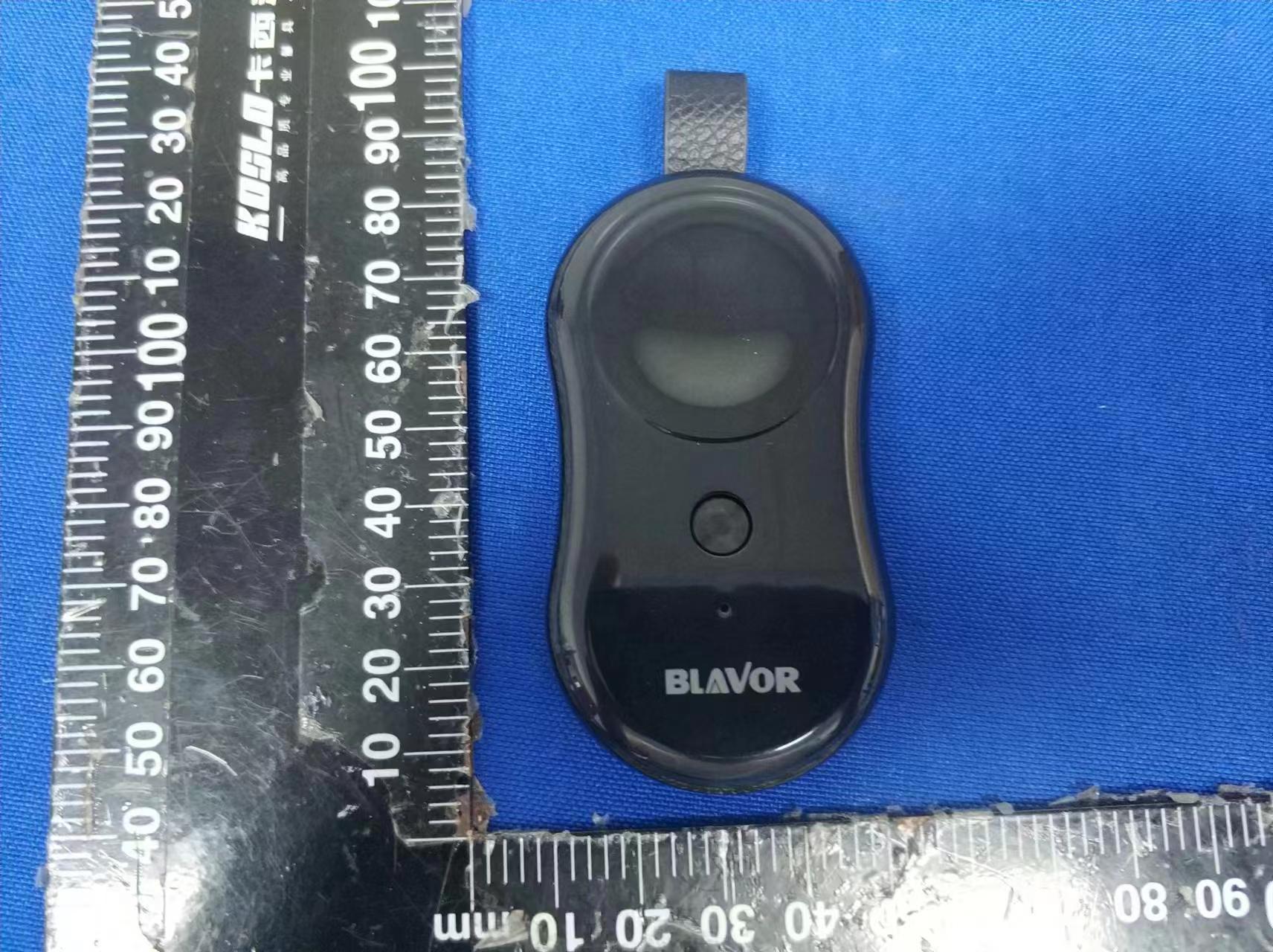

ExternalPhotos

Lable:

InternalPhotos CoilAntenna

FCCID:2A4LH-PN-W36 RFExposureEvaluationReport 1ProductInformation FCCID: 2A4LH-PN-W36 ProductName: PowerBank ModelNumber: PN-W36 PowerSupply ： Capacity:1000mAh/3.7V Input:DC5V1A WirelessOutput:5V/500mA FrequencyRange: 323.1KHz AntennaType: CoilAntenna Hardwareversion V1.0 Softwareversion V1.0 Accessories Mobilephone:CS01 Adapter:PD-014 Exposurecategory Generalpopulation/uncontrolledenvironment EUTType ProductionUnit DeviceType PortableDevice FCCID:2A4LH-PN-W36 2EvaluationMethod PerKDB680106D01v03r01Section3.RFExposureRequirements; 1)ConsumerwirelesspowertransferdevicesapprovedunderPart18insomecaseshavetodemonstrate compliancewithRFexposurerequirements.Thepotentialforexposuremustbeassessedaccordingtothe operatingconfigurationsofthewirelesssystemandtheexposureconditionsofusersandbystanders.RF exposuremustbeevaluatedwiththeclientdevice(s)beingchargedbytheprimaryatmaximumoutputpower. TheRFexposurerequirementsmustbedeterminedinconjunctionwiththedeviceoperatingcharacteristics, accordingtothemobileandportableexposurerequirementsinSection2.1091andSection2.1093ofthe rules.SARandMPElimitsdonotcoverthefrequencyrangeforwirelesspowertransferapplicationswhich operatebelow100kHzand300kHzrespectively;therefore,RFexposurecomplianceneedstobe determinedwithrespectto1.1307(c)and(d)oftheFCCrules. 2)Basedonthedesignandimplementationofthepowertransferapplication,itmustbeclearlyidentifiedif mobileorportableRFexposureconditionsapply.Devicesthatareinstalledtoprovideseparationofatleast 20cmfromusersandbystandersmayqualifyformobileexposureconditions.Forsomeconditionswhere usersandbystandersmaybeexposedatcloserthan20cm,section2.1091(d)(4)oftherulesmayapply. 3)Fordevicesdesignedfortypicaldesktopapplications,suchawirelesschargingpads,RFexposure evaluationshouldbeconductedassumingauserseparationdistanceof15cm.EandHfieldstrength measurementsornumericalmodelingmaybeusedtodemonstratecompliance.Measurementsshouldbe madefromallsidesandthetopoftheprimary/clientpair,withthe15cmmeasuredfromthecenterofthe probe(s)totheedgeofthedevice.Emissionsbetween100kHzto300kHzshouldbeassessedversusthe limitsat300kHzinTable1ofSection1.1310:614V/mand1.63A/m.AKDBinquiryisrequiredtodetermine theapplicableexposurelimitsbelow100kHz 4)Portableexposureconditionsfrom100kHzto6GHzaredeterminedwithrespecttoSARrequirements. ExistingSARsystemsandtestproceduresaregenerallyintendedformeasurementsabove100MHz.While numericalmodelingcanbeanalternative,theconstraintsofsubstantialcomputationalresourcesatlow frequenciescouldintroducefurtherlimitations.Underthesecircumstances,includingoperationsbelow100 kHz,theCommissionmayconsideracombinationofanalyticalanalysis,fieldstrength,radiatedand conductedpowermeasurements,inconjunctionwithsomelimitednumericalmodelingtoassesscompliance. 5)Dependingontheoperatingfrequency,existingSARandMPEmeasurementproceduresmaybeadapted toevaluatewirelesspowertransferdevicesforcompliancewithrespecttomobileorportableexposure conditions.IfthegranteeoritstestlabhaveanyquestionsregardingRFexposureevaluationtheyshould contacttheFCCLaboratorywithsufficientsystemoperatingconfigurationdetailstodetermineifRFexposure evaluationisnecessaryand,ifrequired,howtoapplyspecifictestprocedures.Below100MHz,whenSAR testingisrequiredandthedeviceisoperatingatcloseproximitytopersons,informationondevicedesign, implementation,operatingconfigurations,exposureconditionsofusersandbystandersareneededto determinetheevaluationandtestingrequirements.Inaddition,theinfluenceofnearbyobjectsmayalsoneed considerationaccordingtothewirelesspowertransfersystemimplementation;forexample,theeffectsof placingthedevice,itscoilsorradiatingelementsonornearmetallicsurfaces. 6)AccordingtoApril2018TCBWorkshop,NoneedtoreportE-fieldmeasurements.Only H-fieldrequired. FCCID:2A4LH-PN-W36 3EvaluationLimit 3.1Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. 680106D01RFExposureWirelessChargingAppsv03r01:RFExposureConsiderationsforLow PowerConsumerWirelessPowerTransferApplications FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices FCCCFR47part18.107:Indusial,Scientific,andMedicalEquipment 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure F=frequencyinMHz *=Plane-waveequivalentpowerdensity AccordingtoFCC680106D01RFExposureWirelessChargingAppsv03r01Section3.RF ExposureRequirementsclause3theEmission-Limitsinthefrequencyrangefrom100KHzto300 KHzshouldbeassessedversusthelimitsat300KHzinTable1ofCFR47–Section1.310as following(measureddistanceshallbe15cmfromthecenteroftheprobetotheedgeofthedevice): AKDBinquirewasrequiredtodetermine/confirmtheapplicablelimitsbelow100KHz. FCCID:2A4LH-PN-W36 4TestSetup 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) Electromagnetic radiationfrequency probe NardaEHP-200AN-1114Mar.01,2023Feb.29,2024 6MeasurementProcedure a)TheRFexposuretestwasperformedon360degreeturntableinanechoicchamber. b)Themeasurementprobewasplacedattestdistance(0-20cm,in2cmmaximumincrement)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. c)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementof eachpoints(A,B,C,D,E,F)werecompleted. d)TheEUTweremeasuredaccordingtothedictatesof680106D01RFExposureWirelessChargingAppsv03r01 FCCID:2A4LH-PN-W36 7EquipmentApprovalConsiderations TheEUTdoescomplywithitem5.2of680106D01RFExposureWirelessChargingAppsv03r01asfollowstable; Requirementsof680106D01RFExposure WirelessChargingAppsv03r01 Yes/NoDescription Powertransferfrequencyislessthan1MHzYes Thedeviceoperateinthefrequencyrange 323.1KHz Outputpowerfromeachprimarycoilisless than15watts Yes Themaximumoutputpoweroftheprimary coilis2.5WMax. Thesystemmayconsistofmorethanone sourceprimarycoils,chargingoneormore clients.Ifmorethanoneprimarycoilis present,thecoilpairsmaybepoweredonat the…

Text truncated - open the document above for the full version.

ProjectNo.:ZKT-230418L2772E Page 1 of 18 FCCTESTREPORT FCCPart18 FCCID:2A4LH-PN-W36 ReportNumber. .................................. :ZKT-230418L2772E DateofTest ....................................................... : Apr.13,2023toApr.23,2023 Dateofissue.........................................: Apr.23,2023 Totalnumberofpages..........................18 TestResult..........................................: PASS TestingLaboratory............................:ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname ............................. : ShenzhenPannizheTechnologyCo.,Ltd. Address...............................................: 2ndFloor7thBuildingTiankouIndustrialParkHuangtian XixiangTownBaoanDistrictShenzhen,China518128 Manufacturer'sname ...................... : ShenzhenPannizheTechnologyCo.,Ltd. Address...............................................: 2ndFloor7thBuildingTiankouIndustrialParkHuangtian XixiangTownBaoanDistrictShenzhen,China518128 Testspecification: Standard................................................:FCCPart18 Testprocedure......................................: / Non-standardtestmethod................:N/A TestReportFormNo........................:TRF-EL-117_V0 TestReportForm(s)Originator ..... : ZKTTesting MasterTRF ........................................ :Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:PowerBank Trademark...........................................:N/A Model/Typereference ......................... : PN-W36 Ratings..................................................: Capacity:1000mAh/3.7V Input:DC5V1A WirelessOutput:5V/500mA ProjectNo.:ZKT-230418L2772E Page 2 of 18 Testingprocedureandtestinglocation: TestingLaboratory ....................................... :ShenzhenZKTTechnologyCo.,Ltd. Address ............................................................ : 1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China AlenHe Testedby(name+signature) ....................... : JoeLiu Reviewer(name+signature).......................: LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-230418L2772E Page 3 of 18 TABLEOFCONTENT Page 1.VERSION.................................................................................................................................4 2.GENERALINFORMATION..................................................................................................5 2.1DescriptionofDevice(EUT)................................................................................................................5 2.2TestedSystemDetails..........................................................................................................................5 2.3TestFacility.............................................................................................................................................5 2.4MEASUREMENTUNCERTAINTY.....................................................................................................6 2.5TestInstrumentUsed............................................................................................................................7 3.CONDUCTEDEMISSIONATTHEMAINSTERMINALSTEST....................................9 3.1BlockDiagramOfTestSetup..............................................................................................................9 3.2TestStandard.........................................................................................................................................9 3.3PowerLineConductedEmissionLimit..............................................................................................9 3.4EUTConfigurationonTest...................................................................................................................9 3.5OperatingConditionofEUT................................................................................................................9 3.6TestProcedure.......................................................................................................................................9 3.7TestResult..............................................................................................................................................9 4.RADIATIONEMISSIONTEST...........................................................................................12 4.1BlockDiagramofTestSetup.............................................................................................................12 4.2TestStandard.......................................................................................................................................12 4.3RadiationLimit.....................................................................................................................................12 4.4EUTConfigurationonTest.................................................................................................................13 4.5OperatingConditionofEUT..............................................................................................................13 4.6TestProcedure.....................................................................................................................................13 4.7TestResult............................................................................................................................................14 5.EUTPHOTOGRAPHS................................................................…

Text truncated - open the document above for the full version.

CE RE
