2A4LQ-7011Car Radio

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Cheluzhe technology co., LTD Add: 10th Floor,Building A3,New Era Gongrong Industrial Park,No.2 Shihuan Road,Shilong Community, Shiyan Street,Baoan District, Shenzhen China Date: 202/2/22 FCC ID: 2A4LQ-7011 Dear Sir/Madam, We, Shenzhen Cheluzhe technology co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Car Radio Model no.: 7011, 8803,7089,6001,7001,K801,K802,K803,K808,8097,7021,8021,9021, YH-605b,YH-B95,YH-Q15,YH-S05,YH-S15,YH-S20,YH-S30,K-CS01,K-CS02,K-CS03,K-CS05, K-CS06 Sincerely, Name/Title： Zhikun Zheng/Manager Company: Shenzhen Cheluzhe technology co., LTD Address: 10th Floor,Building A3,New Era Gongrong Industrial Park,No.2 Shihuan Road,Shilong Community, Shiyan Street,Baoan District, Shenzhen China Phone: 0755-23214525 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<202/2/22> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A4LQ-7011 7011 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Zhikun Zheng/Manager Company: Shenzhen Cheluzhe technology co., LTD Address: 10th Floor,Building A3,New Era Gongrong Industrial Park,No.2 Shihuan Road,Shilong Community, Shiyan Street,Baoan District, Shenzhen China Phone: 0755-23214525 Fax: N/A E-Mail: [email protected]

Shenzhen Cheluzhe technology co., LTD 10th Floor,Building A3,New Era Gongrong Industrial Park,No.2 Shihuan Road,Shilong Community, Shiyan Street,Baoan District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 202/2/22 To whom it may concern: We, Shenzhen Cheluzhe technology co., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A4LQ-7011 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Zhikun Zheng/Manager Company: Shenzhen Cheluzhe technology co., LTD Address: 10th Floor,Building A3,New Era Gongrong Industrial Park,No.2 Shihuan Road,Shilong Community, Shiyan Street,Baoan District, Shenzhen China Phone: 0755-23214525 Fax: N/A E-Mail: [email protected]

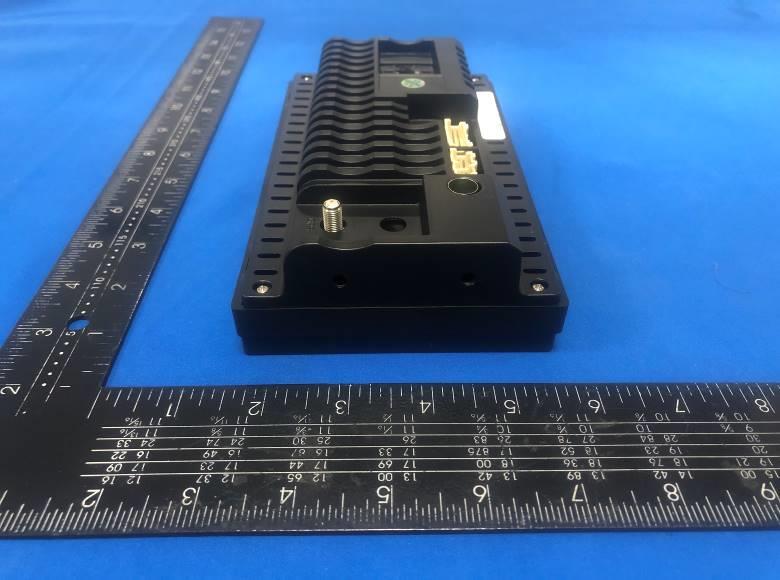

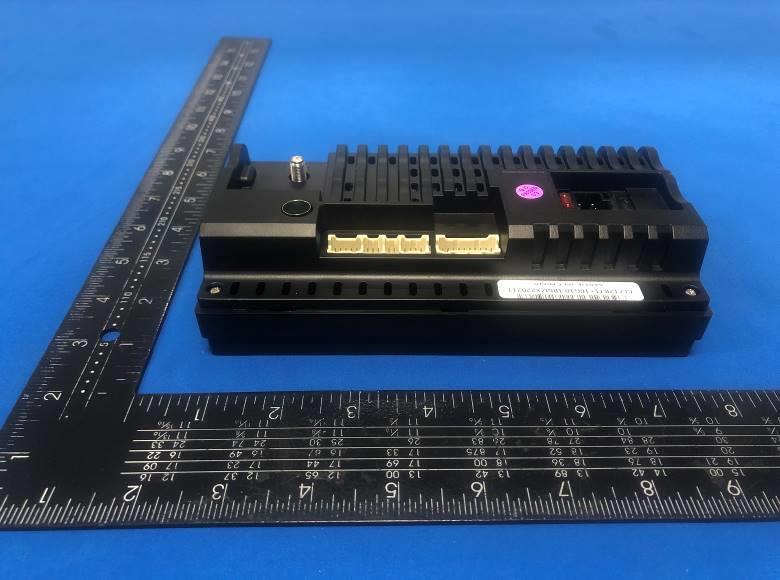

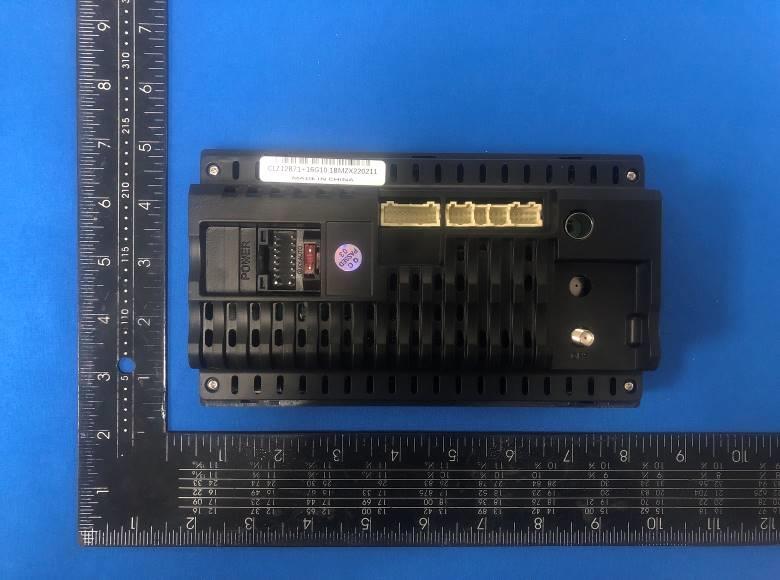

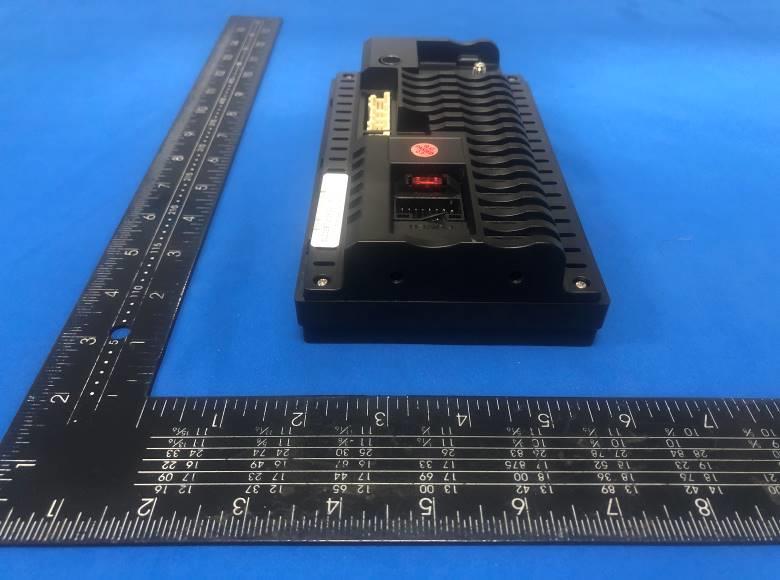

FCC ID: 2A4LQ-7011 External Photos of the EUT FCC ID: 2A4LQ-7011 FCC ID: 2A4LQ-7011

FCC ID: 2A4LQ-7011 Label and Location Size: L: 2.0cm*W: 1.5cm Label and Location Car Radio Model No.: 7011 FCC ID : 2A4LQ-7011

FCC ID: 2A4LQ-7011 Internal Photos of the EUT FCC ID: 2A4LQ-7011 Antenna FM RX GPS RX FCC ID: 2A4LQ-7011

RF Exposure evaluation FCC ID: 2A4LQ-7011 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information 7011 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / Internal ANT 0.00dBi for 2400-2500MHz; 2.4GWIFI / Internal ANT 0.00dBi for 2400-2500MHz 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 8.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 8.0 8.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 2.4GWIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 15.0 16.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 11.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT40) 2422 2437 2452 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 9.0 7.9433 0.0 1.000 0.0016 1.0000 2.4GWIFI 17.0 50.1187 0.0 1.000 0.0100 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA22021500101 2A4LQ-7011 Compiled by ( position+printed name+signature) .. : File administrators Kevin Liu Supervised by ( position+printed name+signature) .. : Project Engineer Kevin Liu Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Feb. 18, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Cheluzhe technology co., LTD Address ............................................ : 10th Floor, Building A3, New Era Gongrong Industrial Park, No. 2 Shihuan Road, Shilong Community, Shiyan Street, Baoan District, Shenzhen,China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Car Radio Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Cheluzhe technology co., LTD Model/Type reference....................... : 7011 Listed Models .................................. : 8803,7089,6001,7001,K801,K802,K803,K808,8097,7021,8021,9021, YH-605b,YH-B95,YH-Q15,YH-S05,YH-S15,YH-S20,YH-S30,K-CS01, K-CS02,K-CS03,K-CS05,K-CS06 Modulation ....................................... : GFSK, Π/4DQPSK,8DPSK Frequency .......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 12V From external circuit Result................................................ : PASS Report No.: CTA22021500101 Page 2 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car Radio Model /Type : 7011 Listed Models : 8803,7089,6001,7001,K801,K802,K803,K808,8097,7021,8021, 9021,YH-605b,YH-B95,YH-Q15,YH-S05,YH-S15,YH-S20,YH-S30, K-CS01,K-CS02,K-CS03,K-CS05,K-CS06 Model Declaration : PCB board, structure and internal of these model(s) are the same,So no additional models were tested. Applicant : Shenzhen Cheluzhe technology co., LTD Address : 10th Floor, Building A3, New Era Gongrong Industrial Park, No. 2 Shihuan Road, Shilong Community, Shiyan Street, Baoan District, Shenzhen,China Manufacturer : Shenzhen Cheluzhe technology co., LTD Address : 10th Floor, Building A3, New Era Gongrong Industrial Park, No. 2 Shihuan Road, Shilong Community, Shiyan Street, Baoan District, Shenzhen,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22021500101 Page 3 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 Maximum Peak Output Power 17 4.4 20dB Bandwidth 18 4.5 Frequency Separation 22 4.6 Number of hopping frequency 24 4.7 Time of Occupancy (Dwell Time) 26 4.8 Out-of-band Emissions 30 4.9 Pseudorandom Frequency Hopping Sequence 39 4.10 Antenna Requirement 40 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 41 6 P H O T O S O F T H E E U T ........................................................... 42 Report No.: CTA22021500101 Page 4 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A RDS The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Di…
