2A4ND-E7HPActive Noise Cancelling Headphones

Bluetooth Connection Cable Connection Pairing headphone to your Smart device (Smart device should be within 10 meters of this headphone). 1. Activate pairing mode on headphone by turn the switch to “BT” .The LED will flash in blue. 2. Turn on Bluetooth function of your device, (refer to the device owner’s manual to locate Bluetooth function). 3. Select “Search” or “Discover” devices. 4. Select “E7”. 5. If requested, type the password or PIN 0000 6. Press the Enter key. After completing the steps above, a message on your Smart device will appear confirming that your device is now paired/ connected. In case of unsuccessful pairing, turn off it and restart, then do as steps above. If the Bluetooth on your smart device remains open, when you restart the headphone, the Bluetooth will be connected automatically. Function Guidance Play music from your Smart device LED Display Status Product care ● Do not drop, crush, bend or apply excessive force to the device. ● Do not expose your device to moisture, extreme or prolonged heat, cold, humidity, or other adverse conditions. Avoid storing it in damp, humid or wet places, as it is not waterproof. ● Clean the unit with a soft cloth or damp chamois leather. Never use solvents. ● The Unit can only be opened by qualified personnel. ● This device contains magnets. Keep magnetic field sensitive products suchas credit cards and video screen away from this device to avoid damage ormalfunction. Getting Started Step . 3 Installation Operation Step . 1 Put on this headphone It can be adjusted to be fit by twisting the left and right ear muffs. Adjustable angle Step . 2 Adjustable length EN 1EN 2 EN 3EN 4 User’s Guide Active Noise Cancelling Headphones E7 Volume Up/Previous Play/Pause, Answer call Volume Down/Next Long Press Volume up Short Press Next song Long Press Volume down ON/OFF ANC ON/OFF Short Press Previous song Short Press Short Press Play/Pause, Answer/End a call Long press Long press Ready for pairing Button Operation Function LED Display Blue Red White Red OFF Light indication Power ON Paired Charging in process Active noise cancelling ON Fully charged Right Light Flash Stay Solid AUX IN MIC ON/OFF/Bluetooth/Noise Cancelling Type-C USB for Charging Type-C USB for power AUX Cable for audio E7 Specification Battery Precautions The device can be powered by a built-in rechargeable lithium battery. Please charge the battery for at least 8 hours before your first use of device. ● Rechargeable batteries are only to be charged under adult supervision. ● Use only the supplied Type-C USB cable to recharge the battery. Improper charging may damage the battery and the device. ● Do not attempt to open the rechargeable battery or battery pack. There are no serviceable parts inside. ● Keep the battery out of reach of children. If swallowed, consult a physician immediately. ● Do not dispose batteries in a fire as they may explode. Batteries may also explode if damaged. Please dispose them according to local regulation. Load impedance: 16Ω S/N: ≥ 85dB Frequency range: 20Hz-20KHz Power supply: Lithium battery or Type-C USB cable Audio source: iPhone, iPad, Smartphone, Notebook, MP3, MP4, etc Function spec: Bluetooth, Microphone Size: 166x92x181mm 1. Support Line in Noise Cancelling. 2. Couldn't Play Music under Line in When Power off. Important information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

JiangXi Mei Dong Technology Co., Ltd Add: No.1, Food Avenue, Jingshan Comprehensive District Shanggao Prefecture Industri Yichun China Date: 2022-3-1 FCC ID: 2A4ND-E7HP Dear Sir/Madam, We, JiangXi Mei Dong Technology Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Active Noise Cancelling Headphones Model no.: E7, E7,E7 KY, E7 Basic C , E7 Basic B , E7 MD PRO, E7 MD, E7E Sincerely, Name/Title： Guangbo Chen/Manager Company: JiangXi Mei Dong Technology Co., Ltd Address: No.1, Food Avenue, Jingshan Comprehensive District Shanggao Prefecture Industri Yichun China Phone: +086 15013508530 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022-3-1> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A4ND-E7HP E7 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Guangbo Chen/Manager Company: JiangXi Mei Dong Technology Co., Ltd Address: No.1, Food Avenue, Jingshan Comprehensive District Shanggao Prefecture Industri Yichun China Phone: +086 15013508530 Fax: N/A E-Mail: [email protected]

JiangXi Mei Dong Technology Co., Ltd No.1, Food Avenue, Jingshan Comprehensive District Shanggao Prefecture Industri Yichun China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022-3-1 To whom it may concern: We, JiangXi Mei Dong Technology Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A4ND-E7HP including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Guangbo Chen/Manager Company: JiangXi Mei Dong Technology Co., Ltd Address: No.1, Food Avenue, Jingshan Comprehensive District Shanggao Prefecture Industri Yichun China Phone: +086 15013508530 Fax: N/A E-Mail: [email protected]

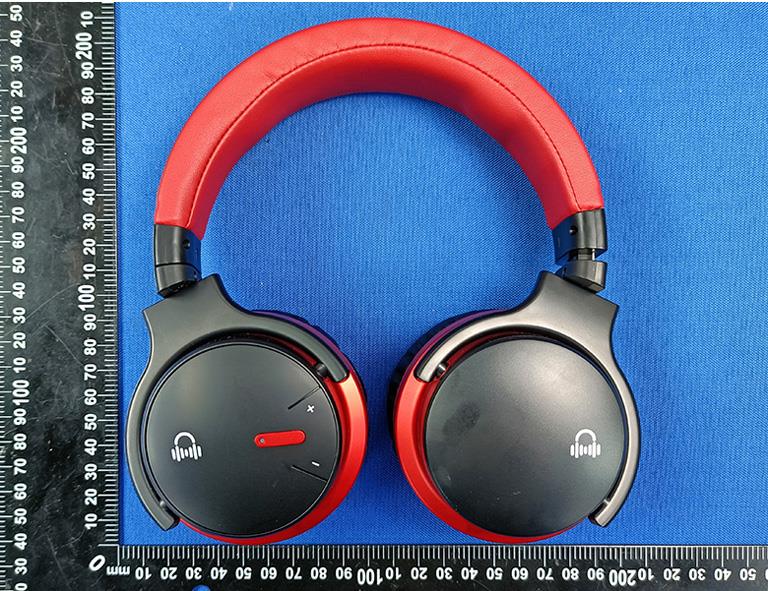

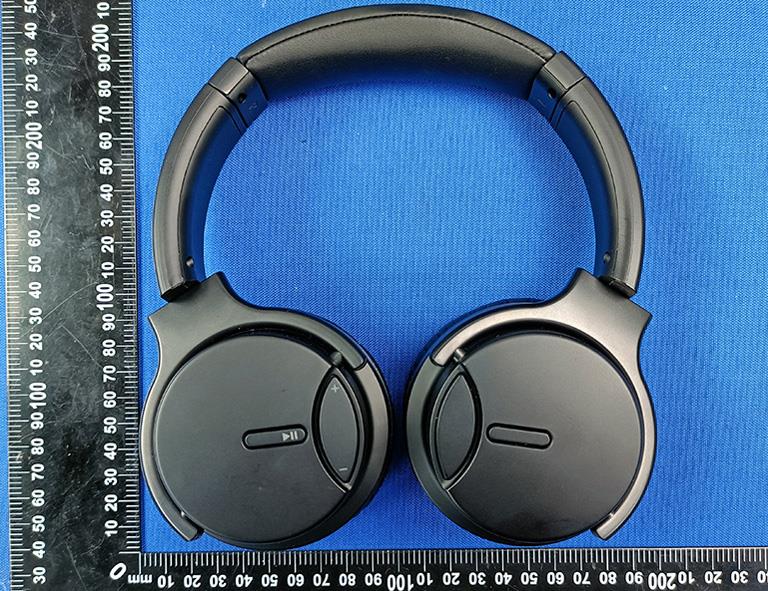

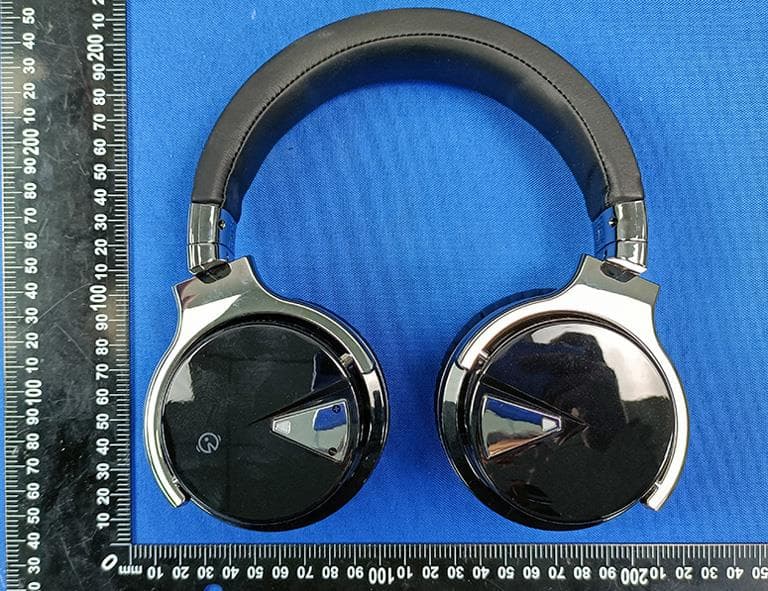

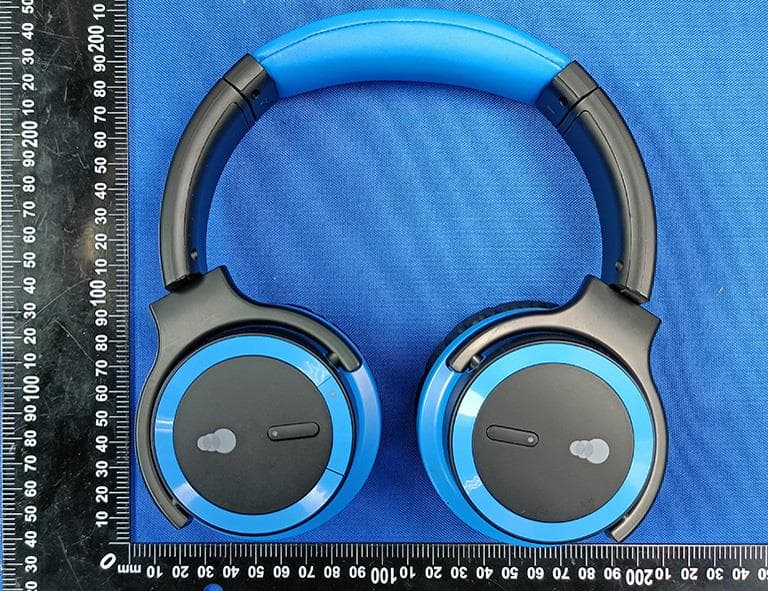

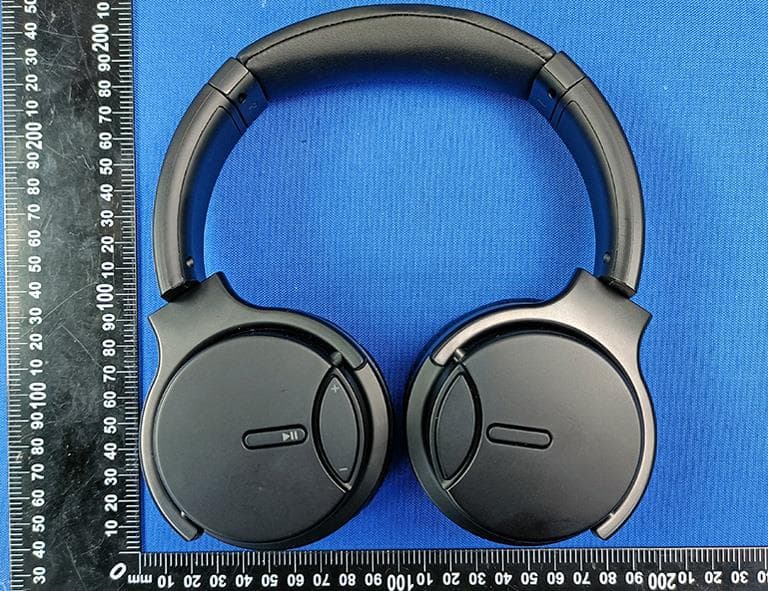

FCC ID: 2A4ND-E7HP External Photos of the EUT FCC ID: 2A4ND-E7HP FCC ID: 2A4ND-E7HP FCC ID: 2A4ND-E7HP

FCC ID: 2A4ND-E7HP Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location

FCC ID: 2A4ND-E7HP Internal Photos of the EUT Fig.1 Fig.2 FCC ID: 2A4ND-E7HP Fig.3 Fig.4 2.4G Ant FCC ID: 2A4ND-E7HP Fig.5 Fig.6 FCC ID: 2A4ND-E7HP Fig.7 Fig.7

RF Exposure evaluation FCC ID: 2A4ND-E7HP 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Page 2 of 2 1.3. Manufacturing tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 1.0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 BT(Peak) Frequency (MHz) GFSK Channel 00 Channel 39 Channel 78 Target (dBm) 0 0 0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) π/4DQPSK Channel 00 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 8DPSK Channel 00 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 2.0 1.5849 0.4962<3.0 Yes BLE 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

ITL Co., Ltd. No.8, JinQianLing street 5, Huangjiang Town, Dongguan, Guangdong, China. Telephone: +86-769-39001678 Fax: +86-20-62824387 Email: [email protected] Report Template Version: V02 Report Template Revision Date: 2021-06-01 FCC Test Report This report is for the exclusive use of ITL’s client and is provided pursuant to the agreement between ITL assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the ITL name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by ITL. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an ITL certification program. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. Applicant: JiangXi MeiDong Technology Co., Ltd Address of Applicant: No.1, Food Avenue, Jingshan Comprehensive District, Shanggao Prefecture Industrial Park, Yichun City, Jiangxi Province Manufacturer: JiangXi MeiDong Technology Co., Ltd Address of Manufacturer: No.1, Food Avenue, Jingshan Comprehensive District, Shanggao Prefecture Industrial Park, Yichun City, Jiangxi Province Factory: JiangXi MeiDong Technology Co., Ltd Address of Factory: No.1, Food Avenue, Jingshan Comprehensive District, Shanggao Prefecture Industrial Park, Yichun City, Jiangxi Province Equipment Under Test (EUT): Product: Active Noise Cancelling Headphones Model No.: E7,E7 KY, E7 Basic C , E7 Basic B , E7 MD PRO, E7 MD, E7E (All models is only different name) Brand Name: FENSOL/ Silensys/ MOVSSOU/ PurelySound/ Synthphonics FCC ID: 2A4ND-E7HP Standards: 47 CFR Part 15, Subpart C Date of Test: 2022-02-18 to 2022-02-25 Date of Issue: 2022-02-25 Report No. : D220225003-1 Test Result : PASS* Tested By: (Damon Deng) Reviewed By: ( Chivas Zeng) Approved By: (Victor Meng) Report No.: D220225003-1 Page:2 of 91 1 Version Revision History Of Report Report No. Version Description Issue Date D220225003-1 Rev.01 Initial report 2022-02-25 Report No.: D220225003-1 Page:3 of 91 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2013) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2013) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2013) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4) ANSI C63.10 (2013) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2013) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2013) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2013) PASS Restricted bands around fundamental frequency (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2013) PASS Report No.: D220225003-1 Page:4 of 91 3 Contents Page 1 VERSION .................................................................................................................................................................. 2 2 TEST SUMMARY .................................................................................................................................................... 3 3 CONTENTS .............................................................................................................................................................. 4 4 GENERAL INFORMATION ................................................................................................................................... 5 4.1 CLIENT INFORMATION .......................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF EUT .......................................................................................................................... 5 4.3 TEST ENVIRONMENT ............................................................................................................................................ 7 4.4 DESCRIPTION OF SUPPORT UNITS ......................................................................................................................... 7 4.5 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 7 4.6 TEST LOCATION ................................................................................................................................................... 7 4.7 TEST FACILITY ..................................................................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................. 8 4.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 8 4.10 ENVIRONMENTAL CONDITIONS ............................................................................................................................. 8 4.11 EQUIPMENT LIST .....................…

Text truncated - open the document above for the full version.

FCC ID: 2A4ND-E7HP Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2A4ND-E7HP Test Setup Photo of Line Conducted Emissions Measurement Fig. 3
