2A4NP-F3dash cam

User Manual IMPORTANT: Before using the product, make sure to read the manual to ensure that you are installing and using the product correctly. Will not work with all makes/models. May not work with older vehicles. 1. Product Feature 2. Products instruction 3. Products installation 4. F.A.Q What’s in the Box: 1 x Dash Camera 1 x Cigar Charger 1 x Rear Camera 1 x Rear Camera Cable 1 x Bracket 1 x User Manual Product Overview: 1. Type-c Port : Power 2. Earphone port : Rear Camera Cable 3. Bracket : which built in GPS 4. Inside Camera 5. Display Screen 6. Micro Sd card port 7. Front Camera 8. Reset Button 9. Menu Button 10. Up button 11. Power Button (Press and release the button to turn off/on the screen/Press and hold the button to turn off/on the dash cam) 12. Down Button 13. OK button 1 2 3 5 6 7 8 9 10 11 12 4 13 Micro SD Card Instructions: ● IMPORTANT: For optimal performance and reliability, it is recommended that you use only Class 10 or higher Micro SD cards from reputable manufacturers and brands. ● It is recommended that you reformat the SD card at least once a month. ● It is recommended that you regularly back up your data from the SD card to an external drive to ensure that the device can operate properly and that you do not overload the disk. ● The dash cam is compatible with 16-512 GB Micro SD cards (SD card not included). ● Micro SD cards are subject to degradation over time due to repeated writing/erasing cycles. It is recommended that you replace the SD Card at minimum once every three (3) years to ensure that this degradation does not affect your recordings. ● To prevent data corruption, do not insert or remove the Micro SD card while the dash cam is operating. ● Before inserting a Micro SD card in the NexiGo dash cam for the first time please format the SD card. This will permanently delete any data that is currently on the card. SPECIFICATIONS: System: Chipset: Novatek 96580 Micro SD Card (not included):Max Supports 512 GB Micro SD cards that have a rating of Class 10 or above. Firmware: Update via SD Card Display: Display Size: 3 inch Display Type: IPS Display Resolution Front: 4K Inside:1920*1080 Rear: 1920*1080 Front Dash Cam: Front Lens Aperture: F1.55 Front Lens FOV: H=115° V=61° D=136° Front Lens FPS: 30fps Inside Dash Cam: Inside Lens Aperture: F1.8 Inside Lens FOV: H=120° V=67° D=140° Inside Lens FPS: 30fps Rear Dash Cam: Rear Lens Aperture: F2.0 Rear Lens FOV: D=120°/ H=102°/ V=53° General: Working Temperature: -20°C- 65°C Storage Temperature: -30°C- 80°C Input: 5 V/3 A Power Supply: 12V to 5V Auxiliary Power Adapter Product Instruction 1. System Settings When you power on the dash camera, please press M button to start the setup process Storage Press OK button to format sd card Language : Please set the language you want Date/ Time 1) This dash camera built in GPS, it will automatically update the time according to your local time 2) Set Date and Time : Manual set the date and time as demand 3) 24 Hour :ON : display 24 hour format ; OFF :Display 12 hour format 4 ) .Time Zone : Set the time zone according to your demand. WIFI ON / OFF Resolution 4K / 2.5K Loop Recording 1min / 3mins / 5mins Sound Record Close / Open Exposure adjust the exposure for the front camera Frequency 50HZ / 60HZ G-sensor Off / Low / Medium / High After turn on the G-sensor , the dash camera will lock the emergency video Parking Monitor Noted : Available after install the hardwire kit , please contact us to purchase There are two parking Monitoring mode. Mode 1: Collision boot recording There are two ways to open this mode.(note:Do not turn on “Time Lapse”) Way- 1: Turn on “Parking Mode”and set “G-Sensor”among Low, Medium or High. Way-2: Turn on “Parking Mode”and set the “Monitoring Sensitivity”among Low, Medium or High. After the car engine is off, the camera will turn off automatically, and prompt "Enter parking monitoring mode!" on the screen. The camera will turn on and start recording automatically when there's collision or vibration detected and the video file will be locked Mode 2: Time lapse recording Turn on “Time Lapse”, set 0.5Sec/1Sec/5Sec and set Time-Lapse Recording Time(12H/24H/72H) After the car engine is off, the camera will turn off automatically, and prompt "Enter time lapse mode!" on the screen. If you turn the G-Sensor among Low, Medium and High, the parking video will be locked when there's collision or vibration detected. Noted : Collision-boot-recording won't work when Time Lapse is turned on. ⚫ If you need this function,Please connect the hard-wire kit.(pls contact us to purchase) ⚫ Only work after the dash cam is powered off ⚫ Recommended to adjust to medium/low Display Mode Driving Mode/Always on/Auto LCD Off Driving Mode: When choose this setting,the dash camera will enter the screen saver mode after 30s, and time and date & speed will be displayed on the black screen Volume : Off/ Low/Medium/High Set the Volume as demand GPS Information To track the Location, Speed, GPS state, Signal Strength, please check it in this setting. Speed Unit km/h or mph , set the speed unit you want Rear Mirror If you find that the rear camera screen is reversed from left to right after installing the rear camera, please turn on/off“Rear Mirror”to adjust the view Rear Flip(180°) If you find that the rear camera image is upside down after installing the rear camera, please turn on/off“Rear Flip(180)”to adjust the view. Reset This option is used to restore the factory settings About Include Product Model and System Version. Please continue to pay attention to the latest version. 2. Playback Press the UP button to enter the playback interface. There are three folders: Normal Video Folder, Locked Video Folder and Parking Video Folder. And there are three video lists in each folder: Front Video List and Rear Video List. After entering the video list, you can see the following video list. Front video name ends with F, Inside video name ends with I ,Rear cam video name ends with R. Note…

Text truncated - open the document above for the full version.

Dongguan Daozhi Electronic Technology Co., Ltd. Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-18 To whom it may concern: We, Dongguan Daozhi Electronic Technology Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2A4NP-F3) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Gangqian Feng Manager Dongguan Daozhi Electronic Technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Dongguan Daozhi Electronic Technology Co., Ltd. Room 101, No.53, South Sixth Lane, Hongda Road, Liancheng, Qiaotou Town, Dongguan City, Guangdong Province, China. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/14 U.S. Agent Designation Dongguan Daozhi Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A4NP-F3): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Dongguan Daozhi Electronic Technology Co., Ltd. Dongguan Daozhi Electronic Technology Co., Ltd. with the FRN [0031988728] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Gangqian Feng Manager Dongguan Daozhi Electronic Technology Co., Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Dongguan Daozhi Electronic Technology Co., Ltd. Add: Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Date: 2024-9-18 FCC ID: 2A4NP-F3 Dear Sir/Madam, We, Dongguan Daozhi Electronic Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: dash cam Model no.: F3, F1, F2, F4, F5, F6, F7, F8, F9, F10 Sincerely, Name/Title： Gangqian Feng/Manager Company: Dongguan Daozhi Electronic Technology Co., Ltd. Address: Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A4NP-F3 F3 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Gangqian Feng/Manager Company: Dongguan Daozhi Electronic Technology Co., Ltd. Address: Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

Dongguan Daozhi Electronic Technology Co., Ltd. Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Date: 2024-9-18 FCC ID: 2A4NP-F3 Model Number: F3 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Dongguan Daozhi Electronic Technology Co., Ltd., declare that this EUT (FCC ID: 2A4NP-F3) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Gangqian Feng/Manager Company: Dongguan Daozhi Electronic Technology Co., Ltd. Address: Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

Dongguan Daozhi Electronic Technology Co., Ltd. Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-18 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A4NP-F3 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Gangqian Feng/Manager Company: Dongguan Daozhi Electronic Technology Co., Ltd. Address: Room 101,No.53,South Sixth Lane, Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

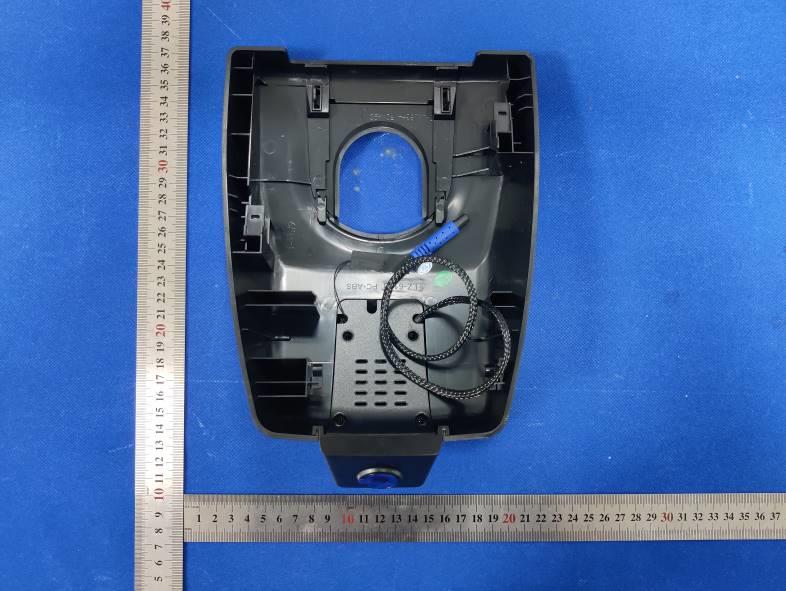

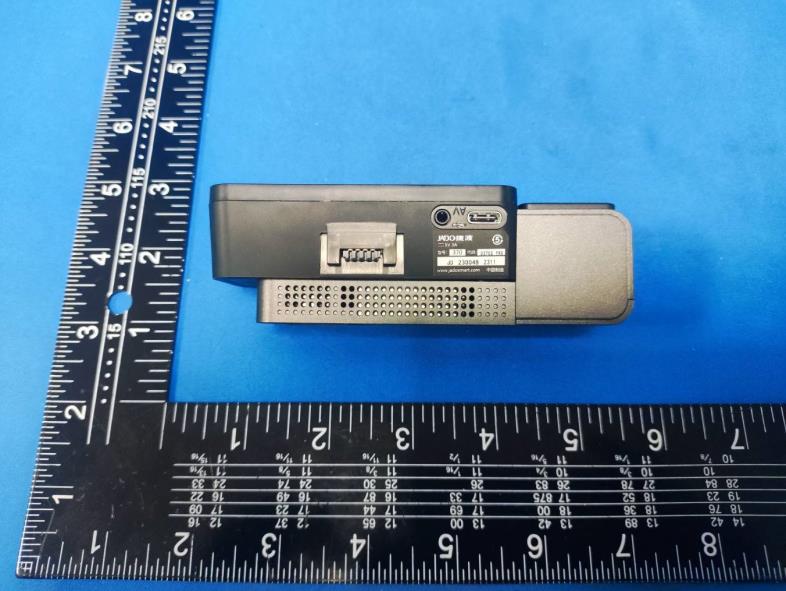

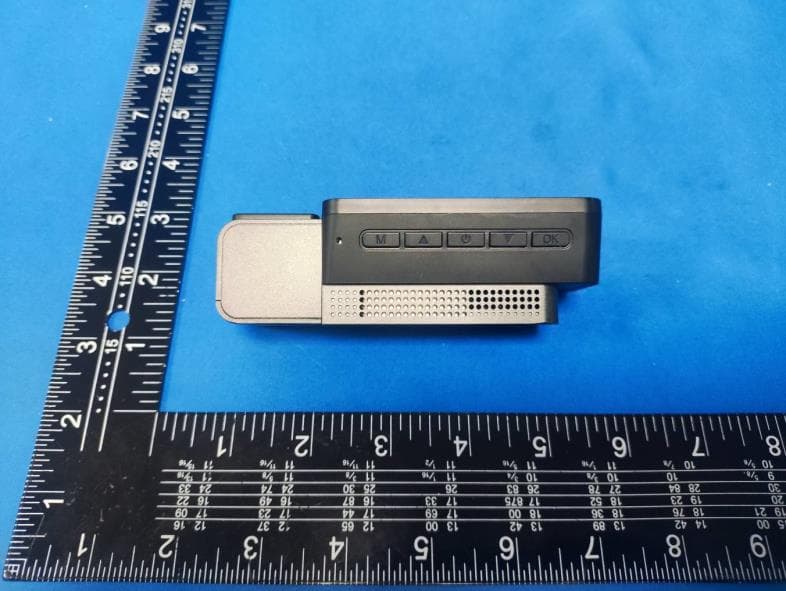

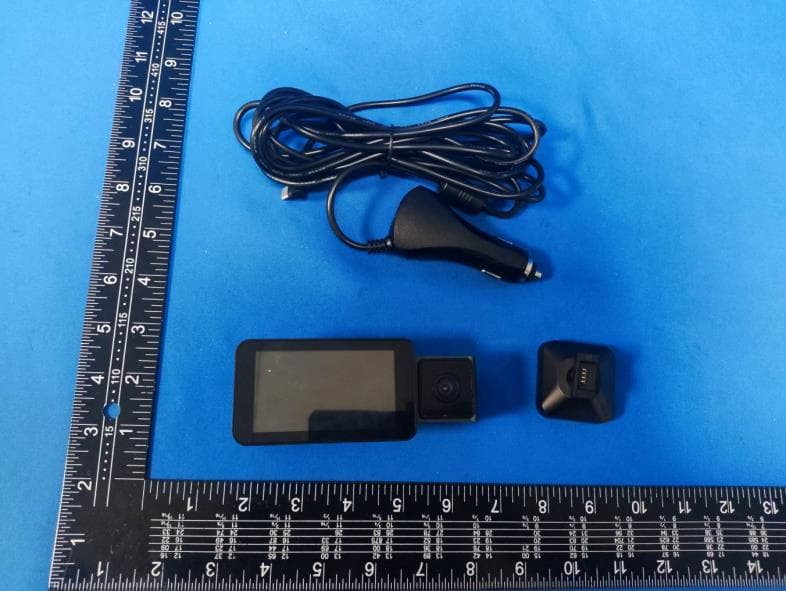

FCC ID: 2A4NP-F3 External Photos of the EUT FCC ID: 2A4NP-F3 FCC ID: 2A4NP-F3

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A4NP-F3

FCC ID: 2A4NP-F3 Internal Photos of the EUT FCC ID: 2A4NP-F3 ANT FCC ID: 2A4NP-F3 FCC ID: 2A4NP-F3

RF Exposure evaluation FCC ID: 2A4NP-F3 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information F3 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PIFA Antenna 1.25dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 14.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.25dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 16.0 39.8107 1.25 1.3335 0.0106 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA Antenna Model F3 Frequency range 2400-2500MHz Manufacturer Dongguan Daozhi Electronic Technology Co., Ltd. ANT Peak Gain 1.25 dBi 2. Antenna Photo: Length: 30.32mm Width: 5.49mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
