2A4NPHD2dash cam

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : CTA26071600302 2A4NPHD2 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Aug. 03, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dongguan Daozhi Electronic Technology Co., Ltd. Address ............................................. : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Test specification .......................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : dash cam Trade Mark ....................................... : FITCAMX Manufacturer .................................. : Dongguan Daozhi Electronic Technology Co., Ltd. Model/Type reference ....................... : HD2 Listed Models.................................... : HD2-Ultra, HD2-Series, HD2-001, HD2-002, HD2-003, HD2-XXXX((X represents 0-9), HD2-XXXXX((X represents 0-9, X represents a-z) Modulation ....................................... : OFDM Frequency ......................................... : From 5745MHz-5825MHz Rating ............................................... : Input: 12V 1A Result ................................................ : PASS Report No.: CTA26071600302 Page 2 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : dash cam Model /Type : HD2 Listed Models : HD2-Ultra, HD2-Series, HD2-001, HD2-002, HD2-003, HD2-XXXX((X represents 0-9), HD2-XXXXX((X represents 0-9, X represents a-z) Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model HD2 and the test results for the main test model can cover the listed models. Applicant : Dongguan Daozhi Electronic Technology Co., Ltd. Address : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Manufacturer : Dongguan Daozhi Electronic Technology Co., Ltd. Address : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26071600302 Page 3 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ..…

Text truncated - open the document above for the full version.

FCC ID:2A4NPHD2 Test Setup Photos of the EUT

1. Antenna Description: Antenna type PIFA Antenna Model HD2 Frequency range 2400-2500MHz, 5745-5825MHz Manufacturer Dongguan Daozhi Electronic Technology Co., Ltd. Address Room 101,No.53,South Sixth Lane,Hongda Road, Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China ANT Peak Gain 1.47 dBi for 2400-2500MHz 1.69 dBi for 5745-5825MHz 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to Length :26.34mm Width:15.93mm a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5745MHz 5785MHz 5825MHz

36 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~40000 37 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~40000 11N40SISO_Ant1_5755_30~5650 38 11N40SISO_Ant1_5755_5925~40000 11N40SISO_Ant1_5795_30~5650 39 11N40SISO_Ant1_5795_5925~40000 40 Appendix G: Emissions in Restricted Bands Test Result TestMode Antenn a ChName Freq(MH z) Detect or Freq [MHz] Result [dBm] Gain [dB] EIRP [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 Peak 5650.000 -48.78 2.00 -46.78 ≤-27.00 PASS Peak 5700.000 -31.83 2.00 -29.83 ≤10.00 PASS Peak 5720.000 -29.79 2.00 -27.79 ≤15.60 PASS Peak 5725.000 -23.45 2.00 -21.45 ≤27.00 PASS High 5825 Peak 5850.000 -34.897 2.00 -32.897 ≤27.00 PASS Peak 5855.000 -35.74 2.00 -33.74 ≤15.60 PASS Peak 5875.000 -49.25 2.00 -47.25 ≤10.00 PASS Peak 5925.000 -49.96 2.00 -47.96 ≤-27.00 PASS 11N20SI SO Ant1 Low 5745 Peak 5650.000 -47.721 2.00 -45.721 ≤-27.00 PASS Peak 5700.000 -37.27 2.00 -35.27 ≤10.00 PASS Peak 5720.000 -28.82 2.00 -26.82 ≤15.60 PASS Peak 5725.000 -20.48 2.00 -18.48 ≤27.00 PASS High 5825 Peak 5850.000 -33.457 2.00 -31.457 ≤27.00 PASS Peak 5855.000 -33.85 2.00 -31.85 ≤15.60 PASS Peak 5875.000 -48.87 2.00 -46.87 ≤10.00 PASS Peak 5925.000 -51.74 2.00 -49.74 ≤-27.00 PASS 11N40SI SO Ant1 Low 5755 Peak 5650.000 -42.165 2.00 -40.165 ≤-27.00 PASS Peak 5700.000 -35.06 2.00 -33.06 ≤10.00 PASS Peak 5720.000 -26.34 2.00 -24.34 ≤15.60 PASS Peak 5725.000 -25.58 2.00 -23.58 ≤27.00 PASS High 5795 Peak 5850.000 -35.821 2.00 -33.821 ≤27.00 PASS Peak 5855.000 -37.37 2.00 -35.37 ≤15.60 PASS Peak 5875.000 -44.13 2.00 -42.13 ≤10.00 PASS Peak 5925.000 -49.05 2.00 -47.05 ≤-27.00 PASS Note： 1. For transmitters operating in 5150-5350 GHz band and 5470-5725 GHz band: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11A_Ant1_Low_5745_Peak 11A_Ant1_High_5825_Peak 11N20SISO_Ant1_Low_5745_Peak 42 11N20SISO_Ant1_High_5825_Peak 11N40SISO_Ant1_Low_5755_Peak 43 11N40SISO_Ant1_High_5795_Peak

1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2A4NPHD2 Company : Dongguan Daozhi Electronic Technology Co., Ltd. EUT : dash cam Model Number : HD2 Report No. : CTA26071600302 Reviewed By : Eric Wang 2 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 25.680 5731.880 5757.560 --- --- 5785 24.480 5772.600 5797.080 --- --- 5825 25.320 5812.120 5837.440 --- --- 11N20SISO Ant1 5745 26.520 5731.720 5758.240 --- --- 5785 26.440 5771.600 5798.040 --- --- 5825 25.000 5812.120 5837.120 --- --- 11N40SISO Ant1 5755 45.920 5731.800 5777.720 --- --- 5795 45.120 5772.360 5817.480 --- --- 3 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 4 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 5 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 6 7 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.905 5736.0304 5753.9354 --- --- 5785 17.812 5776.0947 5793.9067 --- --- 5825 17.767 5816.0763 5833.8433 --- --- 11N20SISO Ant1 5745 18.847 5735.5606 5754.4076 --- --- 5785 18.765 5775.6154 5794.3804 --- --- 5825 18.751 5815.6161 5834.3671 --- --- 11N40SISO Ant1 5755 37.034 5736.5833 5773.6173 --- --- 5795 36.964 5776.6908 5813.6548 --- --- 8 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 9 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 10 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11 12 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.520 5736.240 5753.760 0.5 PASS 5785 17.520 5776.240 5793.760 0.5 PASS 5825 17.240 5816.520 5833.760 0.5 PASS 11N40SISO Ant1 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 13 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 14 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 15 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 16 17 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] Limit Verdict 11A Ant1 5745 0.15 0.20 75.00 1.25 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.15 0.20 75.00 1.25 --- --- 11N20SISO Ant1 5745 0.17 0.22 77.27 1.12 --- --- 5785 0.18 0.23 78.26 1.06 --- --- 5825 0.18 0.23 78.26 1.06 --- --- 11N40SISO Ant1 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 18 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 19 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 20 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 21 22 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Freq(MHz) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 14.93 75.00 1.25 16.18 ≤30.00 PASS 5785 14.68 75.00 1.25 15.93 ≤30.00 PASS 5825 14.49 75.00 1.25 15.74 ≤30.00 PASS 11N20SISO Ant1 5745 14.53 77.27 1.12 15.65 ≤30.00 PASS 5785 14.92 78.26 1.06 15.98 ≤30.00 PASS 5825 14.68 78.26 1.06 15.74 ≤30.00 PASS 11N40SISO Ant1 5755 14.91 78.26 1.06 15.97 ≤30.00 PASS 5795 14.87 78.26 1.06 15.93 ≤30.00 PASS 23 Appendix D: Maximum power spectral density Test Result Note:1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz) +Duty factor. 2. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB 3. EIRP P.S.D(dBm/MHz)= Result P.S.D(dBm/MHz)+ Duty factor+Antenna Gain 4. Note:Offset=cable loss TestMode Antenna Freq(MHz) RawData [dBm/MHz] DC Factor [dBm] RBW Factor [dBm] Result [dBm/500KHz ] Limit [dBm/500KHz ] Verdict 11A Ant1 5745 -1.06 1.25 2.22 2.41 ≤30.00 PASS 5785 -1.05 1.25 2.22 2.42 ≤30.00 PASS 5825 -1.01 1.25 2.22 2.46 ≤30.00 PASS 11N20SISO Ant1 5745 -0.95 1.12 2.22 2.39 ≤30.00 PASS 5785 -0.69 1.06 2.22 2.59 ≤30.00 PASS 5825 -0.6 1.06 2.22 2.68 ≤30.00 PASS 11N40SISO Ant1 5755 -4.12 1.06 2.22 -0.84 ≤30.00 PASS 5795 -3.74 1.06 2.22 -0.46 ≤30.00 PASS 24 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 25 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 26 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 27 28 Appendix E: Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5645~5650 -45.64 ≤-27 PASS 5650~5700 -47.23 ≤-26.96 PASS 5700~5720 -26.27 ≤12.99 PASS 5720~5725 -26.87 ≤15.82 PASS High 5825 5850~5855 -33.73 ≤15.73 PASS 5855~5875 -32.79 ≤13.99 PASS 5875~5925 -49.31 ≤-26.51 PASS 5925~5935 -48.28 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5645~5650 -46.56 ≤-27 PASS 5650~5700 -47.6 ≤-26.45 PASS 5700~5720 -24.52 ≤13.63 PASS 5720~5725 -23.25 ≤16.87 PASS High 5825 5850~5855 -34.21 ≤15.73 PASS 5855~5875 -31.7 ≤14.90 PASS 5875~5925 -48.37 ≤-26.61 PASS 5925~5935 -48.18 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5645~5650 -38.76 ≤-27 PASS 5650~5700 -37.67 ≤-26.30 PASS 5700~5720 -22.68 ≤13.76 PASS 5720~5725 -27.22 ≤15.74 PASS High 5795 5850~5855 -36.06 ≤15.66 PASS 5855~5875 -35.18 ≤11.73 PASS 5875~5925 -48.05 ≤-26.71 PASS 5925~5935 -46.85 ≤-27 PASS 29 Test Graphs B4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 30 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 31 11N40SISO_Ant1_High_5795 32 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 5600.73 -47.53 ≤-27 PASS 5925~40000 11488.8 -46.79 ≤-27 PASS 5785 30~5650 5626.02 -42.64 ≤-27 PASS 5925~40000 24619.23 -47.07 ≤-27 PASS 5825 30~5650 5639.88 -46.83 ≤-27 PASS 5925~40000 26137.33 -46.88 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 5611.78 -46.65 ≤-27 PASS 5925~40000 25609.75 -47.12 ≤-27 PASS 5785 30~5650 5625.27 -42.85 ≤-27 PASS 5925~40000 25687.73 -46.97 ≤-27 PASS 5825 30~5650 5642.51 -46.84 ≤-27 PASS 5925~40000 26159.11 -47.18 ≤-27 PASS 11N40S…

Text truncated - open the document above for the full version.

Dongguan Daozhi Electronic Technology Co., Ltd. Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/08/18 U.S. Agent Designation Dongguan Daozhi Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A4NPHD2): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Dongguan Daozhi Electronic Technology Co., Ltd. with the FRN [0031988728] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Gangqian Feng Manager Dongguan Daozhi Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26071600303 2A4NPHD2 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 03, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dongguan Daozhi Electronic Technology Co., Ltd. Address............................................ : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : dash cam Trade Mark ....................................... : FITCAMX Manufacturer .................................... : Dongguan Daozhi Electronic Technology Co., Ltd. Model/Type reference ...................... : HD2 Listed Models ................................... : HD2-Ultra, HD2-Series, HD2-001, HD2-002, HD2-003, HD2-XXXX((X represents 0-9), HD2-XXXXX((X represents 0-9, X represents a-z) Rating ............................................... : Input: 12V 1A Result ............................................... : PASS Report No.: CTA26071600303 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : dash cam Model /Type : HD2 Listed Models : HD2-Ultra, HD2-Series, HD2-001, HD2-002, HD2-003, HD2-XXXX((X represents 0-9), HD2-XXXXX((X represents 0-9, X represents a-z) Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model HD2 and the test results for the main test model can cover the listed models. Applicant : Dongguan Daozhi Electronic Technology Co., Ltd. Address : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Manufacturer : Dongguan Daozhi Electronic Technology Co., Ltd. Address : Room 101,No.53,South Sixth Lane,Hongda Road,Liancheng,Qiaotou Town,Dongguan City,Guangdong Province,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26071600303 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 9 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ............…

Text truncated - open the document above for the full version.

FCC ID:2A4NPHD2 Internal Photos of the EUT FCC ID:2A4NPHD2 FCC ID:2A4NPHD2 Antenna FCC ID:2A4NPHD2

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2A4NPHD2

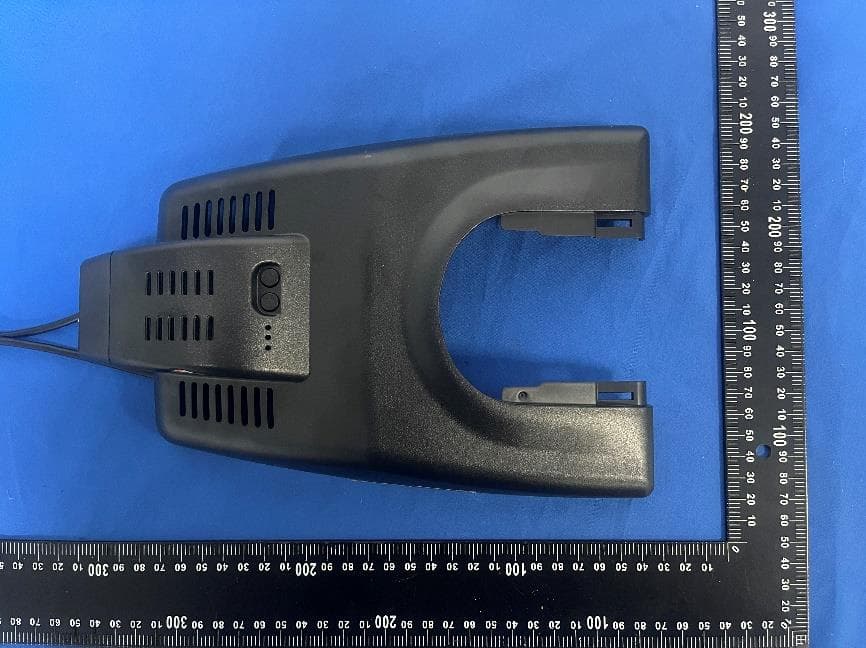

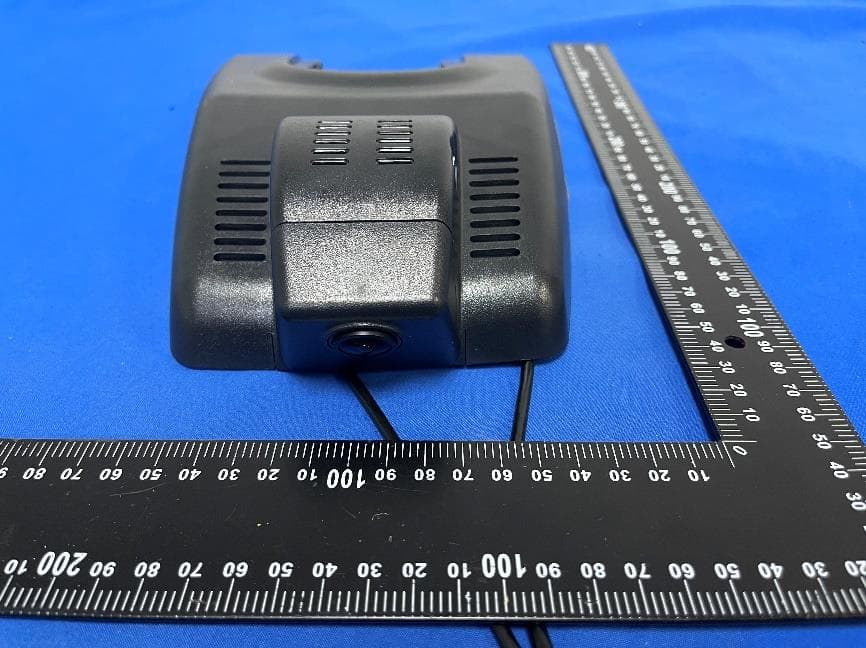

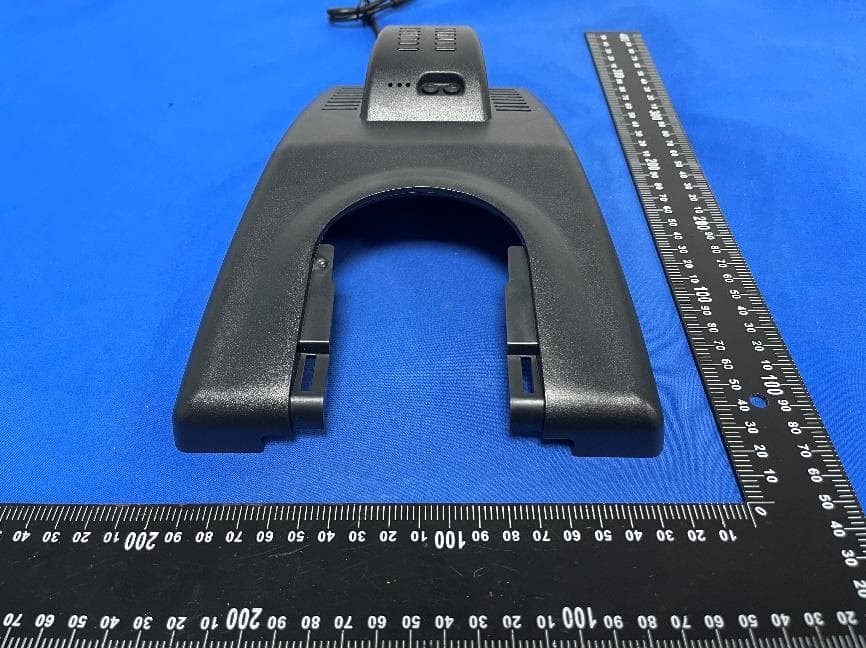

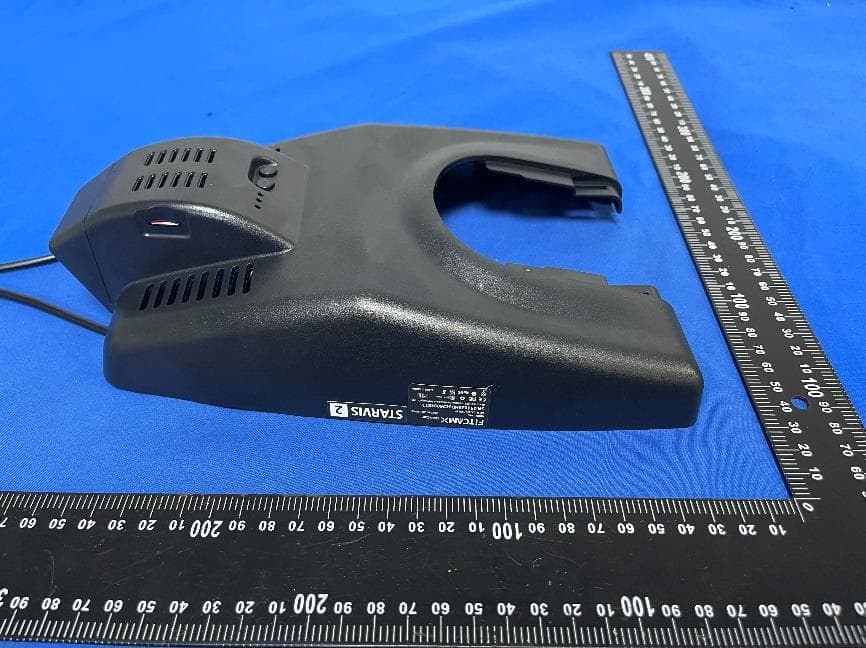

FCC ID:2A4NPHD2 External Photos of the EUT FCC ID:2A4NPHD2 FCC ID:2A4NPHD2
