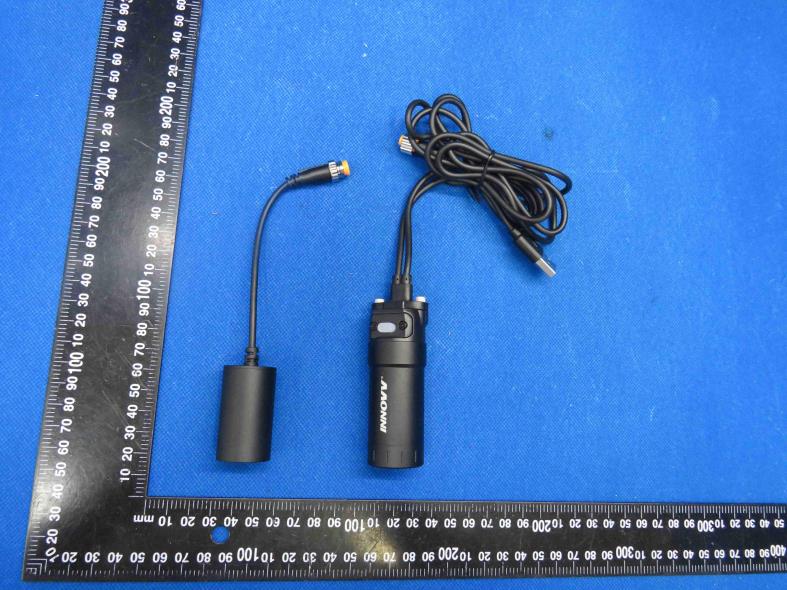

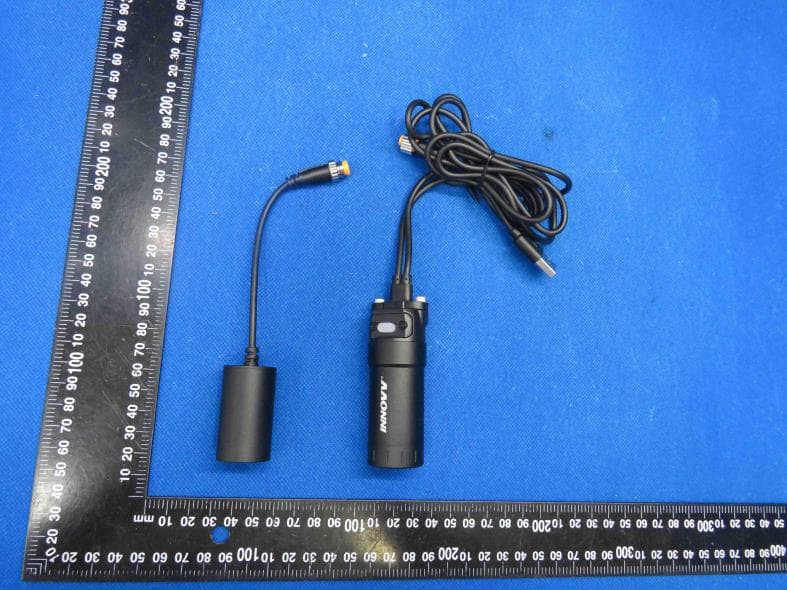

Product Overview The INNOVV K6 is a high-end mini camera system with 2K & 1080P which is specially designed for Bicycles and E-Bikes, featured with industrial-leading technology in the video recording area. The QHD video footage ensures that you will never miss a wonderful moment during your trip. The small and durable Aluminium Alloy case ensures an easy installation. Product Features: 1. Dual-Camera with 2K@30FPS & 1080P@30FPS. 2. F2.0 aperture and QHD lens offering a good footage quality with less distortion. 3. Supports up to 256GB TF card. 4. H.265 video coding technology ensures a smaller video size, which helps you save more videos. 5. The camera will be powered by an external power supply from the USB cable, which makes you less anxious about recording time. 6. Easy installation thanks to its small and light body. 7. IP67 rate, superior performance against water, dust and also excellent performance in high & low-temperature environments. Brief Introduction           . Front camera . DVR . Internal microphone . Button/Indicator . TF card input port . USB Type-C port . Screw-Holes . Thumb screws . USB cable . Rear camera TF Card Instruction 1. You are suggested to select a TF card fits for K6 with a capacity from 8GB to 256GB. The TF card should have a writing speed higher than U3. 2. In order to get better compatibility, please connect INNOVV App in your mobile phone with K6, then format the TF card in the App settings. 3. Please insert the TF card and connect the Type-C connector to the DVR with the guidance of this manual to avoid any DVR or TF card damages. Installation TF Card & Connector Connection TF Connector 6FUHZ Silicon ring 1. Unscrew the screws by a wrench or hand. 2. Hold the DVR and pull out the Type-C connector, insert the TF card into the card slot, please refer to the left picture. 3. Please Confirm the TF card is inserted properly and the silicon ring is placed correctly, then connect the Type-C connector cable back to the DVR and tighten the screws (Please partially and alternately tighten between both screws). *Please note product failures such as recording failure or water leakage will be caused by improper TF card insertion or unsealed silicon ring. Power Supply Information The INNOVV K6 is designed to be powered by a standard external power supply with a USB port, it requires the power supply with DC 5V±0.5V/2A±0.5A. *Power bank, USB Power outlet, mobile phone adaptor and other standard 5V USB power supplies are recommended, an unqualified one may cause product failures such as start-up failure, shut down randomly, or even damage the DVR. Product Installation *Please install the camera system by following the guidance below DVR Installation M4*12 mm*2 pcs . Lower bracket . Upper bracket . M5*16 mm*1pcs . DVR/Front camera . 3M rubber cushion . U shape bracket Rear Camera Installation           Upper bracket slide . M6*12 mm*1 pcs . Rubber ring . Lower bracket slide . Small block . M6*8 mm*2 pcs . 3M rubber cushion . U shape bracket . Rear camera . M4*25 mm*3 pcs Installation Position and Wiring Arrangement Notice: 1. To avoid cable breakage, please reserve enough length of cable in the front of the bike. 2. In order to get a better video angle, please go to the App preview interface while installing the system. 3. The USB connector is a standard one without any locking function, please reserve enough length for the USB cable to avoid any unexpected force to cause USB looseness. 4. Please use cable clips to fix all cables, which make the installation neat and also avoid damages.       DVR/Front camera . DVR mount . Power bank (not included) . Self-adhesive cable clips . Rear camera . Rear camera mount Protect Your Road Trip and Record Fun On The Way INNOVV K6 Camera System Intended For Bicycles and E-Bikes Protect Your Road Trip and Record Fun On The Way INNOVV K6 Camera System Intended For Bicycles and E-Bikes App Operation App Download iPhone: Please search the INNOVV App in the Apple store or scan the QR code on the right, and install it on your phone. Android: Please search the INNOVV App in the Google play or scan the QR code on the right, and install it on your phone. Please power on the K6, then search the INNOVV Wi-Fi (INNOVV_K6_xxxx) and connect it with the default password 12345678. *The green light indicator in the K6 DVR will be solid on after the Wi-Fi is connected. Notice: 1. You may get a message that "Allow "INNOVV" to use your location?" for the first time when you enter the App, please click "Allow while using App". 2. You may get a message "INNOVV Would Like to Access Your Photos" for the first time when you enter the App, please click "Allow Access to All Photos". *Some Android users may get a message that "This WLAN network has no internet access, Connect anyway?", please click "CONNECT" to continue the network connection, or the App will not be able to connect to the DVR. 3. You may get a message that "Please ensure the device is connected" in the network connection, please click "OK", or the App will not be able to connect to the DVR. For Apple DeviceFor Android Device App Interface Camera Video INNOVV official website Settings Document INNOVV forum FAQ Feedback Quick switch between front & rear camera Recording Indicator Full-screen mode Start/stop recording Date & time Video stamp Shutter button Files stored locally Files stored on the TF card Videos recorded in normal mode Videos recorded by activation of the G-sensor with significant movements Videos under protected after pressing the button on the DVR Photos are stored here Select videos Search videos Videos by front camera Videos by rear camera All videos Product Function 1. Recording Pausing: Please go to the App and press to stop the recording. 2. Taking Pictures: Please go to the App and press to take a picture. 3. Copy the Videos: Take out the TF card from the DVR, or connect the K6 to the PC, you can copy the videos to your computer easily. 4. Facto…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Rock Liu/General Manager Company: INNOVV TECH CO.,LIMITED Address: 4th Floor,Huagu Science and Technology Park,No.3, Shenghua Road, Zhongkai High-tech District, Huizhou City China Phone: 86-752-2675250 Fax: 86-752-2675250 E-Mail: [email protected]

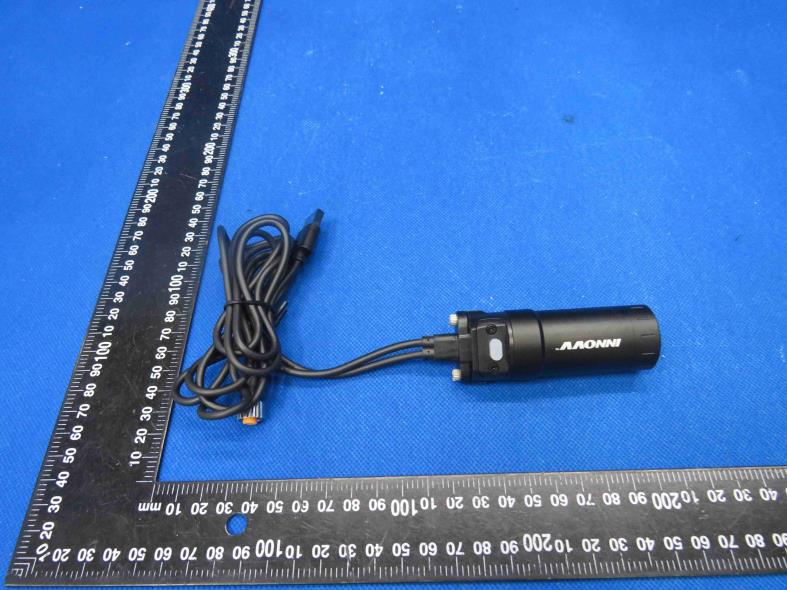

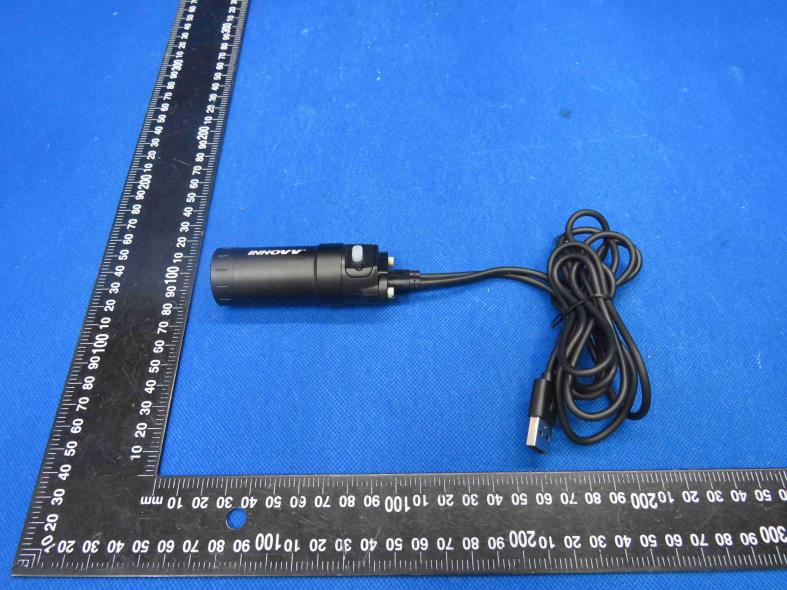

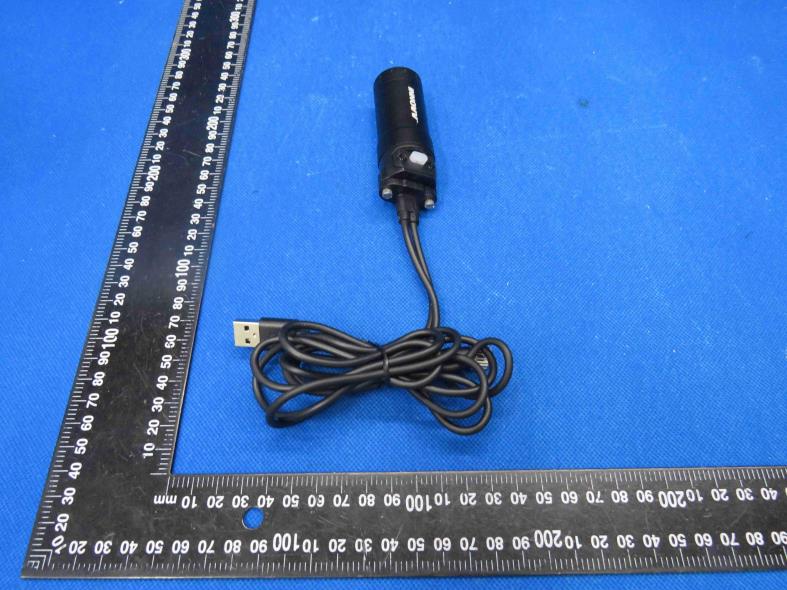

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Camera System Model No.: INNOVV K6 EUT Constructional Details External Photo Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: INNOVV K6 FCC ID : 2A4OU-INNOVVK6

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Camera System Model No.: INNOVV K6 EUT Constructional Details Internal Photo Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202309031 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

RF Exposure evaluation FCC ID: 2A4OU-INNOVVK6 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / FPC Antenna 0.79dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 14.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 15.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 16.0 16.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.79dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 17.0 50.1187 0.79 1.1995 0.0120 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ShenzhenSKYLinkTechnologyCo.,Ltd AntennaSpecificationforApproval CustomerName： ProductName：I6KWIFIAntenna PartNO.IK6.C113.60B.221 WriteBy：zhangchanghua IssuedDate:2023-08-28 Customer R&DDeptBusinessDeptApprovedBy SKYLink R&DDeptEngineerDeptApproval R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected]  SpecificationSummary A.ElectricalCharacteristics Frequency 2400MHz ~2500MHz Return Loss -10dB Efficiency >35% Peak Gain 0.79dbi Impedance 50 Ohm Polarization Line B. Material & Mechanical Characteristics Material of Radiator FPC Cable Type 1.13 Black Connector Type Dimension At Attachment Heat-durability 280±5 ̊C，10sec. C. Environmental Characteristics Operation Temperature - 20 ̊C ~ + 80 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C A 0.03 0.02 0.04 0～10 ±0.05 10～18 ±0.10 18～30 ±0.12 ∅ 0.02 30～40 ±0.15 Remark Rev Date Third Angle New drawing Description 40～ ±0.20 1234 Approved by D C B 5678 A 12345678 Part No. Date Designed by Checked by Scale Rev mm Location Project Material Part Name Unit RF MD A Angle ±0.5° 1:1 D C B A 深 圳 天 联 凌 科 技 有 限 公 司 SHEN ZHEN SKYLink CO.,LTD RoHS P G Compliant DWG No. 2023-08-28 IK6.C113.60B.221 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] TestEquipment&Conditions 1．NetworkAnalyzers: Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW500 2．3DChamberTestSystem R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReturnLoss R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] Gain&Efficiency FreqEffiGain (MHz)(%)(dBi) 240038.850.79 241037.030.46 242036.410.05 243037.460.59 244039.040.62 245037.32-0.02 246037.570.16 247037.60.23 248037.710.22 249037.760.15 250036.6-0.24 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] RadiationPattern R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] AntennaPicture antennaposition R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp.Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-down thetemp.to-30°Cinonehour,storeantennafor 44hours;step-uptempto25°C,testantennaafter 2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 2 HighTemp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-upthe temp.to80°Candthehumidityupto85%inone hour,storeantennafor44hours;step-downtemp to25°C,testantennaafter2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 3Salt-Spray6prayTest PlacingantennaintheSalt-SprayTester,setthe testcondition，Temp:35±2°CHumidity:85% NaClsaltspray:5±1%.PHvalue:6.5~7.2Test time:24hours Salt-SprayTester Nocolorchange Noappearrusting PASS

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202309031F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 36 TEST Report Applicant: INNOVV TECH CO.,LIMITED Address of Applicant: 4th Floor,Huagu Science and Technology Park,No.3, Shenghua Road, Zhongkai High-tech District, Huizhou City, Guangdong Province, China Manufacturer : INNOVV TECH CO.,LIMITED Address of Manufacturer : 4th Floor,Huagu Science and Technology Park,No.3, Shenghua Road, Zhongkai High-tech District, Huizhou City, Guangdong Province, China Equipment Under Test (EUT) Product Name: Camera System Model No.: INNOVV K6 Series model: N/A Trade Mark: INNOVV FCC ID: 2A4OU-INNOVVK6 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Aug.31,2023 Date of Test: Aug.31,2023~Sep.06,2023 Date of report issued: Sep.06,2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202309031F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 36 1. Version Version No. Date Description 00 Sep.06,2023 Original Tested/ Prepared By Date: Sep.06,2023 Project Engineer Check By: Date: Sep.06,2023 Reviewer Approved By : Date: Sep.06,2023 Authorized Signature Report No.: HTT202309031F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 36 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 7 6. TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 12 6.3. CHANNEL BANDWIDTH .............................................................................................................................. 13 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 16 6.5. BAND EDGE ............................................................................................................................................. 19 6.5.1. Conducted Emission Method ......................................................................................................... 19 6.5.2. Radiated Emission Method ............................................................................................................ 22 6.6. SPURIOUS EMISSION ................................................................................................................................ 24 6.6.1. Conducted Emission Method ......................................................................................................... 24 6.6.2. Radiated Emission Method ............................................................................................................ 28 6.7. ANTENNA REQUIREMENT .......................................................................................................................... 35 7. TEST SETUP PHOTO .................................................................................................................................. 36 8. EUT CONSTRUCTIONAL DETAILS .........................................................................................…
