2A4PQ-ZBY-78S-1303Bluetooth module

FINAL SUBMISSION SPECIFICATION Model: ZBY-78S Product NameBluetooth module ModelZBY-78S FCC ID2A4PQ-ZBY-78S-1303 IC29293-ZBY78S HVINZBY-78S Bluetooth module ZBY-78S | Page of 112 Revision History VersionDateDescriptionPrepared By V1.0 2026-04-24Formal lab submission version. Wei Bluetooth module ZBY-78S | Page of 212 Contents • 1. Document Description • 2. Mechanical Structure • 3. Electrical Characteristics • 4. Pin Definition • 5. Operation Instructions • 6. AT Command Overview • 7. Regulatory and Safety Statements Bluetooth module ZBY-78S | Page of 312 1. Document Description This specification describes the Bluetooth module ZBY-78S. The module is designed for UART transparent transmission applications and is based on the ST17H78S low-power 32-bit controller with BLE 5.0 capability. The module supports BLE 5.0 RF PHY at 1 Mbps and 2 Mbps. It provides low power consumption, compact size, UART communication, configurable RF power, and AT command control for product customization. 1.1 Main Features • Main controller: ST17H78S with SWD support. • Memory: 96 KB ROM and 32 KB SRAM. • Programmable retention in sleep mode and 16 KB OTP support. • Operating voltage range: 1.8 V to 3.6 V. • Integrated LDO and battery monitoring support. • BLE 5.0 operation in the 2.4 GHz ISM band. • Single antenna design without additional RF matching or RX/TX switching. • AES-128 hardware encryption and RSSI reporting. 1.2 Default Application Requirements • Standard firmware baud rate: 115200 bps. • Custom firmware baud rate: 9600 bps or 115200 bps. • The module supports AT+MESHLOG=1 to enable log output. • The module supports AT+MESHNAME=<name> to modify the Bluetooth name. • The MAC address shall be included in advertising packets. • For custom firmware, device information must be obtained after power-on before advertising starts. 2. Mechanical Structure 2.1 Basic Information • PCB size: 10.03 mm x 16.26 mm x 1.0 mm PCBA. • Number of pins: 5 pins. • Antenna: onboard PCB antenna. Figure 1. Module Outline and Package Dimensions Bluetooth module ZBY-78S | Page of 412 3. Electrical Characteristics Standard measurement conditions: Ta = 25°C, VDD = 3.3 V, BLE low energy mode, 1 Mbps, GFSK modulation with 250 kHz deviation. ItemSpecification ModulationGFSK Frequency Range2400 MHz to 2483.5 MHz Bluetooth module ZBY-78S | Page of 512 Transmit Power-23 dBm to 0 dBm, programmable by software Operating Temperature-20°C to +60°C Storage Temperature-40°C to +85°C Supply Voltage1.8 VDC to 3.6 VDC Receive Sensitivity-94 dBm typical RX Current9.1 mA typical at high gain setting TX Current9.5 mA typical at 0 dBm output MCU Active Current6.7 mA typical with 32 MHz crystal oscillator only Power Mode 1 Current270 uA typical, MCU standby, wake-up time 4 us Power Mode 2 Current0.9 uA typical, sleep timer active Power Mode 3 Current0.5 uA typical, deep sleep with hardware wake-up Average Operating CurrentLess than 500 uA Standby CurrentLess than 100 uA Sleep CurrentLess than 1 uA Bluetooth module ZBY-78S | Page of 612 4. Pin Definition Pin No.Pin NameTypeDescription 1P14Bluetooth connection status indication Port P14 2RXProgramming RX / UART RX Receive data input 3TXProgramming TX / UART TX Transmit data output 4GNDPower groundGround 5VCCPower input1.8 V to 3.6 V Bluetooth module ZBY-78S | Page of 712 5. Operation Instructions 5.1 Default UART Parameters • UART baud rate for standard firmware: 115200 bps. • Data bits: 8 bit. • Stop bits: 1 bit. • Parity: none. • Power ripple on the VCC pin shall not exceed 30 mV. • VCC shall not exceed 3.6 V. 6. AT Command Overview After power-on and successful startup, the module can be configured through UART by using AT commands. The following commands are supported in the standard command set. CommandFunction AT+NAMEQuery or set the module name. AT+MACQuery or set the module MAC address. AT+CIVERQuery the firmware version. AT+UARTQuery or set the UART baud rate. AT+AUTO+++Enable or disable auto transparent mode after BLE connection. AT+LINKQuery BLE connection status. AT+ADVINTQuery or set the advertising interval. AT+POWERQuery or set RF transmit power. AT+UUIDQuery the transparent service UUID information. AT+DISCONNDisconnect the current BLE connection. AT++++Enter transparent transmission mode. Bluetooth module ZBY-78S | Page of 812 7. Regulatory and Safety Statements Certification identifiers for this product are listed below: AT+ZRestart the module. AT+RESETRestore factory settings. AT+FLASHSave parameters to flash memory. AT+RESEQuery or set custom advertising data. AT+OFFEnter power-off mode. AT+MESHLOG=1Enable log output. AT+MESHNAME=<name>Modify the Bluetooth device name. FCC ID2A4PQ-ZBY-78S-1303 IC29293-ZBY78S HVINZBY-78S Bluetooth module ZBY-78S | Page of 912 7.1 FCC Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. To maintain compliance with FCC RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user's body. Use only the supplied antenna. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Part 15.105 Class B Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can radia…

Text truncated - open the document above for the full version.

ALLPOWERSIndustrialInternationalLimited 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ALLPOWERSIndustrialInternationalLimited Address: Floor1-4,BuildingNo.2 ， No.182KaiyuanAvenue,HuangpuDistrict,Guangzhou,China ProductName:Bluetoothmodule FCCID:2A4PQ-ZBY-78S-1303 Model(s):ZBY-78S 2.911(d)(5)(i)EquipmentType We,[ALLPOWERSIndustrialInternationalLimited]certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Signature: Name:ZhongCaiqunDate:2026.4.10 TitleandCompanyname:Manager/ALLPOWERSIndustrialInternationalLimited NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ALLPOWERSIndustrialInternationalLimited 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ALLPOWERSIndustrialInternationalLimited Address: Floor1-4,BuildingNo.2 ， No.182KaiyuanAvenue,HuangpuDistrict,Guangzhou,China ProductName:Bluetoothmodule FCCID:2A4PQ-ZBY-78S-1303 Model(s):ZBY-78S 2.911(d)(5)(ii)Applicantfiling We,[ALLPOWERSIndustrialInternationalLimited]certifythat,asofthedateofthe filingoftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Signature: Name:ZhongCaiqunDate:2026.4.10 TitleandCompanyname:Manager/ALLPOWERSIndustrialInternationalLimited NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the ALLPOWERSIndustrialInternationalLimited 2.911(d)(5)(ii)ApplicantAttestationv1.2

ALLPOWERSIndustrialInternationalLimited 2.911(d)(7)USAAgentv1.5 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:ALLPOWERSIndustrialInternationalLimited Address: Floor1-4,BuildingNo.2 ， No.182KaiyuanAvenue,HuangpuDistrict,Guangzhou, China ProductName:Bluetoothmodule FCCID:2A4PQ-ZBY-78S-1303 Model(s):ZBY-78S 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[ALLPOWERSIndustrialInternationalLimited](“theapplicant”)designate [ALLPOWERSINC] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfof theapplicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater. ALLPOWERSIndustrialInternationalLimited 2.911(d)(7)USAAgentv1.5 USAAgent Companyname:ALLPOWERSINC USAAddress:23555GOLDENSPRINGS DR4DIAMONDBAR,CA91765 FRNNumber：0038172151 ContactName:AmyWang TelephoneNo:6269226321 Email:[email protected] Applicant Companyname:ALLPOWERSIndustrial InternationalLimited Address: Floor1-4,BuildingNo.2 ， No.182 KaiyuanAvenue,HuangpuDistrict,Guangzhou, China GranteeFRNNumber:0031993520 FCCGranteeCode:2A4PQ ContactName:ZhongCaiqun TelephoneNo:020-29060014 Email:[email protected] Signature: Title:Manager Signature: Title:Manager Date:2026-4-10Date:2026.4.10 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ALLPOWERSIndustrialInternationalLimited AgentAuthorization Company:ALLPOWERSIndustrialInternationalLimited Address:Floor1-4,BuildingNo.2，No.182KaiyuanAvenue,HuangpuDistrict, Guangzhou,China ProductName:Bluetoothmodule ModelNumber(s):ZBY-78S ProductDescription:Bluetoothmodule WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2026.4.10 Name: ZhongCaiqun Title:Manager Company: ALLPOWERSIndustrialInternationalLimited

ALLPOWERSIndustrialInternationalLimited FCCModularApprovalRequestRev4.0 FederalCommunicationsCommission EquipmentAuthorizationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026.4.11 Subject;SingleModularApprovalRequest Companyname:ALLPOWERSIndustrialInternationalLimited FCCID:2A4PQ-ZBY-78S-1303 DearSir/Madam, ThisletterincludestheFCCapplicationrequirementsforSingleModularApprovalforthemodulartransmitter identifiedbelow. FCCKDB996369D01‘ModuleCertificationGuidev04r02”;and FCCKDB996369D03“OEMManualv01r01”. Inaccordancewith47CFR15.212ModularTransmittersandKDB996369D01‘ModuleCertificationGuide v04r02”,FCCID:2A4PQ-ZBY-78S-1303hasbeenbeenexaminedstthefollowingrequirements. ItemRequirementper15.212andKDB996369D01Y/NExplanationfromGrantee (Explainwhyproductcomplies/howitisachieved) 1Theradioelementsofthemodulartransmittermusthavetheir ownshielding.Thephysicalcrystalandtuningcapacitorsmaybe locatedexternaltotheshieldedradioelements. Y Theradioportionhashisownshielding(see externalphotos) 2Themodulartransmittermusthavebufferedmodulation/data inputs(ifsuchinputsareprovided)toensurethatthemodulewill complywithpart15requirementsunderconditionsofexcessive dataratesorover-modulation. Y Thishasbeenintegratedinthechipset. 3Themodulartransmittermusthaveitsownpowersupply regulation. Y Thisisintegrated. 4Themodulartransmittermustcomplywiththeantennaand transmissionsystemrequirementsof§§15.203,15.204(b)and 15.204(c).Theantennamusteitherbepermanentlyattachedor employa“unique”antennacoupler(atallconnectionsbetween themoduleandtheantenna,includingthecable).The “professionalinstallation”provisionof§15.203isnotapplicableto modulesbutcanapplytolimitedmodularapprovalsunder paragraph(b)ofthissection. Y ZBY-78SwithPCBAntennaf 5Themodulartransmittermustbetestedinastand-alone configuration,i.e.,themodulemustnotbeinsideanotherdevice duringtestingforcompliancewithpart15requirements.Unless thetransmittermodulewillbebatterypowered,itmustcomply withtheAClineconductedrequirementsfoundin§15.207.ACor DCpowerlinesanddatainput/outputlinesconnectedtothe modulemustnotcontainferrites,unlesstheywillbemarketed withthemodule(see§15.27(a)).Thelengthoftheselinesshall bethelengthtypicalofactualuseor,ifthatlengthisunknown,at least10centimeterstoinsurethatthereisnocouplingbetween thecaseofthemoduleandsupportingequipment.Any accessories,peripherals,orsupportequipmentconnectedtothe moduleduringtestingshallbeunmodifiedandcommercially available(see§15.31(i)). Y Pleaserefertotestsetupconfigurationphoto. ALLPOWERSIndustrialInternationalLimited FCCModularApprovalRequestRev4.0 6Themodulartransmittermustbeequippedwitheithera permanentlyaffixedlabelormustbecapableofelectronically displayingitsFCCidentificationnumber. Y Themodulehasitsownlabel.Theinstruction forlabellingrulesforthehostdevicehasbeen statedintheuser’smanual 7Themodulartransmittermustcomplywithanyspecificrulesor operatingrequirementsthatordinarilyapplytoacomplete transmitterandthemanufacturermustprovideadequate instructionsalongwiththemoduletoexplainanysuch requirements.Acopyoftheseinstructionsmustbeincludedinthe applicationforequipmentauthorization. Y TherequiredFCCruleshasbeenfulfilledand allinstructionsformaintainingcompliancehas beenclearlystatedintheuser’smanual 8Radiofrequencydevicesoperatingundertheprovisionsofthis partaresubjecttotheradiofrequencyradiationexposure requirementsspecifiedin§§1.1307(b),1.1310,2.1091,and 2.1093ofthischapter,asappropriate.Applicationsforequipment authorizationofmodulartransmittersunderthissectionmust containastatementconfirmingcompliancewiththese requirements.Themodulartransmittermustcomplywithany applicableRFexposurerequirementsinitsfinalconfiguration. Technicalinformationshowingthebasisforthisstatementmust besubmittedtotheCommissionuponrequest. Y TheequipmentcomplieswithFCCRadiation exposurelimitssetforthforuncontrolled environment.Thisequipmentshouldbe installedandoperatedwithminimumdistance 20cmbetweentheradiatorandyourbody IntegrationInstructionsforhostproductmanufacturers ThefollowingitemsaresubmittedinsupportofapplicationforModularTransmitterFCCIDasnotedaboveas requiredbytheFCCKDB996369D03OEMManualv01r01. Theseitemsareprovidedasintegrationinstructionsforhostproductmanufacturers(e.g.,OEMinstruction manual)tousewhenintegratingamoduleinahostproduct. AnyrequirementsthatarenotapplicabletotheModuleareasindicatedbelow. SummaryofrequirementsandChecklist.RefertotheKDBfordescriptionofthecompleterequirements; KDB RefSect RequirementsofKDB996369D03UserManualPageNumberreference 2.2ListofapplicableFCCrules 11 2.3Summarizethespecificoperationaluseconditions 11 2.4Limitedmoduleprocedures 11 2.5Traceantennadesigns 11 2.6RFexposureconsiderations 11 2.7Antennas 11 2.8Labelandcomplianceinformation 11 2.9Informationontestmodesandadditionaltestingrequirements 11 2.10Additionaltesting,Part15SubpartBdisclaimer 11 2.11NoteEMIconsiderations 11 2.12Howtomakechanges 12 ALLPOWERSIndustrialInternationalLimited FCCModularApprovalRequestRev4.0 Name:ZhongCaiqunDate:2026.4.11 Title:Manager Signatureofapplicant:

ALLPOWERSIndustrialInternationalLimited OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026.4.10 Subject;RequestforConfidentiality FCCID:2A4PQ-ZBY-78S-1303 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SOFTWARESECURITYREQUIREMENTSFORU-NIIDEVICES Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:ZhongCaiqun Title:Manager

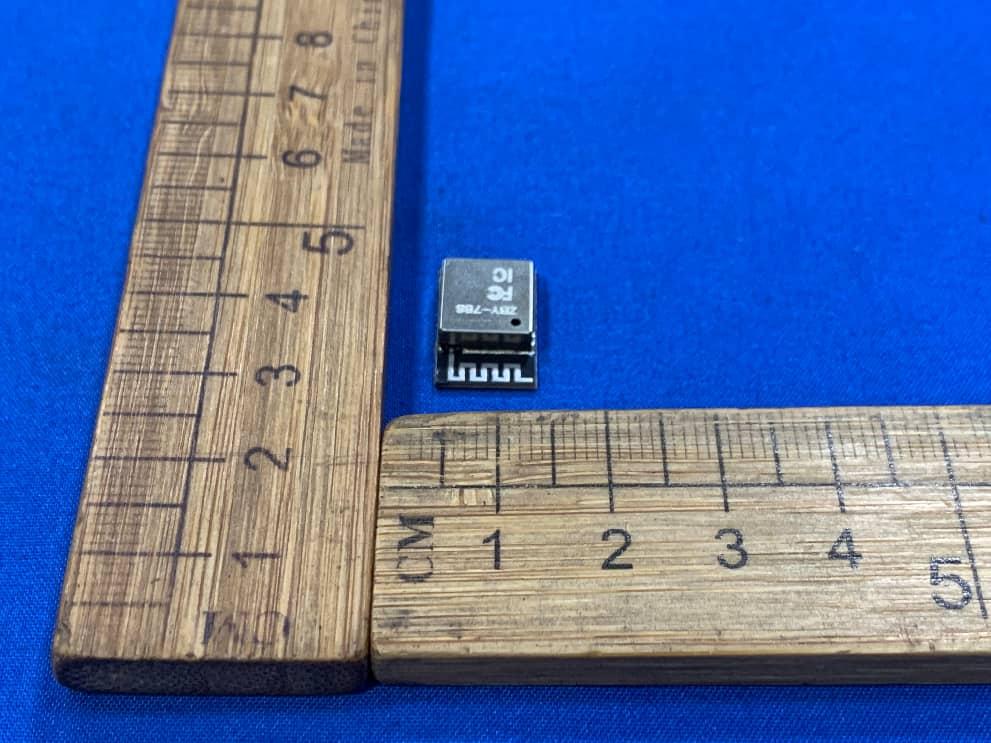

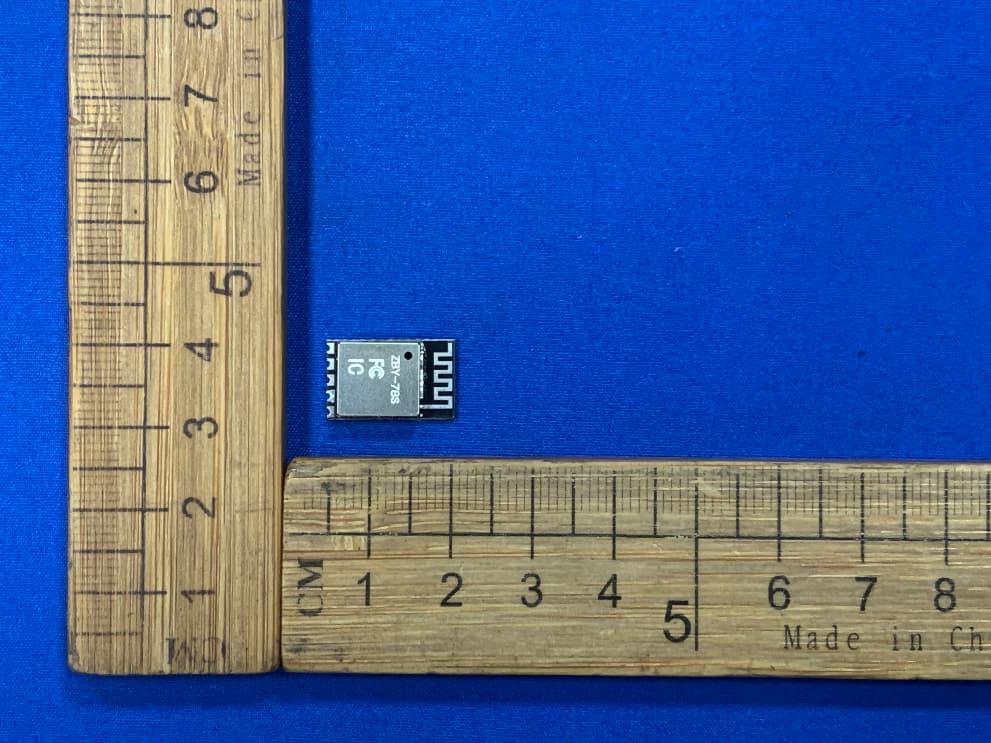

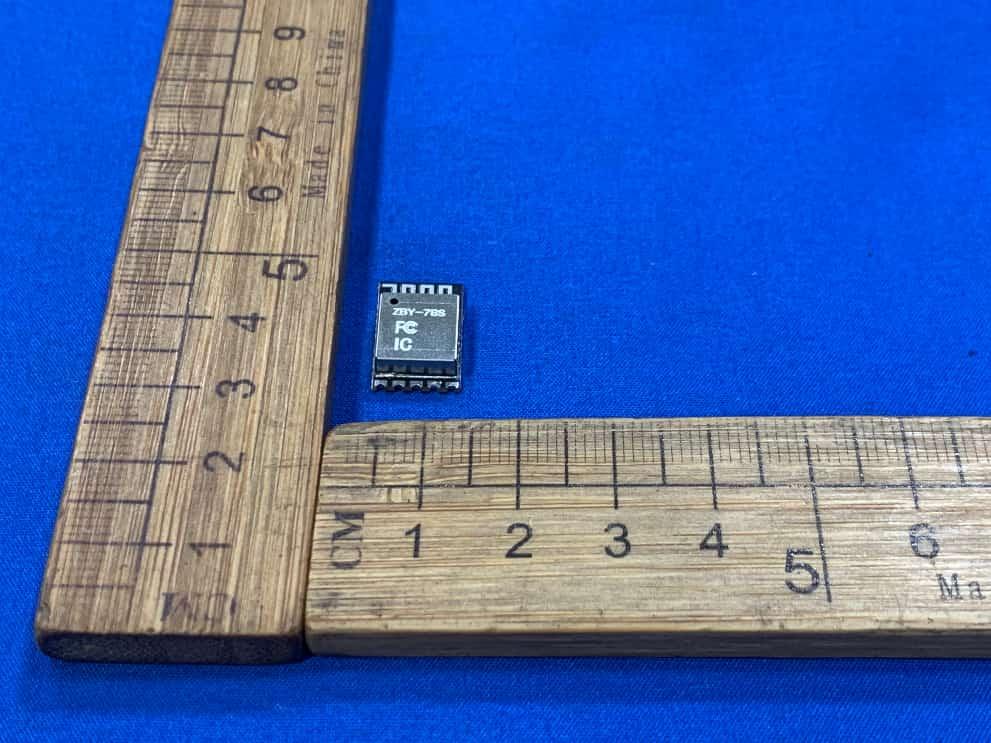

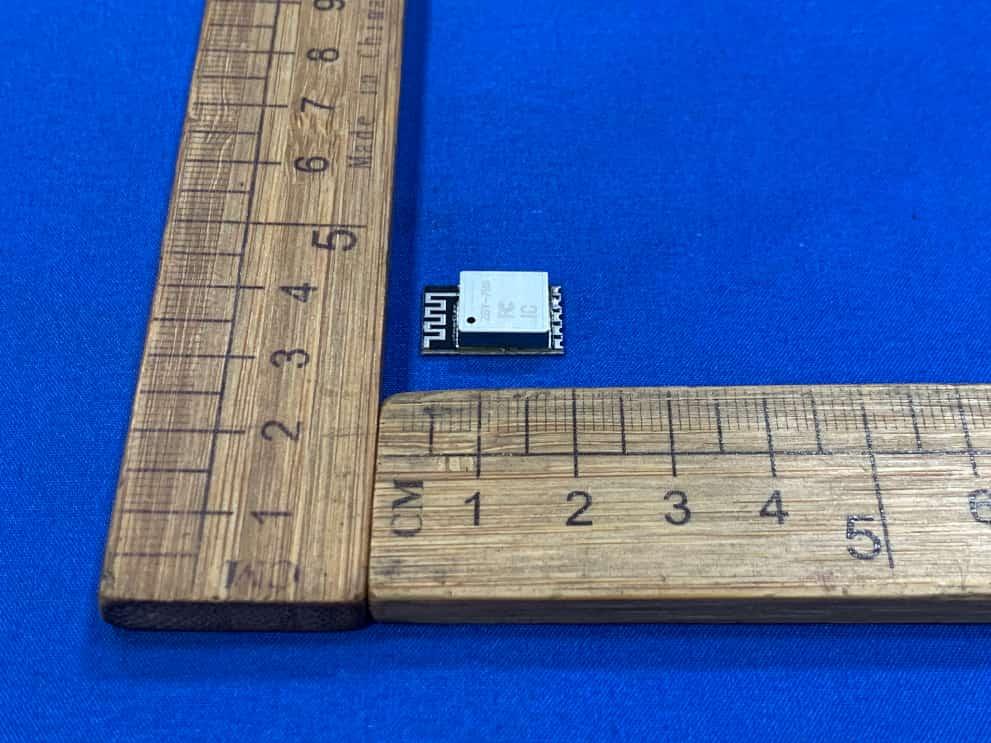

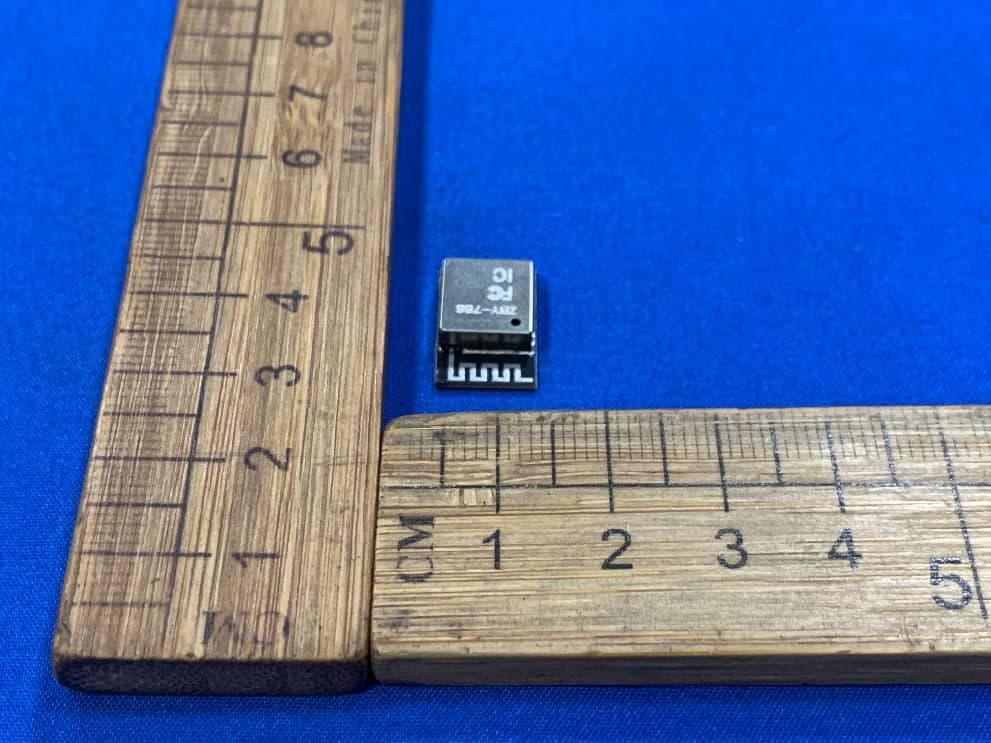

Externa FCC ID:2A4PQ-ZBY-78S-1303 l

Interna FCC ID:2A4PQ-ZBY-78S-1303 l

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26030901702 2A4PQ-ZBY-78S-1303 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 17, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ALLPOWERS Industrial International Limited Address ............................................ : Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth module Trade Mark ....................................... : N/A Manufacturer .................................... : ALLPOWERS Industrial International Limited Model/Type reference ...................... : ZBY-78S Listed Models ................................... : N/A Rating ............................................... : DC 3.3V From external circuit Result ............................................... : PASS Report No.: CTA26030901702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth module Model /Type : ZBY-78S Listed Models : N/A Applicant : ALLPOWERS Industrial International Limited Address : Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Manufacturer : ALLPOWERS Industrial International Limited Address : Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26030901702 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-…

Text truncated - open the document above for the full version.

深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. Tel: 86-0755-23035723 Fax: 86-0755-23036702 E-mail: [email protected] www.fmant.cn - 1 - 飞敏科技OTA 天线数据报告 1.样机型号： 板载蓝牙 日期：2018.10.31 1.1测试项目： 驻波比 增益 效率 方向图 2.Test Result 2.1 Test conditions Test Environment Conditions: Relative Humindity: 15....75％ Temperature: ＋10°C to ＋30°C Voltage of the EUT: N/A 2.2 Test Results lists 天 线 无 源 数 据 深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. Tel: 86-0755-23035723 Fax: 86-0755-23036702 E-mail: [email protected] www.fmant.cn - 2 - 2.2.1 SWR 2.2.2 LOG MAG 深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. Tel: 86-0755-23035723 Fax: 86-0755-23036702 E-mail: [email protected] www.fmant.cn - 3 - 2.2.4 Gain and Efficiency Frequency Gain(dBi) Efficiency 2400MHz -2.16 19.85 2410MHz -0.95 26.5 2420MHz -0.34 30.53 2430MHz -0.04 33.07 2440MHz 0.18 34.44 2450MHz 0.16 34.57 2460MHz -0.09 32.86 2470MHz -0.42 30.59 2480MHz -0.81 28.08 2490MHz -1.49 23.97 2500MHz -2.23 19.86 深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. Tel: 86-0755-23035723 Fax: 86-0755-23036702 E-mail: [email protected] www.fmant.cn - 4 - 深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. Tel: 86-0755-23035723 Fax: 86-0755-23036702 E-mail: [email protected] www.fmant.cn - 5 -

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26030901701 2A4PQ-ZBY-78S-1303 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Mar. 17, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ...........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: ALLPOWERS Industrial International Limited Address ...........................................: Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Bluetooth module Trade Mark ......................................: N/A Manufacturer ...................................: ALLPOWERS Industrial International Limited Model/Type reference .....................: ZBY-78S Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 3.3V From external circuit Result ..............................................: PASS Report No.: CTA26030901701 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth module Model /Type : ZBY-78S Listed Models : N/A Applicant : ALLPOWERS Industrial International Limited Address : Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Manufacturer : ALLPOWERS Industrial International Limited Address : Floor 1-4,Building No.2,No.182 Kaiyuan Avenue, Huangpu District, Guangzhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901701 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ..............................…

Text truncated - open the document above for the full version.
