2A4QE-QZZ-B3 in 1 Charging Station

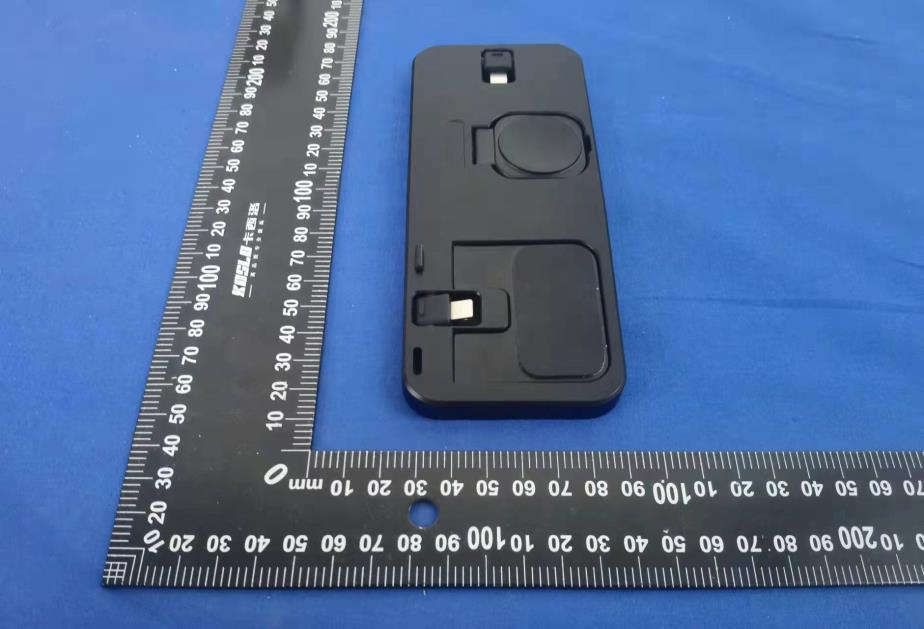

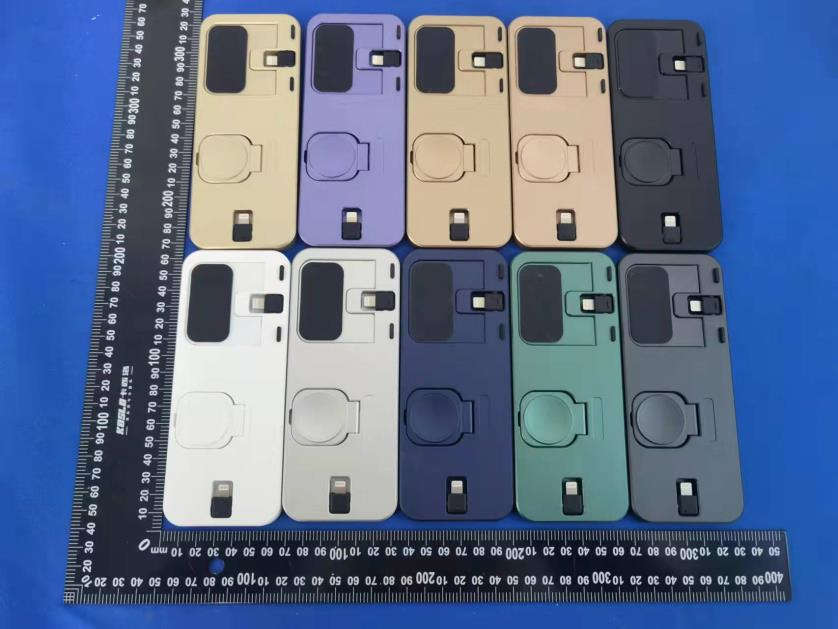

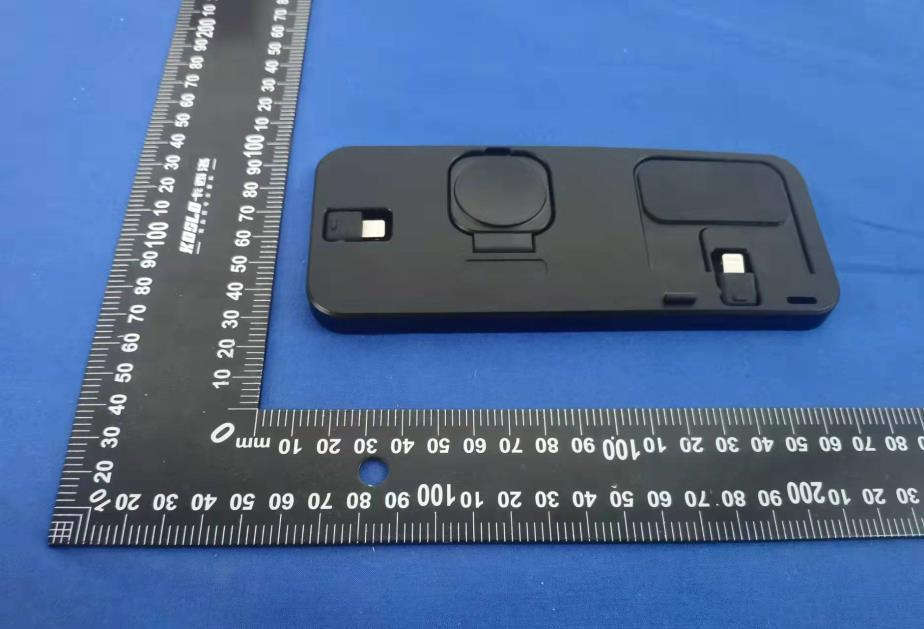

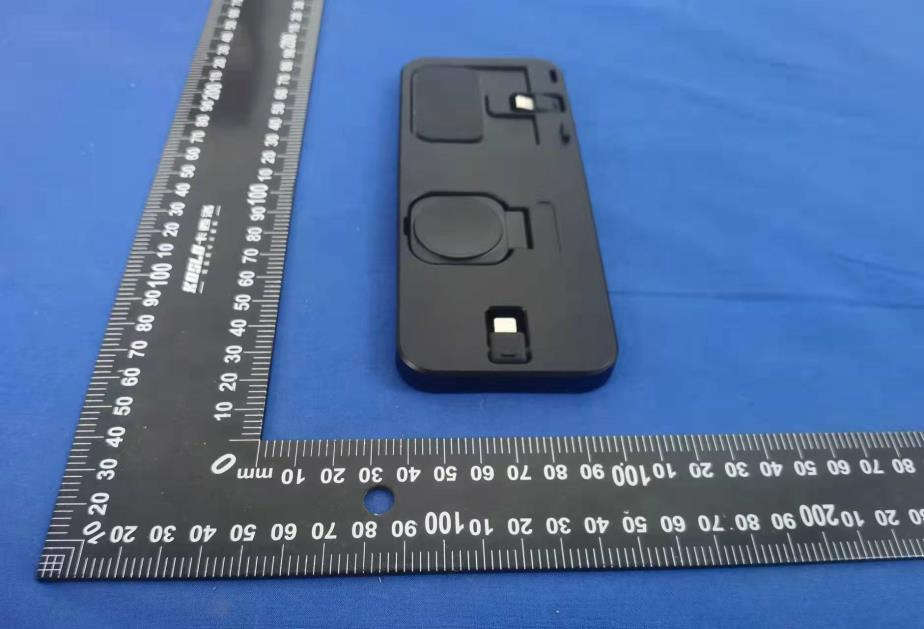

Appendix EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Photo 3 Appearance of EUT Photo 4 Appearance of EUT Photo 5 Appearance of EUT Photo 6 Appearance of EUT Photo 7 Appearance of EUT Photo 8 Appearance of EUT

Page: 1 of 10 FCCID: 2A4QE-QZZ-B TB-RF-074-3.0 Appendix IFCC ID Label Size for the label: 10mm X 8mm FCCID: 2A4QE-QZZ-B Page: 2 of 10 FCCID: 2A4QE-QZZ-B TB-RF-074-3.0 Appendix II ID Label Location ID LOCATION

Appendix EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Appearance of PCB Coil Antenna Photo 11 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202202-0061-51 Page: 1 of 6 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A4QE-QZZ-B 1. Client Information Applicant : xianyouxianluowanriyongbaihuodian Address : lichengjiedaodongdajie1602hao xianyouxianputianshi fujiansheng China 351200 Manufacturer : xianyouxianluowanriyongbaihuodian Address : lichengjiedaodongdajie1602hao xianyouxianputianshi fujiansheng China 351200 2. General Description of EUT EUT Name : 3 in 1 Charging Station Model(s) : QZZ-B, QZZ-RG, QZZ-SG, QZZ-G, QZZ-B5, QZZ-S, QZZ-P, QZZ-W, QZZ-C, QZZ-G5 Sample ID : 202202-0061_01-01-3 Model Difference : All PCB boards and circuit diagrams are the same, color and model are different, the internal structure is the same. Product Description : Operation Frequency: 300KHz-350KHz Modulation Type: ASK Antenna: Coil Antenna Power Supply : For Adapter: Input: AC 100-240V~ 50/60Hz Output: DC 5V, 2.1A-3A Phone: DC 5V, 2A (Max) Watch: DC 5V, 500mA (Max) Earphone: DC 5V, 500mA (Max) Wireless Charging: 2.5W(Max) Software Version : V1.0 Hardware Version : V1.2 Connecting I/O Port(S) : : Please refer to the User's Manual Accessories : Apple Watch Report No.: TBR-C-202202-0061-51 Page: 2 of 6 TB-RF-074-1.0 Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202202-0061-51 Page: 3 of 6 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TBR-C-202202-0061-51 Page: 4 of 6 TB-RF-074-1.0 3. Test Setup Note: The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 4.Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 10, 2021 Sep. 09, 2022 6. Deviation From Test Standard No deviation 7. Mode of operation during the test / Test peripherals used Test Modes: TM1 AC/DC Adapter + EUT + Mobile Phone (Battery Status: <1%) record TM2 AC/DC Adapter + EUT + Mobile Phone (Battery Status: <50%) record TM3 AC/DC Adapter + EUT + Mobile Phone (Battery Status: <99%) record 15cm Report No.: TBR-C-202202-0061-51 Page: 5 of 6 TB-RF-074-1.0 8. Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Charging Battery Level Frequency Range (MHz) Measured E-Field Strength Values (V/m) E-Field Strength 50% Limits (V/m) E-Field Strength Limits (V/m) Test Position A B C D E 1% 0.324 42.623 43.354 61.453 43.734 47.132 307.0 614.0 50% 0.324 46.736 42.975 49.375 47.121 42.973 307.0 614.0 99% 0.324 61.078 49.386 42.963 34.672 41.844 307.0 614.0 Note: V/m= A/m *377 H-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Charging Battery Level unit Frequenc y Range (MHz) Measured H-Field Strength Values (A/m) H-Field Strength 50% Limits (A/m) H-Field Strength Limits (A/m) Test Position A B C D E 1% uT 0.324 0.1412 0.1436 0.2034 0.143 0.1566 -- -- 1% A/m 0.324 0.113 0.116 0.168 0.111 0.129 0.815 1.63 50% uT 0.324 0.157 0.1422 0.1634 0.1558 0.1428 -- -- 50% A/m 0.324 0.124 0.112 0.133 0.126 0.114 0.815 1.63 99% uT 0.324 0.2028 0.1636 0.1427 0.1152 0.1383 -- -- 99% A/m 0.324 0.167 0.136 0.117 0.096 0.112 0.815 1.63 H-Field Strength at 20cm from the top surface of the EUT Charging Battery Level Unit Frequency Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position E 1% uT 0.324 0.1337 -- -- 1% A/m 0.324 0.104 0.815 1.63 50% uT 0.324 0.1228 -- -- 50% A/m 0.324 0.097 0.815 1.63 99% uT 0.324 0.1377 -- -- 99% A/m 0.324 0.15 0.815 1.63 Note: A/m=uT/1.25 Report No.: TBR-C-202202-0061-51 Page: 6 of 6 TB-RF-074-1.0 9. Test Set-up Photo Test Set-up Photo -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202202-0061-5 Page: 1 of 26 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2A4QE-QZZ-B Original Grant Report No. : TBR-C-202202-0061-5 Applicant : xianyouxianluowanriyongbaihuodian Equipment Under Test (EUT) EUT Name : 3 in 1 Charging Station Model No. : QZZ-B Series Model No. : QZZ-RG, QZZ-SG, QZZ-G, QZZ-B5, QZZ-S, QZZ-P, QZZ-W, QZZ-C, QZZ-G5 Brand Name : flanmy Sample ID : 202202-0061_01-01-3 Receipt Date : 2022-02-15 Test Date : 2022-02-15 to 2022-02-23 Issue Date : 2022-02-23 Standards : FCC Part 15, Subpart C(15.209) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above Test/Witness Engineer : Camille Li Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202202-0061-5 Page: 2 of 26 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT.............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Mode ........................................................................................................ 12 5.6 Test Data ............................................................................................................................. 12 6. RADIATED EMISSION TEST ................................................................................................ 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 14 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH MEASUREMENT ............................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. ANTENNA REQUIREMENT ................................................................................................... 17 8.1 Standard Requirement .....................................…

Text truncated - open the document above for the full version.

Page: 9 of 10 FCCID: 2A4QE-QZZ-B TB-RF-074-3.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (9KHz-30MHz) Photo of Setup for Radiated Emission (Below 1 GHz) Page: 10 of 10 FCCID: 2A4QE-QZZ-B TB-RF-074-3.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
