2A4QULT100BWireless TVWS Fixed Base

www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 FCC Compliance Statement Caution: changes or modifications could void the user's authority to operate the equipment [FCC 15.21]. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC 15.105 Information to the user [FCC 15.105]: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. § 15.706 Information to the user. This equipment has been tested and found to comply with the rules for white space devices, pursuant to part 15 of the FCC rules. These rules are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 (4) Consult the manufacturer, dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Caution: Exposure to Radio Frequency Radiation To comply with FCC RF exposure compliance requirements, for fixed configurations, a separation distance of at least 41cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Professional Installer To comply with FCC interference protection requirements for TV Band Devices, this equipment should only be installed by a professional installer. www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 Wifrost User Manual Wifrost provides an end to end fixed wireless solution using TVWS unlicensed spectrum. We also offer professional support to help ISPs and enterprises to plan, build and operate the TVWS network. The Wifrost solution includes hardware systems and cloud based software to manage the TVWS spectrum and TVWS devices. This Operation manual goes through the detailed steps of setting up the radios and network for delivering broadband services. The network diagram outlines the overview of the wireless network that our systems can set up. Network Diagram Fixed wireless devices include: 1. wEPC (WiFrost EPC) This is a miniPC/NUC, with 2 ethernet interfaces, Eth0 (left) and Eth1 (right). www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 a) AC adapter b) Indoor device that needs to be in a temperature-controlled location c) Typically, 1 wEPC Gateway per tower. This device can support up to 10 Base Stations or upto 1000 CPEs 2. Base Station a) The Base Station is an Outdoor Unit, with 2 N-connector for antenna ports, 1 GPS port, and 1 ethernet port b) PoE+ Adapter: 56V @0.536 c) GPS antenna d) Weatherproof/waterproof Boot for Ethernet slot e) One Base Station supports up to 64 CPEs www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 3. Base Station Antenna (dual port, 2x2 MIMO) a) Install Pictures b) All necessary mounting brackets are pre-installed and fit up to 2.5 inches diameter pipe. 4. CPE - Customer Premise Equipment a) PoE adapter included b) SIM card slot and Ethernet slot in the back, physical reset button is in the SIM card slot c) All necessary mounting brackets are pre-installed and fit up to 2.5 inch diameter pipe. www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 d) Spectrum Scan Best Practice 1. TVWS is an unlicensed spectrum band, so scanning the spectrum to understand the quality of the channels is the most important step before connecting the CPEs. 2. Scan the spectrum for 24 hours. 3. After watching the above videos and becoming a WiFrost Cloud NMS expert, :), on the Base Station dashboard page, go to the “Channel Scan” page. 4. Hit “Start Scanning” and confirm in the next dialogue box 5. www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 5. After the scan runs for 12 to 24 hours, come to the same/above location and hit “Stop Scan” to get the Base Station back in Transmit mode. 6. Select the cleanest avai…

Text truncated - open the document above for the full version.

www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2A4QULT100B 1. Wifrost inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Wifrost inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Hanxi Chen Job Title: CEO Company Name: Wifrost inc.

www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2A4QULT100B FCC FRN: 0031410780 To whom it may concern: Applicant (grantee) Wifrost inc (“the applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Hanxi Chen Wifrost inc FCC FRN: 0031410780 761 De Soto Dr. Palo Alto CA 94303 [email protected] Sincerely yours, Hanxi Chen Wifrost inc 761 De Soto Dr Palo Alto CA 94303 [email protected]

www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 Date: 5/18/2023 Attn: FCC Office of Engineering and Technology / UL Verification Services TCB Subject: Request for Confidentiality FCC ID: 2A4QULT100B To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after grant date. • External Photos • Internal Photos • Test Setup Photos • User Manual www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Hanxi Chen CEO Wifrost inc.

www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 Date: 5/18/2023 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) fulfill the requirements for the scope of certification requested, including implementing any appropriate changes requested by UL Verification Services Telecommunications Certification Body (TCB) and / or the FCC; b) supply any and all information needed for the evaluation of the products for which certification is sought; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) not use our product certification in such a manner as to bring the TCB or FCC into disrepute and to not make any statement regarding product certification which the TCB or FCC may consider misleading or unauthorized; e) discontinue use of all advertising matter that contains any reference thereto and complies with any and all actions required by the FCC upon suspension or cancellation of certification; f) use certification only to indicate that products are certified in conformity with specified standards; g) endeavor to ensure that no certificate or report or any part thereof is used in a misleading manner, and any copies of the grants/certificates shall be reproduced in their entirety; h) comply with the requirements of the TCB and FCC, including the use of marks and label information prescribed for the scope of certification, when making reference to product certification in communication media such as documents, brochure or advertisements; www.wifrost.com 761 De Soto Dr Palo Alto, CA 94303 i) comply with the requirements for certification, supply any information needed for evaluation of products to be certified and, where applicable, make provision for the participation of observers; j) ensure that products marketed under the scope of the requested certification continue to comply with the certification requirements; k) provide a sample of a production unit for testing within 30 days of the request should this product be selected as part of either the TCB’s or the FCC’s market surveillance requirements; l) keep a record of all complaints relating to product’s compliance with requirements of relevant standard; make records available to UL or FCC when requested; take appropriate action with respect to such complaints and any deficiencies found in the product that affect compliance with requirements for certification; document the actions taken with respect to complaints and/or deficiencies; m) inform the TCB immediately of any changes that may affect its ability to comply with the certification requirements. This authorization is valid until further written notice from the applicant. Sincerely Yours, Hanxi Chen CEO Wifrost inc.

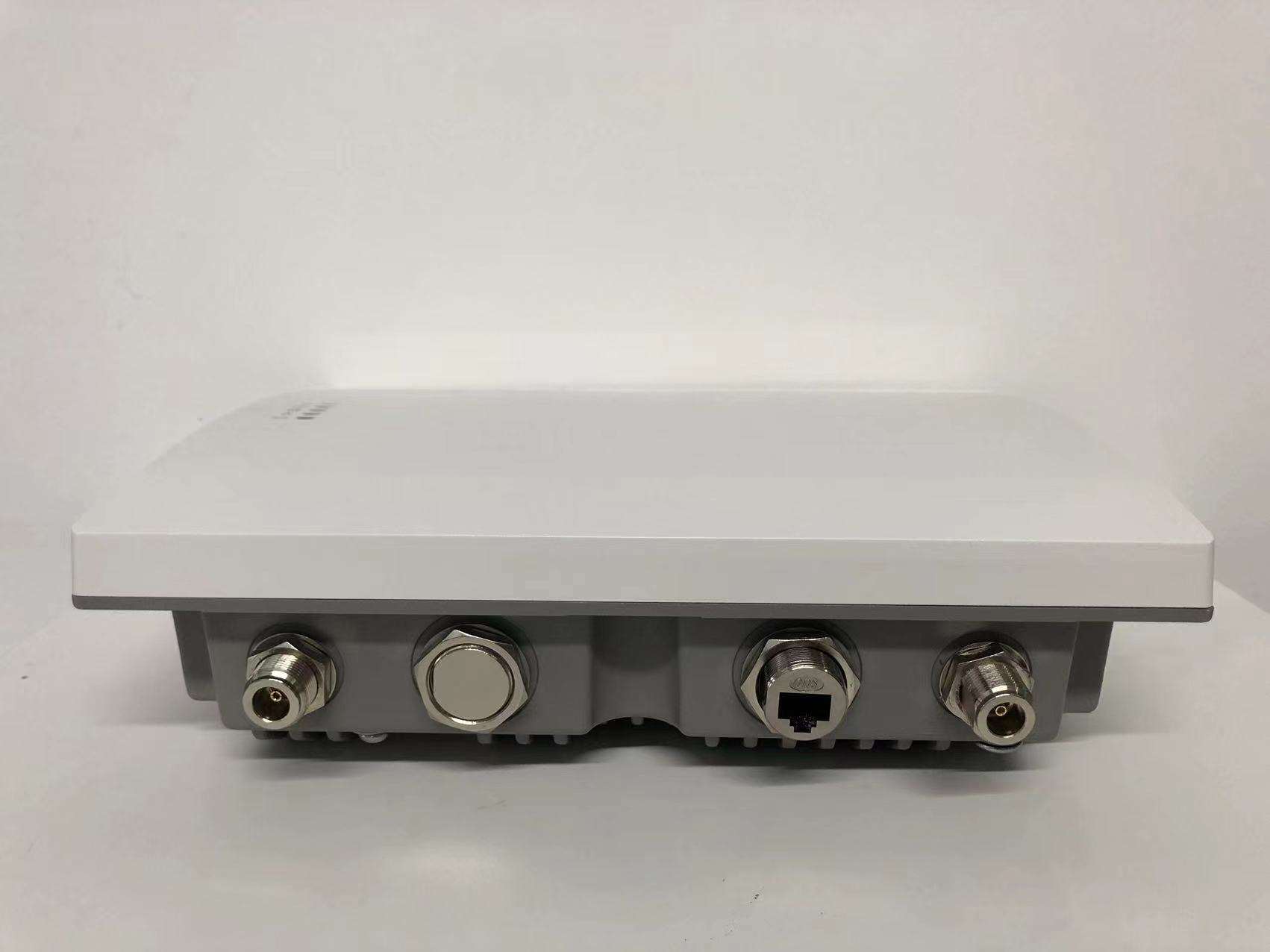

LT100B External Product Photos FCC ID: 2A4QULT100B

LT100B InternalProduct Photos FCC ID: 2A4QULT100B

TEST REPORT Report Number. : 14162796-E3V3 Applicant : Wifrost inc 761 De Soto Dr Palo Alto CA 94303 USA Model(s) : LT100B FCC ID : 2A4QULT100B EUT Description : Fixed TVWS Wireless System Test Standard(s) : FCC Part 1 Subpart I FCC Part 2 Subpart J Date Of Issue: 2023-7-13 Prepared by: UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538 U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14162796-E3V3 DATE: 2023-07-13 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 2 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 2023-06-22 Initial Issue --- V2 2023-07-11 Section 7 updated Henry Lau V3 2023-07-13 Section 7 updated Henry Lau REPORT NO: 14162796-E3V3 DATE: 2023-07-13 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 3 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................4 2. TEST METHODOLOGY ......................................................................................................5 3. REFERENCES ....................................................................................................................5 4. FACILITIES AND ACCREDITATION ..................................................................................5 5. DECISION RULES AND MEASUREMENT UNCERTAINTY ...............................................6 5.1. METROLOGICAL TRACEABILITY ...............................................................................6 5.2. DECISION RULES ........................................................................................................6 5.3. MEASUREMENT UNCERTAINTY ................................................................................6 6. MAXIMUM PERMISSIBLE EXPOSURE (LIMITS AND EQUATIONS) ................................7 6.1. FCC RULES .................................................................................................................7 6.2. EQUATIONS .................................................................................................................8 7. RF EXPOSURE RESULTS ................................................................................................10 REPORT NO: 14162796-E3V3 DATE: 2023-07-13 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 4 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Wifrost inc 761 De Soto Dr Palo Alto CA 94303 USA EUT DESCRIPTION: Wireless TVWS Fixed Base MODEL: LT100B APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Complies RSS 102 ISSUE 5 Complies UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. Approved & Released For UL Verification Services Inc. By: Prepared By: Francisco de Anda Henry Lau Staff Engineer Senior Project Engineer CONSUMER TECHNOLOGY DIVISION CONSUMER TECHNOLOGY DIVISION UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 14162796-E3V3 DATE: 2023-07-13 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 5 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC Parts 1.1310, 2.1091, 2.1093, KDB 447498 D01 v06, KDB 447498 D03 V01, IEEE Std C95.1-2005, IEEE Std C95.3-2002. 3. REFERENCES All measurements were made as documented in test report UL Verification Services Inc. Document 14162796-E1 for operation in the 473 to 611 MHz band. Output power, Duty cycle and Antenna gain data is excerpted from product documentation provided by the applicant and the applicable test reports. 4. FACILITIES AND ACCREDITATION UL Verification Services Inc. is accredited by A2LA, Certificate Number 0751.05, for all testing performed within the scope of this report. Testing was performed at the locations noted below. Address ISED CABID ISED Company Number FCC Registration ☐ Building 1: 47173 Benicia Street Fremont, California 94538, U.S.A. US0104 2324A 550739 ☐ Building 2: 47266 Benicia Street Fremont, California 94538, U.S.A. US0104 22541 550739 ☐ Building 4: 47658 Kato Rd Fremont, California 94538, U.S.A. US0104 2324B …

Text truncated - open the document above for the full version.

LT100A 470-698MHz Dual Port Panel Antenna Electrical Specifications Frequency 470~698 MHz Gain Range 13±1 dBi VSWR ≤1.5 see graph Isolation ≥20 dB See Graph Horizontal Half power BW 70 ± 5° See Graph Vertical Half Power BW 17± 3° See Graph Front to Back Ratio ≥25 dB See Graph Average Power 100 W Impedance 50 Ω Mechanical Specifications Connector 2X N type Female Height/Width/Depth 48.8x16x5.1 inch Weight 12.1lbs Materials PVC (Gray) Outdoor IP65 Operating Temp -40~ +60 °C Suitable Pole Diameter 2-3 inch Mechanical Tilt 0-10° Pole 1 Pole 2 Freq Horizontal Vertical 470MHz 600MHz 698MHz Freq Horizontal Vertical 470MHz 600MHz 698MHz

TEST REPORT Report Number. : 14162796-E1V2 Applicant : Wifrost inc 761 De Soto Dr Palo Alto CA 94303 USA Model(s) : LT100B FCC ID : 2A4QULT100B EUT Description : Wireless TVWS Fixed Base Test Standard(s) : FCC 47 CFR PART 15 SUBPART H Date Of Issue: 2023-07-06 Prepared by: UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538 U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 2 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 2023-06-22 Initial release --- V2 2023-07-06 Section 11 updated Section 13.1.4 updated Henry Laue REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 3 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................................ 5 2. SCOPE .......................................................................................................................................... 7 3. TEST RESULTS SUMMARY ........................................................................................................ 7 4. TEST METHODOLOGY ................................................................................................................ 8 5. FACILITIES AND ACCREDITATION ............................................................................................ 8 6. DECISION RULES AND MEASUREMENT UNCERTAINTY......................................................... 9 6.1. METROLOGICAL TRACEABILITY ......................................................................................... 9 6.2. DECISION RULES ................................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY.......................................................................................... 9 6.4. SAMPLE CALCULATION ..................................................................................................... 10 7. EQUIPMENT UNDER TEST........................................................................................................ 11 7.1. DESCRIPTION OF EUT ....................................................................................................... 11 7.2. MAXIMUM OUTPUT POWER .............................................................................................. 11 7.3. DESCRIPTION OF AVAILABLE ANTENNAS ....................................................................... 11 7.4. SOFTWARE AND FIRMWARE ............................................................................................ 11 7.5. WORST-CASE CONFIGURATION AND MODE ................................................................... 12 7.6. DESCRIPTION OF TEST SETUP ........................................................................................ 13 8. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 18 9. MEASUREMENT METHODS ...................................................................................................... 19 10. ANTENNA PORT TEST RESULTS............................................................................................. 20 10.1. OUTPUT POWER AND POWER SPECTRAL DENSITY .................................................. 20 10.1.1. UHF BAND -2TX Antenna – 6MHz............................................................................. 21 10.1.2. UHF BAND -2TX Antenna – 12MHz........................................................................... 23 10.1.3. UHF BAND -2TX Antenna – 18MHz........................................................................... 25 10.1.4. UHF BAND -2TX Antenna – 24MHz........................................................................... 27 10.2. BAND-EDGE..................................................................................................................... 29 10.2.1. UHF BAND -2TX 6MHz - Antenna 1+2 ...................................................................... 30 10.2.2. UHF BAND -2TX 12MHz - Antenna 1+2 .................................................................... 33 10.2.3. UHF BAND -2TX 18MHz - Antenna 1+2 .................................................................... 36 10.2.4. UHF BAND -2TX 24MHz - Antenna 1+2 .................................................................... 39 10.3. ADJACENT CHANNEL EMISSIONS ................................................................................ 42 10.3.1. UHF BAND -2TX 6MHz - Antenna 1+2 ...................................................................... 43 10.3.2. UHF BAND -2TX 12MHz - Antenna 1+2 .................................................................... 46 10.3.3. UHF BAND -2TX 18MHz - Antenna 1+2 .................................................................... 49 REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 4 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.3.4. UHF BAND -2TX 24MHz - Antenna 1+2 .................................................................... 52 11. RADIATED EMISSIONS ............................................................................................................. 55 11.1. TRANSMITTER BELOW 1GHz ...........................................................…

Text truncated - open the document above for the full version.

REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 51 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. LOW CHANNEL Antenna 2 Lower Edge LOW CHANNEL Antenna 2 Upper Edge MID CHANNEL Antenna 2 Lower Edge MID CHANNEL Antenna 2 Upper Edge HIGH CHANNEL Antenna 2 Lower Edge HIGH CHANNEL Antenna 2 Upper Edge REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 52 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.3.4. UHF BAND -2TX 24MHz - Antenna 1+2 Lower Adjacent Channel Emissions FrequencyMeasured Emission Measured Emission Measured Total EmissionsWorst Case Antenna 1Antenna 2EmissionLimitMargin Channel(MHz)(dBm)(dBm)(dBm)(dBm)(dBm) Low482-56.94-56.95-53.94-44.8-9.14 Mid542-56.70-56.64-53.66-44.8-8.86 High602-52.36-54.67-50.35-44.8-5.55 Upper Adjacent Channel Emissions FrequencyMeasured Emission Measured Emission Measured Total EmissionsWorst Case Antenna 1Antenna 2EmissionLimitMargin Channel(MHz)(dBm)(dBm)(dBm)(dBm)(dBm) Low482-56.85-57.21-54.02-44.8-9.22 Mid542-54.39-54.96-51.65-44.8-6.85 High602-49.75-51.67-47.59-44.8-2.79 REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 53 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. LOW CHANNEL Antenna 1 Lower Edge LOW CHANNEL Antenna 1 Upper Edge MID CHANNEL Antenna 1 Lower Edge MID CHANNEL Antenna 1 Upper Edge HIGH CHANNEL Antenna 1 Lower Edge HIGH CHANNEL Antenna 1 Upper Edge REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 54 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. LOW CHANNEL Antenna 2 Lower Edge LOW CHANNEL Antenna 2 Upper Edge MID CHANNEL Antenna 2 Lower Edge MID CHANNEL Antenna 2 Upper Edge HIGH CHANNEL Antenna 2 Lower Edge HIGH CHANNEL Antenna 2 Upper Edge REPORT NO: 14162796-E1V2 DATE: 2023-07-06 EUT MODEL: LT100B FCC ID: 2A4QULT100B Page 55 of 114 UL VERIFICATION SERVICES INC. 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. RADIATED EMISSIONS BEYOND ADJACENT CHANNEL EMISSION LIMITS FCC §15.709 (d) (2) At frequencies beyond the six megahertz channel immediately adjacent to each white space channel or group of contiguous white space channels in which the white space device is operating the white space device shall meet the requirements of §15.209. §15.209 (a) Except as provided elsewhere in this subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency Range Field Strength Limit Measurement (MHz) (uV/m) at 3m distance (m) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 TEST PROCEDURE ANSI C63.10-2013. The EUT is set to transmit in a continuous mode. High-Q Cavity Notch filters are used to reduce the amplitude of the intentional transmitter and prevent overload of the system preamplifier. The EUT is fixed to a pole and placed 80 cm above the ground plane for measurement below 1GHz and Above 1GHz. For Above 1GHz, the antenna bore sight is at 1m. The antenna to EUT distance is 3 meters. The EUT is configured in accordance with ANSI C63.10. The EUT is set to transmit in a continuous mode. For measurements below 1 GHz the resolution bandwidth is set to 100 kHz for peak detection measurements or 120 kHz for quasi-peak detection measurements. Peak detection is used unless otherwise noted as quasi-peak.…
