2A4TT-CW3903 in 1 Magnetic Wireless Charger
SHEN ZHEN GTL TECHNOLOGY CO .,LTD
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- May 07, 2024
- Application Purpose
- Original Equipment
- Date of Application
- May 07, 2024
- Equipment Note
- 3 in 1 Magnetic Wireless Charger
- Frequency Range
- 0.30000000 - 0.35000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
CW390 CW390 158.9 * 99.8 * 132.6 (mm) 18W(MAX) 9V 2A 3 in 1 Magnetic Wireless Charger 2.2 Cha rging the iWatch: Pu t the iWatch o n the wire le ss charging area o f iWa tch , an d align with th e magn ets; the“Chargin g indicator” on the iWatch will li ght up, indicating that it is b eing charged properly. 2.3 Cha rging for Airp od: Pu t the headset flat on the wireless ch arger area and see that the charging indicator of the Bluetooth h eadset lights u p, indicatin g no rmal charging . 2.4 This prod uct needs to b e p owered by an ad apte r with a power of 9V 2A a nd connected to the type-c port. Wh en the botto m powe r indicator is on, it means th at the po wer supp ly is connected . 2.5 Opera ting in dicator: The blue indicator lights u p when charging o r fu ll, and turns off wh en n ot cha rgingIndicator lig ht flashes during ch arging fault. Output Power Type C 1 2 3 4 5 Operating indicator. Wireless charging area for Bluetooth headset. Magnetic Wireless charging area for Mobile phone. Wireless charging area for iWatch. TYPE-C Female. Please use the Type C port Adapter. 2.1 Cha rging the mobile pho ne: Put the mobile phone upright i n th e magnetic wireless charging area of mobile phon e, and you can see the“Chargin g indicator” on the di splay of the mobile phone, showing tha t it is being charg ed p roperly. Rema rk: Onl y for Apple magsa fe and cases with magnets. 5.1 Smart Pho ne [For Apple] iPho ne 1 2 mini , iPhone 12, iPh one 12 Pro, iPhone 12 Pro Ma x, iPho ne 13 min i, iPh one 13, iPhone l3 Pro , iPhone 1 3 Pro Max, iPhon e 1 4, iPho ne 14 Pro, iPhone 14 Pro Max, iPho ne 14 Plus, iPhone 15, iPhone 15 Pro, iPho ne 15 Pro Max, iPhone 15 Plus. 5.2 Smart Watch iWatch 3/4 /5/6/SE/78/9/Ultra 1/Ultra 2. 4.4 Please re mo ve the prote ctive ca se to charge when charging th e Earph one. 5.3 Earbud s AirPo ds 2/3/Pro 1/Pro 2. Rema rkThe A1602/A28 97 cha rg ing cases do not sup port wireless chargin g, please ch eck wheth er the headset cha rg ing bay suppo rts wireless charging function be fore using it. Protective cases of airpods may cause unstable charging With metal trim Apple’s official magnetic phone case With metal patchWith credit cardsMetal casesPhone cases If you have any problems, please feel free to contact us: [email protected] FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.
External Photos

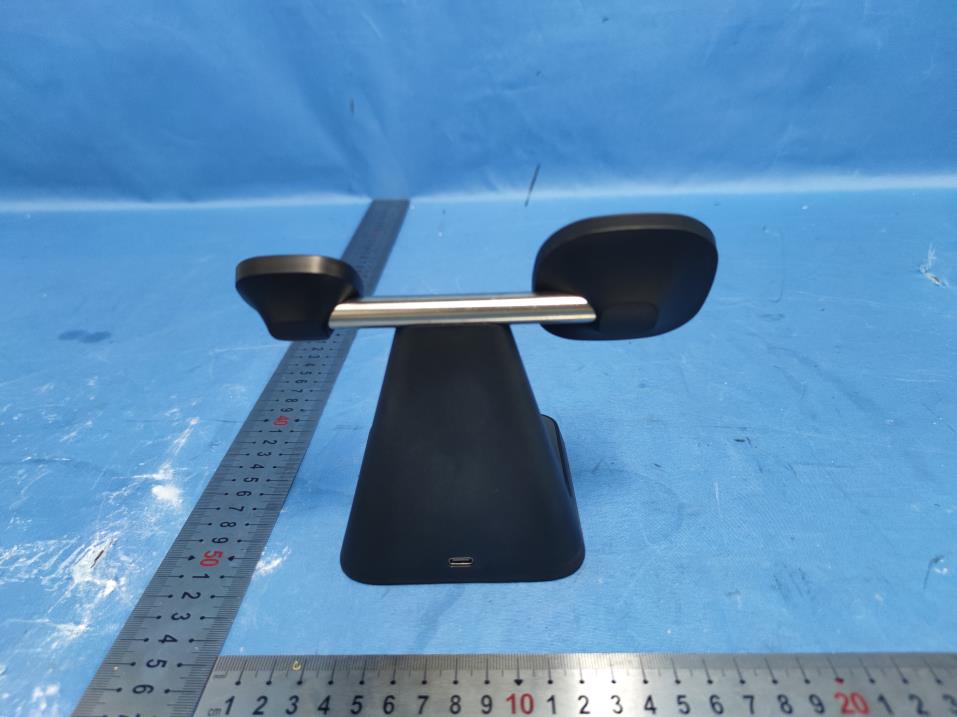

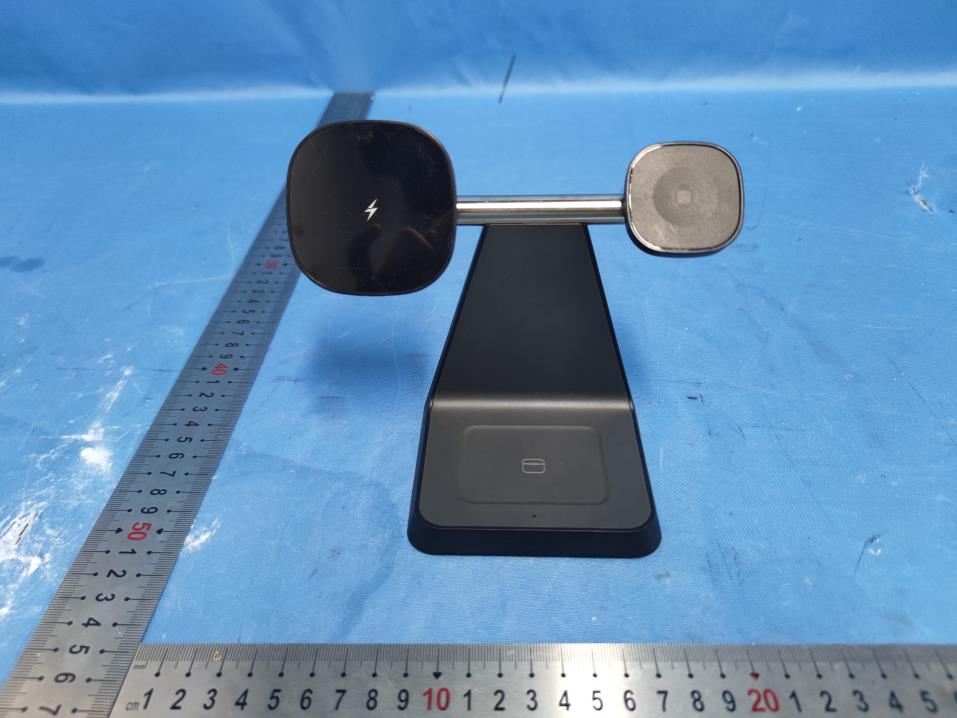

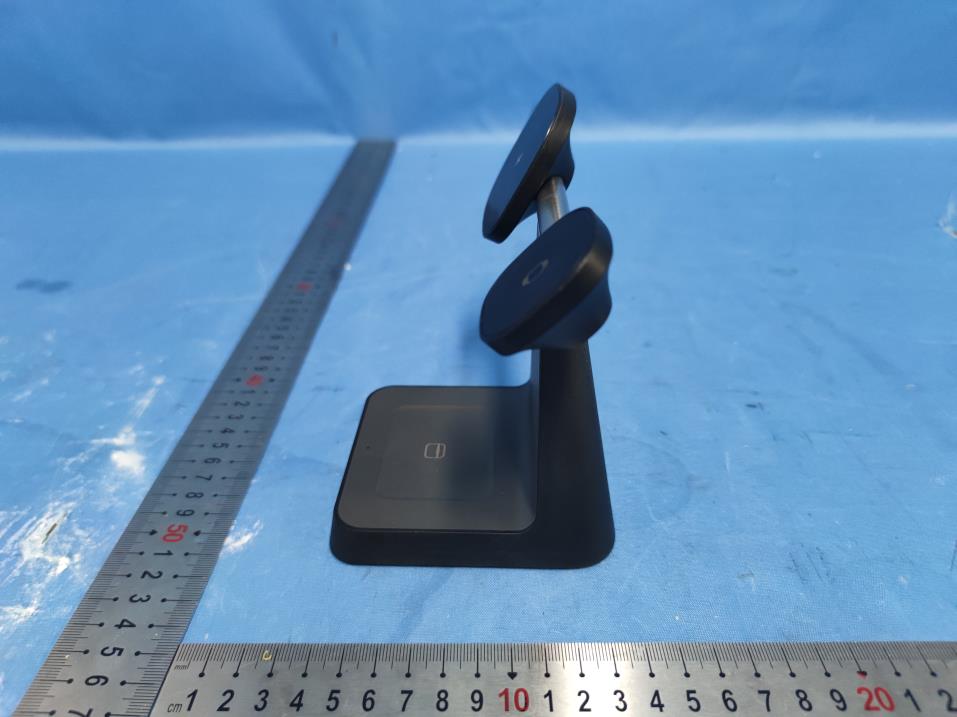

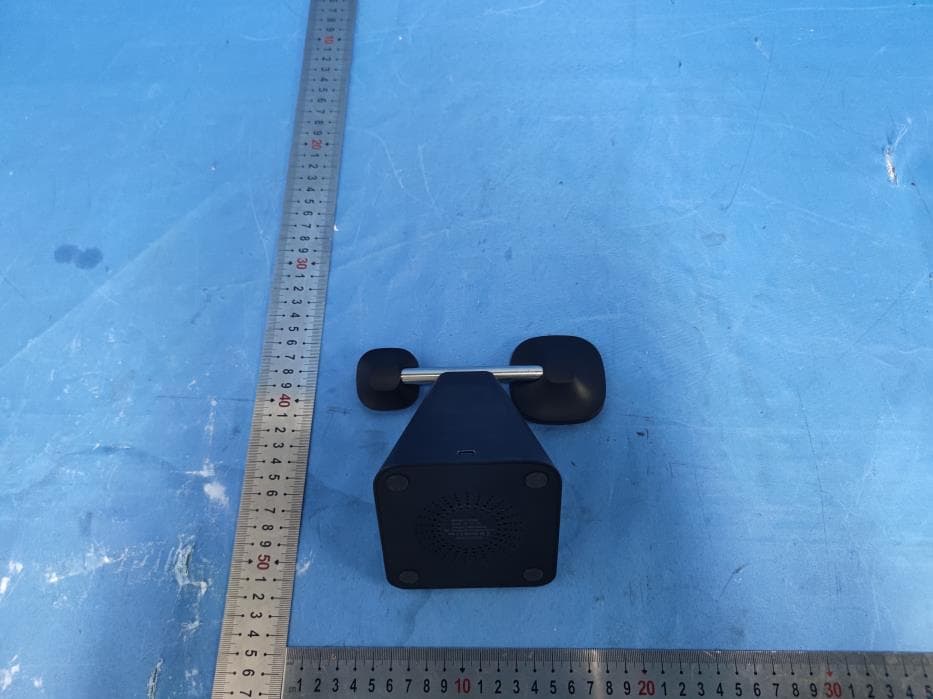

Page 1 of 4 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---
ID Label/Location Info
Label Size: L28mm * W20mm 1. The label is silk-screen on the sample 3 in 1 Magnetic Wireless Charger Model Name: CW390 FCC ID: 2A4TT-CW390 L W
Internal Photos
Page 1 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Earphone Coil Page 3 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Phone Coil Watch Coil Page 6 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 Photo 14 ------End------
RF Exposure Info
Page 1 of 16 Report No.: AITSZ24040304W3 RF Exposure Evaluation Client Information: Applicant: SHENZHEN GTL TECHNOLOGY CO .,LTD Applicant add.: 2/F&6/F of Building B11, Hengfeng Industrial city, Hangcheng Street, Baoan District, Shenzhen, Guangdong, China.518126 Manufacturer: SHENZHEN GTL TECHNOLOGY CO .,LTD Manufacturer add.: 2/F&6/F of Building B11, Hengfeng Industrial city, Hangcheng Street, Baoan District, Shenzhen, Guangdong, China.518126 Product Information: Product Name: 3 in 1 Magnetic Wireless Charger Model No.: CW390 Brand Name: N/A Test samples.: AITSZ24040304001 FCC ID: 2A4TT-CW390 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Apr. 03, 2024 Date of Test: Apr. 03, 2024~Apr. 28, 2024 Date of Issue: Apr. 28, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Sean She Eder Zhan Page 2 of 16 Report No.: AITSZ24040304W3 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Test Result 10 5.5 Test Setup photo 14 Page 3 of 16 Report No.: AITSZ24040304W3 Revision History Revision Issue Date Revisions Revised By 00 Apr. 28, 2024 Initial Issue Eder Zhan Page 4 of 16 Report No.: AITSZ24040304W3 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 16 Report No.: AITSZ24040304W3 3 GENERAL INFORMATION EUT Name: 3 in 1 Magnetic Wireless Charger Model No: CW390 Serial Model: N/A Test sample(s) ID: AITSZ24040304001 Sample(s) Status: Engineer sample Operation frequency: Coil1: For Phone: 113kHz-205kHz Coil2: For Earphone: 113kHz-205kHz Coil3: Watch: 300kHz-350kHz Modulation Technology: ASK Antenna Type: Coil1/Coil2/Coil3: Loop coil Antenna Antenna gain: Coil1/Coil2/Coil3: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Input: DC 9V⎓2A Output (Phone): 18W(Max) Output (Earphone): 3W(Max) Output (Smart watch): 2.5W(Max) Model different: N/A Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 16 Report No.: AITSZ24040304W3 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 16 Report No.: AITSZ24040304W3 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest …
Text truncated - open the document above for the full version.
Test Report
Page 1 of 25 Report No.: AITSZ24040304W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: SHENZHEN GTL TECHNOLOGY CO .,LTD Applicant add.: 2/F&6/F of Building B11, Hengfeng Industrial city, Hangcheng Street, Baoan District, Shenzhen, Guangdong, China.518126 Manufacturer: SHENZHEN GTL TECHNOLOGY CO .,LTD Manufacturer add.: 2/F&6/F of Building B11, Hengfeng Industrial city, Hangcheng Street, Baoan District, Shenzhen, Guangdong, China.518126 Product Information: Product Name: 3 in 1 Magnetic Wireless Charger Model No.: CW390 Brand Name: N/A FCC ID: 2A4TT-CW390 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Apr. 03, 2024 Date of Test: Apr. 03, 2024~Apr. 28, 2024 Date of Issue: Apr. 28, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Sean She Eder Zhan Page 2 of 25 Report No.: AITSZ24040304W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ................…
Text truncated - open the document above for the full version.
Test Report
深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 客户/Client 名称/TYPE A11/43.5/14单孔双槽背胶线长200MM 产品型号 Model NO SG-A11-44-6.3UH 产品编号 A11-43.5-14-050 Part nunbering systey 客户料号 CW390线圈 Client p/NO 工程编号 Enginrer NO TQE 1800510003 日期/Date 2022-12-1 Operation frequency: 113kHz-205kHz Antenna gain: 0dBi 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 编制/Prepared 审核/Checked 认可/Approved 谢燕琪 段家旺 谢小仔 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 一、 线圈工艺/Winding Procese: NO 绕组 线规 匝数 绕线方向 备注 1 N1 2UEW-B-0.08*108P 12TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（单独线圈）=4.1uH±20% 1.12 L0A(线圈+磁片)=6.5uH±10% 1.2 Q值=70MIN 1.3 直流电阻（DCR）：45mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目 材料 1 WIRE ￠0.08*105p 2UEW-1.15mm 2 FERRITE 43.5*5.3*0.7 L型槽 铁氧体硬磁 3 GLUE 白胶 4 SOLDER XCD-907B 5 Adhesive 双面背胶 6 High temperature adhesive / 7 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 三 ．电路图/CIRCUIT DIAGRAM 单位： MM 四．外形图/OUTSIDE DIAGRA 标准 A B C D E F H G STD 38.5±1.5 14±1.2 0.7±0.15 50±2 2-5 43.5±1 2.6Max 8 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 单位： MM 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 The packaging shall be based on the exusting packing plate and the actual delivery package shall prevail .If there is any requirement,we can customize it. 1400
Test Report
深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 客户/Client 名称/TYPE A11/43.5/14单孔双槽背胶线长200MM 产品型号 Model NO SG-A11-44-6.3UH 产品编号 A11-43.5-14-050 Part nunbering systey 客户料号 CW390线圈 Client p/NO 工程编号 Enginrer NO TQE 1800510003 日期/Date 2022-12-1 Operation frequency: 113kHz-205kHz Antenna gain: 0dBi 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 编制/Prepared 审核/Checked 认可/Approved 谢燕琪 段家旺 谢小仔 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 一、 线圈工艺/Winding Procese: NO 绕组 线规 匝数 绕线方向 备注 1 N1 2UEW-B-0.08*108P 12TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（单独线圈）=4.1uH±20% 1.12 L0A(线圈+磁片)=6.5uH±10% 1.2 Q值=70MIN 1.3 直流电阻（DCR）：45mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目 材料 1 WIRE ￠0.08*105p 2UEW-1.15mm 2 FERRITE 43.5*5.3*0.7 L型槽 铁氧体硬磁 3 GLUE 白胶 4 SOLDER XCD-907B 5 Adhesive 双面背胶 6 High temperature adhesive / 7 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 三 ．电路图/CIRCUIT DIAGRAM 单位： MM 四．外形图/OUTSIDE DIAGRA 标准 A B C D E F H G STD 38.5±1.5 14±1.2 0.7±0.15 50±2 2-5 43.5±1 2.6Max 8 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 单位： MM 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 The packaging shall be based on the exusting packing plate and the actual delivery package shall prevail .If there is any requirement,we can customize it. 1400
Test Report
承 认 书 客户名称（CUSTOMER): DATE:2023-2-21 规格（SPECIFICATION) ：手表线圈软磁-8.1uH-6mm REV.NO.:A0 部门 品质 工程 Operation frequency:300kHz-350kHzAntenna gain:0dBi 部门 开发工程 采购 品质 ADD：深圳市龙华新区观澜环观中路48号1栋2楼 page:1/3 HRSW ELECTRONICS CO.,LTD TEL：+86-755-23461055 FAX：+86-0755-28015170 深 圳 市 鸿 日 昇 威 科 技 有 限 公 司 确认/日期审核/日期批准/日期 韦立红 2023-2-21 吕惠 2023-2-21 备注： 鸿日昇威科技承认签核、盖章 确认/日期审核/日期批准/日期 (盖公司公 章) 韦函满 2023-2-21 董晚红 2023-2-21 备注： 金 致 卓 科 技 有 限 公 司 客户料号（CUSTOMER P/N）: 品名（DESCRIPTION) : (盖公司公 章) 金致卓科技承认签核、盖章 何伟华 2023-2-21 韦立红 2023-2-21 ROHS 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: A B C D FGI 20±2 14±1 2.8±0.5 6±2 3±1.525REF7.8±0.5 3.WINDING： 1.1底部印字100 STE P TAPE REMAR K N1 4.ELECTRICAL SPECIFICATION: ITEM SPEC 5.BILF OF MATERIAL： NO.SGS NO. 1 2 3 4 5 6 page:2/3 铜 线 ⌀0.08mm*24 2UEW 39mΩ(Max) TES T CON DCR S-F IDC S-F MANUFACTURER UG25软磁 NANJINGJINNINGCO,LTD NANJINGJINNINGCO,LTD CUDAK CO.,LTD HI-POTQ值 TURNS 12TS (Ref) TAIYI CO.,LTD 韦立红何伟华谢超 APPROVED BY CHECKED BYDRAWN BY 胶水 8.1uH±5% 100KHz,0.25V 磁芯 磁铁 9999 无铅锡条无铅锡条 AT 25°CAT 25°C HONGBAOJEICO,LTD ITEM START-FINISH S-F L S-F WIRE TYPE ⌀0.08*24mm 2UEW 3A MATERIAL SPECIFICATION PART NO N52 8*2.45/3200高斯 QIANDAO CO.,LTD SPECIFICATION FOR APPROVAL TITLE 手表线圈软磁-8.1uH-6mm 鸿日昇威科技有限公司 背胶18双面背胶 6.1DIMENSION TEST(UNIT:mm) TEST ITEMABCDFGI 20±2 14±12.8±0.56±2 3±1.525 Ref7.8±0.5 1 21.514.52.856.02 2.4525.107.81 2 20.614.682.865.99 3.8023.777.86 3 20.814.712.796.3 3.6024.057.82 4 21.314.382.896.21 2.7025.067.89 5 21.514.622.916.12 3.6025.087.87 MAX21.5014.71 2.916.30 3.8025.107.89 MIN20.6014.38 2.795.99 2.4523.777.81 AVERAGE21.1114.57 2.866.133.20 24.617.85 DCR Q S-F TEST CONDAT 25°C SPEC8.1uH±5% 39mΩ (Max) 18.1019.50 27.9619.60 37.9519.80 47.8618.90 58.0119.00 6 MAX8.1019.80 MIN7.8618.90 AVERAGE7.9819.36 何伟华 page:3/3 CHECKED BY 韦立红 鸿日昇威科技有限公司 SPECIFICATION FOR APPROVAL 6.2ELECTRICAL TEST IDC 6.SAMPLE TEST DATA 100KHz/0.25v PART NO TEST ITEM 手表线圈软磁-8.1uH-6mm S-F 谢超 L DRAWN BY HI-POT APPROVED BY
Test Setup Photos
Page 1 of 2 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A4TT-CW390 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
Contact Information
Applicant
Pona Yan
Test Firm
Guangdong Asia Hongke Test Technology LimitedDarren Ding
[email protected]185656258618
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 0.3 MHz - 0.35 MHz | - |
