2A4UW-LPSC024Record Player

User Manual Vintage Bluetooth Turntable Player with Bookshelf Speakers MODEL: LPSC-024 IMPORTANT: Please read this manual carefully and completely before operating this unit and keep this manual for future reference. BEFORE USE 1. Choose a safe location and avoid placing the unit in direct sunlight or near any heat source. 2. Avoid environments subject to vibration, excessive dust, cold or moisture. 3. Due to the risk of electrical shock, do not open the cabinet. Should a foreign object accidentally find its way into the interior of the unit, contact your local dealer. 4. Do not attempt to clean the unit with chemical solvents as this might damage the finishing. A clean, dry cloth is recommended for cleaning. 5. Keep this manual for future reference. TURNTABLE PARTS: 1. Turntable Platter 2. Slip Mat 3. Lift Lever 4. Tone Arm Clip/Rest 5. AUTO STOP ON/OFF Switch 6. Speed Control Selection Switch 7. Turntable Shaft 8. Tone-arm 9. Indicator 10. Volume Control Knob 11. Stylus(Needle) Cartridge 12. External Speaker Jacks 13. Function Mode Switch 14. L/R RCA Output Jack 15. DC IN Power Jack 16. Power On/Off Switch 17. External Speaker Jacks Getting Started Connect the external speaker cable between the EXTERNAL SPEAKER JACK at the rear of the unit and speakers.(red cable to red jack; black cable to black jack) Firmly and securely insert the DC plug of the adaptor to the DC IN Jack on the back of the unit. Plug the adaptor’s AC plugs into a power outlet. Phono Mode 1. Switch the function mode to PH. Turn on the power switch. The indicator will become red color. 2. Place a record on the turntable platter and select the desired speed (33/45/78) according to the record. NOTE: when playing a 45RPM record, use the included 45RPM adapter located inside the accessories bag.. 3. Remove the stylus protector. Open the tone-arm clip to release the tone-arm. Push the lift lever backward to raise the tone-arm and gently move the tone-arm to the desired position over the record. The turntable will begin to spin when the arm is moved toward the record. Push the lift lever forward to lower the tone-arm slowly onto the desired position on the record to begin playing the record. Please note: The record will begin to spin only when the tone-arm is moved toward the record if the Auto Stop is turned on. 4. If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. Remark: AUTO STOP function applies to most 33RPM vinyl records. However, for very few vinyl records, it will stop when it does not come to the end, or it will not stop when it comes to the end when AUTO STOP is ON. When it stops before going to the end of record, switch the AUTO STOP to OFF, then the playback will continue. 5. Turn the VOLUME CONTROL KNOB to adjust the volume. HOW TO REPLACE THE NEEDLE To replace the needle, please refer to the instructions below. Removing the needle from the cartridge 1. Place a screwdriver at the tip of the stylus and push downward as shown in direction “A”. 2. Remove the stylus by pulling the stylus forward and pushing downward. Installing the Stylus 1. Hold the tip of the stylus and insert the stylus by pressing as shown in direction “B”. 2. Push the stylus upward as in direction "C" until the stylus locks into the tip position. Bluetooth Mode 1. Switch the function mode to BT. The indicator will become blue color with flashing. 2. Turn on your Bluetooth function on your mobile phone or tablet PC and then search the turntable player with its name VM-130. After pairing and connection, the Bluetooth indicator will become blue color without flashing, and you can play your music of your mobile phone or tablet PC on this turntable player. 3. Turn the VOLUME CONTROL KNOB to adjust the volume. The volume level of your mobile phone or tablet PC also affects the total volume; so please adjust that as well for a proper volume. LINE OUT Connection You can connect this unit to an external Hi-Fi / AMPLIFIER system by connecting the RCA LINE OUT JACKS to the auxiliary input jacks on your Hi-Fi / AMPLIFIER system with RCA cable (not included). TIPS FOR BETTER TURNTABLE PERFORMANCE 1. When opening or closing the turntable cover, handle it gently. 2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge. 3. Frequently clean the needle tip-use a soft brush in a “back-to-front’ motion only. 4. If you must use a needle cleaning fluid, use very sparingly. 5. Gently wipe the turntable player housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable player. 6. Never apply harsh chemicals or solvents to any part of the turntable system. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the…

Text truncated - open the document above for the full version.

SOAR INT'L(HK) COMPANY LIMITED 1/1 Letter of Authorization Company: SOAR INT'L(HK) COMPANY LIMITED Address: Flat 9, 18/F, Technology Plaza, No. 29-35, Sha Tsui Road, Tsuen Wan, N.T., Hong Kong Product Name: Record Player Model Number: LPSC-024 FCC Identifier: 2A4UW-LPSC024 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Tom huang Date: 2022-02-25 Title: Manager Signature of applicant:

SOAR INT'L(HK) COMPANY LIMITED 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-02-25 Subject: Request for Confidentiality FCC ID: 2A4UW-LPSC024 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tom huang Title: Manager

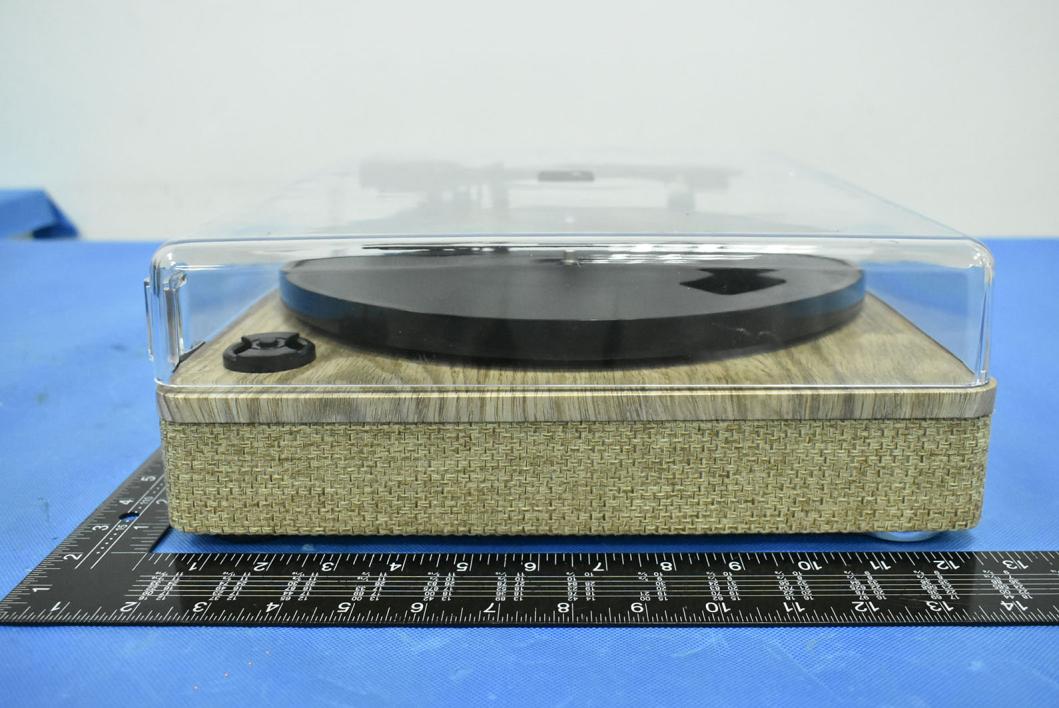

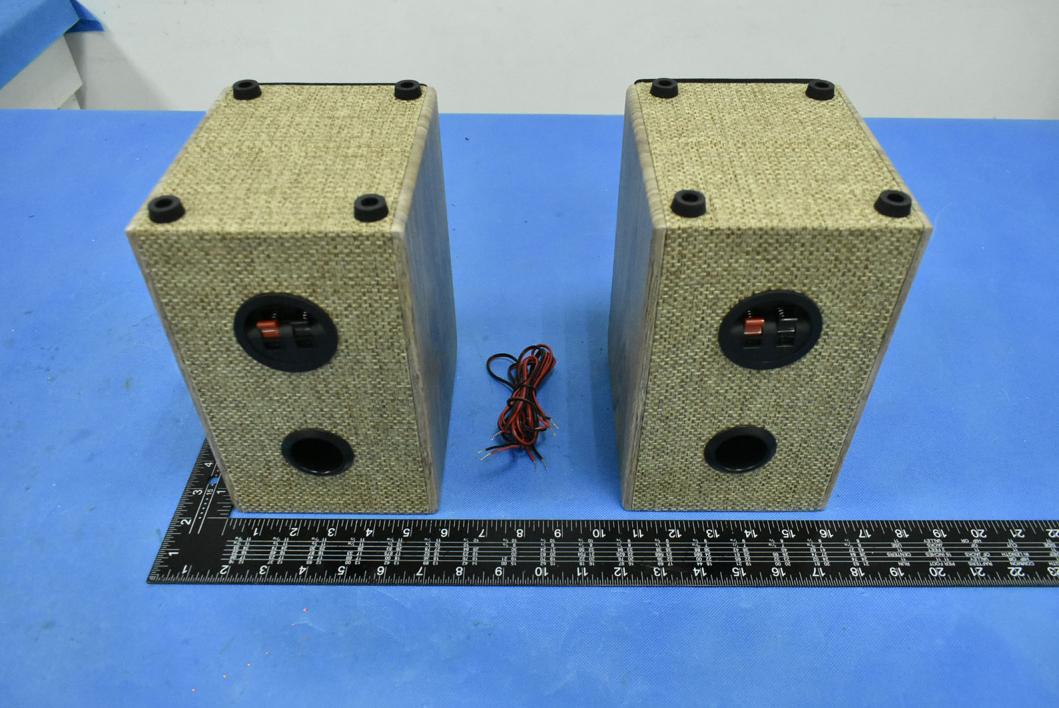

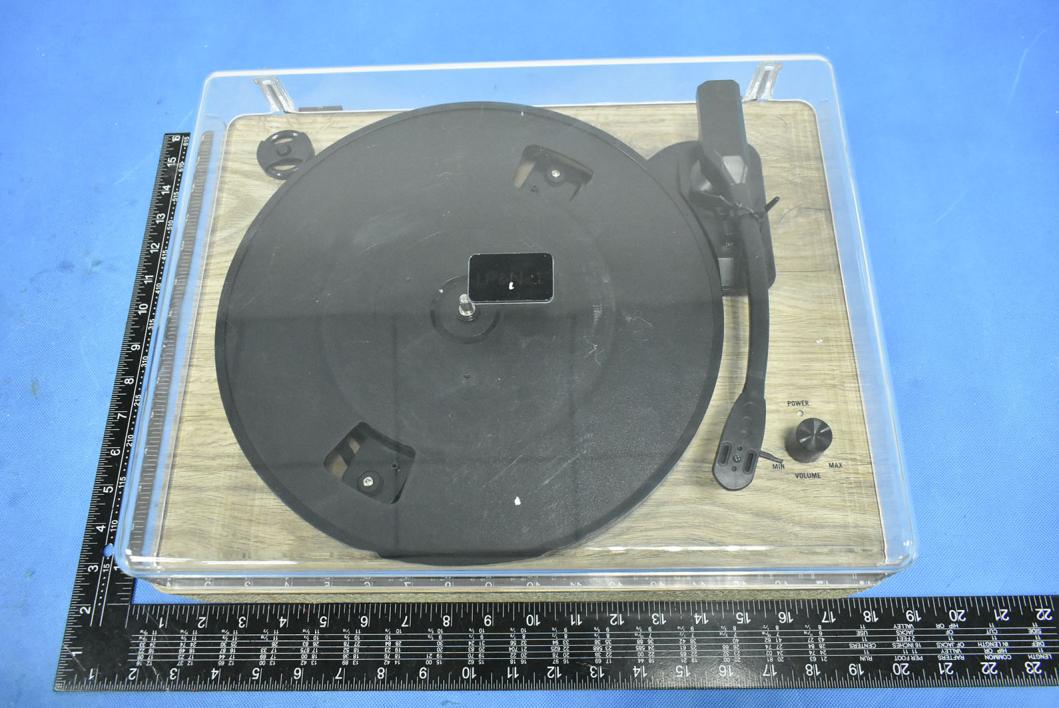

EUT PHOTO(External Photos)

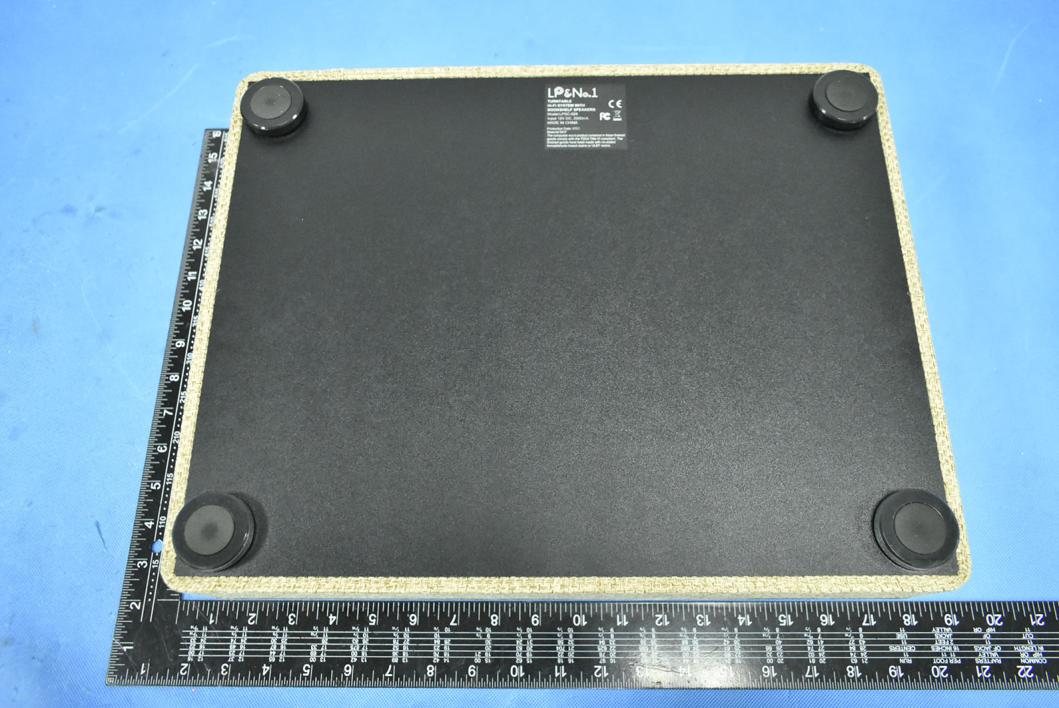

Size:12*8mm MODEL: LPSC-024 FCC ID: 2A4UW-LPSC024 Label location

EUT PHOTO(Internal Photos) ANT ※※※※※ END OF REPORT ※※※※※
