2A4VG-SDRGBICRGBIC CONTROLLER

RGBIC Low-Voltage LED Strip Smart Controller General Specifications Model: SD_RGBIC_V1.0 Main Control Chip: ESP32-C3-WROOM-02-H4 Supported LED Strip IC: WS2811 Operating Voltage: 24V Operating Current: 3A_Max Power: 72W_Max Enclosure Dimensions: 20x46x95±1mm Controller Weight: 50g LED Strip Length: 10M_Max Standby Power Consumption: 0.6-0.9W (LED strip not connected) Operating Ambient Temperature: 50°C_Max (All parameters measured at an ambient temperature of 25°C and a supply voltage of 24V) Key Features -Automatic LED strip length detection -Supports Bluetooth (>5 m) / 2.4G Wi-Fi (>30 m) -Online OTA firmware upgrade -Synchronized control of multiple devices -Supports 2.4G remote control -Supports music mode via phone / device sound pickup Basic Operating Instructions -Install the APP on your phone, turn on Bluetooth, tap "Add Device", and add the device via Bluetooth. -Remote control pairing: Switch off the controller for 3 seconds, then power it on again and press the first button on the remote control within 5 seconds to pair. The LED strip flashes green when pairing succeeds; a flashing red indicates that pairing has been cancelled. Exterior View Internal View FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

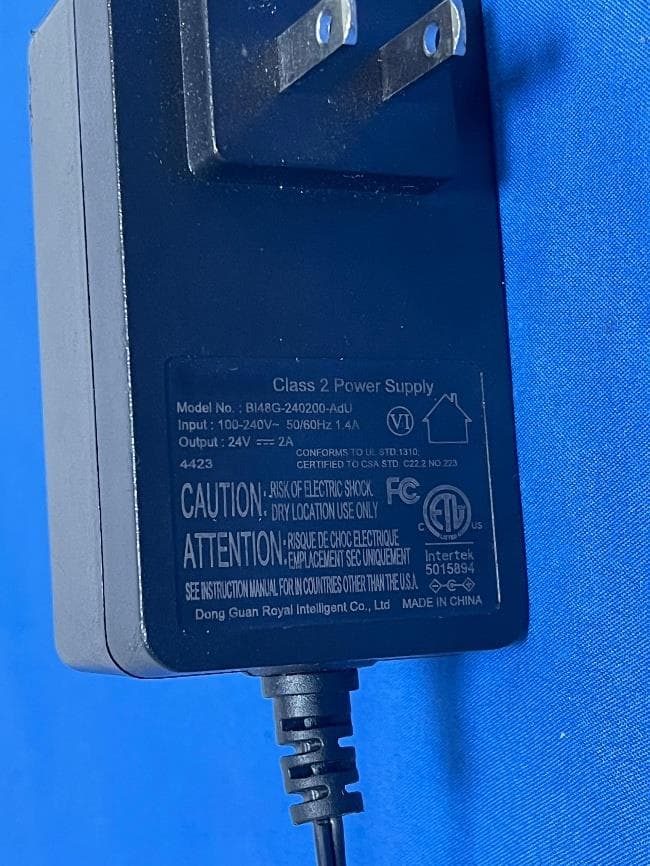

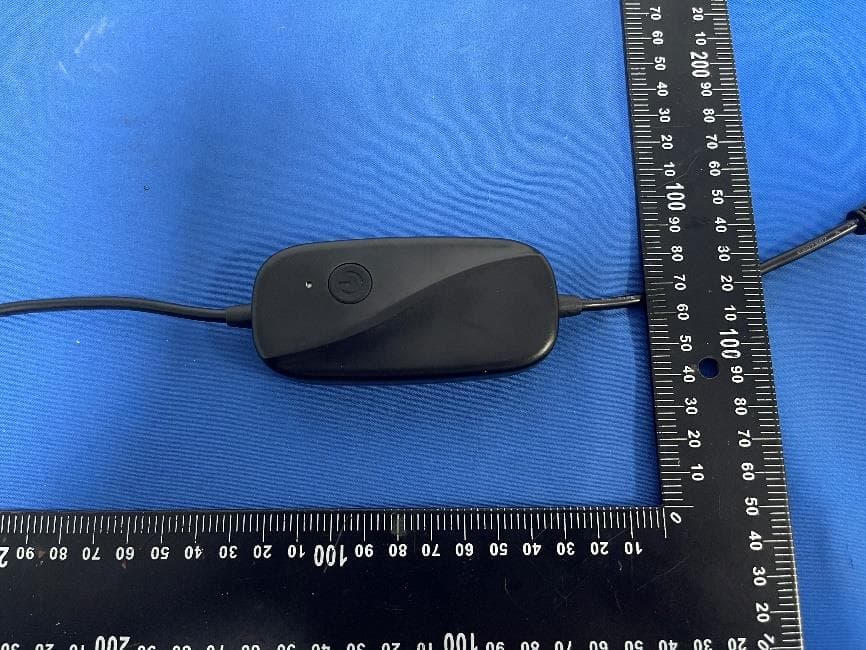

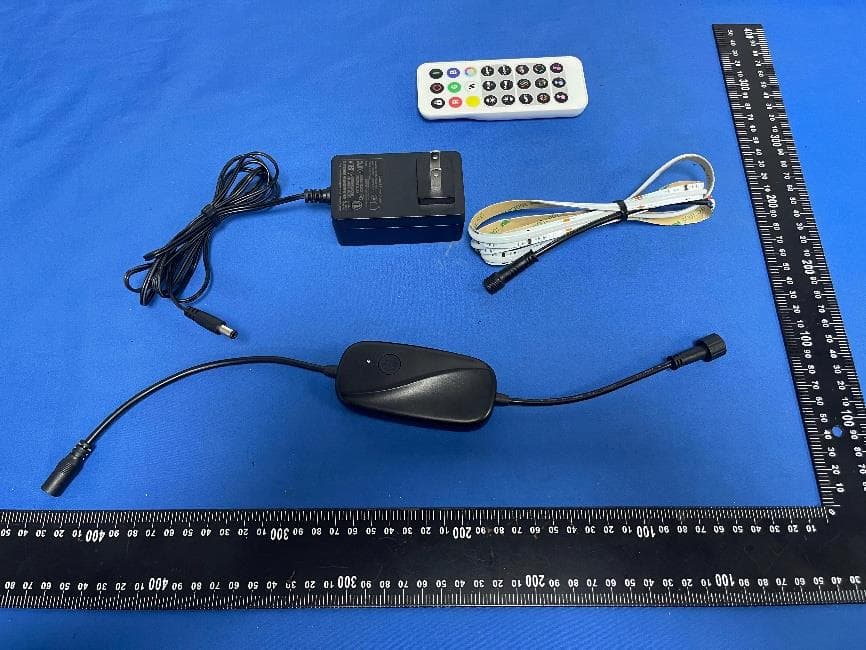

FCC ID:2A4VG-SDRGBIC External Photos of the EUT FCC ID:2A4VG-SDRGBIC FCC ID:2A4VG-SDRGBIC

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A4VG-SDRGBIC

FCC ID:2A4VG-SDRGBIC Internal Photos of the EUT FCC ID:2A4VG-SDRGBIC Antenna FCC ID:2A4VG-SDRGBIC

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26081000103 2A4VG-SDRGBIC Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 20, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Changsha Henglei Imp. & Exp. Co. Ltd Address............................................ : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : RGBIC CONTROLLER Trade Mark ....................................... : Shine Decor Manufacturer .................................... : Changsha Henglei Imp. & Exp. Co. Ltd Model/Type reference ...................... : HL-CONTROLLER-RGBIC Listed Models ................................... : N/A Rating ............................................... : Input: 24V 2A Result ............................................... : PASS Report No.: CTA26081000103 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : RGBIC CONTROLLER Model /Type : HL-CONTROLLER-RGBIC Listed Models : N/A Applicant : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Manufacturer : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Changsha, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000103 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26081000103 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’…

Text truncated - open the document above for the full version.

OTA TEST REPORT Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Xu Ying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-WROOM-02 Model ESP-ANT B Report No. Y2102A0260-T3V2 Issue Date February 19, 2025 OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory ................................................................................................................................ 4 1.1. Notes of the Test Report ...................................................................................................... 4 1.2. Test Facility .......................................................................................................................... 4 1.3. Testing Location ................................................................................................................... 4 1.4. Laboratory Environment ...................................................................................................... 4 2. General Description of Equipment under Test ................................................................................. 5 2.1. Applicant and Manufacturer Information.............................................................................. 5 2.2. General information ............................................................................................................. 5 2.3. Test Date .............................................................................................................................. 5 2.4. Receiving Date ..................................................................................................................... 5 2.5. Applied Standards ................................................................................................................ 6 3. Test Conditions................................................................................................................................. 7 3.1. Test Configuration ................................................................................................................ 7 3.2. Test Measurement ............................................................................................................... 7 4. Test Results ...................................................................................................................................... 8 4.1. Gain and Efficiency .............................................................................................................. 8 5. Equipment List .................................................................................................................................. 9 ANNEX A: 3-D Pattern Plots ....................................................................................................................... 10 ANNEX B: 2-D Pattern Plots ....................................................................................................................... 11 ANNEX C: The EUT Appearance, Antenna plots and Test Configuration ................................................. 12 C.1 EUT Appearance ..................................................................................................................... 12 C.2 Antenna plots ........................................................................................................................... 13 C.3 Test Configuration ................................................................................................................... 14 OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Version Revision description Issue Date Rev.0 Initial issue of report. March 9, 2021 Rev.1 Update information in Page 6 and 14. September 21, 2022 Rev.2 Update description. February 19, 2025 Note: This revised report (Report No. Y2102A0260-T3V2) supersedes and replaces the previously issued report (Report No. Y2102A0260-T3V1). Please discard or destroy the previously issued report and dispose of it accordingly. OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of Eurofins TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test Facility A2LA (Certificate Number: 3857.01) Eurofins TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: Eurofins TA Technology (Shanghai) Co., Ltd. Address: Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-507911…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26081000101 2A4VG-SDRGBIC Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Aug. 20, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Changsha Henglei Imp. & Exp. Co. Ltd Address ...........................................: Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : RGBIC CONTROLLER Trade Mark ......................................: Shine Decor Manufacturer ...................................: Changsha Henglei Imp. & Exp. Co. Ltd Model/Type reference .....................: HL-CONTROLLER-RGBIC Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 24V 2A Result ..............................................: PASS Report No.: CTA26081000101 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : RGBIC CONTROLLER Model /Type : HL-CONTROLLER-RGBIC Listed Models : N/A Applicant : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Manufacturer : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000101 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results ............…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26081000102 2A4VG-SDRGBIC Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 20, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Changsha Henglei Imp. & Exp. Co. Ltd Address ............................................ : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : RGBIC CONTROLLER Trade Mark ....................................... : Shine Decor Manufacturer .................................... : Changsha Henglei Imp. & Exp. Co. Ltd Model/Type reference ...................... : HL-CONTROLLER-RGBIC Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 24V 2A Result ............................................... : PASS Report No.: CTA26081000102 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : RGBIC CONTROLLER Model /Type : HL-CONTROLLER-RGBIC Listed Models : N/A Applicant : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Yuhua District, Changsha, Hunan Province, China Manufacturer : Changsha Henglei Imp. & Exp. Co. Ltd Address : Room 2106, Building 5, No. 1299 Laodong East Road, Yuhua District, Changsha, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000102 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ....................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2A4VG-SDRGBIC Company : Changsha Henglei Imp. & Exp. Co. Ltd EUT : RGBIC CONTROLLER Model Number : HL-CONTROLLER-RGBIC Report No. : CTA26081000102 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.840 2404.080 2419.920 0.5 PASS 2437 15.800 2429.200 2445.000 0.5 PASS 2462 15.960 2454.080 2470.040 0.5 PASS 11N20SISO Ant1 2412 16.320 2403.480 2419.800 0.5 PASS 2437 16.880 2428.480 2445.360 0.5 PASS 2462 16.360 2454.080 2470.440 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.423 2405.2961 2418.7191 --- --- 2437 13.430 2430.3003 2443.7303 --- --- 2462 13.420 2455.3166 2468.7366 --- --- 11G Ant1 2412 16.867 2403.5874 2420.4544 --- --- 2437 16.884 2428.6093 2445.4933 --- --- 2462 16.811 2453.6428 2470.4538 --- --- 11N20SISO Ant1 2412 17.904 2403.0424 2420.9464 --- --- 2437 17.819 2428.1065 2445.9255 --- --- 2462 17.852 2453.1133 2470.9653 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.92 ≤30.00 PASS 2437 15.11 ≤30.00 PASS 2462 15.25 ≤30.00 PASS 11G Ant1 2412 14.48 ≤30.00 PASS 2437 14.60 ≤30.00 PASS 2462 14.74 ≤30.00 PASS 11N20SISO Ant1 2412 14.30 ≤30.00 PASS 2437 14.40 ≤30.00 PASS 2462 14.55 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.12 ≤8.00 PASS 2437 -10.84 ≤8.00 PASS 2462 -10.41 ≤8.00 PASS 11G Ant1 2412 -16.97 ≤8.00 PASS 2437 -16.42 ≤8.00 PASS 2462 -17.15 ≤8.00 PASS 11N20SISO Ant1 2412 -15.26 ≤8.00 PASS 2437 -17.09 ≤8.00 PASS 2462 -17.45 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 3.08 -46.55 ≤-16.92 PASS High 2462 3.32 -51.07 ≤-16.69 PASS 11G Ant1 Low 2412 -1.89 -32.17 ≤-21.89 PASS High 2462 -1.69 -58.16 ≤-21.69 PASS 11N20SIS O Ant1 Low 2412 -2.23 -3…
