2A4WI-SPACE2Kids GPS watch

4G Video Call IP67 Waterproof GPS Kids Watch User Manual_V2.0 Please read the instruction before using the watch. Picture only for reference 1. Before using a. Check whether the watch is the purchased model and has complete accessories: 1 GPS Watch 1 Charging cable, 1 User manual. b. Buy a SIM card which supports 4G network. SIM card need enable GPRS data and caller ID function. c. Turn off the watch before installing the SIM card. d. Battery charging by connecting with computer is recommended, the charging time is around 3 hours Note: battery charging should be under adult supervision. e. Scan the QR code in the last page to download the APP – Setracker2 2. Brief Watch functions  LBS+GPS+ WIFI real‐time Positioning  Make friends between watches  Footprints: record history route  Two‐way phone call, voice chat and video calling  Records of step count, amount of exercise, distance and sleep monitor.  Third‐party Apps: WhatsApp, Line, Google translator, calendar, etc..  Setting no disturbing time when kids on class  GEO fence safety area  SOS Phone call and alert  Low power alarm  Remote shutdown  APP available on IOS and Android Note: swimming with watch is not recommended 2.1 Phone book: Maximum 100 phone numbers can be saved saved in APP.Scroll among the numbers to call. 2.2 Message and make friends: To send and receive text, voice message and emoji. Long "Press" to record voice message and released to send, all messages can be checked on the phone and the longest voice message is 15 seconds. Function of Make friends and with GPS working and at the same time zone. Two watches under same function page then touch to add each other as friends. 2.3 Phone: support dial any other phone number even without store in Phone book. 2.4 Video Call: Support dial video call phone number in Phone book. 2.5 Childhood Includes, Math Game and schedule. 2.6 Step: Pedometer is off by default, function can be turned on in the APP‐Health‐Walk. When pedometer is on, number of steps will sync. 2.7 APP store: the APP store is the third‐party extension. The regular APP includes WhatsAPP, Line,Google translator, Calendar, etc.. You can install the APP directly from the watch, and you are able to delete the installed APP from Setracker2 if you do not want to use it or the APP is not working. 2.8 QR Code: To download the APP. Scan the QR code then there is a link directing to download. The ID shown below is the REG code of the watch. APP only available on IOS and Android, Windows phones do not support. Search ”Setracker2” on APP store and Google play also can get the APP. 2.9 Settings: Click to set up launcher style, brightness, sleep mode, reboot, shutdown, date&time, language etc. launcher style: Click to change 3 different themes. Language: Click to change different languages. 3. Set up watch with APP 3.1 Registration and Binding watch First, to enter Email address as the account name, then fill into the verification code as photo shows, the password set with 6‐12 characters, numbers and letters all supported. And make sure you have chosen the right server area which your country belongs to. Important: The first family member who bind the watch will be the admin account. If the second family member also want to bind watch to check kids’ status, then he/she can set up a new account but get authorization from admin account. Notice: if you are the admin account but still get alerts of waiting for authorization then the reset will be required. Please contact the seller for support. 3.2 Quick review of APP main function (1) Chat: Hold the “start recording” button to record voice message and Release to send. The longest voice message can be 15 seconds. Meanwhile, you can also send short message to the watch with limiting characters (< 30). Like “I am here”. (2) Location: Check the position of the watch in real time. Each round of positioning time is 3 minutes when locate function is triggered. After that, device will back to the default working mode. The GPS/LBS/WIFI location mode will be displayed in the map and each mode works depending on the real‐time signal of watch. Normally, When watches are inside building, LBS location will be shown but location accuracy is not good. (3)GEO fence: The minimum circle need to over 200 meters, with maximum THREE safety zone can be set. When users go in and out of the fence, there will has alarm information send to the guardian numbers. Note: fence alarm information only when the watch GPS is triggered, base station (LBS)positioning fence has no alarm information. (3)Historical Route: This function is used to check the history route of kids in different period. The location data can be saved up to 90 days. (4)Settings for watches a. SOS number: Maximum 3 phone numbers can be saved. Watch will call the SOS numbers automatically by pressing the physical SOS button on watch for 3 seconds, once the emergency call is triggered, alert message will send to APP and the three SOS phone numbers will be called one after another until the call is answered. b. Sound guardian: Enter your phone numbers and confirmed, then the watch will call the number automatically, after you pick up, then you can hear the surroundings without kids notice. c. Data Upload intervals: three working modes to choose, the default working mode is every 10 minutes; power saving mode to update location is every 1 hour, and the real‐time positioning mode is 1 minute, which is most battery consumption. d. Ring mode: There has Vibration, Ring and Silent model to choose from. But some models do not have built‐in Vibration in the watch, only can choose between silent and ring mode. e. Do Not Disturb: Three time periods can be set. All incoming calls will be blocked under DND mode, and the home screen will be locked. This function also known as Class mode only works from Monday to Friday. f. SMS alerts: You can enable low power and SOS alerts by SMS notification. When the battery is less than 20% and SOS Call made…

Text truncated - open the document above for the full version.

---------------------------------------------------------------------------------------------------------------------------- Antenna Gain Declaration Letter To Whom It May Concern: We, the undersigned, hereby declare the antenna gain as below Company Name: Sosmart Spa (SoyMomo SA) (Thomas Pryce Jones) (CTO) Sosmart Spa (SoyMomo SA) Ricardo Lyon 1688, Providencia, Santiago, Chile, 92101 Product name: Kids GPS watch Model: Space 2.0 FCC ID: 2A4WI-SPACE2 Project No: WTX22X04067195W RF FunctionAntenna TypeAntenna Gain BluetoothIntegral Antenna0.5dBi WIFI(2.4GHZ)Integral Antenna0.5dBi 2G GSM, GPRS, EDGE Integral Antenna GSM850:0.5dBi; GSM1900: 0.5dBi 3G WCDMA,HSDPA, HSUPA Integral AntennaWCDMA Band 2: 0.5dBi, WCDMA Band 5: 0.5dBi 4G FDD-LTE, TDD-LTE Integral Antenna FDD-LTE Band 2: 0.5dBi, FDD-LTE Band 4: 0.5dBi, FDD-LTE Band 5: 0.5dBi, FDD-LTE Band 7: 0.5dBi, FDD-LTE Band 12: 0.5dBi,

--------------------------------------------------------------------------------------------------------------------- Date: 2022-05-31 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-T-PRO-V2 FCC ID: 2A4WI-SPACE2 Confidentiality Request To w h o m i t m a y c o n c e r n , Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sosmart Spa (SoyMomo SA) ------------------------------- (Thomas Pryce Jones) (CTO) Sosmart Spa (SoyMomo SA) Ricardo Lyon 1688, Providencia, Santiago, Chile, 92101 ☒ Block Diagram☒ Tune-Up Information ☒ Operational Description☐ Security Information ☒ Schematics☐ Software Defined Radio (SDR) Information ☒ Parts List

-------------------------------------------------------------------------------- (FCC ID：2A4WI-SPACE2) POWER OF ATTORNEY DATE: 2022-05-30 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Amaztec Co., Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Sosmart Spa (SoyMomo SA) ------------------------------- (Thomas Pryce Jones) (CTO) Sosmart Spa (SoyMomo SA) Ricardo Lyon 1688, Providencia, Santiago, Chile, 92101

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022-05-30 SUBJECT: FCC Application for FCC ID: 2A4WI-SPACE2 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the the Class B Digital of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, Sosmart Spa (SoyMomo SA) ------------------------------- (Thomas Pryce Jones) Sosmart Spa (SoyMomo SA) Ricardo Lyon 1688, Providencia, Santiago, Chile, 92101 (CTO)

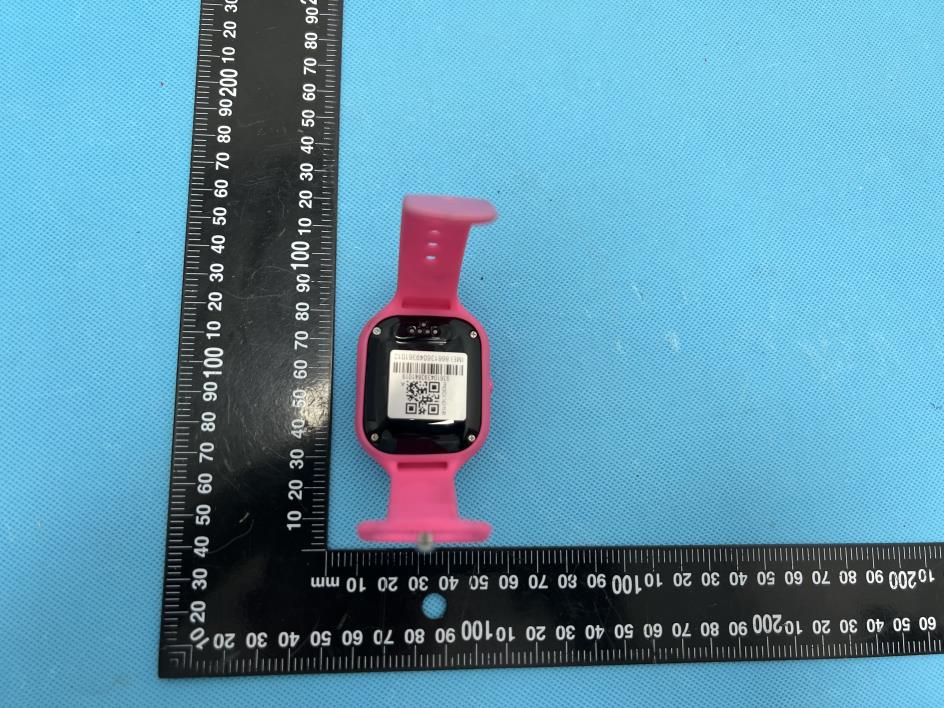

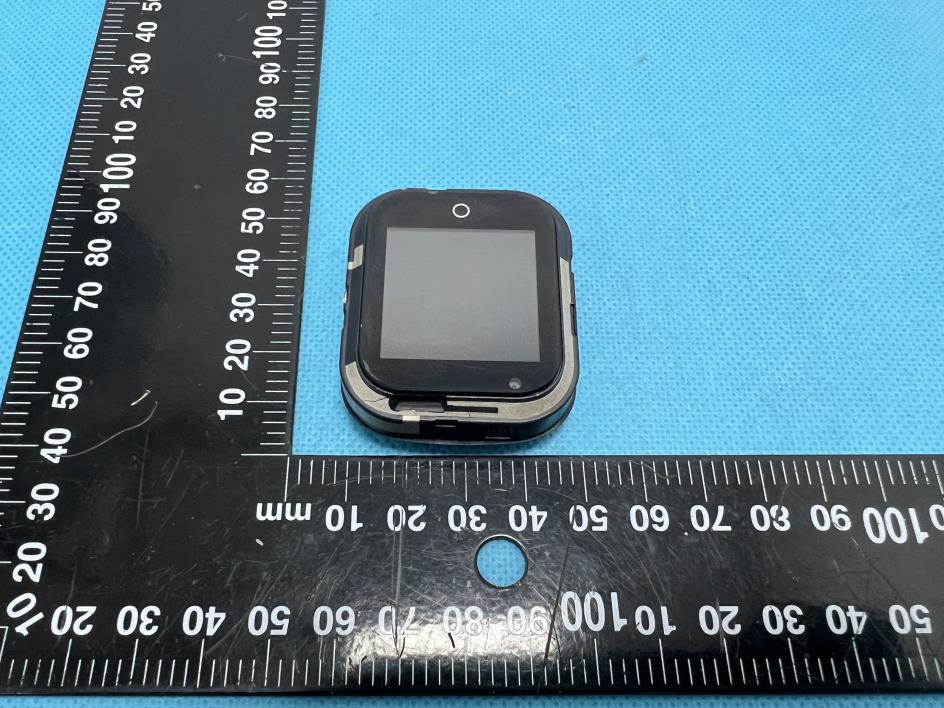

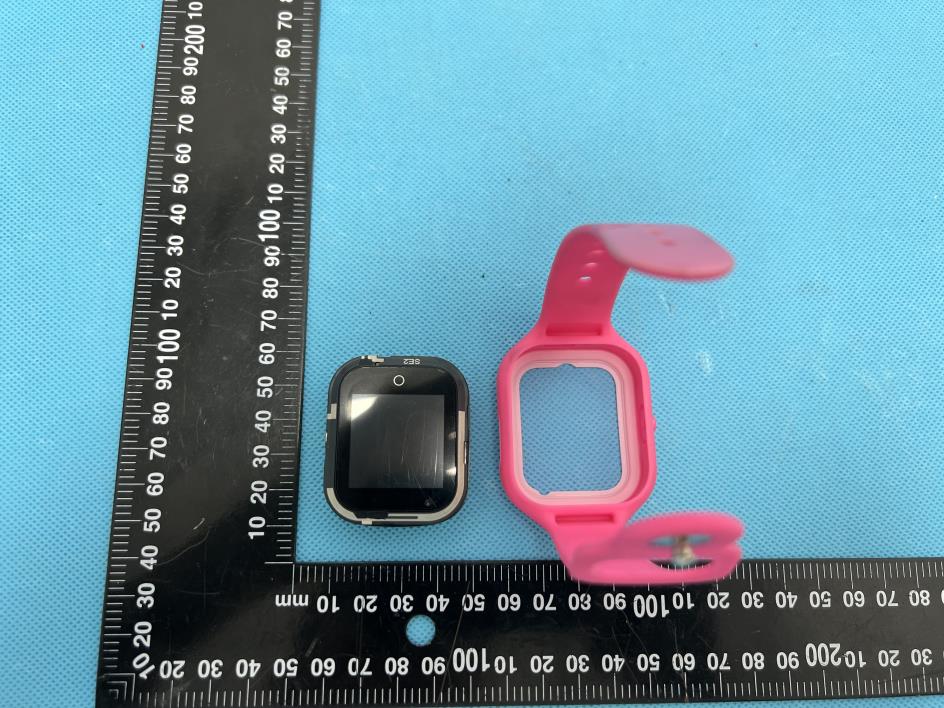

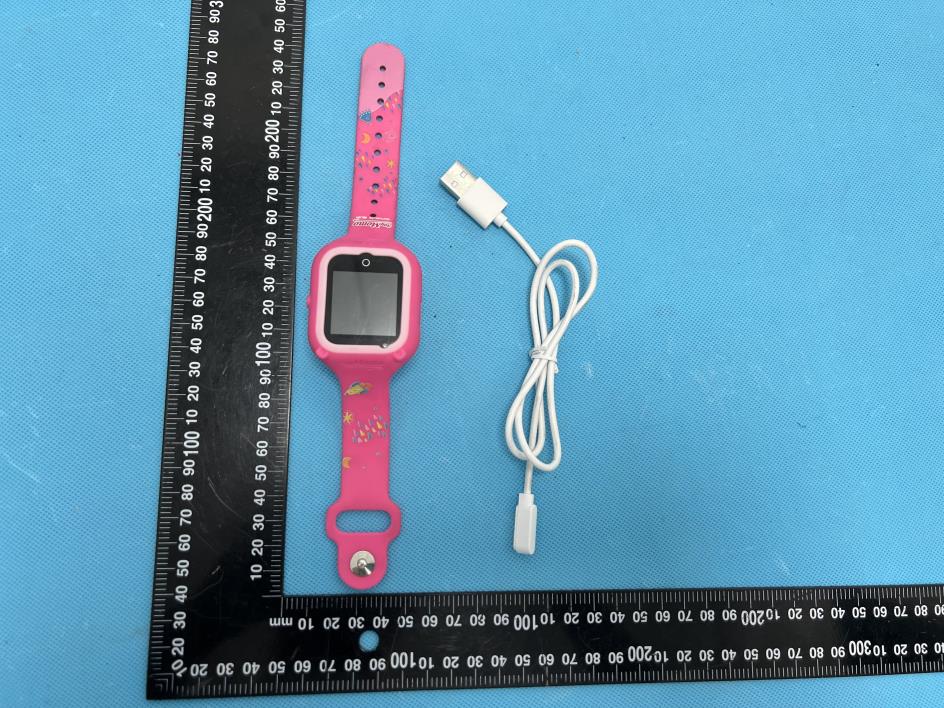

Reference No.: WTX22X04067195W Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX22X04067195W Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX22X04067195W Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX22X04067195W Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7 EUT View 8 Reference No.: WTX22X04067195W Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 9 EUT View 10

Reference No.: WTX22X04067195W Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2A4WI-SPACE2 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX22X04067195W Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX22X04067195W Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX22X04067195W Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Antenna View 1 Reference No.: WTX22X04067195W Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View 2

Page: 1/10 Ref : ACR.197.12.21.BES.B Cancel and replace the report ACR.197.12.21.BES.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD 1/F., ROOM 101, BUILDING 1, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD, BLOCK 70 BAO’AN DISTRICT, SHENZHEN, GUANGDONG , CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 18/21 EPGO356 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 07/16/2021 Accreditations #2-6789 Scope available on www.cofrac.fr Summary: This document presents the method and results from an accredited COMOSAR E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.197.12.21.BES.B Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vI This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme Le Gall Measurement Responsible 7/16/2021 Checked by : Jérôme Luc Technical Manager 7/16/2021 Approved by : Yann Toutain Laboratory Director 8/23/2021 Customer Name Distribution : Waltek Testing Group (Shenzhen) Co., Ltd Issue Name Date Modifications A Jérôme Luc 7/16/2021 Initial release B Jérôme Luc 8/16/2021 Change customer name/address COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.197.12.21.BES.B Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vI This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.1 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 8 5.4 Isotropy _________________________________________________________________ 9 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.197.12.21.BES.B Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vI This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 18/21 EPGO356 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.221 M Dipole 2: R2=0.197 M Dipole 3: R3=0.195 M 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528, FCC KDB865664 D01, CENELEC EN62209 and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528, FCC KDB865664 D01, CENELEC EN62209 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.197.12.21.BES.B Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vI This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection lim…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 130 TEST REPORT Reference No. ....................: WTX22X04067195W FCC ID ............................... .: 2A4WI-SPACE2 Applicant .......................... .: Sosmart Spa (SoyMomo SA) Address ............................ .: Ricardo Lyon 1688, Providencia, Santiago, Chile Manufacturer .................... . SHENZHEN IWONLEX TECHNOLOGY CO.,LTD Address ............................ . 13A01, Building 4, Tangwei City Garden, Tangwei Community, Fuhai Street, Baoan District, Shenzhen Product Name .................. .: Kids GPS watch Model No.. ......................... .: Space 2.0 Standards ......................... .: FCC Part 2.1093 IEEE Std C95.1: 2019 IEEE Std C95.3: 2002 + Rev. 2008 IEC/IEEE 62209-1528:2020 Date of Receipt sample ... .: 2022-04-13 Date of Test....................... .: 2022-04-14 to 2022-05-20 Date of Issue .................... .: 2022-05-23 Test Report Form No. ...... . : WTX_IEEE62209_1528_2020W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Jack Sun Silin Chen Reference No.: WTX22X04067195W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 130 TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 4 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 4 1.2 Test Standards .................................................................................................................................................... 7 1.3 Test Methodology ................................................................................................................................................ 7 1.4 Test Facility ......................................................................................................................................................... 7 2. Summary of Test Results .......................................................................................................................................... 8 3. Specific Absorption Rate (SAR) ................................................................................................................................ 9 3.1 Introduction .......................................................................................................................................................... 9 3.2 SAR Definition ..................................................................................................................................................... 9 4. SAR Measurement System ...................................................................................................................................... 10 4.1 The Measurement System ................................................................................................................................ 10 4.2 Probe ................................................................................................................................................................. 10 4.3 Probe Calibration Process ................................................................................................................................. 12 4.4 Phantom ............................................................................................................................................................ 13 4.5 Device Holder .................................................................................................................................................... 13 4.6 Test Equipment List ........................................................................................................................................... 14 5. Tissue Simulating Liquids ....................................................................................................................................... 15 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 15 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 16 5.3 Tissue Calibration Result ................................................................................................................................... 17 6. SAR Measurement Evaluation ................................................................................................................................ 18 6.1 Purpose of System Performance Check ............................................................................................................ 18 6.2 System Setup .................................................................................................................................................... 18 6.3 Validation Results .............................................................................................................................................. 19 7. EUT Testing Position ............................................................................................................................................... 21 7.1 Wrist-worn device .........................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX22X04067195W002 Page 1 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix for Band 2 Product Name: Kids gps watch Model No: KT21 Reference No.: WTX22X04067195W002 Page 2 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix A: Average Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 23.65 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.69 PASS Band2 1.4MHz QPSK 18607 1RB#5 23.69 PASS Band2 1.4MHz QPSK 18607 3RB#0 23.84 PASS Band2 1.4MHz QPSK 18607 3RB#1 23.89 PASS Band2 1.4MHz QPSK 18607 3RB#3 23.88 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.65 PASS Band2 1.4MHz QPSK 18900 1RB#0 23.77 PASS Band2 1.4MHz QPSK 18900 1RB#2 23.94 PASS Band2 1.4MHz QPSK 18900 1RB#5 23.77 PASS Band2 1.4MHz QPSK 18900 3RB#0 23.96 PASS Band2 1.4MHz QPSK 18900 3RB#1 23.93 PASS Band2 1.4MHz QPSK 18900 3RB#3 24.00 PASS Band2 1.4MHz QPSK 18900 6RB#0 22.71 PASS Band2 1.4MHz QPSK 19193 1RB#0 23.92 PASS Band2 1.4MHz QPSK 19193 1RB#2 23.96 PASS Band2 1.4MHz QPSK 19193 1RB#5 23.92 PASS Band2 1.4MHz QPSK 19193 3RB#0 24.06 PASS Band2 1.4MHz QPSK 19193 3RB#1 24.07 PASS Band2 1.4MHz QPSK 19193 3RB#3 24.06 PASS Band2 1.4MHz QPSK 19193 6RB#0 22.99 PASS Band2 1.4MHz 16QAM 18607 1RB#0 22.56 PASS Band2 1.4MHz 16QAM 18607 1RB#2 22.74 PASS Band2 1.4MHz 16QAM 18607 1RB#5 22.58 PASS Band2 1.4MHz 16QAM 18607 3RB#0 22.72 PASS Band2 1.4MHz 16QAM 18607 3RB#1 22.69 PASS Band2 1.4MHz 16QAM 18607 3RB#3 22.71 PASS Band2 1.4MHz 16QAM 18607 6RB#0 21.64 PASS Band2 1.4MHz 16QAM 18900 1RB#0 22.58 PASS Band2 1.4MHz 16QAM 18900 1RB#2 22.72 PASS Band2 1.4MHz 16QAM 18900 1RB#5 22.57 PASS Reference No.: WTX22X04067195W002 Page 3 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Band2 1.4MHz 16QAM 18900 3RB#0 22.76 PASS Band2 1.4MHz 16QAM 18900 3RB#1 22.72 PASS Band2 1.4MHz 16QAM 18900 3RB#3 22.76 PASS Band2 1.4MHz 16QAM 18900 6RB#0 21.80 PASS Band2 1.4MHz 16QAM 19193 1RB#0 22.75 PASS Band2 1.4MHz 16QAM 19193 1RB#2 22.87 PASS Band2 1.4MHz 16QAM 19193 1RB#5 22.76 PASS Band2 1.4MHz 16QAM 19193 3RB#0 22.86 PASS Band2 1.4MHz 16QAM 19193 3RB#1 22.88 PASS Band2 1.4MHz 16QAM 19193 3RB#3 22.84 PASS Band2 1.4MHz 16QAM 19193 6RB#0 21.98 PASS Band2 3MHz QPSK 18615 1RB#0 23.72 PASS Band2 3MHz QPSK 18615 1RB#8 23.74 PASS Band2 3MHz QPSK 18615 1RB#14 23.64 PASS Band2 3MHz QPSK 18615 8RB#0 22.34 PASS Band2 3MHz QPSK 18615 8RB#4 22.24 PASS Band2 3MHz QPSK 18615 8RB#7 22.25 PASS Band2 3MHz QPSK 18615 15RB#0 22.28 PASS Band2 3MHz QPSK 18900 1RB#0 23.28 PASS Band2 3MHz QPSK 18900 1RB#8 23.28 PASS Band2 3MHz QPSK 18900 1RB#14 23.33 PASS Band2 3MHz QPSK 18900 8RB#0 22.22 PASS Band2 3MHz QPSK 18900 8RB#4 22.24 PASS Band2 3MHz QPSK 18900 8RB#7 22.29 PASS Band2 3MHz QPSK 18900 15RB#0 22.27 PASS Band2 3MHz QPSK 19185 1RB#0 23.53 PASS Band2 3MHz QPSK 19185 1RB#8 23.48 PASS Band2 3MHz QPSK 19185 1RB#14 23.50 PASS Band2 3MHz QPSK 19185 8RB#0 22.52 PASS Band2 3MHz QPSK 19185 8RB#4 22.50 PASS Band2 3MHz QPSK 19185 8RB#7 22.45 PASS Band2 3MHz QPSK 19185 15RB#0 22.51 PASS Band2 3MHz 16QAM 18615 1RB#0 22.76 PASS Band2 3MHz 16QAM 18615 1RB#8 22.81 PASS Band2 3MHz 16QAM 18615 1RB#14 22.50 PASS Band2 3MHz 16QAM 18615 8RB#0 21.28 PASS Band2 3MHz 16QAM 18615 8RB#4 21.30 PASS Reference No.: WTX22X04067195W002 Page 4 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Band2 3MHz 16QAM 18615 8RB#7 21.33 PASS Band2 3MHz 16QAM 18615 15RB#0 21.33 PASS Band2 3MHz 16QAM 18900 1RB#0 22.28 PASS Band2 3MHz 16QAM 18900 1RB#8 22.16 PASS Band2 3MHz 16QAM 18900 1RB#14 22.16 PASS Band2 3MHz 16QAM 18900 8RB#0 21.29 PASS Band2 3MHz 16QAM 18900 8RB#4 21.33 PASS Band2 3MHz 16QAM 18900 8RB#7 21.27 PASS Band2 3MHz 16QAM 18900 15RB#0 21.26 PASS Band2 3MHz 16QAM 19185 1RB#0 22.29 PASS Band2 3MHz 16QAM 19185 1RB#8 22.26 PASS Band2 3MHz 16QAM 19185 1RB#14 22.25 PASS Band2 3MHz 16QAM 19185 8RB#0 21.52 PASS Band2 3MHz 16QAM 19185 8RB#4 21.54 PASS Band2 3MHz 16QAM 19185 8RB#7 21.49 PASS Band2 3MHz 16QAM 19185 15RB#0 21.46 PASS Band2 5MHz QPSK 18625 1RB#0 23.73 PASS Band2 5MHz QPSK 18625 1RB#12 23.40 PASS Band2 5MHz QPSK 18625 1RB#24 23.32 PASS Band2 5MHz QPSK 18625 12RB#0 22.38 PASS Band2 5MHz QPSK 18625 12RB#6 22.34 PASS Band2 5MHz QPSK 18625 12RB#13 22.33 PASS Band2 5MHz QPSK 18625 25RB#0 22.39 PASS Band2 5MHz QPSK 18900 1RB#0 23.15 PASS Band2 5MHz QPSK 18900 1RB#12 23.39 PASS Band2 5MHz QPSK 18900 1RB#24 23.21 PASS Band2 5MHz QPSK 18900 12RB#0 22.32 PASS Band2 5MHz QPSK 18900 12RB#6 22.34 PASS Band2 5MHz QPSK 18900 12RB#13 22.34 PASS Band2 5MHz QPSK 18900 25RB#0 22.35 PASS Band2 5MHz QPSK 19175 1RB#0 23.48 PASS Band2 5MHz QPSK 19175 1RB#12 23.61 PASS Band2 5MHz QPSK 19175 1RB#24 23.47 PASS Band2 5MHz QPSK 19175 12RB#0 22.52 PASS Band2 5MHz QPSK 19175 12RB#6 22.52 PASS Band2 5MHz QPSK 19175 12RB#13 22.48 PASS Band2 5MHz QPSK 19175 25RB#0 22.54 PASS Reference No.: WTX22X04067195W002 Page …

Text truncated - open the document above for the full version.
