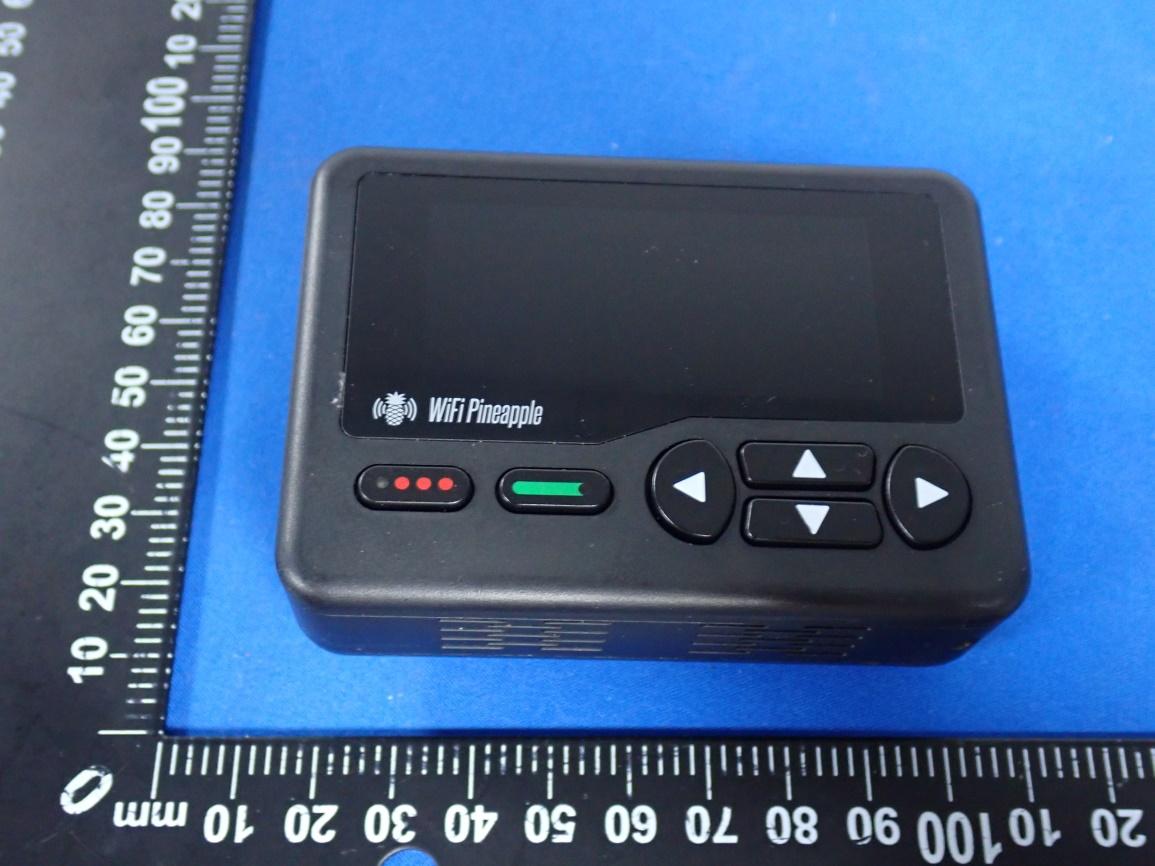

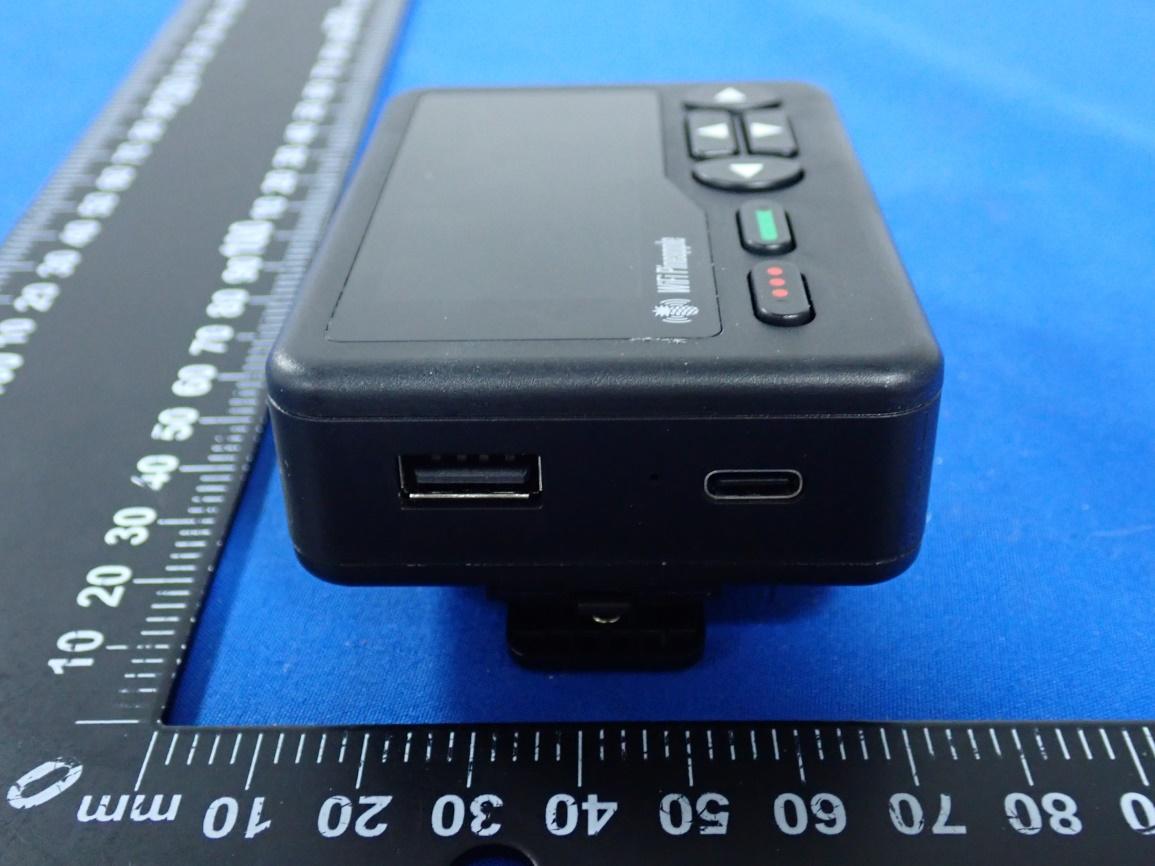

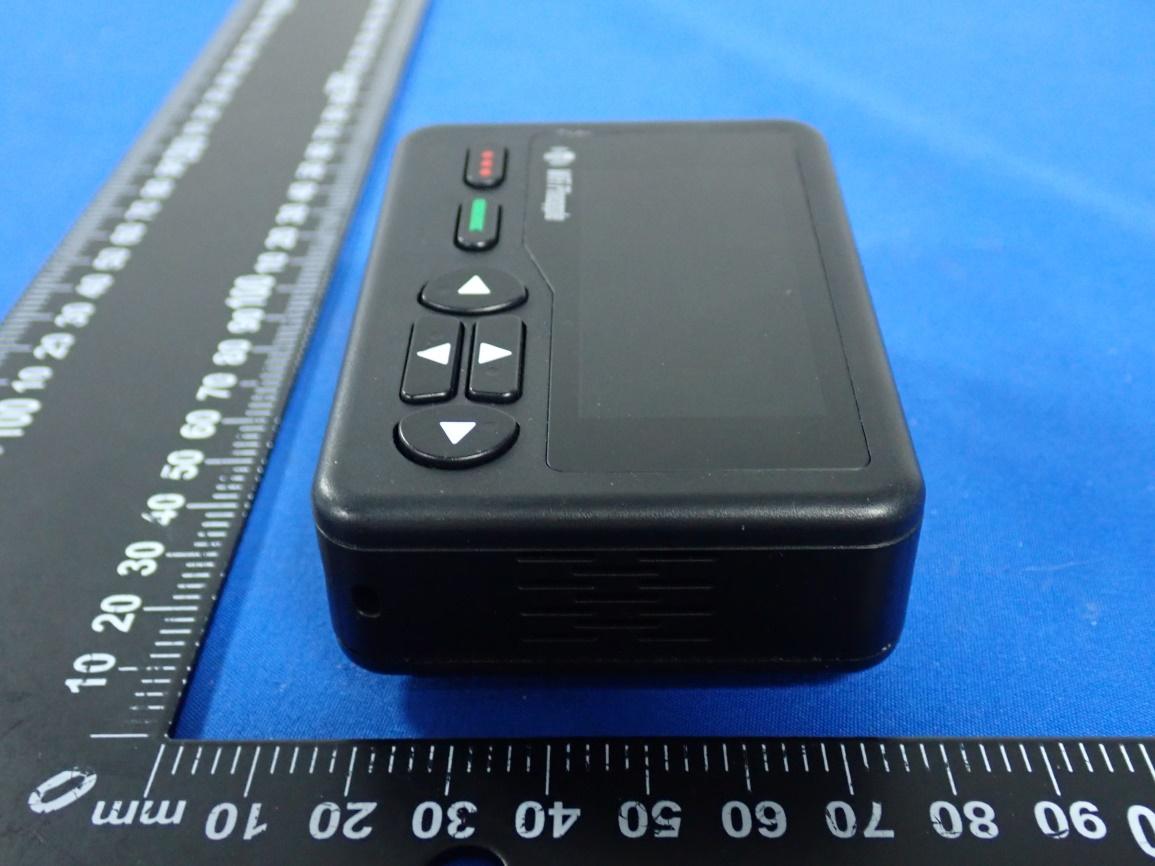

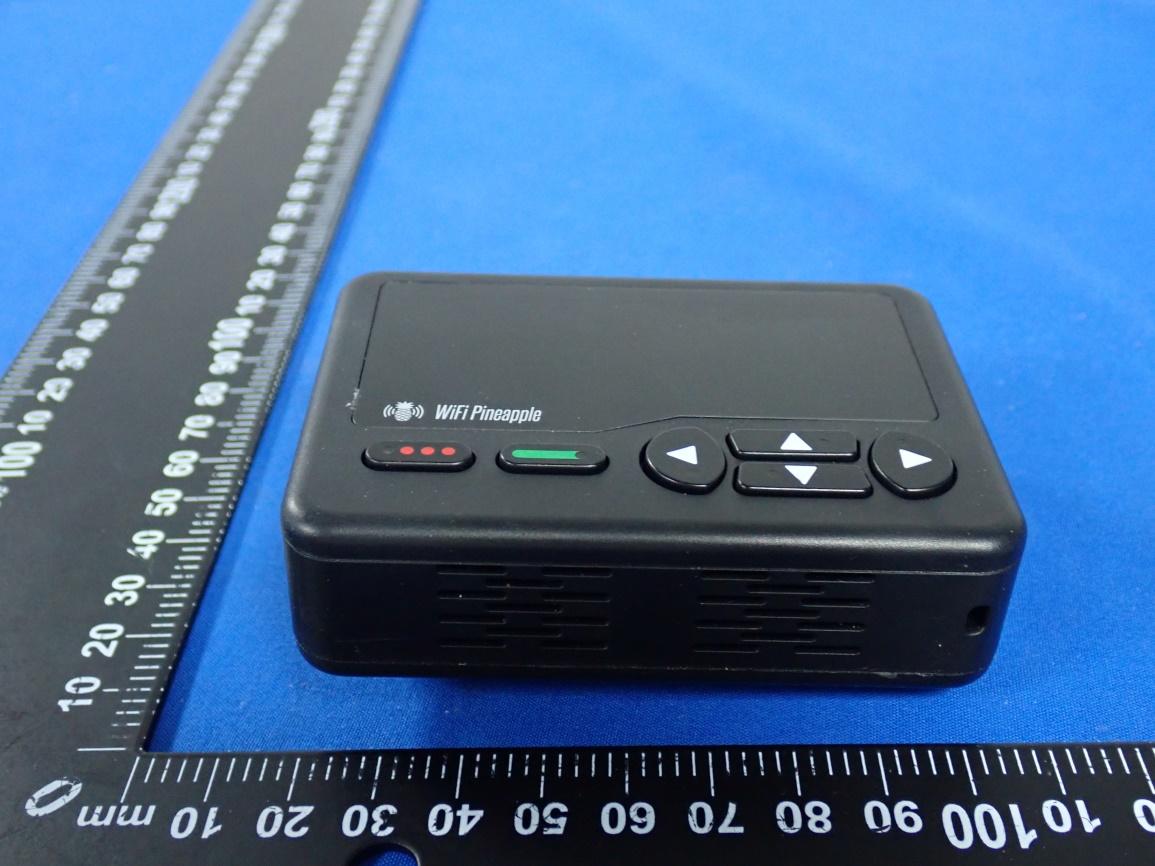

2A52Y-MK1Wifi Pineapple Pager

WiFi Pineapple Pager Manual 1. Before First Use • Charge the device completely before initial use. 2. Getting Started • Visit the setup guide at: https://haks.org/pager-setup • Follow the instructions on the website to configure your device. 3. Product Information • Product: WiFi Pineapple Pager • Standard:Supports Bluetooth 5.2& IEEE 802.11a/b/g/n/ac/ax • Bands: 2.4 GHz, 5 GHz, 6 GHz • Interfaces: Ethernet over USB, USB 2.0 Host Port, Wireless Access Point • Powe :2000 mAh Rechargeable Battery, USB-C, 5V 2A DC • Dimensions : 87 x 62 x 24 mm 4. Usage Tips • Ensure the device is connected to a stable WiFi network. • Use the status indicators to monitor device operation. 5. Safety and Compliance • Use this product in accordance with local laws and regulations. • Avoid exposure to extreme temperatures or moisture. • Keep firmware updated for optimal performance and security. 6.WARNING! • BATTERY SAFETY INFORMATION: LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT. RISK OF FIRE, EXPLOSION, OR BURNS IF MISHANDLED. DO NOT DISASSEMBLE, CRUSH, PUNCTURE, OR SHORT EXTERNAL CONTACTS. DO NOT EXPOSE TO FIRE OR HIGH TEMPERATURE. ONLY CHARGE WITH A 5V 2A USB POWER SOURCE. DO NOT USE IF THE DEVICE IS SWOLLEN, LEAKING, OR DAMAGED, INTENDED FOR INDOOR USE ONLY. DO NOT OPERATE IN WET OR DAMP ENVIRONMENTS. KEEP OUT OF REACH OF CHILDREN AND PETS. • The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet in the 5.925-6.425 GHz band.Dperation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or Communications with unmanned aircraft systems. • This device is restricted for indoor use. 7. NOTE: • This device complies with Part 15 of the FCc Rules. 0peration is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure (0ET Bulletin 65) To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at ocations where there is at least 20cm separation distance between the antenna and al! persons. lnformation to the User - Part 15.105 (b) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfu! interference in a residential installation, This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna.* increase the separation between the equipment and receiver, * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help. 8. Support • For additional information, visit the official website: https://www.hak5.org

Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 1 of 158 RF Test Data for RLAN(5.2G) (Conducted Measurement) Product Name: Wifi Pineapple Pager Trade Mark: / Test Model: Mk1 FCC ID: 2A52Y-MK1 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A1: Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 27.240 5165.760 5193.000 --- --- 11A Ant2 5180 24.040 5167.920 5191.960 --- --- 11A Ant1 5200 23.440 5187.920 5211.360 --- --- 11A Ant2 5200 22.680 5188.720 5211.400 --- --- 11A Ant1 5240 19.680 5230.200 5249.880 --- --- 11A Ant2 5240 19.640 5230.240 5249.880 --- --- 11N20MIMO Ant1 5180 22.680 5168.920 5191.600 --- --- 11N20MIMO Ant2 5180 24.240 5167.800 5192.040 --- --- 11N20MIMO Ant1 5200 22.600 5188.880 5211.480 --- --- 11N20MIMO Ant2 5200 23.520 5188.400 5211.920 --- --- 11N20MIMO Ant1 5240 20.200 5230.000 5250.200 --- --- 11N20MIMO Ant2 5240 19.960 5230.120 5250.080 --- --- 11N40MIMO Ant1 5190 40.240 5169.920 5210.160 --- --- 11N40MIMO Ant2 5190 40.560 5170.000 5210.560 --- --- 11N40MIMO Ant1 5230 39.600 5210.160 5249.760 --- --- 11N40MIMO Ant2 5230 39.840 5210.240 5250.080 --- --- 11AC20MIMO Ant1 5180 25.080 5168.280 5193.360 --- --- 11AC20MIMO Ant2 5180 27.240 5166.120 5193.360 --- --- 11AC20MIMO Ant1 5200 24.640 5187.600 5212.240 --- --- 11AC20MIMO Ant2 5200 24.720 5187.760 5212.480 --- --- 11AC20MIMO Ant1 5240 19.960 5230.160 5250.120 --- --- 11AC20MIMO Ant2 5240 19.920 5230.120 5250.040 --- --- Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 2 of 158 11AC40MIMO Ant1 5190 40.560 5169.920 5210.480 --- --- 11AC40MIMO Ant2 5190 39.840 5170.240 5210.080 --- --- 11AC40MIMO Ant1 5230 41.040 5209.680 5250.720 --- --- 11AC40MIMO Ant2 5230 40.080 5210.160 5250.240 --- --- 11AC80MIMO Ant1 5210 80.480 5169.840 5250.320 --- --- 11AC80MIMO Ant2 5210 79.040 5170.800 5249.840 --- --- 11AX20MIMO Ant1 5180 32.600 5165.600 5198.200 --- --- 11AX20MIMO Ant2 5180 27.080 5169.000 5196.080 --- --- 11AX20MIMO Ant1 5200 24.040 5188.080 5212.120 --- --- 11AX20MIMO Ant2 5200 22.920 5189.280 5212.200 --- --- 11AX20MIMO Ant1 5240 19.920 5230.080 5250.000 --- --- 11AX20MIMO Ant2 5240 19.920 5230.080 5250.000 --- --- 11AX40MIMO Ant1 5190 39.760 5170.240 5210.000 --- --- 11AX40MIMO Ant2 5190 39.680 5170.240 5209.920 --- --- 11AX40MIMO Ant2 5230 39.680 5210.160 5249.840 --- --- 11AX40MIMO Ant1 5230 39.520 5210.400 5249.920 --- --- 11AX80MIMO Ant1 5210 80.480 5169.840 5250.320 --- --- 11AX80MIMO Ant2 5210 80.160 5170.000 5250.160 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 3 of 158 Test Graphs 11A-Ant1-5180 11A-Ant2-5180 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 4 of 158 11A-Ant1-5200 11A-Ant2-5200 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 5 of 158 11A-Ant1-5240 11A-Ant2-5240 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 6 of 158 11N20MIMO-Ant1-5180 11N20MIMO-Ant2-5180 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 7 of 158 11N20MIMO-Ant1-5200 11N20MIMO-Ant2-5200 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 8 of 158 11N20MIMO-Ant1-5240 11N20MIMO-Ant2-5240 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 9 of 158 11N40MIMO-Ant1-5190 11N40MIMO-Ant2-5190 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 10 of 158 11N40MIMO-Ant1-5230 11N40MIMO-Ant2-5230 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 11 of 158 11AC20MIMO-Ant1-5180 11AC20MIMO-Ant2-5180 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 12 of 158 11AC20MIMO-Ant1-5200 11AC20MIMO-Ant2-5200 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 13 of 158 11AC20MIMO-Ant1-5240 11AC20MIMO-Ant2-5240 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 14 of 158 11AC40MIMO-Ant1-5190 11AC40MIMO-Ant2-5190 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 15 of 158 11AC40MIMO-Ant1-5230 11AC40MIMO-Ant2-5230 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 16 of 158 11AC80MIMO-Ant1-5210 11AC80MIMO-Ant2-5210 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 17 of 158 11AX20MIMO-Ant1-5180 11AX20MIMO-Ant2-5180 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 18 of 158 11AX20MIMO-Ant1-5200 11AX20MIMO-Ant2-5200 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 19 of 158 11AX20MIMO-Ant1-5240 11AX20MIMO-Ant2-5240 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 20 of 158 11AX40MIMO-Ant1-5190 11AX40MIMO-Ant2-5190 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 21 of 158 11AX40MIMO-Ant2-5230 11AX40MIMO-Ant1-5230 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 22 of 158 11AX80MIMO-Ant1-5210 11AX80MIMO-Ant2-5210 Appendix Test Data of the Report No.: TZ0278250701FRF04 Page 23 of 158 Appendix A2: Occupied channel bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 18.317 5170.7839 5189.1009 --- --- 11A Ant2 5180 17.650 5171.2088 5188.8588 --- --- 11A Ant1 5200 17.875 5191.1632 5209.0382 --- --- 11A Ant2 5200 17.326 5191.4554 5208.7814 --- --- 11A Ant1 5240 16.843 5231.6436 5248.4866 --- --- 11A Ant2 5240 16.658 5231.7391 5248.3971 --- --- 11N20MIMO Ant1 5180 18.554 5170.7231 5189.2771 --- --- 11N20MIMO Ant2 5180 18.545 5170.8031 5189.3481 --- --- 11N20MIMO Ant1 5200 18.292 5190.8903 5209.1823 --- --- 11N20MIMO Ant2 5200 18.324 5190.9561 5209.2801 --- --- 11N20MIMO Ant1 5240 17.771 5231.1852 5248.9562 --- --- 11N20MIMO Ant2 5240 17.782 5231.1673 5248.9493 --- --- 11N40MIMO Ant1 5190 36.087 5172.0661 5208.1531 --- --- 11N40MIMO Ant2 5190 36.055 5172.1261 5208.1811 --- --- 11N40MIMO Ant1 5230 36.030 5212.1052 5248.1352 --- --- 11N40MIMO Ant2 5230 36.096 5212.0578 5248.1538 --- --- 11AC20MIMO Ant1…

Text truncated - open the document above for the full version.

Report No.: TZ0278250701PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0278250701PH01 Page 2 of 2 Conducted Emission

Report No.: TZ0278250701FRF07 Page 1 of 38 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0278250701FRF07 Product Name : Wifi Pineapple Pager Model/Type reference : Mk1 FCC ID : 2A52Y-MK1 Prepared for : Hak5 LLC 750 N Saint Paul St STE 250 #39371, Dallas, Texas 75201, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15E, ANSI C63.10-2020 Date of Test : 2025-07-16 ~ 2025-08-11 Date of Issue : 2025-08-12 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0278250701FRF07 Page 2 of 38 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-08-12 Valid Initial release Report No.: TZ0278250701FRF07 Page 3 of 38 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. T E S T R E S U L T ..................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Conducted Output Power Measurement ........................................................... 12 5.3. Power Spectral Density Measurement ................................................................................ 14 5.4. 6dB Emission Bandwidth and Occupied Channel Bandwidth Measurement ................. 16 5.5. Radiated Emissions Measurement ...................................................................................... 17 5.6. Power line conducted emissions ........................................................................................ 30 5.7. Undesirable Emissions Measurement ................................................................................ 33 5.8. Antenna Requirements ......................................................................................................... 35 5.9. Frequency Stability ............................................................................................................... 36 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 37 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 38 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T .................................. 38 9. I N T E R I O R P H O T O G R A P H S O F T H E E U T ................................... 38 Report No.: TZ0278250701FRF07 Page 4 of 38 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : Hak5 LLC Address : 750 N Saint Paul St STE 250 #39371, Dallas, Texas 75201, United States Ma…

Text truncated - open the document above for the full version.

Report No.: TZ0278250701FRF04 Page 1 of 43 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0278250701FRF04 Product Name : Wifi Pineapple Pager Model/Type reference : Mk1 FCC ID : 2A52Y-MK1 Prepared for : Hak5 LLC 750 N Saint Paul St STE 250 #39371, Dallas, Texas 75201, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15E, ANSI C63.10-2020 Date of Test : 2025-07-16 ~ 2025-08-11 Date of Issue : 2025-08-12 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0278250701FRF04 Page 2 of 43 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-08-12 Valid Initial release Report No.: TZ0278250701FRF04 Page 3 of 43 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 6 1.5. Description of Test Facility .................................................................................................... 6 1.6. Statement of the Measurement Uncertainty ......................................................................... 7 1.7. Measurement Uncertainty ...................................................................................................... 7 1.8. Description of Test Modes ..................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. T E S T R E S U L T ..................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Conducted Output Power Measurement ........................................................... 12 5.3. Power Spectral Density Measurement ................................................................................ 14 5.4. 99% Occupied Bandwidth and 26dB Emission Bandwidth Measurement ...................... 16 5.5. Radiated Emissions Measurement ...................................................................................... 17 5.6. Power line conducted emissions ........................................................................................ 29 5.7. Undesirable Emissions Measurement ................................................................................ 32 5.8. Antenna Requirements ......................................................................................................... 40 5.9. Frequency Stability ............................................................................................................... 41 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 42 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 43 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T .................................. 43 9. I N T E R I O R P H O T O G R A P H S O F T H E E U T ................................... 43 Report No.: TZ0278250701FRF04 Page 4 of 43 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : Hak5 LLC Address : 750 N Saint Paul St STE 250 #39371, Dallas, Texas 75201, United States …

Text truncated - open the document above for the full version.

Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 151 of 164 NTNV-11N40MIMO-Ant1-5755 NTNV-11N40MIMO-Ant2-5755 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 152 of 164 NTNV-11N40MIMO-Ant1-5795 NTNV-11N40MIMO-Ant2-5795 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 153 of 164 NTNV-11AC20MIMO-Ant1-5745 NTNV-11AC20MIMO-Ant2-5745 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 154 of 164 NTNV-11AC20MIMO-Ant1-5785 NTNV-11AC20MIMO-Ant2-5785 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 155 of 164 NTNV-11AC20MIMO-Ant1-5825 NTNV-11AC20MIMO-Ant2-5825 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 156 of 164 NTNV-11AC40MIMO-Ant1-5755 NTNV-11AC40MIMO-Ant2-5755 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 157 of 164 NTNV-11AC40MIMO-Ant1-5795 NTNV-11AC40MIMO-Ant2-5795 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 158 of 164 NTNV-11AC80MIMO-Ant1-5775 NTNV-11AC80MIMO-Ant2-5775 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 159 of 164 NTNV-11AX20MIMO-Ant1-5745 NTNV-11AX20MIMO-Ant2-5745 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 160 of 164 NTNV-11AX20MIMO-Ant1-5785 NTNV-11AX20MIMO-Ant2-5785 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 161 of 164 NTNV-11AX20MIMO-Ant1-5825 NTNV-11AX20MIMO-Ant2-5825 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 162 of 164 NTNV-11AX40MIMO-Ant1-5755 NTNV-11AX40MIMO-Ant2-5755 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 163 of 164 NTNV-11AX40MIMO-Ant1-5795 NTNV-11AX40MIMO-Ant2-5795 Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 164 of 164 NTNV-11AX80MIMO-Ant1-5775 NTNV-11AX80MIMO-Ant2-5775

Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 101 of 164 11AC20MIMO Ant2 5785 30~5650 5382.78 -39.17 ≤-27 PASS 11AC20MIMO Ant1 5785 5925~40000 38780.7 -46.62 ≤-27 PASS 11AC20MIMO Ant2 5785 5925~40000 5958.5 -41.74 ≤-27 PASS 11AC20MIMO Ant1 5825 30~5650 5391.96 -49.45 ≤-27 PASS 11AC20MIMO Ant2 5825 30~5650 5366.48 -38.9 ≤-27 PASS 11AC20MIMO Ant1 5825 5925~40000 39079.4 -47.34 ≤-27 PASS 11AC20MIMO Ant2 5825 5925~40000 5997.1 -42.37 ≤-27 PASS 11AC40MIMO Ant1 5755 30~5650 5434.48 -48.96 ≤-27 PASS 11AC40MIMO Ant2 5755 30~5650 5479.63 -38.92 ≤-27 PASS 11AC40MIMO Ant1 5755 5925~40000 38745.5 -46.34 ≤-27 PASS 11AC40MIMO Ant2 5755 5925~40000 5948.3 -42.11 ≤-27 PASS 11AC40MIMO Ant1 5795 30~5650 5418 -48.74 ≤-27 PASS 11AC40MIMO Ant2 5795 30~5650 5378.66 -39.13 ≤-27 PASS 11AC40MIMO Ant1 5795 5925~40000 38731.9 -45.92 ≤-27 PASS 11AC40MIMO Ant2 5795 5925~40000 5935.8 -41.22 ≤-27 PASS 11AC80MIMO Ant1 5775 30~5650 5414.25 -49.44 ≤-27 PASS 11AC80MIMO Ant2 5775 30~5650 5426.05 -38.63 ≤-27 PASS 11AC80MIMO Ant1 5775 5925~40000 38721.7 -46.65 ≤-27 PASS 11AC80MIMO Ant2 5775 5925~40000 5972.1 -41.16 ≤-27 PASS 11AX20MIMO Ant1 5745 30~5650 5477.38 -49.63 ≤-27 PASS 11AX20MIMO Ant2 5745 30~5650 5374.91 -39.25 ≤-27 PASS 11AX20MIMO Ant1 5745 5925~40000 39078.3 -46.49 ≤-27 PASS 11AX20MIMO Ant2 5745 5925~40000 5990.3 -42.35 ≤-27 PASS 11AX20MIMO Ant1 5785 30~5650 5367.42 -49.57 ≤-27 PASS 11AX20MIMO Ant2 5785 30~5650 5422.87 -39.34 ≤-27 PASS 11AX20MIMO Ant1 5785 5925~40000 38728.5 -46.19 ≤-27 PASS 11AX20MIMO Ant2 5785 5925~40000 5998.3 -40.16 ≤-27 PASS 11AX20MIMO Ant1 5825 30~5650 5371.16 -49.53 ≤-27 PASS 11AX20MIMO Ant2 5825 30~5650 5371.91 -38.88 ≤-27 PASS 11AX20MIMO Ant1 5825 5925~40000 38754.6 -46.27 ≤-27 PASS 11AX20MIMO Ant2 5825 5925~40000 5990.3 -41.36 ≤-27 PASS 11AX40MIMO Ant1 5755 30~5650 5356.55 -49.97 ≤-27 PASS 11AX40MIMO Ant2 5755 30~5650 5294.17 -39.15 ≤-27 PASS 11AX40MIMO Ant1 5755 5925~40000 38796.6 -45.87 ≤-27 PASS 11AX40MIMO Ant2 5755 5925~40000 5971 -41.85 ≤-27 PASS 11AX40MIMO Ant1 5795 30~5650 5496.67 -49.36 ≤-27 PASS 11AX40MIMO Ant2 5795 30~5650 5425.49 -39.01 ≤-27 PASS 11AX40MIMO Ant1 5795 5925~40000 38754.6 -45.28 ≤-27 PASS 11AX40MIMO Ant2 5795 5925~40000 5964.2 -41.15 ≤-27 PASS 11AX80MIMO Ant1 5775 30~5650 5400.95 -49.71 ≤-27 PASS 11AX80MIMO Ant2 5775 30~5650 5369.1 -39.6 ≤-27 PASS 11AX80MIMO Ant1 5775 5925~40000 38736.4 -46.65 ≤-27 PASS 11AX80MIMO Ant2 5775 5925~40000 5996 -41.8 ≤-27 PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 102 of 164 Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 40 GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 103 of 164 Test Graphs 11A-Ant1-5745-30~5650-PASS 11A-Ant2-5745-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 104 of 164 11A-Ant1-5745-5925~40000-PASS 11A-Ant2-5745-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 105 of 164 11A-Ant1-5785-30~5650-PASS 11A-Ant2-5785-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 106 of 164 11A-Ant1-5785-5925~40000-PASS 11A-Ant2-5785-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 107 of 164 11A-Ant1-5825-30~5650-PASS 11A-Ant2-5825-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 108 of 164 11A-Ant1-5825-5925~40000-PASS 11A-Ant2-5825-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 109 of 164 11N20MIMO-Ant1-5745-30~5650-PASS 11N20MIMO-Ant2-5745-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 110 of 164 11N20MIMO-Ant1-5745-5925~40000-PASS 11N20MIMO-Ant2-5745-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 111 of 164 11N20MIMO-Ant1-5785-30~5650-PASS 11N20MIMO-Ant2-5785-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 112 of 164 11N20MIMO-Ant1-5785-5925~40000-PASS 11N20MIMO-Ant2-5785-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 113 of 164 11N20MIMO-Ant1-5825-30~5650-PASS 11N20MIMO-Ant2-5825-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 114 of 164 11N20MIMO-Ant1-5825-5925~40000-PASS 11N20MIMO-Ant2-5825-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 115 of 164 11N40MIMO-Ant1-5755-30~5650-PASS 11N40MIMO-Ant2-5755-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 116 of 164 11N40MIMO-Ant1-5755-5925~40000-PASS 11N40MIMO-Ant2-5755-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 117 of 164 11N40MIMO-Ant1-5795-30~5650-PASS 11N40MIMO-Ant2-5795-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 118 of 164 11N40MIMO-Ant1-5795-5925~40000-PASS 11N40MIMO-Ant2-5795-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 119 of 164 11AC20MIMO-Ant1-5745-30~5650-PASS 11AC20MIMO-Ant2-5745-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 120 of 164 11AC20MIMO-Ant1-5745-5925~40000-PASS 11AC20MIMO-Ant2-5745-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 121 of 164 11AC20MIMO-Ant1-5785-30~5650-PASS 11AC20MIMO-Ant2-5785-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 122 of 164 11AC20MIMO-Ant1-5785-5925~40000-PASS 11AC20MIMO-Ant2-5785-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 123 of 164 11AC20MIMO-Ant1-5825-30~5650-PASS 11AC20MIMO-Ant2-5825-30~5650-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 124 of 164 11AC20MIMO-Ant1-5825-5925~40000-PASS 11AC20MIMO-Ant2-5825-5925~40000-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 125 of 164 11AC40MIMO-Ant1-5755-30~5650-PASS 11AC40MIMO-Ant2-5755-30~5650-PASS Appendix Test Data of the Report No.: TZ02…

Text truncated - open the document above for the full version.

Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 51 of 164 11A-Ant1-5825-PASS 11A-Ant2-5825-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 52 of 164 11N20MIMO-Ant1-5745-PASS 11N20MIMO-Ant2-5745-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 53 of 164 11N20MIMO-Ant1-5785-PASS 11N20MIMO-Ant2-5785-PASS Appendix Test Data of the Report No.: TZ0278250701FRF07 Page 54 of 164…
