2A54OSTMFOBLTScorpion M Series Tracker Fob

Lotus Vehicle Tracker USER GUIDE Version 3 | June 2023







































2 Contents Welcome to Lotus Vehicle Tracker .................................................................................................................. 3 Getting Started ......................................................................................................................................................... 3 Navigating the System ........................................................................................................................................... 4 Section 1 – Vehicle Management ...................................................................................................................... 4 Vehicle Management >> Live Map ..................................................................................................................... 4 Vehicle Position & Status Icons ...................................................................................................................... 5 Vehicle Status Panel ........................................................................................................................................... 5 Live Map Side Menu ............................................................................................................................................ 6 Live Map Default Preferences ......................................................................................................................... 6 View > Geofences ................................................................................................................................................ 7 Vehicle Management >> Vehicles ...................................................................................................................... 7 Vehicle Management >> Alerts .......................................................................................................................... 7 Vehicle Management >> Triggered Alerts ...................................................................................................... 8 Vehicle Management >> Geofences ................................................................................................................. 8 Creating a Circular Geofence .......................................................................................................................... 8 Creating a Polygon/ Custom-Shaped Geofence ....................................................................................... 9 Vehicle Management >> Mobile App ................................................................................................................ 9 Section 2 – Reporting .......................................................................................................................................... 11 Reporting >> Journey ........................................................................................................................................... 11 Reporting >> Driver Behaviour ......................................................................................................................... 12 Section 3 – Settings ............................................................................................................................................. 17 Settings >> Users .................................................................................................................................................. 17 Disabling & Enabling User Access ............................................................................................................... 17 Settings >> Logs .................................................................................................................................................... 17 Settings >> Alert Text – Top Up ....................................................................................................................... 18 Settings >> Subscriptions Management - Your Subscriptions .............................................................. 18 Section 4 – Driver ID (ADR) Tag ..................................................................................................................... 18 Lost Driver Tags ..................................................................................................................................................... 18 Low Battery Driver Tags ...................................................................................................................................... 19 Driver Tag Battery Replacement ...................................................................................................................... 19 Keyring / Lanyard Loop ...................................................................................................................................... 20 Account >> My Account >> My Details ........................................................................................................ 20 Section 5 – Frequently Asked Questions ....................................................................................................... 21 Contact Details ..................................................................................................................................................... 25 Any questions? ........................................................................................................................................................... 25 If your enquiry is of a technical or operational nature, please ensure you have consulted this User Guide. If after reading this Guide, you still require assistance then please use the website contact form or call your local Scorpion Automotive office: ...................................................................................... 25







…

Text truncated - open the document above for the full version.

DocuSign Envelope ID: 09992368-F211-4B4B-97A2-DE53CC48F4A0

Sincerely, Name/Title： Richard Andrews /Sales Manager UK Company: Scorpion Automotive Ltd Address: Scorpion House, Drumhead Road Chorley, Lancashire PR6 7DE UK United Kingdom Phone: 0044(0)7966163550 Fax: / E-Mail: [email protected]

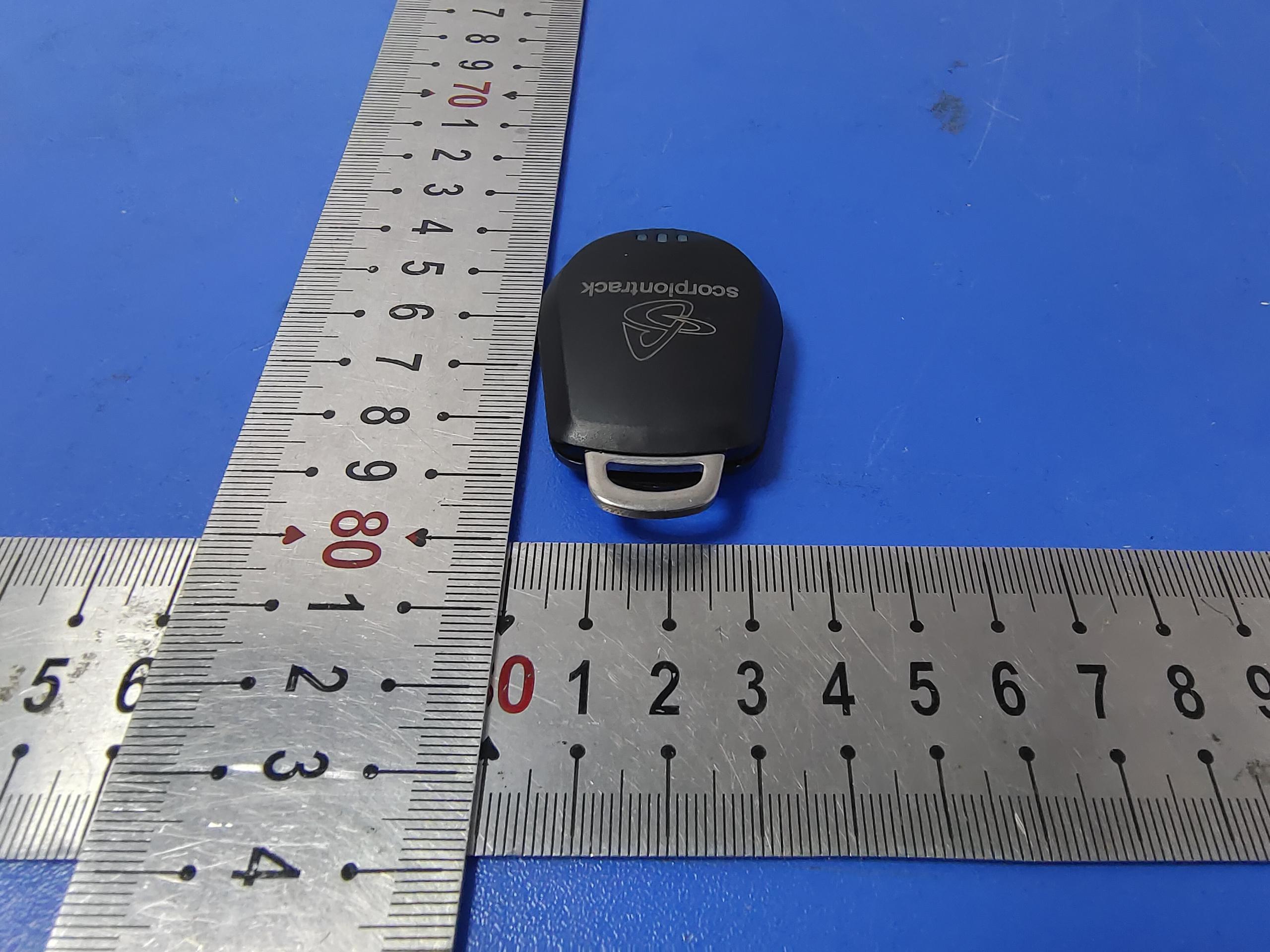

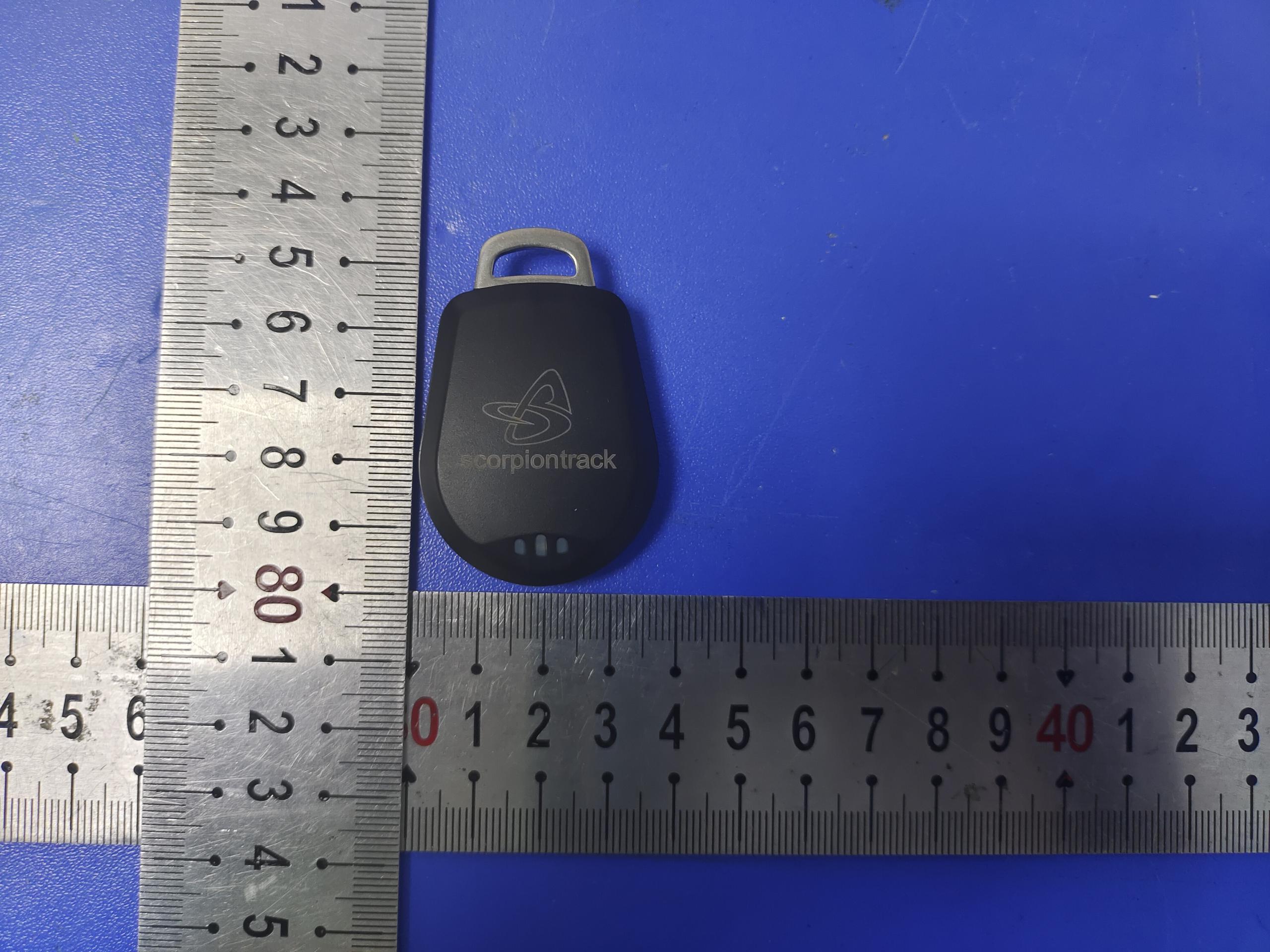

ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of3 ExternalPhotosoftheEUT Fig.1 Fig.2 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of3 Fig.3 Fig.4 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of3 Fig.5 Fig.6

Label: Location:

ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of4 InternalPhotosoftheEUT Fig.1 Fig.2 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of4 Fig.3 Fig.4 Antenna ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of4 Fig.5 Fig.6 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of4 Fig.7

ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 3 FCCRFExposureEvaluation 1.ProductInformation FCCID:2A54OSTMFOBLT Productname: ScorpionMSeriesTrackerFob TestModel:STMFOB AdditionalModelNo.:STMFOBLT,STMFOBTR ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethesame,So noadditionalmodelsweretested Powersupply:3VLithiumCoinCellCR2450 Bluetooth:2402MHz-2480MHz ChannelNumber:40channelsforBluetoothV5.0(DTS) ChannelSpacing:2MHzforBluetoothV5.0(DTS) ModulationType:GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaType:ChipAntenna AntennaGain:3.5dBi(Max.) Hardwareversion:V02 Softwareversion:V04 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiating structuresoroutersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsand platformrequirements,toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1). ToqualifyforSARtestexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustified bytheoperatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequiredpublished RFexposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,astatementof justificationandcompliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,to qualifyfortheSARtestexclusion.Whenrequired,thedevicespecificconditionsdescribedintheother publishedRFexposureKDBproceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusion provisions;forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 3 transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingtof)insection4.1isappliedtodetermineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsofsimultaneous transmissionconfigurations,furtherequipmentapprovalisnotrequiredtoincorporatetransmitter modulesinhostdevicesthatoperateinthemixedmobileandportablehostplatformexposureconditions. ThegranteeisresponsiblefordocumentingthisaccordingtoClassIpermissivechangerequirements. AntennasthatqualifyforstandaloneSARtestexclusionmustapplytheestimatedstandaloneSARto determinesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration,adjusted formaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairsoperatingin portabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BTLE> ModeChannelFrequency(MHz)PeakConductedOutputPower(dBm) GFSK 024020.71 1924400.43 3924800.16 5.ManufacturingTolerance <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)0.00.00.0 Tolerance±(dB)1.01.01.0 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 3 6.EvaluationResults 6.1StandaloneEvaluation <BLE> Band/Modef(GHz) Antenna Distance (mm) RFoutputpowerSARTest Exclusion Threshold SARTest Exclusion dBmmW BTLEGFSK2.44051.01.25890.3933<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1is appliedtodetermineSARtestexclusion. 6.2SimultaneousTransmissionforSARExclusion ThesamplesupportoneBTmodular.Noneedconsidersimultaneoustransmission. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .......................THEENDOFREPORT.........................

Product Specification Serica-SR4W035-PS-1.1 Page 1 Antennas for Wireless Applications 1. Features  Antenna for 2.4GHz applications  Bluetooth, Wi-Fi, ZigBee, ISM.  Maintains high performance on device: DFI (Designed for Integration)  Ultra-low profile innovative design.  SMD mounting  Supplied on Tape and Reel  Automotive temperature rating. 2. Description Serica is intended for use with 2.4GHz applications. The antenna only requires a small ground plane. It is ideal for single and MIMO antenna systems. This product specification shows the performance of the antenna over the frequency range 2.4 – 2.5GHz. 3. Applications  Wearable devices  Medical equipment  Tablets  Network Devices  MIMO Systems  IP Cameras  Access Points Serica 2.4GHz Antenna Part No. SR4W035 lamiiANT ® Product Specification Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 2 4. Part Number Serica: SR4W035 5. General Data 6. RF Characteristics Product name Serica Part Number SR4W035 Frequency 2.4 – 2.5 (GHz) Polarization Linear Operating temperature -40°C to140°C Environmental Condition Test ISO16750-4 5.1.1.1/5.1.2.1/5.3.2 Impedance with matching 50 Ω Weight <1g Antenna type SMD Dimensions 6.0 x 4.0 x 0.4 (mm) 2400 - 2500 MHz Conditions Peak gain 3.50dBi All data measured on Antenova’s evaluation PCB Part No. SR4W035-EVB-1 Average gain (Linear) -1.50dBi Average efficiency >65% Maximum return loss -10.0dB Maximum VSWR 1.85:1 Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 3 7. RF Performance 7.1 Return Loss 7.2 VSWR Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 4 7.3 Antenna pattern 2400 MHz – 2500 MHz 3D pattern at 2.45 GHz Drag to rotate pattern and PCB by using Adobe Reader (Click to Activate) Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 5 8. Antenna Dimensions Bottom Side Dimensions L W H Length Width Height 6.0 ±0.1 4.0 ±0.1 0.4 +0.1 -0.0 All Dimensions in (mm) Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 6 9. Schematic symbol and Pin definition The circuit symbol for the antenna is shown below. The antenna has 6 pins with only two as functional. All other pins are for mechanical strength. 10. Antenna footprint The recommended host PCB footprint is below. 6 copper pads all 1.0 x 1.0 (mm) Pin Description 2 Feed 3,4,6 Return/GND 1,5 Not used (Mechanical only) Serica Schematic Symbol 1 2 3 4 5 6 Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 7 11. Electrical Interface 11.1 Transmission Line All transmission lines should be designed to have a characteristic impedance of 50Ω. • The length of the transmission lines should be kept to a minimum. • Any other parts of the RF system like transceivers, power amplifiers, etc, should also be designed to have an impedance of 50 Ω. Once the material for the PCB has been chosen (PCB thickness and dielectric constant), a coplanar transmission line can easily be designed using any of the commercial software packages for transmission line design. For the chosen PCB thickness, copper thickness and substrate dielectric constant, the program will calculate the appropriate transmission line width and gaps on either side of the track, so the characteristic impedance of the co-planar transmission is 50 Ω. 11.2 Matching Circuit The antenna requires a matching circuit that must be optimized for each product. The matching circuit will require up to five components and the following circuit should be designed into the host PCB. Not all components may be required but should be included as a precaution. The matching network must be placed close to the antenna feed to ensure it is more effective in tuning the antenna. Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 8 12. Antenna Integration Guide 12.1 Antenna Placement Whichever size host PCB is used, the antenna should ideally be placed on the host PCB’s longest edge at the centre. Where the centre is not a viable option, the antenna can be placed offset on the PCB to within the limits shown below. A minimum of 6mm from either PCB edge should be observed. Where possible this distance should be greater than 6mm. Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 9 12.2 Host PCB Layout The footprint and clearance of the host PCB must meet the antenna specification. An example of the PCB layout, below, shows the antenna footprint with clearance. Pins 3, 4 and 6 (GND) are shown directly connecting to the GND with the shortest route. The feed (Pin 2) connects to the matching circuit close to the antenna. Example host layout Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 10 12.3 Host PCB Clearance The diagram below shows the antenna footprint and clearance through all layers on the PCB. Only the antenna pads and connections to feed and GND are present within this clearance area. The clearance area required is 6.0 x 4.0 (mm). The clear-out area is simply defined as the same size as the antenna. No additional clearance is required. Clearance area Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 11 13. Reference Board The reference board has been designed for the purpose of evaluating SR4W035 and includes an SMA female connector. SR4W035-EVB-1 Evaluation Board To order a reference board please see www.antenova.com Serica Part No. SR4W035 Antennas for Wireless Applications Product Specification SR4W035-PS-1.1 Page 12 13.1 Reference Board Matching Circuit The reference board has been designed for the purposes of evaluating SR4W035 and includes an SMA female connector. Designator Type Value Description L1 Not Fitted Not …

Text truncated - open the document above for the full version.

ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 1 / 26 AppendixA RFTestDataforBTLE(ConductedMeasurement) ProductName:ScorpionMSeriesTrackerFob TestModel:STMFOB EnvironmentalConditions Temperature: 23.5°C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer: MarkChen Supervisedby: LiHuan ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 2 / 26 A.1DTSBandwidth TestResult TestModeAntennaChannel DTSBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_2MAnt1 24021.1442401.4362402.5800.5PASS 24401.1362439.4402440.5760.5PASS 24801.1362479.4402480.5760.5PASS ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 3 / 26 TestGraphs BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 4 / 26 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 5 / 26 A.2OccupiedChannelBandwidth TestResult TestModeAntennaChannel OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_2MAnt1 24022.06262400.9842403.047------ 24402.06492438.9812441.046------ 24802.08072478.9752481.055------ ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 6 / 26 TestGraphs BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 7 / 26 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 8 / 26 A.3Maximumpeakconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict BLE_2MAnt1 24020.71≤30PASS 24400.43≤30PASS 24800.16≤30PASS ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 9 / 26 TestGraphs BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 10 / 26 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 11 / 26 A.4Maximumpowerspectraldensity TestResult TestModeAntennaChannelResult[dBm/3-100kHz]Limit[dBm/3kHz]Verdict BLE_2MAnt1 2402-16.55≤8.00PASS 2440-16.82≤8.00PASS 2480-17.71≤8.00PASS ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 12 / 26 TestGraphs BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 13 / 26 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 14 / 26 A.5Bandedgemeasurements TestResult TestModeAntennaChNameChannelRefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_2MAnt1 Low24020.69-32.15≤-19.31PASS High2480-1.19-54.65≤-21.19PASS ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 15 / 26 TestGraphs BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 16 / 26 A.6ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_2MAnt1 2402 Reference0.320.32---PASS 30~10000.32-53.84≤-19.68PASS 1000~265000.32-44.65≤-19.68PASS 2440 Reference0.280.28---PASS 30~10000.28-53.22≤-19.72PASS 1000~265000.28-45.91≤-19.72PASS 2480 Reference-0.03-0.03---PASS 30~1000-0.03-53.26≤-20.03PASS 1000~26500-0.03-45.03≤-20.03PASS ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 17 / 26 TestGraphs BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 18 / 26 BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 19 / 26 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 20 / 26 BLE_2M_Ant1_2480_1000~26500 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 21 / 26 A.7DutyCycle TestResult TestModeAntennaChannel ONTime [ms] Period [ms] XDC[%]xFactor 1/T[kHz] BLE_2MAnt1 24021.081.870.577557.752.380.93 24401.081.870.577557.752.380.93 24801.081.870.577557.752.380.93 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 22 / 26 TestGraphs BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 23 / 26 ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 24 / 26 A.8EmissionsinRestrictedBands TestResult TestMode Antenn a ChNam e Channe l Detector Freq. [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLEAnt1 Low2402 AV2310.000-57.71≤-41.2037.49≤54PASS AV2369.615-55.86≤-41.2039.34≤54PASS AV2390.000-56.74≤-41.2038.46≤54PASS Peak2310.000-47.54≤-21.2047.66≤74PASS Peak2384.525-46.03≤-21.2049.17≤74PASS Peak2390.000-47.84≤-21.2047.36≤74PASS High2480 AV2483.500-47.58≤-41.2047.62≤54PASS AV2483.520-47.58≤-41.2047.62≤54PASS AV2500.000-56.68≤-41.2038.52≤54PASS Peak2483.500-37.36≤-21.2057.84≤74PASS Peak2483.520-37.36≤-21.2057.84≤74PASS Peak2500.000-48.13≤-21.2047.07≤74PASS Note： 1.TheAntennaGainiscompensatedinthegraph. 2.ThelimitindBmforaveragedetectorisconversionfrom54dBuV/m,accordingto15.209(a).ThelimitindBmforpeak detectoris20dBabovethelimitofaveragedetectorindBm. ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 25 / 26 TestGraphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLT 26 / 26 BLE_Ant1_High_2480_Peak

ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLTReportNo.:LCS220207005AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 31 FCCTESTREPORT For ScorpionAutomotiveLtd ScorpionMSeriesTrackerFob TestModel:STMFOB AdditionalModelNo.:STMFOBLT,STMFOBTR Preparedfor:ScorpionAutomotiveLtd Address:ScorpionHouse,DrumheadRoad,Chorley,Lancashire,PR67DE,UK Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:February11,2022 Numberoftestedsamples:2 SampleNo.:220207005A-1,220207005A-2 Serialnumber:Prototype DateofTest:February11,2022~April22,2022 DateofReport:April23,2022 Scancodetocheckauthenticity ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLTReportNo.:LCS220207005AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 31 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo..........................:LCS220207005AEA DateofIssue.........................................:April23,2022 TestingLaboratoryName..................:ShenzhenLCSComplianceTestingLaboratoryLtd. Address.................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,Shajing Street,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure.................:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName................................:ScorpionAutomotiveLtd Address.................................................:ScorpionHouse,DrumheadRoad,Chorley,Lancashire,PR67DE,UK TestSpecification Standard................................................:FCCCFR47PART15C(15.247) TestReportFormNo..........................:LCSEMC-1.0 TRFOriginator.....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF...........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhenLCS ComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthematerial.ShenzhenLCS ComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresulting fromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. EUTDescription.................................:ScorpionMSeriesTrackerFob TradeMark...........................................:ScorpionAutomotiveLtd. TestModel............................................:STMFOB Ratings..................................................:3VLithiumCoinCellCR2450 Result....................................................:Positive Compiledby:Supervisedby:Approvedby: DiamondLu/AdministratorJinWang/TechniqueprincipalGavinLiang/Manager ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLTReportNo.:LCS220207005AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of31 FCC--TESTREPORT TestModel...............................:STMFOB EUT.........................................:ScorpionMSeriesTrackerFob Applicant...............................:ScorpionAutomotiveLtd Address..................................:ScorpionHouse,DrumheadRoad,Chorley,Lancashire,PR67DE,UK Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ScorpionAutomotiveLtd Address...................................:Plant2,DrumheadRoad,ChorleyNorthBusinessPark,Chorley, Lancashire,PR67BXX2,UK Telephone...............................: / Fax..........................................: / Factory...................................:ScorpionAutomotiveLtd Address...................................:Plant2,DrumheadRoad,ChorleyNorthBusinessPark,Chorley, Lancashire,PR67BXX2,UK Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS220207005AEA April23,2022 Dateofissue ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLTReportNo.:LCS220207005AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of31 RevisionHistory RevisionIssueDateRevisionContentRevisedBy 000April23,2022InitialIssue-- ShenzhenLCSComplianceTestingLaboratoryLtd.FCCID:2A54OSTMFOBLTReportNo.:LCS220207005AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of31 TABLEOFCONTENTS 1.GENERALINFORMATION...................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)...........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAIL…
