2A57E-TC-C-W2Wireless charging

User Manual NANTONG TENCHOWN INTELLIGENT TECHNOLOGY CO.,LTD Document number : TC-122 Version : Ae 0 Proposed date: Jan 08,2024 Product Model: TC-C-W Plans / dates Approval / Date Review / Date Wang Yong / 01.08.2024 1. preface This specification describes the production of "TC- C-W" produced by Nantong tenchown Intelligent Technology Co., Ltd. 2. Model number: TC-C-W 3. Product color: Wood grain color, black, red (color according to customer requirements) 4. Main material: ABS, PC board 5. Scope of use: mainly used for multifunctional sofa. 6. Environmental conditions: used for indoor use working temperature 0°C~40°C Storage temperature -10°C~60°C Working humidity 20%~90% Storage humidity 30%~80% Detection temperature 20°C±10°C atmospheric pressure 65~105MPa 7. Basic dimensional characteristics 8. Performance characteristics 1. AC voltage input: 125V 2. Wireless charging output power ≤ 15W 3. Wireless charging supports 5W standard charging Wireless charging supports 7.5W fast charging Wireless charging supports 10W fast charging Wireless charging supports 15W fast charging 4. Motor line DC output 29V/2A 5. Typ-C/USB DC output: 5V/2A8.Reliability testing 9. Advantages: Safe, easy to assemble, silent, beautiful, easy to install, and flexible. 10.Packaging/Transportation/Storage 1. Packaging method: plastic bag packaging, paper box packaging 2. Transportation: Handle with care, do not get wet, and use logistics for transportation, making it convenient, fast, and safe. 3. Storage: Clean environment, dry and ventilated, avoid contact with corrosive characteristics, and keep away from fire and heat sources. 11.Precautions 1. Water seepage and falling are not allowed. 2. To prevent danger, use in the correct position. 12. Product images 1. Risk of Electric Shock. RISQUE DECHOC ÉLECTRIQUE. 2. For indoor use only. POUR UNE UTILISATION EN INTÉRIEUR. 3. The plug is used as disconnect device. The socket-outlet shall be installed near the equipment and shall be easily accessible. La prise est utilisée comme dispositifde déconnexion. La prise de courantdoit étre installée près de l'équipementet doitêtre facilement accessible. USB and type C interfaces are only external powersupplies, can not be directly connected to thebattery, product with battery should come withcharging control and protection functions to useuniversal power to charge. Les interfaces USB et de type C sont seulement desalimentations externes, ne peuvent pas être directement reliées à la batterie, le produit avec labatterie devrait venir avec des fonctions de contróleet de protection de charge pour employer la puissance universelle pour charger. Normal environmental conditions: Altitude up to 5000m Temperature 40°C 13. FCC Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended

User manual NANTONG TENCHOWN INTELLIGENT TECHNOLOGY CO.,LTD Document number : TC-122 Version : Ae 0 Proposed date: Jan 08,2024 Product Model: TC-C-W(02) Plans / dates Approval / Date Review / Date Wang Yong / 01.08.2024 1. preface This specification describes the production of "TC- C-W(02)" produced by Nantong tenchown Intelligent Technology Co., Ltd. 2. Model number: TC-C-W(02) 3. Product color: Wood grain color, black, red (color according to customer requirements) 4. Main material: ABS, PC board 5. Scope of use: mainly used for multifunctional sofa. 6. Environmental conditions: used for indoor use working temperature 0°C~50°C Storage temperature -10°C~60°C Working humidity 20%~90% Storage humidity 30%~80% Detection temperature 20°C±10°C atmospheric pressure 65~105MPa 7. Basic dimensional characteristics 8. Performance characteristics 1. AC voltage input: 125V 2. Wireless charging output power ≤ 15W 3. Wireless charging supports 5W standard charging Wireless charging supports 7.5W fast charging Wireless charging supports 10W fast charging Wireless charging supports 15W fast charging 4. Motor line DC output 29V/2A 9. Advantages: Safe, easy to assemble, silent, beautiful, easy to install, and flexible. 10.Packaging/Transportation/Storage 1. Packaging method: plastic bag packaging, paper box packaging 2. Transportation: Handle with care, do not get wet, and use logistics for transportation, making it convenient, fast, and safe. 3. Storage: Clean environment, dry and ventilated, avoid contact with corrosive characteristics, and keep away from fire and heat sources. 11.Precautions 1. Water seepage and falling are not allowed. 2. To prevent danger, use in the correct position. 12. Product images 1. Risk of Electric Shock. RISQUE DECHOC ÉLECTRIQUE. 2. For indoor use only. POUR UNE UTILISATION EN INTÉRIEUR. 3. The plug is used as disconnect device. The socket-outlet shall be installed near the equipment and shall be easily accessible. La prise est utilisée comme dispositifde déconnexion. La prise de courantdoit étre installée près de l'équipementet doitêtre facilement accessible. Normal environmental conditions: Altitude up to 5000m Temperature 40°C 13. FCC Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended

Nantong Techown Intelligent Technology Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: FCC US Agent, LLC Contact Name: Tim Payne Street Address: 3722 Illinois Avenue City/Province/Zip: Saint Charles, IL, 60174, USA Telephone No: 708-571-3148 Email: [email protected] FRN #: 0033402884 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 9/12/2024 Signed by (Printed Name/Title): Tim Payne/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name:Nantong Techown Intelligent Technology Co., Ltd. Grantee Code:2A57E FCC ID: 2A57E-TC-C-W2 FRN #:0032210718 Contact Name:Qian Shengzhi Street Address:No.18 Xisu Road, High-tech District City/Province/Zip:Hai an, Jiangsu Province Telephone No:+86-513-88691919 Email:[email protected] Applicant Signature 1 : Date: September 12, 2024 1 - Letters must be placed on appropriate letterhead.The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee). NOTE: Must Use Appropriate Company Letterhead 092723-17 Rev 9 Signed by (Printed Name/Title):Qian Shengzhi

Cover Letter for Wireless Charger Data:2024-8-18 Dear Sir/Madam, There’s a ___Wireless charging__that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below Wireless Charger with it’s designed features and specified description, meets special requirements for KDB 680106 D01 v04 section 5.2 requirements. Applicant: Nantong Tenchown Intelligent Technology Co., Ltd Product Description: Wireless charging Model No: TC-C-W, TC-C-W(02) FCC ID: 2A57E-TC-C-W2 Requirement Technical Result 1) The power transfer frequency is below 1 MHz 111-205KHz Complied 2) The output power from each transmitting element (e.g., coil) is less than or equal to 15 watts 15W Complied 3) A client device providing the maximum permitted load is placed in physical contact with the transmitter (i.e., the surfaces of the transmitter and client device enclosures need to be in physical contact) Placed directly in transmitter Complied 4) Only § 2.1091-Mobile exposure conditions apply (i.e., this provision does not cover § 2.1093- Portable exposure conditions). Mobile Complied 5) The E-field and H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit, per KDB 447498, Table 1. These measurements shall be taken along the principal axes of the device, with one axis oriented along the direction of the estimated maximum field strength, and for three points per axis or until a 1/d (inverse distance from the emitter structure) field strength decay is observed. Symmetry considerations may be used for test reduction purposes. The device shall be operated in documented worst-case compliance scenarios (i.e., the ones that lead to the maximum field components), and while all the radiating Refer to the MPE report Complied structures (e.g., coils or antennas) that by design can simultaneously transmit are energized at their nominal maximum power. 6) For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. If the design allows one or more radiating structures to be powered at a higher level while other radiating structures are not powered, then those cases must be tested as well. For instance, a device may use three RF coils powered at 5 W, or one coil powered at 15 W: in this case, both scenarios shall be tested. The product has only one coils Complied Sincerely, Signature: Printed Name: Erick Liu

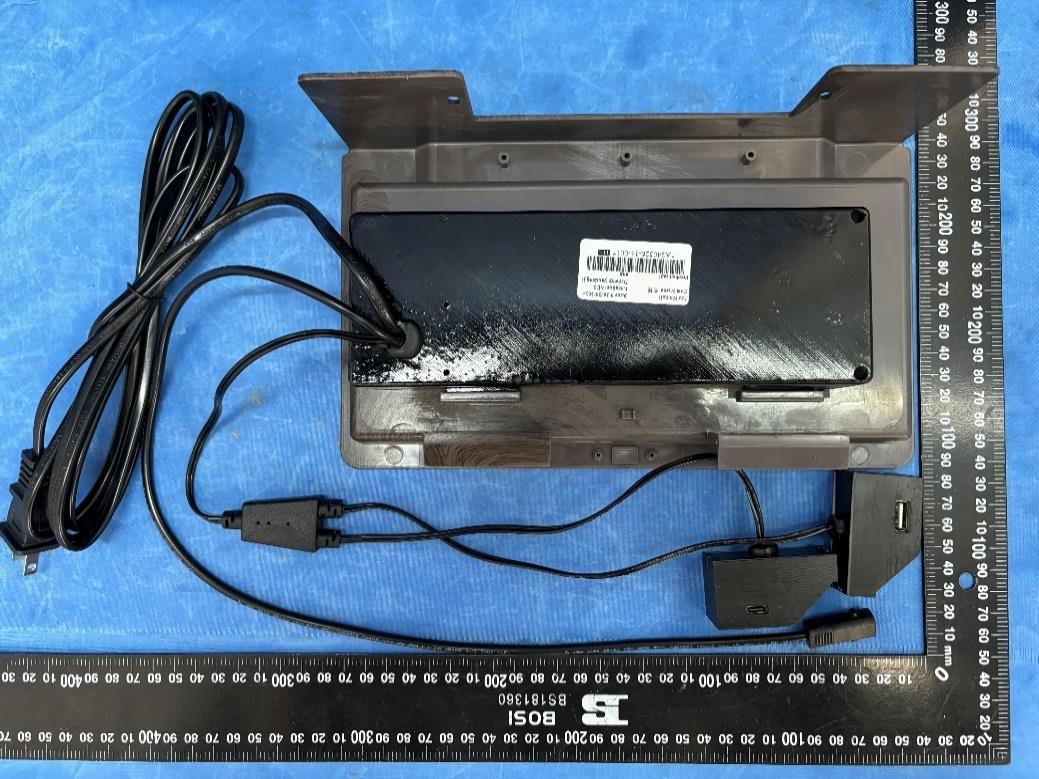

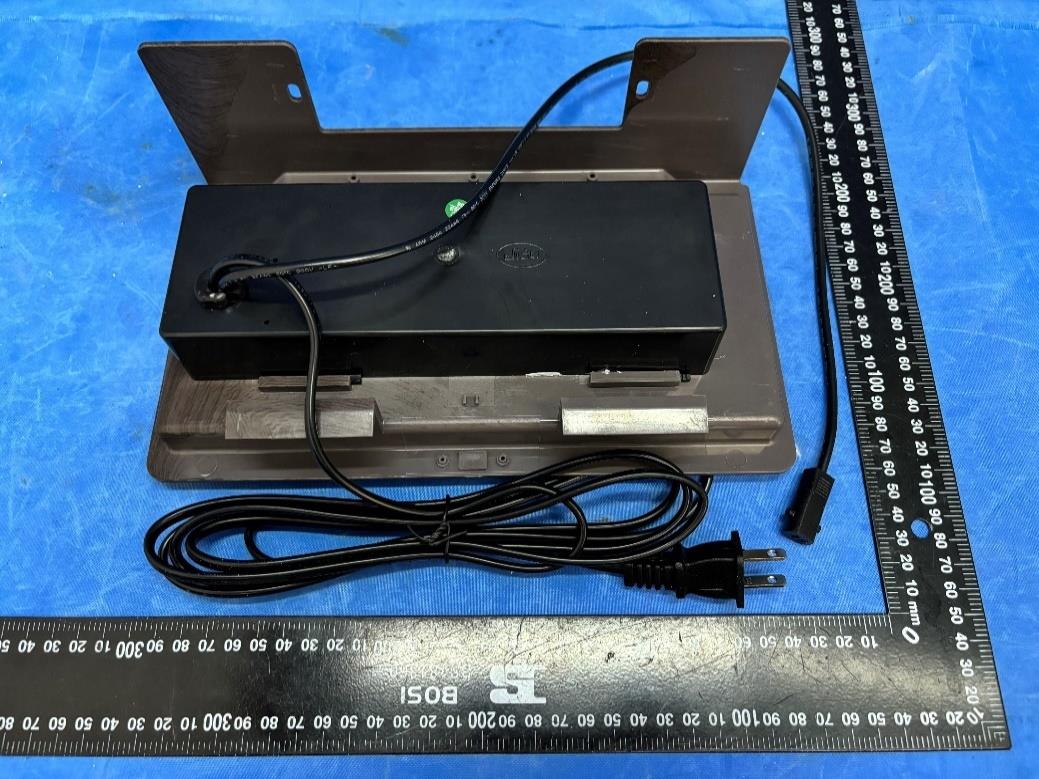

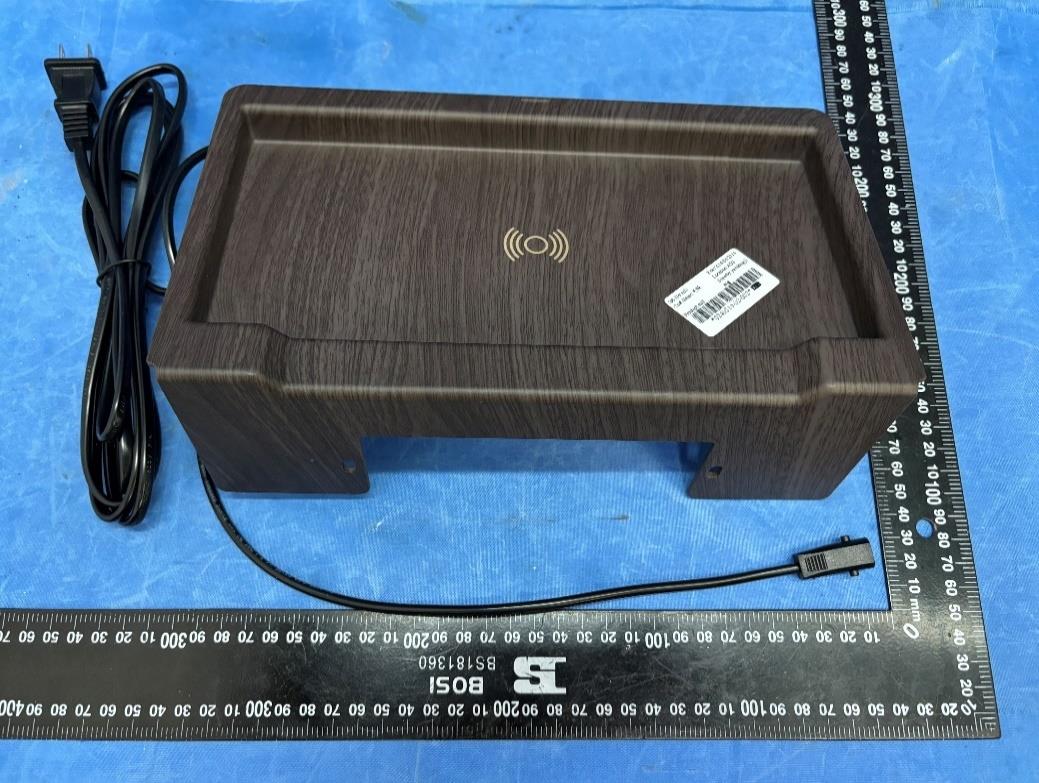

Page 1 of 3 External Picture Page 2 of 3 TC-C-W Page 3 of 3 TC-C-W(02)

主型号：TC-C-W 分型号1：TC-C-W(02) WIRELESS CHARGING MODEL: TC-C-W(02) INPUT: 125V~ 60Hz 0.6A WIRELESS OUTPUT: 15W MAX. DC OUTPUT (single use only): 29V/2A FCC ID: 2A57E-TC-C-W2 Nantong Tenchown intelligent Technology Co. LTD 5002771 CONFORMS TO UL STD.62368-1, CERTIFIED TO CSA STD. C22.2 NO.62368-1 WIRELESS CHARGING MODEL: TC-C-W INPUT: 125V~ 60Hz 0.8A WIRELESS OUTPUT: 15W MAX. USB A + USB C OUTPUT: 5V/2A total DC OUTPUT (single use only): 29V/2A FCC ID: 2A57E-TC-C-W2 Nantong Tenchown intelligent Technology Co. LTD 5002771 CONFORMS TO UL STD.62368-1, CERTIFIED TO CSA STD. C22.2 NO.62368-1 Label Location

Page 1 of 9 Internal Picture Page 2 of 9 TC-C-W Page 3 of 9 Page 4 of 9 Page 5 of 9 Page 6 of 9 TC-C-W(02) Page 7 of 9 Page 8 of 9 Page 9 of 9

Nantong Tenchown Intelligent Technology Co., Ltd MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: TC-C-W, TC-C-W(02) REPORT NUMBER: 240500464SHA-002 ISSUE DATE: August 13, 2024 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-02_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-02_V1© 2018 Intertek Page 2 of 10 Report no.: 240500464SHA-002 Applicant : Nantong Tenchown Intelligent Technology Co., Ltd No.18 Xisu Road, High-tech District, Hai’an Country, NANTONG CITY Jiangsu 226600 Manufacturer : Nantong Tenchown Intelligent Technology Co., Ltd No.18 Xisu Road, High-tech District, Hai’an Country, NANTONG CITY Jiangsu 226600 FCC ID : 2A57E-TC-C-W2 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC PART 1 SECTION 1.1310 PREPARED BY: REVIEWED BY: Project Engineer Erick Liu Reviewer Wakeyou Wang Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 10 Revision History Report No. Version Description Issued Date 240500464SHA-002 Rev. 01 Initial issue of report August 13, 2024 Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 10 Measurement result summary TEST ITEM FCC REFERANCE TEST RESULT NOTE RF Exposure 1.1310 Pass - Notes: 1: NA =Not Applicable 2: Determination of the test conclusion is based on IEC Guide 115 in consideration of measurement uncertainty. 3: Additions, Deviations and Exclusions from Standards: None. Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 10 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Wireless charging Type/Model: TC-C-W, TC-C-W(02) Description of EUT: EUT is a wireless charger, all models are the same except USB port, secondary circuit for USB drive and model name. after evaluation, we choose TC-C-W for all tests. Rating: Input: 125VAC, 60Hz, 0.8A. DC output (single use only): 29VDC, 2A Wireless output: 15W MAX USB A+USB C output: 5VDC, 2A total (for model TC-C-W only) Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: July 24, 2024 Date of test: July 27, 2024~ August 9, 2024 1.2 Technical Specification Frequency Range: 111kHz – 205kHz Modulation: ASK Antenna: Coil antenna, 0dBi Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 10 1.3 Description of Test Facility Name: Intertek Testing Services (Shanghai FTZ) Co., Ltd. Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L21189 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 10 2 TEST SPECIFICATIONS 2.1 Standards or specification FCC PART 1 SECTION 1.1310 KDB 680106 D01 Wireless Power Transfer v04 2.2 Mode of operation during the test Within this test report, EUT was tested under its rating voltage and frequency (120V, 60Hz). The 0%/50%/100% battery capacity was tested and the 100% battery capacity was worst case. 2.3 Test peripherals list Item No. Name Band and Model Description 1 Mobile phone Apple iPhone12 S/N: FFYFP8EV0DYL 2.4 Record of climatic conditions Test Item Temperature (°C) Relative Humidity (%) Pressure (kPa) RF Exposure 24 53 101 Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 10 2.5 Instrument list Used Equipment Manufacturer Type Internal no. Due date Emf meter Narda elt-400 EC2928 2025-07-15 Broadband field meter Narda Nbm-550 EC 6113 2025-04-07 Probe ef 0391 Narda Ef 0391 EC 6113-1 2025-04-07 Probe hf 0361 Narda Hf3061 EC 6113-2 2025-04-07 EMF meter Narda ehp-50f EC 6527 2024-09-17 2.6 Measurement uncertainty Test Items Expanded Uncertainty (k=2) H-field 0.9 dB E-field 1.1 dB Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 9 of 10 3 RF Exposure Assessment Test result: Pass 3.1 Assessment Limit 3.2 Assessment Configuration Report No.: 240500464SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 10 of 10 3.3 Assessment Results Test result of Magnetic Field Strength: Test Position Test distance (cm) Test result (A/m) Limit (A/m) Result (Pass/Fail) A: Right 20 0.124 1.63 *0.5 Pass B: Left 20 0.135 1.63 *0.5 Pass C: Front 20 0.206 1.63 *0.5 Pass D: Back 20 0.427 1.63 *0.5 Pass E: Top 20 0.516 1.63 *0.5 Pass Test result of Electric Field Strength: Test Position Test distance (cm) Test result (V/m) Limit (V/m) Result (Pass/Fail) A: Right 20 1.02 614 *0.5 Pass B: Left 20 1.35 614 *0.5 Pass C: Front 20 2.24 614 *0.5 Pass D: …

Text truncated - open the document above for the full version.

Declaration Letter Related FCC ID: 2A57E-TC-C-W2 Justification statement stating that all measurements were performed radiated and therefore additional antenna gain documentation is not required. WPT coil dimensions: 50mm (Diameter) number of turns: 13 See Internal photos for details of the antenna. By: __________________________ _______Erick Liu_______ (Signature) (Print name) Title: _____Certification Engineer_ Company: Intertek Testing Services Shanghai

Nantong Tenchown Intelligent Technology Co., Ltd RF TEST REPORT Report Type: FCC Part 15C RF report Model: TC-C-W, TC-C-W (02) REPORT NUMBER: 240500464SHA-001 ISSUE DATE: August 13, 2024 DOCUMENT CONTROL NUMBER: TTRFFCCPART15C_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCPART15C_V1 © 2018 Intertek Page 2 of 21 Report no.: 240500464SHA-001 Applicant : Nantong Tenchown Intelligent Technology Co., Ltd No.18 Xisu Road, High-tech District, Hai’an Country, NANTONG CITY Jiangsu 226600 Manufacturer : Nantong Tenchown Intelligent Technology Co., Ltd No.18 Xisu Road, High-tech District, Hai’an Country, NANTONG CITY Jiangsu 226600 FCC ID : 2A57E-TC-C-W2 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2023): Radio Frequency Devices (Subpart C) ANSI C63.10 (2020): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Erick Liu Reviewer Wakeyou Wang Report No.: 240500464SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek Page 3 of 21 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 6 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 6 1.3 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 7 2 TEST SPECIFICATIONS ................................................................................................................................... 8 2.1 STANDARDS OR SPECIFICATION .......................................................................................................................... 8 2.2 MODE OF OPERATION DURING THE TEST .............................................................................................................. 8 2.3 TEST SOFTWARE LIST ....................................................................................................................................... 8 2.4 TEST PERIPHERALS LIST..................................................................................................................................... 8 2.5 TEST ENVIRONMENT CONDITION: ....................................................................................................................... 8 2.6 INSTRUMENT LIST ........................................................................................................................................... 9 2.7 MEASUREMENT UNCERTAINTY ......................................................................................................................... 10 3 RADIATED EMISSIONS ............................................................................................................................... 11 3.1 LIMIT ......................................................................................................................................................... 11 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 11 3.3 TEST CONFIGURATION ................................................................................................................................... 12 3.4 TEST RESULTS OF RADIATED EMISSIONS ............................................................................................................ 14 4 CONDUCTED EMISSIONS ........................................................................................................................... 18 4.1 LIMIT ......................................................................................................................................................... 18 4.2 TEST CONFIGURATION ................................................................................................................................... 18 4.3 MEASUREMENT PROCEDURE .......................................................................................................................... 19 4.4 TEST RESULTS OF CONDUCTED EMISSIONS ......................................................................................................... 20 Report No.: 240500464SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek …

Text truncated - open the document above for the full version.

Page 1 of 5 Test Setup Page 2 of 5 Conducted Emission Page 3 of 5 Radiated Emission Below 30MHz Page 4 of 5 30MHz-1GHz Page 5 of 5 RF Exposure for FCC
