Multifunctional Charger User Manual Product introduction Thank you for using WattSugar. WattSugar has two working modes: adapter, wireless charging. Besides charging your laptop with USB-c, WattSugar can also charge your mobile phones, Air Pods, and Apple Watch both wirelessly and with a cable. LED/Watch Charger Wireless charging status indicator Headset wireless charging area A Cell phone wireless charging area C Headset wireless charging area B Wireless charger status indicator USB-A output port USB-C output port Basic parameter Product name WattSugar Multifunctional charger Product model RN01 Output connector type USB-C、USB-A Support protocols USB-C supports PD3.0、PD2.0、PPS、QC3.0、QC2.0、 QC4.0+、 APPLE2.4A、 SAMSUNG5V2A、AFC、FCP、SCP Adapter mode USB-C output 5V3A, 9V3A, 12V3A, 15V3A, 20V3A USB-A output 5V3A Wireless output 5W Max Night light/watch output 2.5W Total output 60W Max USB-C+USB A：45W+15W Max Multi-port USB-C+Headphones/Watches：45W+5W Max output USB-C+USB A+Headphones/Watches：30W+15W+5W Max USB-C+USB A+Headphones/Watches：30W+15W+5W+2.5W Max - When using C port for 45W or 30W full charge in adapter mode, then using wireless charging will cause wireless charging to pause or enter low power intermittent charging state due to environmental and equipmenttemperature changes, this phenomenon is controlled by the wireless charging receiving device, self-protection function triggered by temperature changes, it is recommended that wireless charging be performed at the right temperature or a reasonable combination with the use of the product state. - In the adapter mode, when the headphone or watch is detected to be charging, take away the headsphone or watch at this time, the power switch of C port or A port will be switched after about 2 minutes in order to optimize the charging experience. -Wireless Charging area A&B&C can not work at the same time, the maximum power of wireless charging is 5W Special substance statement Name of par ts Toxic and harmful substances or elements 10 Lead (Pb) Mercury (Hg) Cadmium (Cd) Hexavalent Chromium (Cr(VI)) Polybrominated Biphenyls (PBB) Polybrominated Diphenyl Ethers (PBDE) PCB X O O O O O plastic O O O O O O Metal X O O O O O Accessory O O O O O O This table is prepared according to the provisions of SJ/T 11364. O: means that the content of the harmful substance in all homogeneous materials of the part is below the limit requirement of GB/T 26572 standard. X: indicates that the content of the hazardous substance in at least one of the homogeneous materials of the part exceeds the limit specified in GB/T 26572 standard. The product complies with EU RoHS 2.0 Directive (2011/65/EU) FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Wattsugar multifunctional charger warranty instructions • The warranty or replacement period is one year (365 days) from the date of purchase. • A 15% charge will be charged for products without the original packing box. • We are not responsible for unauthorized disassembly or destruction of products. • Voucher of purchase is required to obtain warranty service. • When replacing/repairing products, the warranty period will not be extended. • 7 days no reason to return (e-commerce purchase channel), the user bears the logistics costs. • After the test is determined, you can enjoy the following services free of charge: Service type Service policy Return Return the product within 7 days from the date of purchase due to quality reasons. Return Return the product within 15 days from the date of purchase due to quality reasons. Return Maintenance due to product quality within one year from the date of purchase. Note: After receiving the product, please retain the charger's protective film when trying it out. If the protective film is torn, it may cause the appearance of the charger to be scratched, in this case, the product cannot be returned or exchanged unless it is a quality issue. Non-warranty regulations • Unauthorized maintenance, misuse, collision, negligence, abuse, fluid, accident, alteration, incorrect use of non-product parts, or torn, altered label, anti-counterfeit label. • Has passed the expiration date of the three warranties. • Damage caused by force majeure. • The product and accessories performance failure due to human causes. Three Warranties Certificate (Multi-functional charger) User information Name： E-Mail: Telephone: …

Text truncated - open the document above for the full version.

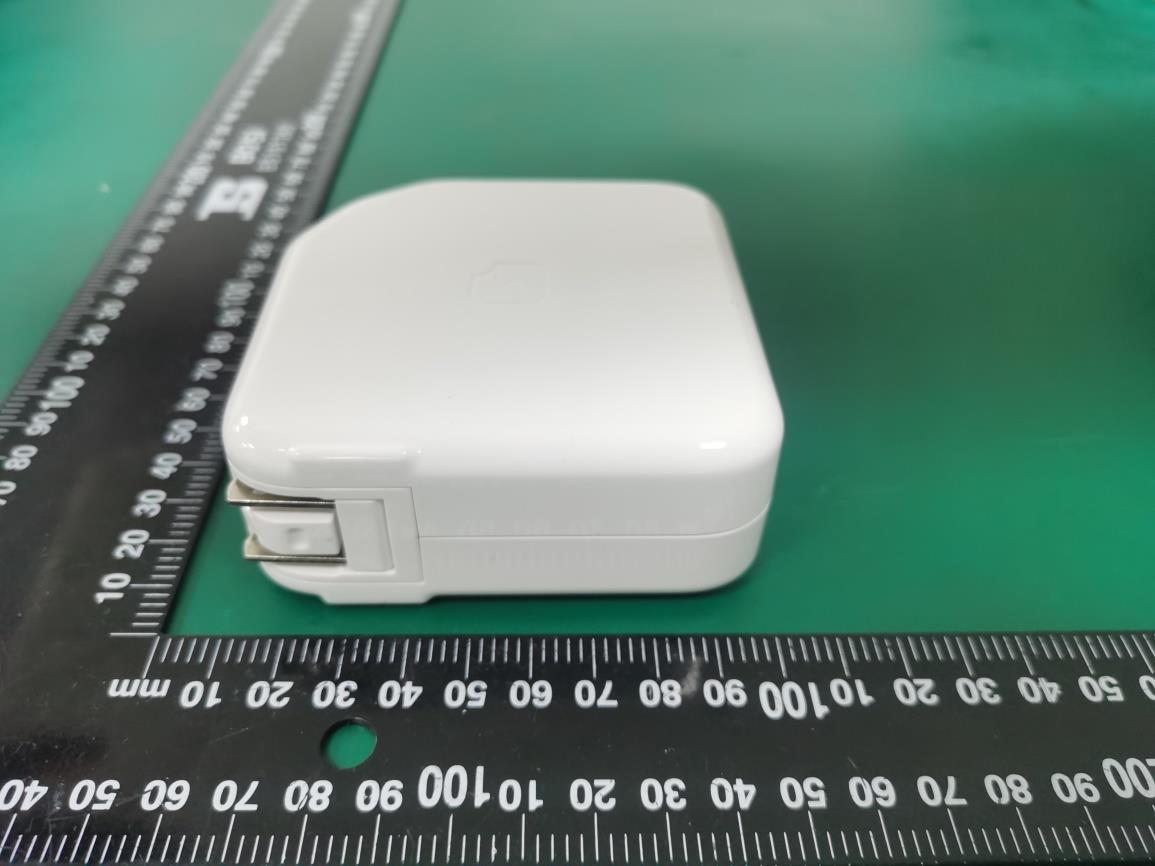

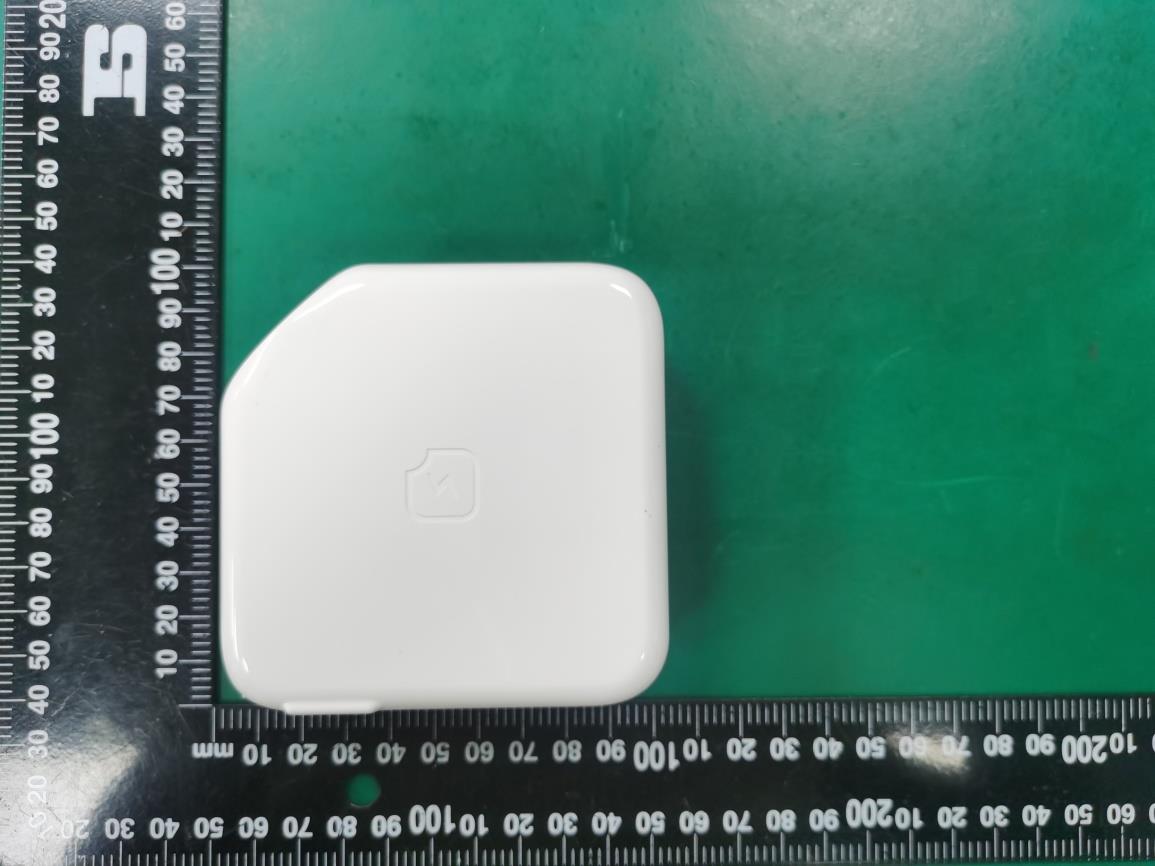

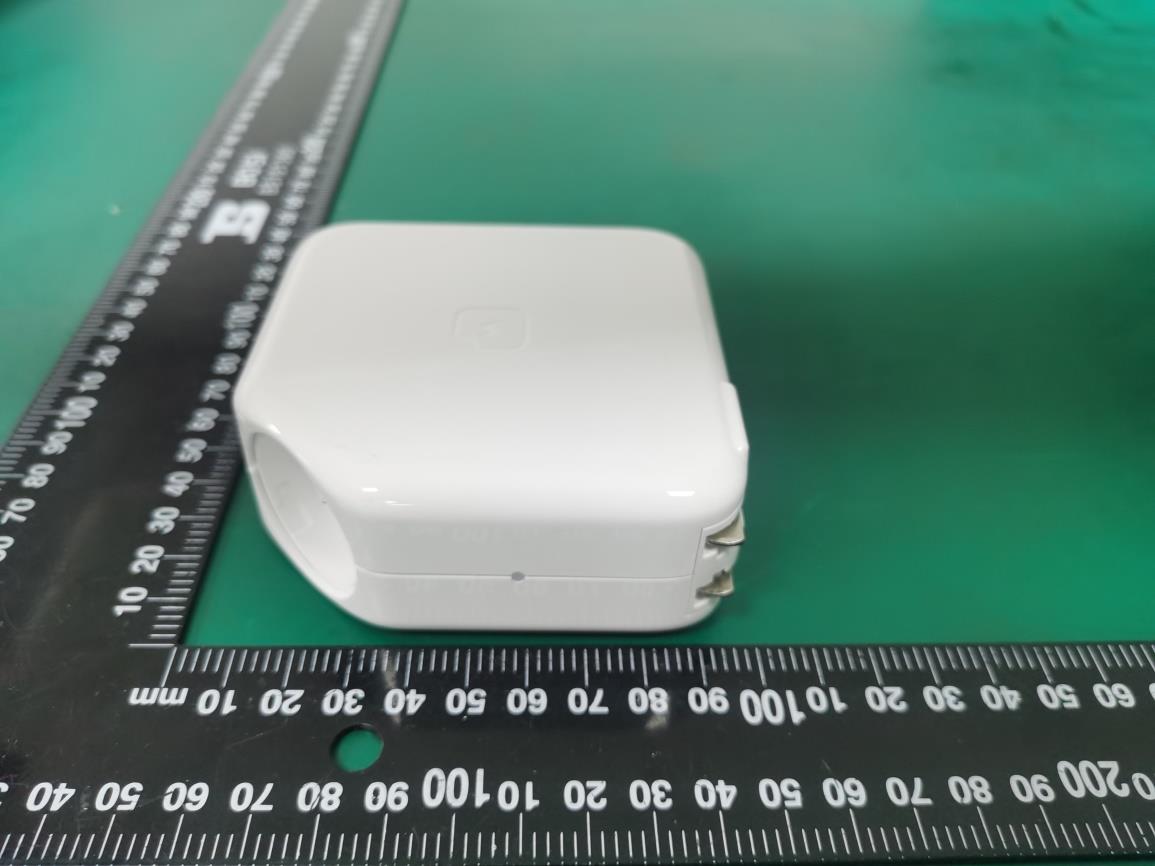

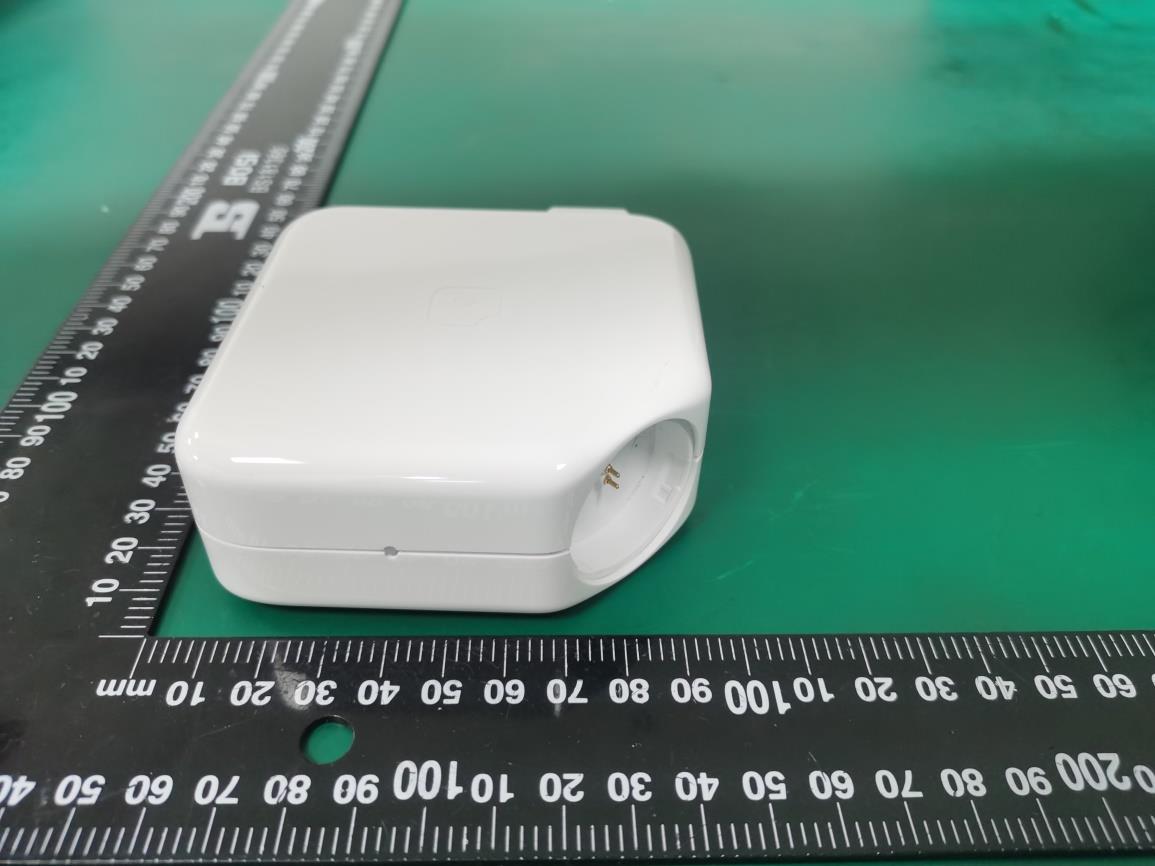

External Photo FCC ID: 2A57Q-RN01
