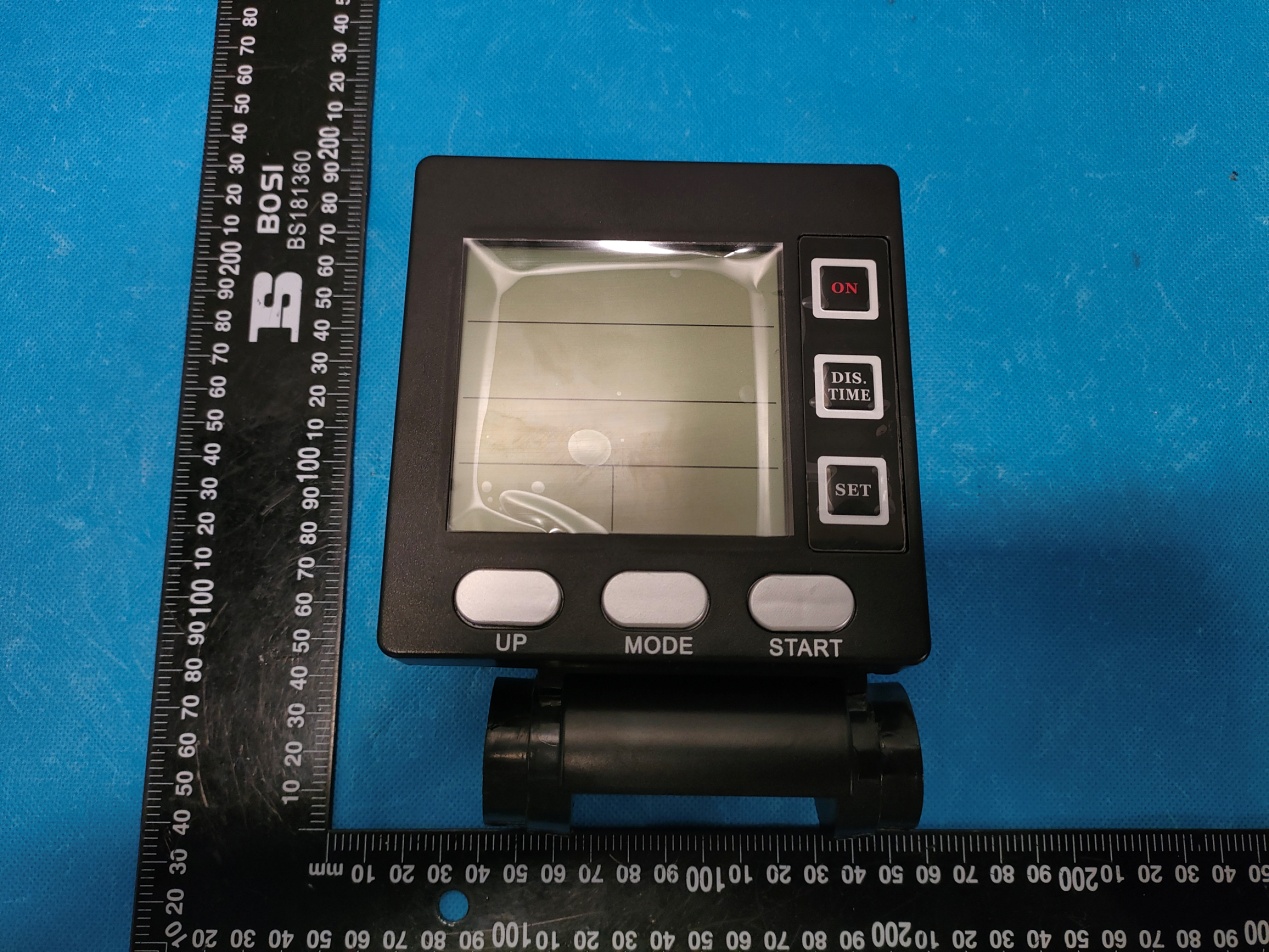

The XG-H102 operating instructions Description of the face Key definition description 1. ON key: press for 3 seconds, press to end the movement; 4 minutes without movement, automatically shut down 2. DIS./TIME key: Press to set the target distance, and then press to switch to select the target TIME; 3. UP KEY: setting；enactment TIME/ COUNT/DISTANCE/CALORIES/PULSETarget value of; 4. MOED key:, motion mode switch 5. STARTKey: Start your movement; 6: SET key: Set the motion mode Data display range: TIME Display range 000:00 ~ 999:59; set range 1:00 ~ 999:00 minutes METER Display range 0 ~ 99999; set range 1 ~ 99999 DISTANCE Display range 0 ~99999; set range 0.1 ~ 99999m WATTS Display has a range of 0 ~ 9999 CALORIES Showing a range of 0~9999 RPM Displays the frequency of the current strokes, showing the range 1-99 operation declaration: 1. Install the battery, press ON key for 3 seconds (Figure 2), then press START, and the electronic meter starts to record the motion data. If no data is detected, the data display window is always 0. When a signal input is detected, the TIME / COUNT / DISTANCE / CALORIES window value will count up; 图2 1.1 In the boot state, the first value of the first window of the electronic watch will flash, the user can press UP health, set the movement Target distance, press SET to switch to the second value, set in turn. After setting OK, press STARTJ to start Counter movement. 1.2 In the boot state, the first value of the first window of the electronic watch will flash. If the user needs to set the motion target time, Press DIS.TIME health, you can switch to the time setting bar, the user can press UP health, set the movement target distance Off, press SET to switch to the second bit value and set it in turn. After setting OK, press STARTJ to start moving (Figure 3, graph 4) 图3 图4 1.3 In motion; press MODE, switch TIME / 500m; WATTS; switch one function per cals press (Figure 5) 图5 1.4 When there is no power operation, or when there is no RPM signal input detected, enter the sleep 4 minutes later, and the electronic watch is not displayed; Note: When the battery is low, the display will not appear clearly, Bluetooth will be easily disconnected or searched, Please replace the battery right now. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Co m Ad d Sha Pr o Mo d P50 Pr o We act We an d issu our Sig Na m Title Com mpany: Sh dress: #A20 ajing Street oduct Name del Numbe 00M, P500, oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: S enzhen Xia 01, Buildin t, Baoan D e: Digital W er(s): H102, S100, S10 0 ription: Dig MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s chang hui General M Shenzhen Shenzhen X Agen aoguan Tec ng A/B, Zon istrict, She Watch H201, H5 0 0M, P200, P gital Watch bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect wang Manager n Xiaoguan T Xiaoguan T nt Auth chnology C ne B, The th enzhen, Ch 00, H600, H P200M h Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of Technology Technology horizat Co.,LTD hird Indust hina H300, H400, ourt, Pleasa certification forward all i agencies as and all acts our own. y Co.,LTD y Co.,LTD tion trial Zone, G , P100M, P1 anton, Califo of above na information s required a s carried ou Date: Gonghe Co 100, P600M ornia 94566 amed equip related to t nd to discu ut by MiCOM Apr. 06, 202 ommunity, M, P300M, 6, USA, to pment. the approva ss any M Labs on 22 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: G of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A587-H1 om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio r understand pondence du ents and thi zation is iss ely, ure: chang hui w eneral Man She ing Techno cations Com s Road 046 for Confiden 102 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri ding that all uring the ce s informatio sued. wang nager enzhen Xia logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av aoguan Tec ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for chnology C s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Co.,LTD Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Apr. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 06, 2022 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, Shenzhen Xiaoguan Technology Co.,LTD(Digital Watch) Trademark:N/A; Model Number:H102, H201, H500, H600, H300, H400, P100M, P100, P600M, P300M, P500M, P500, S100, S100M, P200, P200M;All model’s the function, software and electric circuit are the same, only with a product model named different for commercial purpose. Test sample model: H102. Please contact me if you have any question. Name:chang hui wang Date:Apr. 06, 2022 Title: General Manager Signature of applicant:

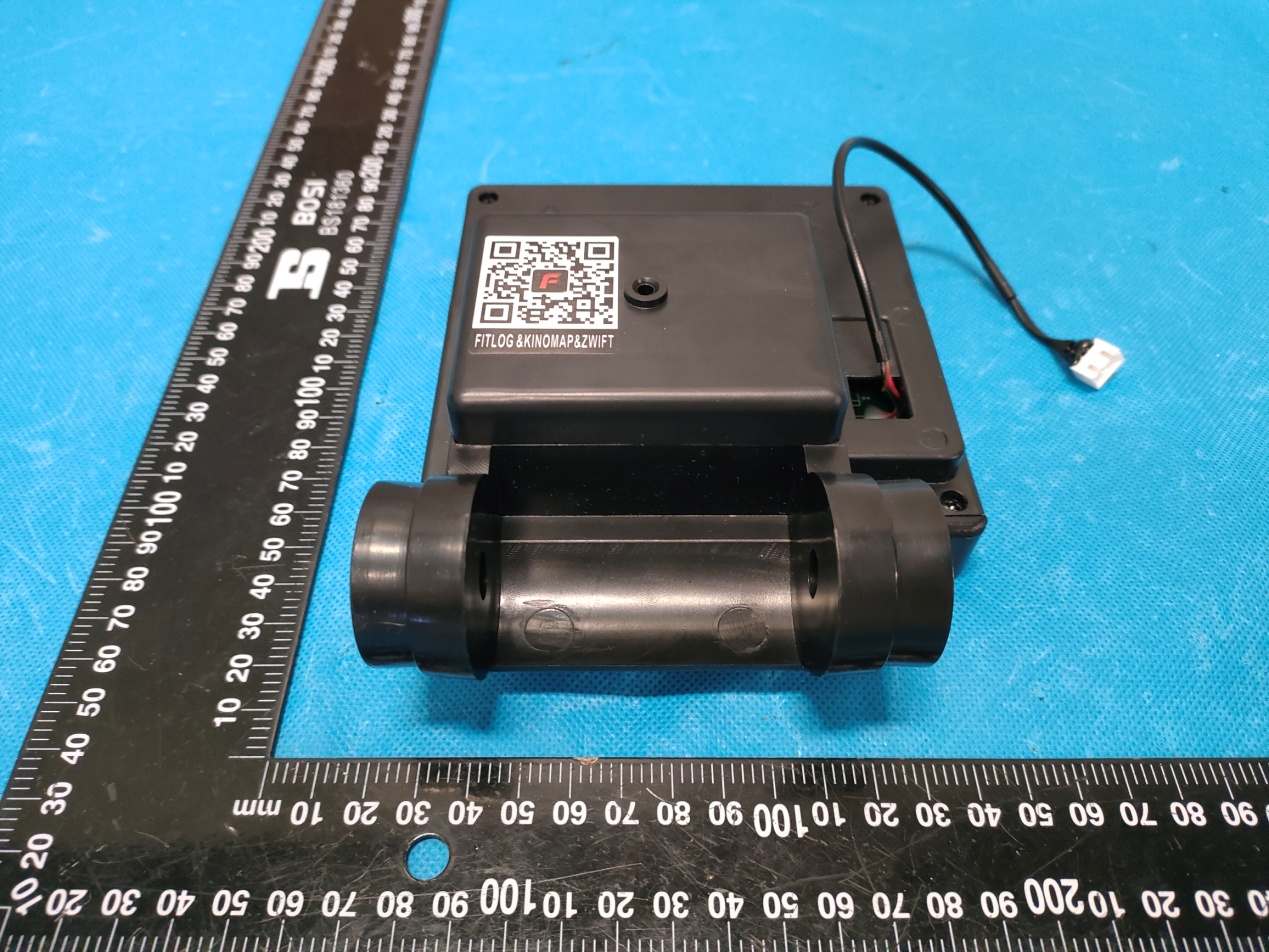

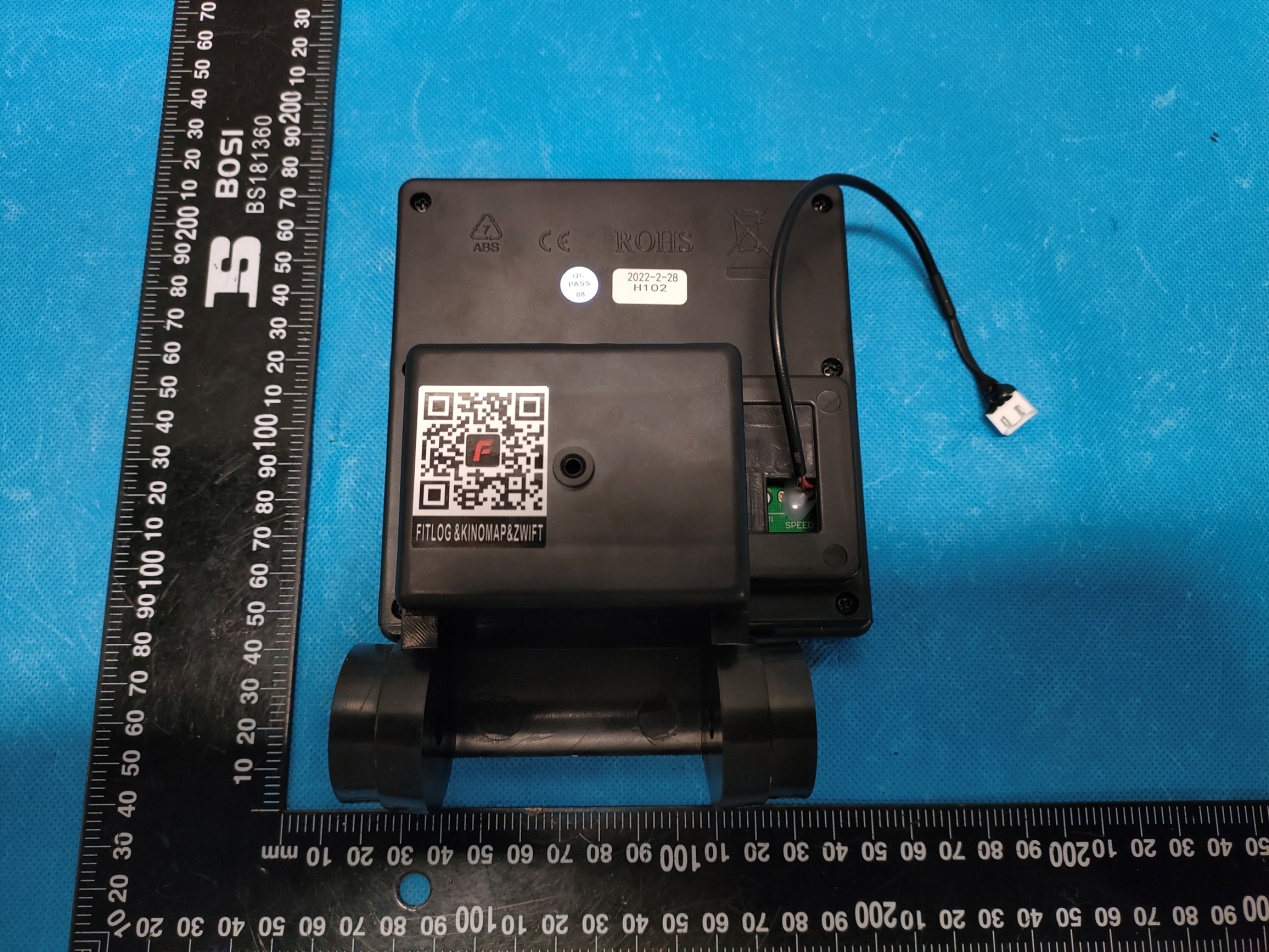

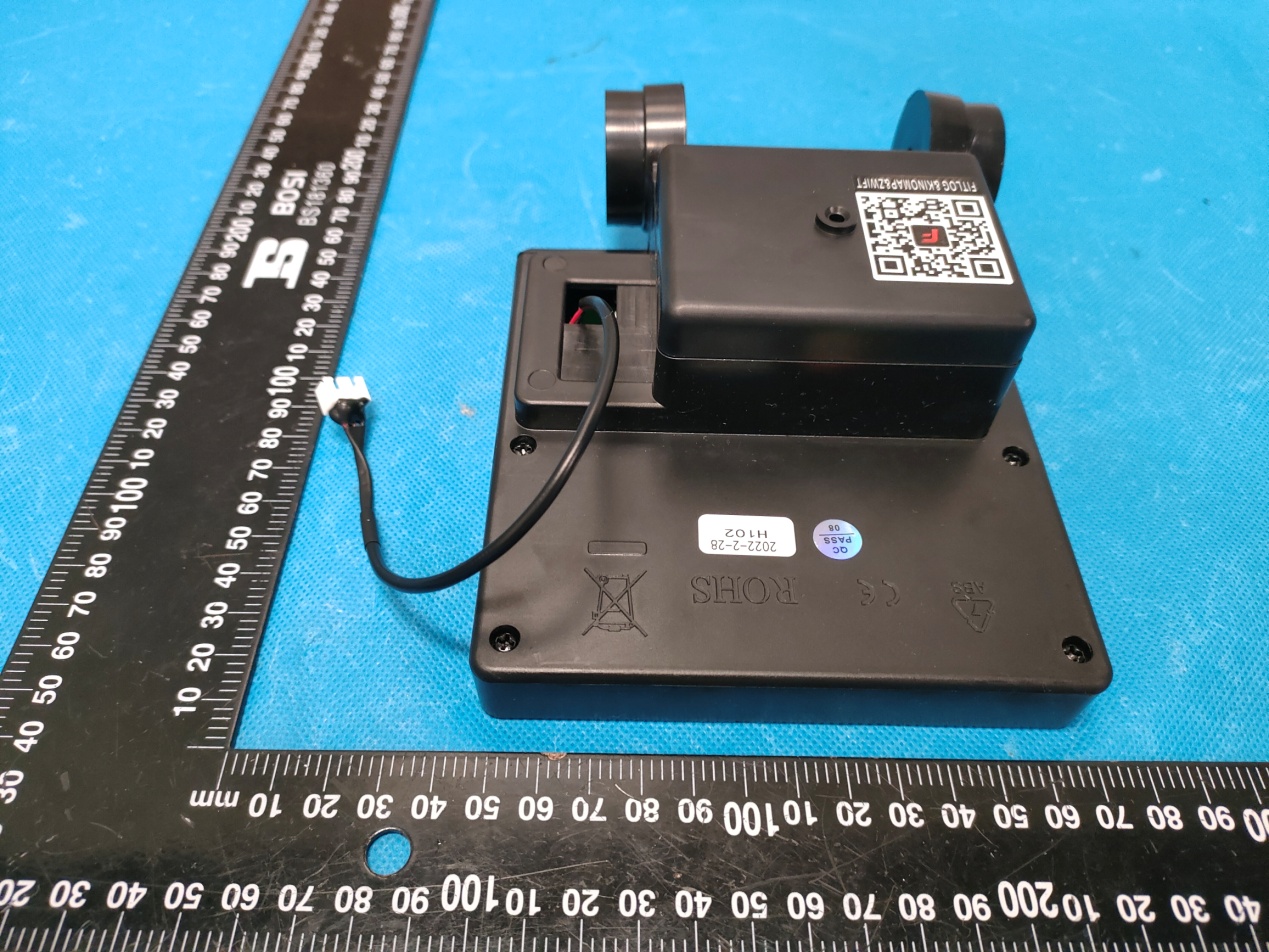

Annex A External Photos Report No.: HK2202280750‐1E/2E Page 1 of 3 Report No.: HK2202280750‐1E/2E Page 2 of 3 Report No.: HK2202280750‐1E/2E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A587-H102

Annex B Internal Photo Report No.: HK2202280750‐1E/2E Page 1 of 4 Report No.: HK2202280750‐1E/2E Page 2 of 4 Antenna Report No.: HK2202280750‐1E/2E Page 3 of 4 Report No.: HK2202280750‐1E/2E Page 4 of 4

FCC RF Exposure EUT Description: Digital Watch Model No.: H102 FCC ID: 2A587-H102 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm ResultLimit (mW/cm 2 ) SAR Test Exclusion EDR -1.6 -2±1(-1) 0.794 5 0.25 3.0 Pass BLE -1.87 -2±1(-1) 0.794 5 0.25 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2202280750-1E/2E BT antenna gain=0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.25 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 41 Report No.: HK2202280750-2E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen Xiaoguan Technology Co.,LTD For Digital Watch Model No.: H102, H201, H500, H600, H300, H400, P100M, P100, P600M, P300M, P500M, P500, S100, S100M, P200, P200M FCC ID: 2A587-H102 Prepared For : Shenzhen Xiaoguan Technology Co.,LTD #A201, Building A/B, Zone B, The third Industrial Zone, Gonghe Community, Shajing Street, Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 28, 2022 ~ Apr. 01, 2022 Date of Report: Apr. 01, 2022 Report Number: HK2202280750-2E Page 2 of 41 Report No.: HK2202280750-2E TEST RESULT CERTIFICATION Applicant’s name ................... : Shenzhen Xiaoguan Technology Co.,LTD Address .................................... : #A201, Building A/B, Zone B, The third Industrial Zone, Gonghe Community, Shajing Street, Baoan District, Shenzhen, China Manufacture's Name .............. : Shenzhen Xiaoguan Technology Co.,LTD Address .................................... : #A201, Building A/B, Zone B, The third Industrial Zone, Gonghe Community, Shajing Street, Baoan District, Shenzhen, China Product description Trade Mark: N/A Product name ............................. : Digital Watch Model and/or type reference .. : H102, H201, H500, H600, H300, H400, P100M, P100, P600M, P300M, P500M, P500, S100, S100M, P200, P200M Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Feb. 28, 2022 ~ Apr. 01, 2022 Date of Issue ............................................. : Apr. 01, 2022 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 41 Report No.: HK2202280750-2E Contents Page 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ................................................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ............................................................................................................ 7 1.3 INFORMATION OF THE TEST LABORATORY ....................................................................................... 7 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .......................................................................................................... 8 2.2 DESCRIPTION OF TEST CONDITIONS ................................................................................................... 9 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 4 TEST RESULT .............................................................................................................................................. 13 4.1 ANTENNA REQUIREMENT .................................................................................................................... 13 4.1.1 Standard requirement ...................................................................................................................... 13 4.1.2 EUT Antenna ................................................................................................................................... 13 4.2 CONDUCTION EMISSIONS MEASUREMENT ...................................................................................... 14 4.2.1 Applied procedures / Limit ............................................................................................................... 14 4.2.2 Test procedure ................................................................................................................................. 14 4.2.3 Test setup ........................................................................................................................................ 15 4.2.4 Test results ...................................................................................................................................... 16 4.3 RADIATED EMISSIONS MEASUREMENT............................................................................................. 17 4.3.1 Applied procedures / Limit ............................................................................................................... 17 4.3.2 Test setup ........................................................................................................................................ 17 4.3.3 Test Result ....................................................................................................................................... 19 4.4 MAXIMUM OUTPUT POWER MEASUREMENT .................................................................................... 26 4.4.1 Limit ................................................................................................................................................. 26 4.4.2 Te…
