2A595YH-UAC088Wirelesscontroller

Dongguan Yihong Hardware electronics Co., LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 28, 2024
Application Purpose: Original Equipment
Date of Application: Aug 28, 2024
Equipment Note: Wirelesscontroller
Frequency Range: 2402.00000000 - 2480.00000000
Company: Dongguan Yihong Hardware electronics Co., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Code matching function Code matching: Press and hold for 5 seconds after 20 seconds of power on, and the flashing prompt will complete the code matching Decoding: Press and hold the flashing prompt for 5 seconds after 20 seconds of power on, and the decoding is completed PMN:Wirelesscontroller HVIN:YH-UAC088-A0 ISED Statement English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. l'appareil numérique du ciem conforme canadien peut - 3 (b) / nmb - 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contrôlé. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. This radio transmitter has beenapproved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having again greater than the maximum gain indicated for that type, are strictly prohibited foruse with this device. Le présent émetteur radio a étéapprouvé par Industrie Canada pour fonctionner avec les types d'antenne énumérésci- dessous et ayant un gain admissible maximal. Les types d'antenne non inclus danscette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictementinterdits pour l'exploitation de l'émetteur. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Attestation Statements

Dongguan Yihong Hardware electronics Co., LTD Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/15/2024 U.S. Agent Designation Dongguan Yihong Hardware electronics Co., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A595YH-UAC088): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Dongguan Yihong Hardware electronics Co., LTD. Dongguan Yihong Hardware electronics Co., LTD with the FRN 0032222168 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Wen Feng Zeng Manager Dongguan Yihong Hardware electronics Co., LTD Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Cover Letter(s)

Sincerely, Name/Title： Wen Feng Zeng/Manager Company: Dongguan Yihong Hardware electronics Co., LTD Address: Room 1106, No.2 Shangheng Road, Chang 'an Town, Dongguan, Guangdong, 523880 China Phone: 0769 88499843 Fax: 0769 88499843 E-Mail: [email protected]

External Photos

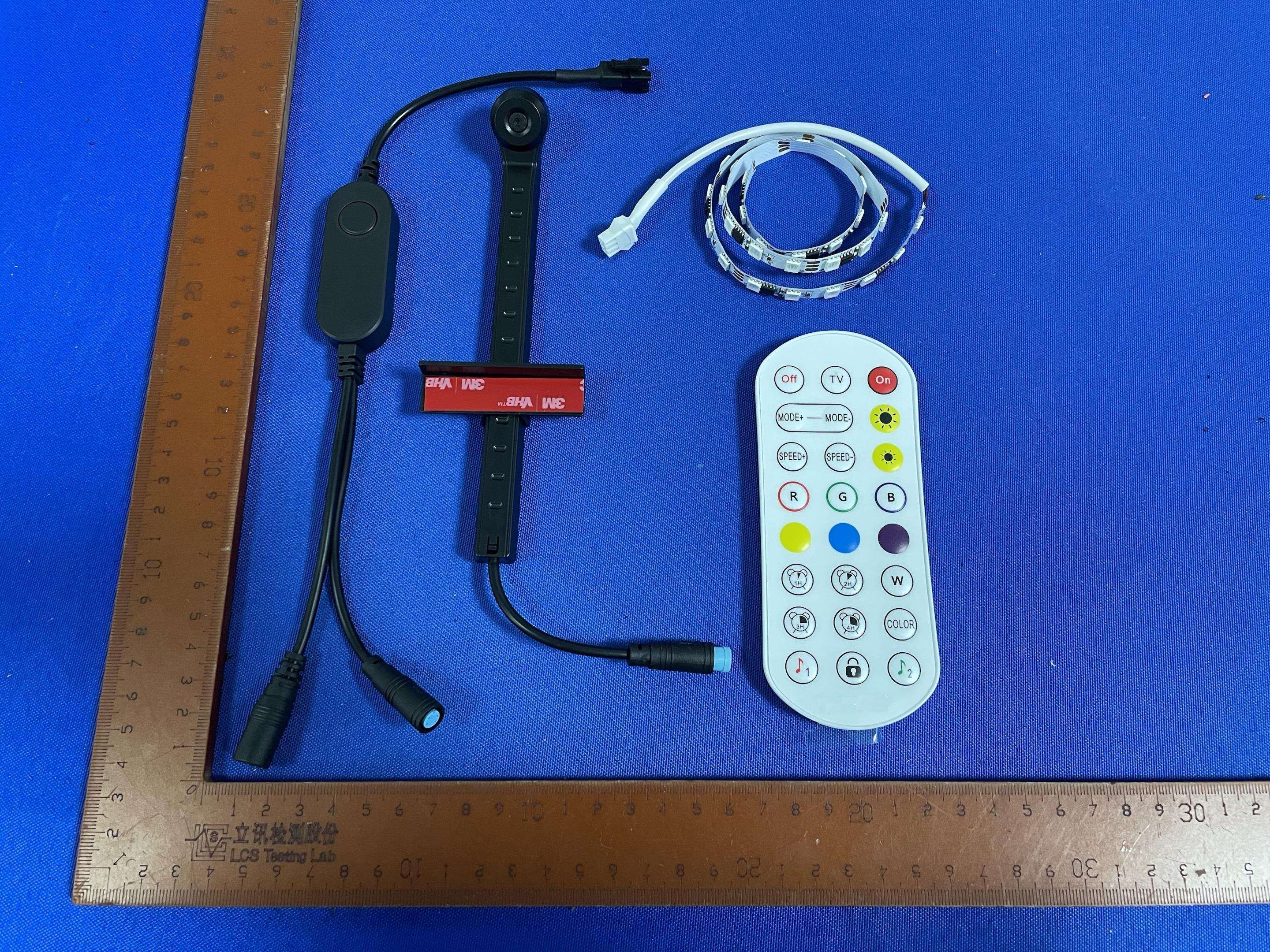

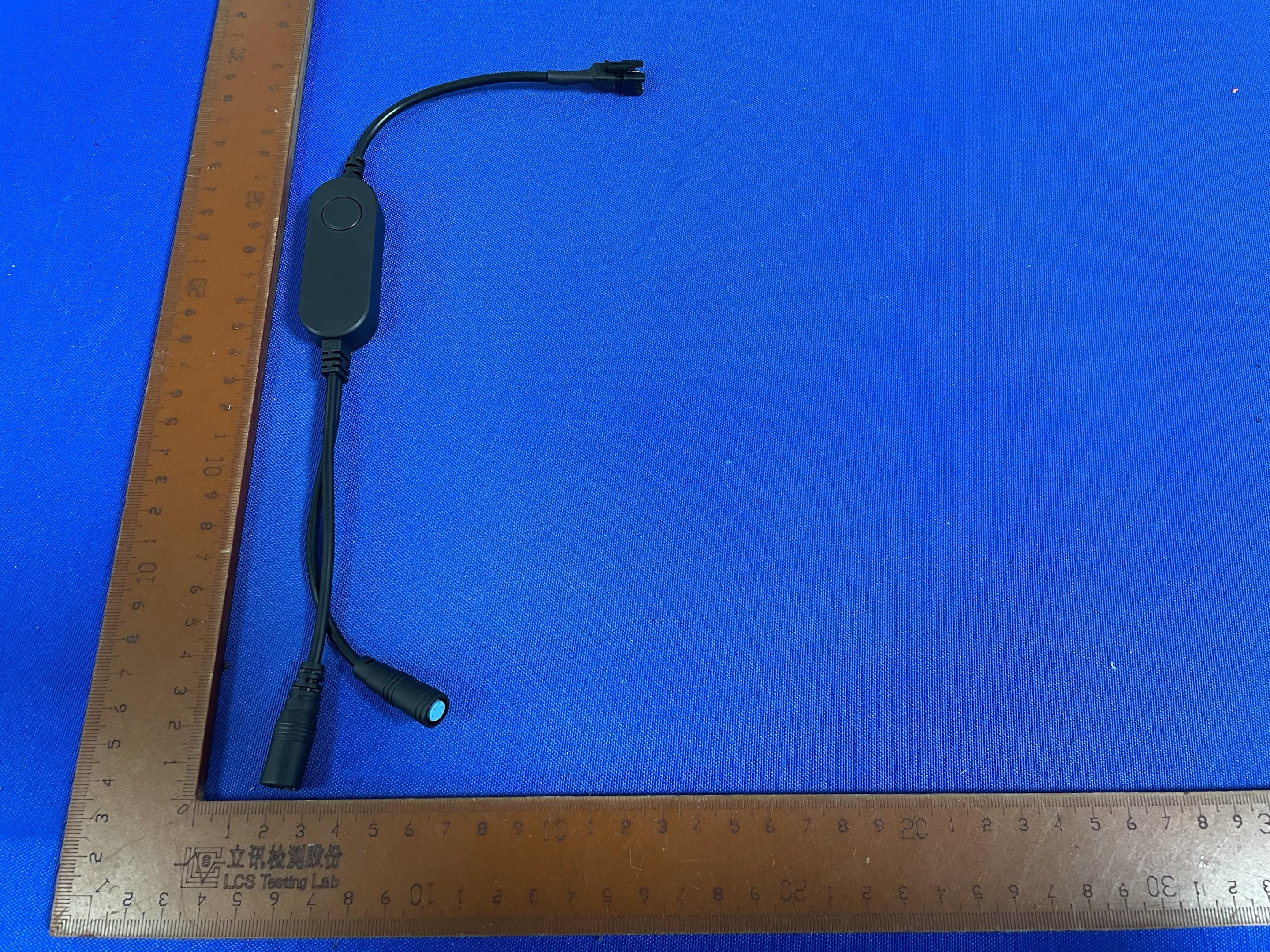

Page1of4FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7

ID Label/Location Info

Page1of1FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L2.0cmxW1.0cm) LabelLocation Wirelesscontroller Model:YH-UAC088-A0 FCCID:2A595YH-UAC088

Internal Photos

RF Exposure Info

Page1of3FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation EUT:Wirelesscontroller TestModel:YH-UAC088-A0 AdditionalModelNo.:YH-088-24-44 ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethesame,Sono additionalmodelsweretested Ratings:Input:DC5-24V,6000mA Output:DC5-24V,6000mA HardwareVersion:/ SoftwareVersion:/ BluetoothFrequencyRange:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV5.0(DTS) ChannelSpacing:2MHzforBluetoothV5.0(DTS) ModulationType:GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaDescription:PCBAntenna,0dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice Page2of3FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevice wherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissible Exposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioof eachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsand exposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthe testfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulations maybeusedtodeterminetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimple calculationsbasedonfar-fieldplane-waveequivalentconditions.Theantennainstallationandoperating requirementsforthehostdevicemustmeettheminimumtestseparationdistancesrequiredbyallantennas,inboth standaloneandsimultaneoustransmissionoperations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic,and ElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna Page3of3FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 5.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Notes InternalPCBAntenna2400MHz-2500MHz0dBiBTAntenna 6.ConductedPower [BTLE] ModeChannelFrequency(MHz) PeakConductedOutputPower (dBm) GFSK 002402-0.89 1924400.69 392480-0.42 7.ManufacturingTolerance [BTLE] GFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)000 Tolerance±(dB)1.01.01.0 8.MeasurementResults 8.1StandaloneMPEEvaluation AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromanybodypart oftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparationdistance,r=20cm, aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensitycanbeobtained. [BTLE] ModulationType OutputpowerAntenna Gain (dBi) AntennaGain (linear) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW BTLE1.0 1.2589 01.00000.00031.0000 Remark: 1.Outputpowerincludingtune-uptolerance; 2.Outputpowerwasadjusttodutycycleat100%ifmeasureddutycyclelessthan98%; 3.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 8.2SimultaneousTransmissionMPEEvaluation TheEUTequipedwithonemoduleandoneantenna.Sononeedconsidersimultaneoustransmission. 9.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRFExposureofmobile device. ----------------THEENDOFREPORT---------------

Test Report

Antenna describe 1. Antenna describe: Antenna plate PCB ANTENNA Make name/model name PDT-002 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern

Test Report

Page1of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBLE(ConductedMeasurement) ProductName:Wirelesscontroller TestModel:YH-UAC088-A0 EnvironmentalConditions Temperature: 23.8C RelativeHumidity: 52.1% ATMPressure: 100.0kPa TestEngineer: JayLuo Supervisedby: NickPeng Page2of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.663>=0.5Pass NVNTBLE1M2440Ant10.657>=0.5Pass NVNTBLE1M2480Ant10.652>=0.5Pass Page3of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 Page4of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2480MHzAnt1 Page5of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumPeakConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNTBLE1M2402Ant1-0.8930Pass NVNTBLE1M2440Ant10.6930Pass NVNTBLE1M2480Ant1-0.4230Pass Page6of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt1 PowerNVNTBLE1M2440MHzAnt1 Page7of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt1 Page8of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaConductedPSD(dBm/3kHz)Limit(dBm/3kHz)Verdict NVNTBLE1M2402Ant1-17.488Pass NVNTBLE1M2440Ant1-16.068Pass NVNTBLE1M2480Ant1-17.178Pass Page9of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 Page10of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 Page11of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-55.69-20Pass NVNTBLE1M2480Ant1-55.07-20Pass Page12of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission Page13of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission Page14of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.5ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-54.03-20Pass NVNTBLE1M2440Ant1-55.09-20Pass NVNTBLE1M2480Ant1-54.75-20Pass Page15of23FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTest…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 34 FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For DongguanYihongHardwareelectronicsCo.,LTD Wirelesscontroller TestModel:YH-UAC088-A0 AdditionalModelNo.:YH-088-24-44 Preparedfor:DongguanYihongHardwareelectronicsCo.,LTD Address: Room1106,No.2,ShanghengRoad,Chang’anTown, Dongguan,Guangdong Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:August05,2024 Numberoftestedsamples:2 SampleNo.:A240410038-1,A240410038-2 Serialnumber:Prototype DateofTest:August05,2024~August07,2024 DateofReport:August08,2024 Page 2 of 34 FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA04164079EA DateofIssue.......................................:August08,2024 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:DongguanYihongHardwareelectronicsCo.,LTD Address................................................:Room1106,No.2,ShanghengRoad,Chang’anTown, Dongguan,Guangdong TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................: TRF-4-E-145A/0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................: Wirelesscontroller TradeMark..........................................: YH TestModel...........................................: YH-UAC088-A0 Ratings.................................................:Input:DC5-24V,6000mA Output:DC5-24V,6000mA Result...................................................: Positive Compiledby:Supervisedby:Approvedby: LiHuan/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page 3 of 34 FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestModel...............................:YH-UAC088-A0 EUT.........................................:Wirelesscontroller Applicant...............................:DongguanYihongHardwareelectronicsCo.,LTD Address..................................:Room1106,No.2,ShanghengRoad,Chang’anTown, Dongguan,Guangdong Telephone...............................:/ Fax..........................................:/ Manufacturer........................:DongguanYihongHardwareelectronicsCo.,LTD Address...................................:Room1106,No.2,ShanghengRoad,Chang’anTown, Dongguan,Guangdong Telephone...............................: / Fax..........................................: / Factory...................................:DongguanYihongHardwareelectronicsCo.,LTD Address...................................: Room1106,No.2,ShanghengRoad,Chang’anTown, Dongguan,Guangdong Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA04164079EA August08,2024 Dateofissue Page 4 of 34 FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000August08,2024InitialIssue--- Page 5 of 34 FCCID:2A595YH-UAC088ReportNo.:LCSA04164079EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.................................................................................................................................7 1.3.EXTERNALI/OCABLE..........…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of2FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2A595YH-UAC088 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3

Contact Information

Applicant

Wen Feng Zeng(Manager)

[email protected]0769 88499843Fax: 0769 88499843

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.20 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
